 Transmission/Transfer Case  5-31

®

05745159

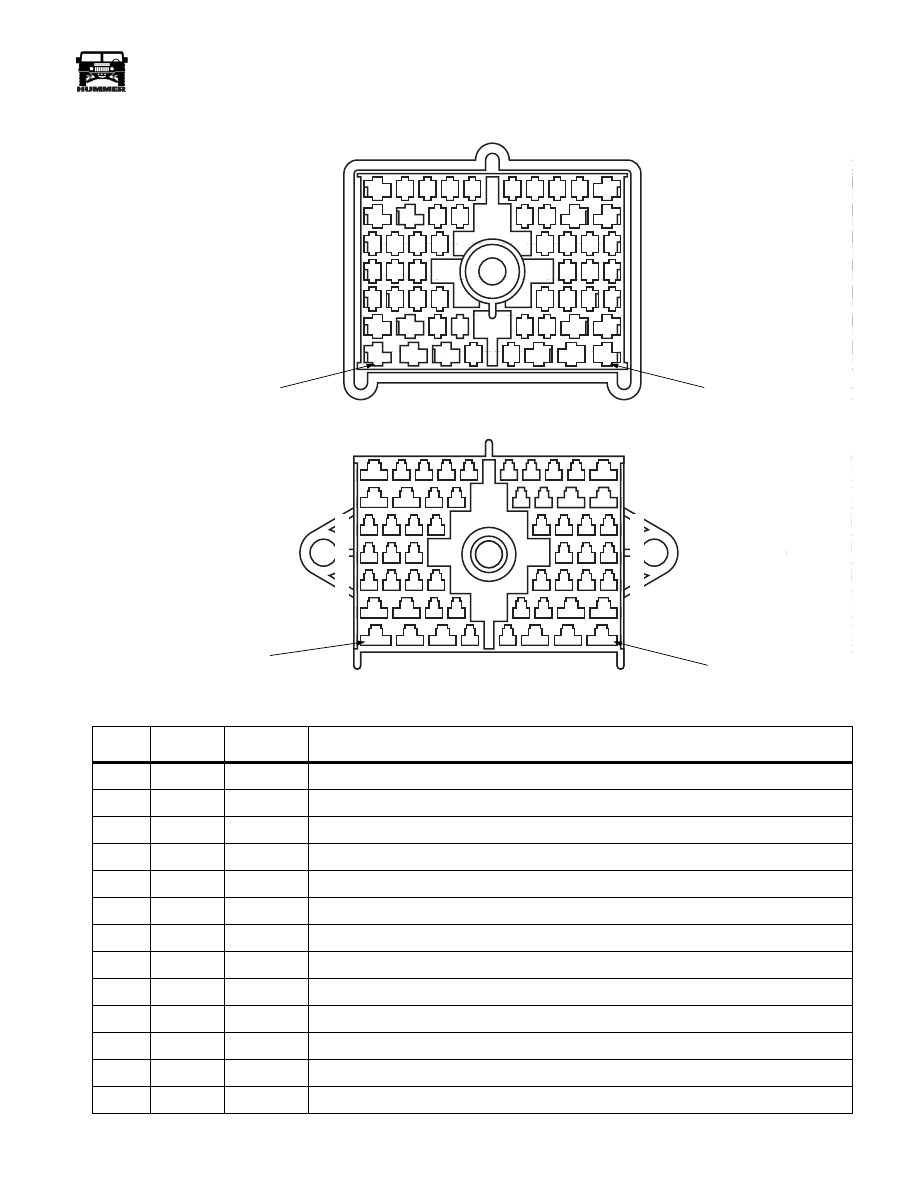

56 WAY INSTRUMENT PANEL  LOCATION: BEHIND INSTRUMENT PANEL

PIN

CKT

COLOR

DESCRIPTION

A1

195

YL

Headlight switch feed

A2

54

DG

Dome lamp switch feed

A3

53

DB

Dome lamps feed

A4

67

BR

Rear wiper relay activation (not used 99)

B1

38

RD

Headlamp switch feed

B2

15

WH

Headlamp feed to dimmer module

B3

640

OR

CTIS switch ignition feed

B4

46

WH

CTIS compressor indicator lamp activation

C1

450

PK

Seat belt lamp activation

C2

47

LG

Deflate solenoid activation

C3

91

TN

Front inflate solenoid activation

C4

92

GY

Rear inflate solenoid activation

D1

338

DB

Glow plug wait lamp activation

C3 MALE

9-S12-050

E

G

F

D

C

B

A

M

P

N

L

K

J

H

1

2

3

4

5

10

9

8

7

6

PIN A1

PIN H6

C3 FEMALE

9-S12-049

E

G

F

D

C

B

A

M

P

N

L

K

J

H

6

7

8

9

10

5

4

3

2

1

CAV H6

CAV A1

5-32

Transmission/Transfer Case

_____________________________________________

®

D2

2

LG

Right turn indicator lamp activation

D3

961

PP

TT4 indicator lamp activation

E1

42

BR

Brake indicator lamp activation

E2

603

RD

ABS indicator lamp activation

E3

793

YL

Low washer fluid activation

E4

943

TN

Rear Wiper feed (not used 99)

F1

12

OR

High Beam indicator lamp activation

F2

3

LB

Left turn indicator lamp activation

F3

658

BR

Check engine lamp activation

F4

327

YL

Drain Filter lamp activation

G1

517

PK

Power mirror switch battery feed

G2

210

DG

Transfer case lock lamp activation

G3

794

RD

Low coolant lamp activation

G4

428

PK

Low tire air lamp activaion

G5

714

DB

Check throttle lamp activation

H6

14

LB

Headlamp switch feed

H7

65

YL

Ignition feed to intermittent wiper switch

H8

61

RD

High speed windshield wiper signal

H9

17

PP

+ from dimmer module

J6

63

DG

Low speed windshield wiper signal

J7

27

OR

Intermittent wiper signal

J8

948

DG/YL

Left hand power mirror up/down signal

J9

947

DB/YL

Left hand power mirror left/right signal

K6

942

OR/BK

Left hand power mirror common +/–

K7

19

YL

Power supply to dimmer module

K8

944

OR

Right hand power mirror common +/–

K9

644

YL

Tachometer signal

L6

476

GY

Clock battery feed

L7

31

TN

Oil pressure signal to guage

L8

952

DB

Right hand power mirror left/right signal

M6

789

BR

Fuel selector valve control

M7

786

RD

Fuel selector valve control

M8

787

GY

Fuel selector switch feed from fuel pump relay

M9

953

DG

Right hand power mirror up/down signal

N6

59

BK

Ground

PIN

CKT

COLOR

DESCRIPTION

____________________________________________

 Transmission/Transfer Case  5-33

®

05745159

N7

30

GY

Ignition feed to guages

N8

941

TN

Windshield wiper washer pump activation

N9

945

BR

Intermittent wiper relay activation

P6

55

OR

Rear cargo lamp activation

P7

29

PK

Fuel guage signal

P8

39

DG

Engine temperature guage signal

P9

353

YL

Speedometer signal

P10

59

BK

Ground

PIN

CKT

COLOR

DESCRIPTION

5-34

Transmission/Transfer Case

_____________________________________________

®

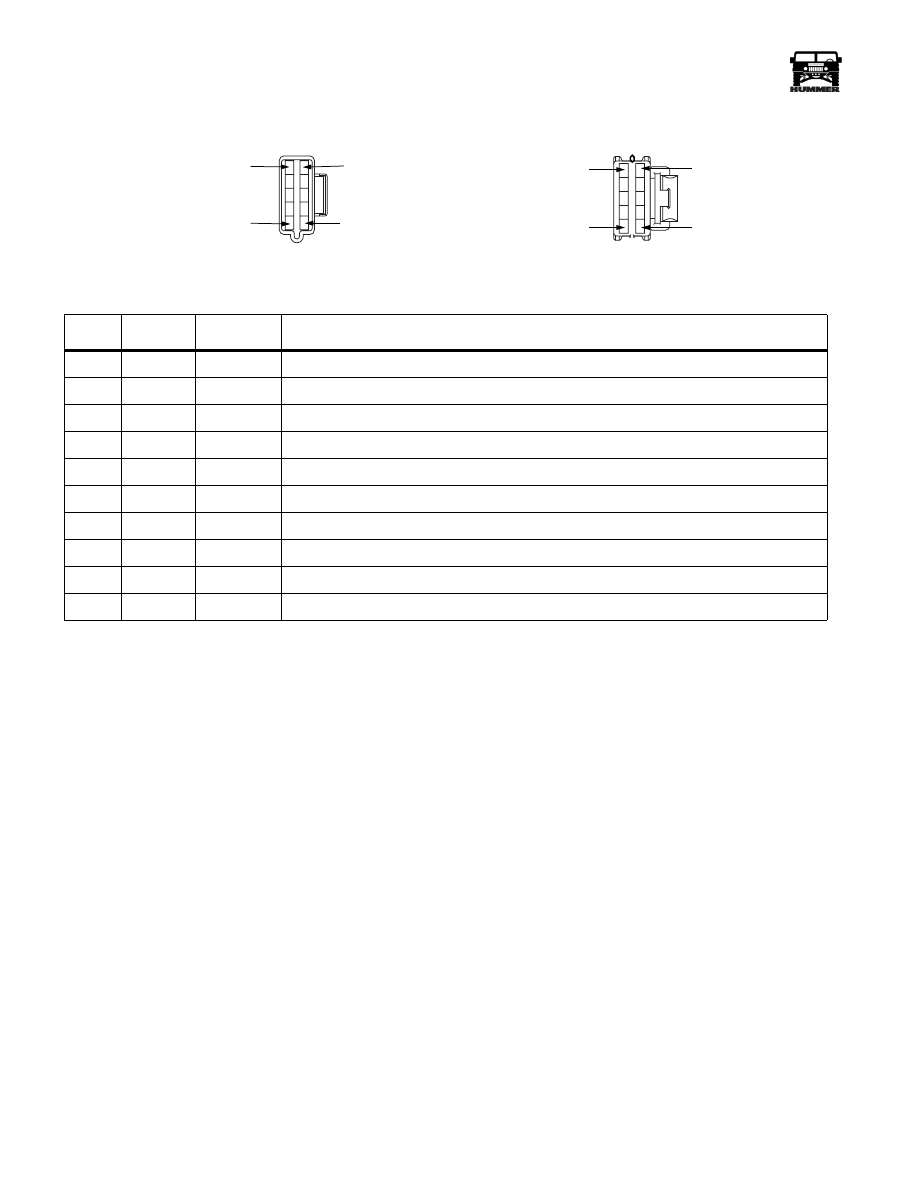

8 WAY STATUS CENTER-LH  LOCATION: INSTRUMENT PANEL

PIN

CKT

COLOR

DESCRIPTION

A

12

OR

Headlamp high beam

B

3

LB

Left turn lamp

C

658

BR

Check engine lamp

D

327

YL

Drain filter lamp

E

603

RD

ABS lamp

F

450

PK

Seat belt lamp

G

46

WH

CTIS pump lamp

H

714

DB

Check throttle lamp

J

30

GY

Ignition feed

K

59

BK

Ground

9-S12-017

9-S12-018

F

K

C10 MALE

A

E

K

A

F

E

C10 FEMALE
