№		Номер детали	Наименование запчасти
1		WG99100270117 [Ring]	Ring
2		190003559766 [Double nozzle]	Double nozzle
3		190003559486 [Nozzle]	Nozzle
4		190003559462 [Nozzle]	Nozzle
5		190003559496 [Angle piece]	Angle piece
6		190003559497 [Angle piece]	Angle piece
7		190003559482 [T-nozzle]	T-nozzle
8		Q351C 12T15 [Nut]	Nut
9		190003559472 [Nozzle]	Nozzle
10		T088100 [Double nozzle]	Double nozzle

REPAIR KIT (B10-15) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199100360732 [Trailer contrd valver Repair kit]	Trailer contrd valver Repair kit
2		199000360749 [Service brake valve Repair kit]	Service brake valve Repair kit
3		199100360734 [4-Cir.Protection valve Repair kit]	4-Cir.Protection valve Repair kit
4		199100360727 [Hand brake valve Repair kit]	Hand brake valve Repair kit
5		199014360808 [Realy valve Repair kit]	Realy valve Repair kit
6		199100360736 [Spring brake actuator Repair kit]	Spring brake actuator Repair kit

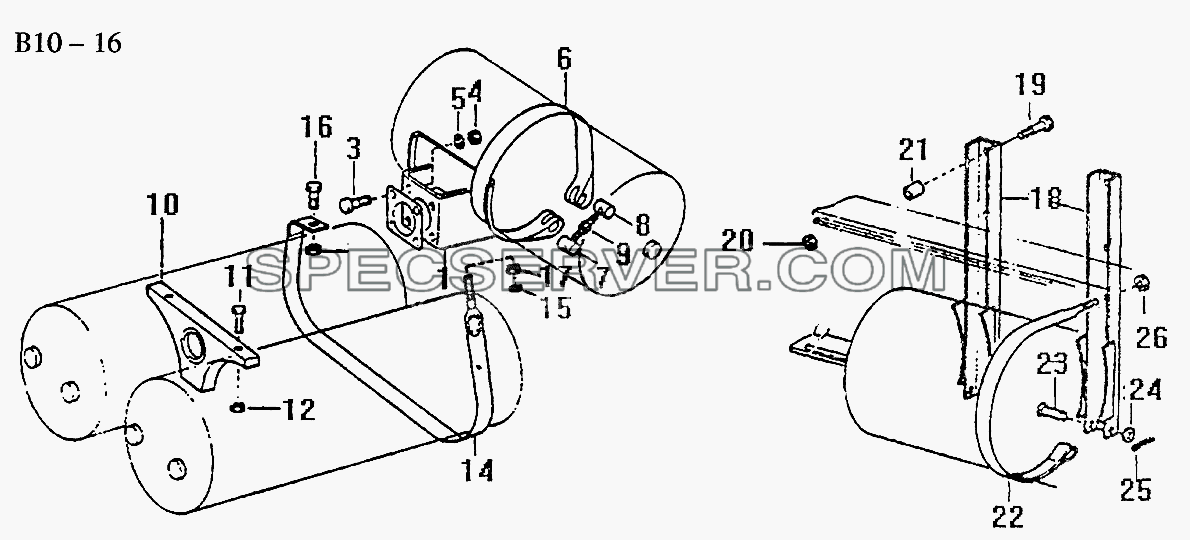

AIR RESERVOIR FIXATION (B10-16) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199018360106 [Distance piece]	Distance piece
-		199018360107 [Tension strap]	Tension strap
1		199100360105 [Bracket]	Bracket
3		Q150B0830 [Bolt]	Bolt
4		Q340B08 [Nut]	Nut
5		Q40308 [Spring washer]	Spring washer
6		WG99112270012 [Tension strap]	Tension strap
7		WG700 550013 [Tension bolt]	Tension bolt
8		WG09 190017 [Tension bolt]	Tension bolt
9		Q218B0880 [Screw]	Screw
10		199100360101 [Distance piece]	Distance piece
11		Q150B0616 [Bolt]	Bolt
12		Q340B06 [Nut]	Nut
14		WG99100360173 [Tension strap]	Tension strap
15		Q40310 [Spring washer]	Spring washer
16		Q150B1025 [Bolt]	Bolt
17		Q340B10 [Nut]	Nut
18		AZ9118360004 [Bracket]	Bracket
19		Q150B1055 [Bolt]	Bolt
20		Q33210 [Nut]	Nut
21		1293 250096 [Distance piece]	Distance piece
22		199118360019 [Tension strap]	Tension strap
23		Q5101048 [Bolt]	Bolt
24		Q40110 [Washer]	Washer
25		Q5003214 [Split pin]	Split pin
26		Q33210 [Air reservior]	Air reservior
30		WG9100360044 [Air reservior]	Air reservior
31		WG900355D097 [Air reservior]	Air reservior
32		WG9003550087 [Air reservior]	Air reservior
33		WG9003550094 [Air reservior]	Air reservior
34		WG9014362009 [Air reservior]	Air reservior

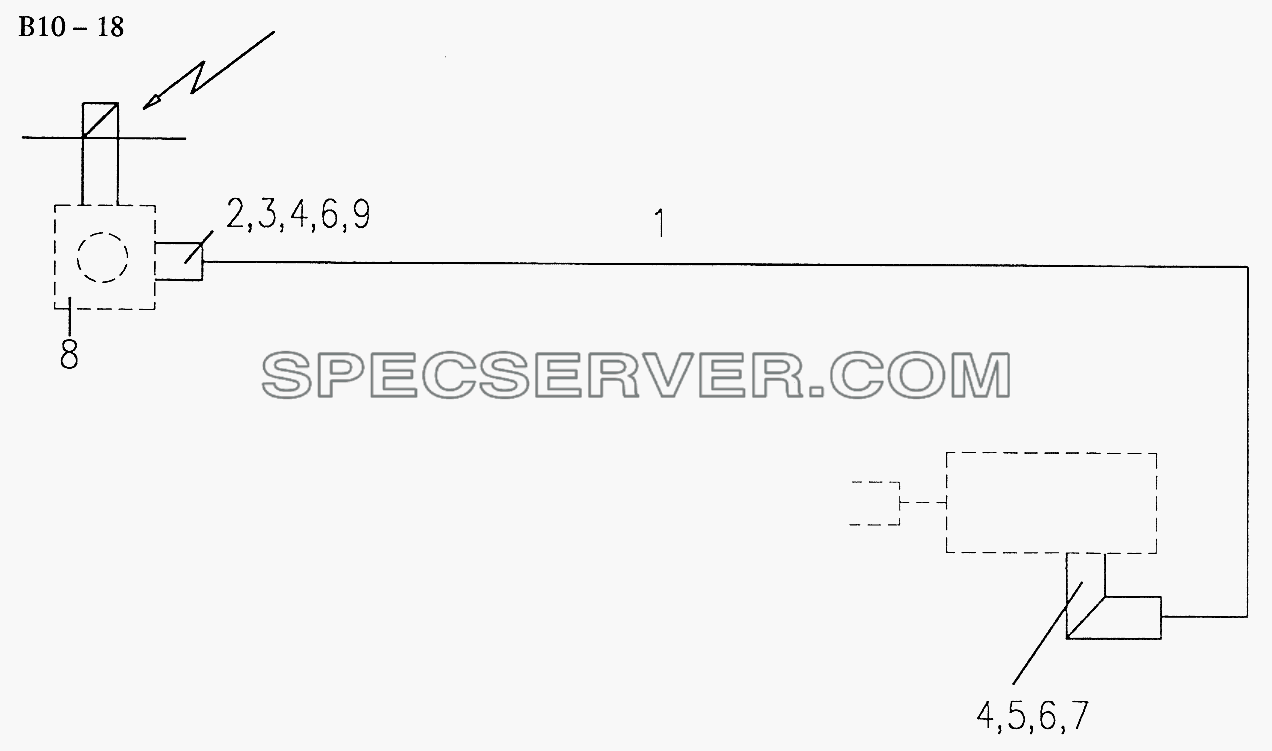

AXLE PNEU. DIFF. LOCK (B10-18) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003179782 [Plastic pipe]	Plastic pipe
2		190003559766 [Double nozzle]	Double nozzle
3		199000360477 [Gasket]	Gasket
4		199014280016 [Sleeve]	Sleeve
5		190003559497 [Nozzle]	Nozzle
6		190003559561 [Cutting ring]	Cutting ring
7		190003559508 [Union nut]	Union nut
8		WG9100710008 [Solenoid valve]	Solenoid valve
9		190003559516 [Union nut]	Union nut
10		WG9100361003 [Angle Nozzle]	Angle Nozzle

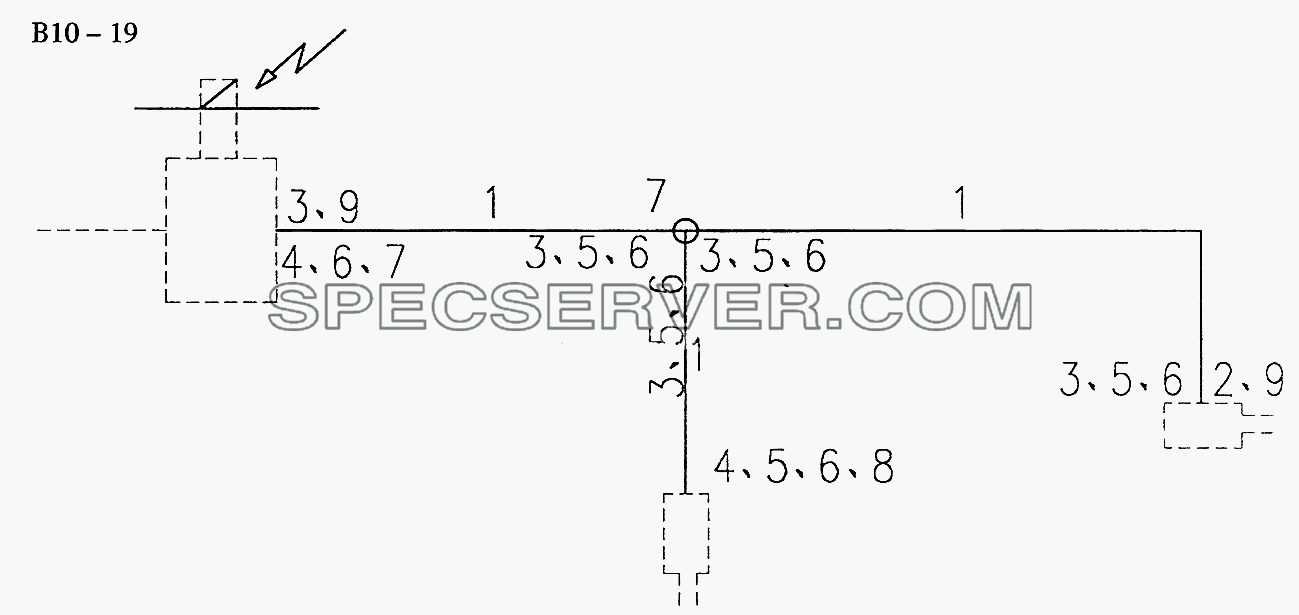

6x4, 8x4 WHEEL PNEU. DIFF. LOCK (B10-19) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003179782 [Plastic tube]	Plastic tube
2		190003559766 [Double nozzle]	Double nozzle
3		190003559516 [Union nut]	Union nut
4		190003559508 [Union nut]	Union nut
5		190003559561 [Cutting ring]	Cutting ring
6		199014280016 [Sleeve]	Sleeve
7		190003559482 [Nozzle]	Nozzle
8		190003559497 [Nozzle]	Nozzle
9		Q72312TSF [Gasket]	Gasket

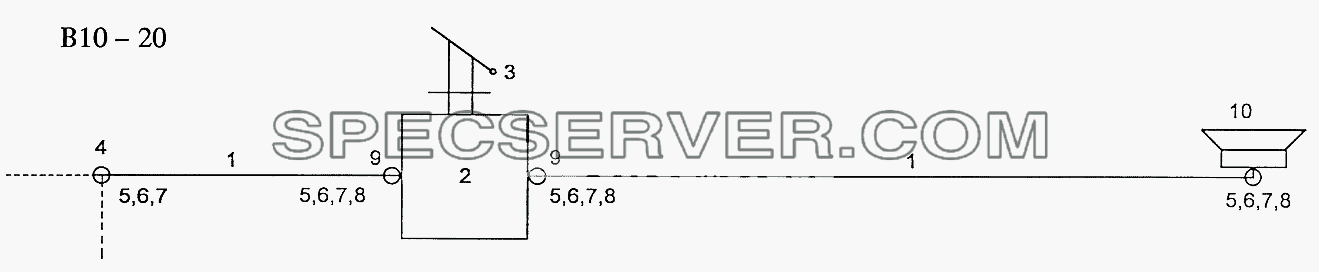

PENUMATIC HORN (B10-20) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003179782 [Plastic tube]	Plastic tube
2		WG9000360150 [Pressure valve]	Pressure valve
3		190003098033 [Gasket]	Gasket
4		190003559482 [Nozzle]	Nozzle
5		190003559516 [Union nut]	Union nut
6		190003559561 [Cutting ring]	Cutting ring
7		199014280016 [Sleeve]	Sleeve
8		Q72312TSF [Gasket]	Gasket
9		190003559766 [Double nozzle]	Double nozzle
10		WG9100270066 [Horn]	Horn
