№		Номер детали	Наименование запчасти
-		AZ9719470050 [Steering tube assembly]	Steering tube assembly
-		WG9130583018 [Ring]	Ring
1		AZ9719470100 [Steering wheel]	Steering wheel
2		AZ9130583024 [Touch ring]	Touch ring
3		Q351B22T15 [Nut]	Nut
4		Q41822 [Spring washer]	Spring washer
6		Q43125 [Snap ring]	Snap ring
7		AZ9003320012 [Ball bearing]	Ball bearing
8		AZ9719470053 [Steering shaft]	Steering shaft
9		WG9130583019 [Start switch]	Start switch
10		Q150B0530 [Screw]	Screw
11		Q340B05 [Nut]	Nut
12		81.95801.0071 [Roller]	Roller
13		81.46433.0005 [Clip]	Clip
14		AZ9719470051 [Sleeve]	Sleeve
15		AZ9123470129 [Spring]	Spring
16		AZ9123470130 [Washer]	Washer
17		AZ9100470424 [Support]	Support
18		Q150B0865 [Screw]	Screw
19		AZ9719470041 [Cover of the steering column rear]	Cover of the steering column rear
20		Q2720412 [Screw]	Screw
21		AZ9719470057 [Screw]	Screw
22		Q40316 [Spring washer]	Spring washer
23		AZ9719470058 [Plate]	Plate
24		AZ9719470055 [Adjusting screw]	Adjusting screw
25		AZ9123470153 [Spring]	Spring
26		AZ9719470052 [Bracket for electrical line]	Bracket for electrical line
27		Q150B0408 [Screw]	Screw
28		Q40304 [Spring washer]	Spring washer
29		Q40104 [Washer]	Washer
30		AZ9719470042 [Cover of the steering column front]	Cover of the steering column front
31		Q2714250 [Screw]	Screw
32		AZ9123470150 [Hand wheel]	Hand wheel
33		AZ9123470155 [Washer]	Washer
34		AZ9719470054 [Sleeve]	Sleeve
35		AZ9719470056 [Support]	Support
36		Q150B0830 [Screw]	Screw
37		Q340B08 [Nut]	Nut
38		Q40308 [Spring washer]	Spring washer
39		Q40108 [Washer]	Washer
40		AZ9003320013 [Ball bearing]	Ball bearing
41		Q43130 [Snap ring]	Snap ring
42		81.91710.0459 [Ring]	Ring
43		Q43042 [Snap ring]	Snap ring
44		AZ9719470043 [Gimbal-assembly]	Gimbal-assembly
45		AZ9719470044 [Telescopic shaft]	Telescopic shaft
46		Q199B0616 [Screw]	Screw
47		Q340B06 [Nut]	Nut
48		Q40306 [Spring washer]	Spring washer
49		Q40106 [Washer]	Washer
50		AZ9719470045 [Bellow]	Bellow
51		AZ9719470046 [Plate]	Plate
52		AZ9100470410 [Bush]	Bush

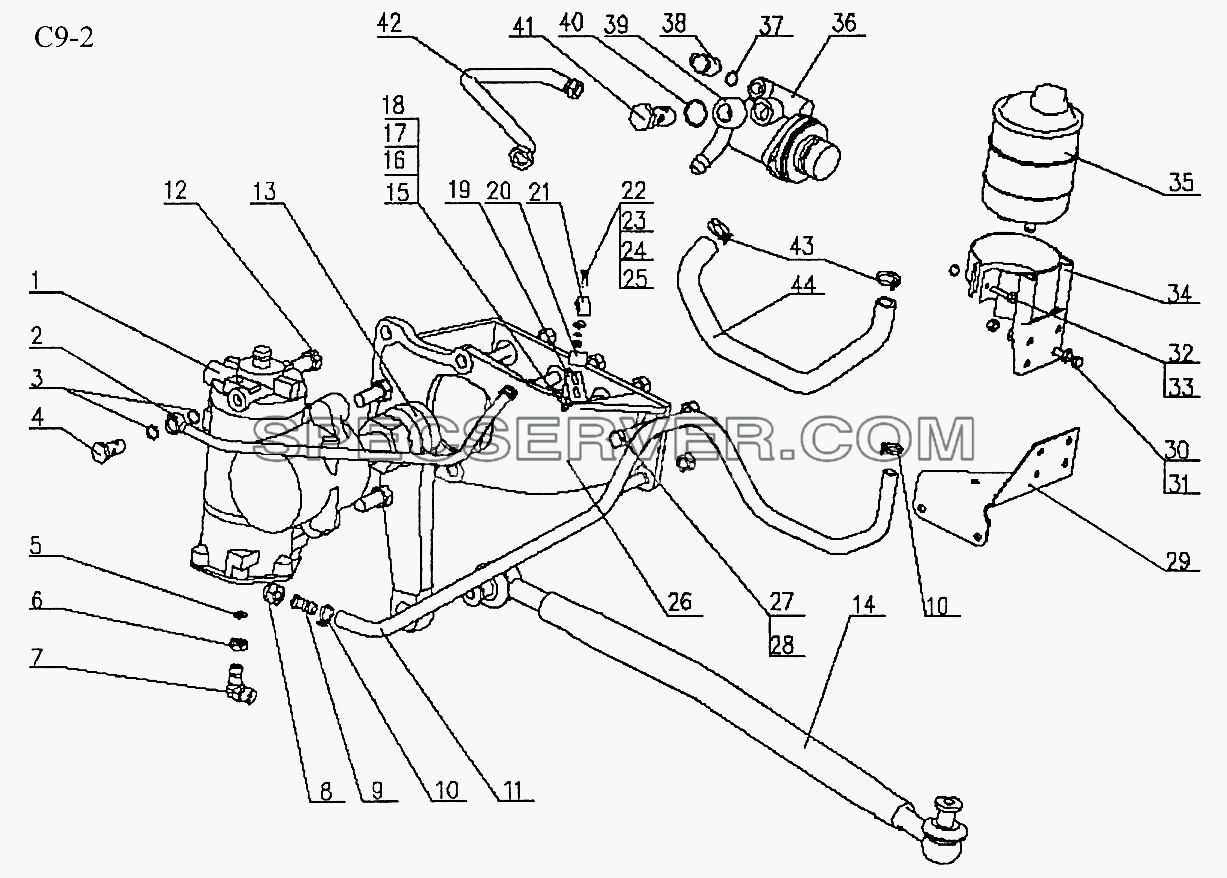

4x2, 6x4 HYDRAULIC STEERING SYSTEM (C9-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		161800130047 [Gasket]	Gasket
-		17017470015 [Spring protect ring]	Spring protect ring
-		AZ9123360300 [Protect sleeve]	Protect sleeve
-		AZ9725470084 [Spring protect ring]	Spring protect ring
-		Q218B1025 [Screw]	Screw
-		Q218B1035 [Screw]	Screw
1		AZ9100470225 [Steering gear (ZF8095)]	Steering gear (ZF8095)
1		AZ9719470228 [Steering gear (ZF8098)]	Steering gear (ZF8098)
1		WG9716470150 [Steering gear (ZF8098)]	Steering gear (ZF8098)
2		AZ9716470050 [Delivery line]	Delivery line
2		AZ9719470029 [Delivery line]	Delivery line
2		AZ9725470229 [Delivery line]	Delivery line
3		T071800 [Gasket]	Gasket
4		190003962632 [Female screw]	Female screw
5		252-3407054 [Gasket]	Gasket
6		252-3407055 [Nut]	Nut
7		252-3407056 [Nozzle]	Nozzle
8		190003883242 [Nut]	Nut
9		WG9100470078 [Nozzle]	Nozzle
10		190003989336 [Hose clamp]	Hose clamp
11		AZ9716470060 [Rubber hose]	Rubber hose
11		WG9725470050 [Rubber hose]	Rubber hose
12		Q151B2045TF2 [Screw]	Screw
13		WG9716470020 [Drop arm]	Drop arm
13		WG9719470020 [Drop arm]	Drop arm
13		WG9725470298 [Drop arm]	Drop arm
15		Q150B0630 [Screw]	Screw
16		Q340B06 [Nut]	Nut
17		Q40206 [Washer]	Washer
18		Q40306 [Spring washer]	Spring washer
19		1397 350169 [Angle]	Angle
20		190003489292 [Sleeve]	Sleeve
21		Q68225 [Clamp]	Clamp
22		Q150B0620 [Screw]	Screw
23		Q340B06 [Nut]	Nut
24		Q40306 [Spring washer]	Spring washer
26		AZ9725470238 [Steering bracket]	Steering bracket
26		AZ9725470295 [Steering bracket]	Steering bracket
26		AZ9731470020 [Steering bracket]	Steering bracket
27		Q151B1660TF2 [Screw]	Screw
28		190003888627 [Nut]	Nut
29		AZ9725470020 [Bracket assembly]	Bracket assembly
29		AZ9725470025 [Bracket assembly]	Bracket assembly
30		Q151B1020 [Screw]	Screw
31		Q33210 [Nut]	Nut
32		Q150B0835 [Serew]	Serew
33		Q33208 [Nut]	Nut
34		AZ9100470040 [Bracket]	Bracket
34		AZ9100470049 [Support]	Support
35		WG9719470033 [Oil tank]	Oil tank
36		WG9619470080 [Hydraulic pump]	Hydraulic pump
36		WG9631470060 [Hydraulic pump]	Hydraulic pump
36		WG9719470037 [Hydraulic pump]	Hydraulic pump
37		T071800 [Gasket]	Gasket
38		WG9100470110 [Screwing]	Screwing
39		WG9100470076 [Joint]	Joint
40		190003098031 [Gasket]	Gasket
41		190003962651 [Female screw]	Female screw
42		AZ9716470070 [High pressure hose]	High pressure hose
42		WG2032470140 [High pressure hose]	High pressure hose
42		WG9100470107 [High pressure hose]	High pressure hose
43		190003989301 [Hose clamp]	Hose clamp
44		AZ9725470175 [Hose]	Hose
44		WG9725470120 [Hose]	Hose

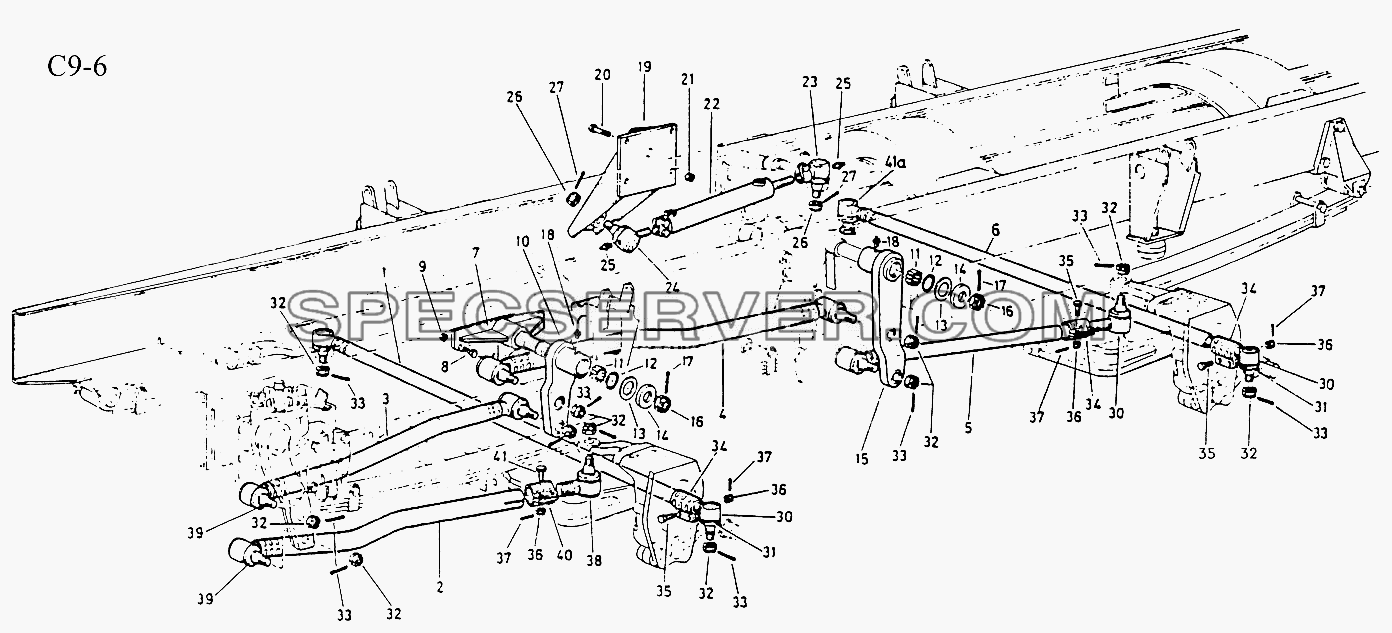

8x4 STEERING LINKAGE (C9-6) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		11031430066 [Tie rod]	Tie rod
2		AZ9731430010 [Drag link]	Drag link
3		AZ9731430020 [Drag link]	Drag link
4		AZ9731430030 [Drag link]	Drag link
5		AZ9731430040 [Drag link]	Drag link
6		AZ9731430002 [Tie rod]	Tie rod
7		AZ9731470035 [Support plate]	Support plate
8		Q151B1445 [Screw]	Screw
9		Q33014 [Lock nut]	Lock nut
10		AZ9731470030 [Lever]	Lever
11		WG90 410228 [Needle bearing]	Needle bearing
12		1880 340023 [O-ring]	O-ring
13		199018470014 [Washer]	Washer
14		199018470015 [Washer]	Washer
15		WG018470016 [Lever]	Lever
16		190003872383 [Castle nut]	Castle nut
17		Q5006350 [Split pin]	Split pin
18		19000396612 [Grease nipple]	Grease nipple
19		199018510018 [Blacket]	Blacket
20		Q151B1445 [Screw]	Screw
21		Q33014 [Lock nut]	Lock nut
22		WG9014470008 [Operating cylinder]	Operating cylinder
23		AZ9118470025 [Ball joint C]	Ball joint C
24		AZ9115470024 [Ball joint C]	Ball joint C
25		190003963112 [Grease nipple]	Grease nipple
26		Q387B20T15 [Castle nut]	Castle nut
27		Q5004036 [Split pin]	Split pin
32		Q387B20T15 [Castle nut]	Castle nut
33		Q5004036 [Split pin]	Split pin
34		199118470037 [Clamp]	Clamp
35		Q151C1255 [Screw]	Screw
36		Q341C12 [Lock nut]	Lock nut

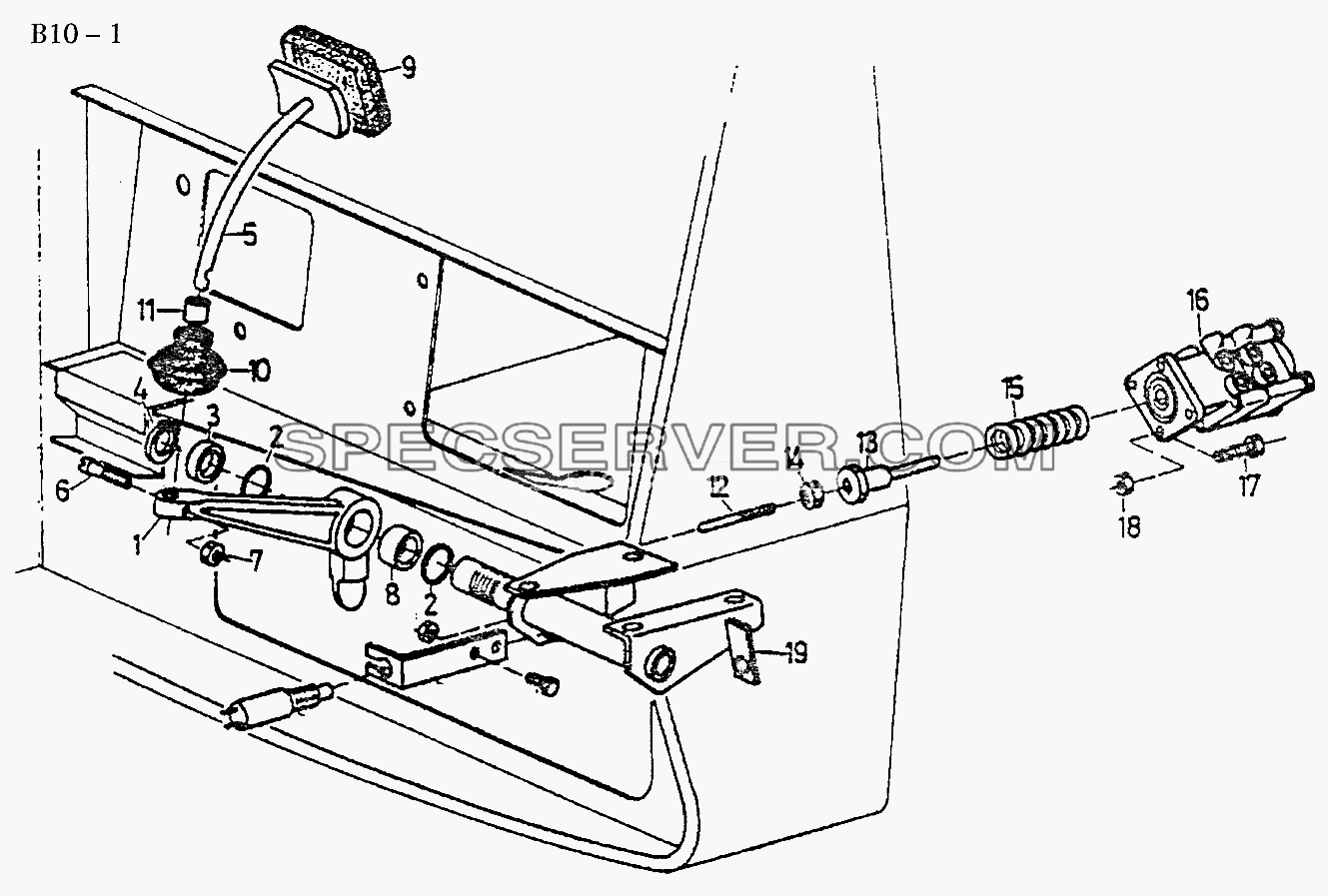

BRAKE MECHANISM (B10-1) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9100360427 [Brake foot pedal]	Brake foot pedal
2		1288 470029 [Gasket]	Gasket
3		1113 010023 [Support]	Support
4		Q43132 [Circlip]	Circlip
5		199100360128 [Push rod]	Push rod
6		11700 230009 [Bolt]	Bolt
7		Q33208 [Nut]	Nut
8		1880 360075 [Bush]	Bush
9		1880 230031 [Rubber]	Rubber
10		1681 270244 [Pedal sealing]	Pedal sealing
11		WG81 270245 [Sleeve]	Sleeve
12		WG9100360424 [Push rod]	Push rod
13		WG9100360425 [Push rod]	Push rod
14		Q340B08 [Nut]	Nut
15		189200320043 [Pressure spring]	Pressure spring
16		WC9000360152 [Service brake valve]	Service brake valve
17		Q150B0830 [Bolt]	Bolt
18		Q33208 [Nut]	Nut
19		199100230105 [Bracket]	Bracket

VALVE, SPECIAL HOSE (B10-10) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9000360115 [Drain valve]	Drain valve
2		WG9000360112 [Check valve]	Check valve
3		WG9000360134 [Relay valve]	Relay valve
4		WG9000360100 [Diaphram chamber]	Diaphram chamber
5		WG9000360101 [Diaphram chamber]	Diaphram chamber
6		WG9000360165 [Hand brake valve]	Hand brake valve
7		WG9000360366 [4-ciIcuit protection valve]	4-ciIcuit protection valve
8		WG9000360170 [Coupling]	Coupling
9		WG9000360171 [Coupling]	Coupling
10		WG9000360152 [Service brake valve]	Service brake valve
11		WG9100360303 [Spring brake actuator]	Spring brake actuator
12		WG9000360180 [Trailer control valve]	Trailer control valve
13		WG9000360412 [Air dryer]	Air dryer
14		WG9000360314 [Test connector]	Test connector
15		WG017360450 [Hose]	Hose
16		WG017360460 [Hose]	Hose
17		WG017360470 [Hose]	Hose
18		WG1736C1480 [Hose]	Hose
19		WG9100360184 [Hose]	Hose
20		WG9000360150 [Pressure valve]	Pressure valve
21		WG17017361000 [Screwy slecve]	Screwy slecve
22		WG9123360300 [Sleeve]	Sleeve
23		WG9123360200 [Slave]	Slave
24		WG9000360140 [Screwg pipe]	Screwg pipe

PARTS FOR BRAKE (B10-11) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1188 730187 [Clamp]	Clamp
-		1280 770028 [Clamp]	Clamp
-		138091360181 [Clamp]	Clamp
-		1406 070015 [Gasket]	Gasket
-		1680 250092 [Gasket]	Gasket
-		190003098015 [Gasket]	Gasket
-		190003098031 [Gasket]	Gasket
-		190003171390 [Wire fastener]	Wire fastener
-		190003171393 [Wire fastener]	Wire fastener
-		193 760081 [Angle]	Angle
-		199000360408 [Clamp]	Clamp
-		199100360134 [Distance sleeve]	Distance sleeve
-		199100360174 [Clamp]	Clamp
-		199100360234 [Clamp]	Clamp
-		199l00360135 [Distance sleeve]	Distance sleeve
-		Q72312T5F [Gasket]	Gasket
-		WG9000360292 [Gasket]	Gasket
-		WG9100360319 [Gasket]	Gasket
