№		Номер детали	Наименование запчасти
-		Q150B1035 [Screw]	Screw
-		Q150B1460 [Screw]	Screw
37		AZ9114520091 [Stop C]	Stop C
51		AZ9114520098 [Stop bracket]	Stop bracket
51		AZ9232520003 [Stop bracket]	Stop bracket
66		AZ9114520098 [Stop bracket]	Stop bracket
66		AZ9232520002 [Stop bracket]	Stop bracket

8x4 STABLIZER, SHOCK ABSORBER FRONT (C8-6) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199100680065 [Bracket]	Bracket
-		AZ9731680007 [Connect sheet]	Connect sheet
-		AZ9731680008 [Connect sheet]	Connect sheet
-		WG9100680001 [Shock absorber]	Shock absorber
-		WG9731680006 [Shock absorber bracket C]	Shock absorber bracket C
1		AZ9719680003 [Stabilizer]	Stabilizer
2		1880 680024 [Connect plate]	Connect plate
3		WG880680027 [Plate]	Plate
4		199100680068 [Rubber bearing]	Rubber bearing
5		Q5211424 [Pin]	Pin
6		Q150B1095TF2Q [Screw]	Screw
7		Q40310 [Spring washer]	Spring washer
10		WG9100680055 [Plate]	Plate
11		199100680069 [Screw]	Screw
12		Q40214 [Washer]	Washer
13		190003888458 [Locknut]	Locknut
16		199100680057 [Screw]	Screw
17		Q40016 [Washer]	Washer
18		190003888459 [Locknut]	Locknut
19		AZ9719680013 [Bracket C]	Bracket C
20		Q151C1250 [Screw]	Screw
21		190003888457 [Locknut]	Locknut
23		AZ9731680001 [Bracket]	Bracket
24		Q151B1660 [Screw]	Screw
26		199012680025 [Joint fork]	Joint fork
27		190003933242 [Circlip]	Circlip
28		199012680009 [Screw]	Screw
30		190003888459 [Lock nut]	Lock nut
31		WG9731680005 [Shock absorber bracket C]	Shock absorber bracket C
32		Q151C1240 [Screw]	Screw
33		199100680021 [Connect sheet]	Connect sheet
34		190003888457 [Lock nut]	Lock nut
35		199100680036 [Screw]	Screw
37		190003888459 [Lock nut]	Lock nut
38		WG9114680004 [Shock absorber]	Shock absorber
39		190003963112 [Grease nipple]	Grease nipple
41		Q40316 [Spring washer]	Spring washer

FRONT AXLE (A9-1) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1880 410054 [Front axle]	Front axle
-		199112410058 [Right knuckle assembly]	Right knuckle assembly
-		1F7140.100102 [6.5T Front steering axle]	6.5T Front steering axle
-		AH1941..00101 [6.5T Front steering axle with ABS]	6.5T Front steering axle with ABS
-		AH71141.00701 [HOW0 7T Front steering axle with ABS]	HOW0 7T Front steering axle with ABS
-		AH71141.00705 [HOWO front steering axle]	HOWO front steering axle
-		AZ9719410054 [Front axle]	Front axle
-		WG9112410019 [Ring gear for ABS]	Ring gear for ABS
1		1880 410103 [Front axle STEYR]	Front axle STEYR
1		AZ9719410103 [Front axle C HOWO]	Front axle C HOWO
2		1880 410031 [Knuckle pin]	Knuckle pin
3		199112410057 [Left knuckle assembly]	Left knuckle assembly
4		1880 410060 [Stud]	Stud
5		1880 410029 [Bushing]	Bushing
6		199000410001 [Steering Arm]	Steering Arm
6		199000410045 [Steering Arm]	Steering Arm
6		199014410001 [Steering Arm]	Steering Arm
6		199114410001 [Steering Arm]	Steering Arm
6		AZ9719410001 [Steering knuckle arm]	Steering knuckle arm
7		Q33018 [Nut fastener]	Nut fastener
8		WG880 410049 [Beating]	Beating
9		1880 410041 [Tie Rod Arm (left)]	Tie Rod Arm (left)
9		AZ9160410121 [Tie Rod Arm (left)]	Tie Rod Arm (left)
10		1880 410040 [Tie Rod Arm (right)]	Tie Rod Arm (right)
10		AZ9160410120 [HOWO Tie rod arm (right)]	HOWO Tie rod arm (right)
11		1880 410038 [Brake shoe pin]	Brake shoe pin
12		Q381B27 [Castle Nut]	Castle Nut
13		Q5005050 [Cotter pin]	Cotter pin
14		AZ9100410032 [Bracket assembly (left)]	Bracket assembly (left)
15		AZ9100410036 [Bracket assembly (right)]	Bracket assembly (right)
16		1880 410035 [Bushing]	Bushing
17		AZ9100340017 [Complex bushing]	Complex bushing
18		1880 410094 [Shim]	Shim
18		1880 410095 [Shim]	Shim
18		1880 410096 [Shim]	Shim
18		1880 410097 [Shim]	Shim
18		1880 410104 [Shim]	Shim
18		1880 410105 [Shim]	Shim
18		1880 410106 [Shim]	Shim
18		1880 410107 [Shim]	Shim
18		1880 410108 [Shim]	Shim
19		1880 410052 ["O"ring]	"O"ring
20		1880 410075 [Stud]	Stud
21		Q33014 [Nut]	Nut
22		Q701B70 [Grease fitting]	Grease fitting
23		1880 410059 [Adjusting bolt]	Adjusting bolt
24		Q351B14T15 [Nut]	Nut
25		199112410009 [Front hub]	Front hub
29		AZ9100410104 [Wheel bolt]	Wheel bolt
30		WG9003889160 [Nut]	Nut
32		32314 [Bearing]	Bearing
33		32310 [Bearing]	Bearing
34		199000410114 [Spacers]	Spacers
35		AZ9100410061 [Seal]	Seal
36		Q5211016 [Pin]	Pin
37		AZ9100410062 [Washer]	Washer
38		AZ9100411140 [Knuckle lock nut]	Knuckle lock nut
39		Q5006370 [Cotter pin]	Cotter pin
40		Q151C1220 [Cap screw]	Cap screw
41		1880 410043 [Cap]	Сар
42		Q150B0816 [Cap screw]	Cap screw
43		Q40308 [Spring shim]	Spring shim
44		1880 410100 [Cap]	Сар
45		Q43056 [Spacers]	Spacers

8X4 FRONT AXLE (A9-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1880 410054 [STEYR front axle]	STEYR front axle
-		199112410058 [Right knuckle assembly]	Right knuckle assembly
-		AH71141.00107 [STEYR first front axle]	STEYR first front axle
-		AH71141.00108 [STEYR first second axle with ABS]	STEYR first second axle with ABS
-		AH71141.00108a [STEYR first second axle]	STEYR first second axle
-		AH71141.00707 [HOWO first front axle]	HOWO first front axle
-		AH71141.00708 [HOWO first second axle with ABS]	HOWO first second axle with ABS
-		AH71141.00708a [HOWO first second axle]	HOWO first second axle
-		AZ9719410054 [HOWO 7T front axle]	HOWO 7T front axle
-		WG9112410019 [Ring gear for ABS]	Ring gear for ABS
1		1880 410103 [STEYR 6.5T front axle C]	STEYR 6.5T front axle C
1		AZ9719410103 [HOWO 7T front axle C]	HOWO 7T front axle C
2		1880 410031 [King pin]	King pin
3		199112410057 [Left knuckle assembly]	Left knuckle assembly
4		1880 410060 [Double screw]	Double screw
5		1880 410029 [Bushing]	Bushing
6		199000410001 [Steering knuckle arm for reinforced spy]	Steering knuckle arm for reinforced spy
6		199000410045 [Steering knuckle arm]	Steering knuckle arm
6		199014410001 [Steering knuckle arm]	Steering knuckle arm
6		199114410001 [Steering knuckle arm]	Steering knuckle arm
6		AZ9719410001 [Steering knuckle arm]	Steering knuckle arm
7		Q33018 [Lock nut]	Lock nut
8		WG880 410049 [Bearing]	Bearing
9		199018410005 [Tie rod arm (left)]	Tie rod arm (left)
9		AZ9731410041 [Tie rod arm (left)]	Tie rod arm (left)
10		199018410004 [Tie rod arm (right)]	Tie rod arm (right)
10		AZ9731410040 [Tie rod arm (right)]	Tie rod arm (right)
11		1880 410038 [Brake shoe pin]	Brake shoe pin
12		Q381B27 [Castle nut]	Castle nut
13		Q5005050 [Cotter pin]	Cotter pin
14		AZ9100410032 [Bracket assembly (left)]	Bracket assembly (left)
15		AZ9100410036 [Bracket assembly (right)]	Bracket assembly (right)
16		1880 410035 [Bushing]	Bushing
17		AZ9100340017 [Complex bushing]	Complex bushing
18		1880 410094 [Shim]	Shim
18		1880 410095 [Shim]	Shim
18		1880 410096 [Shim]	Shim
18		1880 410097 [Shim]	Shim
18		1880 410104 [Shim]	Shim
18		1880 410105 [Shim]	Shim
18		1880 410105 [Shim]	Shim
18		1880 410105 [Shim]	Shim
18		1880 410107 [Shim]	Shim
18		1880 410108 [Shim]	Shim
19		1880 410052 ["O"ring]	"O"ring
20		1880 410075 [Double SCI~W]	Double SCI~W
21		Q33014 [Lock nut]	Lock nut
22		Q701B70 [Grease fitting]	Grease fitting
23		1880 410059 [Adjusting screw]	Adjusting screw
24		Q351B14T15 [Jam nut]	Jam nut
25		199112410009 [Front hub assemble]	Front hub assemble
28		AZ9100410104 [Wheel bolt]	Wheel bolt
30		WG9003889160 [Nut]	Nut
32		32314 [Bearing]	Bearing
33		32310 [Bearing]	Bearing
34		199000410114 [Spacers]	Spacers
35		190003074387 [Seal]	Seal
36		Q5211016 [Pin]	Pin
37		AZ9100410062 [Washer]	Washer
38		AZ9100411140 [Lock nut]	Lock nut
39		Q5006370 [Cotter pin]	Cotter pin
40		Q151C1220 [Cap screw]	Cap screw
41		1880 410043 [Cap]	Сар
42		Q150B0816 [Cap screw]	Cap screw
43		Q40308 [Sprig shim]	Sprig shim
44		1880 410100 [Cap]	Сар
45		Q40308 [Spacers]	Spacers
47		199018410003 [Steering arm]	Steering arm
48		199014410001 [Steering arm]	Steering arm
49		1880 410041 [Tie rod arm]	Tie rod arm
49		AZ9160410121 [Tie rod arm]	Tie rod arm
50		1880 410040 [Tie rod arm]	Tie rod arm
50		AZ9160410120 [Tie rod arm]	Tie rod arm
51		1295 420033 ["O"ring]	"O"ring

FRONT WHEEL BRAKE (A9-3) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1990000440018 [Brake shoe]	Brake shoe
-		AZ9100349994 [Bracket]	Bracket
-		AZ9100349995 [Bracket]	Bracket
-		Q150B0818 [Screw]	Screw
-		Q33408 [Nut]	Nut
-		WG9000360101 [Diaphragm cyl.right]	Diaphragm cyl.right
1		AZ9112440001 [Brake drum]	Brake drum
2		Q2541025 [Bolt]	Bolt
3		1880 440007 [Dust shield]	Dust shield
3		199112440006 [Dust shield]	Dust shield
4		Q150B0816 [Screw]	Screw
5		Q40308 [Shim]	Shim
6		199000440031 [Brake shoe C]	Brake shoe C
6		199112440073 [Brake shoe C]	Brake shoe C
7		199112440065 [Brake lining]	Brake lining
7		199112440066 [Brake lining]	Brake lining
7		WG9100440027 ["T" brake lining]	"T" brake lining
7		WG9100440029 ["T" brake lining]	"T" brake lining
8		189000340068 [Rivet]	Rivet
9		WG880 440006 [Bushing]	Bushing
10		1880 440008 [Washer]	Washer
11		Q381B24 [Castle nut]	Castle nut
12		Q5005045 [Cotter pin]	Cotter pin
13		AZ9100440060 [Return spring]	Return spring
14		1880 440032 [Return spring pin]	Return spring pin
15		199112440018 [Bushing]	Bushing
19		199100440001 [Camshaft (left)]	Camshaft (left)
20		199100440002 [Camshaft (right)]	Camshaft (right)
21		1880 440010 [Washer]	Washer
21		AZ9100440011 [Washer]	Washer
21		AZ9100440012 [Washer]	Washer
22		1880 340023 ["O"seal ring]	"O"seal ring
23		AZ9100440005 [Slack adjuster]	Slack adjuster
23		WG9100440023 [Automatic rod adjuster]	Automatic rod adjuster
24		1880 340022 [Shim]	Shim
25		1 80 320028 [Shim]	Shim
25		1 80 320029 [Shim]	Shim
25		1 80 320030 [Shim]	Shim
25		1 80 320046 [Shim]	Shim
26		190003933116 [Washer]	Washer
27		WG9000360100 [Diaphragm cyl.left]	Diaphragm cyl.left
28		Q41216 [Shim]	Shim
29		Q340B16 [Nut]	Nut
30		Q40114 [Flat shim]	Flat shim
31		Q5101440 [Pin]	Pin
32		Q5004022 [Cotter]	Cotter
33		1880 440015 [Spacers]	Spacers
34		1880 340037 [Plug]	Plug
59		199000340027 [Roller]	Roller

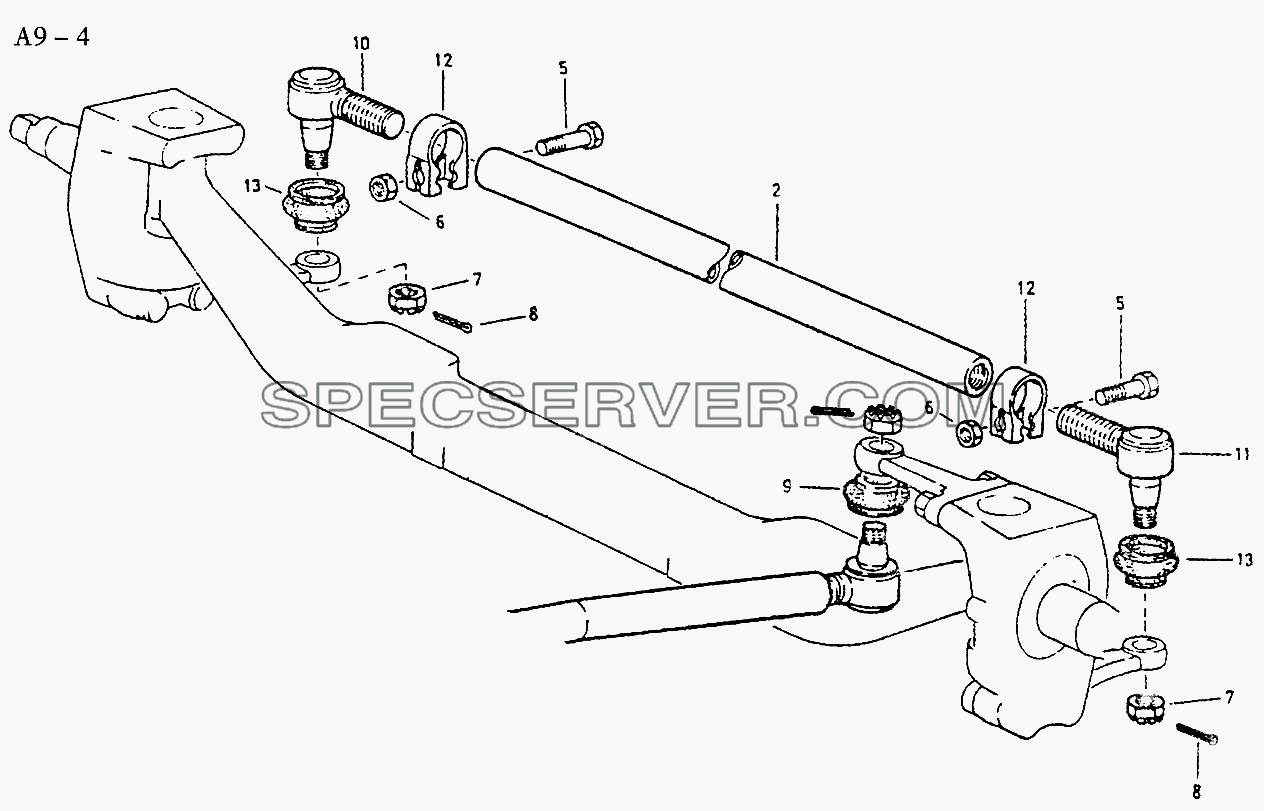

TIE ROD (A9-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		11031430006 [Tie rod C]	Tie rod C
-		199018430006 [Tie rod C]	Tie rod C
-		AZ9100430003 [Tie rod C]	Tie rod C
-		AZ9100430118 [Tie rod C]	Tie rod C
-		AZ9100430218 [Tie rod]	Tie rod
-		AZ9731430002 [Tie rod C]	Tie rod C
2		11031430006-1 [Tie rod C]	Tie rod C
2		199018430006-1 [Tie rod]	Tie rod
2		AZ9100430003-1 [Tie rod]	Tie rod
2		AZ9100430118-1 [Tie rod]	Tie rod
2		AZ9100430218-1 [Tie rod]	Tie rod
2		AZ9731430002-1 [Tie rod C]	Tie rod C
7		Q387B20T15 [Gastle nut]	Gastle nut
8		Q5004036 [Cotter pin]	Cotter pin
10		AZ9100430218-4 [Ball joint right]	Ball joint right
11		AZ9100430218-11 [Ball joint left]	Ball joint left
12		AZ9100430218-12 [Clip]	Clip
13		AZ9100430218-13 [Packing bellows]	Packing bellows
