№		Номер детали	Наименование запчасти
-		Q33210 [Nut]	Nut
1		AZ9100940016 [Tail light plate]	Tail light plate
2		AZ9100940018 [Tail light bracket]	Tail light bracket
3		Q150B1025 [Screw]	Screw
9		AZ91009400021 [Registration plate]	Registration plate
10		Q150B1655 [Screw]	Screw

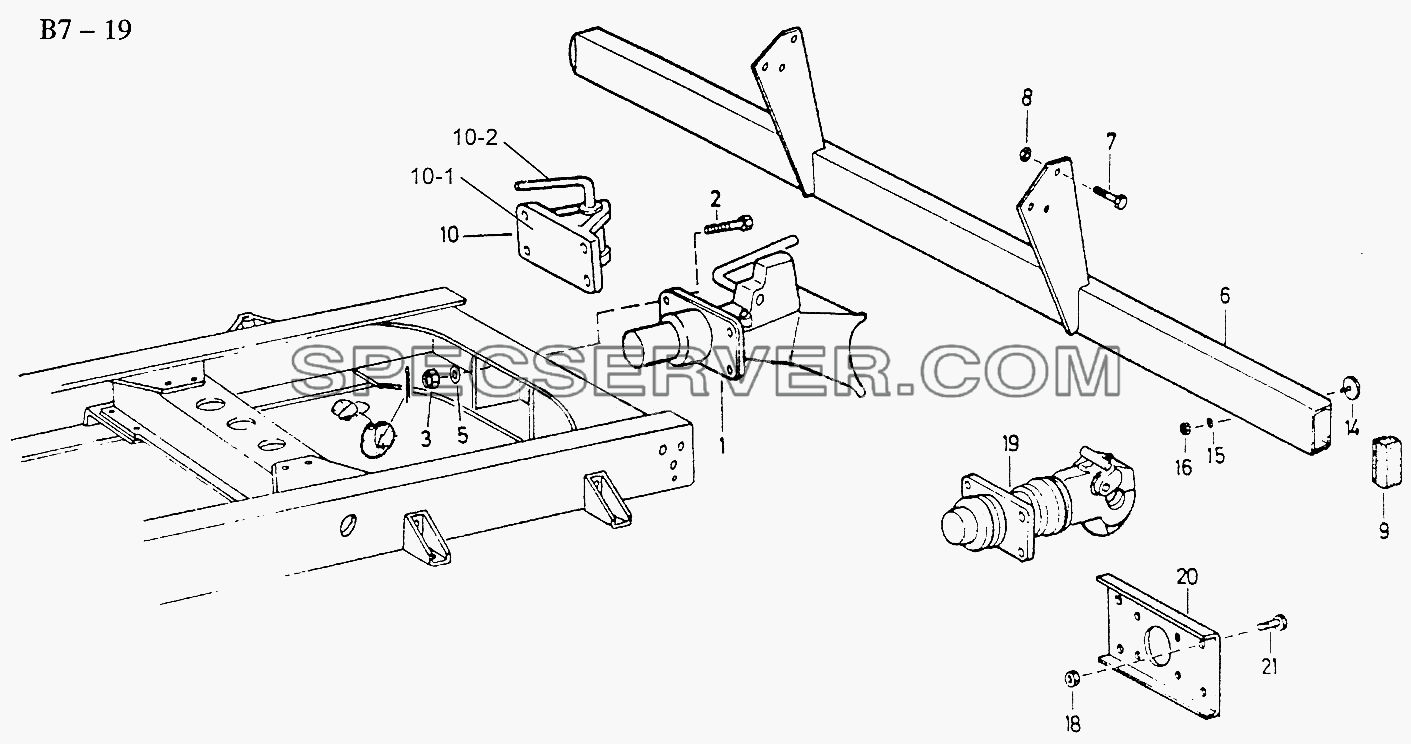

BOTTOM PROTECTION, TRAILER COUPLING (B7-19) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003937830 [Washer]	Washer
-		199400930003 [Sleeve]	Sleeve
-		WG9000930047-1 [Supporter]	Supporter
-		WG9000930047-2 [Bolt]	Bolt
1		199000930113 [Trailer coupling]	Trailer coupling
2		Q150B1660 [Screw]	Screw
3		Q43216 [Nut]	Nut
6		WG9100930001 [Bumper rear]	Bumper rear
7		Q150B1655 [Screw]	Screw
8		Q33216 [Nut]	Nut
9		WG9100930150 [Cover]	Cover
10		WG9000930047 [Trailer coupling]	Trailer coupling
19		199114930110 [Trailer coupling]	Trailer coupling

CHASSIS FRAME FOR 8x4 TIPPER TRUCK (C7-8) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9731511000 [Chassis frame]	Chassis frame
-		AZ9731512800 [Chassis frame]	Chassis frame
-		AZ9731513210 [Chassis frame]	Chassis frame
1		AZ9725510040 [Cross member]	Cross member
3		AZ9725510015 [Bracket]	Bracket
5		AZ9725510021 [Plate]	Plate
6		AZ9632512020 [Cross member]	Cross member
7		1780 510196 [Bracket]	Bracket
8		AZ9725510050 [Cross member]	Cross member
9		AZ9731510010 [Cross member]	Cross member
10		AZ9719510010 [Cross member]	Cross member
11		AZ9731511001 [Left longeron]	Left longeron
11		AZ9731512801 [Left longeron]	Left longeron
11		AZ9731513211 [Left longeron]	Left longeron
12		AZ9731511002 [Right longeron]	Right longeron
12		AZ9731512802 [Right longeron]	Right longeron
12		AZ9731513212 [Right longeron]	Right longeron
13		AZ9716510010 [Cross member]	Cross member

CHASSIS FRAME FOR B32/8x4 (C7-10) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9731513210 [Chassis frame]	Chassis frame
1		AZ9725510040 [Cross member]	Cross member
3		AZ9725510015 [Bracket]	Bracket
5		AZ9725510021 [Plate]	Plate
6		AZ9632512020 [Cross member]	Cross member
7		1780 510196 [Bracket]	Bracket
8		AZ9725510050 [Cross member]	Cross member
9		AZ9716510010 [Cross member]	Cross member
10		AZ9719510010 [Cross member]	Cross member
11		AZ9731510010 [Cross member]	Cross member
12		AZ9731513211 [Left longeron]	Left longeron
13		AZ9731513212 [Right longeron]	Right longeron

BRACKET FOR BUMPER, TOWING HOOK FRONT (C7-11) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003888458 [Nut]	Nut
-		190003888458 [Nut]	Nut
-		190003888459 [Nut]	Nut
-		190003888459 [Nut]	Nut
-		AZ9114930093 [Towing hook]	Towing hook
-		Q150B08130 [Screw]	Screw
-		Q150B0825 [Screw]	Screw
-		Q150B0825 [Screw]	Screw
-		Q150B0860 [Screw]	Screw
-		Q150B0860 [Screw]	Screw
-		Q150B1025 [Screw]	Screw
-		Q150B1025 [Screw]	Screw
-		Q151B1445 [Screw]	Screw
-		Q151B1465 [Screw]	Screw
-		Q151B1660 [Screw]	Screw
-		Q151B1690 [Screw]	Screw
-		Q151C1230 [Screw]	Screw
-		Q2540820 [Screw]	Screw
-		Q2540825 [Screw]	Screw
-		Q33208 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q33210 [Nut]	Nut
-		Q33210 [Nut]	Nut
-		Q33210 [Nut]	Nut
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40210 [Washer]	Washer
-		Q40210 [Washer]	Washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40312 [Spring washer]	Spring washer
1		AZ9725930028 [Towing seat]	Towing seat
2		AZ9114930094 [Towing hitch]	Towing hitch
3		AZ9725930002 [Bracket for bumper]	Bracket for bumper
3		AZ9725930007 [Bracket for bumper]	Bracket for bumper
4		AZ9725930003 [Aux.support]	Aux.support
6		AZ9725930004 [Sleeve]	Sleeve
7		AZ9725930005 [Sleeve]	Sleeve
8		WG9725930010 [Protector]	Protector
8		WG9725930060 [Protector]	Protector
9		AZ9725930006 [Front bracket for bumper]	Front bracket for bumper
9		AZ9725930008 [Front bracket for bumper]	Front bracket for bumper
10		AZ9725930040 [Bracket for windscreen washing water tank]	Bracket for windscreen washing water tank
10		AZ9725930045 [Bracket for windscreen washing water tank]	Bracket for windscreen washing water tank
11		AZ9725930050 [Protector for after cooler]	Protector for after cooler
11		AZ9725930053 [Protector for after cooler]	Protector for after cooler
12		AZ9725930054 [Bottom bracket for bumper]	Bottom bracket for bumper
12		WG9725930009 [Bottom bracket for bumper]	Bottom bracket for bumper
13		AZ9725930049 [Bracket for step]	Bracket for step
13		WG9725930017 [Bracket for step]	Bracket for step
14		WG9725930029 [Support for bumper]	Support for bumper
15		AZ9725930034 [Middle bracket for bumper]	Middle bracket for bumper
15		AZ9725930037 [Middle bracket for bumper]	Middle bracket for bumper

TAIL LIGHTS AND NUMBER PLATE CARRIER (C7-12) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q33210 [Nut]	Nut
1		AZ9716940001 [Tail light bracket left]	Tail light bracket left
2		AZ9716940007 [Tail light bracket right]	Tail light bracket right
3		Q150B1030 [Screw]	Screw
4		AZ9716940004 [Rubber plug]	Rubber plug
