Запчасти: 6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 336/O38/8x4 (Fuller gearbox) (B5-4-3) для Sinotruk 8x4 Tipper (371)

6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 336/O38/8x4 (Fuller gearbox) (B5-4-3) для Sinotruk 8x4 Tipper (371) (список запасных частей)

6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 336/O38/8x4 (Fuller gearbox) (B5-4-3) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 17600310099 [Angle] Angle
- WG9012310124 [Screw] Screw
1 AZ9114311002 [Intermed shaft] Intermed shaft
2 AZ9114310101 [Intermed shaft] Intermed shaft
3 199114310082 [Propeller shaft] Propeller shaft
4 199014310125 [Propeller shaft] Propeller shaft
5 WG9000310049 [Screw] Screw
6 190003888459 [Nut] Nut
7 17600310097 [Angle] Angle
8 Q151B1435 [Screw] Screw
9 Q40114 [Washer] Washer
10 190003888458 [Nut] Nut
11 Q151C1230 [Screw] Screw
12 190003888457 [Nut] Nut
Запчасти: 6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 290, 336/K52/6x4 (Fuller gearbox) (B5-4-4) для Sinotruk 8x4 Tipper (371)

6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 290, 336/K52/6x4 (Fuller gearbox) (B5-4-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 290, 336/K52/6x4 (Fuller gearbox) (B5-4-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 17600310082 [Angle] Angle
- WG9012310124 [Screw] Screw
1 AZ9114311044 [Intermed shaft] Intermed shaft
2 AZ9114311001 [Intermed shaft] Intermed shaft
3 JS19431101105 [Propeller shaft] Propeller shaft
4 199014310125 [Propeller shaft] Propeller shaft
5 WG9000310049 [Screw] Screw
6 190003888459 [Nut] Nut
7 17600310094 [Angle] Angle
8 Q151B1435 [Screw] Screw
9 Q40114 [Washer] Washer
10 190003888458 [Nut] Nut
11 Q151C1230 [Screw] Screw
12 190003888457 [Nut] Nut

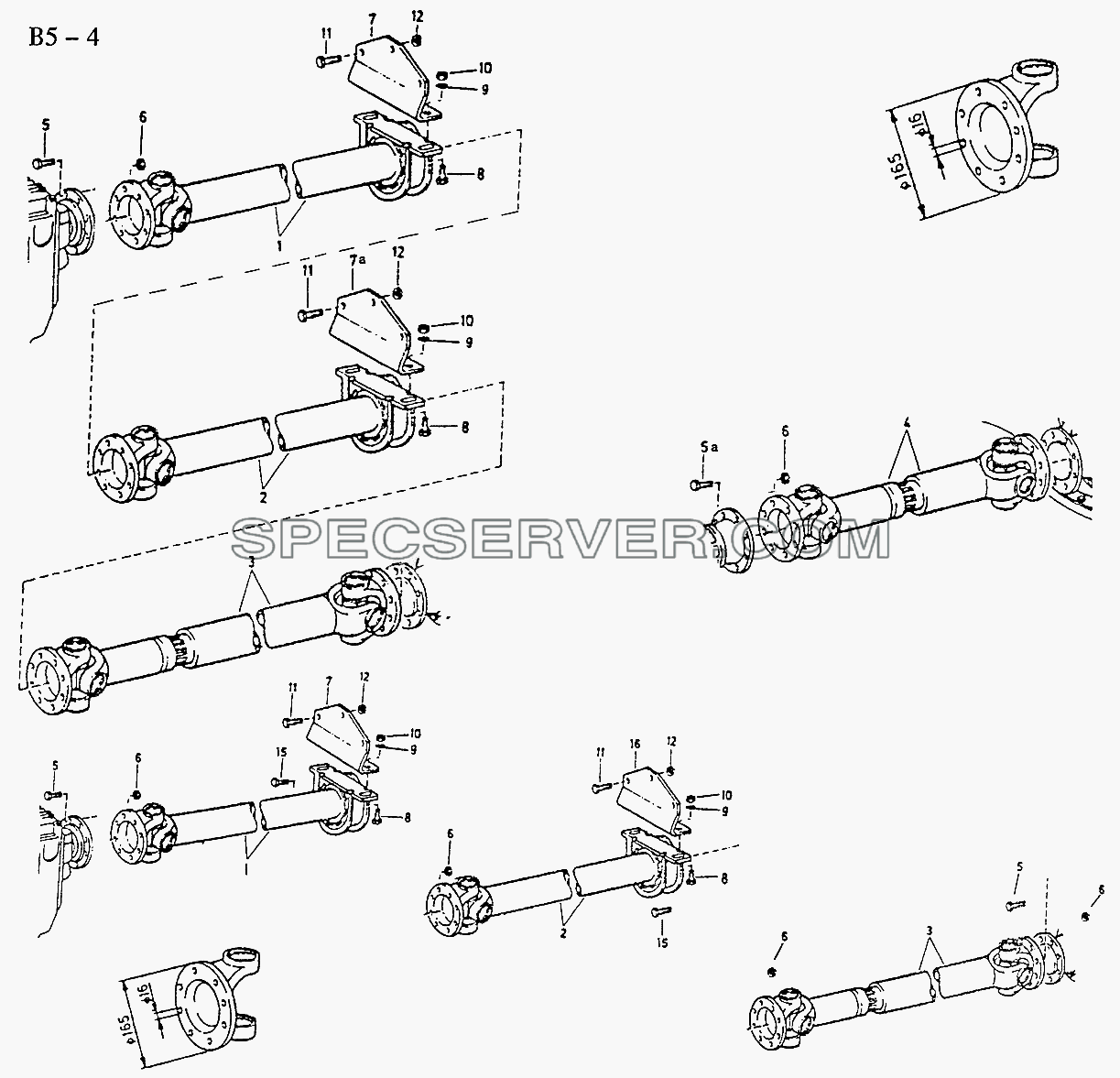

Запчасти: 6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290, 336/N56/6x4 (Fuller gearbox) (B5-4-5) для Sinotruk 8x4 Tipper (371)

6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290, 336/N56/6x4 (Fuller gearbox) (B5-4-5) для Sinotruk 8x4 Tipper (371) (список запасных частей)

6x4, 8x4 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290, 336/N56/6x4 (Fuller gearbox) (B5-4-5) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 17600310099 [Angle] Angle
- WG9012310124 [Screw] Screw
1 AZ9114310096 [Intermed shaft] Intermed shaft
2 AZ9114311097 [Intermed shaft] Intermed shaft
3 199114310081 [Propeller shaft] Propeller shaft
4 199014310125 [Propeller shaft] Propeller shaft
5 WG9000310049 [Screw] Screw
6 190003888459 [Nut] Nut
7 17600310094 [Angle] Angle
8 Q151B1435 [Screw] Screw
9 Q40114 [Washer] Washer
10 190003888458 [Nut] Nut
11 Q151C1230 [Screw] Screw
12 190003888457 [Nut] Nut
Запчасти: INTERMEDIATE SHAFTS Intermediate Shaft with Spider D.Ф52 (B5-6-1) для Sinotruk 8x4 Tipper (371)

INTERMEDIATE SHAFTS Intermediate Shaft with Spider D.Ф52 (B5-6-1) для Sinotruk 8x4 Tipper (371) (список запасных частей)

INTERMEDIATE SHAFTS Intermediate Shaft with Spider D.Ф52 (B5-6-1) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 26013314062 [Ф165 Planar flange] Ф165 Planar flange
1 AZ9113314062 [Ф165 Toothed flange] Ф165 Toothed flange
2 26013314080 [Spider] Spider
4 26013310464 [Circlip] Circlip
4 26013314063 [Circlip] Circlip
4 26013314065 [Circlip] Circlip
4 26013314066 [Circlip] Circlip
4 26013314067 [Circlip] Circlip
5 26013314030 [Bearing Assemble] Bearing Assemble
6 26013314051 [Flange] Flange
12 Q700B01 [Grease Nipple] Grease Nipple
15 26013314052 [Nut] Nut
16 26013314042 [Board] Board
17 26013314032 [Washer] Washer
18 26013314033 [Scraper] Scraper
19 26013314037 [Circlip] Circlip
20 26013314045 [Bearing] Bearing
21 26013314035 [Bearing asembly] Bearing asembly
22 26013314020 [Connecting plate] Connecting plate
Запчасти: INTERMEDIATE SHAFTS Intermediate Shaft with spider D.Ф57 (B5-6-2) для Sinotruk 8x4 Tipper (371)

INTERMEDIATE SHAFTS Intermediate Shaft with spider D.Ф57 (B5-6-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

INTERMEDIATE SHAFTS Intermediate Shaft with spider D.Ф57 (B5-6-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 19036311062 [Ф165 Plane flange] Ф165 Plane flange
1 AZ9114311062 [Ф180 Plane flange] Ф180 Plane flange
1 AZ9136311062 [Ф165 Toothed flange] Ф165 Toothed flange
2 19036311080 [Spider] Spider
4 19036311063 [Circlip] Circlip
4 19036311064 [Circlip] Circlip
4 19036311065 [Circlip] Circlip
4 19036311066 [Circlip] Circlip
4 19036311067 [Circlip] Circlip
5 26013314030 [Bearing Assemble] Bearing Assemble
6 26013314051 [Flange] Flange
6 AZ9114314051 [Flange] Flange
12 Q700B01 [Grease Nipple] Grease Nipple
15 26013314052 [Nut] Nut
16 26013314042 [Board] Board
17 26013314043 [Washer] Washer
18 26013314033 [Scraper] Scraper
19 26013314037 [Circlip] Circlip
20 26013314045 [Bearing] Bearing
21 26013314035 [Bearing asembly] Bearing asembly
22 26013314020 [Connecting plate] Connecting plate

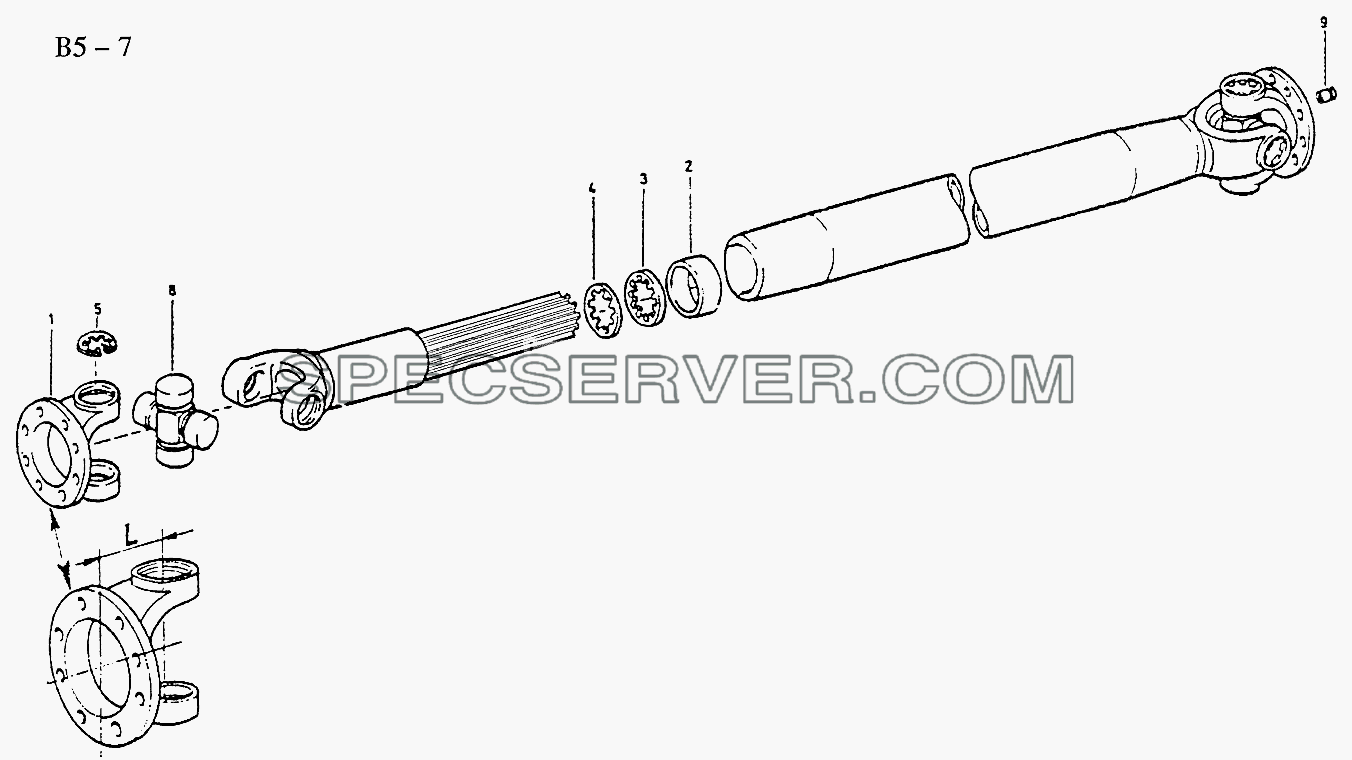

PROPELLER SHAFTS Propeller Shaft with spider D.Ф52 (B5-7-1) для Sinotruk 8x4 Tipper (371) (список запасных частей)

PROPELLER SHAFTS Propeller Shaft with spider D.Ф52 (B5-7-1) для Sinotruk 8x4 Tipper (371) (список запасных частей)

PROPELLER SHAFTS Propeller Shaft with spider D.Ф52 (B5-7-1) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 26013314062 [Ф165 Planar flange] Ф165 Planar flange
1 AZ9113314062 [Ф165 Toothed flange] Ф165 Toothed flange
2 26013315024 [Scraper] Scraper
3 26013315023 [Washer] Washer
4 26013315022 [Gasket] Gasket
5 26013314063 [Circlip] Circlip
5 26013314064 [Circlip] Circlip
5 26013314065 [Circlip] Circlip
5 26013314066 [Circlip] Circlip
5 26013314067 [Circlip] Circlip
8 26013314080 [Spider C] Spider C
9 26013311098 [Overpressure Valve] Overpressure Valve
