№		Номер детали	Наименование запчасти
-		1F7120.700152 [Transfer case]	Transfer case
1		199114250110 [Housing]	Housing
2		Q5211020 [Cylindrical pin]	Cylindrical pin
3		190003989481 [Core plug]	Core plug
4		199114250060 [Suction]	Suction
5		Q218B0625 [Screw]	Screw
6		190003962038 [Screw]	Screw
7		190003098026 [Gasket]	Gasket
8		1586 330015 [Magnetic plug]	Magnetic plug
9		190003098138 [Gasket]	Gasket
10		199114250025 [Housing]	Housing
11		179200250136 [Cover]	Cover
12		Q150B10100 [Screw]	Screw
13		1-99-916-002 [Cover]	Cover
14		Q150B1216 [Screw]	Screw
15		199014250126 [Cover]	Cover
16		1680M250030 [Adjusting washer]	Adjusting washer
16		1680M250031 [Adjusting washer]	Adjusting washer
16		1680M250032 [Adjusting washer]	Adjusting washer
17		Q150B1030 [Screw]	Screw
18		199114250023 [Cover]	Cover
19		Q150B1055Q [Screw]	Screw
20		199114250112 [Bush]	Bush
21		13809 220073 [Screw]	Screw
22		Q40308 [Spring washer]	Spring washer
23		Q150B1055 [Screw]	Screw
24		Q150B1055 [Screw]	Screw
25		190003961903 [Locking cover]	Locking cover
26		199000410120 [Fan]	Fan
28		199114250242 [Pipe]	Pipe
36		1880 250069 [Flange]	Flange
39		190003330183 [Ball]	Ball
40		12700 240011 [Spring]	Spring
41		12700 240049 [Gukdanee]	Gukdanee
42		1680 250092 [Gasket]	Gasket
43		1480 240027 [Protecting cap]	Protecting cap
44		1880 250080 [Shim]	Shim
44		1880 250081 [Shim]	Shim
45		199114250057 [Pressure pipe]	Pressure pipe
46		190003962627 [Female screw]	Female screw
47		Q72316T5F [Gasket]	Gasket
48		199114250101 [Oil sheet]	Oil sheet
49		Q40008 [Washer]	Washer
50		Q33208 [Nut]	Nut

COVER FOR VG1200 TRANSFER CASE WITHOUT DIFF. LOCK (A7-3) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199114250059 [Cover]	Cover
2		190003989481 [Corp plug]	Corp plug
3		Q150B1240 [Screw]	Screw
4		Q150B12100 [Screw]	Screw
5		199014250097 [Cover]	Cover
6		Q150B1030 [Screw]	Screw
7		199014250125 [Cover]	Cover
8		Q150B1030 [Screw]	Screw
9		199114250125 [Housing]	Housing
10		199114250176 [Shifting fork]	Shifting fork
11		199014250123 [Washer]	Washer
12		1-99-942-007 [Sleeve]	Sleeve
13		1-99-976-003 [Spring]	Spring
14		199014250122 [Bush]	Bush
15		190003933076 [Circlip]	Circlip
16		130A010019 [Gasket]	Gasket
17		199014250124 [Piston]	Piston
18		1-99-965-008 [Cup]	Cup
19		199014250136 [Cover]	Cover
20		Q150B0816 [Screw]	Screw
21		Q72314TF2 [Gasket]	Gasket
22		199000710048 [Switch]	Switch
23		Q150B1040Q [Screw]	Screw
24		1880 250069 [Flange]	Flange
25		1880 250080 [Adjusting washer]	Adjusting washer
26		1880 250081 [Adjusting washer]	Adjusting washer
27		190003330183 [Ball]	Ball
28		12700 240011 [Spring]	Spring
29		12700 240049 [Guidance]	Guidance
30		1680 250092 [Gasket]	Gasket
31		1480 240027 [Protecting cap]	Protecting cap
32		1-21-425-016 [Shift rod]	Shift rod
33		190003961903 [Locking cover]	Locking cover
36		1-21-425-012 [Flange]	Flange

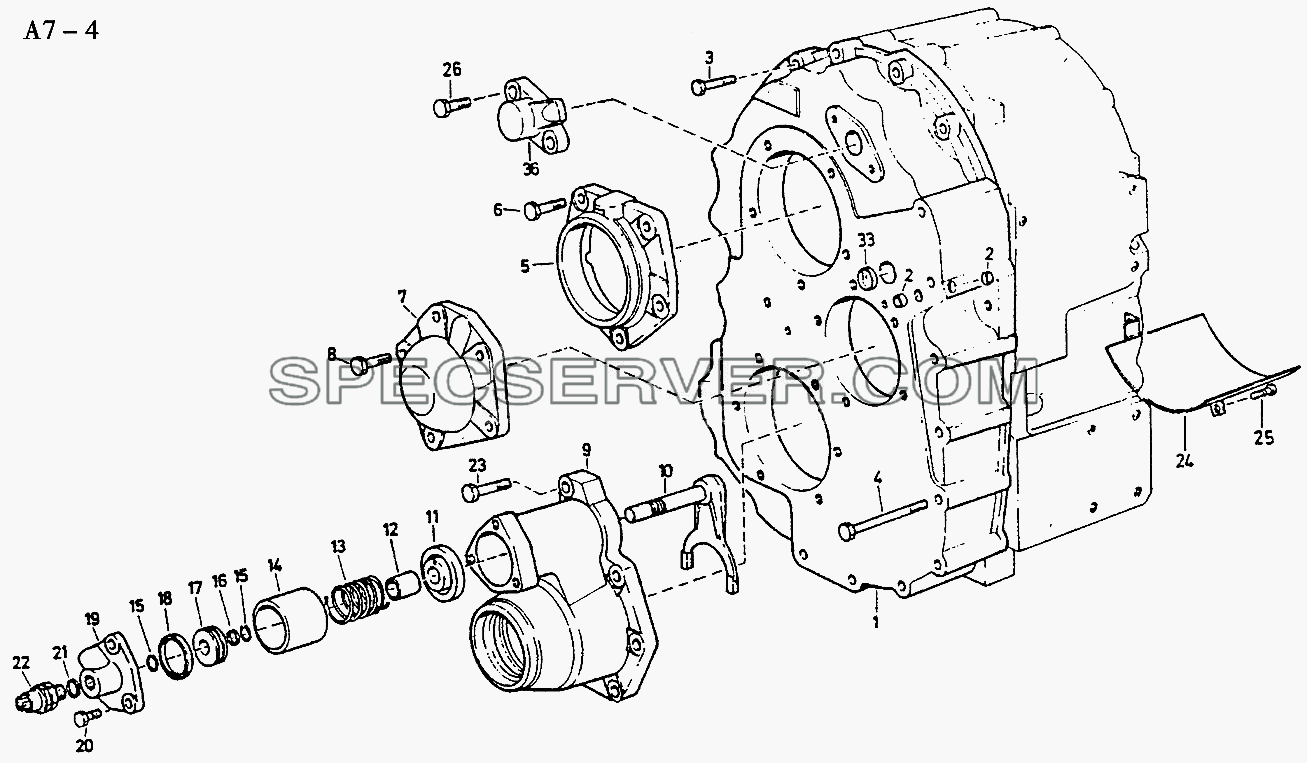

COVER FOR VG1200 TRANSFER CASE WITH DIFF. LOCK (A7-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199114250059 [Cover]	Cover
2		190003989481 [Corp plug]	Corp plug
3		Q150B1240TF2 [Screw]	Screw
4		Q150B12100 [Screw]	Screw
5		199014250097 [Cover]	Cover
6		Q150B1030 [Screw]	Screw
7		199014250125 [Cover]	Cover
8		Q150B1030 [Screw]	Screw
9		199114250126 [Housing]	Housing
10		179100250028 [Shifting fork]	Shifting fork
11		199014250123 [Washer]	Washer
12		1-99-942-007 [Sleeve]	Sleeve
13		1-99-976-003 [Spring]	Spring
14		199014250122 [Bush]	Bush
15		190003933076 [Circlip]	Circlip
16		130A010019 [Washer]	Washer
17		199014250124 [Piston]	Piston
18		1-99-965-008 [Cup]	Cup
19		199014250136 [Cover]	Cover
20		Q150B0816 [Screw]	Screw
21		Q72314T5F [Gasket]	Gasket
22		199000710048 [Switch]	Switch
23		Q150B1040Q [Screw]	Screw
26		Q150B1025 [Screw]	Screw
33		190003961903 [Locking cover]	Locking cover
36		1-21-425-012 [Flange]	Flange

WHEELS FOR VG1200 TRANSFER CASE WITHOUT DIFF.LOCK (A7-5) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1-21-225-038 [Driving shaft]	Driving shaft
2		190003961903 [Locking cover]	Locking cover
3		190003078775 [Seal]	Seal
4		1-21-225-037 [Flange]	Flange
4		199114250184 [Flange]	Flange
4		199114250184 [Flange]	Flange
5		1-99-907-052 [Adjusting washer]	Adjusting washer
6		190003326236 [Taper roller bearing]	Taper roller bearing
7		1-99-907-053 [Washer]	Washer
9		190003802639 [Screw]	Screw
11		199014250102 [Helical gear]	Helical gear
12		199014250064 [Sliding sleeve]	Sliding sleeve
13		199114250082 [Pignon]	Pignon
14		1880 250047 [Washer]	Washer
15		190003326534 [Taper roller bearing]	Taper roller bearing
16		1188 320021 [Adjusting washer]	Adjusting washer
16		1188 320022 [Adjusting washer]	Adjusting washer
16		1188 320023 [Adjusting washer]	Adjusting washer
16		199114250153 [Adjusting washer]	Adjusting washer
17		Q218B0616 [Screw]	Screw
18		1-99-936-002 [Cover]	Cover
19		199012250101 [Inner wheel]	Inner wheel
20		199012250100 [Outer wheel]	Outer wheel
21		190003330105 [Ball]	Ball
22		1900033300512 [Ball]	Ball
23		1-99-936-001 [Housing]	Housing
24		199114250098 [Gear]	Gear
25		199014250055 [Roller bearing]	Roller bearing
26		190003326053 [Roller bearing]	Roller bearing
27		199114250216 [Driving shaft]	Driving shaft
29		190003326053 [Taper roller bearing]	Taper roller bearing
30		199100370231 [Driving wheel]	Driving wheel
32		190003078776 [Seal]	Seal
33		1-21-425-006 [Sleeve]	Sleeve
34		179100250014 [Driving shaft]	Driving shaft
35		190003934425 [Circli]	Circli
36		190003311027 [Ball bearing]	Ball bearing
37		190003074347 [Seal]	Seal
42		190003326164 [Taper roller bearing]	Taper roller bearing
43		199114250124 [Washer]	Washer
44		199014250079 [Adjusting washer]	Adjusting washer
44		199014250080 [Adjusting washer]	Adjusting washer
44		199014250081 [Adjusting washer]	Adjusting washer
45		1680M250030 [Adjusting washer]	Adjusting washer
45		1680M250031 [Adjusting washer]	Adjusting washer
46		199100370048 [Speedom.pinion]	Speedom.pinion
48		199014250085 [Shifting block]	Shifting block
49		12700 240064 [Screw]	Screw
50		11800 320077 [Shifting block]	Shifting block
51		1-21-225-037 [Flange]	Flange
54		1-21-425-016 [Shifting rod]	Shifting rod

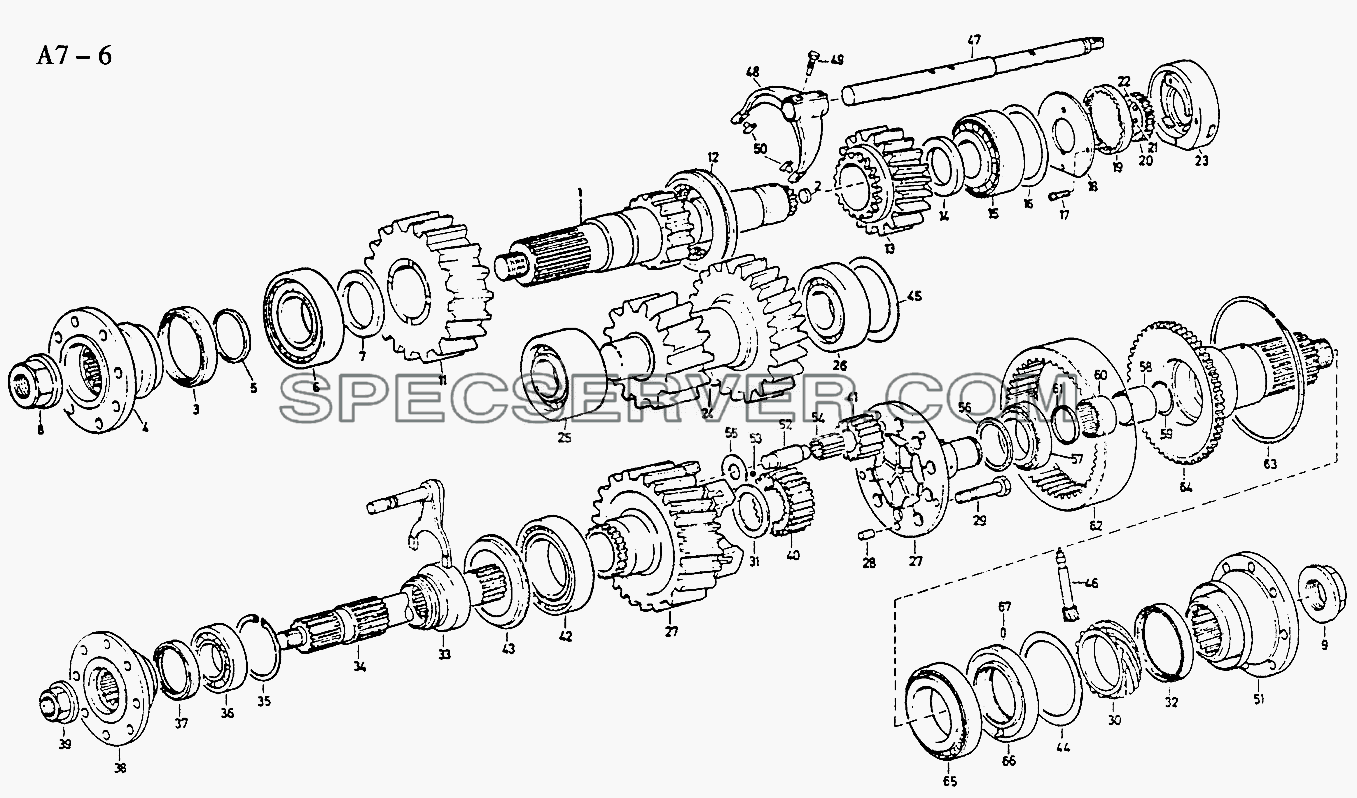

WHEELS FOR VG1200 TRANSFER CASE WITH DIFF. LOCK (A7-6) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1-21-225-038 [Driving shaft]	Driving shaft
2		190003961903 [Locking cover]	Locking cover
3		190003078775 [Seal]	Seal
4		1-21-225-037 [Flange]	Flange
4		199114250184 [Flange]	Flange
5		1-99-907-052 [Adjusting washer]	Adjusting washer
6		190003326236 [Taper roller bearing]	Taper roller bearing
7		1-99-907-053 [Washer]	Washer
8		1-99-905-003 [Nut]	Nut
9		1-99-905-004 [Nut]	Nut
11		199014250102 [Helical gear]	Helical gear
12		199014250064 [Sliding sleeve]	Sliding sleeve
13		199114250082 [Pignon]	Pignon
14		1880 250047 [Washer]	Washer
15		190003326534 [Taper roller bearing]	Taper roller bearing
16		1188 320021 [Adjusting washer]	Adjusting washer
16		1188 320022 [Adjusting washer]	Adjusting washer
16		1188 320023 [Adjusting washer]	Adjusting washer
16		199114250153 [Adjusting washer]	Adjusting washer
17		190003862316 [Screw]	Screw
18		1-99-936-002 [Cover]	Cover
19		199012250101 [Inner wheel]	Inner wheel
20		199012250100 [Outer wheel]	Outer wheel
21		190003330105 [Ball]	Ball
22		190003330052 [Ball]	Ball
23		1-99-936-001 [Housing]	Housing
24		199114250062 [Gear]	Gear
25		199014250055 [Roller bearing]	Roller bearing
26		190003323432 [Roller bearing]	Roller bearing
27		199114250109 [Plan.carrier]	Plan.carrier
28		179200250035 [Bolt]	Bolt
29		190003802817 [Screw]	Screw
30		199100370047 [Driving wheel]	Driving wheel
31		199114250012 [Washer]	Washer
32		190003078776 [Seal]	Seal
40		199114250003 [Sun gear]	Sun gear
41		199114250002 [Plan.gear]	Plan.gear
42		190003326164 [Taper roller bearing]	Taper roller bearing
43		199114250124 [Washer]	Washer
44		199014250079 [Adjusting washer]	Adjusting washer
44		199014250080 [Adjusting washer]	Adjusting washer
44		199014250081 [Adjusting washer]	Adjusting washer
44		199114250026 [Adjusting washer]	Adjusting washer
44		199114250028 [Adjusting washer]	Adjusting washer
45		1680M250030 [Adjusting washer]	Adjusting washer
45		1680M250031 [Adjusting washer]	Adjusting washer
45		1680M250032 [Adjusting washer]	Adjusting washer
46		199100370048 [Speedom.pinion]	Speedom.pinion
47		1-21-425-016 [Shifting rod]	Shifting rod
48		199014250085 [Shifting fork]	Shifting fork
49		12700240064 [Screw]	Screw
50		11800 320077 [Shifting block]	Shifting block
52		199114250107 [Shaft-plan.gear]	Shaft-plan.gear
53		190003330105 [Ball]	Ball
54		199114250016 [Rolling body set]	Rolling body set
55		1-99-907-055 [Washer]	Washer
56		199114250015 [Washer]	Washer
57		190003326116 [Taper roller bearing]	Taper roller bearing
58		199114250018 [Inner ring]	Inner ring
59		190003936040 [Snap ring]	Snap ring
60		199114250154 [Needle sleeve]	Needle sleeve
61		199114250024 [Gaslet]	Gaslet
62		179200250027 [Inern.ring gear]	Inern.ring gear
63		1-99-917-002 [Circlip]	Circlip
64		199114250008 [Output shaft]	Output shaft
65		190003326117 [Taper roller bearing]	Taper roller bearing
66		199114250022 [Oil guide ring]	Oil guide ring
67		190003909588 [Cyl.pin]	Cyl.pin
68		1-21-425-006 [Sleeve]	Sleeve
69		199114250004 [Shaft]	Shaft
70		190003934500 [Circlip]	Circlip
71		190003311033 [Grooved ball bear]	Grooved ball bear
72		190003078681 [Seal]	Seal
73		199114250014 [Flange]	Flange
74		1-99-905-003 [Nut]	Nut

SUSPENSION FOR VG1200 TRANSFER CASE (A7-7) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199000260001 [Bracket right]	Bracket right
2		199000260002 [Bracket left]	Bracket left
3		199014260003 [Spring puffer]	Spring puffer
4		199000260010 [Bracket assembly]	Bracket assembly
5		199014260007 [Bush]	Bush
6		199014260012 [Washer]	Washer
7		199014250014 [Bolt]	Bolt
8		190003872359 [Crown nut]	Crown nut
9		Q5004036 [Split pin]	Split pin
10		199000260005 [Plate]	Plate
10		199000260006 [Plate]	Plate
10		199000260007 [Plate]	Plate
11		1180A240030 [Shim]	Shim
12		1614 060017 [Ring]	Ring
13		1288 720042 [Washer]	Washer
14		Q151B1450 [Screw]	Screw
14		Q151B1645 [Screw]	Screw
15		190003888459 [Nut]	Nut
17		Q151B1435 [Screw]	Screw
18		Q151B1475 [Screw]	Screw
19		199014260025 [Bracket assembly]	Bracket assembly
20		199000260013 [Bracket assembly]	Bracket assembly
21		Q151B1425 [Screw]	Screw
22		1780 680031 [Rubber bearing]	Rubber bearing
23		199000260023 [Bearing shackle]	Bearing shackle
24		Q151C12100 [Screw]	Screw
25		Q40312 [Spring washer]	Spring washer
26		Q341C12 [Nut]	Nut
27		199114260003 [Pipe]	Pipe
28		Q151B1645 [Screw]	Screw
29		190003888459 [Nut]	Nut
