№		Номер детали	Наименование запчасти
-		614080719 [Fuel feed pump]	Fuel feed pump
-		61560080276-1 [Injection nozzle]	Injection nozzle
-		61560080278 [Injection pipe set]	Injection pipe set
-		61560080305-1 [Injection nozzle]	Injection nozzle
1		61560080278-1 [Injection pipe]	Injection pipe
2		61560080278-2 [Injection pipe]	Injection pipe
3		61560080278-3 [Injection pipe]	Injection pipe
4		61560080278-4 [Injection pipe]	Injection pipe
5		61560080278-5 [Injection pipe]	Injection pipe
6		61560080278-6 [Injection pipe]	Injection pipe
7		612600081075 [Injection pump]	Injection pump
7		612600081082 [Injection pump]	Injection pump
7		612600082115 [Injection pipe with adjusting governor C]	Injection pipe with adjusting governor C
7		612600083075 [Injection pump]	Injection pump
7		612600087075 [Injection pump]	Injection pump
7		61560080302 [Injection pipe with adjusting governor C]	Injection pipe with adjusting governor C
8		61560080276 [Nozzle holder]	Nozzle holder
8		61560080305 [Nozzle holder]	Nozzle holder
9		61560080275 [Spacer]	Spacer
10		61560080261 [Flange]	Flange
11		614 080074B [Bracket]	Bracket
12		61500080090 [Hollow screw]	Hollow screw
13		61500080094A [Pressure clip]	Pressure clip
14		AZ1560070026 [Lubricating oil reversal]	Lubricating oil reversal
15		614 080060 [Clamp]	Clamp
16		614 080061 [Clamp]	Clamp
17		61560080173 [Clamp]	Clamp
18		61560080174 [Clamp]	Clamp
19		90003098015 [Gasket]	Gasket
20		90003930271 [Washer]	Washer
21		90003862566 [Screw]	Screw
22		90003802455 [Screw]	Screw
23		90003901600 [Dowel]	Dowel
24		90003802321 [Screw]	Screw
25		90003871232 [Nut]	Nut
26		90003098018 [Gasket]	Gasket
27		90003559844 [Screwing]	Screwing
28		90003802312 [Screw]	Screw
29		614 080082 [Gasket]	Gasket
30		90003802650 [Screw]	Screw
31		609 070080 [Gasket]	Gasket
32		61560080172 [Support plate]	Support plate
33		612600080213 [Valve]	Valve

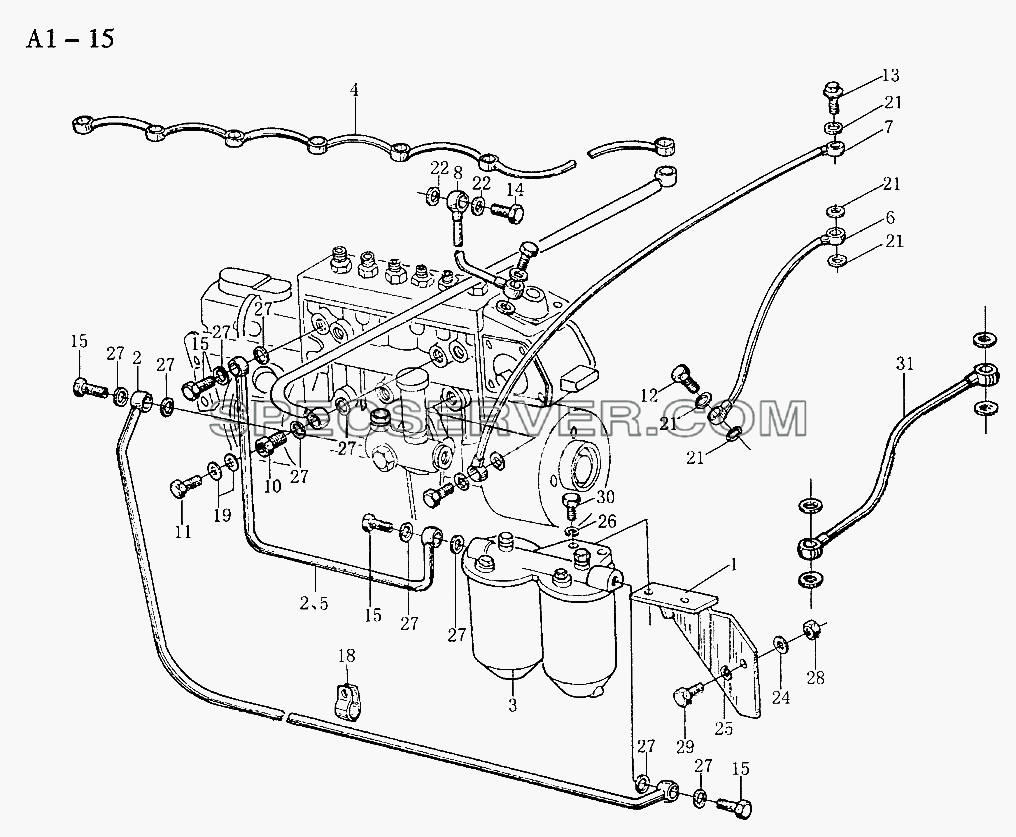

WD615 FUEL LINE (A1-15) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		614 080739 [Fine filter element]	Fine filter element
-		614 080740 [Pre filter element]	Pre filter element
-		90003802527 [Screw (Bosch)]	Screw (Bosch)
1		61560080094 [Bracket]	Bracket
2		AZ1560080017 [Hose]	Hose
3		614 080295A [Fuel filter C]	Fuel filter C
4		61500080095 [Fuel line (out)]	Fuel line (out)
5		AZ1560080018 [Hose (Bosch)]	Hose (Bosch)
6		61560070011 [Oi lline]	Oi lline
7		61560070012 [Oi lline]	Oi lline
8		61560080159 [Air line]	Air line
10		609 0837 [Female screw]	Female screw
11		90003962603 [Female screw]	Female screw
12		90003952607 [Female screw]	Female screw
13		81500070054 [Female screw (Bosch)]	Female screw (Bosch)
14		90003962612 [Female screw (Bosch)]	Female screw (Bosch)
15		90003962621 [Female screw (Bosch)]	Female screw (Bosch)
19		90003098008 [Gasket]	Gasket
21		90003098010 [Gasket]	Gasket
22		90003098012 [Gasket (Bosch)]	Gasket (Bosch)
24		90003930012	Шайба
25		90003932024 [Spring washer]	Spring washer
26		90003932016 [Spring washer]	Spring washer
27		612600080200 [Gasket]	Gasket
28		90003888452 [Hexagon nut]	Hexagon nut
29		90003802523 [Screw]	Screw
30		90003802627 [Screw (Bosch)]	Screw (Bosch)

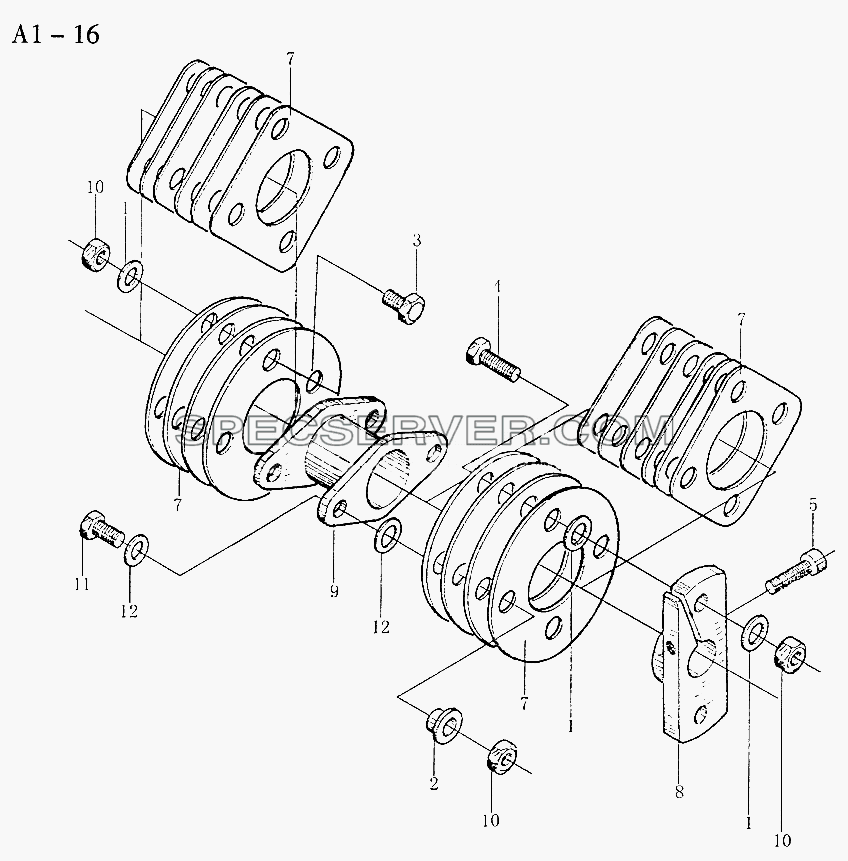

WD615 INJECTION PUMP COUPLING (A1-16) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		81560080271 [Washer]	Washer
2		81560080273 [Bush]	Bush
3		90003802637 [Screw]	Screw
4		90003800160 [Screw]	Screw
5		AZ1560080001 [Screw]	Screw
7		61560080219 [Clamp]	Clamp
8		61560080194 [Clutch half]	Clutch half
9		61560080275 [Spacer]	Spacer
10		90003871344 [Nut]	Nut
11		90003802639 [Screw]	Screw
12		90003930282 [Washer]	Washer

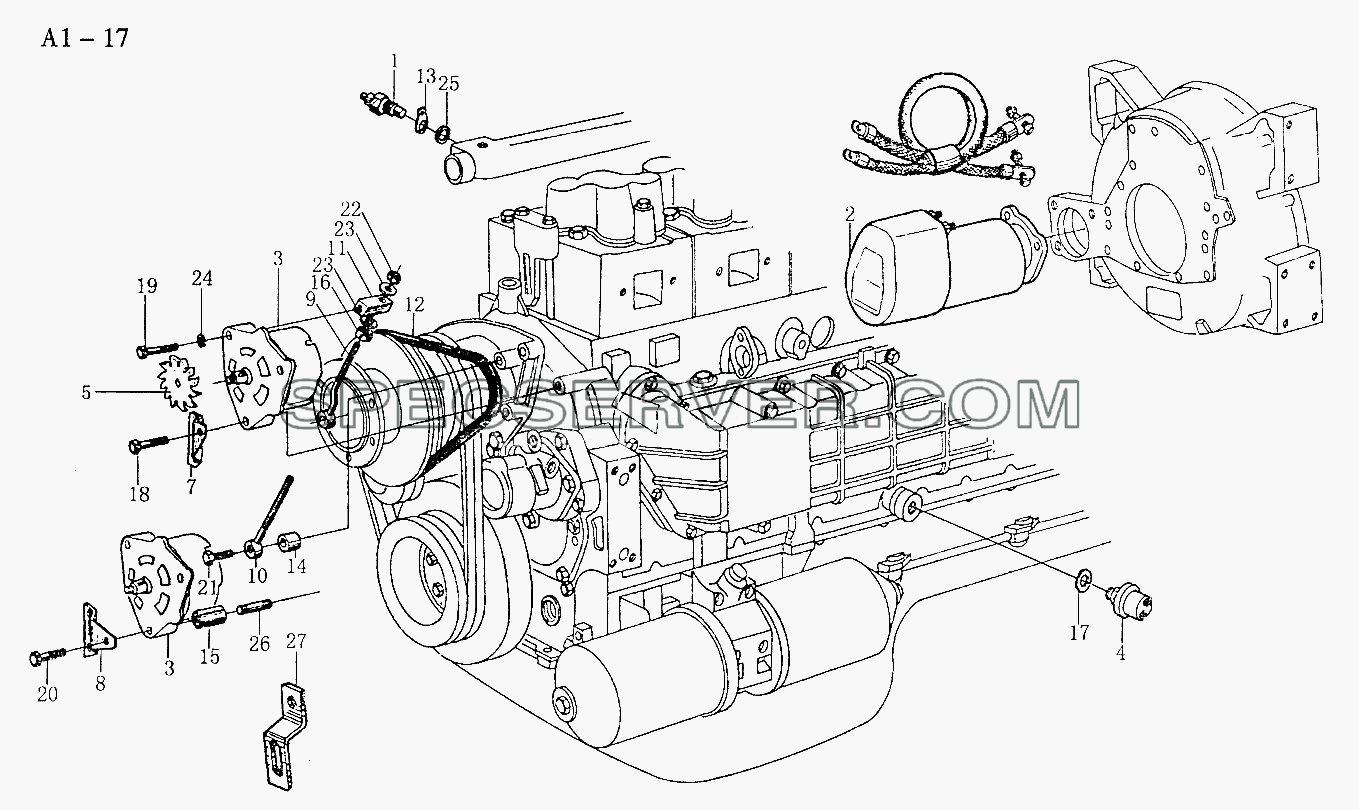

WD615 ELECTRICAL IMPLEMENT (A1-17) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		614 090067 [Temperature sensor (warning)]	Temperature sensor (warning)
2		61500090029 [Starter]	Starter
3		61200090043 [Altenator]	Altenator
4		61500090051 [Oil pressure sensor]	Oil pressure sensor
5		614 090058 [Fan washer]	Fan washer
6		61500090004 [Belt pulley]	Belt pulley
7		61500090010 [Sheet]	Sheet
9		61500090018 [Screw]	Screw
11		61500090011 [Distance piece]	Distance piece
12		61500090065 [V-belt]	V-belt
13		614 090050 [Connecting terminal]	Connecting terminal
16		90003888452 [Nut]	Nut
17		160A.13.35 [Sealing ring]	Sealing ring
18		90003800571 [Screw]	Screw
19		90003800564 [Screw]	Screw
22		90003871305 [Nut]	Nut
23		90003935125 [Gasket]	Gasket
24		90003932025 [Spring washer]	Spring washer
25		90003098014 [Gasket]	Gasket

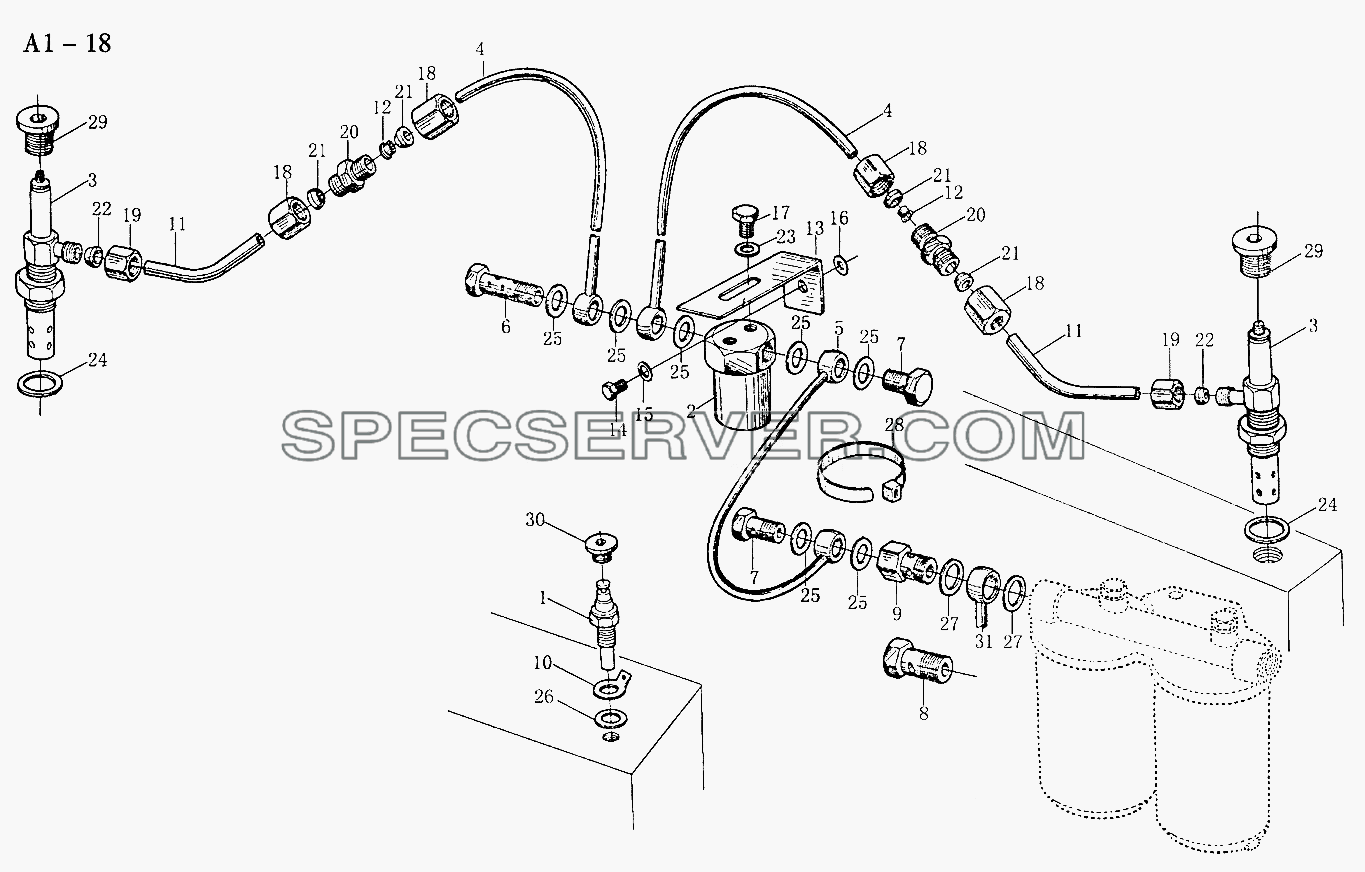

WD615 FLAME STARTTING SYSTEM (A1-18) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ1500090132 [Temperature sensor]	Temperature sensor
2		61200090163 [Solenoid valve]	Solenoid valve
3		61200090162 [Flamespark plug]	Flamespark plug
4		61560080154 [Fuel pipe]	Fuel pipe
5		61200080159 [Fuel pipe]	Fuel pipe
6		81560080212 [Fluid passage screw]	Fluid passage screw
7		90003962607 [Fluid passage screw]	Fluid passage screw
8		90003962621 [Fluid passage screw]	Fluid passage screw
9		609E110070 [Connection screw]	Connection screw
10		79000770116 [Blade terminal]	Blade terminal
11		81560080327 [Pipe]	Pipe
12		99014280016 [Plug-insleeve]	Plug-insleeve
13		99012360441 [Angle]	Angle
14		90003802415 [Hex.head screw]	Hex.head screw
15		90003932023 [Spring washer]	Spring washer
16		9c003930261 [Washer]	Washer
17		900D3802307 [Hex.head screw]	Hex.head screw
18		90003559516 [Union nut]	Union nut
19		90030559506 [Union nut]	Union nut
20		90003559462 [Adaptor]	Adaptor
21		90003559561 [Taper bush]	Taper bush
22		90003559557 [Taper bush]	Taper bush
23		90003931082 [Spring lock washer]	Spring lock washer
24		90003098029 [Sealing ring]	Sealing ring
25		90003098010 [Sealing ring]	Sealing ring
26		90003098010 [Sealing ring]	Sealing ring
27		90003098015 [Sealing ring]	Sealing ring
28		90003171697 [Wire fastener]	Wire fastener
29		90003960005 [Thread plug]	Thread plug
30		90003962014 [Hex.head screw]	Hex.head screw
31		AZ1500080155 [Hose]	Hose

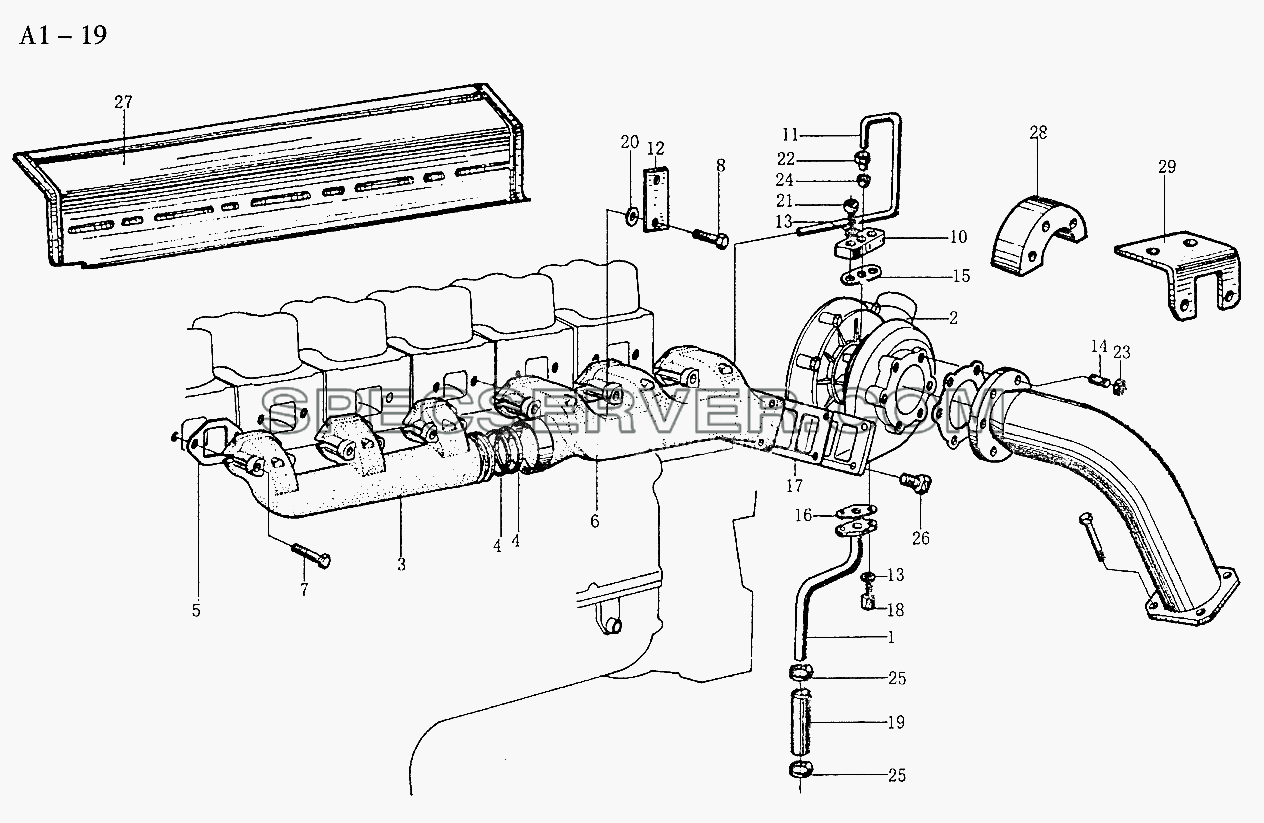

WD615 EXHAUST MANIFOLD (A1-19) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		612600110361 [Oil pipe]	Oil pipe
2		612600113227 [Turbochager]	Turbochager
3		61560110120 [Exhaust manifold front]	Exhaust manifold front
4		61260110162 [Ring]	Ring
5		61560110111 [Gasket]	Gasket
6		61560110222 [Exhaust manifold rear]	Exhaust manifold rear
7		61560110104 [Screw]	Screw
8		61560110105 [Screw]	Screw
10		81560110152 [Joint]	Joint
11		61560070001 [Pipe]	Pipe
12		99974200 [Extension bar]	Extension bar
13		188 250083 [Circlip]	Circlip
14		81560110187 [Stud]	Stud
15		609E110050 [Joint]	Joint
16		61260110048 [Joint]	Joint
17		61560110210 [Joint]	Joint
18		61460070014 [Screw]	Screw
19		612600070071 [Hose]	Hose
20		609 070067 [Flat washer]	Flat washer
21		90003862428 [Screw]	Screw
22		90003559513 [Ring]	Ring
23		90003888470 [Nut]	Nut
24		90003559563 [Ring]	Ring
25		90003989340 [Clamp]	Clamp
26		61560110241 [Bolt]	Bolt
