№		Номер детали	Наименование запчасти
1		26013314062 [Ф165 Plane Flange]	Ф165 Plane Flange
1		AZ9113314062 [Ф165 toothed flange]	Ф165 toothed flange
2		26013314080 [Spider]	Spider
4		26013314063 [Circlip]	Circlip
4		26013314064 [Circlip]	Circlip
4		26013314065 [Circlip]	Circlip
4		26013314066 [Circlip]	Circlip
4		26013314067 [Circlip]	Circlip
5		26013314030 [Bearing Assembly]	Bearing Assembly
6		26013314051 [Plane flange Ф165]	Plane flange Ф165
12		Q700B01 [Grease Nipple]	Grease Nipple
15		26013314052 [Nut]	Nut
16		26013314042 [Plate]	Plate
17		26013314032 [Gasket]	Gasket
18		26013314033 [Scraper]	Scraper
19		26013314037 [Circlip]	Circlip
20		26013314045 [Bearing]	Bearing
21		26013314035 [Bearing assembly]	Bearing assembly
22		26013314020 [Connecting plate]	Connecting plate

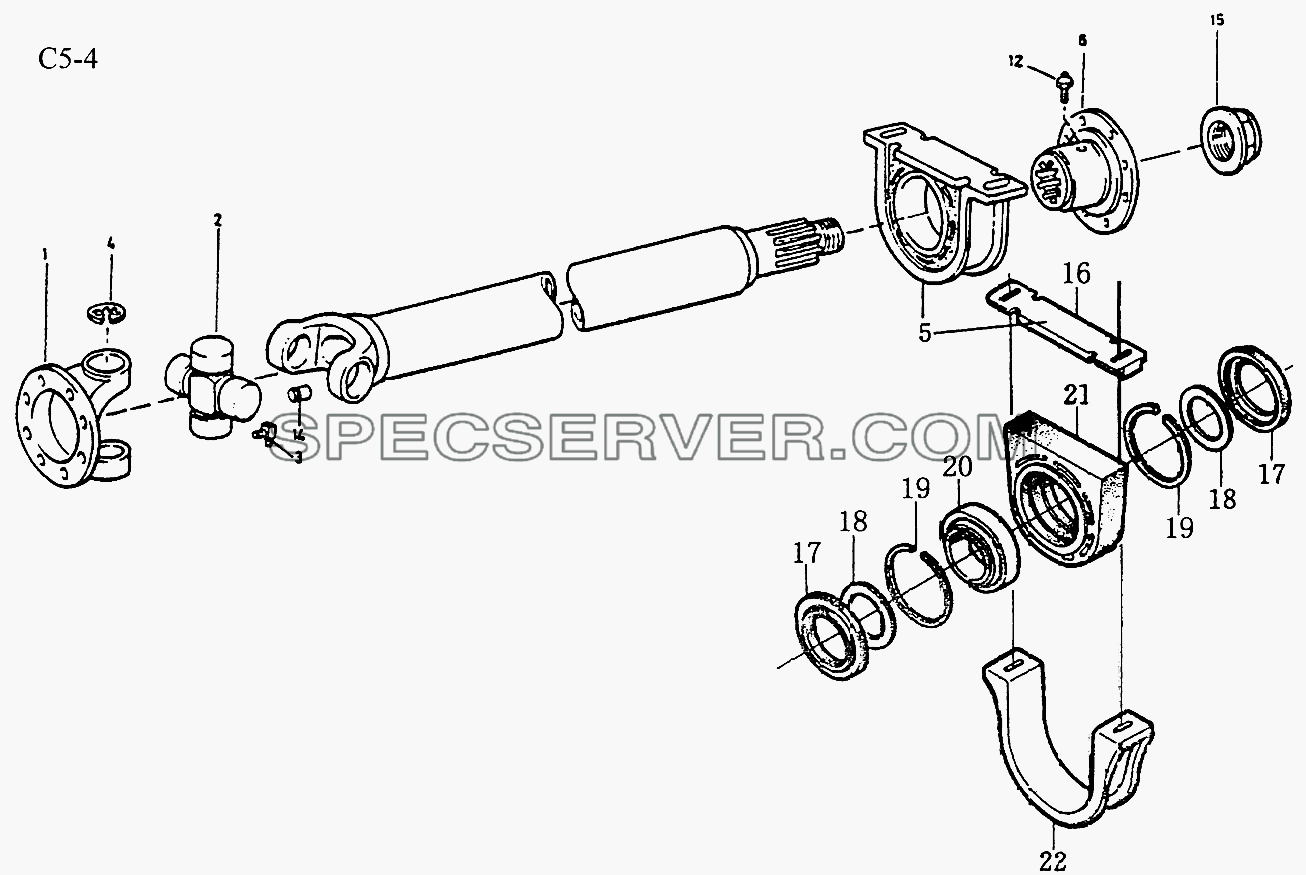

INTERMEDIATE SHAFTS Ф57 Inter mediate shaft wath spider (C5-4-2) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		19036311062 [Ф165 Plane Flange]	Ф165 Plane Flange
1		AZ9114311062 [Ф180 Plane Flange]	Ф180 Plane Flange
1		AZ9136311062 [Ф165 toothed flange]	Ф165 toothed flange
2		19036311080 [Spider]	Spider
4		19036311063 [Circlip]	Circlip
4		19036311064 [Circlip]	Circlip
4		19036311065 [Circlip]	Circlip
4		19036311066 [Circlip]	Circlip
4		19036311067 [Circlip]	Circlip
5		26013314030 [Bearing Assemble]	Bearing Assemble
6		26013314051 [Ф165 plane flange]	Ф165 plane flange
6		AZ9114314051 [Ф180 plane flange]	Ф180 plane flange
12		Q700B01 [Grease Nipple]	Grease Nipple
15		26013314052 [Nut]	Nut
16		26013314042 [Plate]	Plate
17		26013314032 [Gasket]	Gasket
18		26013314033 [Scraper]	Scraper
19		26013314037 [Circlip]	Circlip
20		26013314045 [Bearing]	Bearing
21		26013314035 [Bearing assembly]	Bearing assembly
22		26013314020 [Connecting plate]	Connecting plate

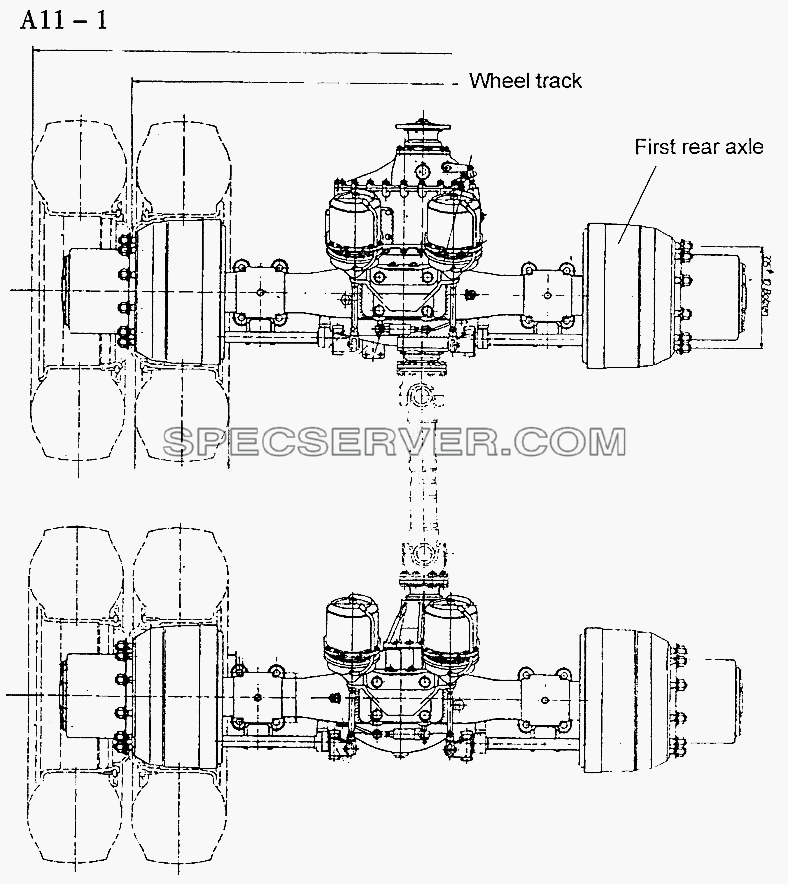

REAR DRIVE AXLE (A11-1) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AH71131500101 [Single rear axle]	Single rear axle
2		AH71131500115 [Single rear axle]	Single rear axle
3		JF1943300114 [Single rear axle]	Single rear axle
4		JF1943300115 [Single rear axle]	Single rear axle
5		JF1943300116 [Single rear axle]	Single rear axle
6		JF1943300117 [Single rear axle]	Single rear axle
7		JF1943300124 [Single rear axle]	Single rear axle
8		JF1943300125 [Single rear axle]	Single rear axle
9		JF1931..00102 [Single rear axle]	Single rear axle
10		JF1931..00113 [Single rear axle]	Single rear axle
11		JF1931..00114 [Single rear axle]	Single rear axle
12		JF1931..00166 [Single rear axle]	Single rear axle
13		AH71131500103 [Single rear axle]	Single rear axle
14		AH71131500106 [Single rear axle]	Single rear axle
15		AH71131501001 [Single rear axle]	Single rear axle
16		AH71131501002 [Single rear axle]	Single rear axle
17		AH71131500603 [Single rear axle]	Single rear axle
18		AH71131500605 [Single rear axle]	Single rear axle
18		AH71131500622 [Single rear axle]	Single rear axle
19		AH71131500624 [Single rear axle]	Single rear axle
20		AH71131500627 [Single rear axle]	Single rear axle
21		AH71131500629 [Single rear axle]	Single rear axle
22		AH71131501051 [Single rear axle]	Single rear axle
23		AH71131500601 [6x2 Single rear axle]	6x2 Single rear axle
24		AH71131500612 [6x2 Single rear axle]	6x2 Single rear axle
25		AH71131501052 [6x2 Single rear axle]	6x2 Single rear axle
26		AH71131400102 [Double rear axle]	Double rear axle
27		AH71131400107 [Double rear axle]	Double rear axle
28		AH71131400108 [Double rear axle]	Double rear axle
29		AH71131400111 [Double rear axle]	Double rear axle
30		AH71131400112 [Double rear axle]	Double rear axle
31		AH71131400114 [Double rear axle]	Double rear axle
32		AH71131400116 [Double rear axle]	Double rear axle
33		AH71131400117 [Double rear axle]	Double rear axle
33		AH71131501082 [Double rear axle]	Double rear axle
34		AH71131400118 [Double rear axle]	Double rear axle
34		AH71131400174 [Double rear axle]	Double rear axle
35		JF2643300107 [Double rear axle]	Double rear axle
36		JF2643300108 [Double rear axle]	Double rear axle
37		JF2643300109 [Double rear axle]	Double rear axle
38		JF2631..00167 [Double rear axle]	Double rear axle
39		JF2631..00168 [Double rear axle]	Double rear axle
40		AH71131400175 [Double rear axle]	Double rear axle
41		AH71131400177 [Double rear axle]	Double rear axle
42		AH71131401002 [Double rear axle]	Double rear axle
43		AH71131401015 [Double rear axle]	Double rear axle
44		AH71131401016 [Double rear axle]	Double rear axle
45		AH71131400104 [Double rear axle]	Double rear axle
46		AH71131400176 [Double rear axle]	Double rear axle
47		AH71131400201 [Double rear axle]	Double rear axle
48		AH71131400202 [Double rear axle]	Double rear axle
49		AH71131400203 [Double rear axle]	Double rear axle
49		AH71131400222 [Double rear axle]	Double rear axle
50		AH71131400223 [Double rear axle]	Double rear axle
51		AH71131400224 [Double rear axle]	Double rear axle
52		AH71131400501 [Double rear axle]	Double rear axle
53		AH71131400502 [Double rear axle]	Double rear axle
54		AH71131400503 [Double rear axle]	Double rear axle
54		AH71131400506 [Double rear axle]	Double rear axle
55		AH71131400525 [Double rear axle]	Double rear axle
56		AH71131400526 [Double rear axle]	Double rear axle
57		AH71131400560 [Double rear axle]	Double rear axle
58		AH71131400561 [Double rear axle]	Double rear axle
59		AH71131401061 [Double rear axle]	Double rear axle
60		AH71131400101 [Double rear axle]	Double rear axle

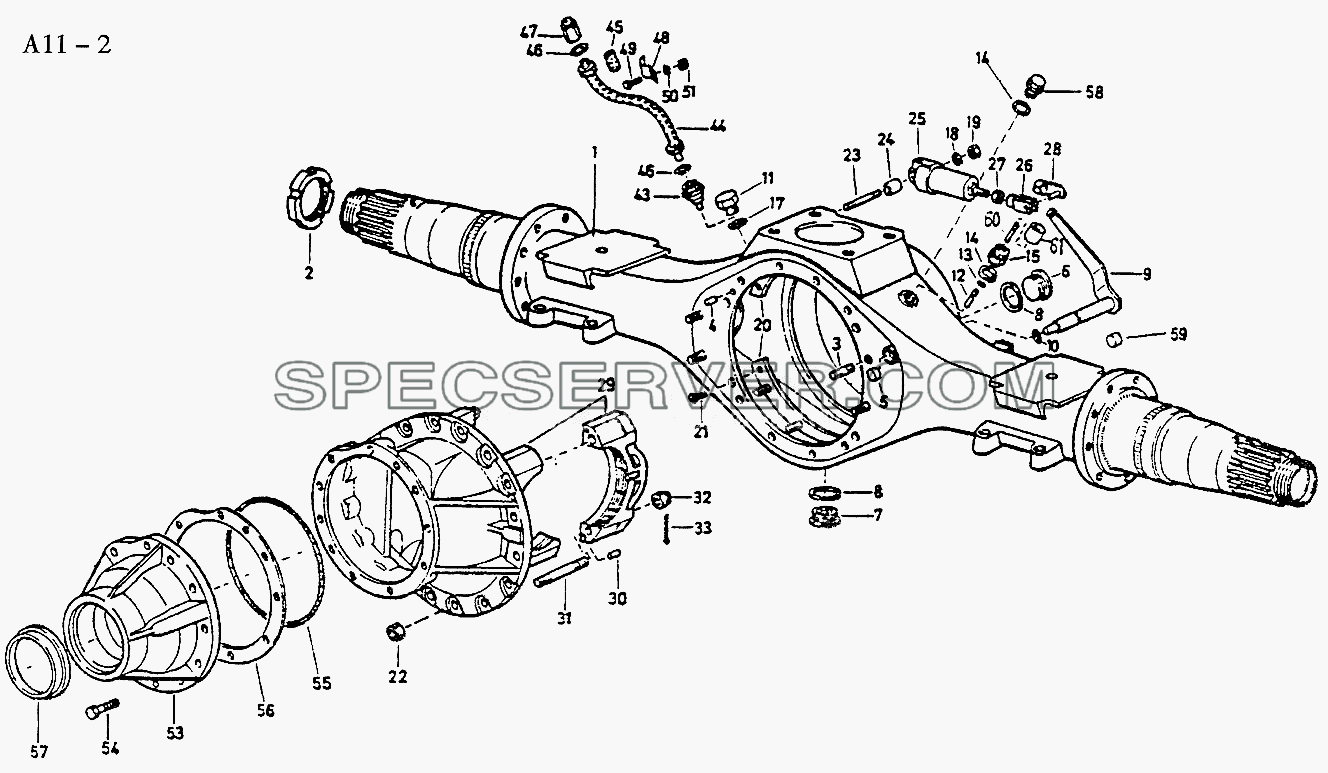

STEYR REAR AXLE HOUSING (A11-2) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		26012330165 [Rear axle housing]	Rear axle housing
1		AZ9231330065 [Rear axle housing]	Rear axle housing
1		AZ9231330161 [Rear axle housing]	Rear axle housing
1		AZ9231330265 [Rear axle homing]	Rear axle homing
1		AZ9231330266 [Rear axle housing]	Rear axle housing
2		1680 340013 [Nut]	Nut
3		190003810631 [Stud]	Stud
5		190003989290 [Core plug]	Core plug
6		181500010163 [Screw]	Screw
7		1586 330015 [Magnet plug]	Magnet plug
8		Q72336 [Gasket]	Gasket
9		199014330125 [Lever]	Lever
10		1680M320015 [O-ring]	O-ring
11		199000330006 [Breather]	Breather
12		169000330008 [Pin]	Pin
12		169000330009 [Pin]	Pin
12		BZ9100330010 [Pin]	Pin
13		Q43705 [Snap ring]	Snap ring
14		Q72318T5F [Gasket]	Gasket
15		WG9100710003 [Pressure switch]	Pressure switch
18		Q40108 [Washer]	Washer
19		Q33208 [Nut]	Nut
20		199014330146 [Connecting clip below]	Connecting clip below
20		199014330147 [Connecting clip above]	Connecting clip above
21		Q2540820 [Screw]	Screw
22		190003888732 [Nut]	Nut
23		Q1200850F3 [Stud]	Stud
24		161000060084 [Sleeve]	Sleeve
25		179100360018 [Operating cylinder]	Operating cylinder
26		190003964418 [Clevis]	Clevis
27		190003870221 [Nut]	Nut
28		WG780 350055 [Pin]	Pin
29		199012320098 [Housing of axle driver]	Housing of axle driver
30		Q5210820 [Pin]	Pin
31		Q12316120 [Stud]	Stud
32		190003888459 [Nut]	Nut
53		199012320131 [Bearing housing]	Bearing housing
54		Q150B1230TF2 [Screw]	Screw
55		199012320133 [Gasket]	Gasket
56		199012320173 [Shim]	Shim
56		199012320174 [Shim]	Shim
56		199012320175 [Shim]	Shim
56		199012320176 [Shim]	Shim
57		199012320121 [Ring]	Ring
58		190003962030 [Plug]	Plug
59		190003989201 [Core plug]	Core plug

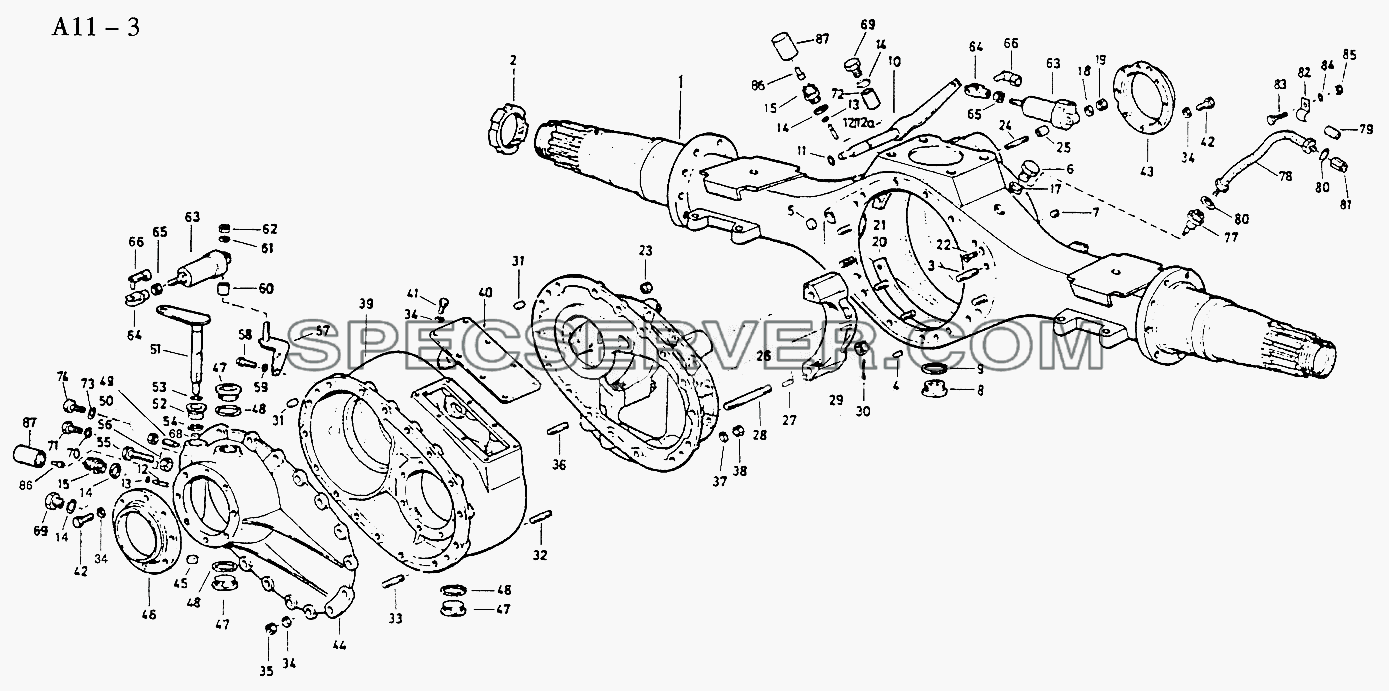

FIRST REAR AXLE HOUSING (A11-3) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1586 33 15 [Magenet plug]	Magenet plug
1		26013330208 [Fir.rear housing]	Fir.rear housing
1		26013330308 [Fir.rear housing]	Fir.rear housing
1		AZ9231330208 [Fir.rear housing]	Fir.rear housing
1		AZ9231332208 [Fir.rear housing]	Fir.rear housing
2		1680 340013 [Nut]	Nut
3		190003810631 [Stud]	Stud
4		Q5211016 [Pin]	Pin
5		190003989290 [Core plug]	Core plug
6		199000330006 [Breather]	Breather
7		190003962021 [Screw]	Screw
8		1586 330015 [Magnet plug]	Magnet plug
9		Q72336 [Gasket]	Gasket
10		199014330126 [Lever]	Lever
11		1680M320015 [O-ring]	O-ring
12		169000330008 [Pin]	Pin
12		169000330009 [Pin]	Pin
12		BZ9100330010 [Pin]	Pin
13		Q72318 T5F [Gasket]	Gasket
14		Q72318 T5F [Gasket]	Gasket
15		WG9100710003 [Pressure switch]	Pressure switch
18		Q40108 [Washer]	Washer
19		Q33208 [Nut]	Nut
20		199014330146 [Connecting clip below]	Connecting clip below
21		199014330147 [Connecting clip above]	Connecting clip above
22		Q2540820 [Screw]	Screw
23		190003888457 [Nut]	Nut
24		Q1200850F3 [Stud]	Stud
25		161000060084 [Sleeve]	Sleeve
26		199014320120 [Housing of Ist rear axle driver]	Housing of Ist rear axle driver
27		Q5210820 [Pin]	Pin
28		Q12316120 [Stud]	Stud
29		190003888459 [Nut]	Nut
31		Q5211016 [Pin]	Pin
32		190003813628 [Stud]	Stud
33		Q1201028F3 [Stud]	Stud
34		Q40310 [Spring washer]	Spring washer
35		Q340B10 [Nut]	Nut
36		Q1201225F3 [Stud]	Stud
37		Q40312 [Spring washer]	Spring washer
38		Q340B12 [Nut]	Nut
39		199014320259 [Housing]	Housing
40		199014320118 [Cover]	Cover
41		Q150B1020Q [Screw]	Screw
42		Q150B1025 [Screw]	Screw
43		199014320141 [Cover]	Cover
44		199014320144 [Cover]	Cover
45		190003989279 [Core plug]	Core plug
46		199014320175 [Cover]	Cover
47		181500010163 [Plug]	Plug
48		Q72336 [Gasket]	Gasket
49		190003902070 [Screw]	Screw
50		Q340B08 [Nut]	Nut
51		199014320076 [Lever]	Lever
52		12700 320037 [Sleeve]	Sleeve
53		1288 730062 [O-ring]	O-ring
54		190003933072 [Snap ring]	Snap ring
55		Q150B1050Q [Screw]	Screw
56		Q340B10 [Nut]	Nut
57		199014320156 [Bracket]	Bracket
58		Q150B0818 [Screw]	Screw
59		Q40308 [Spring washer]	Spring washer
60		161000060072 [Sleeve]	Sleeve
61		Q40108 [Washer]	Washer
62		Q33208 [Nut]	Nut
63		179100360018 [Operating cylinder]	Operating cylinder
64		190003964418 [Clevis]	Clevis
65		Q350B08T5F [Nut]	Nut
66		1780 350055 [Pin]	Pin
70		Q72310T5F [Gasket]	Gasket
71		Q150B1012 [Screw]	Screw
73		Q72308T5F [Gasket]	Gasket
74		Q150B0810 [Screw]	Screw

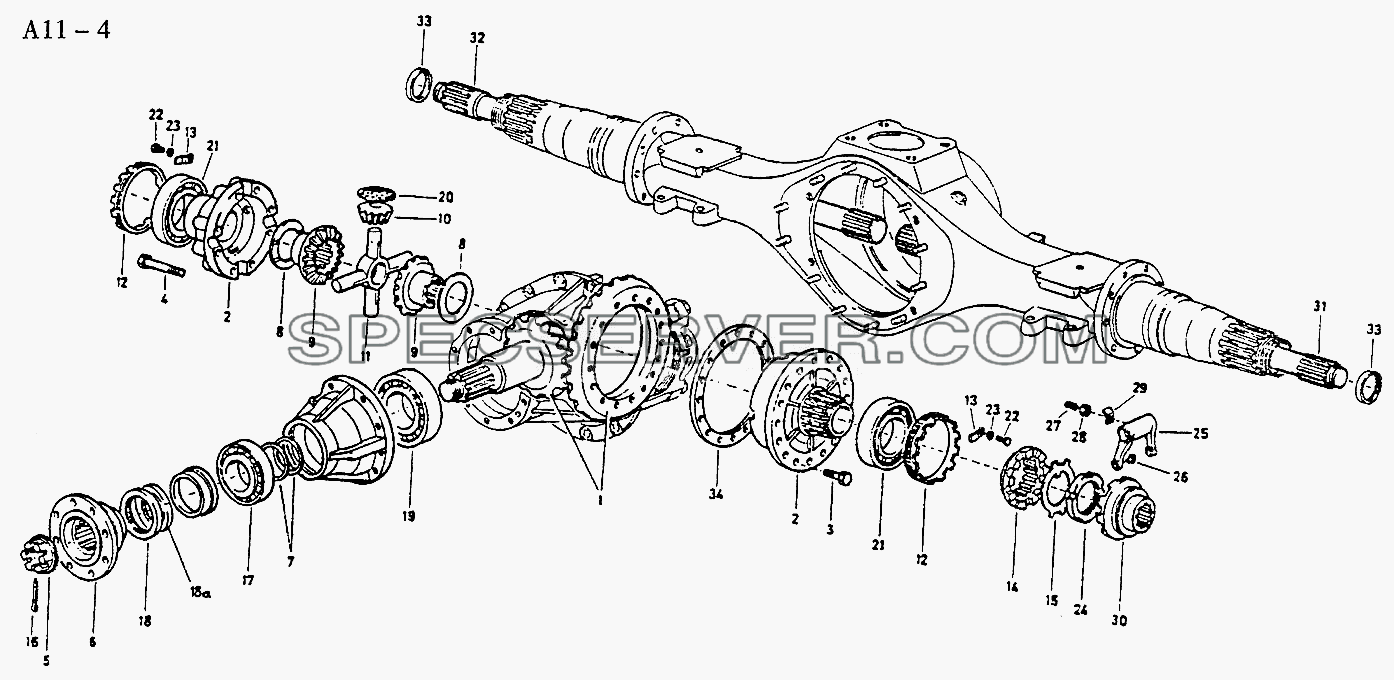

REAR AXLE DRIVE (A11-4) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199114320005 [Rrear axle drive]	Rrear axle drive
-		AZ9112320025 [Rrear axle drive]	Rrear axle drive
-		AZ9112320050 [Rrear axle drive]	Rrear axle drive
-		AZ9112320140 [Rrear axle drive]	Rrear axle drive
-		AZ9112320143 [Rrear axle drive]	Rrear axle drive
-		AZ9112320161 [Rrear axle drive]	Rrear axle drive
-		AZ9112320184 [Gasket]	Gasket
-		AZ9112322010 [Rrear axle drive]	Rrear axle drive
-		AZ9231320007 [Rrear axle drive]	Rrear axle drive
-		AZ9231320009 [Rrear axle drive]	Rrear axle drive
-		AZ9231320140 [Rrear axle drive]	Rrear axle drive
-		AZ9231320143 [Rrear axle drive]	Rrear axle drive
-		AZ9231320144 [Rrear axle drive]	Rrear axle drive
-		AZ9231320146 [Rrear axle drive]	Rrear axle drive
-		AZ9231320147 [Rrear axle drive]	Rrear axle drive
-		WG9114320003 [Locking sheet]	Locking sheet
1		199012320177 [Pinion and crown wheel]	Pinion and crown wheel
1		199012320178 [Pinion and crown wheel]	Pinion and crown wheel
1		199012320179 [Pinion and crown wheel]	Pinion and crown wheel
1		199012320180 [Pinion and crown wheel]	Pinion and crown wheel
1		199012320181 [Pinion and crown wheel]	Pinion and crown wheel
1		199012320182 [Pinion and crown wheel]	Pinion and crown wheel
1		199112320003 [Pinion and crown wheel]	Pinion and crown wheel
2		179012320199 [Diff. housing]	Diff. housing
2		199012320198 [Diff. housing]	Diff. housing
2		199012320503 [Diff. housing]	Diff. housing
2		AZ9112320199 [Diff. housing]	Diff. housing
3		Q151B1632TF2 [Screw]	Screw
4		Q151B1480TF2 [Screw]	Screw
5		179000320013 [Nut]	Nut
6		179000320010 [Ф150 plane flange]	Ф150 plane flange
6		199012320110 [Ф165 plane flange]	Ф165 plane flange
6		199014320261 [Ф180 plane flange]	Ф180 plane flange
6		AZ9112320110 [Ф165 Toothed flange]	Ф165 Toothed flange
6		AZ9128320014 [Ф180 Toothed flange]	Ф180 Toothed flange
7		1880 320002 [Shim]	Shim
7		1880 320003 [Shim]	Shim
7		1880 320004 [Shim]	Shim
7		1880 320005 [Shim]	Shim
7		1880 320006 [Shim]	Shim
7		1880 320007 [Shim]	Shim
7		1880 320008 [Shim]	Shim
7		1880 320009 [Shim]	Shim
7		1880 320010 [Shim]	Shim
7		1880 320011 [Shim]	Shim
7		1880 320012 [Shim]	Shim
7		1880 320013 [Shim]	Shim
7		1880 320014 [Shim]	Shim
7		1880 320015 [Shim]	Shim
8		11800 320012 [Shim]	Shim
8		11800 320131 [Shim]	Shim
8		11800 320132 [Shim]	Shim
8		13809320169 [Shim]	Shim
8		199012320129 [Shim]	Shim
9		199012320009 [Bevel pinion]	Bevel pinion
10		199012320010 [Bevel pinion]	Bevel pinion
11		199014320091 [Diff.spider]	Diff.spider
12		13809320159 [Screwed ring]	Screwed ring
13		17900320027 [Safety clip]	Safety clip
14		13809320155 [Shifting dog]	Shifting dog
15		13809320158 [Locking sheet]	Locking sheet
16		Q5005055 [Split pin]	Split pin
17		190003326236 [Roller bearing]	Roller bearing
18		AZ9112320030 [Gasket]	Gasket
19		190003326546 [Roller bearing]	Roller bearing
19		190003326547 [Roller bearing]	Roller bearing
20		199012320150 [Intermed.sheet]	Intermed.sheet
21		190003326148 [Roller bearing]	Roller bearing
22		Q150B0816 [Screw]	Screw
23		Q40308 [Spring washer]	Spring washer
24		13809320157 [Nut]	Nut
25		199012320014 [Shifting fork]	Shifting fork
26		11800320077 [Tappet]	Tappet
27		Q2800825 [Grub screw]	Grub screw
28		Q340B08 [Nut]	Nut
29		199012320023 [Lashing]	Lashing
30		13809320156 [Gear shift sleeve]	Gear shift sleeve
31		199012340023 [Drive shaft (left)]	Drive shaft (left)
32		199012340024 [Drive shaft (right)]	Drive shaft (right)
33		190003074340 [Gasket]	Gasket
34		199012320121 [Ring]	Ring
