№		Номер детали	Наименование запчасти
1		0630 531 217 [Retaining Ring]	Retaining Ring
2		0735 455 012 [Roller Bearing]	Roller Bearing
3		0630 501 111 [Retaining Ring]	Retaining Ring
3		0630 501 112 [Retaining Ring]	Retaining Ring
3		0630 501 113 [Retaining Ring]	Retaining Ring
3		0630 501 114 [Retaining Ring]	Retaining Ring
3		0630 501 115 [Retaining Ring]	Retaining Ring
3		0630 501 116 [Retaining Ring]	Retaining Ring
3		0630 501 117 [Retaining Ring]	Retaining Ring
3		0630 501 118 [Retaining Ring]	Retaining Ring
3		0630 501 145 [Reatining Ring]	Reatining Ring
3		0630 501 146 [Retaining Ring]	Retaining Ring
3		0630 501 147 [Retaining Ring]	Retaining Ring
3		0630 501 148 [Retaining Ring]	Retaining Ring
3		0630 501 150 [Retaining Ring]	Retaining Ring
3		0630 501 151 [Retaining Ring]	Retaining Ring
3		0630 501 159 [Retaining Ring]	Retaining Ring
3		0630 501 160 [Retaining Ring]	Retaining Ring
3		0630 501 294 [Retaining Ring]	Retaining Ring
3		0630 501 295 [Retaining Ring]	Retaining Ring
3		0630 501 296 [Retaining Ring]	Retaining Ring
3		0630 501 298 [Retaining Ring]	Retaining Ring
3		0630 501 299 [Retaining Ring]	Retaining Ring
3		0630 531 064 [Retaining Ring]	Retaining Ring
3		0630 531 065 [Retaining Ring]	Retaining Ring
3		0769 144 033(S) [Retaining Ring series]	Retaining Ring series
4		0730 002 680 [Shim]	Shim
4		0730 002 681 [Shim]	Shim
4		0730 002 682 [Shim]	Shim
4		0730 002 683 [Shim]	Shim
4		0730 002 684 [Shim]	Shim
4		0730 002 776 [Shim]	Shim
4		0730 002 777 [Shim]	Shim
4		0730 002 778 [Shim]	Shim
4		0730 002 780 [Shim]	Shim
4		0730 005 557 [Shim]	Shim
4		0769 140 115(S) [Shim series]	Shim series
5		115 304 058 [6G.Clutch Body]	6G.Clutch Body
6		1297 304 402 [Synchrowizer Ring]	Synchrowizer Ring
7		115 304 056 [Detend]	Detend
8		1311 304 021 [Compression spring]	Compression spring
10		1311 304 020 [Pressure Piece]	Pressure Piece
12		1312 302 057 [Sliding Sleeve]	Sliding Sleeve
13		115 304 057 [5G.clutch Body]	5G.clutch Body
14		115 304 062 [6G.gear]	6G.gear
15		0735 320 499 [Needle Bearing]	Needle Bearing
16		1268 304 141 [Bush]	Bush
17		115 304 065 [4G.gear]	4G.gear
18		0735 320 204 [Needle Bearing]	Needle Bearing
19		1312 304 027 [3/4G.Clutch Body]	3/4G.Clutch Body
20		0630 501 050 [Shim]	Shim
20		0630 501 304 [Shim]	Shim
20		0630 531 301 [Shim]	Shim
20		0769 144 003(s) [Shim series]	Shim series
21		115 304 055 [3/4G.Synchron.Body]	3/4G.Synchron.Body
22		115 304 068 [3G.Gear]	3G.Gear
23		0735 320 407 [3G.Needle Cage]	3G.Needle Cage
24		1268 304 274 [Main Shaft]	Main Shaft
25		0735 320 111 [2G.Needle Case]	2G.Needle Case
26		1126 304 002 [2G.Gear]	2G.Gear
27		1126 304 006 [1/2G.Synchronzer Body]	1/2G.Synchronzer Body
31		1126 304 004 [1/2G.Sliding Sleeve]	1/2G.Sliding Sleeve
32		0630 501 054 [Retaining Ring]	Retaining Ring
32		0630 531 302 [Retaining Ring]	Retaining Ring
32		0630 531 303 [Retaining Ring]	Retaining Ring
32		0769 144 002(S) [Retaining Ring series]	Retaining Ring series
33		0735 320 206 [1G.Needle Cage]	1G.Needle Cage
34		1126 304 001 [1G.Spur Gear]	1G.Spur Gear
35		1250 304 006 [Rg.Clutch Body]	Rg.Clutch Body
36		0730 160 344 [Bush]	Bush
37		0735 320 154 [Needle Cace]	Needle Cace
38		115 304 079 [Rg.Spur Gear]	Rg.Spur Gear
39		0635 333 049 [Ball Bearing]	Ball Bearing
40		0630 503 020 [Snap Ring]	Snap Ring
41		1250 304 198 [Speedometer Worm]	Speedometer Worm
42		1268 304 149 [Output Flange(plane)]	Output Flange(plane)
42		1268 304 149-1 [Ф165 Toothed Flange]	Ф165 Toothed Flange
43		1240 304 117 [Washer]	Washer
44		0636 016 012 [Hexagon Screw]	Hexagon Screw
45		1250 304 353 [Lockking Plate]	Lockking Plate

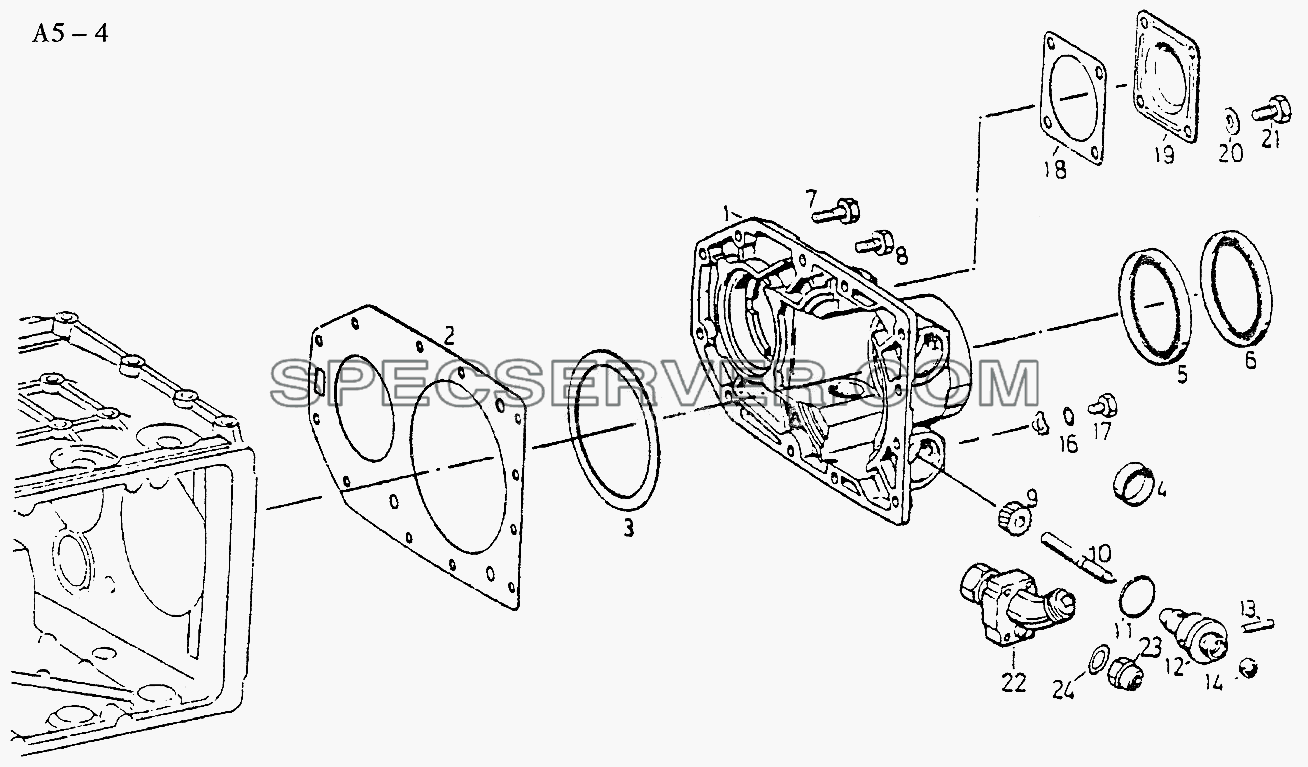

S6-120 REAR COVER (A5-4) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0730 002 665 [Shim]	Shim
-		0730 002 666 [Shim]	Shim
-		0730 002 667 [Shim]	Shim
-		0730 002 668 [Shim]	Shim
-		0730 002 669 [Shim]	Shim
-		0730 002 670 [Shim]	Shim
-		0730 002 671 [Shim]	Shim
-		0730 002 672 [Shim]	Shim
1		1268 308 012 [Rear Cover]	Rear Cover
2		1268 308 003 [Gasket]	Gasket
3		0769 140 051(S) [Shim series]	Shim series
4		0630 361 046 [Sealing Cap]	Sealing Cap
5		0734 310 109 [Shaft Seal]	Shaft Seal
6		0734 300 093 [Shaft Seal]	Shaft Seal
7		0636 015 127 [Hexagon Screw]	Hexagon Screw
8		0636 015 110 [Hexagon Screw]	Hexagon Screw
9		1250 308 057 [Speedmeter Pinion]	Speedmeter Pinion
10		1250 308 007 [Speed Conn.Shaft]	Speed Conn.Shaft
11		0634 316 057 [O-Ring]	O-Ring
12		1250 308 017 [Speed Conn.Dee]	Speed Conn.Dee
13		0631 306 713 [Parallel Pin]	Parallel Pin
14		0634 300 185 [Shaft Seal]	Shaft Seal
16		1250 308 130 [Screw]	Screw
17		0737 006 078 [Hexagon Nut]	Hexagon Nut
18		1238 308 201 [Gasket]	Gasket
19		1268 308 165 [Cover]	Cover
21		0636 016 005 [Hexagon Screw]	Hexagon Screw
22		0731 101 250 [Speed Gearbox]	Speed Gearbox
23		0501 308 001 [Cover]	Cover

S6-120 SHIFTING GEAR FORK (A5-5) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1126 306 001 [1/2G.Sliding Pad]	1/2G.Sliding Pad
-		1240 306 242 [Articulat Bolt]	Articulat Bolt
1		115 306 009 [5/6G.Gear Shift Fork]	5/6G.Gear Shift Fork
2		115 206 006 [3/4G.Gear Shift Fork]	3/4G.Gear Shift Fork
3		1268 206 040 [1/2G.Gear Shift Fork]	1/2G.Gear Shift Fork
4		115 306 006 [Sliding Pad]	Sliding Pad
5		0730 300 005 [Spring Washer]	Spring Washer
6		1252 306 077 [Articulat Bolt]	Articulat Bolt
8		1268 306 035 [Sliding Bow]	Sliding Bow
9		1246 206 008 [Dang Link]	Dang Link
10		1269 306 022 [3/4G.Dang Link]	3/4G.Dang Link
11		1268 306 096 [1/2G.Dang Link]	1/2G.Dang Link
12		1240 306 214 [Rg.Gear Shift Fork]	Rg.Gear Shift Fork

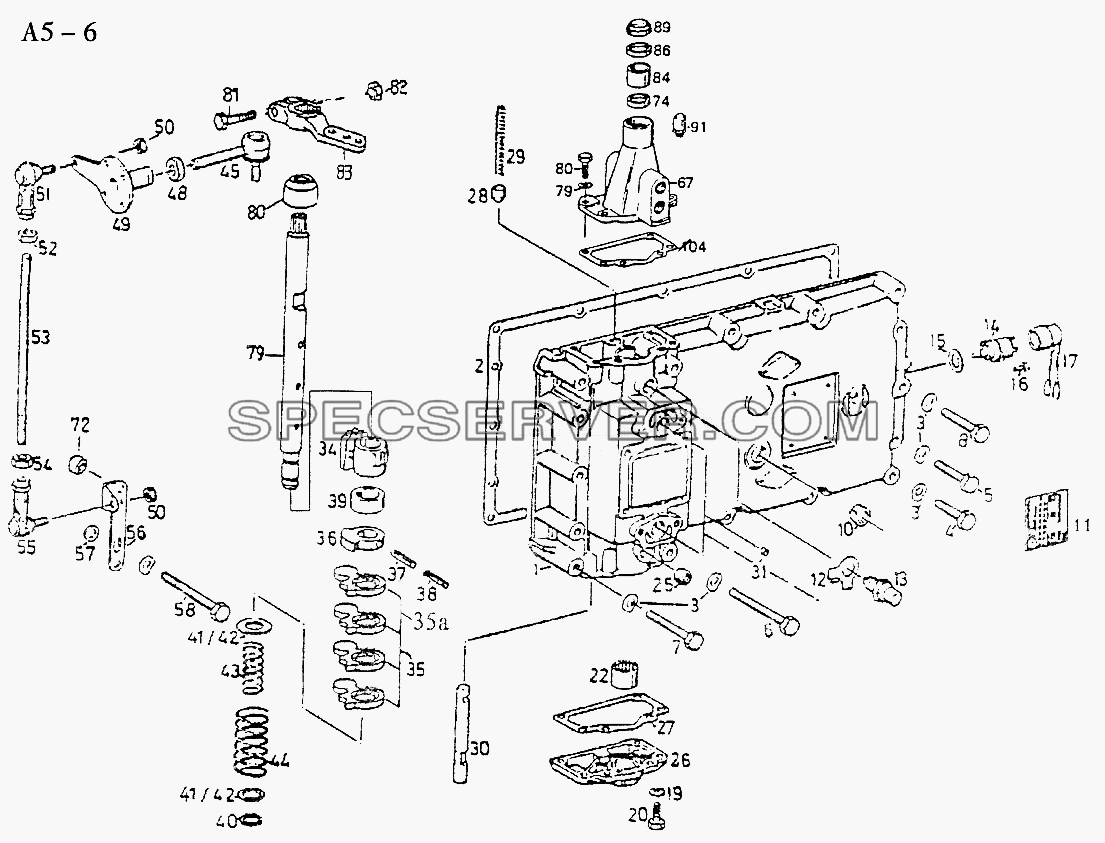

S6-120 GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM (A5-6) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0637 011 532 [Locking Nut]	Locking Nut
-		1240 307 339 [5/6G.Driver]	5/6G.Driver
1		1250 307 450 [Gear shift Cover]	Gear shift Cover
2		1250 306 182 [Gasket]	Gasket
3		0630 302 091 [Spring Washer B10]	Spring Washer B10
4		0636 010 172 [Hexagon Screw]	Hexagon Screw
5		0636 010 174 [Hexagon Screw]	Hexagon Screw
6		0636 010 200 [Hexagon Screw]	Hexagon Screw
7		0636 010 190 [Hexagon Screw]	Hexagon Screw
8		0636 010 179 [Hexagon Screw]	Hexagon Screw
10		0736 303 005 [Screw Plug]	Screw Plug
11		112 365 064 [Type Plate]	Type Plate
12		0630 603 010 [Locking Platte]	Locking Platte
13		1250 207 254 [Spring loaded screw]	Spring loaded screw
14		0501 203 944 [Switch]	Switch
15		0501 309 183 [Gasket]	Gasket
16		0636 015 020 [Hexagon Screw]	Hexagon Screw
17		1240 307 441 [Plate]	Plate
19		0630 302 090 [Spring washer]	Spring washer
20		0630 015 092 [Hexagon Screw]	Hexagon Screw
22		0635 300 053 [Niddle bearing]	Niddle bearing
25		0636 301 041 [Screw]	Screw
26		1240 307 424 [Cover]	Cover
27		1252 307 060 [Gasket]	Gasket
28		1250 307 600 [Detent Bolt]	Detent Bolt
29		0732 041 244 [Compression Spring]	Compression Spring
30		1240 307 346 [Shaft]	Shaft
31		0730 361 073 [Sealing Cap]	Sealing Cap
33		0735 470 007 [Roller]	Roller
34		115 307 001 [Detent Secment]	Detent Secment
35		1240 307 338 [Driver]	Driver
36		1240 307 374 [Driver]	Driver
37		0631 329 072 [Slotted Spring Pin]	Slotted Spring Pin
38		0631 329 145 [Slotted Spring Pin]	Slotted Spring Pin
39		0730 061 091 [Stop Bush]	Stop Bush
40		0630 532 138 [V-Ring]	V-Ring
41		0730 104 083 [Washer]	Washer
42		0730 001 156 [Washer]	Washer
43		0732 040 022 [Compression Spring]	Compression Spring
44		0732 040 237 [Compression Spring]	Compression Spring
45		0501 204 714 [Ball Joint]	Ball Joint
49		1240 207 113 [Connect Ion Part]	Connect Ion Part
50		0637 011 527 [Locking Nut]	Locking Nut
51		0732 107 019 [Ball joint (left)]	Ball joint (left)
52		0637 006 091 [Hexagon Nut]	Hexagon Nut
53		0736 620 056 [Draw Bar]	Draw Bar
54		0637 006 027 [Hexagon Nut]	Hexagon Nut
55		0732 107 018 [Ball joint (left)]	Ball joint (left)
56		1269 307 350 [Support Plate]	Support Plate
57		0630 001 014 [Washer]	Washer
58		0636 010 192 [Hexagon Screw]	Hexagon Screw
67		1250 307 634 [Gear Shift Housing]	Gear Shift Housing
79		1240 307 433 [Gear shift Lever]	Gear shift Lever
80		1238 307 411 [Gear shift Shaft]	Gear shift Shaft
81		0636 010 159 [Protecting Cap]	Protecting Cap
82		0637 006 102 [Hexagon Screw]	Hexagon Screw
83		1250 307 662 [Hexagon Nut]	Hexagon Nut
84		0635 300 053 [Needle Sleeve]	Needle Sleeve
86		0634 300 302 [Shaft Seal]	Shaft Seal
89		0634 307 367 [Rod Wiper]	Rod Wiper
91		0732 612 005 [Breather]	Breather

5S-111GP, 5S-150GP, 4S-130GP GEARBOX HOUSING (A6-1) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
4		1269301125 [Transm.Housing]	Transm.Housing
11		0736301022 [Screw plug]	Screw plug
13		0736305016 [Screw plug]	Screw plug
43		0634801044 [Seal ring]	Seal ring
44		0636302016 [Screw plug]	Screw plug
46		0730361103 [Sealing cover]	Sealing cover
51		0501202407 [Suction otrainer]	Suction otrainer
54		0630531387 [Triangular ret.]	Triangular ret.
55		1269301124 [Injector tube]	Injector tube
75		0636301048 [Screw plug]	Screw plug
76		0736303005 [Screw plug]	Screw plug
80		2159107502(B) [Bracket C]	Bracket C
81		2159207003(B) [Bracket]	Bracket
82		2159307002 [Plate]	Plate
83		2159307001 [Pin]	Pin
84		2159307007 [Bracket]	Bracket
85		2159307004 [Pin]	Pin
86		2159107002(S) [Pneu.assist.Operating]	Pneu.assist.Operating
87		2159307006 [Lever]	Lever
88		0627207001 [Assist.power cylinder]	Assist.power cylinder
89		2159207003 [Bracket]	Bracket
90		Q150B1225 [Screw]	Screw
91		Q40312 [Washer]	Washer

CLUTCH HOUSING FOR ZF GEARBOX (A6-2) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1096302089 [Clutch Housing]	Clutch Housing
1		2159302008 [Clutch Housing]	Clutch Housing
2		Q151B1895TF2 [Screw]	Screw
3		1096302076 [Bearing]	Bearing
4		312322002 [Screw]	Screw
5		0634801152 [Gasket]	Gasket
6		99012210065 [Hose]	Hose
7		109301075 [Nozzel joint]	Nozzel joint
8		Q700B01 [Grease nippel]	Grease nippel
9		1156302010 [Fork]	Fork
9		2159302009 [Fork]	Fork
10		1156302011 [Screw]	Screw
11		1156302013 [Spring]	Spring
12		1156302014 [Spring]	Spring
13		2159202001 [Fork Shaft]	Fork Shaft
13		2159302013 [Fork Shaft]	Fork Shaft
14		1156302006 [Cotter]	Cotter
15		1156302012 [Bush]	Bush
15		2159302012 [Bush]	Bush
16		108302062 [Gasket]	Gasket
17		108302052 [Plate]	Plate
17		2159302052 [Plate]	Plate
18		0636015020 [Screw]	Screw
19		2159302011 [Bracket]	Bracket
20		116302027 [Snap ring]	Snap ring
