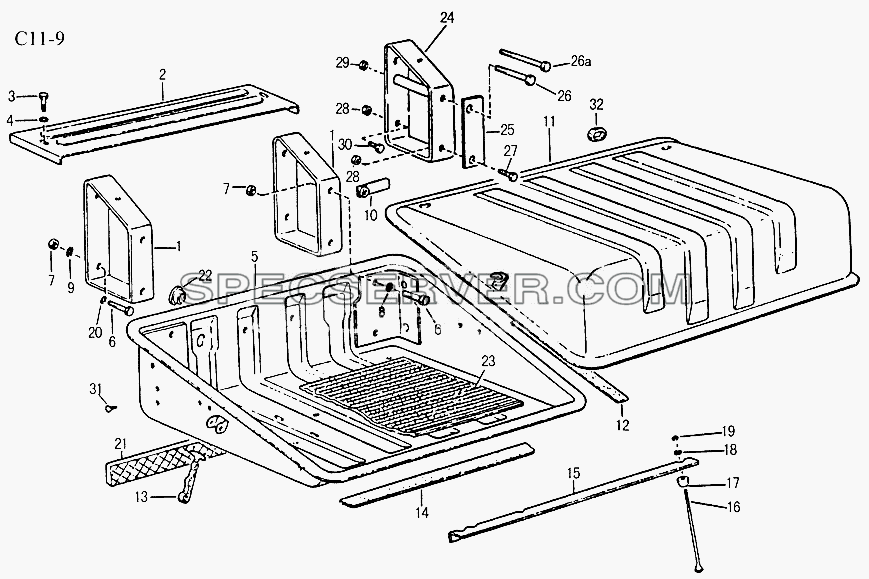

BATTERY BOX (C11-9) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q150B16200 [Screw]	Screw
2		199100760011 [Cover]	Cover
3		190003846410 [Screw]	Screw
4		Q40008 [Washer]	Washer
5		WG9719760004 [Battery case bottom]	Battery case bottom
6		Q151B16200 [Screw]	Screw
7		Q33216 [Nut]	Nut
8		Q40016 [Washer]	Washer
11		WG9100760002 [Battery case top]	Battery case top
13		WG9100760021 [Hood cagier]	Hood cagier
14		190003179044 [Edge protection]	Edge protection
15		179200760024 [Angle]	Angle
16		AZ9100760143 [Screwy rod]	Screwy rod
17		1682 110021 [Rubber buffer]	Rubber buffer
18		Q40008 [Washer]	Washer
19		Q33408 [Nut]	Nut
21		WG9100760066 [Spacing plate]	Spacing plate
22		190003179425 [Plug]	Plug
23		WG9100760084 [Rubber base]	Rubber base
24		199114760004 [Bracket]	Bracket
25		AZ9100760001 [Plate]	Plate
27		Q151B1645 [Screw]	Screw
28		190003888459 [Nut]	Nut
31		1293 13 0067 [Rubber buffer]	Rubber buffer

QH50 POWER TAKE OFF C (A8-1) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1-21-729-091 [Sprig washer]	Sprig washer
-		21-729-011 [Spring washer]	Spring washer
-		21-729-106 [Spring washer]	Spring washer
-		21-729-109 [Spring washer]	Spring washer
-		21-729-109 [Spring washer]	Spring washer
-		21-729-109 [Spring washer]	Spring washer
-		QH50 [Power take off C]	Power take off C
1		1-21-729-090 [Housing]	Housing
2		1-21-729-105 [Housing cover]	Housing cover
3		1-21-729-092 [Oil supply threaded ring]	Oil supply threaded ring
4		21-729-093 [Counter.screw]	Counter.screw
5		21-729-003 [Dowel pin]	Dowel pin
6		21-729-21 [Screw]	Screw
7		1-21-729-059 [Inner hex. bolt]	Inner hex. bolt
8		21-729-101 [Dowel screw]	Dowel screw
9		QH50-4211302 [Sliding sleeve]	Sliding sleeve
10		QH50-4211105 [Clutch support]	Clutch support
11		QH50-4211111 [Spring Gear]	Spring Gear
12		QH50-4211106 [Gear]	Gear
13		K505517 [Needle bearing]	Needle bearing
14		QH50-4211104 [Washer]	Washer
15		1-21-729-100 [Screw]	Screw
16		32205 [Roller bearing]	Roller bearing
17		32205 [Roller bearing]	Roller bearing
18		QH50-4211201 [Drive shaft]	Drive shaft
19		30208 [Roller bearing]	Roller bearing
20		QH50-4211301 [Shifting fork]	Shifting fork
21		QH50-4211312 [Inner hex.bolt]	Inner hex.bolt
22		QH50-4211305 [Piston rod]	Piston rod
23		21-729-084 [Inner hex.bolt]	Inner hex.bolt
25		21-729-021 [Plug]	Plug
26		1-21-729-124 [Intermed. hougsing]	Intermed. hougsing
27		1-21-729-111 [Out ring]	Out ring
28		QH50-4211203 [Shim]	Shim
32		21-729-125 [Bearing cover]	Bearing cover
33		21-729-126 [Screw]	Screw
34		21-729-127 [Screw]	Screw
35		21-729-128 [Screw]	Screw
36		21-729-112 [O-ring]	O-ring
37		QH50-4211311 [Spring]	Spring
38		QH50-4211310 [Piston]	Piston
39		21-729-115 [O-ring]	O-ring
40		21-724-132 [Inner hex. bolt]	Inner hex. bolt
41		QH50-4211307 [Joint]	Joint
42		QH50-4211306 [Cyl. cover]	Cyl. cover
43		21-729-118 [Inner hex. bolt]	Inner hex. bolt
44		15726 [Breather]	Breather
45		21-724-040 [Joint]	Joint
46		21-724-042 [Locking screw]	Locking screw
47		QH50-4211202 [Gasket]	Gasket
48		21-729-049 [Distance ring]	Distance ring
49		QH50-A [Flange]	Flange
50		21-729-134 [Supporting plate]	Supporting plate
51		21-729-035 [O-ring]	O-ring
52		21-729-0130 [Washer]	Washer
53		21-729-0131 [Screw]	Screw
65		79100710068 [Pressure switch]	Pressure switch
