№		Номер детали	Наименование запчасти
1		JS130T-1702015 [Cover]	Cover
2		14918 [Gasket]	Gasket
3		M10x35 [Screw]	Screw
3		Q40310 [Spring washer]	Spring washer
4		Q614B10 [Plug]	Plug
5		1/2" [Steel ball]	Steel ball
6		11066 [Stud]	Stud
7		Q40310 [Spring washer]	Spring washer
7		X-1-603 [Nut]	Nut
8		F96084 [Spring]	Spring
9		1642 [Gasket]	Gasket
10		JS150T-1702064 [Yoke shaft low/reverse gear]	Yoke shaft low/reverse gear
11		8968 [Plug]	Plug
12		8774-3 [Spring]	Spring
13		F99671 [Plug]	Plug
14		3220 [Screw]	Screw
15		JS150T-1702054 [Shifting fork]	Shifting fork
16		3/4" [Steel ball]	Steel ball
17		JS150T-1702052 [Shifting block 1/2 gear and 5/6 gear]	Shifting block 1/2 gear and 5/6 gear
18		JS150T-1702065 [Yoke shaft 1/2 gear]	Yoke shaft 1/2 gear
19		JS150T-1702055 [Shifting fork 1/2 gear]	Shifting fork 1/2 gear
20		1634 [Locking pin]	Locking pin
21		JS150T-1702056 [Shifting fork 3/4 gear]	Shifting fork 3/4 gear
22		JS150T-1702066 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
23		F99589 [Shifting block 1/2 gear and 5/6 gear]	Shifting block 1/2 gear and 5/6 gear
24		20815 [Lifting eye]	Lifting eye
25		M10x32 [Screw]	Screw
25		Q40310 [Spring washer]	Spring washer
26		M10x32 [Screw]	Screw
26		Q40310 [Spring washer]	Spring washer
27		Q351B10 [Nut]	Nut
28		Q361B10 [Nut]	Nut

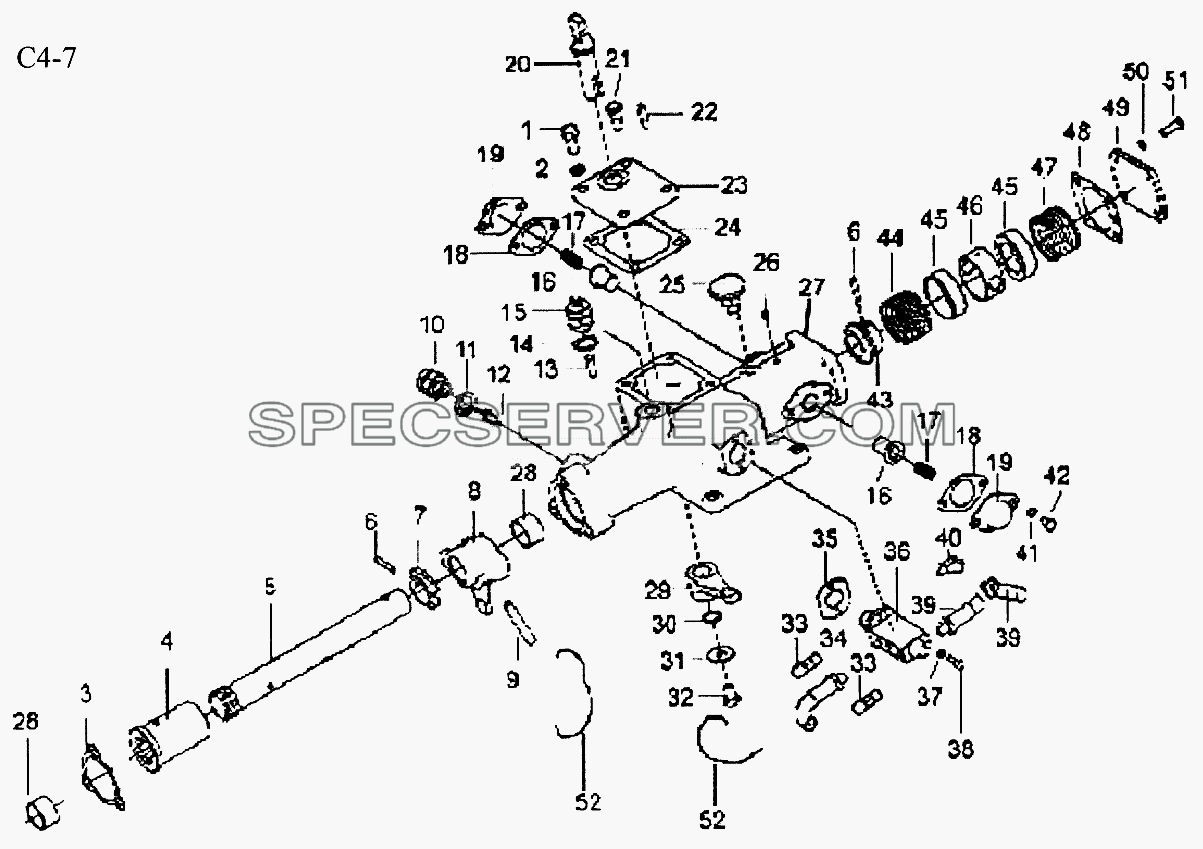

9JS150T DOUBLE H OPERATION (C4-7) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q150B1025 [Screw]	Screw
2		Q40310 [Spring washer]	Spring washer
3		C03034-1 [Gasket]	Gasket
4		C03031-1 [Sleeve]	Sleeve
5		F99679-8 [Gearshift shaft]	Gearshift shaft
6		Q5000635 [Flexibility roll pin]	Flexibility roll pin
7		F99681 [Shift block for reverse switch]	Shift block for reverse switch
8		F99585-1 [Shift finger]	Shift finger
9		C03030 [Roll pin]	Roll pin
10		9912710041 [Pressure switch (neutral position)]	Pressure switch (neutral position)
11		Q72318T5 [Seal ring]	Seal ring
12		F99702-1 [Pin]	Pin
13		15899 [Pin]	Pin
14		C03015 [Seal ring]	Seal ring
15		79100710068 [Pressure switch (reverse gear)]	Pressure switch (reverse gear)
16		F99670 [Plug]	Plug
17		F96037-2 [Spring]	Spring
18		F96140 [Gasket]	Gasket
19		F96141 [Spring cover]	Spring cover
20		C03038-1 [Shift joint]	Shift joint
21		C03040-1 [Screw]	Screw
22		Q5510628 [Key]	Кеу
23		C03036-1 [Cover]	Cover
24		C03037-7 [Gasket]	Gasket
25		15276 [Plug]	Plug
26		C03004 [Screw]	Screw
27		F96194-6 [Housing]	Housing
28		F91345 [Bush]	Bush
29		C03035-1 [Shift finger]	Shift finger
30		HG4-333-66 [O-Ring]	O-Ring
31		C03039-1 [Washer]	Washer
32		Q170B1016 [Screw]	Screw
33		7935 [Plug]	Plug
34		55521 [Hose]	Hose
35		F91353 [Double H valve gasket]	Double H valve gasket
36		F99660 [Double H valve]	Double H valve
37		Q40306 [Spring washer]	Spring washer
38		M6x18 [Screw]	Screw
39		55506 [Hose]	Hose
40		12880 [Angle screwing]	Angle screwing
41		Q40308 [Spring washer]	Spring washer
42		M8x12 [Screw]	Screw
43		F99675 [Snap ring]	Snap ring
44		F99983 [Spring]	Spring
45		F99673 [Spring bracket]	Spring bracket
46		F99674 [Spring sleeve]	Spring sleeve
47		F99983 [Spring]	Spring
48		F99672 [Gasket]	Gasket
49		F99666 [Plate]	Plate
50		Q40308 [Spring washer]	Spring washer
51		M8x22 [Screw]	Screw
52		1819 [Wire]	Wire

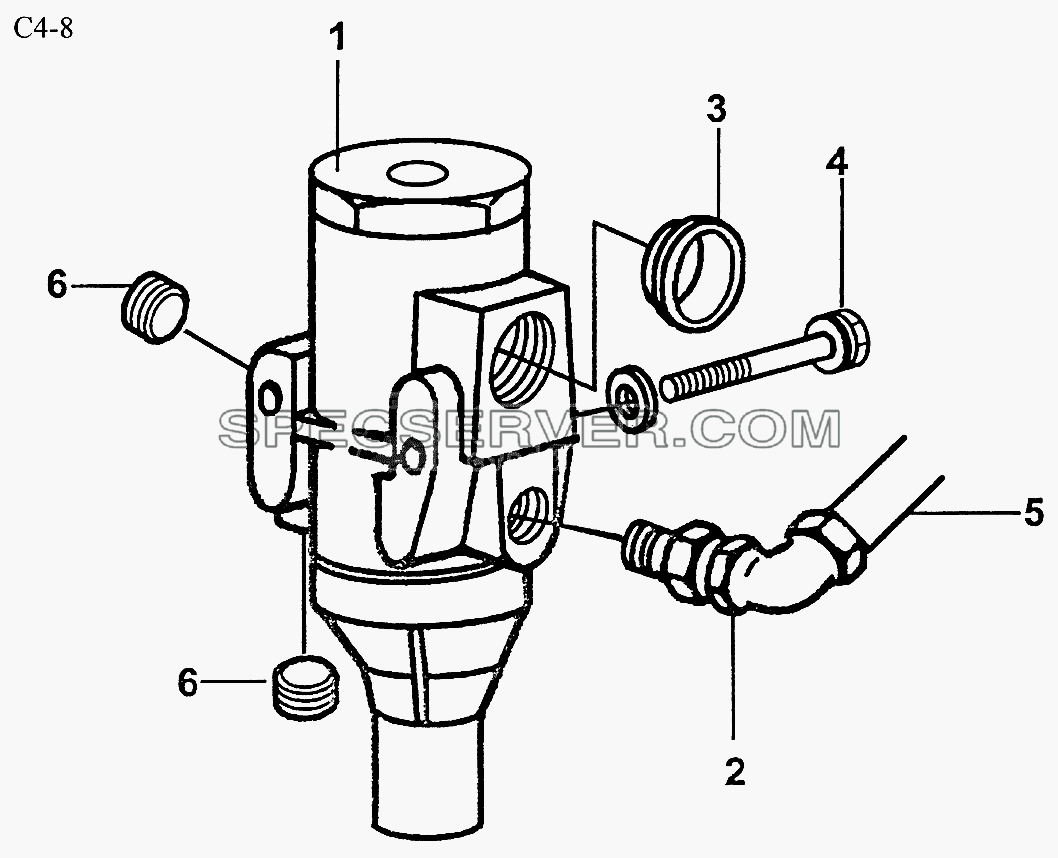

AIR REGULATOR VALVE (C4-8) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		A-4740 [Airfilter]	Airfilter
2		12845 [Angle screwing]	Angle screwing
3		54015 [Plug]	Plug
4		M6x60 [Screw]	Screw
5		55518 [Pipe]	Pipe
6		Q618B01 [Plug]	Plug

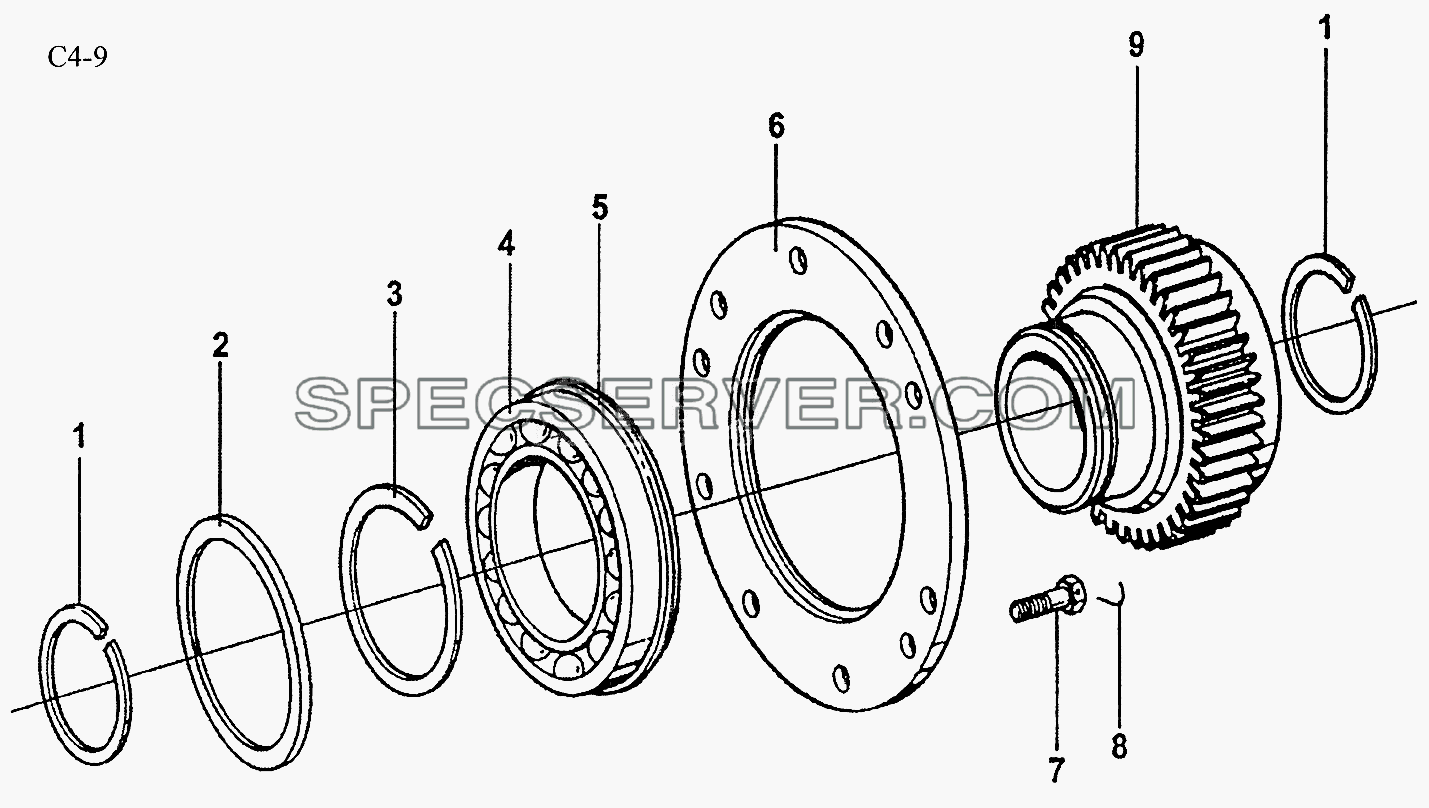

9JS150T AUX. GEARBOX DRIVE GEAR (C4-9) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		16763 [Snap ring]	Snap ring
2		C01033 [Locking ring]	Locking ring
3		16628 [Snap ring]	Snap ring
4		50118 [Ball bearing]	Ball bearing
5		C01019 [Snap ring]	Snap ring
6		16138 [Retainer]	Retainer
7		M10x22 [Screw]	Screw
8		1819 [Wire]	Wire
9		18869 [Drive gear]	Drive gear

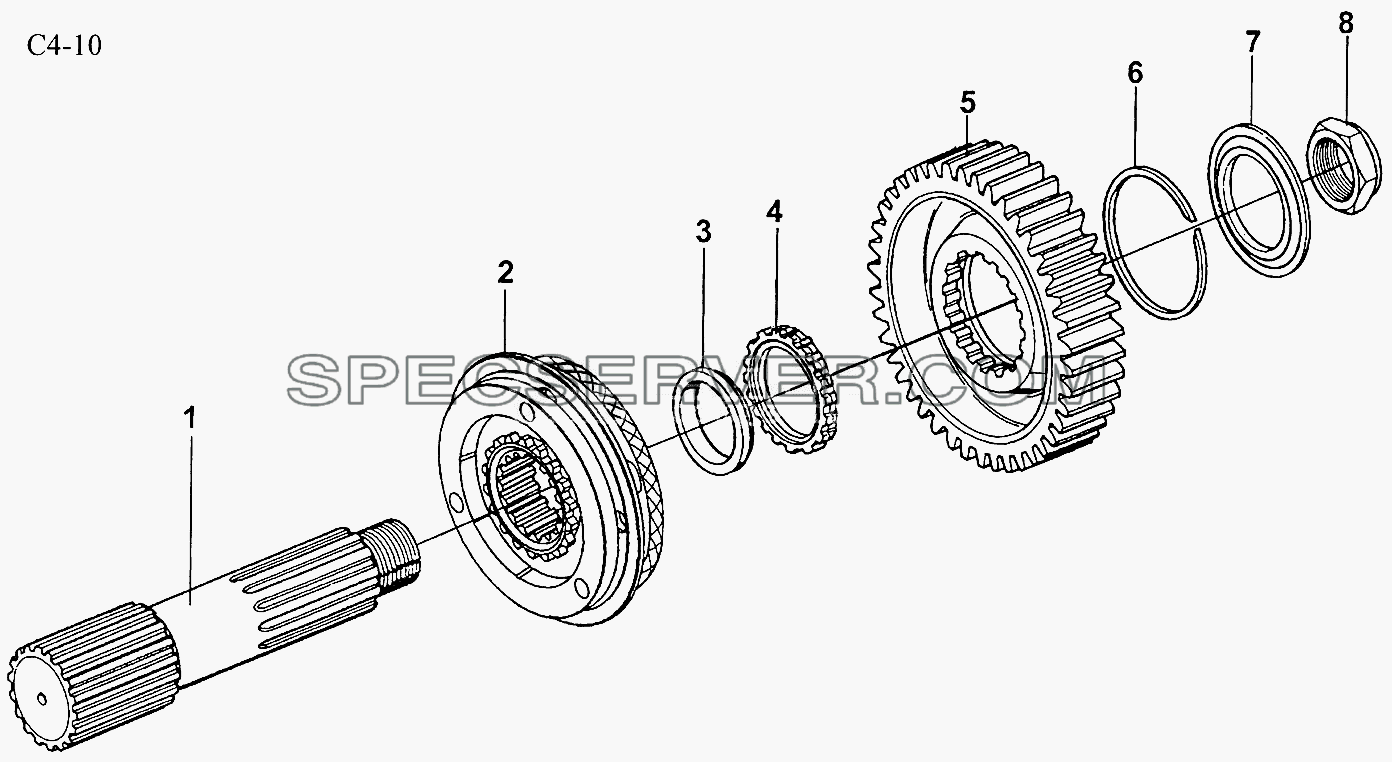

9JS150T AUX. GEARBOX OUTPUTSHAFT (C4-10) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		F99882 [Main shaft]	Main shaft
2		A-C09005 [Synchronisation high-Low gear]	Synchronisation high-Low gear
3		14332 [Main shaft washer]	Main shaft washer
4		14331 [Main shaft washer]	Main shaft washer
5		19726 [Reduction gear]	Reduction gear
6		14327 [Snap ring]	Snap ring
7		19466 [Washer]	Washer
8		F96006 [Nut]	Nut

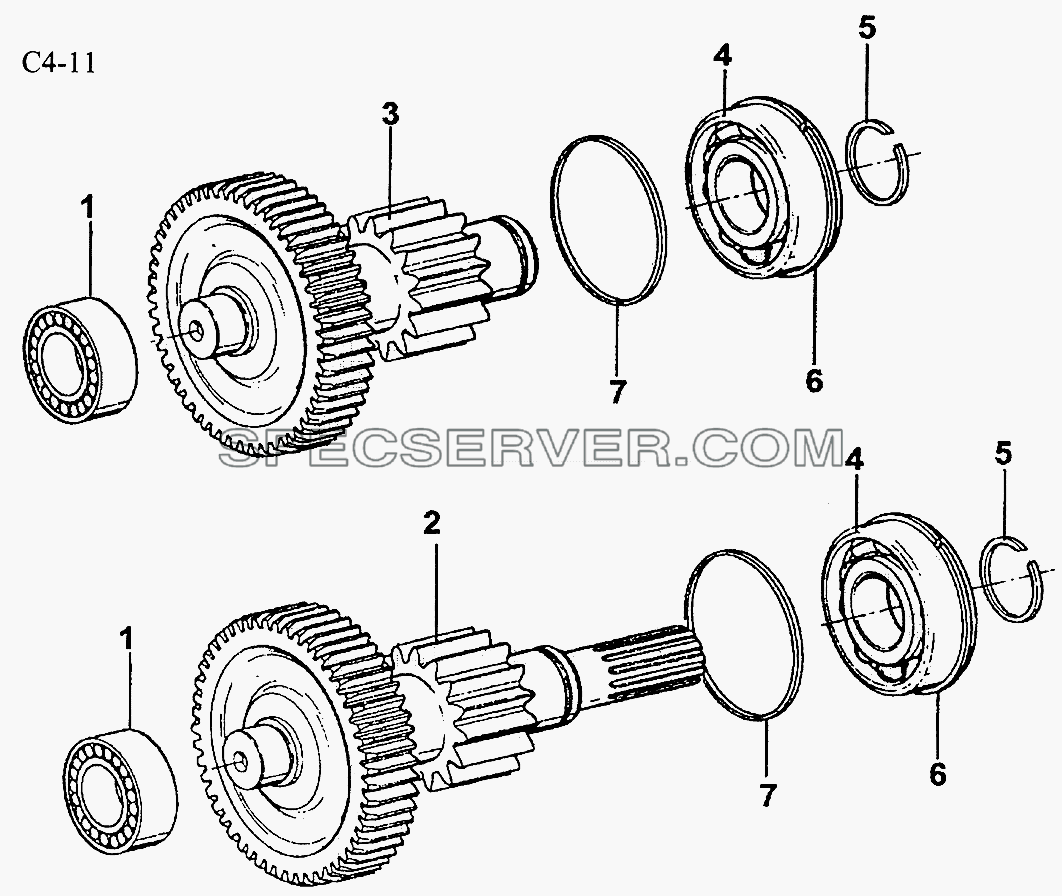

9JS150T AUX. GEARBOX LAY SHAFT (C4-11) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		42307E [Roller bearing]	Roller bearing
2		A-5119 [Long lay shaft C]	Long lay shaft C
3		A-C09019 [Long lay shaft]	Long lay shaft
4		192310E [Roller bearing]	Roller bearing
5		16723 [Snap ring]	Snap ring
6		C01020 [Snap ring]	Snap ring
7		17384 [Washer]	Washer
