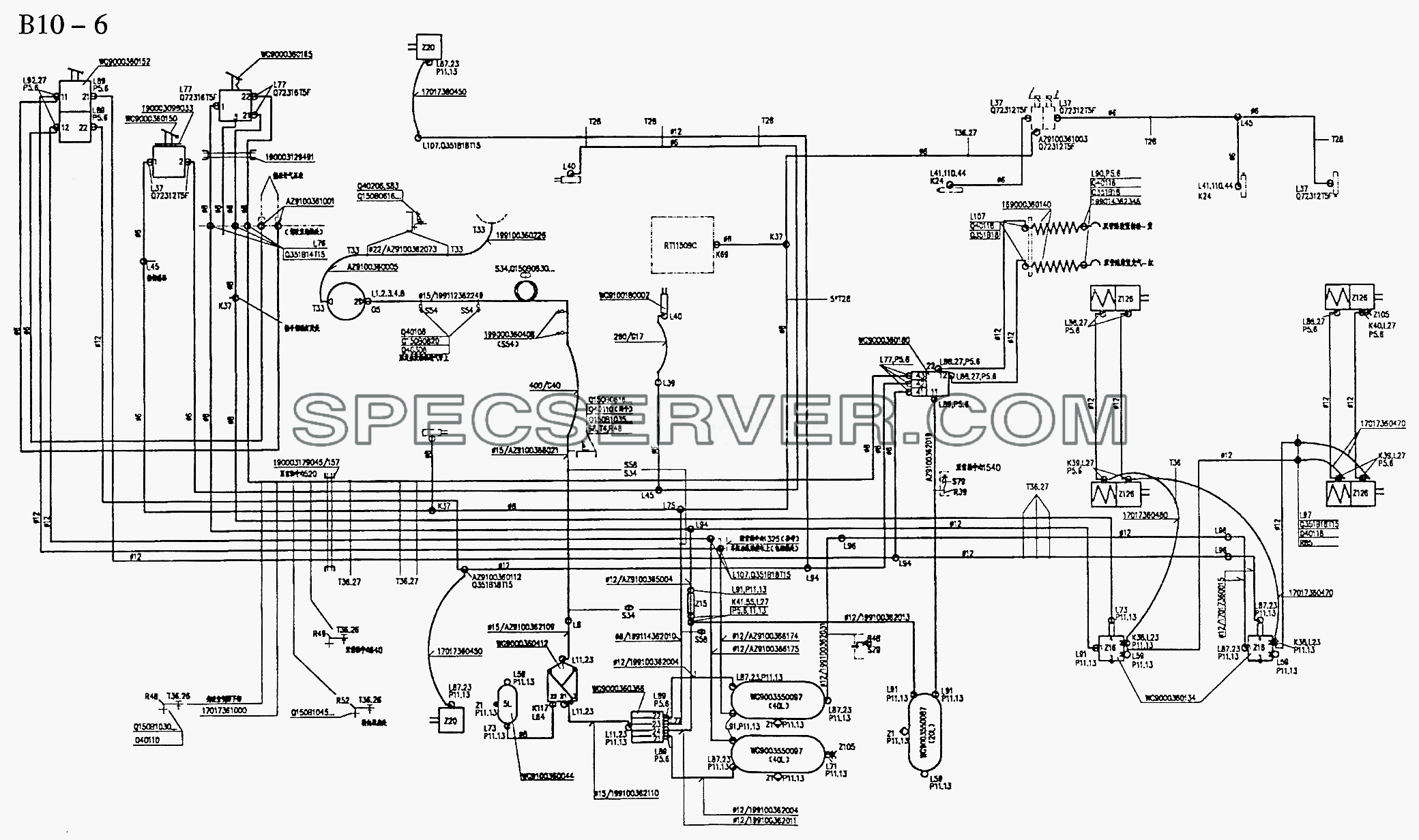

Запчасти: TWO CIRCUIT BRAKE SYSTEM FOR 6x4, 6x6 TRACTOR TRUCK (B10-6) для Sinotruk 6x4 Tractor (371)

TWO CIRCUIT BRAKE SYSTEM FOR 6x4, 6x6 TRACTOR TRUCK (B10-6) для Sinotruk 6x4 Tractor (371) (список запасных частей)

TWO CIRCUIT BRAKE SYSTEM FOR 6x4, 6x6 TRACTOR TRUCK (B10-6) для Sinotruk 6x4 Tractor (371) (список запасных частей)





Запчасти: VALVE, SPECIAL HOSE (B10-10) для Sinotruk 6x4 Tractor (371)

VALVE, SPECIAL HOSE (B10-10) для Sinotruk 6x4 Tractor (371) (список запасных частей)

VALVE, SPECIAL HOSE (B10-10) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9000360115 [Drain valve] Drain valve
2 WG9000360112 [Check valve] Check valve
3 WG9000360134 [Relay valve] Relay valve
4 WG9000360100 [Diaphram chamber] Diaphram chamber
5 WG9000360101 [Diaphram chamber] Diaphram chamber
6 WG9000360165 [Hand brake valve] Hand brake valve
7 WG9000360366 [4-ciIcuit protection valve] 4-ciIcuit protection valve
8 WG9000360170 [Coupling] Coupling
9 WG9000360171 [Coupling] Coupling
10 WG9000360152 [Service brake valve] Service brake valve
11 WG9100360303 [Spring brake actuator] Spring brake actuator
12 WG9000360180 [Trailer control valve] Trailer control valve
13 WG9000360412 [Air dryer] Air dryer
14 WG9000360314 [Test connector] Test connector
15 WG017360450 [Hose] Hose
16 WG017360460 [Hose] Hose
17 WG017360470 [Hose] Hose
18 WG1736C1480 [Hose] Hose
19 WG9100360184 [Hose] Hose
20 WG9000360150 [Pressure valve] Pressure valve
21 WG17017361000 [Screwy slecve] Screwy slecve
22 WG9123360300 [Sleeve] Sleeve
23 WG9123360200 [Slave] Slave
24 WG9000360140 [Screwg pipe] Screwg pipe
Запчасти: PARTS FOR BRAKE (B10-11) для Sinotruk 6x4 Tractor (371)

PARTS FOR BRAKE (B10-11) для Sinotruk 6x4 Tractor (371) (список запасных частей)

PARTS FOR BRAKE (B10-11) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1188 730187 [Clamp] Clamp
- 1280 770028 [Clamp] Clamp
- 138091360181 [Clamp] Clamp
- 1406 070015 [Gasket] Gasket
- 1680 250092 [Gasket] Gasket
- 190003098015 [Gasket] Gasket
- 190003098031 [Gasket] Gasket
- 190003171390 [Wire fastener] Wire fastener
- 190003171393 [Wire fastener] Wire fastener
- 193 760081 [Angle] Angle
- 199000360408 [Clamp] Clamp
- 199100360134 [Distance sleeve] Distance sleeve
- 199100360174 [Clamp] Clamp
- 199100360234 [Clamp] Clamp
- 199l00360135 [Distance sleeve] Distance sleeve
- Q72312T5F [Gasket] Gasket
- WG9000360292 [Gasket] Gasket
- WG9100360319 [Gasket] Gasket
Запчасти: BRACKET FOR BRAKES (B10-12) для Sinotruk 6x4 Tractor (371)

BRACKET FOR BRAKES (B10-12) для Sinotruk 6x4 Tractor (371) (список запасных частей)

BRACKET FOR BRAKES (B10-12) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9130360008 [Angle for hand brake valve] Angle for hand brake valve
2 AZ9114360041 [Angle for relay valve] Angle for relay valve
3 199000350085 [Angle for relay valve] Angle for relay valve
6 AZ9130360003 [Angle for trailer control valve] Angle for trailer control valve
7 WG9100360407 [Bracket for air dryer] Bracket for air dryer
8 1880 360083 [Carrier] Carrier
9 199000360315 [Carrier] Carrier
10 19901236044l [Angle] Angle
11 199000362186 [Angle] Angle
12 199100360165 [Angle] Angle
13 1397 350169 [Angle] Angle
14 199100360168 [Angle] Angle
15 199100360241 [Angle] Angle
16 199100360207 [Support] Support
17 199100360228 [Lashing] Lashing
18 199100360229 [Angle] Angle
19 199114360101 [Angle] Angle
20 199100360154 [Cotter] Cotter
Запчасти: CONNECTOR FOR LINE A (B10-13-1) для Sinotruk 6x4 Tractor (371)

CONNECTOR FOR LINE A (B10-13-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

CONNECTOR FOR LINE A (B10-13-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 190003559516 [Union nut] Union nut
2 190003559508 [Union nut] Union nut
3 190003559561 [Cuttning ring] Cuttning ring
4 190003559509 [Union nut] Union nut
5 190003559558 [Cutting ring] Cutting ring
6 190003559518 [Union nut] Union nut
7 190003559564 [Cutting ring] Cutting ring
8 190003559514 [Union nut] Union nut
9 190003559563 [Cutting ring] Cutting ring
10 190003559520 [Union nut] Union nut
11 190003559562 [Cutting ring] Cutting ring
12 190003559538 [Pressure ring] Pressure ring
13 190003559539 [Gasket] Gasket
Запчасти: CONNECTOR FOR LINE B (B10-13-2) для Sinotruk 6x4 Tractor (371)

CONNECTOR FOR LINE B (B10-13-2) для Sinotruk 6x4 Tractor (371) (список запасных частей)

CONNECTOR FOR LINE B (B10-13-2) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 190003559507 [Union nut] Union nut
2 190003559556 [Cutting ring] Cutting ring
3 199014280040 [Sleeve] Sleeve
4 190003559516 [Union nut] Union nut
5 190003559561 [Cutting ring] Cutting ring
6 199014280016 [Sleeve] Sleeve
7 190003559509 [Union nut] Union nut
8 190003559558 [Cutting ring] Cutting ring
9 199014280041 [Sleeve] Sleeve
10 190003559518 [Union nut] Union nut
11 190003559564 [Cutting ring] Cutting ring
12 199014280042 [Sleeve] Sleeve
13 190003559514 [Union nut] Union nut
14 199100360253 [Ring] Ring
15 199100360252 [Sleeve] Sleeve
16 190003179778 [Plastic tube] Plastic tube
17 190003179782 [Plastic tube] Plastic tube
18 190003179781 [Plastic tube] Plastic tube
19 190003179784 [Plastic tube] Plastic tube
20 190003179785 [Plastic tube] Plastic tube
