№		Номер детали	Наименование запчасти
1		ZHLQ-1703023-1 [Connector]	Connector
2		F91345 [Bush]	Bush
3		ZHLQ-1703025-3 [Cover]	Cover
4		ZHLQ-1703024 [Gasket]	Gasket
5		ZHLQ-1703022 [Lever]	Lever
6		Q151B1050 [Screw]	Screw
7		Q40310 [Spring washer]	Spring washer
8		Q34110 [Nut]	Nut
9		Q150B1045 [Screw]	Screw
10		Q34008 [Nut]	Nut
11		Q40308 [Spring washer]	Spring washer
12		ZHLQ-1703049 [Connector]	Connector
13		Q150B0855 [Screw]	Screw
14		ZHLQ-1703020 [Cover]	Cover
15		Q150B0883 [Screw]	Screw
16		ZHLQ-1703013 [Screw]	Screw
17		ZHLQ-1703018 [Rubber plug]	Rubber plug
18		ZHLQ-1703046 [Nut]	Nut
19		ZHLQ-1703026 [Screw]	Screw
20		ZHLQ-1703036 [O-ring]	O-ring
21		ZHLQ-1703011-1 [Assistor for shifting gear]	Assistor for shifting gear
22		ZHLQ-1703034 [O-ring]	O-ring
23		Q43134 [Circlip]	Circlip
24		ZHLQ-1703014 [Connecting rod]	Connecting rod
25		Q43140 [Circlip]	Circlip
26		ZHLQ-1703047 [O-ring]	O-ring
27		ZHLQ-1703016 [Piston]	Piston
28		ZHLQ-1703050 [Bush]	Bush
29		ZHLQ-1703017 [Shaft for piston]	Shaft for piston
30		ZHLQ-1703027 [Air intake line]	Air intake line
31		ZHLQ-1703042 [Lever]	Lever
32		ZHLQ-1703043 [Plug]	Plug
33		ZHLQ-1703031 [O-ring]	O-ring
34		ZHLQ-1703032 [Valve]	Valve
35		ZHLQ-1703040 [Spring]	Spring
36		ZHLQ-1703037 [Airpipe]	Airpipe
37		ZHLQ-1703035 [O-ring]	O-ring
38		ZHLQ-1703038 [Valve]	Valve
39		ZHLQ-1703028 [O-ring]	O-ring
40		ZHLQ-1703039 [Spring]	Spring
41		ZHLQ-1703030 [Washer]	Washer
42		Q43207 [Snap ring]	Snap ring
43		ZHLQ-1703029 [Sleeve]	Sleeve
44		ZHLQ-1703021 [Plug]	Plug
45		ZHLQ-1703019 [Nut]	Nut
46		ZHLQ-1703015 [Cylinder]	Cylinder
47		Q43022 [Circlip]	Circlip
48		ZHLQ-1703044 [Spring plug]	Spring plug
49		GB308-89 [Steel ball]	Steel ball
50		ZHLQ-1703045 [Spring]	Spring
51		ZHLQ-1703048 [Screw]	Screw
52		ZHLQ-1703012 [Shift finger]	Shift finger

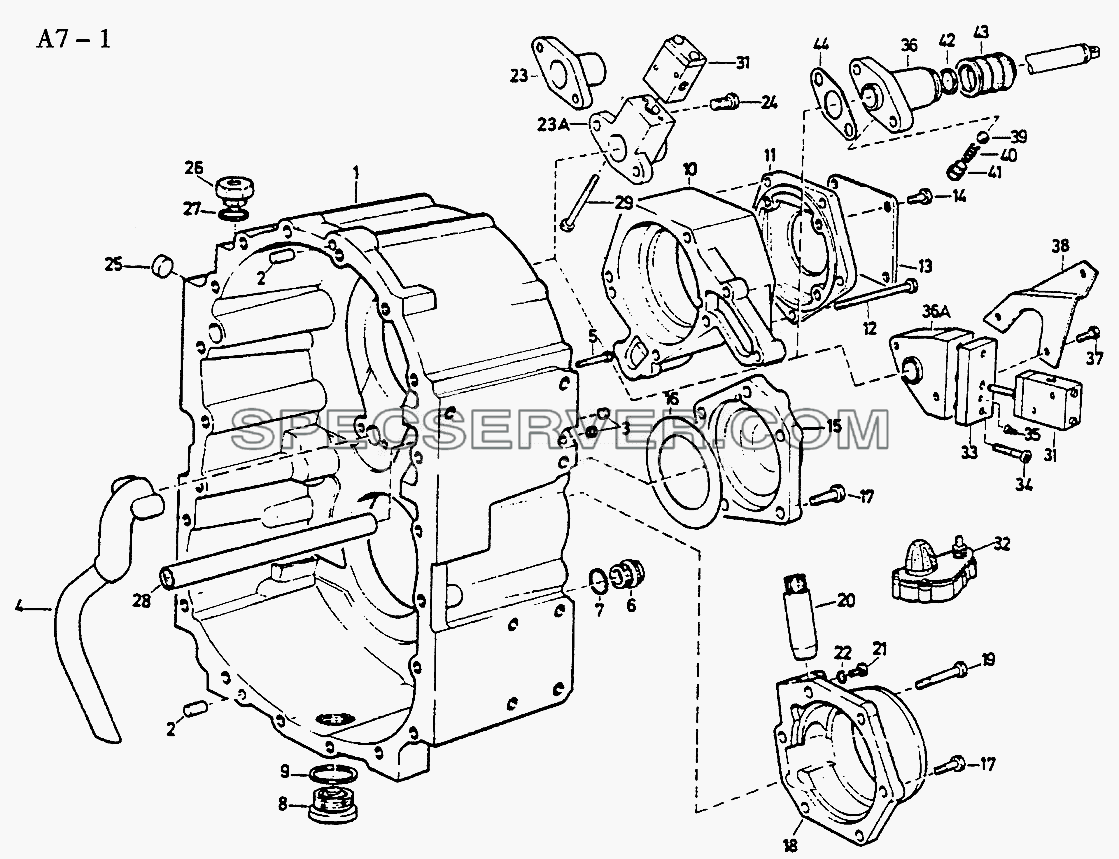

HOUSING FOR VG1200 TRANSFER CASE WITHOUT DIFF.LOCK (A7-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1F7120.700107 [Transfer case]	Transfer case
1		199114250110 [Housing]	Housing
2		Q5211020 [Cylindrical pin]	Cylindrical pin
3		190003989481 [Core plug]	Core plug
4		199114250060 [Suction pipe]	Suction pipe
5		Q218B0625 [Screw]	Screw
6		190003962038 [Screw]	Screw
7		190003098026 [Gasket]	Gasket
8		1586 330015 [Magnetic plug]	Magnetic plug
9		190003098138 [Gasket]	Gasket
10		199014250108 [Cover]	Cover
11		179200250136 [Cover]	Cover
12		Q150B10100 [Screw]	Screw
13		1-99-916-002 [Cover]	Cover
14		Q150B1216 [Screw]	Screw
15		199014250126 [Cover]	Cover
16		1680M250030 [Adjusting washer]	Adjusting washer
16		1680M250031 [Adjusting washer]	Adjusting washer
17		Q150B1030 [Screw]	Screw
17		Q150B1035 [Screw]	Screw
18		199114250043 [Cover]	Cover
19		Q15081055 [Screw]	Screw
20		199114250112 [Bush]	Bush
21		13809 220073 [Screw]	Screw
22		Q40308 [Spring washer]	Spring washer
25		190003961903 [Locking cover]	Locking cover
26		199000410120 [Venting nipple]	Venting nipple
27		190003098026 [Gasket]	Gasket
28		199114250242 [Pipe]	Pipe
36		1880 250069 [Flange]	Flange
39		190003330183 [Ball]	Ball
40		12700 240011 [Spring]	Spring
41		12700 240049 [Gukdance]	Gukdance
42		1680 250092 [Gasket]	Gasket
43		1480 240027 [Protecting cap]	Protecting cap
44		1880 250080 [Shim]	Shim
44		1880 250081 [Shim]	Shim
46		199114250101 [Oil sheet]	Oil sheet
47		Q40008 [Washer]	Washer
48		Q33208 [Nut]	Nut

HOUSING FOR VG1200 TRANSFER CASE WITH DIFF.LOCK (A7-2) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1F7120.700152 [Transfer case]	Transfer case
1		199114250110 [Housing]	Housing
2		Q5211020 [Cylindrical pin]	Cylindrical pin
3		190003989481 [Core plug]	Core plug
4		199114250060 [Suction]	Suction
5		Q218B0625 [Screw]	Screw
6		190003962038 [Screw]	Screw
7		190003098026 [Gasket]	Gasket
8		1586 330015 [Magnetic plug]	Magnetic plug
9		190003098138 [Gasket]	Gasket
10		199114250025 [Housing]	Housing
11		179200250136 [Cover]	Cover
12		Q150B10100 [Screw]	Screw
13		1-99-916-002 [Cover]	Cover
14		Q150B1216 [Screw]	Screw
15		199014250126 [Cover]	Cover
16		1680M250030 [Adjusting washer]	Adjusting washer
16		1680M250031 [Adjusting washer]	Adjusting washer
16		1680M250032 [Adjusting washer]	Adjusting washer
17		Q150B1030 [Screw]	Screw
18		199114250023 [Cover]	Cover
19		Q150B1055Q [Screw]	Screw
20		199114250112 [Bush]	Bush
21		13809 220073 [Screw]	Screw
22		Q40308 [Spring washer]	Spring washer
23		Q150B1055 [Screw]	Screw
24		Q150B1055 [Screw]	Screw
25		190003961903 [Locking cover]	Locking cover
26		199000410120 [Fan]	Fan
28		199114250242 [Pipe]	Pipe
36		1880 250069 [Flange]	Flange
39		190003330183 [Ball]	Ball
40		12700 240011 [Spring]	Spring
41		12700 240049 [Gukdanee]	Gukdanee
42		1680 250092 [Gasket]	Gasket
43		1480 240027 [Protecting cap]	Protecting cap
44		1880 250080 [Shim]	Shim
44		1880 250081 [Shim]	Shim
45		199114250057 [Pressure pipe]	Pressure pipe
46		190003962627 [Female screw]	Female screw
47		Q72316T5F [Gasket]	Gasket
48		199114250101 [Oil sheet]	Oil sheet
49		Q40008 [Washer]	Washer
50		Q33208 [Nut]	Nut

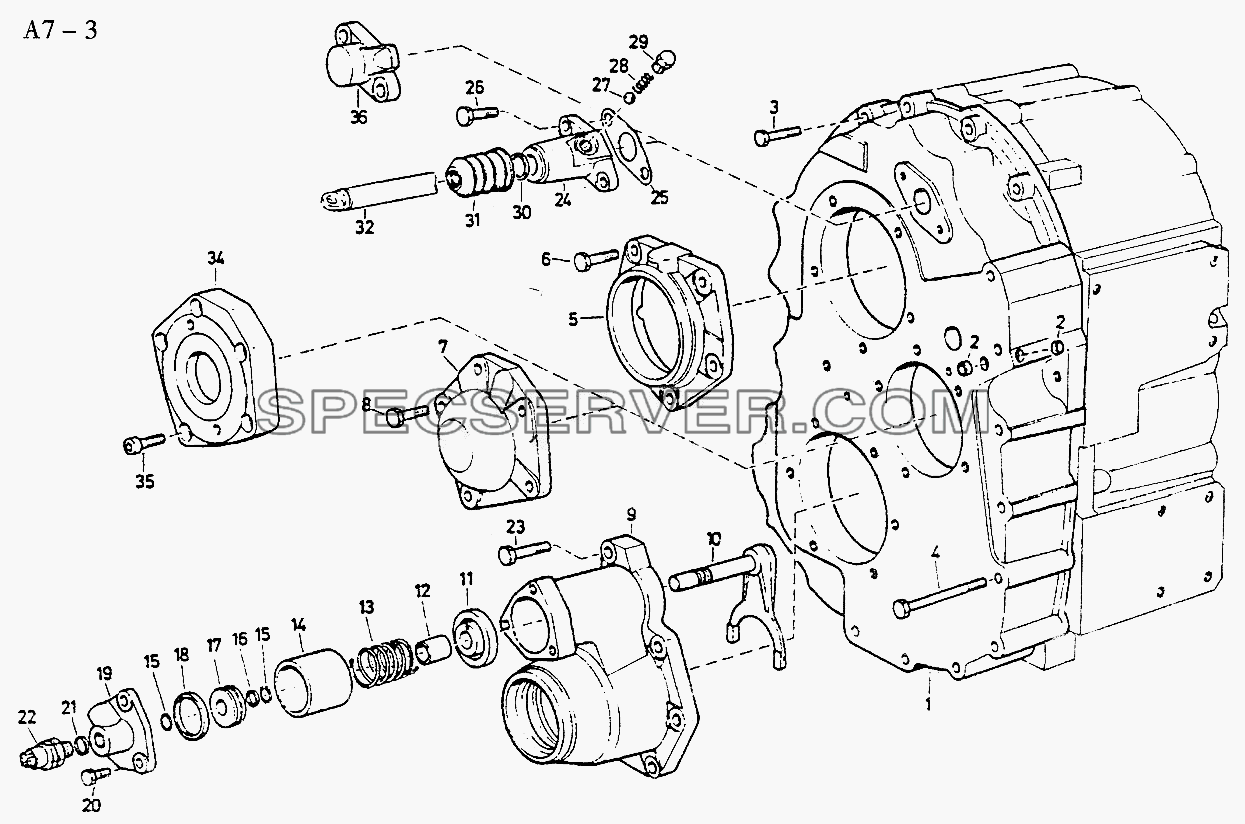

COVER FOR VG1200 TRANSFER CASE WITHOUT DIFF. LOCK (A7-3) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199114250059 [Cover]	Cover
2		190003989481 [Corp plug]	Corp plug
3		Q150B1240 [Screw]	Screw
4		Q150B12100 [Screw]	Screw
5		199014250097 [Cover]	Cover
6		Q150B1030 [Screw]	Screw
7		199014250125 [Cover]	Cover
8		Q150B1030 [Screw]	Screw
9		199114250125 [Housing]	Housing
10		199114250176 [Shifting fork]	Shifting fork
11		199014250123 [Washer]	Washer
12		1-99-942-007 [Sleeve]	Sleeve
13		1-99-976-003 [Spring]	Spring
14		199014250122 [Bush]	Bush
15		190003933076 [Circlip]	Circlip
16		130A010019 [Gasket]	Gasket
17		199014250124 [Piston]	Piston
18		1-99-965-008 [Cup]	Cup
19		199014250136 [Cover]	Cover
20		Q150B0816 [Screw]	Screw
21		Q72314TF2 [Gasket]	Gasket
22		199000710048 [Switch]	Switch
23		Q150B1040Q [Screw]	Screw
24		1880 250069 [Flange]	Flange
25		1880 250080 [Adjusting washer]	Adjusting washer
26		1880 250081 [Adjusting washer]	Adjusting washer
27		190003330183 [Ball]	Ball
28		12700 240011 [Spring]	Spring
29		12700 240049 [Guidance]	Guidance
30		1680 250092 [Gasket]	Gasket
31		1480 240027 [Protecting cap]	Protecting cap
32		1-21-425-016 [Shift rod]	Shift rod
33		190003961903 [Locking cover]	Locking cover
36		1-21-425-012 [Flange]	Flange

COVER FOR VG1200 TRANSFER CASE WITH DIFF. LOCK (A7-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199114250059 [Cover]	Cover
2		190003989481 [Corp plug]	Corp plug
3		Q150B1240TF2 [Screw]	Screw
4		Q150B12100 [Screw]	Screw
5		199014250097 [Cover]	Cover
6		Q150B1030 [Screw]	Screw
7		199014250125 [Cover]	Cover
8		Q150B1030 [Screw]	Screw
9		199114250126 [Housing]	Housing
10		179100250028 [Shifting fork]	Shifting fork
11		199014250123 [Washer]	Washer
12		1-99-942-007 [Sleeve]	Sleeve
13		1-99-976-003 [Spring]	Spring
14		199014250122 [Bush]	Bush
15		190003933076 [Circlip]	Circlip
16		130A010019 [Washer]	Washer
17		199014250124 [Piston]	Piston
18		1-99-965-008 [Cup]	Cup
19		199014250136 [Cover]	Cover
20		Q150B0816 [Screw]	Screw
21		Q72314T5F [Gasket]	Gasket
22		199000710048 [Switch]	Switch
23		Q150B1040Q [Screw]	Screw
26		Q150B1025 [Screw]	Screw
33		190003961903 [Locking cover]	Locking cover
36		1-21-425-012 [Flange]	Flange

WHEELS FOR VG1200 TRANSFER CASE WITHOUT DIFF.LOCK (A7-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1-21-225-038 [Driving shaft]	Driving shaft
2		190003961903 [Locking cover]	Locking cover
3		190003078775 [Seal]	Seal
4		1-21-225-037 [Flange]	Flange
4		199114250184 [Flange]	Flange
4		199114250184 [Flange]	Flange
5		1-99-907-052 [Adjusting washer]	Adjusting washer
6		190003326236 [Taper roller bearing]	Taper roller bearing
7		1-99-907-053 [Washer]	Washer
9		190003802639 [Screw]	Screw
11		199014250102 [Helical gear]	Helical gear
12		199014250064 [Sliding sleeve]	Sliding sleeve
13		199114250082 [Pignon]	Pignon
14		1880 250047 [Washer]	Washer
15		190003326534 [Taper roller bearing]	Taper roller bearing
16		1188 320021 [Adjusting washer]	Adjusting washer
16		1188 320022 [Adjusting washer]	Adjusting washer
16		1188 320023 [Adjusting washer]	Adjusting washer
16		199114250153 [Adjusting washer]	Adjusting washer
17		Q218B0616 [Screw]	Screw
18		1-99-936-002 [Cover]	Cover
19		199012250101 [Inner wheel]	Inner wheel
20		199012250100 [Outer wheel]	Outer wheel
21		190003330105 [Ball]	Ball
22		1900033300512 [Ball]	Ball
23		1-99-936-001 [Housing]	Housing
24		199114250098 [Gear]	Gear
25		199014250055 [Roller bearing]	Roller bearing
26		190003326053 [Roller bearing]	Roller bearing
27		199114250216 [Driving shaft]	Driving shaft
29		190003326053 [Taper roller bearing]	Taper roller bearing
30		199100370231 [Driving wheel]	Driving wheel
32		190003078776 [Seal]	Seal
33		1-21-425-006 [Sleeve]	Sleeve
34		179100250014 [Driving shaft]	Driving shaft
35		190003934425 [Circli]	Circli
36		190003311027 [Ball bearing]	Ball bearing
37		190003074347 [Seal]	Seal
42		190003326164 [Taper roller bearing]	Taper roller bearing
43		199114250124 [Washer]	Washer
44		199014250079 [Adjusting washer]	Adjusting washer
44		199014250080 [Adjusting washer]	Adjusting washer
44		199014250081 [Adjusting washer]	Adjusting washer
45		1680M250030 [Adjusting washer]	Adjusting washer
45		1680M250031 [Adjusting washer]	Adjusting washer
46		199100370048 [Speedom.pinion]	Speedom.pinion
48		199014250085 [Shifting block]	Shifting block
49		12700 240064 [Screw]	Screw
50		11800 320077 [Shifting block]	Shifting block
51		1-21-225-037 [Flange]	Flange
54		1-21-425-016 [Shifting rod]	Shifting rod
