Запчасти: Fuller MAIN SHAFT AND WHEELS (A4-4) для Sinotruk 6x4 Tractor (371)

Fuller MAIN SHAFT AND WHEELS (A4-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller MAIN SHAFT AND WHEELS (A4-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 16118 [Sliding clutch] Sliding clutch
1 JS130T-1701108 [Sliding clutch] Sliding clutch
2 18701 [Washer] Washer
3 14749 [Washer] Washer
3 JS100-1701113 [Washer] Washer
4 16748 [Gear M/S 3xd gear] Gear M/S 3xd gear
4 19242 [Gear M/S 3rd gear] Gear M/S 3rd gear
4 19638 [Gear M/S overdrive gear] Gear M/S overdrive gear
4 JS100-1701131 [Gear M/S 3rd gear] Gear M/S 3rd gear
4 JS100A-1701131 [Gear M/S 4th gear] Gear M/S 4th gear
4 JS100T-1701131 [Gear M/S 3rd gear] Gear M/S 3rd gear
4 JS100TA-1701131 [Gear M/S 4th gear] Gear M/S 4th gear
4 JS130TA-1701131 [Gear M/S 4th gear] Gear M/S 4th gear
4 JS150-1701113 [Gear M/S ovelxirive gear] Gear M/S ovelxirive gear
4 JS180T-1701131 [Gear M/S 3rd gear] Gear M/S 3rd gear
4 T116E-1701132 [Gear M/S overdrive gear] Gear M/S overdrive gear
5 14750 [Locking ring] Locking ring
6 16750 [Gear M/S 2nd gear] Gear M/S 2nd gear
6 19614 [Gear M/S 2nd gear] Gear M/S 2nd gear
6 19622 [Gear M/S 2nd gear] Gear M/S 2nd gear
6 JS100T-1701130 [Gear M/S 2nd gear] Gear M/S 2nd gear
6 JS130T-1701130 [Gear M/S 2nd gear] Gear M/S 2nd gear
6 JS150-1701112 [Gear M/S 2nd gear] Gear M/S 2nd gear
6 JS180T-1701130 [Gear M/S 2nd gear] Gear M/S 2nd gear
7 16752 [Gear M/S 1st gear] Gear M/S 1st gear
7 19246 [Gear M/S 1st gear] Gear M/S 1st gear
7 19628 [Gear M/S 1st gear] Gear M/S 1st gear
7 JS100-1701112 [Gear M/S 1st gear] Gear M/S 1st gear
7 JS100T-1701112 [Gear M/S 1st gear] Gear M/S 1st gear
7 JS130T-1701112 [Gear M/S 1st gear] Gear M/S 1st gear
7 JS150-1701111 [Gear M/S 1st gear] Gear M/S 1st gear
7 JS180T-1701112 [Gear M/S 1st gear] Gear M/S 1st gear
8 16754 [Gear M/S LOW gear] Gear M/S LOW gear
9 16756 [Gear M/S reverse gear] Gear M/S reverse gear
9 JS100-1701111 [Gear M/S reverse gear] Gear M/S reverse gear
9 JS180T-1701111 [Gear M/S reverse gear] Gear M/S reverse gear
10 62504 [Flexibility roll pin] Flexibility roll pin
11 17109 [Cotter] Cotter
12 18729 [Main shaft] Main shaft
12 JS130T-1701105 [Main shaft] Main shaft
12 JS180-1701105 [Main shaft] Main shaft
12 JS180T-1701105 [Main shaft] Main shaft

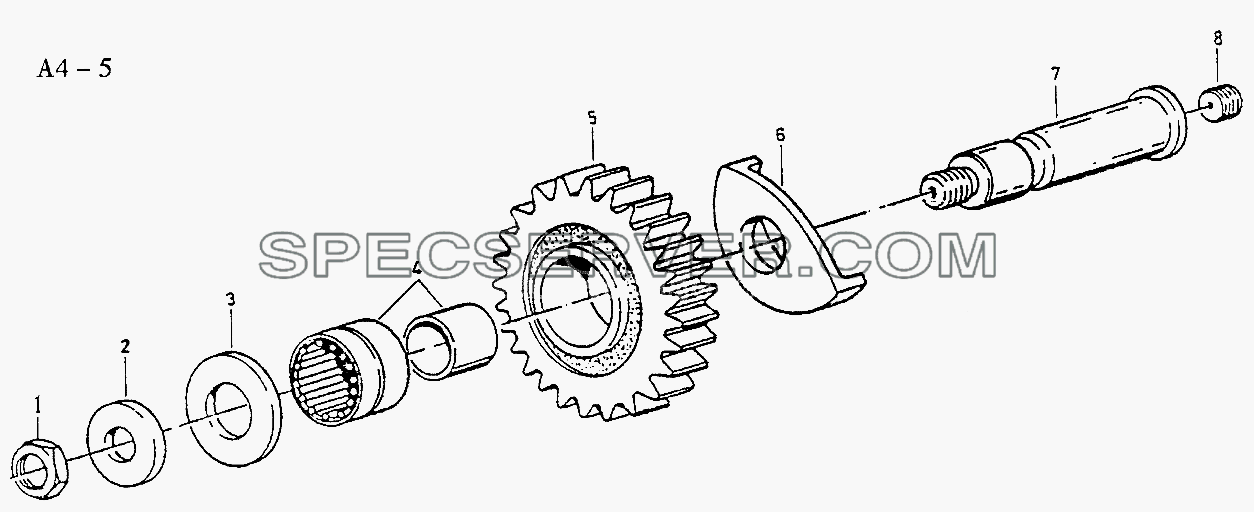

Запчасти: Fuller REVERSE GEAR (A4-5) для Sinotruk 6x4 Tractor (371)

Fuller REVERSE GEAR (A4-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller REVERSE GEAR (A4-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 X-12440 [Nut] Nut
2 14283 [Plate] Plate
3 14282 [Washer] Washer
4 14287 [Roller bearing] Roller bearing
5 16757 [Reverse gear idler] Reverse gear idler
5 JS100-1701082 [Reverse gear idler] Reverse gear idler
5 JS180T-1701082 [Reverse gear idler] Reverse gear idler
6 16403 [Washer] Washer
6 JS100-1701083 [Washer] Washer
7 16405 [Reverse shaft] Reverse shaft
8 5202 [Screw] Screw

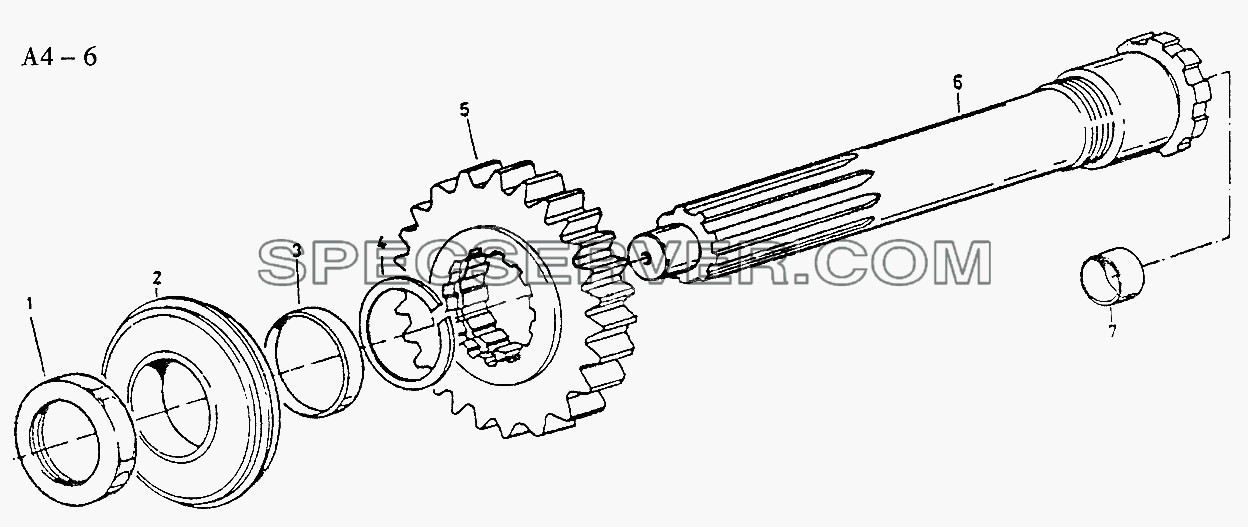

Запчасти: Fuller CLUTCH SHAFT (A4-6) для Sinotruk 6x4 Tractor (371)

Fuller CLUTCH SHAFT (A4-6) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller CLUTCH SHAFT (A4-6) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 8858 [Nut] Nut
1 JS180A-1701036 [Nut] Nut
2 150212K(81504) [Bearing] Bearing
3 16463 [Spacer] Spacer
4 14750 [Snap ring] Snap ring
5 17568 [Gear input shaft] Gear input shaft
5 19239 [Gear input shaft] Gear input shaft
5 19630 [Gear input shaft] Gear input shaft
5 JS100-1701031 [Gear input shaft] Gear input shaft
5 JS100A-1701031 [Gear input shaft] Gear input shaft
5 JS100T-1701031 [Gear input shaft] Gear input shaft
5 JS100TA-1701031 [Gear input shaft] Gear input shaft
5 JS130T-1701031 [Gear input shaft] Gear input shaft
5 JS130TA-1701031 [Gear input shaft] Gear input shaft
5 JS150-1701030 [Gear input shaft] Gear input shaft
5 JS180T-1701031 [Gear input shaft] Gear input shaft
5 T116E-1701032 [Gear input shaft] Gear input shaft
6 19694 [Input shaft] Input shaft
6 JS180A-1701030 [Input shaft] Input shaft
6 T116E-1701031 [Input shaft] Input shaft
7 16566 [Bushing] Bushing
7 C01021 [Stop ring] Stop ring

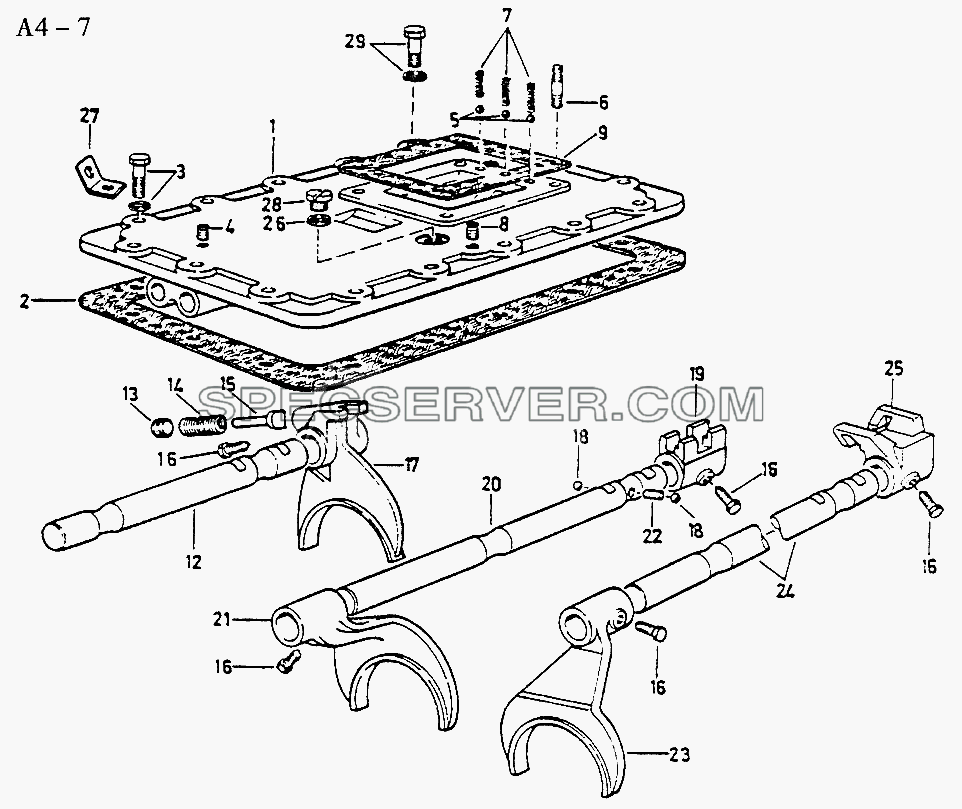

Запчасти: Fuller SWITCH GEAR (A4-7) для Sinotruk 6x4 Tractor (371)

Fuller SWITCH GEAR (A4-7) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller SWITCH GEAR (A4-7) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- A-C02001 [Cover C] Cover C
- JS130T-1702010 [Cover C] Cover C
- JS130TA-1702010 [Cover C] Cover C
1 F99980 [Cover] Cover
1 JS100A-1702015 [Cover] Cover
1 JS130T-1702015 [Cover] Cover
2 14918 [Gasket] Gasket
3 M10x35 [Screw] Screw
3 Q40310 [Spring washer] Spring washer
4 Q61303 [Plug] Plug
5 1/2" [Steel ball] Steel ball
6 11056 [Bolt] Bolt
7 F96084 [Spring] Spring
7 F96085 [Spring] Spring
8 Q61032 [Plug] Plug
9 1642 [Gasket] Gasket
12 16132 [Yoke shaft] Yoke shaft
12 JS100A-1702064 [Yoke shaft] Yoke shaft
13 8968 [Plug] Plug
14 8774 [Spring] Spring
15 F99671 [Plug] Plug
16 3220 [Screw] Screw
17 99664 [Shift yoke] Shift yoke
18 3/4" [Steel ball] Steel ball
19 F99588 [Shift block l/2 gear] Shift block l/2 gear
19 JS100A-1702054 [Shift block l/2 gear] Shift block l/2 gear
20 16133 [Yoke shaft l/2 gear] Yoke shaft l/2 gear
20 JS100A-1702065 [Yoke shaft l/2 gear] Yoke shaft l/2 gear
20 JS130T-1702065 [Shift yoke 1/2 gear] Shift yoke 1/2 gear
20 JS130TA-1702065 [Shaft] Shaft
21 16135 [Shaft] Shaft
21 JS100A-1702055 [Yoke shaft l/2 gear] Yoke shaft l/2 gear
21 JS130T-1702055 [Yoke shaft l/2 gear] Yoke shaft l/2 gear
21 JS130TA-1702055 [Yoke shaft l/2 gear] Yoke shaft l/2 gear
22 1634 [Locking pin] Locking pin
23 16136 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
23 JS100A-1702056 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
23 JS130T-1702056 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
23 JS130TA-1702056 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
24 18643 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
24 JS130T-1702066 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
24 JS130TA-1702066 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
25 F99589 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
25 JS100A-1702053 [Yoke shaft 3/4 gear] Yoke shaft 3/4 gear
26 17179 [Gasket] Gasket
27 17105 [Lifting eye] Lifting eye
28 17178 [Plug] Plug
29 M10x32 [Screw] Screw
29 X-6-01 [Nut] Nut
29 X-6-03 [Nut] Nut

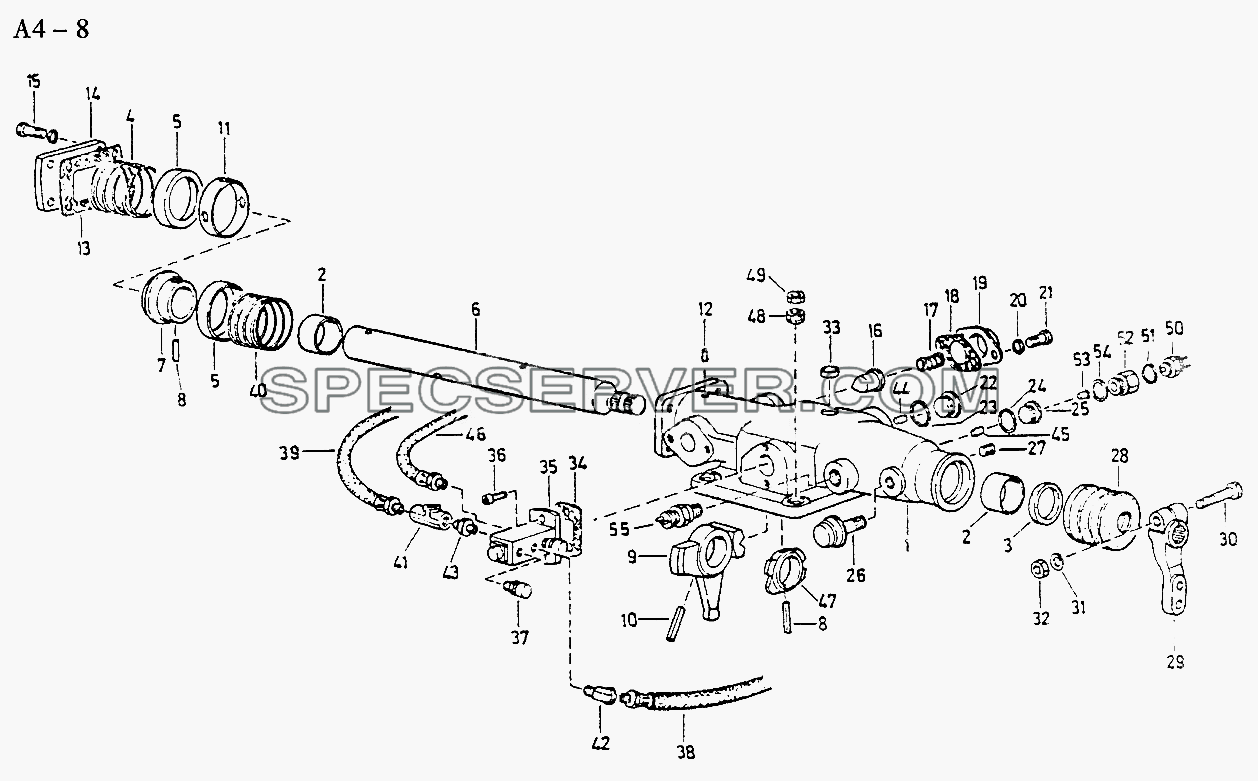

Fuller DOUBLE H OPERATION C (A4-8) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller DOUBLE H OPERATION C (A4-8) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller DOUBLE H OPERATION C (A4-8) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- A-C03001 [Double H operation C] Double H operation C
- A-C03001-1 [Double H operation C] Double H operation C
- JS100-1703012 [Pin] Pin
1 F96194 [Housing] Housing
1 JS100-1702051 [Housing] Housing
2 F91345 [Sliding bearing] Sliding bearing
3 F91444 [Oil seal] Oil seal
4 F99983 [Spring] Spring
5 F99673 [Spring seat] Spring seat
6 F99679 [Gear shift shaft] Gear shift shaft
6 JS100-1702017 [Gear shift shaft] Gear shift shaft
7 F99675 [Stop ring] Stop ring
8 Q5000635 [Flexibility column pin] Flexibility column pin
9 F99585 [Plug] Plug
9 JS100A-1702072 [Plug] Plug
10 C03030 [Pin] Pin
10 JA100A-1702073 [Pin] Pin
11 F99674 [Washer] Washer
12 C03004 [Screw] Screw
13 F99672 [Gasket] Gasket
14 F99666 [Board] Board
15 M8x12 [Screw] Screw
16 F99670 [Plug] Plug
17 F96037 [Spring] Spring
18 F96140 [Gasket] Gasket
19 F96141 [Cover] Cover
20 M8x12 [Bolt] Bolt
21 Q40108 [Washer] Washer
22 99012710041 [Switch] Switch
22 Q61518 [Plug] Plug
23 17179 [Gasket] Gasket
24 15900 [Gasket] Gasket
25 15917 [Plug] Plug
26 15276 [Plug] Plug
27 Q61302 [Plug] Plug
28 F99669 [Cover] Cover
29 F96035 [LRC shift pole] LRC shift pole
30 M10x1x50 [Bolt] Bolt
31 Q40310 [Washer] Washer
32 M10x1x50 [Screw] Screw
33 Q72224 [Plug] Plug
34 F91353 [Joint] Joint
35 F99660 [Double H valve] Double H valve
36 M6x18 [Screw] Screw
37 7935 [Plug] Plug
38 55518 [Pipe] Pipe
39 55522 [Pipe] Pipe
40 F96036 [Spring] Spring
41 12881 [Nozzle] Nozzle
42 12880 [Joint] Joint
43 12769 [Joint] Joint
44 F99702 [Pin] Pin
45 15899 [Pin] Pin
46 55523 [Pipe] Pipe
47 F99681 [Control block for reverse switch] Control block for reverse switch
47 JS100-1702052 [Control block for reverse switch] Control block for reverse switch
48 M10x1 [Nut] Nut
49 M10x1 [Nut] Nut
50 79100710068 [Reverse switch] Reverse switch
51 C03015 [Gasket] Gasket
52 15917 [Plus] Plus
54 C03015 [Gasket] Gasket
Fuller aux. Gearbox DRIVE GEAR (A4-9) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller aux. Gearbox DRIVE GEAR (A4-9) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Fuller aux. Gearbox DRIVE GEAR (A4-9) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- A-C09002 [Drive gear housing C] Drive gear housing C
- JS180T-1707025 [Drive gear housing C] Drive gear housing C
1 16763 [Snap ring] Snap ring
2 16628 [Snap ring] Snap ring
3 50118 [Bearing] Bearing
3 C01019 [Locking ring] Locking ring
4 16138 [Retainer] Retainer
5 M10x22 [Screw] Screw
7 18869 [Drive gear] Drive gear
7 19254 [Drive gear] Drive gear
7 19275 [Drive gear] Drive gear
7 JS180-1707030 [Drive gear] Drive gear
7 JS180T- 1707030 [Drive gear] Drive gear
