№		Номер детали	Наименование запчасти
-		WG1642340009/1 [Lock element]	Lock element
-		WG1642340009/2 [Lock element]	Lock element
-		WG1642340013/1 [Latch right]	Latch right
-		WG1642340013/2 [Latch right]	Latch right
-		WG1642340015/1 [Lock right]	Lock right
-		WG1642340015/2 [Lock right]	Lock right
-		WG1642340029/1 [Control rod]	Control rod
-		WG1642340029/2 [Control rod]	Control rod
1		WG1642340020/1 [Bearing for aux.support]	Bearing for aux.support
1		WG1642340020/2 [Bearing for aux.support]	Bearing for aux.support
2		Q2540820 [Screw]	Screw
3		WG1642340021/1 [Pin]	Pin
3		WG1642340021/2 [Pin]	Pin
4		Q2540830 [Screw]	Screw
5		WG1642340012/1 [Latch left]	Latch left
5		WG1642340012/2 [Latch left]	Latch left
6		WG1642340014/1 [Lock left]	Lock left
6		WG1642340014/2 [Lock left]	Lock left
7		WG1642340028/1 [Cable]	Cable
7		WG1642340028/2 [Cable]	Cable
8		Q150B0612 [Screw]	Screw
9		Q2300612 [Comb.screw]	Comb.screw
10		WG1642340033/1 [Inter handle]	Inter handle
10		WG1642340033/2 [Inter handle]	Inter handle
11		WG1642340031/1 [Aux.lock]	Aux.lock
11		WG1642340031/2 [Aux.lock]	Aux.lock
12		WG1642340032/1 [Cover]	Cover
12		WG1642340032/2 [Cover]	Cover
13		Q150B0616 [Screw]	Screw
14		WG1642340001/1 [Outer handle]	Outer handle
14		WG1642340001/2 [Outer handle]	Outer handle
15		WG1642340002/1 [Washer]	Washer
15		WG1642340002/2 [Washer]	Washer
16		WG1642340011/1 [Key]	Кеу
16		WG1642340011/2 [Key]	Кеу
17		WG1642340018/1 [Control rod]	Control rod
17		WG1642340018/2 [Control rod]	Control rod
18		WG1642340008/1 [Lock element]	Lock element
18		WG1642340008/2 [Lock element]	Lock element
19		WG1642340016/1 [Control rod I]	Control rod I
19		WG1642340016/2 [Control rod I]	Control rod I
20		Q2540820 [Screw]	Screw
21		WG1642340022/1 [Bracket]	Bracket
21		WG1642340022/2 [Bracket]	Bracket
22		WG1642340023/1 [Plate]	Plate
22		WG1642340023/2 [Plate]	Plate
23		WG1642340010/1 [Lock piece]	Lock piece
23		WG1642340010/2 [Lock piece]	Lock piece
24		WG1642340024/1 [Pin]	Pin
24		WG1642340024/2 [Pin]	Pin
25		WG1642340030/1 [Rubber sleeve]	Rubber sleeve
25		WG1642340030/2 [Rubber sleeve]	Rubber sleeve
26		WG1642340026/1 [Strap]	Strap
26		WG1642340026/2 [Strap]	Strap
27		Q5100835 [Bolt]	Bolt
28		Q5002526 [Split pin]	Split pin
29		WG1642340027/1 [Fixing plate]	Fixing plate
29		WG1642340027/2 [Fixing plate]	Fixing plate
30		Q2140612 [Screw]	Screw
31		Q41806 [Washer]	Washer

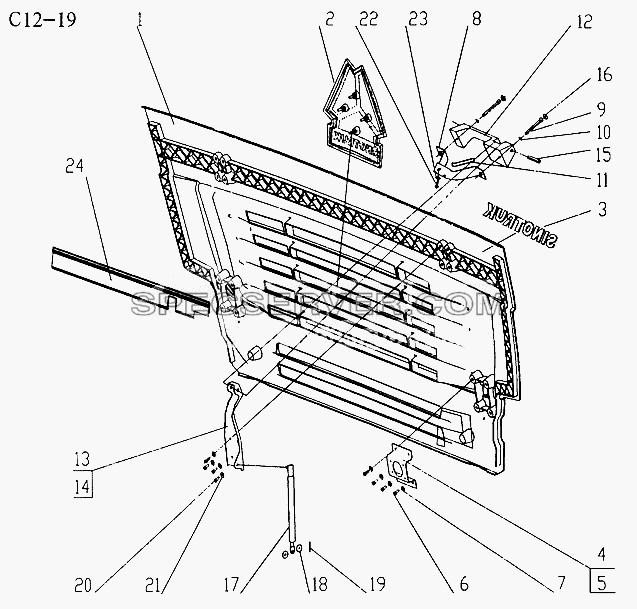

FRONT COVER (C12-19) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG1642110013 [Front cover]	Front cover
2		AZ1646950001 [Logo shield]	Logo shield
3		AZ1646950002 [Shield "SINOTRUK"]	Shield "SINOTRUK"
4		WG1642110027 [Right lock C]	Right lock C
5		WG1642110028 [Left lock C]	Left lock C
6		Q150B0616 [Screw]	Screw
7		Q40206 [Washer]	Washer
8		AZ1642110014 [Bracket]	Bracket
9		Q218B0870 [Screw]	Screw
10		Q40008 [Washer]	Washer
11		WG1642110018 [Protecting strip]	Protecting strip
12		WG1642110016 [Basefor hinge]	Basefor hinge
13		AZ1642110032 [Left hinge]	Left hinge
14		AZ1642110033 [Right hinge]	Right hinge
15		AZ1642110017 [Hinge pin]	Hinge pin
16		WG1642930003 [Plug]	Plug
17		WG1642110024 [Spring]	Spring
18		WG9100360134 [Spacer]	Spacer
19		Q5002014 [Split pin]	Split pin
20		Q150B0616 [Screw]	Screw
21		Q40206 [Washer]	Washer
22		Q150B0816 [Screw]	Screw
23		Q40208 [Washer]	Washer
24		WG1642110034 [Plate]	Plate

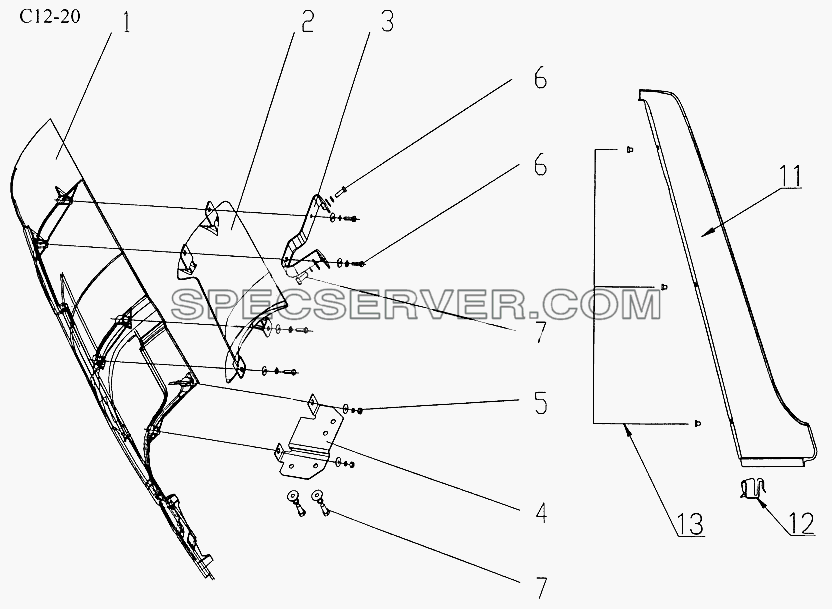

SIDE COVER, "A" POLE GARNISH (C12-20) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1642110008 [Bracket left]	Bracket left
-		Q40206 [Washer]	Washer
-		Q40206 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40306 [Spring washer]	Spring washer
-		Q40306 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		WG1642110002 [Outer side cover left]	Outer side cover left
-		WG1642110004 [Inter plate left]	Inter plate left
-		WG1642110020 [‘A'pole garnish right]	"A" pole garnish right
1		WG1642110001 [Outer side cover right]	Outer side cover right
2		WG1642110003 [Inter plate right]	Inter plate right
3		AZ1642110006 [Bracket]	Bracket
4		AZ1642110007 [Bracket right]	Bracket right
5		Q350B06 [Nut]	Nut
6		Q150B0620 [Screw]	Screw
7		Q150B0820 [Screw]	Screw
10		WG1642110019 [‘A'pole garnish left]	"A" pole garnish left
12		WG1642110021 [Clip]	Clip
13		WG1642110022 [Rivet]	Rivet

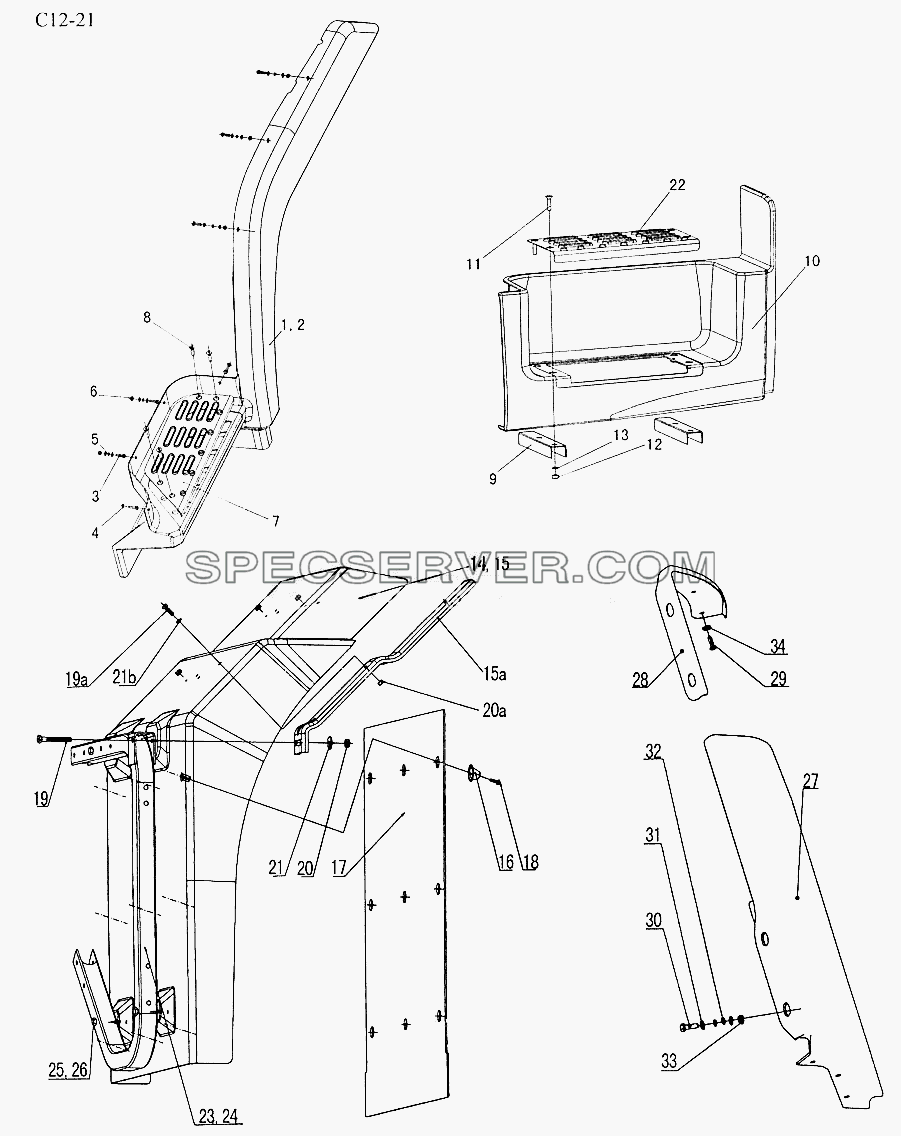

MUDGUARD (C12-21) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q150B0620 [Screw]	Screw
-		Q2540830 [Screw]	Screw
-		Q340B06 [Nut]	Nut
-		Q340B08 [Nut]	Nut
-		Q40106 [Washer]	Washer
-		Q40306 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		WG1641240012 [Left step bow]	Left step bow
-		WG1642230005 [Aux.plate for wheel fender]	Aux.plate for wheel fender
-		WG1642230019 [Step right]	Step right
-		WG1642240031 [Right step bow bottom]	Right step bow bottom
-		WG1642240033 [Bottom step right]	Bottom step right
-		WG9719930321 [Plate]	Plate
-		WG9731930014 [Plate]	Plate
1		WG1641230020 [Left wheel fender]	Left wheel fender
1		WG1642230012 [Left wheel fender]	Left wheel fender
2		WG1641230021 [Right wheel fender]	Right wheel fender
2		WG1642230013 [Right wheel fender]	Right wheel fender
3		Q150B0620 [Screw]	Screw
4		Q40106 [Washer]	Washer
5		Q40306 [Spring washer]	Spring washer
6		Q340B06 [Nut]	Nut
7		WG1642230018 [Step left]	Step left
8		Q2540830 [Screw]	Screw
9		AZ9725930049 [Bracket for step bow]	Bracket for step bow
9		WG9725930017 [Bracket for step bow]	Bracket for step bow
10		WG1641240011 [Right step bow]	Right step bow
10		WG1642240030 [Left step bow bottom]	Left step bow bottom
11		Q150B0825 [Screw]	Screw
12		Q340B08 [Nut]	Nut
13		Q40308 [Spring washer]	Spring washer
14		WG1642230003 [Left rear wheel fender]	Left rear wheel fender
15		WG1642230004 [Right rear wheel fender]	Right rear wheel fender
16		AZ1642230008 [Washer]	Washer
17		AZ1642230007 [Pad for rear wheel fender]	Pad for rear wheel fender
18		Q2713516 [Screw]	Screw
19		Q150B0860 [Screw]	Screw
20		Q340B08 [Nut]	Nut
21		Q40308 [Spring washer]	Spring washer
22		WG1642240032 [Bottom step left]	Bottom step left
23		WG9719930315 [Bracket for left rear mudguard]	Bracket for left rear mudguard
23		WG9731930010 [Bracket for left rear mudguard]	Bracket for left rear mudguard
24		WG9719930313 [Bracket for right rear mudguard]	Bracket for right rear mudguard
24		WG9731930015 [Bracket for right rear mudguard]	Bracket for right rear mudguard
25		Q151B1445 [Screw]	Screw
26		190003888468 [Nut]	Nut
27		WG1641230028 [Rear cover]	Rear cover
28		WG1641230030 [Bracket for rear cover]	Bracket for rear cover
29		Q2714816 [Screw]	Screw
30		Q150B0620 [Screw]	Screw
31		Q40206 [Washer]	Washer
32		Q40306 [Spring washer]	Spring washer
33		Q340B06 [Nut]	Nut
34		Q40204 [Washer]	Washer
41		WG1641230025 [Left mudguard]	Left mudguard
42		WG1641230026 [Right mudguard]	Right mudguard
43		AZ1641230027 [Strip for mudguard]	Strip for mudguard

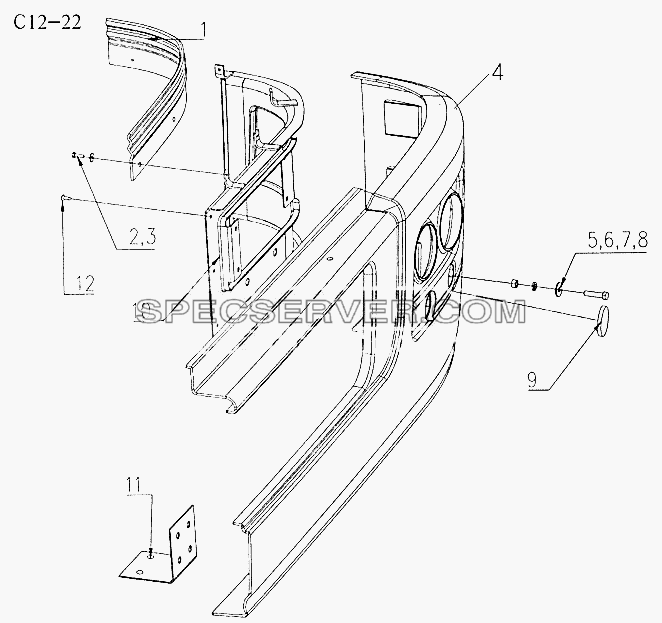

BUMPER (C12-22) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1608240074 [Rubber pad]	Rubber pad
-		AZ1642240051 [Garnish plate right]	Garnish plate right
-		WG1642930009 [Nut]	Nut
1		AZ1642240050 [Garnish plate left]	Garnish plate left
2		Q2714819 [Screw]	Screw
3		Q40206 [Washer]	Washer
4		WG1641240001 [High bumper]	High bumper
4		WG1642240002 [Bumper]	Bumper
5		Q150B0835 [Screw]	Screw
6		Q340B08 [Nut]	Nut
7		Q40208 [Washer]	Washer
8		Q40508 [Spring washer]	Spring washer
9		WG1642240050 [Inter plug right]	Inter plug right
9		WG1642240051 [Inter plug left]	Inter plug left
9		WG1642240052 [Outer plug right]	Outer plug right
9		WG1642240053 [Outer plug left]	Outer plug left
10		WG1642240040 [Bracket left]	Bracket left
10		WG1642240041 [Bracket right]	Bracket right
11		WG1642240042 [Middle bracket]	Middle bracket
12		Q2764816 [Screw]	Screw

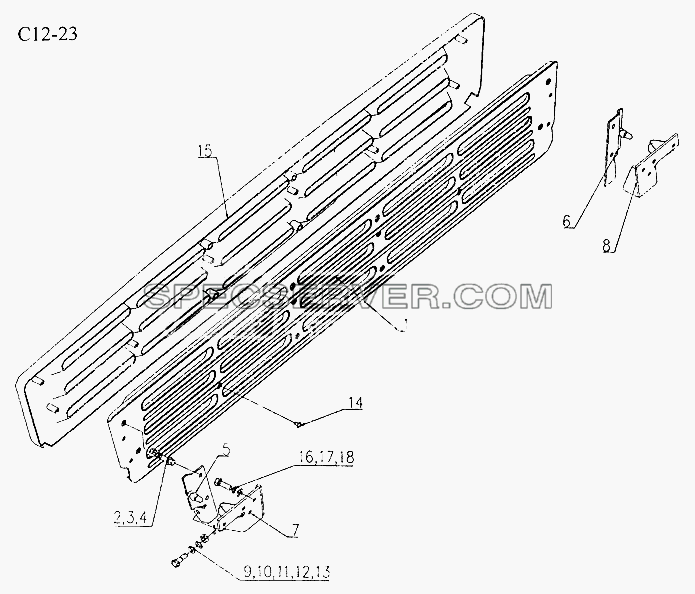

GRILLE OF BUMPER (C12-23) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1642240011 [Grille assembly]	Grille assembly
1		AZ1642240012 [GrilIe body]	GrilIe body
2		Q1840816 [Screw]	Screw
3		Q340B08 [Nut]	Nut
4		Q40408 [Spring washer]	Spring washer
5		AZ1642240005 [Connecting plate left]	Connecting plate left
6		AZ1642240006 [Connecting plate right]	Connecting plate right
7		AZ1642240019 [Bracket left]	Bracket left
8		AZ1642240020 [Bracket right]	Bracket right
9		WG1642240080 [Bolt]	Bolt
10		Q40508 [Spring washer]	Spring washer
11		Q340B08 [Nut]	Nut
12		Q40008 [Washer]	Washer
13		Q5000214 [Split pin]	Split pin
14		Q2764813 [Screw]	Screw
15		WG164224001 8 [Grille]	Grille
16		Q150B0825 [Screw]	Screw
17		Q40008 [Washer]	Washer
18		Q40408 [Spring washer]	Spring washer
