№		Номер детали	Наименование запчасти
-		81.46111.0066 [Chafe ring]	Chafe ring
-		81.46433.0005 [Fixative clip]	Fixative clip
-		81.91710.0459 [Ring]	Ring
-		81.95801.0071 [Ball]	Ball
-		81.97602.0729 [Compress spring]	Compress spring
-		AZ9003320012 [Ball cage]	Ball cage
-		AZ9003320013 [Ball cage]	Ball cage
-		AZ9100470422 [Steering tube]	Steering tube
-		AZ9100470424 [Support]	Support
-		AZ9100470425 [Steering tube]	Steering tube
-		AZ9100470428 [Telescopic shaft]	Telescopic shaft
-		AZ9100470438 [Hand wheel]	Hand wheel
-		AZ9100470439 [Hand wheel]	Hand wheel
-		Q150B0530 [Screw]	Screw
-		Q150B0865 [Screw]	Screw
-		Q340B05 [Nut]	Nut
-		Q351B22T15 [Nut]	Nut
-		Q41822 [Washer]	Washer
-		Q43042 [Snap Ing]	Snap Ing
-		Q43042 [Snap Ing]	Snap Ing
-		Q43130 [Snap Ing]	Snap Ing
-		Q5220632 [Columnm pin]	Columnm pin
-		WG9130583018 [Ring]	Ring
-		WG9130583019 [Start switch]	Start switch
1		WG9100470430 [Steering wheel]	Steering wheel
1		WG9100470450 [Steering wheel]	Steering wheel
2		AZ9130583024 [Touch ring]	Touch ring
3		WG9100470420 [Steering tube assembly]	Steering tube assembly
4		AZ9100470401 [The cover of the steering column(rear)]	The cover of the steering column(rear)
5		AZ9100470403 [Gimbal]	Gimbal
6		AZ9100470410 [Lining]	Lining
7		AZ9100470409 [Turning pole protect set]	Turning pole protect set
8		AZ9100470406 [Left joint board]	Left joint board
9		AZ9100470407 [Right joint board]	Right joint board
10		Q150B0625 [Screw]	Screw
11		Q40306 [Spring washer]	Spring washer
12		Q40206 [Washer]	Washer
13		AZ9100470102 [Gimbal-assembly]	Gimbal-assembly
14		AZ9130583018 [Return ring]	Return ring
15		AZ9100470402 [The cover of the steering column(front)]	The cover of the steering column(front)
16		81.46113.0085 [Cover of turning pole(front)]	Cover of turning pole(front)
17		AZ9100470414 [Pin]	Pin
18		Q387B08 [Nut]	Nut
19		Q40208 [Washer]	Washer
20		Q5002016 [Hatch pin]	Hatch pin
21		81.96410.0560 [Cover]	Cover
22		81.96410.0353 [Cover]	Cover
23		Q2720412 [Bolt]	Bolt
24		Q2714250 [Bolt]	Bolt

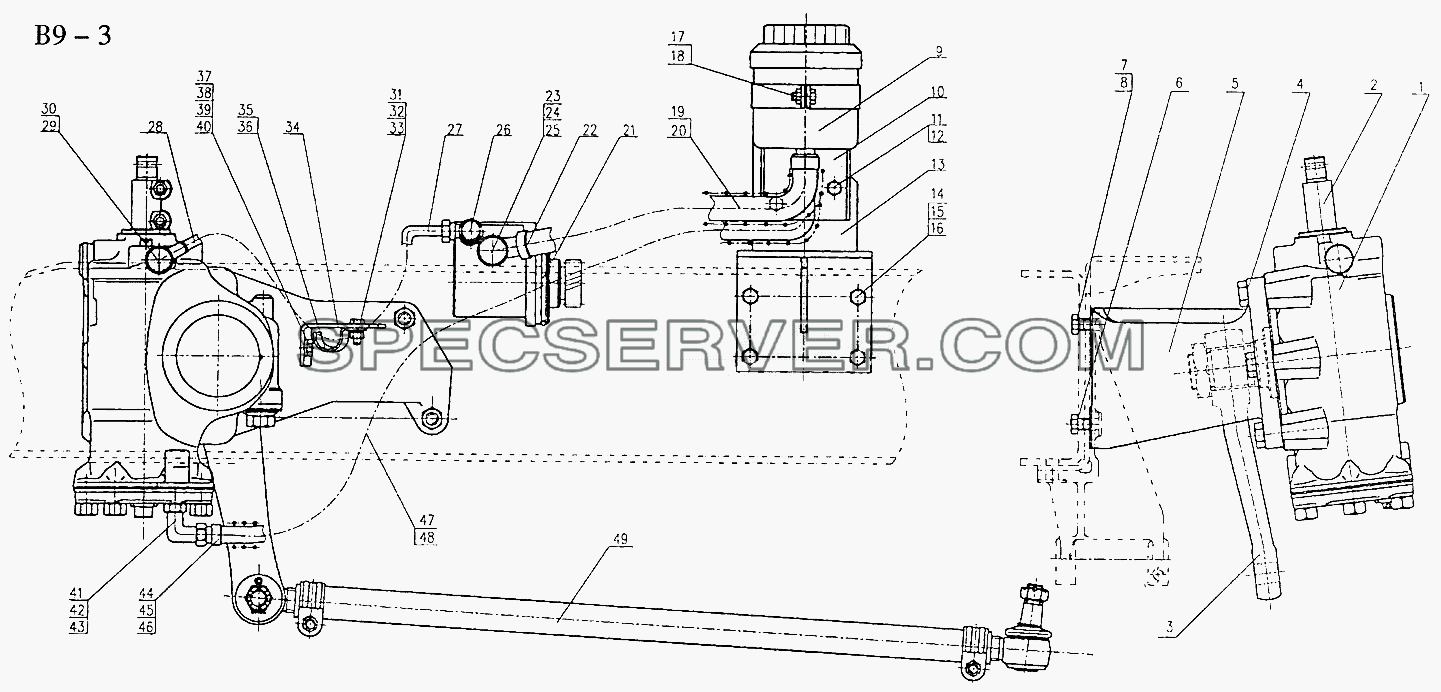

4x2, 4x4, 6x4, 6x6 HYDRAULIC STEERING SYSTEM (B9-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199100470089 [Delivery line]	Delivery line
-		AZ9100470090 [Delivery line]	Delivery line
1		AZ9100470150 [Steering gear(ZF8098)]	Steering gear(ZF8098)
1		AZ9100470225 [Steering gear(ZF8095)]	Steering gear(ZF8095)
1		AZ9100470228 [Steering gear(ZF8098)]	Steering gear(ZF8098)
2		WG9100470155 [Cross joint]	Cross joint
2		WG9112470155 [Cross joint]	Cross joint
3		Q151B2045TF2 [Screw]	Screw
3		WG9100470190 [Drop arm]	Drop arm
3		WG9100470235 [Drop arm]	Drop arm
3		WG9100470295 [Steering bracket]	Steering bracket
3		WG9100470298 [Drop arm]	Drop arm
5		WG9100470180 [Steering bracket]	Steering bracket
6		Q151B1655TF2 [Screw]	Screw
7		Q151B1670TF2 [Screw]	Screw
8		190003888627 [Nut]	Nut
9		WG9100470033 [Oil tank]	Oil tank
10		AZ9100470040 [Suport]	Suport
10		AZ9100470049 [Suport]	Suport
11		Q150B1020 [Screw]	Screw
12		Q33210 [Nut]	Nut
13		AZ9100470200 [Bracket assembly]	Bracket assembly
13		AZ9100470205 [Bracket assembly]	Bracket assembly
14		Q151B1230 [Screw]	Screw
15		Q340B12 [Screw]	Screw
16		Q40312 [Spring washer]	Spring washer
17		Q150B0835 [Screw]	Screw
18		Q33208 [Nut]	Nut
19		WG9100470082 [Hose]	Hose
19		WG9100470140 [Hose]	Hose
20		AZ9100470084 [Spring protect ring]	Spring protect ring
21		WG9100130037 [Hydraulic pump]	Hydraulic pump
21		WG9619470080 [Hydraulic pump]	Hydraulic pump
21		WG9631470060 [Hydraulic pump]	Hydraulic pump
22		190003989301 [Hose clamp]	Hose clamp
23		WG9100470076 [Nipple]	Nipple
24		190003962651 [Female screw]	Female screw
25		190003098031 [Gasket]	Gasket
26		WG9100470110 [Screwing]	Screwing
27		AZ9100479107 [Hight pressure hose]	Hight pressure hose
27		AZ9123479027 [Hight pressure hose]	Hight pressure hose
28		199100470029 [Delivery line]	Delivery line
28		AZ9100470130 [Delivery line]	Delivery line
28		AZ9100470229 [Delivery line]	Delivery line
28		AZ9132470030 [Delivery line]	Delivery line
29		190003962632 [Female screw]	Female screw
29		WG9100470157 [Tie-in]	Tie-in
30		T071600 [Gasket]	Gasket
30		T071800 [Gasket]	Gasket
31		Q150B0620 [Screw]	Screw
32		Q40306 [Spring washer]	Spring washer
33		Q340B06 [Nut]	Nut
34		1397 350169 [Angle]	Angle
35		138091360181 [Clamp]	Clamp
36		161000060211 [Rubber hose]	Rubber hose
37		Q150B0630 [Screw]	Screw
38		Q340B06 [Nut]	Nut
39		Q40206 [Washer]	Washer
40		Q40306 [Spring washer]	Spring washer
41		252-3407056 [Nozle]	Nozle
42		252-3407054 [Gasket]	Gasket
43		252-3407055 [Nut]	Nut
44		WG9100470078 [Nipple]	Nipple
45		190003989336 [Hose clamp]	Hose clamp
46		190003883242 [Nut]	Nut
47		199100470087 [Rubber hose]	Rubber hose
47		WG9100470094 [Rubber hose]	Rubber hose
48		17017470015 [Spring protect ring]	Spring protect ring

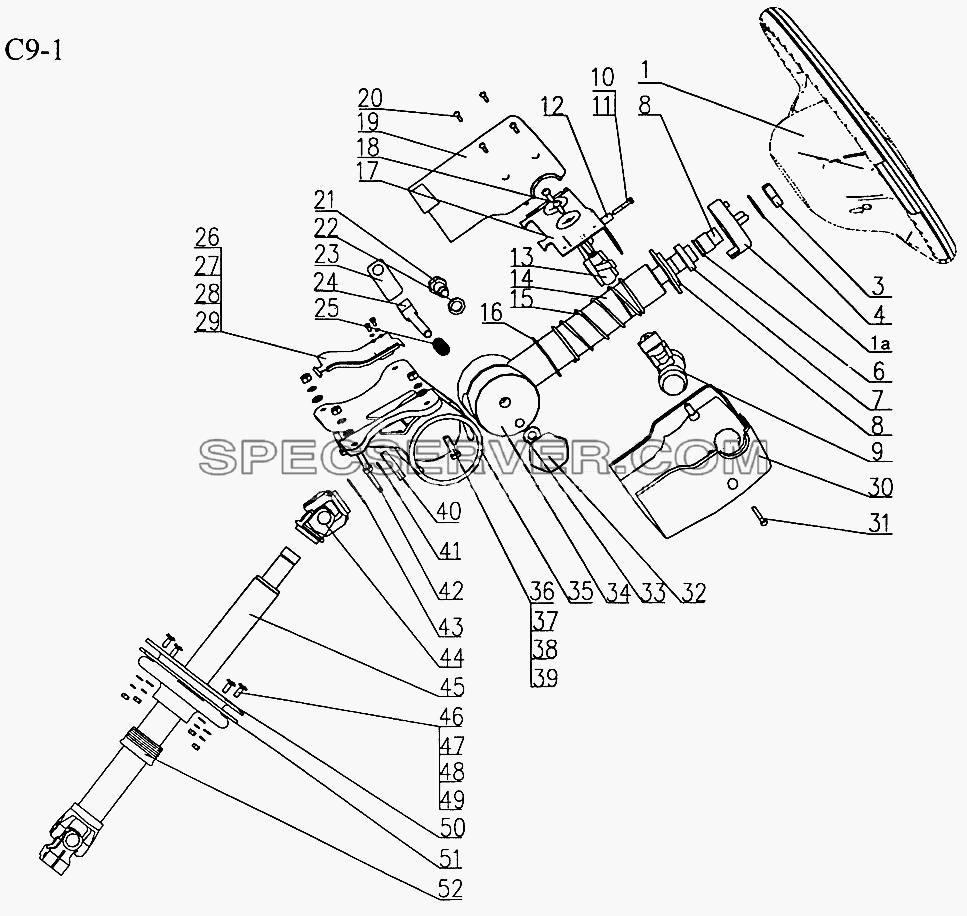

STEERING DEVICE (C9-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9719470050 [Steering tube assembly]	Steering tube assembly
-		WG9130583018 [Ring]	Ring
1		AZ9719470100 [Steering wheel]	Steering wheel
2		AZ9130583024 [Touch ring]	Touch ring
3		Q351B22T15 [Nut]	Nut
4		Q41822 [Spring washer]	Spring washer
6		Q43125 [Snap ring]	Snap ring
7		AZ9003320012 [Ball bearing]	Ball bearing
8		AZ9719470053 [Steering shaft]	Steering shaft
9		WG9130583019 [Start switch]	Start switch
10		Q150B0530 [Screw]	Screw
11		Q340B05 [Nut]	Nut
12		81.95801.0071 [Roller]	Roller
13		81.46433.0005 [Clip]	Clip
14		AZ9719470051 [Sleeve]	Sleeve
15		AZ9123470129 [Spring]	Spring
16		AZ9123470130 [Washer]	Washer
17		AZ9100470424 [Support]	Support
18		Q150B0865 [Screw]	Screw
19		AZ9719470041 [Cover of the steering column rear]	Cover of the steering column rear
20		Q2720412 [Screw]	Screw
21		AZ9719470057 [Screw]	Screw
22		Q40316 [Spring washer]	Spring washer
23		AZ9719470058 [Plate]	Plate
24		AZ9719470055 [Adjusting screw]	Adjusting screw
25		AZ9123470153 [Spring]	Spring
26		AZ9719470052 [Bracket for electrical line]	Bracket for electrical line
27		Q150B0408 [Screw]	Screw
28		Q40304 [Spring washer]	Spring washer
29		Q40104 [Washer]	Washer
30		AZ9719470042 [Cover of the steering column front]	Cover of the steering column front
31		Q2714250 [Screw]	Screw
32		AZ9123470150 [Hand wheel]	Hand wheel
33		AZ9123470155 [Washer]	Washer
34		AZ9719470054 [Sleeve]	Sleeve
35		AZ9719470056 [Support]	Support
36		Q150B0830 [Screw]	Screw
37		Q340B08 [Nut]	Nut
38		Q40308 [Spring washer]	Spring washer
39		Q40108 [Washer]	Washer
40		AZ9003320013 [Ball bearing]	Ball bearing
41		Q43130 [Snap ring]	Snap ring
42		81.91710.0459 [Ring]	Ring
43		Q43042 [Snap ring]	Snap ring
44		AZ9719470043 [Gimbal-assembly]	Gimbal-assembly
45		AZ9719470044 [Telescopic shaft]	Telescopic shaft
46		Q199B0616 [Screw]	Screw
47		Q340B06 [Nut]	Nut
48		Q40306 [Spring washer]	Spring washer
49		Q40106 [Washer]	Washer
50		AZ9719470045 [Bellow]	Bellow
51		AZ9719470046 [Plate]	Plate
52		AZ9100470410 [Bush]	Bush

4x2, 6x4 HYDRAULIC STEERING SYSTEM (C9-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		161800130047 [Gasket]	Gasket
-		17017470015 [Spring protect ring]	Spring protect ring
-		AZ9123360300 [Protect sleeve]	Protect sleeve
-		AZ9725470084 [Spring protect ring]	Spring protect ring
-		Q218B1025 [Screw]	Screw
-		Q218B1035 [Screw]	Screw
1		AZ9100470225 [Steering gear (ZF8095)]	Steering gear (ZF8095)
1		AZ9719470228 [Steering gear (ZF8098)]	Steering gear (ZF8098)
1		WG9716470150 [Steering gear (ZF8098)]	Steering gear (ZF8098)
2		AZ9716470050 [Delivery line]	Delivery line
2		AZ9719470029 [Delivery line]	Delivery line
2		AZ9725470229 [Delivery line]	Delivery line
3		T071800 [Gasket]	Gasket
4		190003962632 [Female screw]	Female screw
5		252-3407054 [Gasket]	Gasket
6		252-3407055 [Nut]	Nut
7		252-3407056 [Nozzle]	Nozzle
8		190003883242 [Nut]	Nut
9		WG9100470078 [Nozzle]	Nozzle
10		190003989336 [Hose clamp]	Hose clamp
11		AZ9716470060 [Rubber hose]	Rubber hose
11		WG9725470050 [Rubber hose]	Rubber hose
12		Q151B2045TF2 [Screw]	Screw
13		WG9716470020 [Drop arm]	Drop arm
13		WG9719470020 [Drop arm]	Drop arm
13		WG9725470298 [Drop arm]	Drop arm
15		Q150B0630 [Screw]	Screw
16		Q340B06 [Nut]	Nut
17		Q40206 [Washer]	Washer
18		Q40306 [Spring washer]	Spring washer
19		1397 350169 [Angle]	Angle
20		190003489292 [Sleeve]	Sleeve
21		Q68225 [Clamp]	Clamp
22		Q150B0620 [Screw]	Screw
23		Q340B06 [Nut]	Nut
24		Q40306 [Spring washer]	Spring washer
26		AZ9725470238 [Steering bracket]	Steering bracket
26		AZ9725470295 [Steering bracket]	Steering bracket
26		AZ9731470020 [Steering bracket]	Steering bracket
27		Q151B1660TF2 [Screw]	Screw
28		190003888627 [Nut]	Nut
29		AZ9725470020 [Bracket assembly]	Bracket assembly
29		AZ9725470025 [Bracket assembly]	Bracket assembly
30		Q151B1020 [Screw]	Screw
31		Q33210 [Nut]	Nut
32		Q150B0835 [Serew]	Serew
33		Q33208 [Nut]	Nut
34		AZ9100470040 [Bracket]	Bracket
34		AZ9100470049 [Support]	Support
35		WG9719470033 [Oil tank]	Oil tank
36		WG9619470080 [Hydraulic pump]	Hydraulic pump
36		WG9631470060 [Hydraulic pump]	Hydraulic pump
36		WG9719470037 [Hydraulic pump]	Hydraulic pump
37		T071800 [Gasket]	Gasket
38		WG9100470110 [Screwing]	Screwing
39		WG9100470076 [Joint]	Joint
40		190003098031 [Gasket]	Gasket
41		190003962651 [Female screw]	Female screw
42		AZ9716470070 [High pressure hose]	High pressure hose
42		WG2032470140 [High pressure hose]	High pressure hose
42		WG9100470107 [High pressure hose]	High pressure hose
43		190003989301 [Hose clamp]	Hose clamp
44		AZ9725470175 [Hose]	Hose
44		WG9725470120 [Hose]	Hose

4x2, 6x2, 6x4 STEERING LINKAGE (C9-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9719430010 [Drag link]	Drag link
2		AZ9112430003 [Tie rod]	Tie rod
6		Q387B20T15 [Nut]	Nut
7		Q5004036 [Split pin]	Split pin

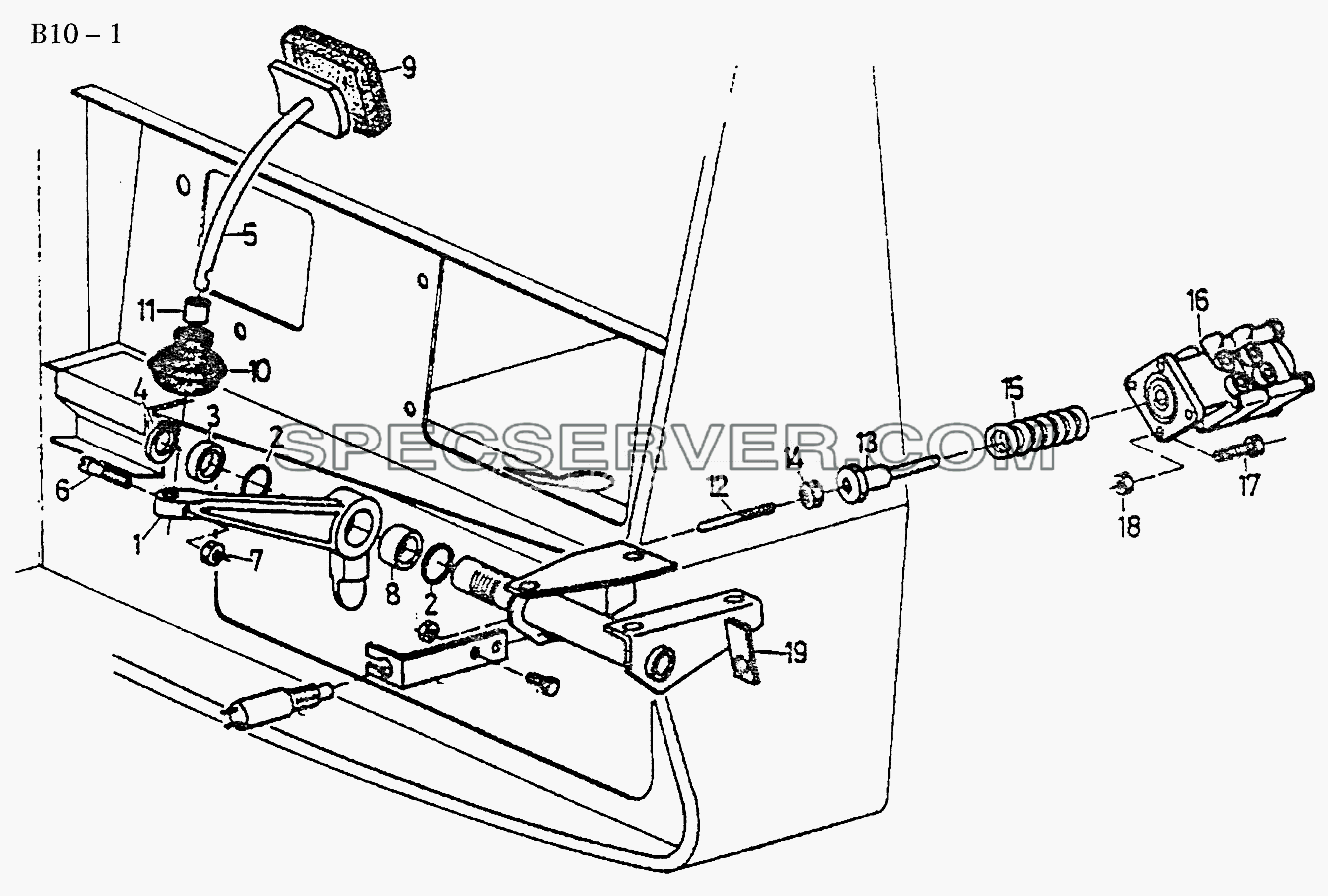

BRAKE MECHANISM (B10-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9100360427 [Brake foot pedal]	Brake foot pedal
2		1288 470029 [Gasket]	Gasket
3		1113 010023 [Support]	Support
4		Q43132 [Circlip]	Circlip
5		199100360128 [Push rod]	Push rod
6		11700 230009 [Bolt]	Bolt
7		Q33208 [Nut]	Nut
8		1880 360075 [Bush]	Bush
9		1880 230031 [Rubber]	Rubber
10		1681 270244 [Pedal sealing]	Pedal sealing
11		WG81 270245 [Sleeve]	Sleeve
12		WG9100360424 [Push rod]	Push rod
13		WG9100360425 [Push rod]	Push rod
14		Q340B08 [Nut]	Nut
15		189200320043 [Pressure spring]	Pressure spring
16		WC9000360152 [Service brake valve]	Service brake valve
17		Q150B0830 [Bolt]	Bolt
18		Q33208 [Nut]	Nut
19		199100230105 [Bracket]	Bracket
