№		Номер детали	Наименование запчасти
-		WG9716240008 [Operator]	Operator
-		WG9719240028 [Operator]	Operator
-		WG9725240009 [Gear shift lever]	Gear shift lever
-		WG9725240009 [Gear shift lever]	Gear shift lever
1		AZ9100240060 [Gear shift knob]	Gear shift knob
1		AZ9100240061 [Gear shift knob]	Gear shift knob
1		AZ9123240211 [Gear shift knob]	Gear shift knob
1		AZ9123240214 [Gear shift knob]	Gear shift knob
1		AZ9716240001 [Gear shift knob]	Gear shift knob
2		179200240075 [Cable sleeve]	Cable sleeve
3		AZ9719240002 [Siphon]	Siphon
4		190003989318 [Circlip]	Circlip
5		Q218B0825 [Screw]	Screw
6		Q40308 [Spring washer]	Spring washer
7		Q150B0850 [Screw]	Screw
8		Q150B0835 [Screw]	Screw
9		Q40308 [Spring washer]	Spring washer
10		AZ9719240032 [Connecting block]	Connecting block
11		WG9716240010 [Operator assembly]	Operator assembly
11		WG9719240031 [Operator assembly]	Operator assembly
12		WG9716240011 [Positioning cable]	Positioning cable
12		WG9719240007 [Positioning cable]	Positioning cable
12		WG9719240111 [Positioning cable]	Positioning cable
13		WG9716240013 [Gear shift cable]	Gear shift cable
13		WG9719240112 [Gear shift cable]	Gear shift cable
13		WG9725240008 [Gear shift cable]	Gear shift cable
14		1397 350169 [Angle]	Angle
15		Q150B0840 [Screw]	Screw
16		Q40308 [Spring washer]	Spring washer
17		Q340B08 [Nut]	Nut
18		1188 730187 [Clamp]	Clamp
19		AZ9719240017 [Sleeve]	Sleeve
20		WG9719240008 [Clamp]	Clamp
21		Q150B0835 [Screw]	Screw
22		Q40108 [Washer]	Washer
23		AZ9717240027 [Bracket for gear shift cable]	Bracket for gear shift cable
23		AZ9719240026 [Bracket for gear shift cable]	Bracket for gear shift cable
23		AZ9725240024 [Bracket for gear shift cable]	Bracket for gear shift cable
24		AZ9719240025 [Bracket for positioning cable]	Bracket for positioning cable
24		AZ9719240029 [Bracket for positioning cable]	Bracket for positioning cable
25		AZ9719240023 [Positioning lever]	Positioning lever
26		WG9719240117 [Support bar]	Support bar
27		WG9719240116 [Positioning bar]	Positioning bar
28		WG9719240118 [Gear shift bar]	Gear shift bar
29		AZ9725240026 [Protect sleeve for cable]	Protect sleeve for cable

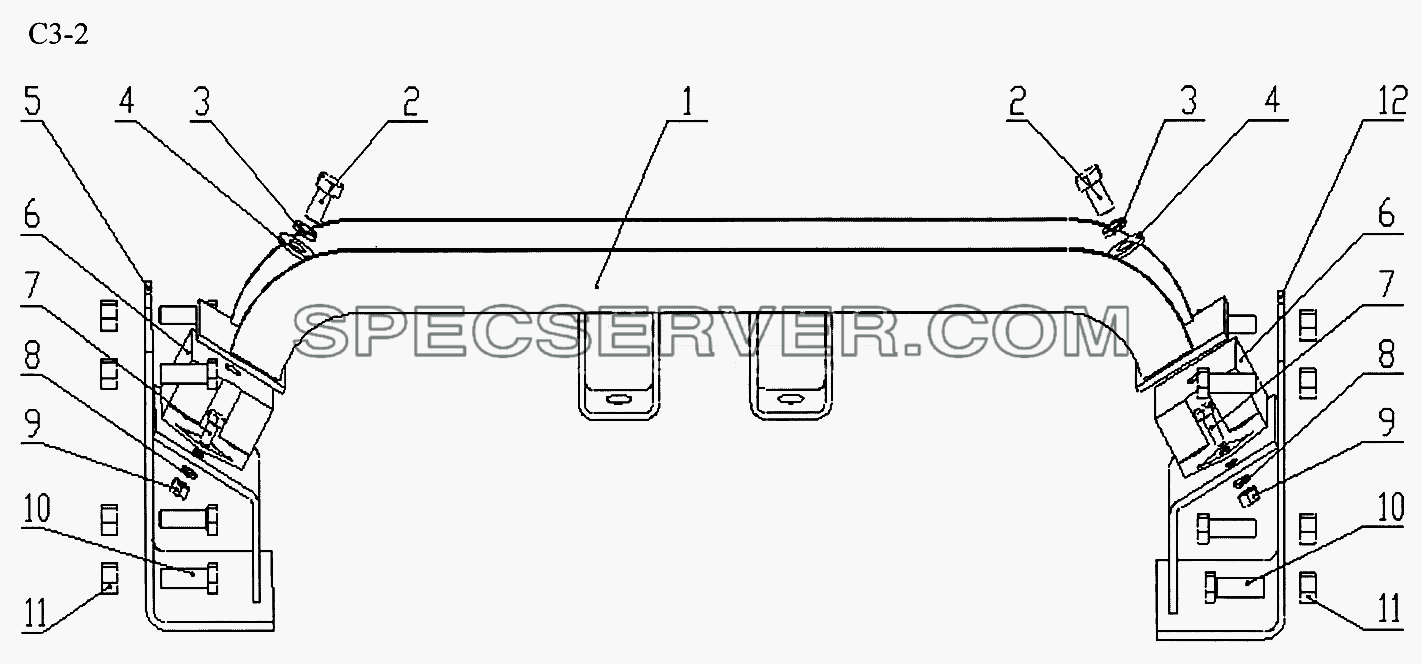

GEARBOX SUSPENSION (C3-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9725590008 [Cross member]	Cross member
1		AZ9725590090 [Cross member]	Cross member
1		AZ9725596010 [Cross member]	Cross member
1		AZ9731596160 [Cross member]	Cross member
2		Q150B1222 [Screw]	Screw
3		Q40312 [Spring washer]	Spring washer
4		1480A 360058 [Washer]	Washer
5		AZ9725590063 [Left bracket]	Left bracket
5		AZ9725590093 [Left bracket]	Left bracket
5		AZ9725590095 [Left bracket]	Left bracket
5		AZ9725596120 [Left bracket]	Left bracket
5		AZ9725596140 [Left bracket]	Left bracket
5		AZ9731596170 [Left bracket]	Left bracket
6		WG1680590095 [Support front]	Support front
7		Q150B0822 [Screw]	Screw
8		Q40308 [Spring washer]	Spring washer
9		Q340B08 [Nut]	Nut
10		Q150B1235 [Screw]	Screw
11		Q33212 [Nut]	Nut
12		AZ9725590018 [Bracket]	Bracket
12		AZ9725590060 [Right bracket]	Right bracket
12		AZ9725590094 [Right bracket]	Right bracket
12		AZ9725590096 [Right bracket]	Right bracket
12		AZ9725596130 [Right bracket]	Right bracket
12		AZ9725596150 [Right bracket]	Right bracket
12		AZ9731596180 [Right bracket]	Right bracket

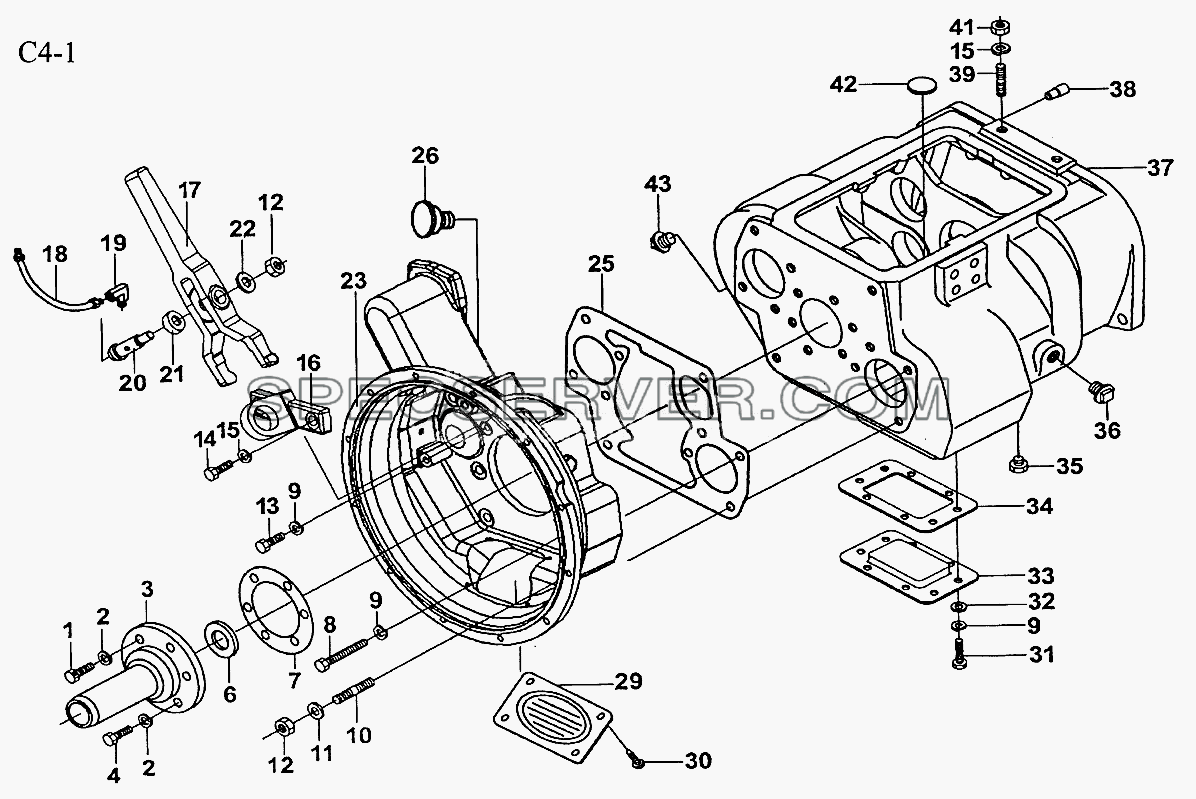

9JS150T GEARBOX HOUSING (C4-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q1701032 [Screw]	Screw
2		Q40310 [Spring washer]	Spring washer
3		JS180-1701040-1 [Cover]	Cover
4		M10x32 [Screw]	Screw
6		F500A-1802191 [Oil seal]	Oil seal
7		14311 [Gasket]	Gasket
8		M12x90 [Screw]	Screw
9		Q40312 [Spring washer]	Spring washer
10		C01056 [Stud]	Stud
11		Q40016 [Washer]	Washer
12		M16x1.5 [Nut]	Nut
13		M12x38 [Screw]	Screw
14		M16x45 [Screw]	Screw
15		Q40316 [Spring washer]	Spring washer
16		JS180-1601024-2 [T style board]	T style board
17		JS180-1601021-2 [Shifting fork]	Shifting fork
18		51016 [Oil pipe]	Oil pipe
19		12880 [Connector]	Connector
20		JS180-1601023-1 [Shifting fork shaft]	Shifting fork shaft
21		GB304-64UC25 [Joint bearing]	Joint bearing
22		JS180-1601022-1 [Washer]	Washer
23		JS180-1601015-5 [Clutch housing]	Clutch housing
25		20822 [Clutch housing gasket]	Clutch housing gasket
26		A-6 [Grease cup]	Grease cup
29		JS180-1701016-3 [Clutch cover]	Clutch cover
30		Q150B0812 [Screw]	Screw
31		Q150B1225 [Screw]	Screw
32		Q40112 [Washer]	Washer
33		16596 [Window cover]	Window cover
34		16929 [Gasket]	Gasket
35		Q614B06 [Plug]	Plug
36		Q614B12 [Plug]	Plug
37		18686 [Gearbox housing]	Gearbox housing
38		14334 [Stop pin]	Stop pin
39		Q1231630 [Stud]	Stud
41		M16x1.5 [Nut]	Nut
42		14373 [Magnet]	Magnet
43		Q61304 [Plug]	Plug

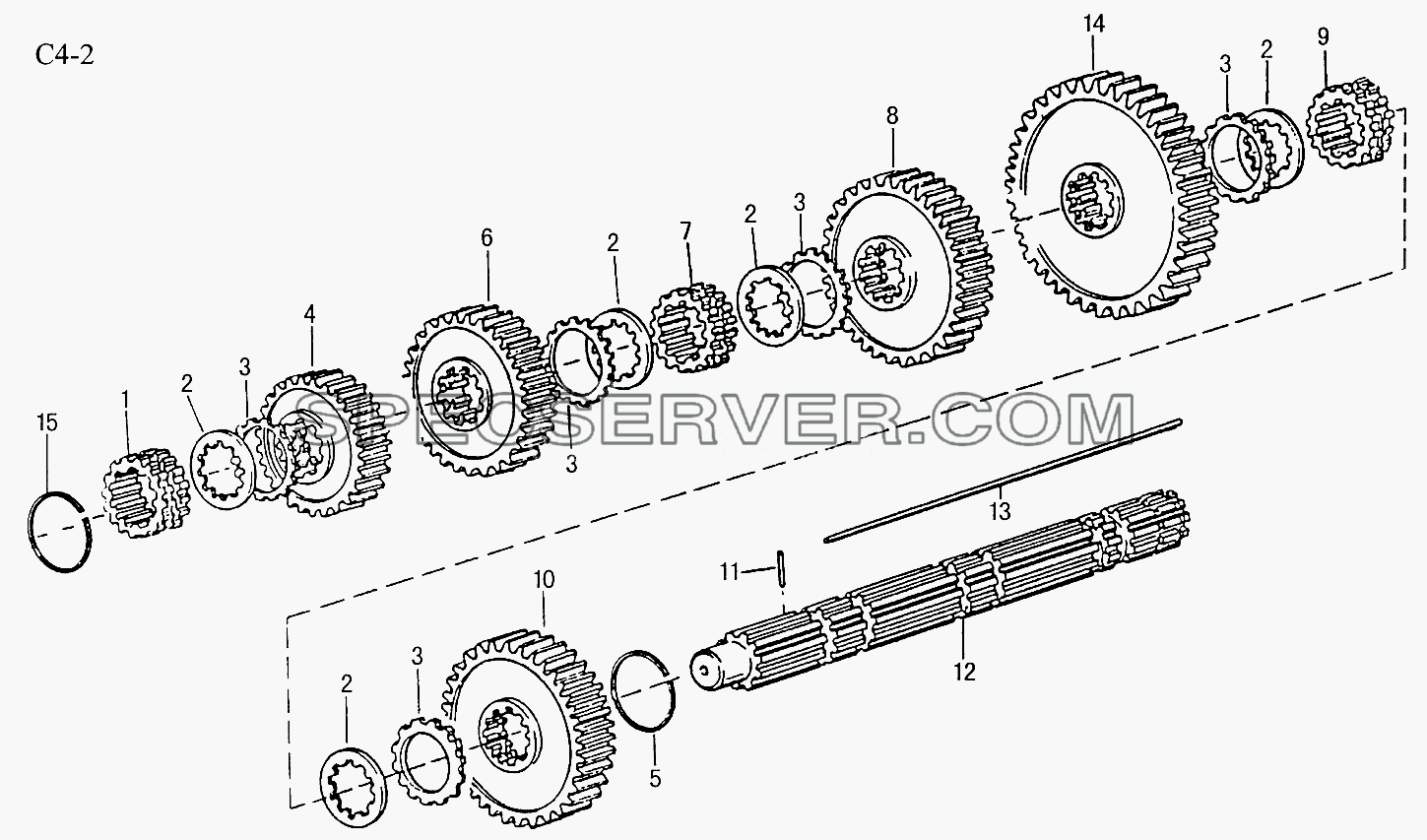

9JS150T MAIN SHAFT (C4-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		JS150T-1701150 [Synchronization 3-4 gear]	Synchronization 3-4 gear
2		18701 [Washer]	Washer
3		14749 [Washer]	Washer
4		JS150T-1701113 [GearM/S 3rd gear]	GearM/S 3rd gear
5		14750 [Snap ring]	Snap ring
6		JS150T-1701112 [Gear M/S 2nd gear]	Gear M/S 2nd gear
7		JS150T-1701140 [Synchronization 1-2 gear]	Synchronization 1-2 gear
8		JS150T-1701111 [Gear M/S 1st gear]	Gear M/S 1st gear
9		JS150T-1701108 [Sliding clutch]	Sliding clutch
10		JS150T-1701109 [Gear M/S reverse gear]	Gear M/S reverse gear
11		62504 [Flexibility roll pin]	Flexibility roll pin
12		JS150T-1701105 [Main shaft]	Main shaft
13		17109 [Cotter]	Cotter
14		JS150T-1701110 [Gear M/S Low gear]	Gear M/S Low gear
15		16763 [Snap ring]	Snap ring

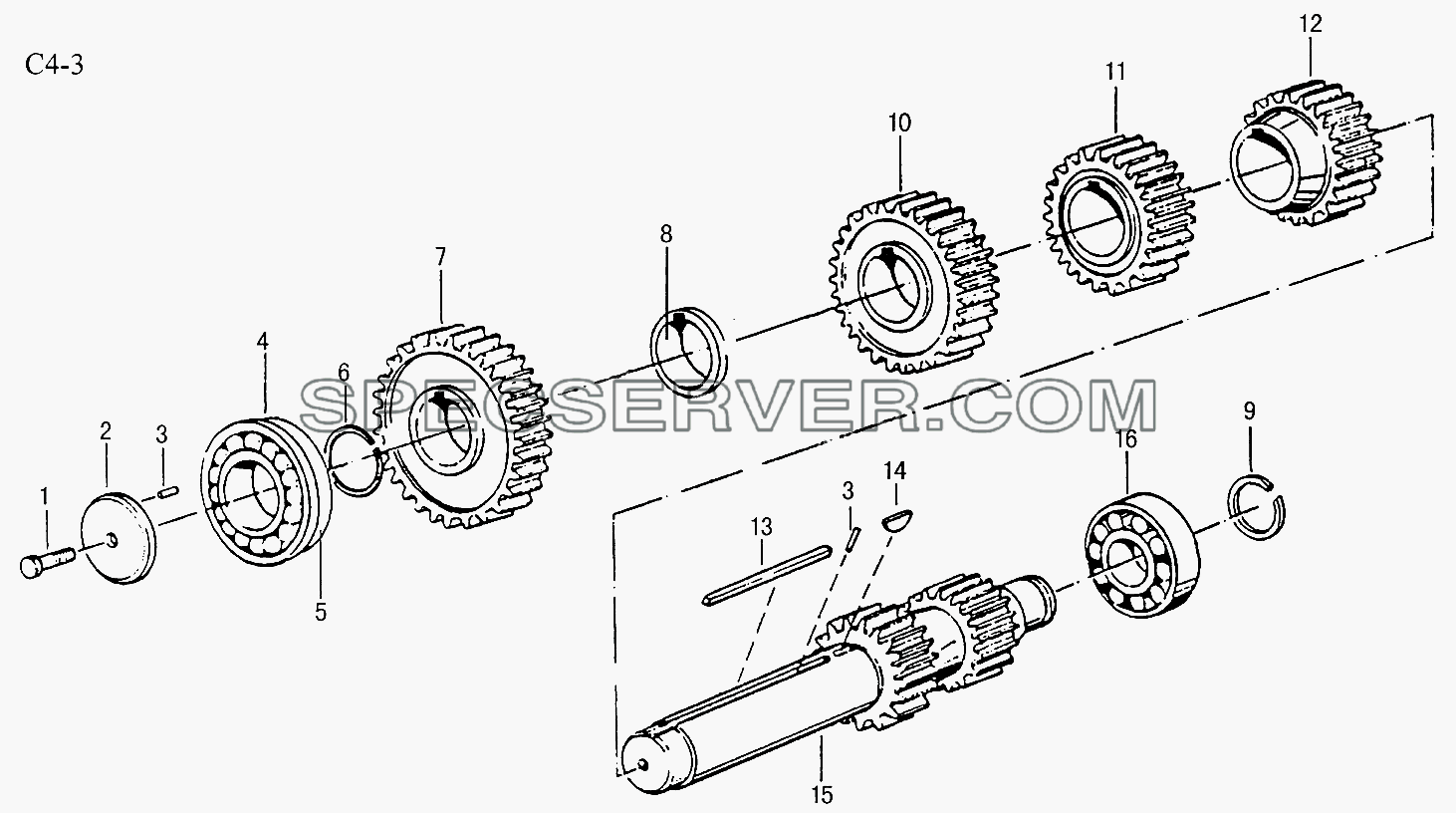

9JS150T LAY SHAFT (C4-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		M16x1.5x45 [Screw]	Screw
2		19668 [Retainer]	Retainer
3		62511 [Flexibility roll pin]	Flexibility roll pin
4		370309Y [Ball bearing]	Ball bearing
5		C01021 [Snap ring]	Snap ring
6		19198 [Stop ring]	Stop ring
7		JS180T-1701056 [C/S driven gear]	C/S driven gear
8		JS150T-1701055 [Spacer]	Spacer
9		14317 [Snap ring]	Snap ring
10		JS180T-1701051 [Gear C/S 3rd gear]	Gear C/S 3rd gear
11		JS150T-1701050 [Gear C/S 2nd gear]	Gear C/S 2nd gear
12		JS150T-1701049 [Gear C/S 1st gear]	Gear C/S 1st gear
13		19673 [Cotter]	Cotter
14		X-6-E [Key]	Кеу
15		JS150T-1701048 [Counter shaft]	Counter shaft
16		102308E [Roller bearing]	Roller bearing

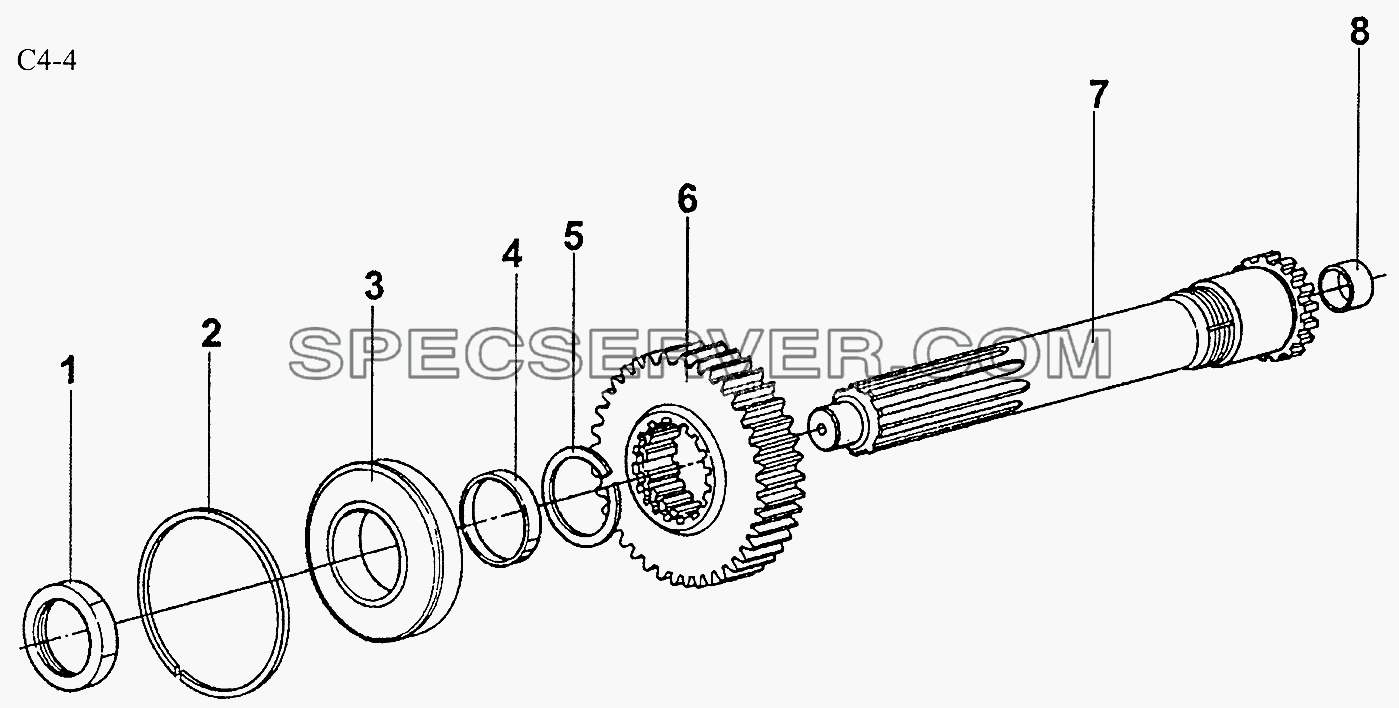

9JS150T CLUTCH SHAFT (C4-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		JS180A-1701036 [Nut]	Nut
2		C01021 [Stop ring]	Stop ring
3		150212K [Ball bearig]	Ball bearig
4		16463 [Spacer]	Spacer
5		14750 [Stop ring]	Stop ring
6		JS150T-1701031 [Gear input shaft]	Gear input shaft
7		19694 [Input shaft]	Input shaft
8		JS180-1701030-1 [Bushing]	Bushing
