№		Номер детали	Наименование запчасти
-		2159304012 [Sleeve]	Sleeve
-		K808835 [Needle bearing rev. gear]	Needle bearing rev. gear
1		0630501028 [Locking ring]	Locking ring
2		0570304002 [Roller bearing]	Roller bearing
2		0735355014 [Roller bearing]	Roller bearing
2		0750116019 [Roller bearing]	Roller bearing
4		0769144033 [Circlip]	Circlip
5		0769140115 [Washer]	Washer
6		1268304142 [Clutch hub 4th gear]	Clutch hub 4th gear
6		1269304196 [Clutch hub 3, 4 gear]	Clutch hub 3, 4 gear
6		1310302045 [Clutch hub 3, 4 gear]	Clutch hub 3, 4 gear
7		1250304292 [Clutch hub 3rd gear]	Clutch hub 3rd gear
9		1268304594 [Synchr. ring]	Synchr. ring
9		1272304076 [Synchr. ring]	Synchr. ring
10		1268304143 [Detend]	Detend
10		1292304041 [Detend 3, 4 gear]	Detend 3, 4 gear
10		1310304158 [Detend 3, 4 gear]	Detend 3, 4 gear
12		1272304077 [Sliding sleeve]	Sliding sleeve
12		1310304195 [Sliding sleeve]	Sliding sleeve
16		0732040385 [Helical spring]	Helical spring
16		1311304021 [Helical spring]	Helical spring
17		0732040386 [Helical spring]	Helical spring
18		1240304278 [Pressure piece]	Pressure piece
18		1311304020 [Pressure piece]	Pressure piece
25		1292304047 [Gear 3rd gear]	Gear 3rd gear
25		2128304001 [Helical gear]	Helical gear
25		2129304005 [Gear 3rd gear]	Gear 3rd gear
26		0735320314 [Needle bearing 3rd gear]	Needle bearing 3rd gear
26		0735320499 [Needle bearing 3rd gear]	Needle bearing 3rd gear
27		115304009 [Bush]	Bush
27		1269304197 [Bush]	Bush
27		2159304010 [Bush]	Bush
30		1292304046 [Gear 2nd gear]	Gear 2nd gear
30		2128304016 [Helical gear]	Helical gear
30		2159304004 [Gear 2nd gear]	Gear 2nd gear
31		0735320418 [Needle cage]	Needle cage
31		0735320465 [Needle beating 2nd gear]	Needle beating 2nd gear
31		K808840 [Needle beating 2nd gear]	Needle beating 2nd gear
33		1250304351 [Clutch hub 1, 2 gear]	Clutch hub 1, 2 gear
33		1312304027 [Clutch hub 1, 2 gear]	Clutch hub 1, 2 gear
34		115144034 [V-ring]	V-ring
37		1272304076 [Synchr.ring]	Synchr.ring
37		1297304402 [Synchr.ring]	Synchr.ring
38		115304045 [Detend]	Detend
38		1292304052 [Detend 1st-2nd gear]	Detend 1st-2nd gear
38		2159304011 [Detend 1st-2nd gear]	Detend 1st-2nd gear
40		1240304375 [Sliding sleeve 1, 2 gear]	Sliding sleeve 1, 2 gear
40		1272304077 [Sliding sleeve]	Sliding sleeve
40		1312302057 [Sliding sleeve 1, 2 gear]	Sliding sleeve 1, 2 gear
42		0732040385 [Helical spring]	Helical spring
42		1311304021 [Helical spring]	Helical spring
43		0732040386 [Helical spring]	Helical spring
44		1240304278 [Pessure piece]	Pessure piece
44		1311304020 [Pessure piece]	Pessure piece
45		0735320401 [Needle bearing 1st gear]	Needle bearing 1st gear
45		0735320418 [Needle beating 1st gear]	Needle beating 1st gear
46		1292304045 [Gear 1st gear]	Gear 1st gear
46		2128304017 [Gear 1st gear]	Gear 1st gear
46		2159304003 [Gear 1st gear]	Gear 1st gear
60		1292304069 [Main shaft]	Main shaft
60		2128304007 [Main shaft]	Main shaft
60		2159304001 [Main shaft]	Main shaft
65		0735320466 [Needle bearing low, rev. gear]	Needle bearing low, rev. gear
65		K808840 [Needle bearing slow gear]	Needle bearing slow gear
65		K909822.5 [Needle bearing low, rev. gear]	Needle bearing low, rev. gear
70		1292304018 [Gear slow gear]	Gear slow gear
70		2159304014 [Gear slow gear]	Gear slow gear
75		1292304026 [Detend low. rev. gear]	Detend low. rev. gear
75		2159304015 [Detend low. rev. gear]	Detend low. rev. gear
76		0732040497 [Spring]	Spring
77		0635460010 [Ball]	Ball
78		1292304025 [Sliding sleeve]	Sliding sleeve
78		2128304006 [Sliding sleeve]	Sliding sleeve
78		2159304017 [Sliding sleeve slow-rev. gear]	Sliding sleeve slow-rev. gear
90		1292304017 [Gear reveser gear]	Gear reveser gear
90		2128304005 [Gear reveser gear]	Gear reveser gear
90		2159304016 [Gear reveser gear]	Gear reveser gear
92		1292304027 [Bush]	Bush
92		2159304009 [Bush]	Bush
95		0528304001 [Roller bearing]	Roller bearing
95		0750115081 [Roller bearing]	Roller bearing
95		2159304013 [Roller bearing]	Roller bearing
96		0630503020 [Snap ring]	Snap ring
96		115144034 [Snap ring]	Snap ring
97		1269304055 [Sun gear]	Sun gear
97		1286304022 [Sun gear]	Sun gear
110		1269304070 [Washer]	Washer
110		2128304010 [Washer]	Washer
120		0630015195 [Screw]	Screw
121		0666890004 [Wire]	Wire
125		0730061842 [Pipe]	Pipe

5S-111GP, 5S-150GP, 4S-130GP SHIFTING FORK (A6-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1250306263 [Gear change clamp]	Gear change clamp
5		115306003 [Sliding Pad]	Sliding Pad
5		115306006 [Sliding Pad]	Sliding Pad
5		1272334003 [Sliding Pad]	Sliding Pad
7		0730300005 [Spring disc]	Spring disc
11		1240306244 [Screw]	Screw
12		07312010915 [Screw]	Screw
12		1252306077 [Screw]	Screw
15		1269306022 [Connecting rod]	Connecting rod
15		1292306022 [Connecting rod]	Connecting rod
16		1251306064 [Connecting rod]	Connecting rod
16		1286306002 [Connecting rod]	Connecting rod
20		115206005 [Gear change clamp]	Gear change clamp
20		115206006 [Gear change clamp]	Gear change clamp
20		1246206011 [Gear change clamp]	Gear change clamp
25		1297306025 [Sliding pad]	Sliding pad
25		1297306028 [Sliding pad]	Sliding pad
30		1292206005 [Gear change clamp]	Gear change clamp
30		2128206001 [Gear change clamp]	Gear change clamp
30		2159206001 [Gear change clamp]	Gear change clamp

5S-111GP, 5S-150GP, 4S-130GP SHIFTING COVER (A6-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1269307283 [Gear change cover]	Gear change cover
1		1269307484 [Gear change cover]	Gear change cover
10		1269307026 [Gasket]	Gasket
11		0630361050 [Cover]	Cover
12		0630302091 [Spring washer]	Spring washer
13		0636010199 [Screw]	Screw
14		0636010190 [Screw]	Screw
15		0636010200 [Screw]	Screw
16		0636010176 [Screw]	Screw
18		0630603010 [Locking plate]	Locking plate
19		1250307252 [Spring loaded bolt]	Spring loaded bolt
20		0636301041 [Screw plug]	Screw plug
21		0730361073 [Sealing cover]	Sealing cover
30		1203307289 [Gasket]	Gasket
31		1249301040 [Cover]	Cover
32		0636015020 [Screw]	Screw
33		0501203944 [Sensor reverse gear]	Sensor reverse gear
34		0501309183 [Sealing gasket]	Sealing gasket
35		1240307441 [Connecting plate]	Connecting plate
36		0501307450 [Switch]	Switch
60		1269307200 [Gasket]	Gasket
61		1283307003 [Cover]	Cover
63		0636015278 [Screw]	Screw
91		9112710041 [Switch for idling pos.]	Switch for idling pos.

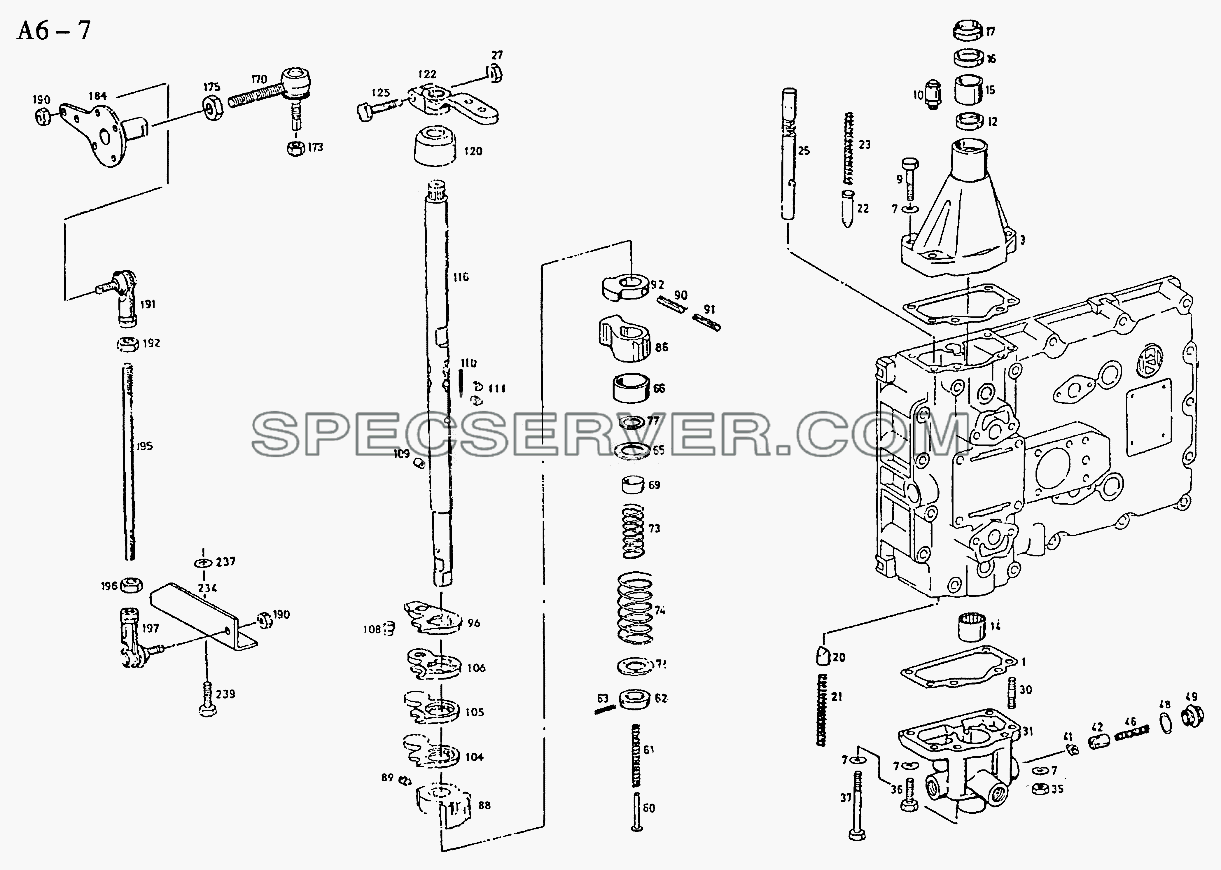

5S-111GP, 5S-150GP, 4S-130GP SHIFTING DEVICE (A6-7) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1252307060 [Gasket]	Gasket
3		1240307431 [Gear change]	Gear change
3		1269307508 [Housing]	Housing
7		0630302090 [Spring disc]	Spring disc
8		0636010066 [Screw]	Screw
9		0636010079 [Screw]	Screw
10		0732612004 [Breather]	Breather
12		0634300020 [Gasket]	Gasket
14		0635303053 [Needle sleeve]	Needle sleeve
15		0730260330 [Bearing bush]	Bearing bush
16		0634300302 [Gasket]	Gasket
17		0634307367 [Scraper ring]	Scraper ring
20		1250307601 [Bolt]	Bolt
21		0732040554 [Locking spring]	Locking spring
22		1272307023 [Detend bush]	Detend bush
23		0732041244 [Spring]	Spring
25		1269307424 [Locking pin]	Locking pin
30		0636604041 [Bolt]	Bolt
31		1269307507 [Cover]	Cover
31		1269307546 [Cover]	Cover
35		0637006018 [Nut]	Nut
36		0636010066 [Screw]	Screw
37		0636010109 [Screw]	Screw
41		0501203518 [Roller]	Roller
42		1269307480 [Bolt]	Bolt
46		0732040985 [Helical spring]	Helical spring
48		0634801173 [Gasket]	Gasket
49		0736304090 [Plug]	Plug
56		1269307580 [Spring bush]	Spring bush
58		0630532138 [V-ring]	V-ring
60		0731201333 [Spring]	Spring
61		0732040334 [Spring for Rev.gear]	Spring for Rev.gear
62		0730062160 [Washer]	Washer
63		0631329054 [Pin]	Pin
65		0730003373 [Spring bush]	Spring bush
66		0730062273 [Washer]	Washer
69		0730062276 [Washer]	Washer
71		0730104083 [Spring bush]	Spring bush
73		0732040213 [Spring]	Spring
74		0732040237 [Spring]	Spring
75		1204307022 [Spring]	Spring
76		1269307516 [Spring]	Spring
77		0730002980 [Washer]	Washer
86		115307001 [Segment]	Segment
86		1240307053 [Segment]	Segment
86		1240307421 [Segment]	Segment
88		1269307367 [Driver]	Driver
88		1269307423 [Driver]	Driver
89		1236306065 [Screw]	Screw
90		0631329072 [Pin]	Pin
91		0631329145 [Pin]	Pin
92		1240307374 [Driver]	Driver
96		1269307428 [Driver]	Driver
96		1272307026 [Driver]	Driver
96		1272307374 [Driver]	Driver
104		1269307455 [Plate]	Plate
104		1269307456 [Plate]	Plate
105		1269307457 [Plate]	Plate
105		1269307458 [Plate]	Plate
106		1269307431 [Plate]	Plate
108		1272307024 [Bolt]	Bolt
109		0735470007 [Roller]	Roller
110		0635490004 [Niddle]	Niddle
110		0635490006 [Niddle]	Niddle
111		1269307463 [Driver]	Driver
116		1269307453 [Shaft]	Shaft
116		1269307509 [Shaft]	Shaft
122		1250307618 [Lever]	Lever
122		1250307666 [Lever]	Lever
122		1250507663 [Lever]	Lever
125		0636010159 [Screw]	Screw
127		0637006102 [Nut]	Nut
170		0501204714 [Joint]	Joint
173		0637011532 [Nut]	Nut
175		0637006034 [Nut]	Nut
184		1240207072 [Plate]	Plate
190		0637011527 [Nut]	Nut
191		0732107019 [Ball joint]	Ball joint
192		0637006091 [Nut]	Nut
195		0736620059 [Rod]	Rod
196		0637006027 [Nut]	Nut
197		0732107018 [Ball joint]	Ball joint
234		1269307587 [Bracket]	Bracket
234		1283307007 [Bracket]	Bracket
237		0630001075 [Washer]	Washer
239		0636010072 [Screw]	Screw
240		1252307008 [Sleeve]	Sleeve

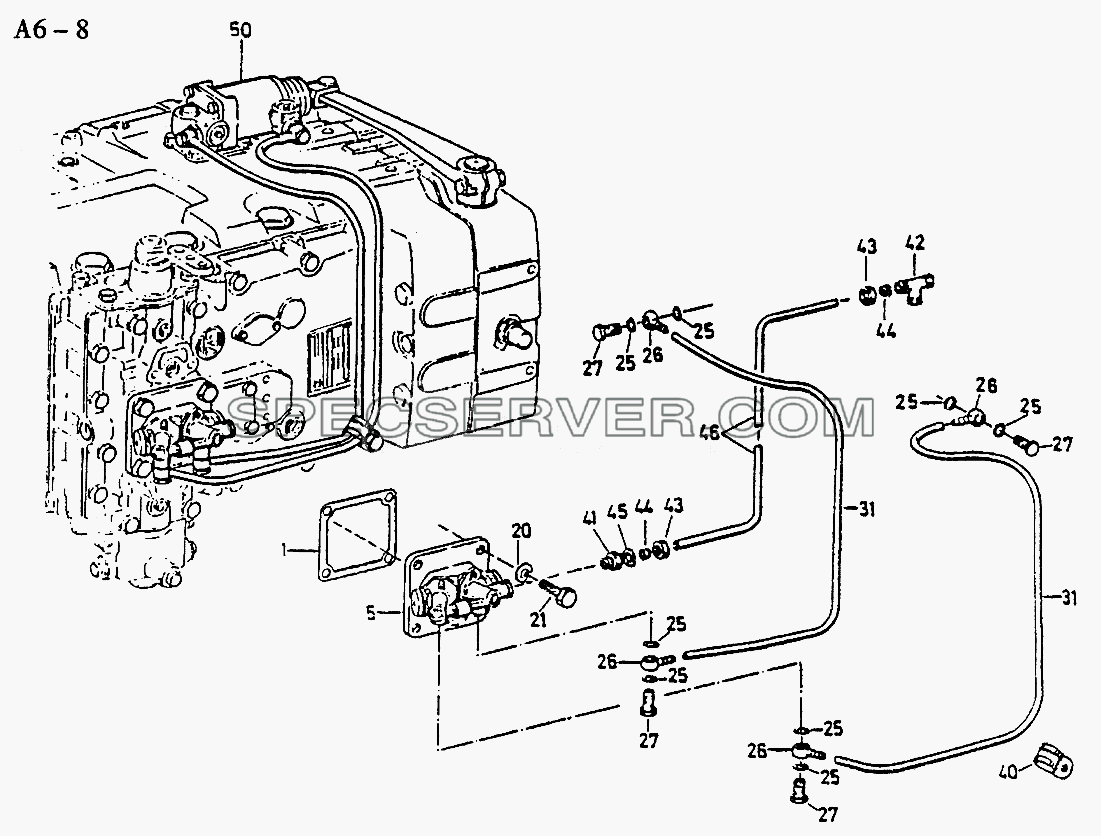

5S-111GP, 5S-150GP, 4S-130GP PNEUM. SHIFTING FOR RANGE CHANGE GROUP (A6-8) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1269307299 [Gasket]	Gasket
5		0750132006 [Cut off valve]	Cut off valve
5		0750132008 [Cut off valve]	Cut off valve
20		0630302091 [Spring disc]	Spring disc
21		0636015129 [Screw]	Screw
25		0634601205 [Gasket]	Gasket
26		0637834032 [Joint]	Joint
27		0637835026 [Female screw]	Female screw
31		0632702470 [Tecalan tube]	Tecalan tube
40		0632311228 [Champ]	Champ

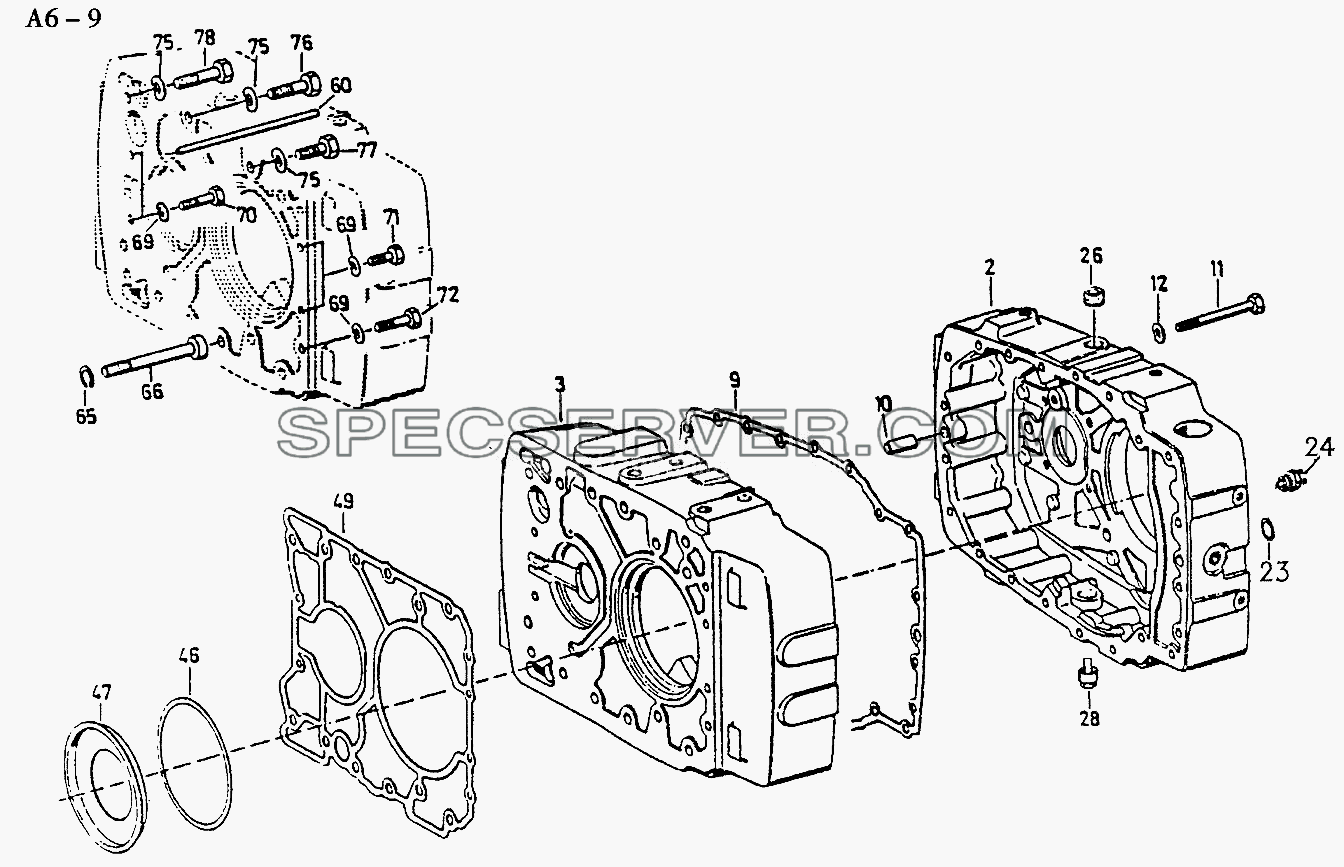

5S-111GP, 5S-150GP, 4S-130GP HOUSING FOR RANGE CHANGE GROUP (A6-9) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0636010192 [Screw]	Screw
2		1269331037 [Gear change housing]	Gear change housing
3		1269331054 [Housing]	Housing
9		1269331036 [Gasket]	Gasket
10		0731201459 [Cly.pin]	Cly.pin
23		0730150161 [Screw plug]	Screw plug
24		0501305443 [Sensor]	Sensor
26		0736301022 [Screw plug]	Screw plug
28		0736305016 [M-screw plug]	M-screw plug
46		0769140003 [Spacer disc]	Spacer disc
47		1269304043 [Screen sheet]	Screen sheet
47		2128304010 [Screen sheet]	Screen sheet
49		1269331035 [Gasket]	Gasket
60		1269331024 [Pressure tube]	Pressure tube
66		0636104069 [Cyl.screw]	Cyl.screw
70		0636010277 [Screw]	Screw
71		0636015120 [Screw]	Screw
72		0636015129 [Screw]	Screw
76		0636011102 [Screw]	Screw
77		0636016028 [Screw]	Screw
78		0636011105 [Screw]	Screw
