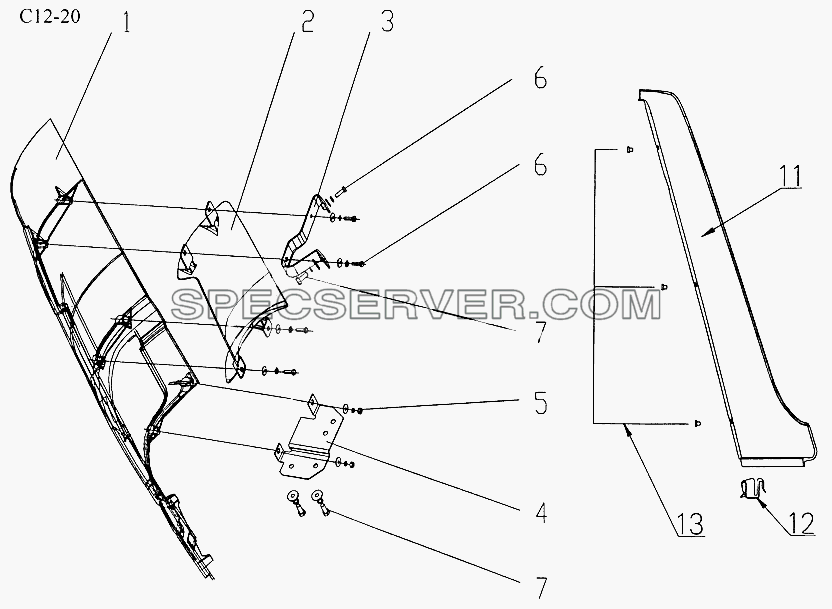

Запчасти: SIDE COVER, "A" POLE GARNISH (C12-20) для Sinotruk 6x4 Tipper (371)

SIDE COVER, "A" POLE GARNISH (C12-20) для Sinotruk 6x4 Tipper (371) (список запасных частей)

SIDE COVER,

Таблица запасных частей







№ Номер детали Наименование запчасти
- AZ1642110008 [Bracket left] Bracket left
- Q40206 [Washer] Washer
- Q40206 [Washer] Washer
- Q40208 [Washer] Washer
- Q40306 [Spring washer] Spring washer
- Q40306 [Spring washer] Spring washer
- Q40308 [Spring washer] Spring washer
- WG1642110002 [Outer side cover left] Outer side cover left
- WG1642110004 [Inter plate left] Inter plate left
- WG1642110020 [‘A'pole garnish right] "A" pole garnish right
1 WG1642110001 [Outer side cover right] Outer side cover right
2 WG1642110003 [Inter plate right] Inter plate right
3 AZ1642110006 [Bracket] Bracket
4 AZ1642110007 [Bracket right] Bracket right
5 Q350B06 [Nut] Nut
6 Q150B0620 [Screw] Screw
7 Q150B0820 [Screw] Screw
10 WG1642110019 [‘A'pole garnish left] "A" pole garnish left
12 WG1642110021 [Clip] Clip
13 WG1642110022 [Rivet] Rivet

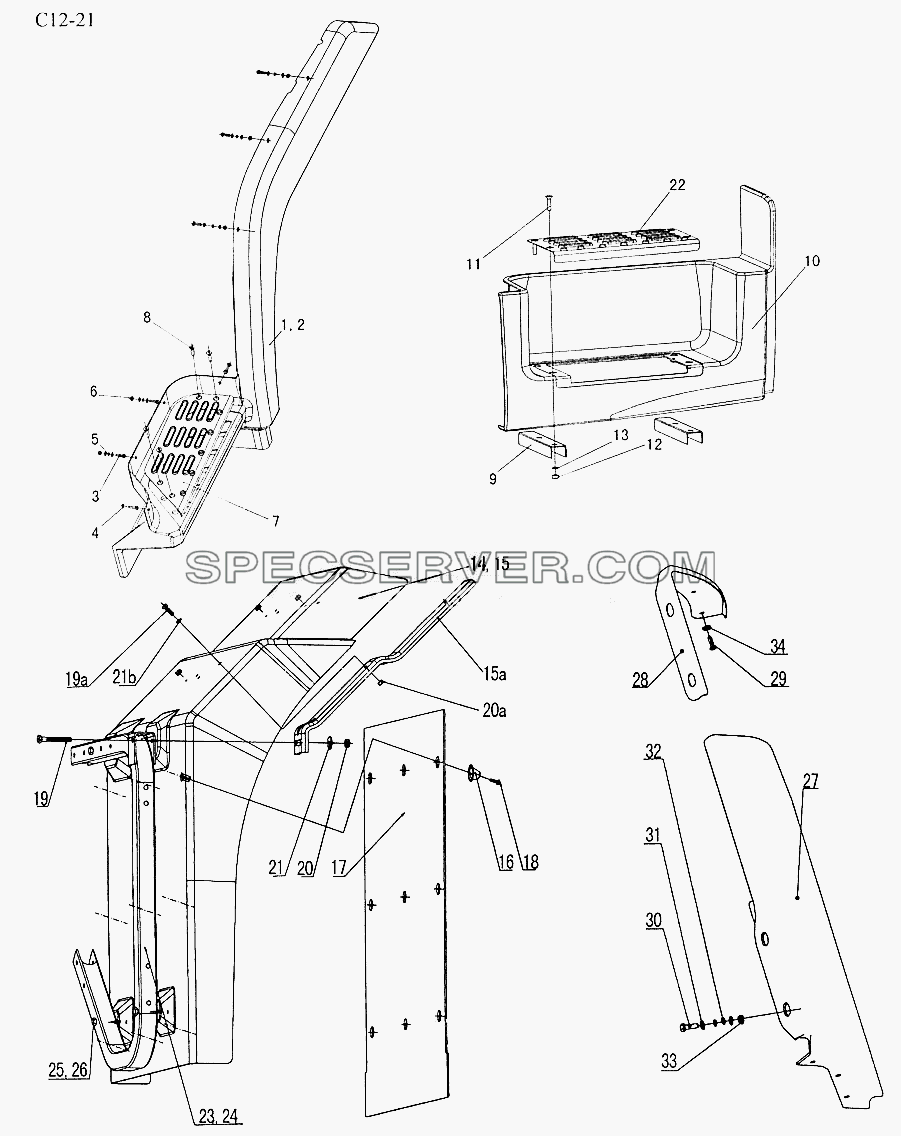

Запчасти: MUDGUARD (C12-21) для Sinotruk 6x4 Tipper (371)

MUDGUARD (C12-21) для Sinotruk 6x4 Tipper (371) (список запасных частей)

MUDGUARD (C12-21) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- Q150B0620 [Screw] Screw
- Q2540830 [Screw] Screw
- Q340B06 [Nut] Nut
- Q340B08 [Nut] Nut
- Q40106 [Washer] Washer
- Q40306 [Spring washer] Spring washer
- Q40308 [Spring washer] Spring washer
- WG1641240012 [Left step bow] Left step bow
- WG1642230005 [Aux.plate for wheel fender] Aux.plate for wheel fender
- WG1642230019 [Step right] Step right
- WG1642240031 [Right step bow bottom] Right step bow bottom
- WG1642240033 [Bottom step right] Bottom step right
- WG9719930321 [Plate] Plate
- WG9731930014 [Plate] Plate
1 WG1641230020 [Left wheel fender] Left wheel fender
1 WG1642230012 [Left wheel fender] Left wheel fender
2 WG1641230021 [Right wheel fender] Right wheel fender
2 WG1642230013 [Right wheel fender] Right wheel fender
3 Q150B0620 [Screw] Screw
4 Q40106 [Washer] Washer
5 Q40306 [Spring washer] Spring washer
6 Q340B06 [Nut] Nut
7 WG1642230018 [Step left] Step left
8 Q2540830 [Screw] Screw
9 AZ9725930049 [Bracket for step bow] Bracket for step bow
9 WG9725930017 [Bracket for step bow] Bracket for step bow
10 WG1641240011 [Right step bow] Right step bow
10 WG1642240030 [Left step bow bottom] Left step bow bottom
11 Q150B0825 [Screw] Screw
12 Q340B08 [Nut] Nut
13 Q40308 [Spring washer] Spring washer
14 WG1642230003 [Left rear wheel fender] Left rear wheel fender
15 WG1642230004 [Right rear wheel fender] Right rear wheel fender
16 AZ1642230008 [Washer] Washer
17 AZ1642230007 [Pad for rear wheel fender] Pad for rear wheel fender
18 Q2713516 [Screw] Screw
19 Q150B0860 [Screw] Screw
20 Q340B08 [Nut] Nut
21 Q40308 [Spring washer] Spring washer
22 WG1642240032 [Bottom step left] Bottom step left
23 WG9719930315 [Bracket for left rear mudguard] Bracket for left rear mudguard
23 WG9731930010 [Bracket for left rear mudguard] Bracket for left rear mudguard
24 WG9719930313 [Bracket for right rear mudguard] Bracket for right rear mudguard
24 WG9731930015 [Bracket for right rear mudguard] Bracket for right rear mudguard
25 Q151B1445 [Screw] Screw
26 190003888468 [Nut] Nut
27 WG1641230028 [Rear cover] Rear cover
28 WG1641230030 [Bracket for rear cover] Bracket for rear cover
29 Q2714816 [Screw] Screw
30 Q150B0620 [Screw] Screw
31 Q40206 [Washer] Washer
32 Q40306 [Spring washer] Spring washer
33 Q340B06 [Nut] Nut
34 Q40204 [Washer] Washer
41 WG1641230025 [Left mudguard] Left mudguard
42 WG1641230026 [Right mudguard] Right mudguard
43 AZ1641230027 [Strip for mudguard] Strip for mudguard

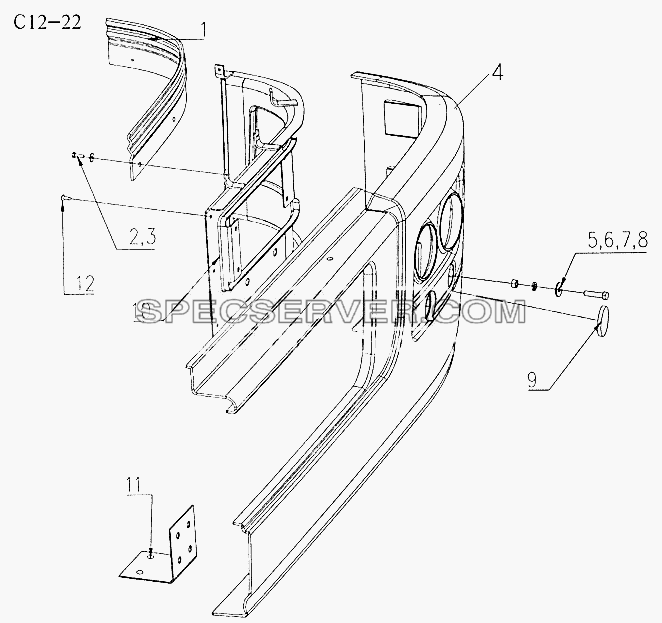

Запчасти: BUMPER (C12-22) для Sinotruk 6x4 Tipper (371)

BUMPER (C12-22) для Sinotruk 6x4 Tipper (371) (список запасных частей)

BUMPER (C12-22) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AZ1608240074 [Rubber pad] Rubber pad
- AZ1642240051 [Garnish plate right] Garnish plate right
- WG1642930009 [Nut] Nut
1 AZ1642240050 [Garnish plate left] Garnish plate left
2 Q2714819 [Screw] Screw
3 Q40206 [Washer] Washer
4 WG1641240001 [High bumper] High bumper
4 WG1642240002 [Bumper] Bumper
5 Q150B0835 [Screw] Screw
6 Q340B08 [Nut] Nut
7 Q40208 [Washer] Washer
8 Q40508 [Spring washer] Spring washer
9 WG1642240050 [Inter plug right] Inter plug right
9 WG1642240051 [Inter plug left] Inter plug left
9 WG1642240052 [Outer plug right] Outer plug right
9 WG1642240053 [Outer plug left] Outer plug left
10 WG1642240040 [Bracket left] Bracket left
10 WG1642240041 [Bracket right] Bracket right
11 WG1642240042 [Middle bracket] Middle bracket
12 Q2764816 [Screw] Screw

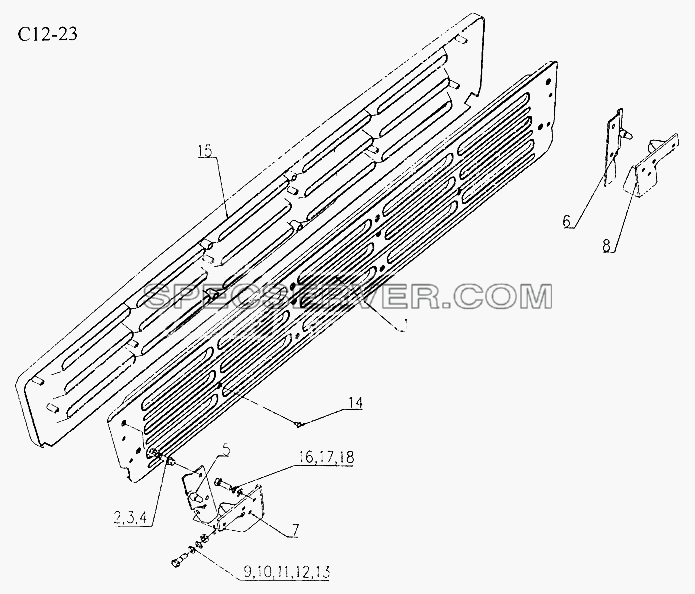

GRILLE OF BUMPER (C12-23) для Sinotruk 6x4 Tipper (371) (список запасных частей)

GRILLE OF BUMPER (C12-23) для Sinotruk 6x4 Tipper (371) (список запасных частей)

GRILLE OF BUMPER (C12-23) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AZ1642240011 [Grille assembly] Grille assembly
1 AZ1642240012 [GrilIe body] GrilIe body
2 Q1840816 [Screw] Screw
3 Q340B08 [Nut] Nut
4 Q40408 [Spring washer] Spring washer
5 AZ1642240005 [Connecting plate left] Connecting plate left
6 AZ1642240006 [Connecting plate right] Connecting plate right
7 AZ1642240019 [Bracket left] Bracket left
8 AZ1642240020 [Bracket right] Bracket right
9 WG1642240080 [Bolt] Bolt
10 Q40508 [Spring washer] Spring washer
11 Q340B08 [Nut] Nut
12 Q40008 [Washer] Washer
13 Q5000214 [Split pin] Split pin
14 Q2764813 [Screw] Screw
15 WG164224001 8 [Grille] Grille
16 Q150B0825 [Screw] Screw
17 Q40008 [Washer] Washer
18 Q40408 [Spring washer] Spring washer

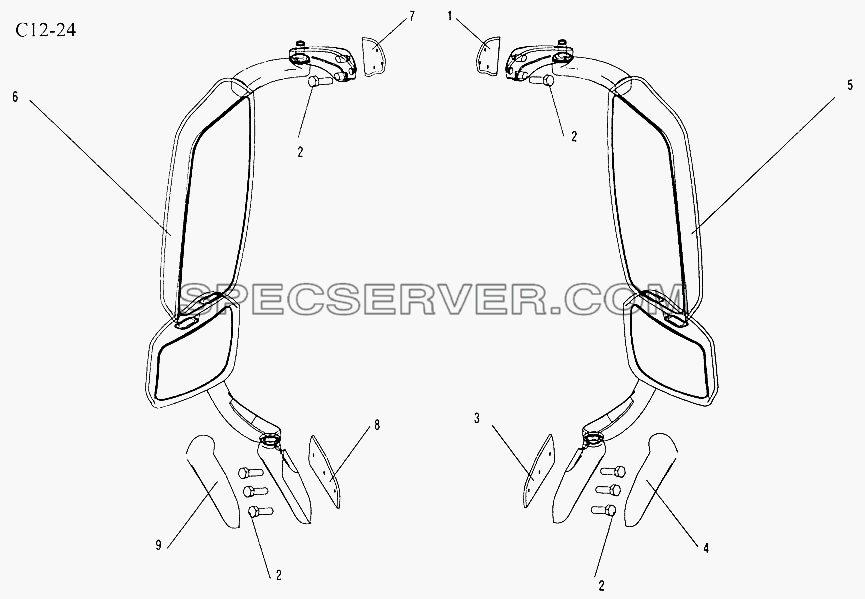

REAR VIEW MIRROW (C12-24) для Sinotruk 6x4 Tipper (371) (список запасных частей)

REAR VIEW MIRROW (C12-24) для Sinotruk 6x4 Tipper (371) (список запасных частей)

REAR VIEW MIRROW (C12-24) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG1642770001-1 [Rubber block] Rubber block
2 Q218B0635 [Screw] Screw
3 WG1642770001-2 [Rubber block] Rubber block
4 WG1642770001-3 [Cover garnish] Cover garnish
5 WG1642770001 [Rear view mirror left] Rear view mirror left
5 WG1646770001 [Rear view mirror left] Rear view mirror left
6 WG1642770003 [Rear view block right] Rear view block right
6 WG1646770002 [Rear view mirror right] Rear view mirror right
7 WG1642770003-1 [Rubber block] Rubber block
8 WG1642770003-2 [Rubber block] Rubber block
9 WG1642770003-3 [Cover garnish] Cover garnish
10 WG1642770001-4 [Bottom rear view mirror left] Bottom rear view mirror left
10 WG1642770003-4 [Bottom rear view mirror right] Bottom rear view mirror right
10 WG1646770001-4 [Bottom rear view mirror left] Bottom rear view mirror left
10 WG1646770002-4 [Bottom rear view mirror right] Bottom rear view mirror right
11 WG1642770001-5 [Above rear view mirror left] Above rear view mirror left
11 WG1642770003-6 [Above rear view mirror right] Above rear view mirror right
11 WG1646770001-5 [Above rear view mirror left] Above rear view mirror left
11 WG1646770002-6 [Above rear view mirror right] Above rear view mirror right

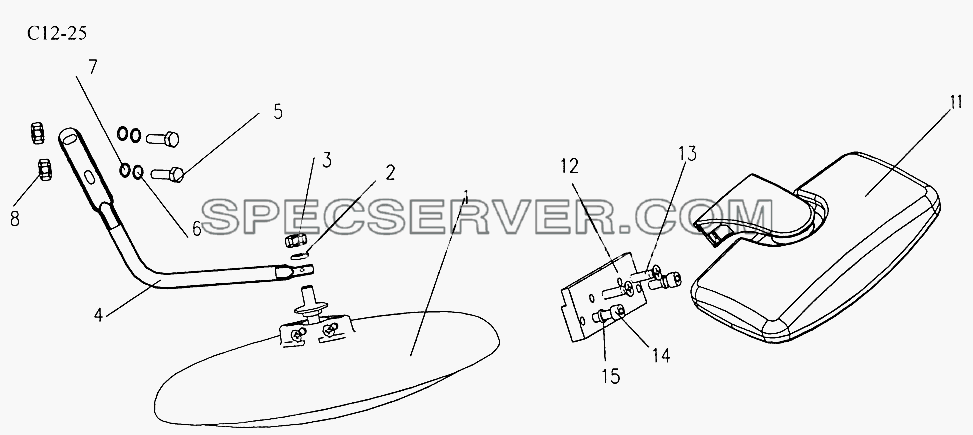

DOWN VIEW MIRROR, SIDE MIRROR (C12-25) для Sinotruk 6x4 Tipper (371) (список запасных частей)

DOWN VIEW MIRROR, SIDE MIRROR (C12-25) для Sinotruk 6x4 Tipper (371) (список запасных частей)

DOWN VIEW MIRROR, SIDE MIRROR (C12-25) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG1642770004 [Down view mirror] Down view mirror
2 WG1642770004-1 [Nut] Nut
3 WG1642770004-2 [Washer] Washer
4 AZ1642770054 [Bracket] Bracket
4 AZ1644771000 [Bracket] Bracket
4 AZ1646770054 [Bracket] Bracket
4 AZ1646771000 [Bracket] Bracket
5 Q150B0825 [Screw] Screw
6 Q40308 [Spring washer] Spring washer
7 Q40208 [Washer] Washer
8 Q340B08 [Nut] Nut
11 WG1600770007 [Side mirror] Side mirror
12 AZ1642770098 [Base] Base
13 Q2540620 [Screw] Screw
14 Q218B0616 [Screw] Screw
15 Q40306 [Spring washer] Spring washer
