№		Номер детали	Наименование запчасти
-		A-C02001 [Cover C]	Cover C
-		JS130T-1702010 [Cover C]	Cover C
-		JS130TA-1702010 [Cover C]	Cover C
1		F99980 [Cover]	Cover
1		JS100A-1702015 [Cover]	Cover
1		JS130T-1702015 [Cover]	Cover
2		14918 [Gasket]	Gasket
3		M10x35 [Screw]	Screw
3		Q40310 [Spring washer]	Spring washer
4		Q61303 [Plug]	Plug
5		1/2" [Steel ball]	Steel ball
6		11056 [Bolt]	Bolt
7		F96084 [Spring]	Spring
7		F96085 [Spring]	Spring
8		Q61032 [Plug]	Plug
9		1642 [Gasket]	Gasket
12		16132 [Yoke shaft]	Yoke shaft
12		JS100A-1702064 [Yoke shaft]	Yoke shaft
13		8968 [Plug]	Plug
14		8774 [Spring]	Spring
15		F99671 [Plug]	Plug
16		3220 [Screw]	Screw
17		99664 [Shift yoke]	Shift yoke
18		3/4" [Steel ball]	Steel ball
19		F99588 [Shift block l/2 gear]	Shift block l/2 gear
19		JS100A-1702054 [Shift block l/2 gear]	Shift block l/2 gear
20		16133 [Yoke shaft l/2 gear]	Yoke shaft l/2 gear
20		JS100A-1702065 [Yoke shaft l/2 gear]	Yoke shaft l/2 gear
20		JS130T-1702065 [Shift yoke 1/2 gear]	Shift yoke 1/2 gear
20		JS130TA-1702065 [Shaft]	Shaft
21		16135 [Shaft]	Shaft
21		JS100A-1702055 [Yoke shaft l/2 gear]	Yoke shaft l/2 gear
21		JS130T-1702055 [Yoke shaft l/2 gear]	Yoke shaft l/2 gear
21		JS130TA-1702055 [Yoke shaft l/2 gear]	Yoke shaft l/2 gear
22		1634 [Locking pin]	Locking pin
23		16136 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
23		JS100A-1702056 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
23		JS130T-1702056 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
23		JS130TA-1702056 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
24		18643 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
24		JS130T-1702066 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
24		JS130TA-1702066 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
25		F99589 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
25		JS100A-1702053 [Yoke shaft 3/4 gear]	Yoke shaft 3/4 gear
26		17179 [Gasket]	Gasket
27		17105 [Lifting eye]	Lifting eye
28		17178 [Plug]	Plug
29		M10x32 [Screw]	Screw
29		X-6-01 [Nut]	Nut
29		X-6-03 [Nut]	Nut

Fuller DOUBLE H OPERATION C (A4-8) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-C03001 [Double H operation C]	Double H operation C
-		A-C03001-1 [Double H operation C]	Double H operation C
-		JS100-1703012 [Pin]	Pin
1		F96194 [Housing]	Housing
1		JS100-1702051 [Housing]	Housing
2		F91345 [Sliding bearing]	Sliding bearing
3		F91444 [Oil seal]	Oil seal
4		F99983 [Spring]	Spring
5		F99673 [Spring seat]	Spring seat
6		F99679 [Gear shift shaft]	Gear shift shaft
6		JS100-1702017 [Gear shift shaft]	Gear shift shaft
7		F99675 [Stop ring]	Stop ring
8		Q5000635 [Flexibility column pin]	Flexibility column pin
9		F99585 [Plug]	Plug
9		JS100A-1702072 [Plug]	Plug
10		C03030 [Pin]	Pin
10		JA100A-1702073 [Pin]	Pin
11		F99674 [Washer]	Washer
12		C03004 [Screw]	Screw
13		F99672 [Gasket]	Gasket
14		F99666 [Board]	Board
15		M8x12 [Screw]	Screw
16		F99670 [Plug]	Plug
17		F96037 [Spring]	Spring
18		F96140 [Gasket]	Gasket
19		F96141 [Cover]	Cover
20		M8x12 [Bolt]	Bolt
21		Q40108 [Washer]	Washer
22		99012710041 [Switch]	Switch
22		Q61518 [Plug]	Plug
23		17179 [Gasket]	Gasket
24		15900 [Gasket]	Gasket
25		15917 [Plug]	Plug
26		15276 [Plug]	Plug
27		Q61302 [Plug]	Plug
28		F99669 [Cover]	Cover
29		F96035 [LRC shift pole]	LRC shift pole
30		M10x1x50 [Bolt]	Bolt
31		Q40310 [Washer]	Washer
32		M10x1x50 [Screw]	Screw
33		Q72224 [Plug]	Plug
34		F91353 [Joint]	Joint
35		F99660 [Double H valve]	Double H valve
36		M6x18 [Screw]	Screw
37		7935 [Plug]	Plug
38		55518 [Pipe]	Pipe
39		55522 [Pipe]	Pipe
40		F96036 [Spring]	Spring
41		12881 [Nozzle]	Nozzle
42		12880 [Joint]	Joint
43		12769 [Joint]	Joint
44		F99702 [Pin]	Pin
45		15899 [Pin]	Pin
46		55523 [Pipe]	Pipe
47		F99681 [Control block for reverse switch]	Control block for reverse switch
47		JS100-1702052 [Control block for reverse switch]	Control block for reverse switch
48		M10x1 [Nut]	Nut
49		M10x1 [Nut]	Nut
50		79100710068 [Reverse switch]	Reverse switch
51		C03015 [Gasket]	Gasket
52		15917 [Plus]	Plus
54		C03015 [Gasket]	Gasket

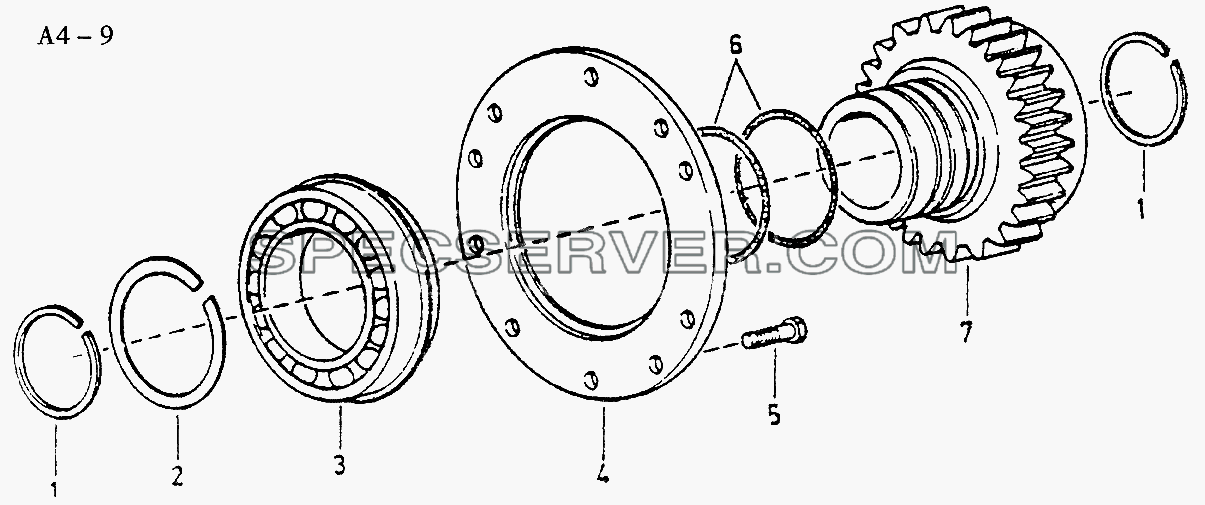

Fuller aux. Gearbox DRIVE GEAR (A4-9) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-C09002 [Drive gear housing C]	Drive gear housing C
-		JS180T-1707025 [Drive gear housing C]	Drive gear housing C
1		16763 [Snap ring]	Snap ring
2		16628 [Snap ring]	Snap ring
3		50118 [Bearing]	Bearing
3		C01019 [Locking ring]	Locking ring
4		16138 [Retainer]	Retainer
5		M10x22 [Screw]	Screw
7		18869 [Drive gear]	Drive gear
7		19254 [Drive gear]	Drive gear
7		19275 [Drive gear]	Drive gear
7		JS180-1707030 [Drive gear]	Drive gear
7		JS180T- 1707030 [Drive gear]	Drive gear

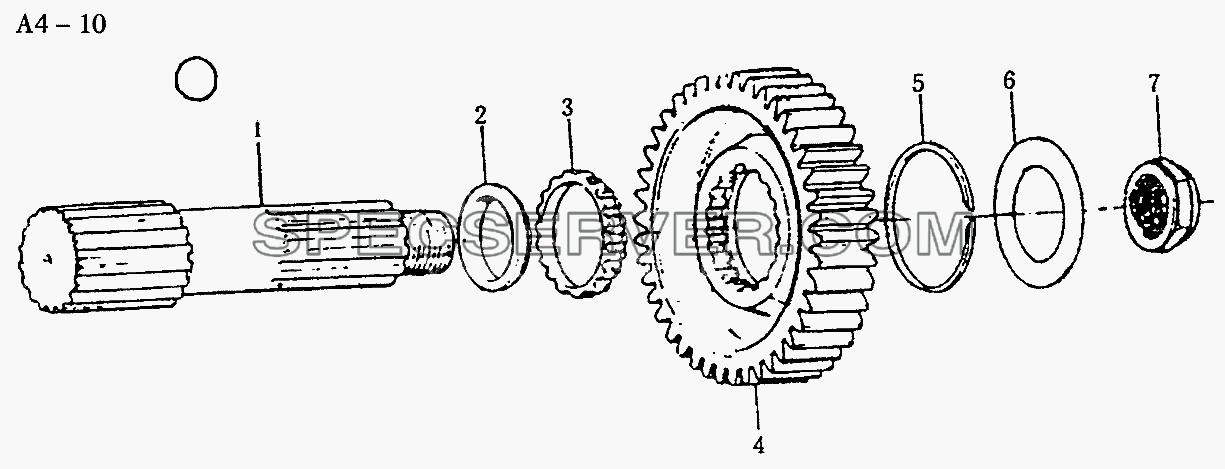

Fuller aux. Gearbox OUTPUT SHAFT (A4-10) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		F99882 [Main shaft]	Main shaft
1		JS180-1707105 [Main shaft]	Main shaft
2		14332 [Main shaft washer]	Main shaft washer
2		JS180-1707107 [Main shaft washer]	Main shaft washer
3		14331 [Main shaft washer]	Main shaft washer
4		19165 [Release gear]	Release gear
4		19665 [Release gear]	Release gear
4		19726 [Release gear]	Release gear
4		JS100T-1707121 [Release gear]	Release gear
4		JS130T-1707121 [Release gear]	Release gear
4		JS180-1707106 [Release gear]	Release gear
4		JS180T-1707121 [Release gear]	Release gear
5		F14327 [Snap ring]	Snap ring
6		19466 [Washer]	Washer
6		JS180-1707108 [Washer]	Washer
7		F96006 [Flange nut]	Flange nut

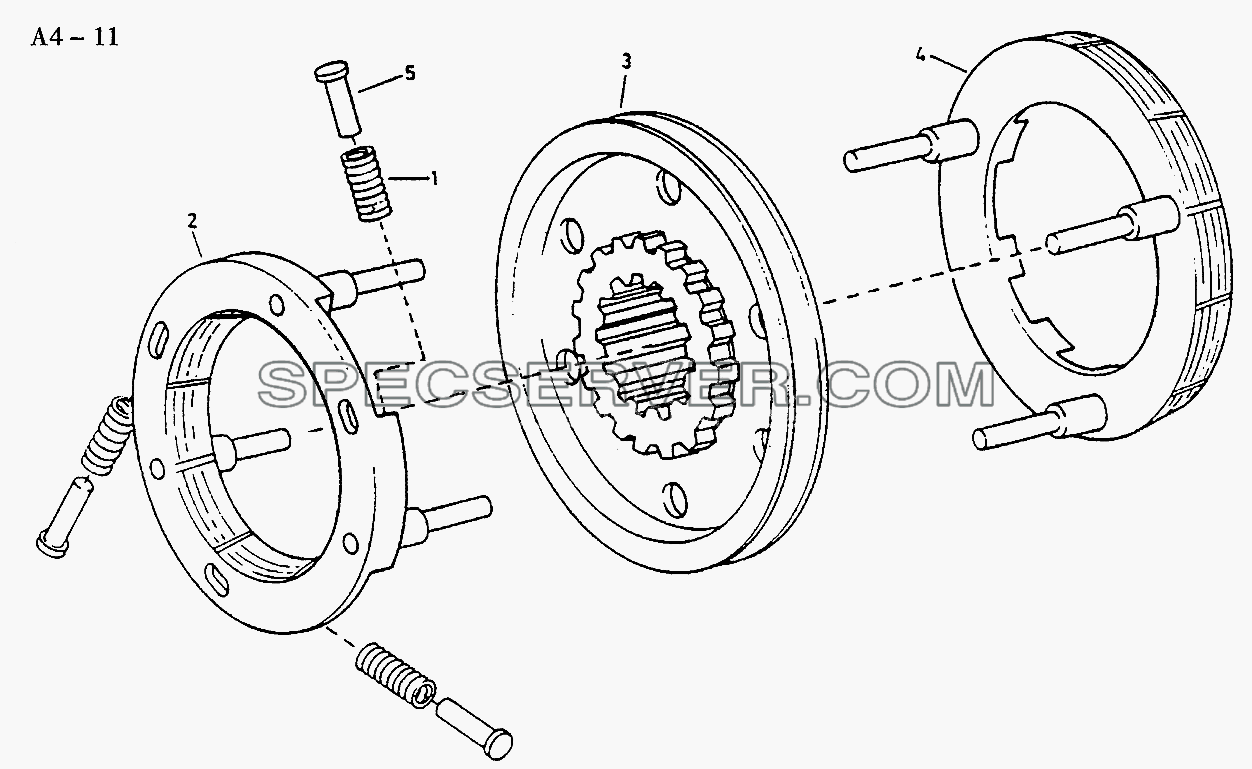

Fuller SYNCHRONISATION (A4-11) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-5056 [Synchronization]	Synchronization
1		14897 [Spring]	Spring
2		A-4938 [Syn.high gear]	Syn.high gear
2		JS130T-1701150 [Syn.high gear]	Syn.high gear
3		20323 [Sleeve]	Sleeve
4		A-4937 [Syn.low gear]	Syn.low gear
4		JS130T-1701140 [Syn.low gear]	Syn.low gear
5		19154 [Spring uidance]	Spring uidance

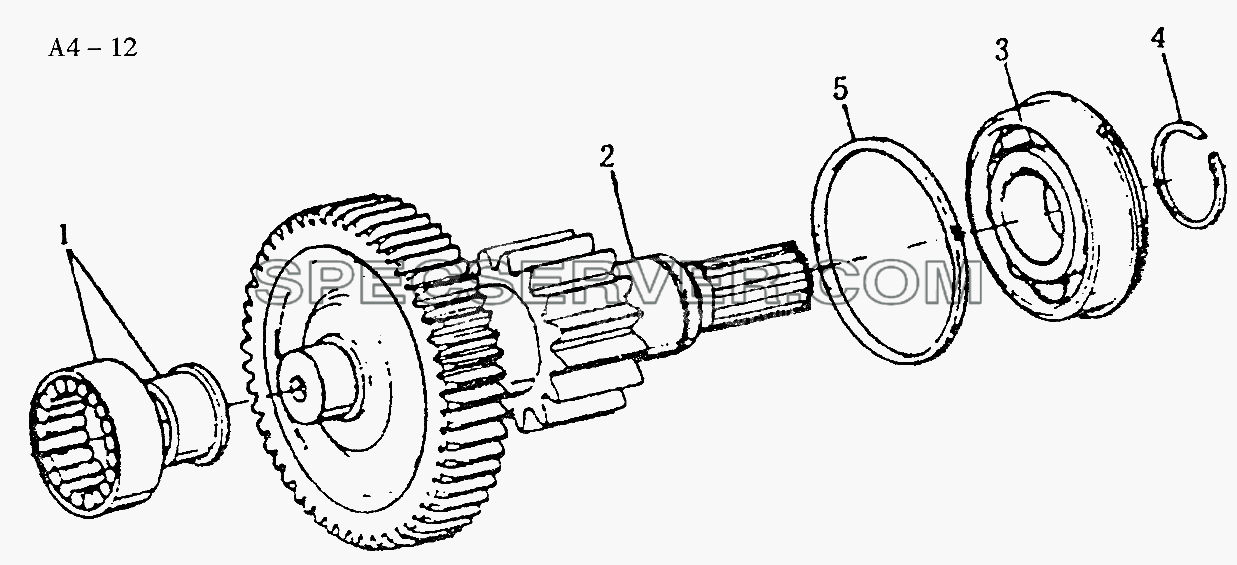

Fuller Aux.gearbox LAYSHAFT (A4-12) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		42307E [Bearing]	Bearing
2		18222 [Long lay shaft]	Long lay shaft
2		18870 [Driven gear]	Driven gear
2		19255 [Driven gear]	Driven gear
2		19276 [Driven gear]	Driven gear
2		19998 [Long lay shaft]	Long lay shaft
2		20002 [Long lay shaft]	Long lay shaft
2		JS130T-1707047 [Long lay shaft C]	Long lay shaft C
2		JS180-1707053 [Long lay shaft]	Long lay shaft
2		JS180T-1707048 [Long lay shaft]	Long lay shaft
2		JS180T-1707049 [Driven gear]	Driven gear
3		192310E [Learing]	Learing
3		192311E [Learing]	Learing
4		16723 [Snap ring]	Snap ring
5		17384 [Ring]	Ring
5		C01020 [Snap ring]	Snap ring
