№		Номер детали	Наименование запчасти
-		61560110226 [Ciip]	Ciip
-		90003800497 [Screw]	Screw
-		90003802411 [Screw]	Screw
-		90003989318 [Clamp]	Clamp
1		612600110505 [Funnel]	Funnel
2		615600116227 [Turbochager]	Turbochager
3		61560110131 [Airintake manifold]	Airintake manifold
4		614 110064 [Ltexagon bolt]	Hexagon bolt
5		61560110165 [Connecting pipe]	Connecting pipe
6		190 320035 [Glip]	Clip
7		612600110824 [Hose]	Hose
8		61560110072 [Lashing]	Lashing
9		61560110051 [Pipe]	Pipe
10		61560110021 [Strap]	Strap
11		209 190017 [Bolt]	Bolt
12		1700550013 [Bolt]	Bolt
13		61500110024 [Joint]	Joint
14		90003962014 [Hex.head screw plug]	Hex.head screw plug
15		90003098010 [Sealing ring]	Sealing ring
16		90003802415 [Screw]	Screw
17		90003800465 [Screw]	Screw
18		90003862443 [Screw]	Screw
19		90003862462 [Screw]	Screw
20		90003989312 [Clamp]	Clamp
21		90003862456 [Screw]	Screw
22		90003932023 [Spring washer]	Spring washer
23		609E110036 [Washer]	Washer
24		99100570015 [Bracket]	Bracket
25		81560110220 [Hose]	Hose
26		90003989312 [Clamp]	Clamp

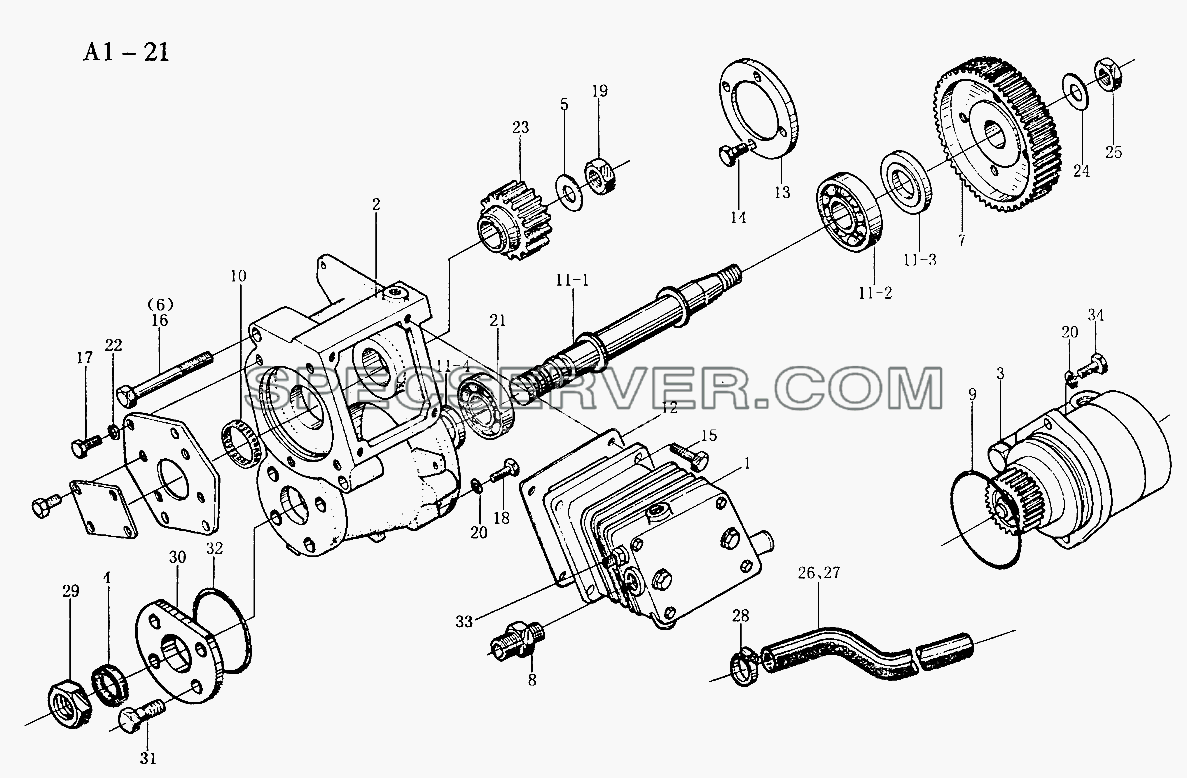

WD615 AIR COMPRESSOR (A1-21) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		612600130047 [Bush]	Bush
-		612600130048 [Shaft]	Shaft
-		61500080158 [Bearing]	Bearing
-		90003320154 [Rolling bearing]	Rolling bearing
1		AZ1560130070 [Air compressor]	Air compressor
2		AZ1560130063 [Housing]	Housing
4		90003070092 [Oil seal]	Oil seal
5		609 070161 [Flat washer shaft]	Flat washer shaft
6		90003802561 [Hex head bolt]	Hex head bolt
7		AZ1560130064 [Gear]	Gear
11		61500080167 [Shaft C]	Shaft C
12		61500130080 [Gasket]	Gasket
13		61500080165 [Cover]	Cover
14		90003802432 [Hex head bolt]	Hex head bolt
15		90003802438 [Hex head bolt]	Hex head bolt
16		90003800569 [Hex head bolt]	Hex head bolt
17		90003802411 [Hex head bolt]	Hex head bolt
18		90003802419 [Hexagon bolt]	Hexagon bolt
19		612600130001 [Hex head nut]	Hex head nut
20		90003932023 [Curved or wave]	Curved or wave
21		61500080130 [Pack ring]	Pack ring
22		90003930261 [Washer]	Washer
23		61560130012 [Gear]	Gear
24		409020045 [Joint]	Joint
25		612600130001 [Hex head nut]	Hex head nut
26		612600130046 [Lock nut]	Lock nut
27		61500130097 [Oil seal seat]	Oil seal seat
28		90003802415 [Hex head bolt]	Hex head bolt
29		192320002 [Gasket]	Gasket
30		612600130073 [Plate]	Plate

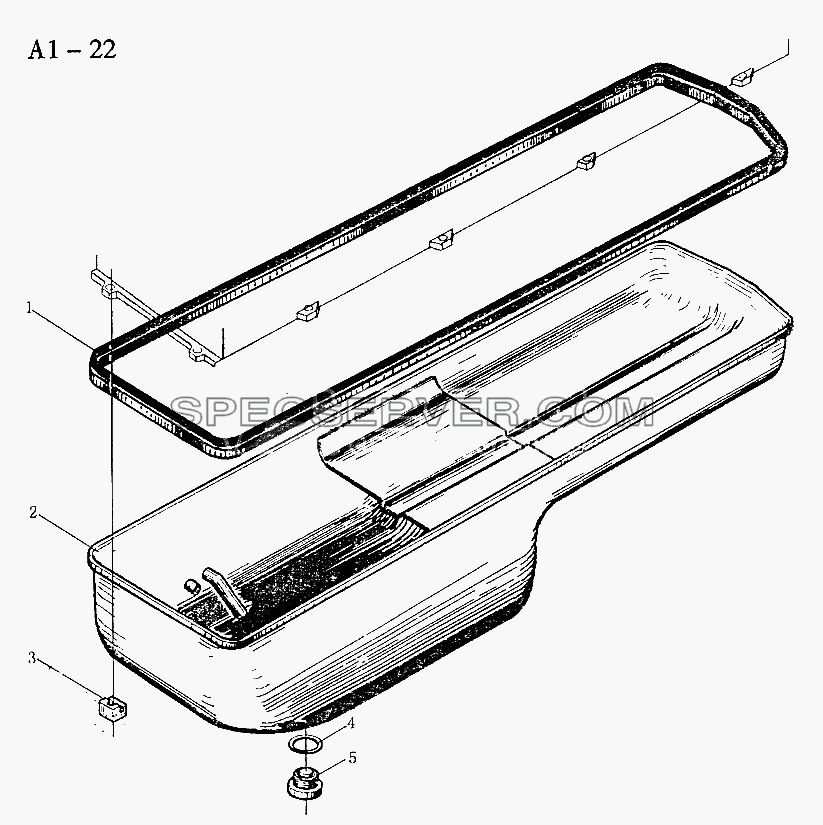

WD615 OIL PAN (A1-22) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		614 150004 [Seal]	Seal
2		61200150104 [Oil pan]	Oil pan
2		61800150015 [Oil pan]	Oil pan
3		614 150046 [Retainer]	Retainer
4		90003930261 [Washer]	Washer
5		90003802442 [Hex.head screw]	Hex.head screw
6		612600150106 [Gasket]	Gasket
7		612600150108 [Thread plug]	Thread plug

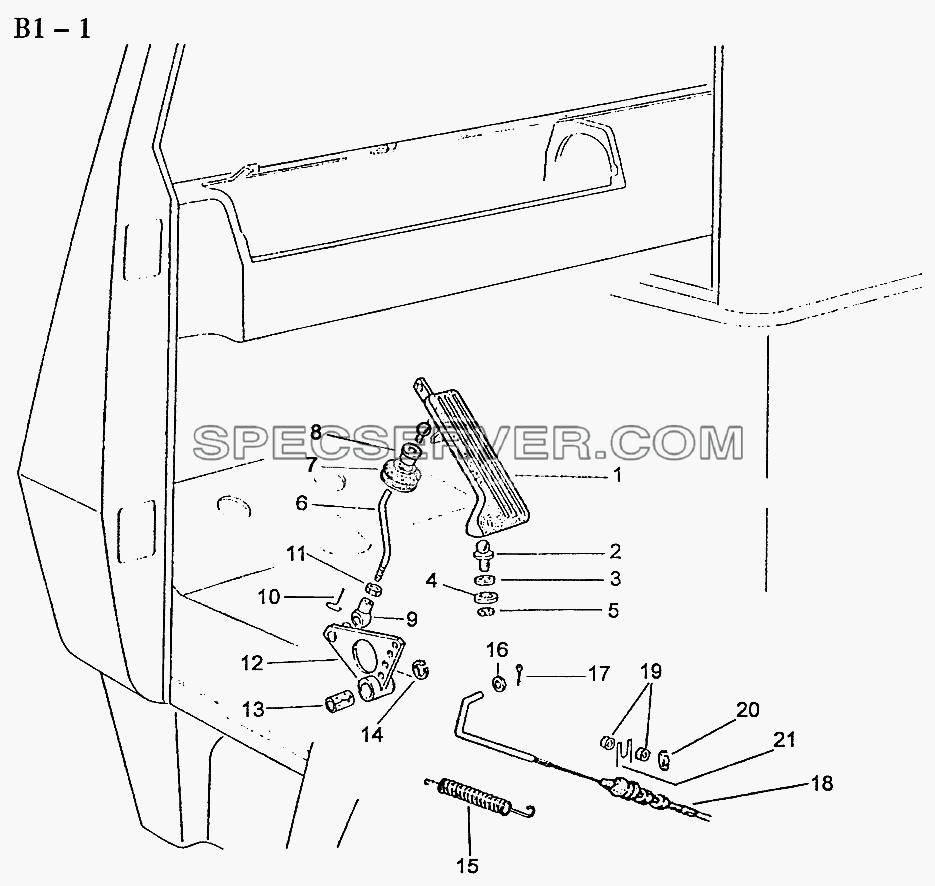

OPEREATING LEVER (B1-1) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199112570036 [Angle]	Angle
-		WG9112570008 [Cable for control of Max. feul volume]	Cable for control of Max. feul volume
1		199100570001 [Pedal]	Pedal
2		179100570031 [Ball pivot]	Ball pivot
3		Q40206 [Washer]	Washer
4		Q40506 [Spring washer]	Spring washer
5		Q340B06 [Nut]	Nut
6		199100570008 [Bar]	Bar
7		1882 270056 [Bellow]	Bellow
8		199000570017 [Sleeve]	Sleeve
9		WG92 570025 [Ball cup]	Ball cup
10		190003936513 [Safety clip]	Safety clip
11		Q340B06 [Nut]	Nut
12		199100570010 [Lever]	Lever
13		WG99014180012 [Bush]	Bush
14		190003936615 [Washer]	Washer
15		1288 570057 [Spring]	Spring
16		Q40006 [Washer]	Washer
17		Q5001610 [Splint]	Splint
18		WG9100576009 [Control cable]	Control cable
19		Q350806T15 [Nut]	Nut
20		Q40206 [Washer]	Washer
21		199112570033 [Lever]	Lever

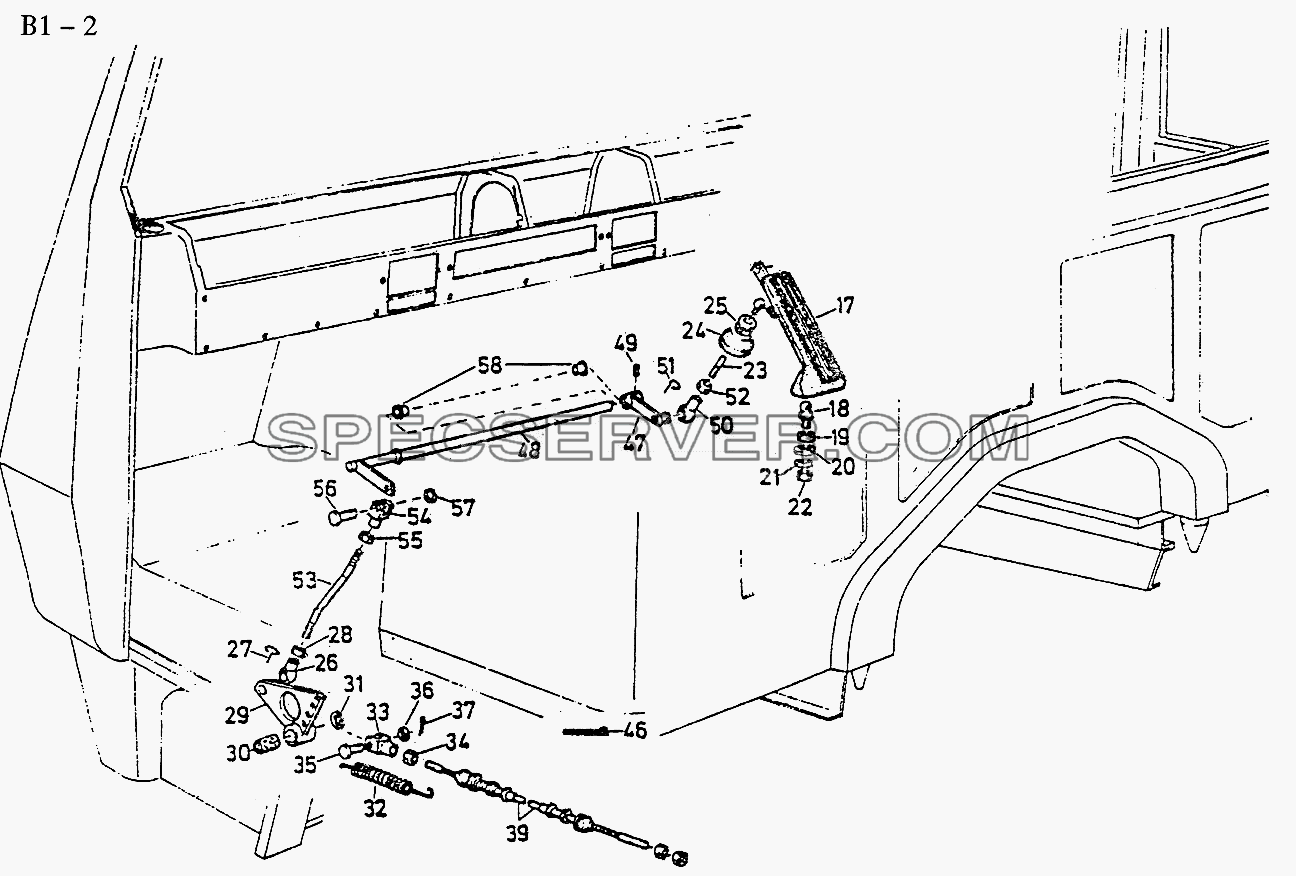

OPERATING LEVER FOR DRIVE RIGHT (B1-2) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q33205 [Nut]	Nut
-		Q40305 [Spring washer]	Spring washer
17		199100570001 [Pedal]	Pedal
18		179100570031 [Ball pivot]	Ball pivot
20		Q40206 [Washer]	Washer
21		Q40506 [Spring washer]	Spring washer
22		Q340806 [Nut]	Nut
23		199100570034 [Push rod]	Push rod
24		1882 270056 [Bellow]	Bellow
25		199000570017 [Sleeve]	Sleeve
26		WG992570025 [Ball cup]	Ball cup
27		90003936513 [Safety clip]	Safety clip
28		Q340B06 [Nut]	Nut
29		199100570029 [Lever]	Lever
30		WG99014180012 [Bush]	Bush
31		90003936615 [Washer]	Washer
32		1288570057 [Spring]	Spring
33		90003964412 [Fork head]	Fork head
34		90003871232 [Nut]	Nut
35		90003903605 [Bolt]	Bolt
36		90003930251 [Washer]	Washer
37		90003920031 [Split pin]	Split pin
38		90003870218 [Nut]	Nut
39		WG9100576010 [Control cable C]	Control cable C
47		199100570030 [Lever]	Lever
48		199100570070 [Shaft]	Shaft
49		90003909613 [Sleeve]	Sleeve
50		WG92570025 [Ball cup]	Ball cup
51		190003936513 [Cilp]	Clip
52		Q340B06 [Nut]	Nut
53		199100570072 [Bar]	Bar
54		WG92570025 [Fork head]	Fork head
55		Q340B06 [Nut]	Nut
56		Q150B0520 [Bolt]	Bolt
57		Q40105 [Washer]	Washer
58		199000570021 [Bush]	Bush
60		199112570033 [Lever]	Lever
61		199112570036 [Augle]	Augle
62		199112570038 [Cable]	Cable

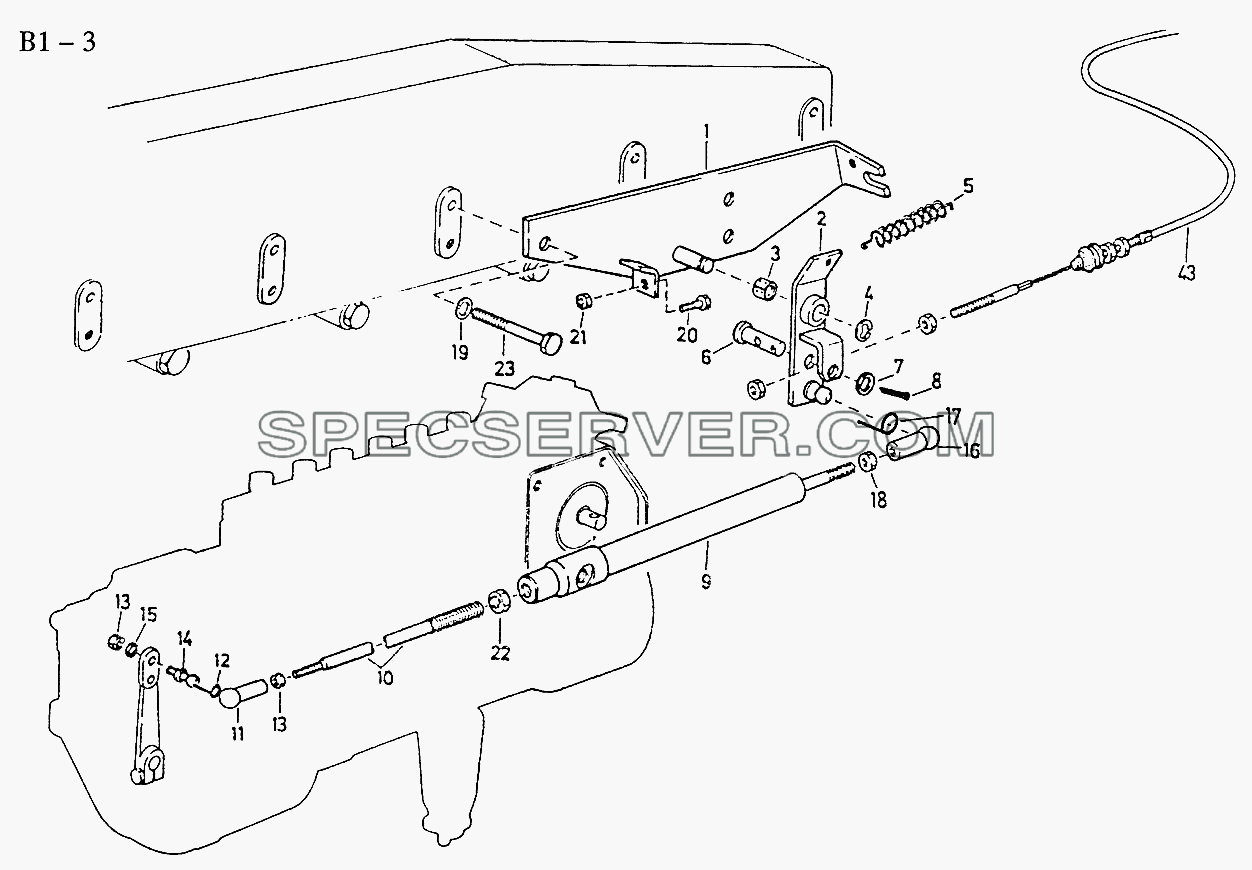

ACCELERATOR LINKAGE (B1-3) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199100570015 [Bracket]	Bracket
1		AZ9118570011 [Bracket]	Bracket
2		199100570018 [Lever]	Lever
2		199100570086 [Lever]	Lever
3		WG99014180012 [Bush]	Bush
4		Q43680 [Washer]	Washer
5		199100570065 [Spring]	Spring
6		199012570084 [Bolt]	Bolt
7		Q40110 [Washer]	Washer
8		Q5003216 [Split pin]	Split pin
9		WG9100570002 [Compressed air cylinder]	Compressed air cylinder
10		199012570062 [Threaded rod]	Threaded rod
10		AZ9118570003 [Threaded rod]	Threaded rod
11		WG92570025 [Ball cup]	Ball cup
12		190003936513 [Clip]	Clip
13		Q340B06 [Nut]	Nut
14		190003963313 [Ball pivot]	Ball pivot
15		Q40506 [Spring washer]	Spring washer
16		190003963623 [Ball cup]	Ball cup
17		190003936514 [Clip]	Clip
18		Q340B08 [Nut]	Nut
