№		Номер детали	Наименование запчасти
1		116020770075 [Rear handrail assembly with finish coat r.]	Rear handrail assembly with finish coat r.
2		116020770076 [Rear handrail assembly with finish coat l.]	Rear handrail assembly with finish coat l.
3		Q40210 [Washer]	Washer
4		Q40110 [Washer]	Washer
5		Q340B10 [Nut]	Nut
6		1581B 840051 [Space bush]	Space bush
7		Q40208 [Washer]	Washer
8		Q150B0840 [Screw]	Screw

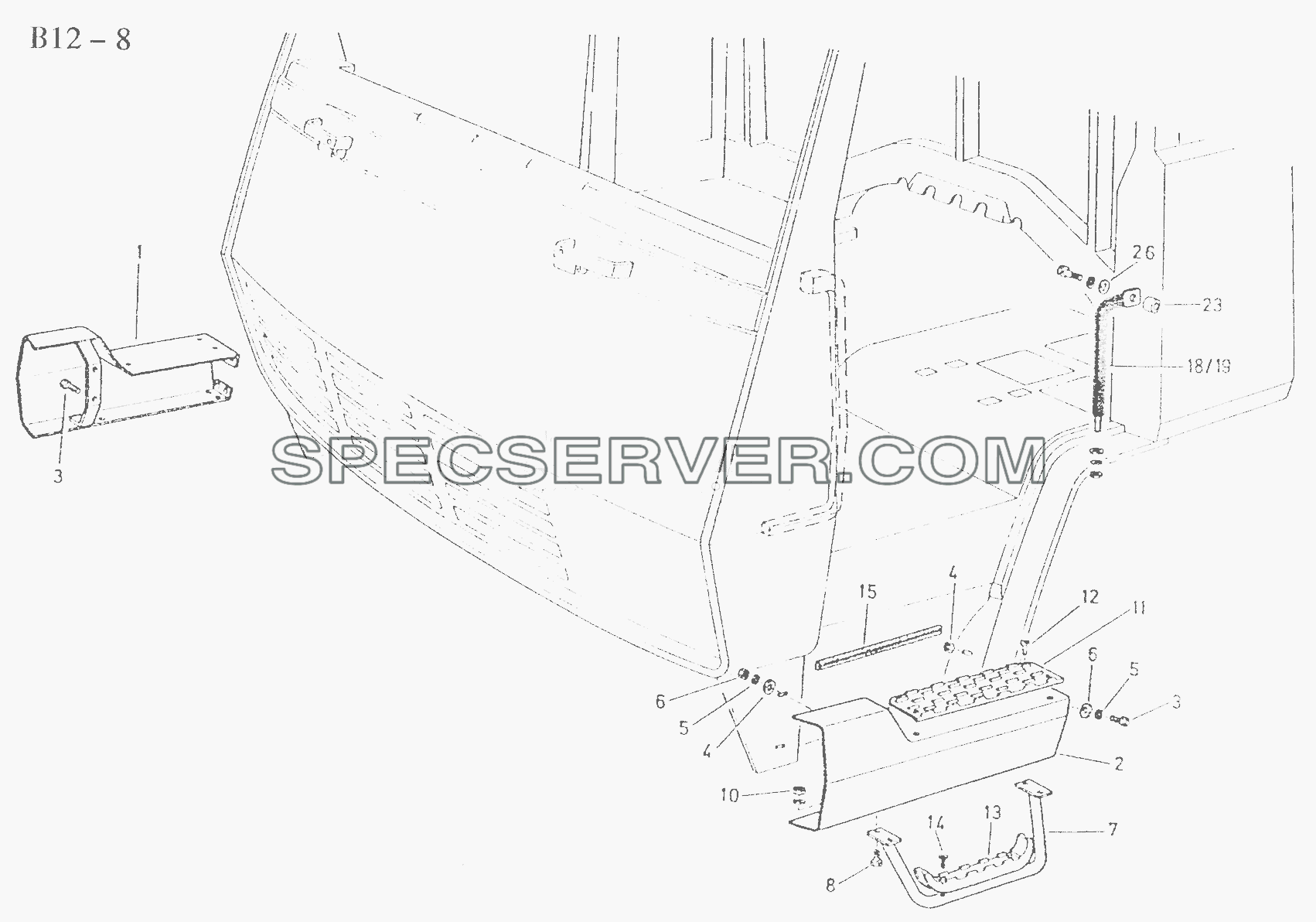

STEP FOR S CAB (B12-8) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1600240017 [U step bow right]	U step bow right
1		116000240104 [Setp right]	Setp right
2		116000240105 [Setp left]	Setp left
3		Q150B0820 [Screw]	Screw
4		Q340B08 [Nut]	Nut
5		Q40208 [Washer]	Washer
6		AZ1600240082 [Washer]	Washer
7		AZ1600240016 [U step bow left]	U step bow left
7		AZ1604240016 [U step bow]	U step bow
8		Q150B1020Q [Screw]	Screw
10		Q340B10 [Nut]	Nut
11		WG1600240014 [Step]	Step
12		Q4400512T19 [Rivet]	Rivet
13		WG1600240020 [Step]	Step
14		Q4400512T19 [Rivet]	Rivet
15		190003129491 [Rubber profile]	Rubber profile

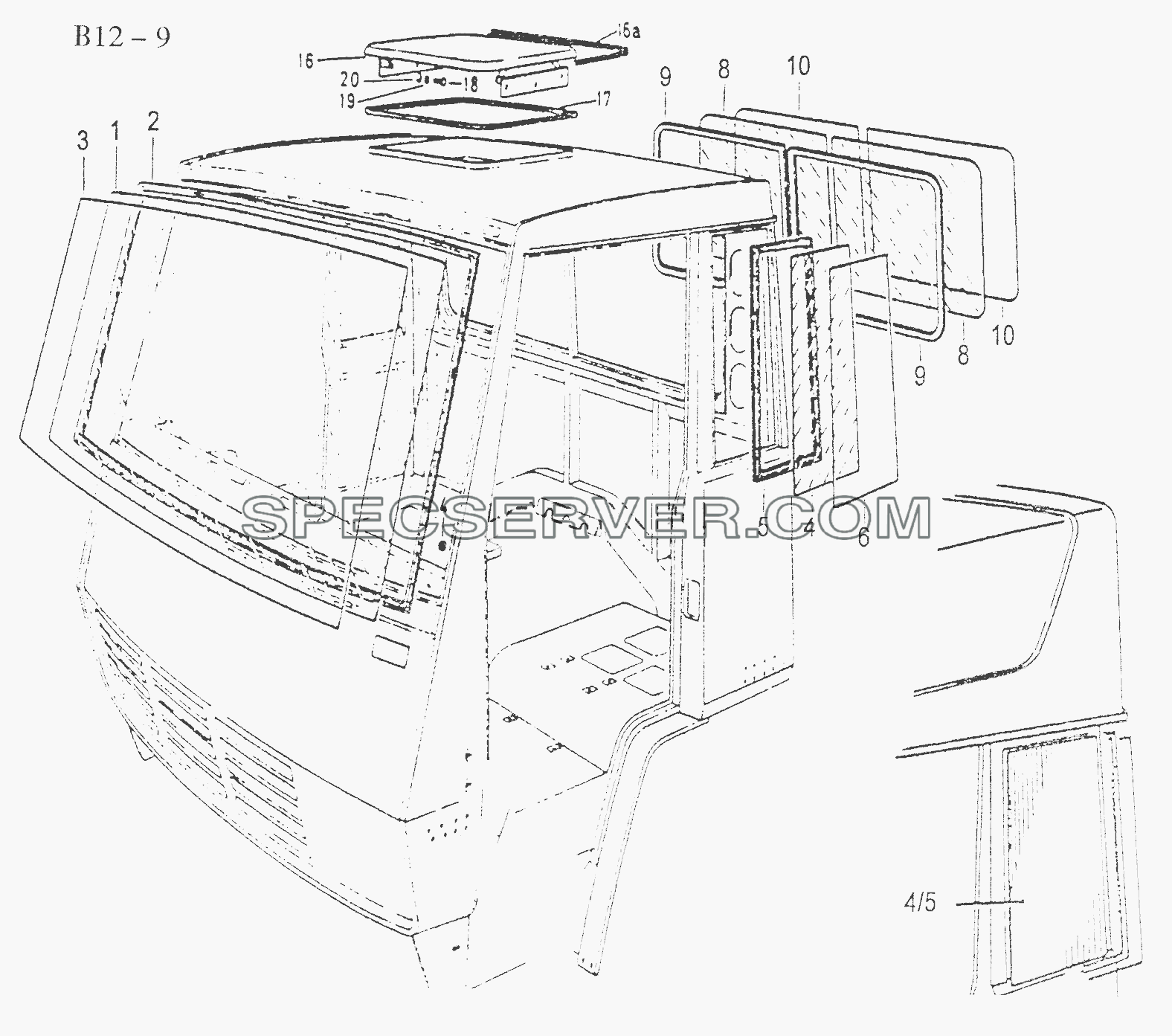

GLASS AND ROOF FLAP (B12-9) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG1600716001 [Windshield]	Windshield
2		WG1600710011 [Sealing frame for windield]	Sealing frame for windield
3		WG9003170459 [Rubber profile]	Rubber profile
4		WG1600710003 [Side window glass]	Side window glass
4		WG1692710005 [Side window glass]	Side window glass
5		WG1600710013 [Sealing frame for side window glass]	Sealing frame for side window glass
5		WG1692710014 [Sealing frame for side window glass]	Sealing frame for side window glass
6		WG9003129454 [Rubber profile]	Rubber profile
6		WG9003129454 [Rubber profile]	Rubber profile
7		90007990070 [Sealant]	Sealant
8		WG1600710005 [Rear window glass]	Rear window glass
9		WG1600710015 [Sealing frame for rear window glass]	Sealing frame for rear window glass
10		WG9003129454 [Rubber profile]	Rubber profile
16		WG1600770010 [Roof flap]	Roof flap
17		ZW1611770001 [Sealing frame]	Sealing frame
18		Q150B0610 [Screw]	Screw
19		Q40206 [Washer]	Washer
20		Q41206 [Washer]	Washer
21		AZ1600770300 [Rubber washer]	Rubber washer
22		BZ1600771005 [Grip]	Grip

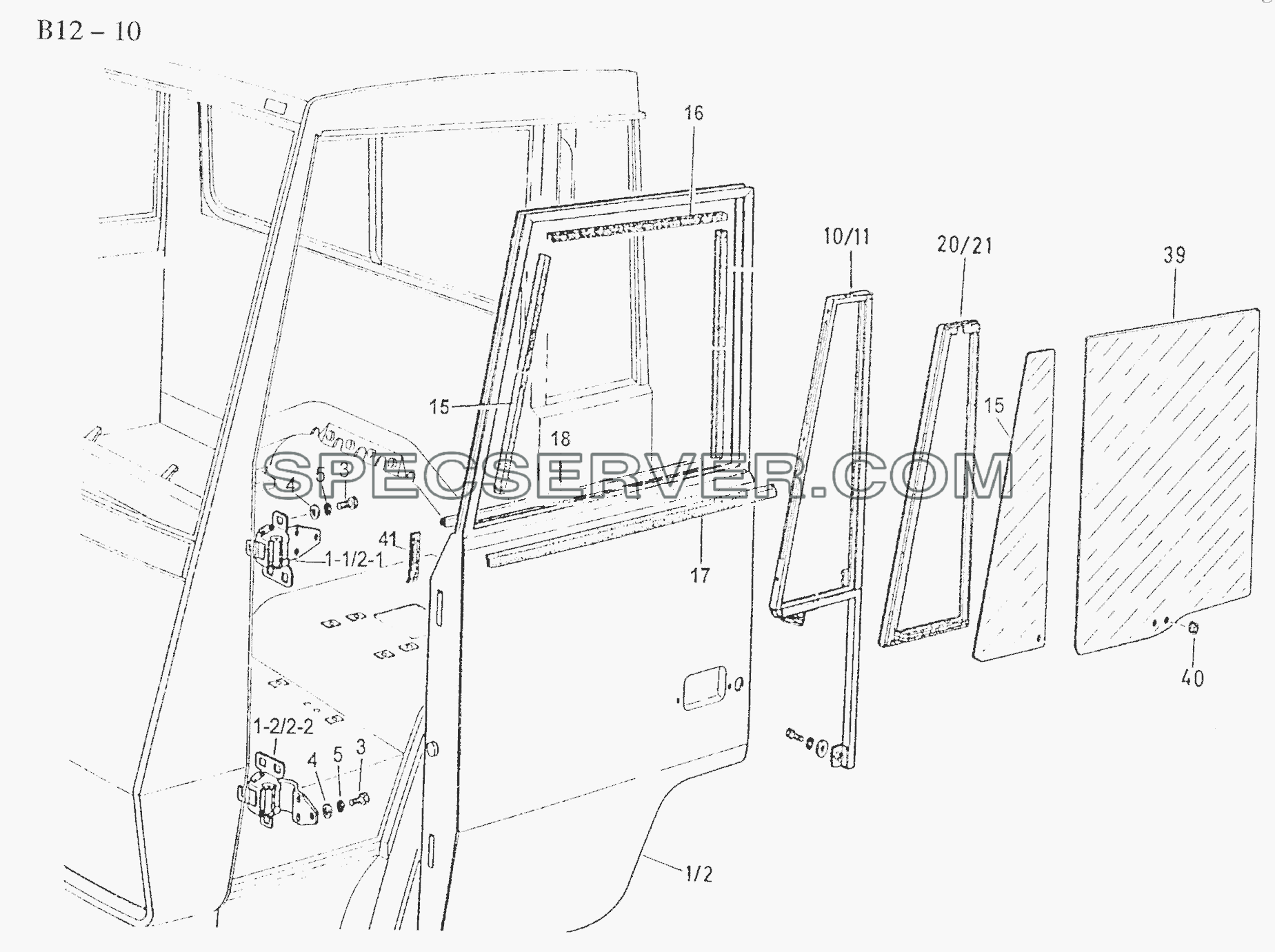

DOOR, GLASS AND VENT WINDOW (B12-10) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		116000330103 [Hinge r.]	Hinge r.
-		116000330104 [Hinge l.]	Hinge l.
-		116000330105 [Hinge r.]	Hinge r.
-		116000330106 [Hinge l.]	Hinge l.
-		161000330035 [Projection frame]	Projection frame
1		AZ1616210001 [Door assembly r.]	Door assembly r.
1		AZ1630210001 [Door assembly r.]	Door assembly r.
2		AZ1616210002 [Door assembly l.]	Door assembly l.
2		AZ1630210002 [Door assembly l.]	Door assembly l.
3		Q150B0820 [Hexagon head tap bolt]	Hexagon head tap bolt
4		Q40208 [Washer]	Washer
5		Q41208 [External tooth lock washer]	External tooth lock washer
6		AZ1630210040 [Door garnish l.]	Door garnish l.
7		AZ1630210041 [Door garnish r.]	Door garnish r.
8		Q4400512 [Split mushroom self-plugging riviet]	Split mushroom self-plugging riviet
9		Q40105 [Washer]	Washer
10		WG1600350005 [Door ventilation glass frame r.]	Door ventilation glass frame r.
11		WG1600350006 [Door ventilation glass frame l.]	Door ventilation glass frame l.
12		WG1600350012 [Door ventilation glass]	Door ventilation glass
13		ZW1600350027 [Door ventilation glass sealing frame r.]	Door ventilation glass sealing frame r.
14		ZW1600350028 [Door ventilation glass sealing frame l.]	Door ventilation glass sealing frame l.
15		ZW1611330001 [Door window guide]	Door window guide
16		ZW1611330002 [Door window guide]	Door window guide
17		ZW1611330003 [Outer robber profile]	Outer robber profile
18		ZW1611330004 [Inner rubber profile]	Inner rubber profile
39		WG16000330013 [Door window]	Door window
40		116000330014 [Door window rubber cover]	Door window rubber cover

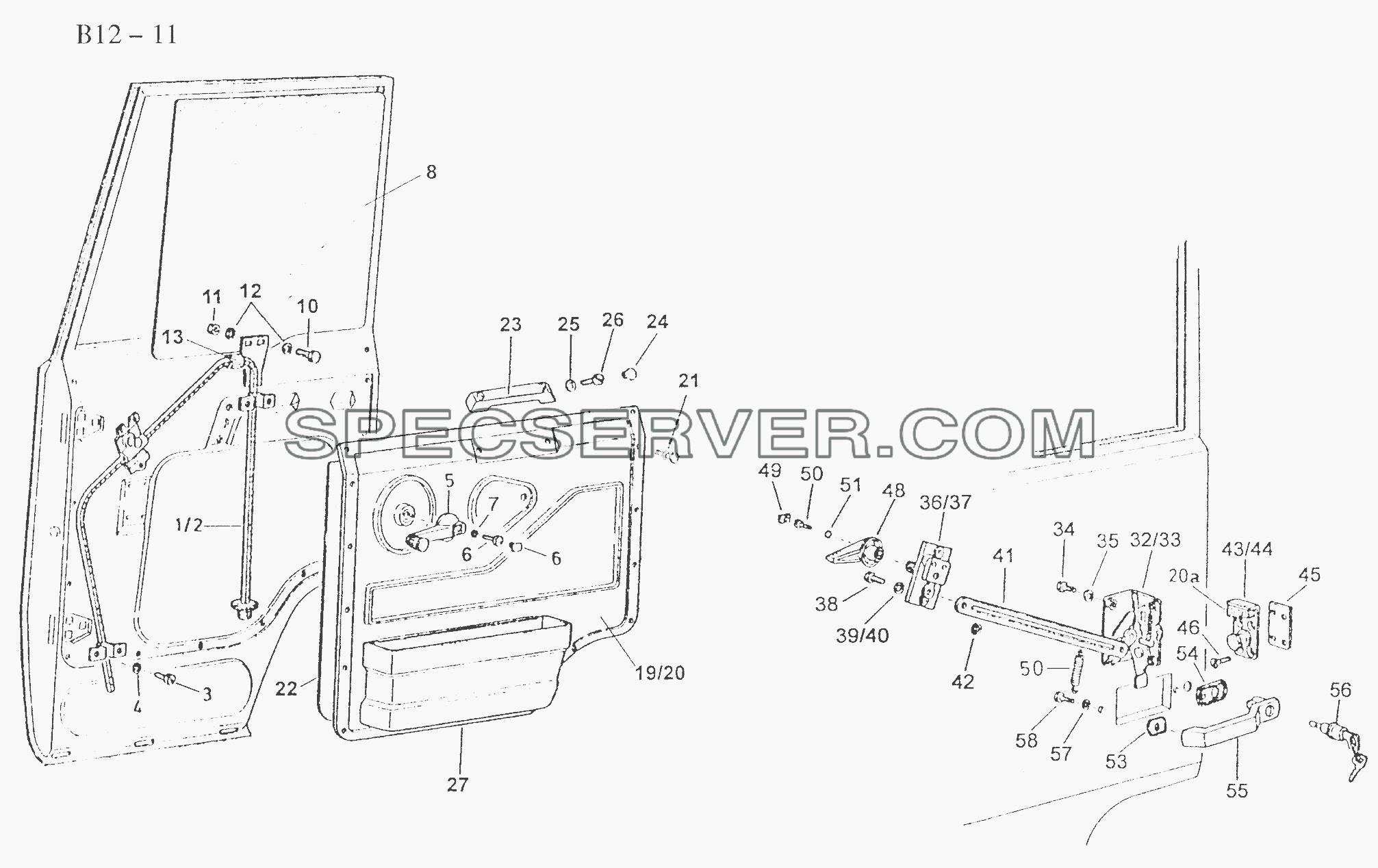

DOOR LOCK AND FITTINGS (B12-11) для Sinotruk 6x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG1600330008 [Right door window lifter]	Right door window lifter
1		WG1600331001 [Right door window lifter]	Right door window lifter
2		WG1600330009 [Left door window lifter]	Left door window lifter
2		WG1600331002 [Left door window lifter]	Left door window lifter
3		Q2715516 [Tapping screw]	Tapping screw
4		Q40206 [Washer]	Washer
5		WG1600340069 [Window lifter handle]	Window lifter handle
6		Q2300512 [Tapping screw and washer]	Tapping screw and washer
7		Q41205 [Washer]	Washer
8		WG1600330013 [Door window]	Door window
9		116000330014 [Door window rubber cover]	Door window rubber cover
10		Q150B0618 [Screw]	Screw
11		Q33206 [Nut]	Nut
12		Q40006 [Washer]	Washer
13		WG1600330017 [Felt strip]	Felt strip
19		WG1600330015 [Right door trim r.]	Right door trim r.
19		WG1630330003 [Right door trim r.]	Right door trim r.
20		WG1600330016 [Left door trim l.]	Left door trim l.
20		WG1630330004 [Left door trim l.]	Left door trim l.
21		190003172953 [Plastic rivet]	Plastic rivet
21		AZ1630330010 [Plastic rivet]	Plastic rivet
22		116000330023 [Door cover]	Door cover
23		116100330160 [Door handle]	Door handle
24		116100330058 [Screw plug]	Screw plug
25		Q40006 [Washer]	Washer
26		Q2300612 [Tapping screw and washer]	Tapping screw and washer
27		116100330064 [Net bag]	Net bag
28		Q4400418 [Rivet]	Rivet
29		Q40204 [Washer]	Washer
30		116192780088 [Clip]	Clip
31		Q2140650 [Tapping screw]	Tapping screw
32		WG1600340005 [Door lock assembly right]	Door lock assembly right
33		WG1600340006 [Door lock assembly left]	Door lock assembly left
34		Q150B0616 [Hexagon head tap bolt]	Hexagon head tap bolt
35		Q40206 [Washer]	Washer
36		WG1600340007 [Inside door handle assembly right]	Inside door handle assembly right
37		WG1600340008 [Inside door handle assembly left]	Inside door handle assembly left
38		Q150B0616 [Hexagon head top bolt]	Hexagon head top bolt
39		Q41206 [External tooth lock washer]	External tooth lock washer
40		Q40206 [Washer]	Washer
41		WG1600340012 [Pole]	Pole
42		Q43660F3 [Split washer]	Split washer
43		WG1600340009 [Lock cylinder assembly R]	Lock cylinder assembly R
44		WG1600340010 [Lock cylinder assembly L]	Lock cylinder assembly L
45		16100340013 [Plate]	Plate
46		Q2540820 [Crosshead countersunk bolt]	Crosshead countersunk bolt
47		Q41408 [Grower washer]	Grower washer
48		116100340068 [Inside lock knob]	Inside lock knob
49		116100340070 [Inside lock knob cover]	Inside lock knob cover
50		Q2300512 [Crosshead bolt and washer assembly]	Crosshead bolt and washer assembly
51		Q41005 [Internal grower washer]	Internal grower washer
53		116100340019 [Washer]	Washer
54		116000340027 [Washer of outside door hande]	Washer of outside door hande
55		116100340216 [Outside door handle assembly]	Outside door handle assembly
55		AZ1600341001 [Outside door handle assembly]	Outside door handle assembly
56		AZ1600340002 [Key]	Кеу
57		Q40006 [Washer]	Washer
58		Q150B0616 [Hexagon head tap bolt]	Hexagon head tap bolt
