№		Номер детали	Наименование запчасти
1		WG9100360303 [Spring brake actuator]	Spring brake actuator
2		199100360736 [Repair set]	Repair set

AIR DRYER (B10-26) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9000360412 [Air dryer]	Air dryer
21		SAD-3588101A [Housing]	Housing
24		SAD-3588201 [Filter cartridge]	Filter cartridge

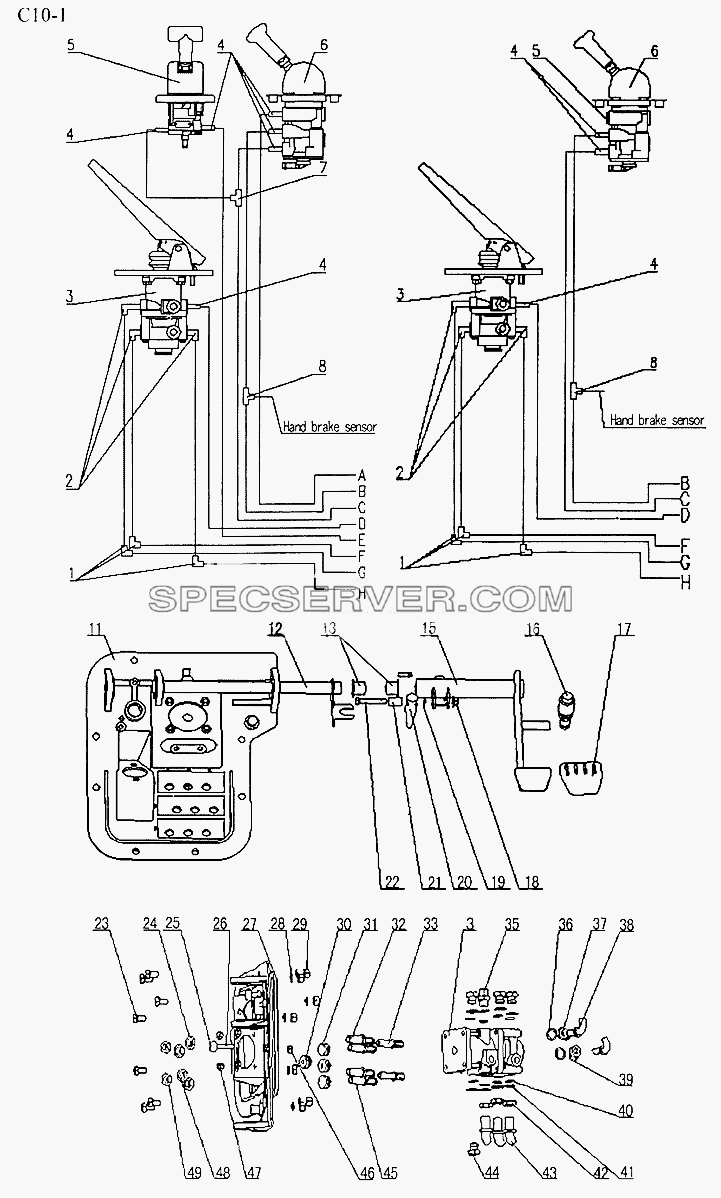

BRAKE MECHANISM IN CAB (C10-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q617B16 [Screw]	Screw
1		190003559479 [Nozzle]	Nozzle
2		190003559946 [Angle nozzle]	Angle nozzle
3		WG9719360005 [Service brake valve]	Service brake valve
4		190003559945 [Nozzle]	Nozzle
5		WG9719360030 [Hand brake valve for trailer]	Hand brake valve for trailer
6		WG9000360165 [Hand brake valve]	Hand brake valve
7		190003559483 [Nozzle]	Nozzle
8		WG99100360111 [Nozzle]	Nozzle
11		AZ9719360050 [Combination bracket]	Combination bracket
12		AZ9719360051 [Shaft]	Shaft
13		AZ9719360060 [Bush]	Bush
14		Q1840616 [Screw]	Screw
15		AZ9719360055 [Brake foot pedal]	Brake foot pedal
15		AZ9719364055 [Brake foot pedal]	Brake foot pedal
16		WG9100710006 [Brake lamp switch]	Brake lamp switch
17		AZ9123230226 [Rubber cover]	Rubber cover
18		Q341B08 [Nut]	Nut
19		Q5002016 [Split pin]	Split pin
20		AZ9719360063 [Push rod]	Push rod
21		AZ9719360062 [Bolt]	Bolt
22		Q173B0845 [Screw]	Screw
23		Q150B1016 [Screw]	Screw
24		Q351B14T15 [Nut]	Nut
25		AZ9123360067 [Plug]	Plug
26		Q150B0845 [Screw]	Screw
27		AZ9719360099 [Seal profile]	Seal profile
28		Q40310 [Spring washer]	Spring washer
29		Q340B10 [Nut]	Nut
30		AZ9719360018 [Rubber sleeve]	Rubber sleeve
31		AZ9719360019 [Plug]	Plug
32		AZ9719360010 [Joint]	Joint
33		AZ9719360009 [Angle screwing]	Angle screwing
35		190003559945 [Screwing]	Screwing
36		1288 730061 [Gasket]	Gasket
37		Q351C12T15 [Nut]	Nut
38		WG9100361003 [Angle screwing]	Angle screwing
39		199000360477 [Gasket]	Gasket
40		1406 070015 [Gasket]	Gasket
41		WG9000360292 [Gasket]	Gasket
42		Q351B16T15 [Nut]	Nut
43		190003559946 [Angle screwing]	Angle screwing
44		Q617B16 [Screw]	Screw
45		AZ9719360010 [Angle nozzle]	Angle nozzle
46		Q150B0830 [Screw]	Screw
47		Q340B08 [Nut]	Nut
48		Q33208 [Nut]	Nut
49		Q351B15T15 [Nut]	Nut
49		Q351C12T15 [Nut]	Nut

BRAKE PARTS IN FRONT SECT OF CHASSIS (C10-2) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9725360108 [Pipe]	Pipe
-		AZ9725360109 [Pipe]	Pipe
-		WG17017361000 [Screwy protecting sleeve]	Screwy protecting sleeve
-		WG9123360200 [Protection sleeve (Ф20)]	Protection sleeve (Ф20)
-		WG9123360300 [Protection sleeve (Ф30)]	Protection sleeve (Ф30)
1		WG9100368471 [Air dryer]	Air dryer
2		190003559653 [Angle nozzle]	Angle nozzle
3		190003962612 [Female screw]	Female screw
4		WG99100270117 [Connecter]	Connecter
5		Q72312T5F [Gasket]	Gasket
6		190003559385 [Nozzle]	Nozzle
7		WG9000360112 [Check valve]	Check valve
8		190003559963 [Nozzle]	Nozzle
9		WG9100360044 [Air reservior (5L)]	Air reservior (5L)
9		WG9719360001 [Air reservior (5L+5L)]	Air reservior (5L+5L)
10		190003962038 [Screw]	Screw
11		WG9114360010 [Nozzle]	Nozzle
12		WG9000360115 [Drain valve]	Drain valve
13		WG9000360366 [4-circuit protecting valve]	4-circuit protecting valve
14		190003559946 [Angle nozzle]	Angle nozzle
15		WG99100360115 [Distributor]	Distributor
16		WG99100360161 [Nozzle]	Nozzle
17		190003559948 [Nozzle]	Nozzle
18		WG9000360314 [Test connector]	Test connector
19		WG9003550094 [Air reservior (30L)]	Air reservior (30L)
19		WG9003550098 [Air reservior (40L)]	Air reservior (40L)
19		WG9003550098 [Air reservior (40L)]	Air reservior (40L)
19		WG9014362009 [Air reservior (35L)]	Air reservior (35L)
19		WG9014362117 [Air reservior (Ф275/30L)]	Air reservior (Ф275/30L)
20		190003559955 [Angle nozzle]	Angle nozzle
21		WG9003550087 [Air reservior (20L)]	Air reservior (20L)
21		WG9003550087 [Air reservior (20L)]	Air reservior (20L)
21		WG9003550087 [Air reservior (20L)]	Air reservior (20L)
22		190003559766 [Nozzle]	Nozzle
23		Q80408 [Nozzle]	Nozzle
24		190003962019 [Screw]	Screw
25		AZ9100366156 [Nozzle]	Nozzle
26		WG9000360140 [Screwy line]	Screwy line
27		190003559490 [Nozzle]	Nozzle
28		WG9000360170 [Coupling]	Coupling
29		WG9000360171 [Coupling]	Coupling
30		WG9000360188 [Two way valve]	Two way valve
31		190003559947 [Nozzle]	Nozzle
32		190003559483 [Distributor]	Distributor
33		WG9003550098 [Air reservior (40L)]	Air reservior (40L)
33		WG9014362009 [Air reservior (35L)]	Air reservior (35L)
34		WG9000360180 [Trailer control valve]	Trailer control valve
35		WG17017360203 [Distributor]	Distributor
36		WG9000360100 [Diaphragm cylinder left]	Diaphragm cylinder left
37		190003903661 [Bolt]	Bolt
38		Q40114 [Washer]	Washer
39		Q5004022 [Split pin]	Split pin
40		WG17017360450 [Brake hose]	Brake hose
41		WG9100360112 [Screwing]	Screwing
42		190003559496 [Screwing]	Screwing
43		WG9719180010 [Exhaust brake]	Exhaust brake
44		WG99100360184 [Hose]	Hose
45		WG99000360410 [Screwing]	Screwing
46		AZ9719360101 [Pipe (Air corn pressor-hose)]	Pipe (Air corn pressor-hose)
47		AZ9719360103 [Pipe (Hose-Air dryer)]	Pipe (Hose-Air dryer)
48		AZ9719360102 [Pipe(dryer 4-cir.protection valve)]	Pipe(dryer 4-cir.protection valve)
49		190003559479 [Nozzle]	Nozzle
50		WG9000360101 [Diaphragm cylinder right]	Diaphragm cylinder right
51		190003559482 [Nozzle]	Nozzle
52		WG9100361003 [Screwing]	Screwing
53		WG99112280010 [Screwing]	Screwing
54		190003559945 [Screwing]	Screwing
55		AZ9725360101 [Pipe (22 Hole of 4-cir. Protection valve-reservior for rear axle)]	Pipe (22 Hole of 4-cir. Protection valve-reservior for rear axle)
56		AZ9725360103 [Pipe (21 Hole of 4-cir. Protection valve-reservior for front axle)]	Pipe (21 Hole of 4-cir. Protection valve-reservior for front axle)
57		AZ9725360106 [Pipe (24 Hole of 4-cir. Protection valve-reservior for hand brake)]	Pipe (24 Hole of 4-cir. Protection valve-reservior for hand brake)
60		WG9718360001 [KNORR/ABS magnetic valve]	KNORR/ABS magnetic valve
60		WG9718360002 [WABCO/ABS magnetic valve]	WABCO/ABS magnetic valve

BRAKE PARTS IN REAR SECT OF CHASSIS (C10-3) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003559474 [Nozzte]	Nozzle
-		190003559479 [Nozzte]	Nozzle
-		WG17017360460 [Brake Hose]	Brake Hose
-		WG9000360108 [Spring brake actuator]	Spring brake actuator
-		WG9003550006 [T-nozzle]	T-nozzle
-		WG9100360303 [Spring brake actuator]	Spring brake actuator
1		190003559496 [Angle nozzle]	Angle nozzle
2		190003559946 [Angle nozzle]	Angle nozzle
3		WG99100360114 [T-nozzle]	T-nozzle
4		WG9000360314 [Test connector]	Test connector
5		WG9000360108 [Spring brake actuator]	Spring brake actuator
5		WG9100360011 [Spring brake actuator]	Spring brake actuator
5		WG9100360303 [Spring brake actuator]	Spring brake actuator
6		WG9003550006 [T-nozzle]	T-nozzle
7		190003559479 [Nozzte]	Nozzle
8		190003559474 [Nozzte]	Nozzle
9		WG9000360134 [Relay valve]	Relay valve
10		190003962038 [Screw]	Screw
11		190003559948 [Nozzle]	Nozzle
12		WG17017360470 [Brake Hose]	Brake Hose
12		WG17017360470 [Brake Hose]	Brake Hose
12		WG17017360470 [Brake Hose]	Brake Hose
13		190003559947 [Nozzle]	Nozzle
14		190003559946 [Angle nozzle]	Angle nozzle
14		WG99100360112 [T-nozzle]	T-nozzle
15		190003903661 [Bolt]	Bolt
16		Q40114 [Washer]	Washer
19		WG9718360001 [ABS Magnetic valve/KNORR]	ABS Magnetic valve/KNORR
19		WG9718360002 [ABS Magnetic valve/WABCO]	ABS Magnetic valve/WABCO
20		WG17017360480 [Brake hose]	Brake hose
21		WG17017360480 [Brake hose]	Brake hose
22		WG9718360001 [ABS Magnetic valve/KNORR]	ABS Magnetic valve/KNORR
22		WG9718360002 [ABS Magnetic valve/WABCO]	ABS Magnetic valve/WABCO
23		WG17017360460 [Brake hose]	Brake hose
23		WG17017360470 [Brake hose]	Brake hose
24		WG17017360460 [Brake hose]	Brake hose

CONNECTOR FOR LINE A (C10-4-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003559516 [Union nut]	Union nut
2		190003559508 [Union nut]	Union nut
3		190003559561 [Cutting ring]	Cutting ring
4		190003559509 [Union nut]	Union nut
5		190003559558 [Cutting ring]	Cutting ring
6		190003559518 [Union nut]	Union nut
7		190003559564 [Cutting ring]	Cutting ring
8		190003559514 [Union nut]	Union nut
9		190003559563 [Cutting ring]	Cutting ring
10		190003559520 [Union nut]	Union nut
11		190003559562 [Cutting ring]	Cutting ring
12		190003559538 [Pressure ring]	Pressure ring
13		190003559539 [Gasket]	Gasket
