№		Номер детали	Наименование запчасти
1		14335 [Gasket]	Gasket
2		F99975 [Housing]	Housing
2		JS130T-1707010 [Housing]	Housing
2		JS180-1701015 [Housing]	Housing
3		17352 [Gasket]	Gasket
4		17376 [Bearing cover]	Bearing cover
5		A-C09008 [Screw]	Screw
6		M10x45 [Screw]	Screw
6		M10x50 [Screw]	Screw
7		71813 [Bearing]	Bearing
7		JS180-1707109 [Bearing]	Bearing
8		F99967 [Bearing cover]	Bearing cover
8		JS180-1707155 [Bearing cover]	Bearing cover
9		15532 [Gasket]	Gasket
10		Q40310 [Washer]	Washer
11		19109 [Oil seal]	Oil seal
12		M10x70 [Screw]	Screw
14		7992 [Bush]	Bush
15		M10x70 [Screw]	Screw
16		17016 [Gasket]	Gasket
16		19709 [Gasket]	Gasket
18		F93060 [Joint]	Joint
19		F96005 [Gasket]	Gasket
21		116E-3802032 [Joint]	Joint
24		F91054 [Drive gear]	Drive gear
25		F91055 [Drive gear]	Drive gear
26		F99900 [Plane flange(option)]	Plane flange(option)
26		F99900-1 [Toothed flange(option)]	Toothed flange(option)
26		F99902 [Plane flange(option)]	Plane flange(option)
26		F99902-5 [Plane flange(option)]	Plane flange(option)
26		JS180-1707159 [Toothed flange(option)]	Toothed flange(option)
26		JS180-1707159-1 [Toothed flange(option)]	Toothed flange(option)

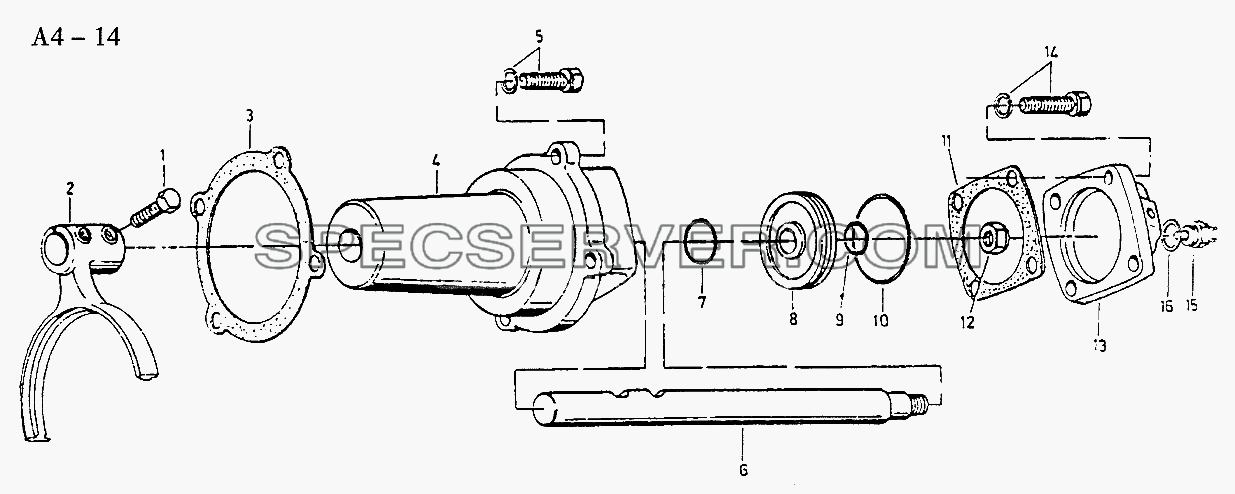

Fuller SHIFTING CYLINDER ASSEMBLY (A4-14) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-C09016 [Cylinder]	Cylinder
1		M12x1.25x50 [Screw]	Screw
2		16775 [Shift yoke]	Shift yoke
3		1684 [Gasket]	Gasket
4		16778 [Aux.cylinder]	Aux.cylinder
5		M10x32 [Screw]	Screw
6		16993 [Yoke shaft]	Yoke shaft
7		14765 [O ring]	O ring
8		14341 [Piston]	Piston
9		14345 [O ring]	O ring
10		14344 [O ring]	O ring
11		14349 [Gasket]	Gasket
12		M16x1.5 [Nut]	Nut
13		F99857 [Cover]	Cover
15		79100710069 [Switch high-low gear]	Switch high-low gear
16		X11511 [Washer]	Washer

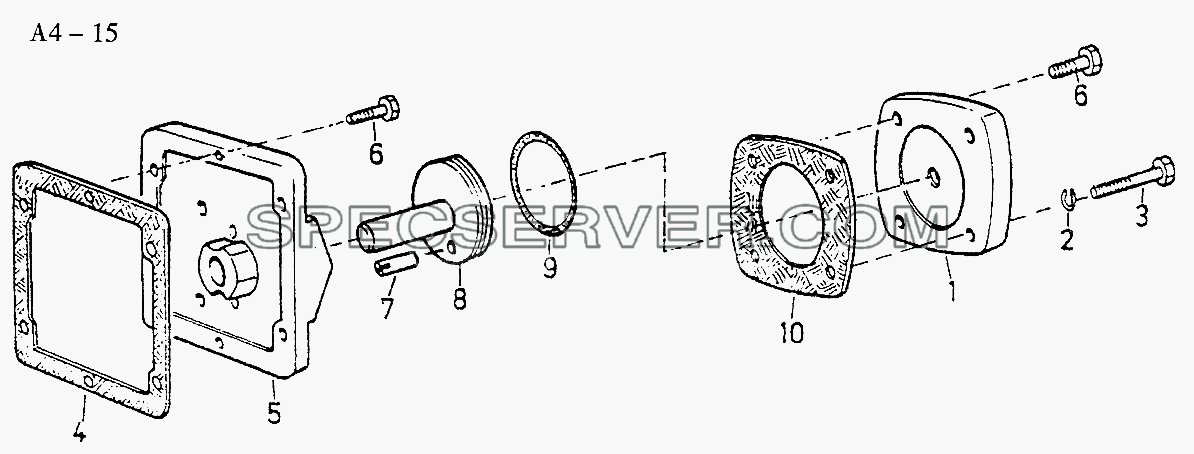

Fuller CLUTCH BRAKE (A4-15) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-4046 [Clutch brake C]	Clutch brake C
1		16659 [Cover]	Cover
2		Q40310 [Spring washer]	Spring washer
3		M10x55 [Screw]	Screw
4		1684 [Gasket]	Gasket
5		16656 [Housing]	Housing
6		M10x32 [Screw]	Screw
7		Q5000616 [Roll pin]	Roll pin
8		16658 [Piston]	Piston
9		16660 [O ring]	O ring
10		16661 [Gasket]	Gasket

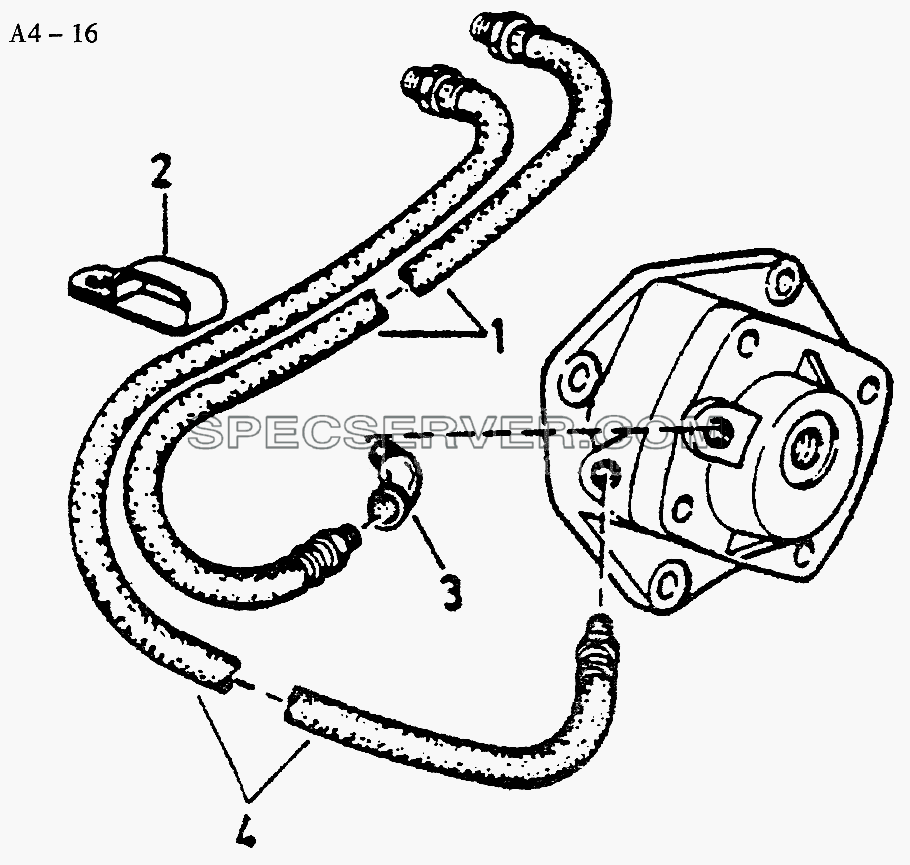

Fuller PNEUM. SHIFTING (A4-16) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		55523 [Pipe]	Pipe
2		19779 [Clamp]	Clamp
3		12880 [Joint]	Joint
4		55522 [Pipe]	Pipe

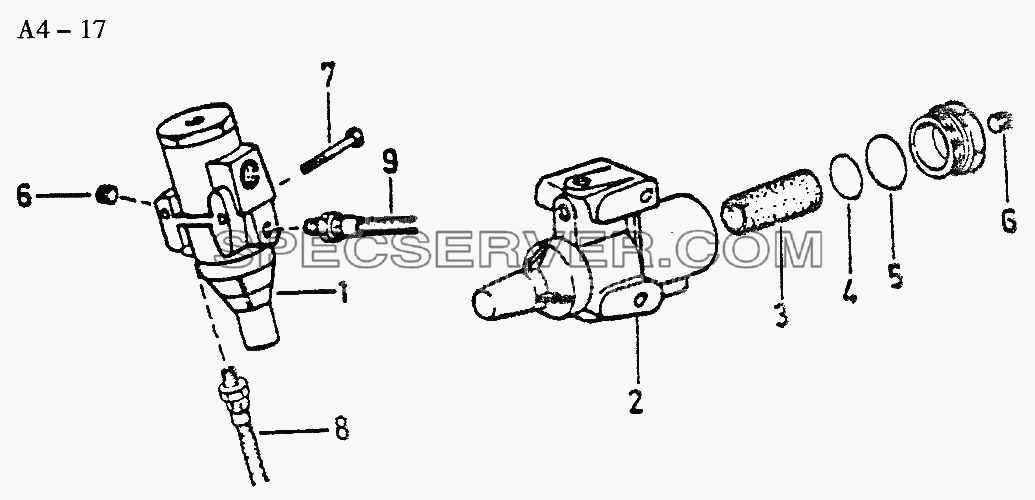

Fuller AIR REGULATOR VALVE (A4-17) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		A-4740 [Air regulator valve]	Air regulator valve
2		19600 [Valve housing]	Valve housing
3		19670 [Element]	Element
4		19953 [O ring]	O ring
5		19671 [O ring]	O ring
6		X14973 [Plug]	Plug
7		X11217 [Screw]	Screw
8		55527 [Air pipe]	Air pipe
9		55518 [Air pipe]	Air pipe
10		K-1698 [Spare part]	Spare part

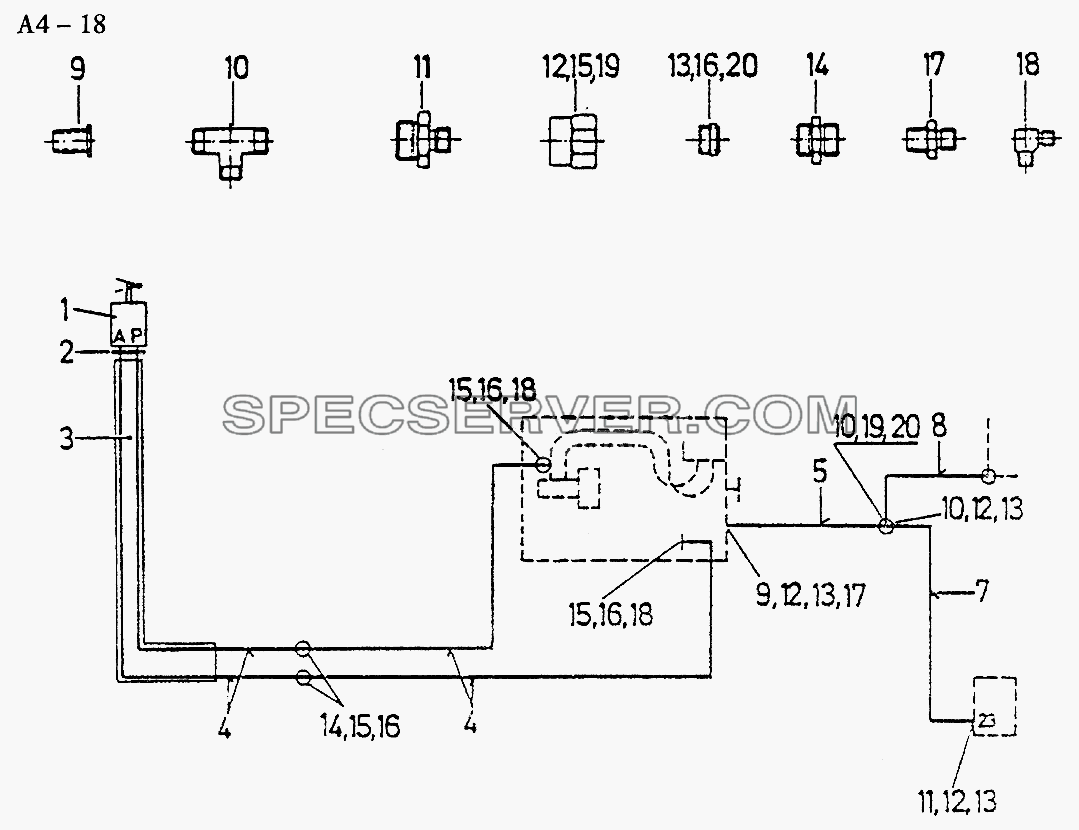

Fuller SHIFT AIR LINE (A4-18) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199100280030 [3/2way valve]	3/2way valve
2		199100280031 [Cover]	Cover
3		190003179855 [Pipe]	Pipe
4		190003179778 [Pipe]	Pipe
5		190003179781 [Pipe]	Pipe
7		199114362010 [Pipe]	Pipe
7		199118362028 [Pipe]	Pipe
8		199014350012 [Pipe]	Pipe
9		199014280041 [Sleeve]	Sleeve
10		WG99100360111 [Connector]	Connector
11		190003559945 [Connector]	Connector
12		190003559509 [Nut]	Nut
13		190003559558 [Sleeve]	Sleeve
14		190003559460 [Connector]	Connector
15		190003559507 [Nut]	Nut
16		190003559556 [Sleeve]	Sleeve
17		WG99112280010 [Connector]	Connector
18		199112280013 [Connector]	Connector
19		190003559516 [Nut]	Nut
20		190003559561 [Sleeve]	Sleeve
