№		Номер детали	Наименование запчасти
-		AZ9725190079 [Bracket]	Bracket
-		WG1200190040 [Sensor]	Sensor
-		WG9719190001-1 [Filter element]	Filter element
-		WG9725190045-1 [Filter element]	Filter element
-		WG9725190063-1 [Filter element]	Filter element
1		AZ9725190001 [Supporter]	Supporter
1		AZ9725190065 [Supporter]	Supporter
1		WG9719190002 [Supporter]	Supporter
2		WG9100190026 [Strap]	Strap
3		WG9719190001 [Airfilter]	Airfilter
3		WG9725190045 [Airfilter]	Airfilter
3		WG9725190063 [Airfilter]	Airfilter
4		AZ9003980025 [Clamp]	Clamp
5		AZ9725190062 [Hose]	Hose
5		WG9719190046 [Hose]	Hose
5		WG9725190042 [Hose]	Hose
6		WG9719190033 [Rubber block]	Rubber block
7		AZ9719190036 [Bracket]	Bracket
7		WG9719190030 [Bracket]	Bracket
8		Q1840825 [Screw]	Screw
9		Q33208 [Nut]	Nut
10		WG9719190013 [Air intake line I]	Air intake line I
11		WG9719190016 [Strap]	Strap
12		WG9719190015 [Siphon]	Siphon
13		WG9719190014 [Air intake line II]	Air intake line II
13		WG9725190061 [Air intake line II]	Air intake line II
14		Q150B0810 [Screw]	Screw
15		Q150B0825 [Screw]	Screw
16		Q40108 [Washer]	Washer
17		Q33008 [Nut]	Nut
18		WG9719190009 [Hose]	Hose
19		Q150B1030 [Screw]	Screw
20		Q40610 [Spring washer]	Spring washer
21		1113 010043 [Spacer]	Spacer
22		AZ9725190081 [Bracket]	Bracket
22		WG9719190040 [Bracket]	Bracket
23		WG9719190050 [Pipe]	Pipe
24		WG9719190008 [Hose]	Hose
24		WG9725190041 [Hose]	Hose
25		199100190065 [Sheet]	Sheet
26		1280 550028 [Bolt]	Bolt
27		1280 550029 [Screw]	Screw
28		1280 550027 [Bolt]	Bolt
29		Q33212 [Nut]	Nut
30		Q150B1235 [Screw]	Screw

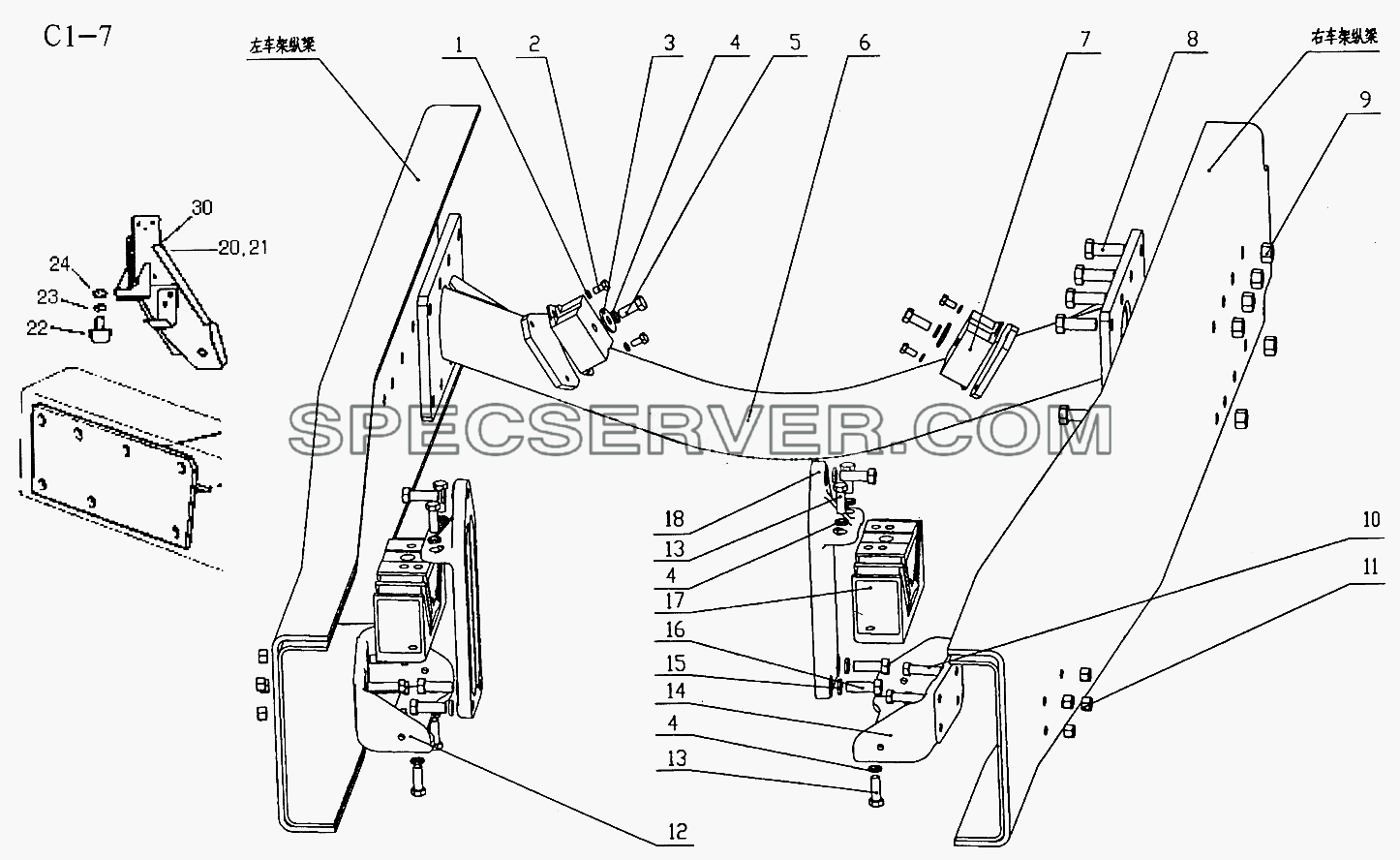

SUSPENSION FOR ENGINE (C1-7) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9725590006 [Bracket right]	Bracket right
-		AZ9725590023 [Connecting plate]	Connecting plate
-		AZ9725590045 [Aux.support left]	Aux.support left
-		AZ9725590048 [Aux.support right]	Aux.support right
-		AZ9725590082 [Bracket left]	Bracket left
1		Q40308 [Spring washer]	Spring washer
2		Q150B0816 [Screw]	Screw
3		1480A360058 [Washer]	Washer
4		Q40312 [Spring washer]	Spring washer
5		190003802622 [Screw]	Screw
6		AZ9725590007 [Crossbar]	Crossbar
6		AZ9725590029 [Crossbar]	Crossbar
6		WG9719590001 [Crossbar]	Crossbar
6		WG9731590001 [Crossbar]	Crossbar
7		AZ9725592000 [Rubber support]	Rubber support
7		WG1680590095 [Rubber support]	Rubber support
8		Q151B1645 [Screw]	Screw
9		190003888459 [Nut]	Nut
10		Q150B1245 [Screw]	Screw
11		Q33212 [Nut]	Nut
12		AZ9731590015 [Bracket left]	Bracket left
12		AZ9731590017 [Bracket]	Bracket
13		Q151C1235 [Screw]	Screw
14		AZ9731590016 [Bracket right]	Bracket right
14		AZ9731590017 [Bracket]	Bracket
15		Q151B1440 [Screw]	Screw
16		Q40314 [Spring washer]	Spring washer
17		AZ9725590031 [Bearing]	Bearing
18		AZ9725590002 [Bracket left]	Bracket left
18		AZ9725590081 [Bracket right]	Bracket right
18		AZ9731590020 [Support]	Support
20		AZ9725590046 [Support left]	Support left
20		AZ9725596020 [Support left]	Support left
21		AZ9725590047 [Support right]	Support right
21		AZ9725596030 [Support right]	Support right
22		WG9100590082 [Stop block]	Stop block
23		Q40312 [Washer]	Washer
24		Q34012 [Nut]	Nut
30		AZ9725590020 [Bearing]	Bearing

SPECIAL PARTS OF WD615 FOR HOWO (C1-8) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		612600130125 [Air compressor]	Air compressor
2		612600130127 [Water pipe]	Water pipe
3		AZ9719570027 [Bracket]	Bracket
4		612600120103 [Bracket]	Bracket
5		612600120122 [Bracket]	Bracket
6		612600120121 [Air intake manifold]	Air intake manifold
7		612600111141 [Connecting pipe]	Connecting pipe
8		612600111144 [Air intake manifold]	Air intake manifold
9		612600111136 [Exhaust manifold rear]	Exhaust manifold rear
10		612600111137 [Exhaust manifold front]	Exhaust manifold front
11		612600111182 [Oil intake pipe]	Oil intake pipe
12		612600010898 [Oil dipstick]	Oil dipstick
13		612600010899 [Jauge]	Jauge
14		612600111197 [Screw]	Screw
15		612600010919 [Nozzle]	Nozzle
16		612600111196 [Air intake pipe]	Air intake pipe
17		612600111138 [Heat shield]	Heat shield
18		612600111139 [Heat shield]	Heat shield
19		612600111200 [Screw]	Screw
20		612600111051 [Oil pipe]	Oil pipe
21		612600120100 [Air intake manifold of aftercooler]	Air intake manifold of aftercooler
22		612600111213 [Bracket]	Bracket
23		612600111078 [Connecting pipe]	Connecting pipe
24		612600120101 [Bottom air intake pipe of aftercooler]	Bottom air intake pipe of aftercooler
27		612600830080 [Cover]	Cover
28		612600070155 [Washer]	Washer
29		612600010909 [Washer]	Washer
30		AZ9719530035 [Air intake pipe of compressor]	Air intake pipe of compressor
31		612600111052 [Screw for exhaust manifold]	Screw for exhaust manifold
32		612600130121 [Rubber hose]	Rubber hose
33		61560116227D [Turbochager]	Turbochager
34		61560118227D [Turbochager]	Turbochager
35		612600111413 [Pipe of aftercooler]	Pipe of aftercooler
36		612600111419 [Air intake pipe of aftercooler]	Air intake pipe of aftercooler
37		612600111424 [Bracket]	Bracket
38		612600111425 [Bracket]	Bracket
39		612600060659 [Water intake pipe]	Water intake pipe
40		61560118227 [Turbochager]	Turbochager
41		61560110227 [Turbochager]	Turbochager
42		612600081161 [Injection pump]	Injection pump
43		612600081162 [Injection pump]	Injection pump
44		612600080446 [Injection pump, Bosch]	Injection pump, Bosch
45		612600083151 [Injection pump]	Injection pump
46		612600082115 [Injection pump, Bosch]	Injection pump, Bosch
47		61560080302 [Injection pump, Bosch]	Injection pump, Bosch
48		612600060215 [Ф620 fan]	Ф620 fan
49		612600060166 [Ф750 fan]	Ф750 fan
50		612600060445 [Ф590 ring fan]	Ф590 ring fan
51		612600060446 [Ф640 ring fan]	Ф640 ring fan
52		81500060228 [V-belt (speed ratio 3.39)]	V-belt (speed ratio 3.39)
53		61500060217 [V-belt (speed ratio 3.15)]	V-belt (speed ratio 3.15)
54		612600090065 [V-belt(altemater)]	V-belt(altemater)
55		AZ1500098058 [1 kw altemater]	1 kw altemater
56		612600098155 [1.5kw altemater]	1.5kw altemater

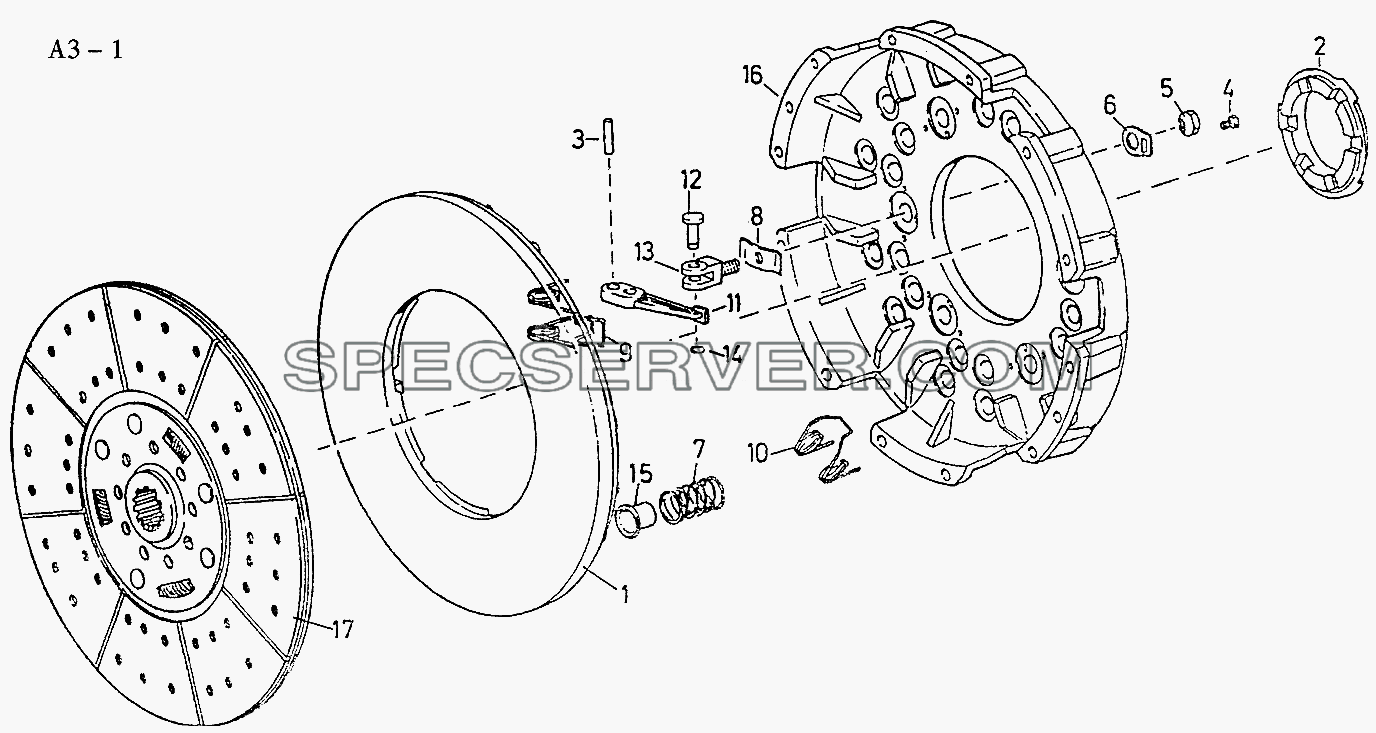

Ф420mm CLUTCH (A3-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		BZ1560160013 [Platen C]	Platen C
-		BZ1560161090 [Platen C]	Platen C
-		BZ1560161116 [Platen spring]	Platen spring
-		BZ1560161116 [Platen spring]	Platen spring
1		BZ1560161093 [Platen]	Platen
2		BZ1560161212 [Thrust collar]	Thrust collar
3		BZ1560161100 [Plug]	Plug
4		BZ1560161119 [Hex 8crew]	Hex 8crew
5		BZ1560161112 [Nut]	Nut
6		BZ1560161113 [Locker]	Locker
7		BZ1560161114 [Platen spring]	Platen spring
7		BZ1560161115 [Platen spring]	Platen spring
8		BZ1560161097 [Spring disc]	Spring disc
9		BZ1560161081 [Spring C]	Spring C
10		BZ1560161084 [Release lever spring]	Release lever spring
11		BZ1560161096 [Release lever C]	Release lever C
12		BZ1560161114 [Connecting pin]	Connecting pin
13		BZ1560161108 [Adjustment fork]	Adjustment fork
14		Q43710 [Washer]	Washer
15		BZ1560161117 [Spring holder]	Spring holder
16		BZ1560161125 [Clutch housing]	Clutch housing
17		WG1560161130 [Driven disc C]	Driven disc C

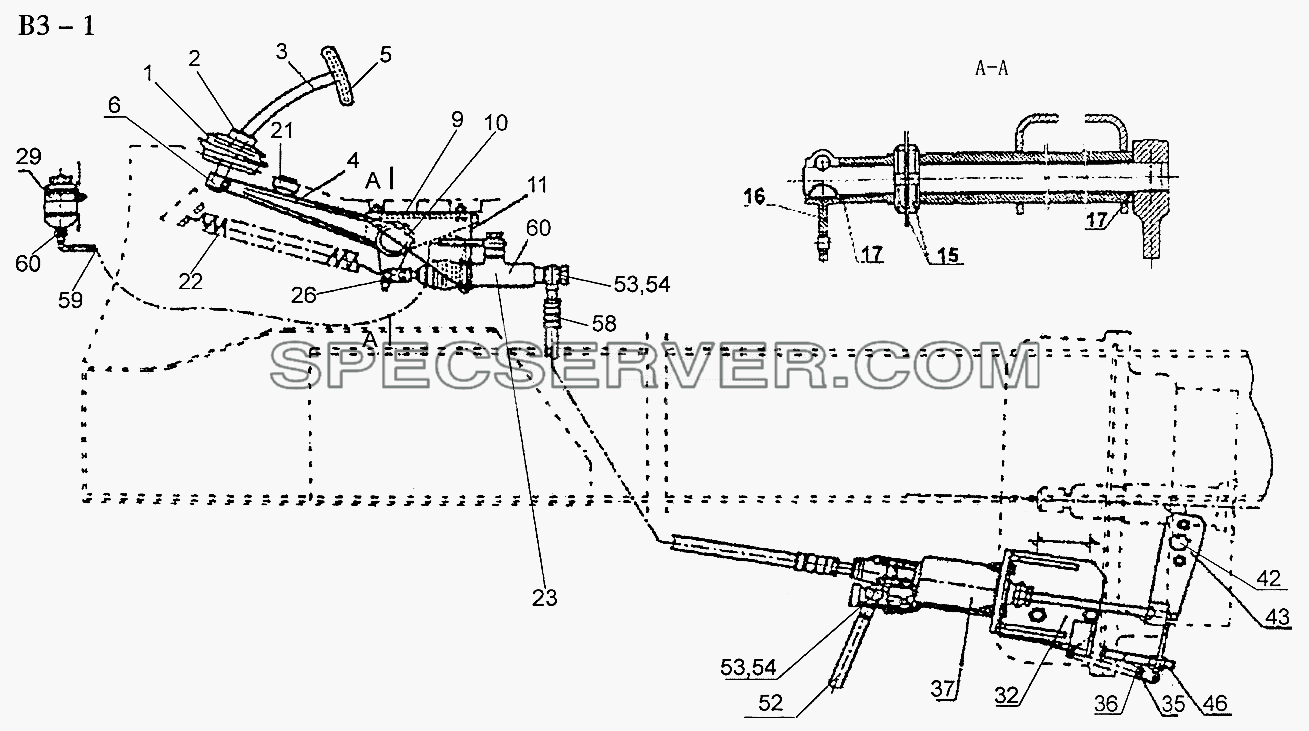

THE OPERATION SYSTEM OF Ф420MM CLUTCH (B3-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003933200 [Nut]	Nut
-		190003934235 [Circlip]	Circlip
-		199100230073 [Flance]	Flance
-		199100230085 [Bearing]	Bearing
-		Q150B1045 [Screw]	Screw
-		Q33210 [Nut]	Nut
1		1681 270244 [Pedal seal]	Pedal seal
2		WG81270245 [Sleeve]	Sleeve
3		199100230076 [Push rod]	Push rod
3		WG9100230004 [Push rod]	Push rod
4		AZ9114230065 [Clutch pedal lever]	Clutch pedal lever
4		AZ9232230015 [Clutch pedal lever]	Clutch pedal lever
5		1880 230031 [Footboard rubber]	Footboard rubber
6		11700 230009 [Bolt]	Bolt
7		Q33208 [Nut]	Nut
8		Q40308 [Spring washer]	Spring washer
9		AZ9100230166 [Bracket C]	Bracket C
10		190003963114 [Grease nipple]	Grease nipple
11		AZ9100230135 [Bracket C]	Bracket C
11		AZ9232230011 [Bracket C]	Bracket C
12		Q150B1020 [Screw]	Screw
13		Q41210 [Toothed washer]	Toothed washer
14		Q150B1025 [Screw]	Screw
15		190003881336 [Nut]	Nut
16		1680 250092 [Lever C]	Lever C
16		199112230098 [Lever C]	Lever C
17		199100230008 [Gasket]	Gasket
18		Q5500622 [Key]	Кеу
19		Q150B0835 [Screw]	Screw
20		Q40308 [Spring washer]	Spring washer
21		1-99-960-010 [Damping rubber]	Damping rubber
22		1680 350096 [Spring]	Spring
22		199100230063 [Spring]	Spring
23		WG9114230021 [Drive cyl.]	Drive cyl.
24		Q150B0825 [Screw]	Screw
25		Q33208 [Nut]	Nut
26		190003903181 [Bolt]	Bolt
27		Q40110 [Washer]	Washer
28		Q5003216 [Split pit]	Split pit
29		WG9100230191 [Oilcan]	Oilcan
30		Q150B0612 [Screw]	Screw
31		Q40306 [Spring washer]	Spring washer
32		AZ9114230016 [Bracket]	Bracket
33		Q151B1425 [Screw]	Screw
34		Q40314 [Spring washer]	Spring washer
35		12054230100 [Spring]	Spring
36		AZ9114230008 [Spring bracket]	Spring bracket
37		WG9114230023 [Operating cyl.]	Operating cyl.
37		WG9114230029 [Operating cyl.]	Operating cyl.
38		Q150B0825 [Screw]	Screw
39		Q40308 [Spring washer]	Spring washer
40		Q340B08 [Nut]	Nut
41		Q40108 [Washer]	Washer
42		199112230033 [Release shaft]	Release shaft
43		AZ9114230004 [Release lever]	Release lever
44		Q41310 [Sprig washer]	Sprig washer
45		Q340B10 [Nut]	Nut
46		AZ9160230272 [Screw]	Screw
47		Q350B10 [Nut]	Nut
48		Q340B10 [Nut]	Nut
49		190003962627 [Scresw]	Scresw
50		WG9100270119 [Hose joint]	Hose joint
51		Q72316T5F [Gasket]	Gasket
52		190003179781 [Plastic pipe]	Plastic pipe
53		WG9014230016 [Hose joint]	Hose joint
54		190003962621 [Screw]	Screw
55		Q72314T5F [Gasket]	Gasket
56		1406 070015 [Gasket]	Gasket
57		190003171697 [Plastic strap]	Plastic strap
58		WG9632230010 [High pressure hose]	High pressure hose
58		WG9632230020 [High pressure hose]	High pressure hose
59		WG9114230010 [Oil pipe]	Oil pipe
60		190003989300 [Hose collar]	Hose collar
61		Q72314T5F [Gasket]	Gasket
62		190003559483 [Nozzle]	Nozzle
63		190003559514 [Nut]	Nut
64		190003559558 [Cutting ring]	Cutting ring
65		199014280041 [Sleeve]	Sleeve

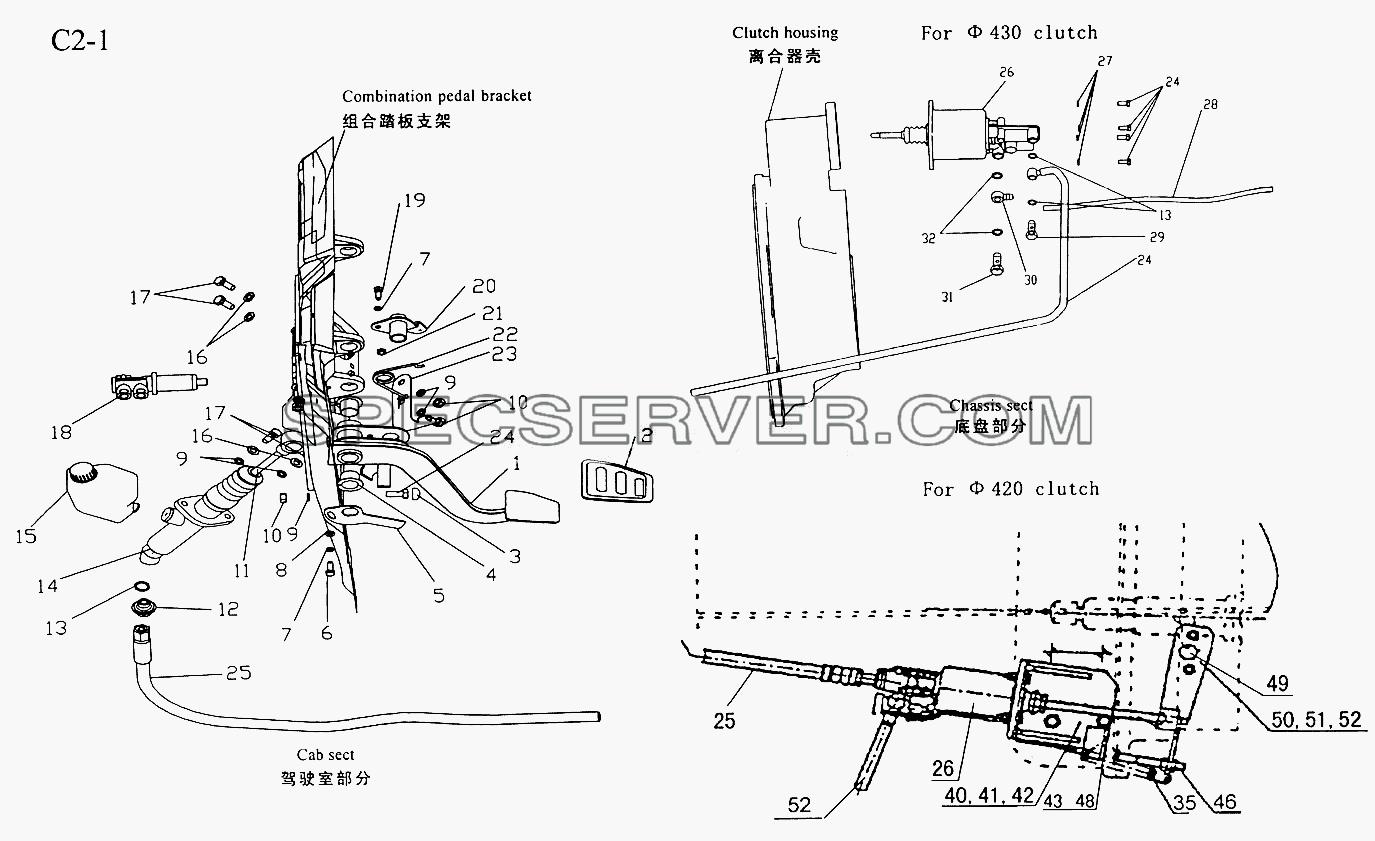

CLUTCH OPERATION SYSTEM (C2-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9719360050 [Combination bracket]	Combination bracket
-		AZ9719360051 [Shaft]	Shaft
1		AZ9719230045 [Clutch pedal]	Clutch pedal
1		AZ9719230070 [Clutch pedal]	Clutch pedal
2		AZ9123230226 [Rubber footboard]	Rubber footboard
3		AZ9123360067 [Plug]	Plug
4		AZ9719360060 [Bush]	Bush
5		AZ9719230019 [Stop bracket]	Stop bracket
6		Q150B0620 [Screw]	Screw
7		Q40306 [Spring washer]	Spring washer
8		Q40106 [Washer]	Washer
9		Q40308 [Spring washer]	Spring washer
10		Q340B08 [Nut]	Nut
11		AZ9719230016 [Push rod]	Push rod
12		AZ9160230092 [Connector]	Connector
13		Q72314T5F [Gasket]	Gasket
14		WG9719230015 [Driving cylinder]	Driving cylinder
15		WG9719230014 [Clutch oil tank]	Clutch oil tank
16		Q40108 [Washer]	Washer
17		Q150B0820 [Screw]	Screw
18		WG9719230011 [Clutch brake valve]	Clutch brake valve
19		Q150B0615 [Screw]	Screw
20		AZ9719230012 [Bracket C.]	Bracket C.
21		Q340B06 [Nut]	Nut
22		AZ9719230009 [Spring]	Spring
23		AZ9719230007 [Spring bracket]	Spring bracket
24		Q150B0830 [Screw]	Screw
25		WG9123230026 [High pressure hose]	High pressure hose
25		WG9632230010 [High pressure hose]	High pressure hose
25		WG9719230027 [High pressure hose]	High pressure hose
26		WG9114230018 [Operating cylinder]	Operating cylinder
26		WG9114230023 [Operating cylinder]	Operating cylinder
26		WG9114230029 [Operating cylinder]	Operating cylinder
26		WG9719230030 [Operating cylinder]	Operating cylinder
27		Q41208 [Washer]	Washer
28		190003179781 [Plastic pipe]	Plastic pipe
29		190003962621 [Female screw]	Female screw
30		WG99100270119 [Hose connector]	Hose connector
31		190003962627 [Female screw]	Female screw
32		Q72316T5F [Gasket]	Gasket
40		AZ9114230016 [Bracket]	Bracket
41		Q151B1425 [Screw]	Screw
42		Q40314 [Spring washer]	Spring washer
43		12054230100 [Spring]	Spring
44		AZ9114230039 [Bracket]	Bracket
45		Q150B0825 [Screw]	Screw
46		Q340B08 [Nut]	Nut
47		Q40108 [Washer]	Washer
48		Q40308 [Spring washer]	Spring washer
49		199112230033 [Release shaft]	Release shaft
50		AZ9114230004 [Release lever]	Release lever
51		Q40310 [Spring washer]	Spring washer
52		Q340B10 [Nut]	Nut
53		AZ9160230272 [Screw]	Screw
54		Q41810 [Washer]	Washer
55		Q340B10 [Nut]	Nut
