Запчасти: PROPELLER SHAFTS Propeller Shaft with spider D.Ф52 (B5-7-1) для Sinotruk 4x2 Tractor (371)

PROPELLER SHAFTS Propeller Shaft with spider D.Ф52 (B5-7-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

PROPELLER SHAFTS Propeller Shaft with spider D.Ф52 (B5-7-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 26013314062 [Ф165 Planar flange] Ф165 Planar flange
1 AZ9113314062 [Ф165 Toothed flange] Ф165 Toothed flange
2 26013315024 [Scraper] Scraper
3 26013315023 [Washer] Washer
4 26013315022 [Gasket] Gasket
5 26013314063 [Circlip] Circlip
5 26013314064 [Circlip] Circlip
5 26013314065 [Circlip] Circlip
5 26013314066 [Circlip] Circlip
5 26013314067 [Circlip] Circlip
8 26013314080 [Spider C] Spider C
9 26013311098 [Overpressure Valve] Overpressure Valve

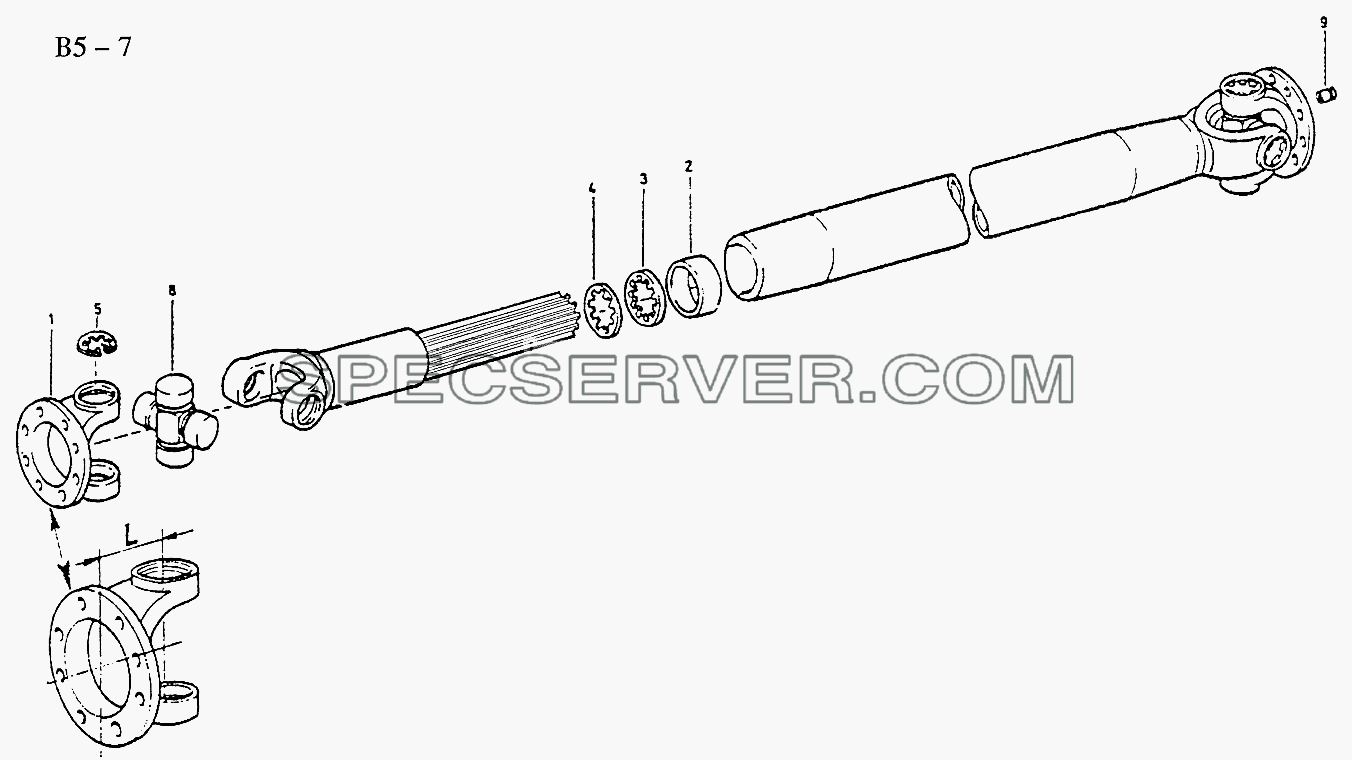

Запчасти: PROPELLER SHAFTS Propeller Shaft with Spider D.Ф57 (B5-7-2) для Sinotruk 4x2 Tractor (371)

PROPELLER SHAFTS Propeller Shaft with Spider D.Ф57 (B5-7-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

PROPELLER SHAFTS Propeller Shaft with Spider D.Ф57 (B5-7-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 19036311062 [Ф165 Planar flange] Ф165 Planar flange
1 AZ9114311062 [Ф180 Planar flange] Ф180 Planar flange
1 AZ9136311062 [Ф165 Toothed flange] Ф165 Toothed flange
2 19036311024 [Scraper] Scraper
3 19036311023 [Washer] Washer
4 19036311022 [Gasket] Gasket
5 19036311063 [Circlip] Circlip
5 19036311064 [Circlip] Circlip
5 19036311065 [Circlip] Circlip
5 19036311066 [Circlip] Circlip
5 19036311067 [Circlip] Circlip
8 19036311080 [Gimbal] Gimbal
9 26013311098 [Overpressure Valve] Overpressure Valve
Запчасти: PROPELLER SHAFTS Propeller Shaft with Spider D.Ф62 (B5-7-3) для Sinotruk 4x2 Tractor (371)

PROPELLER SHAFTS Propeller Shaft with Spider D.Ф62 (B5-7-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

PROPELLER SHAFTS Propeller Shaft with Spider D.Ф62 (B5-7-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9115311010 [Ф180 Toothed flange] Ф180 Toothed flange
2 AZ9115311055 [Scraper] Scraper
3 AZ9115311053 [Washer] Washer
4 AZ9115311052 [Gasket] Gasket
5 AZ9115311063 [Circlip] Circlip
5 AZ9115311064 [Circlip] Circlip
5 AZ9115311065 [Circlip] Circlip
5 AZ9115311066 [Circlip] Circlip
5 AZ9115311067 [Circlip] Circlip
8 AZ9115311060 [Gimbal] Gimbal
9 26013311098 [Overpressure Valve] Overpressure Valve

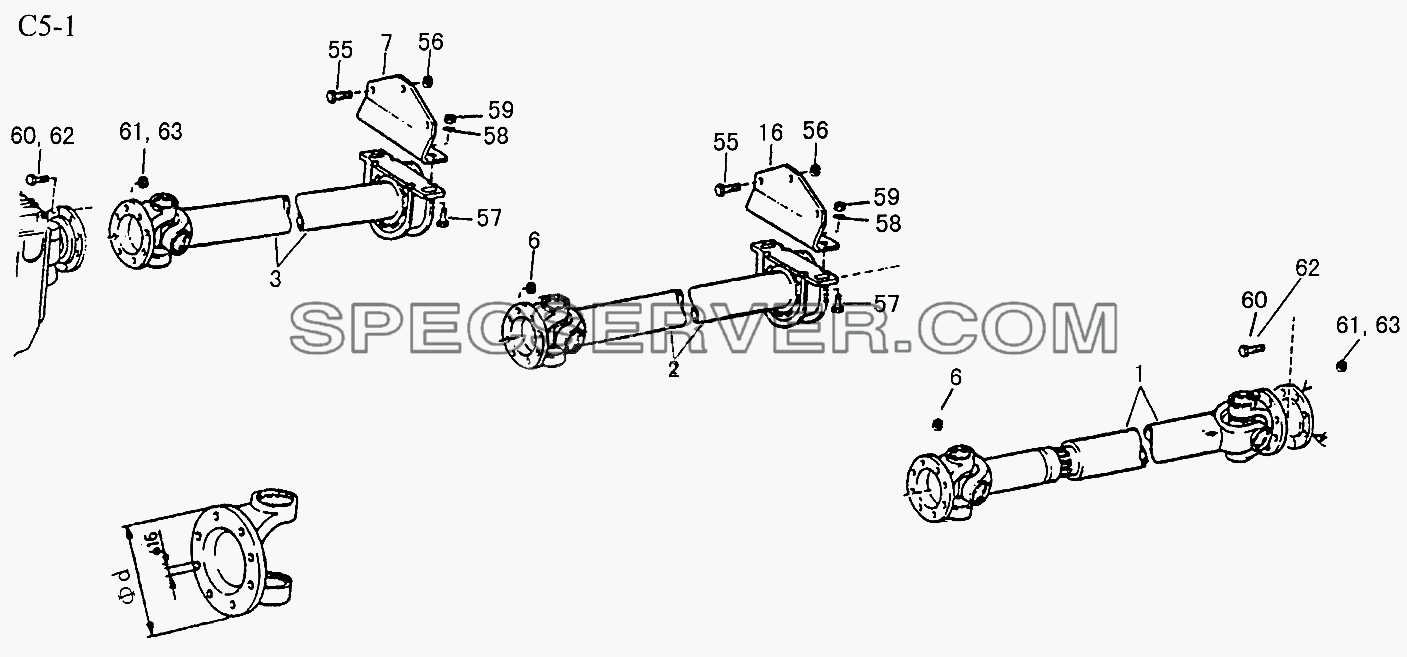

Запчасти: 4x2, 6x2 PROPELLER SHAFTS (C5-1) для Sinotruk 4x2 Tractor (371)

4x2, 6x2 PROPELLER SHAFTS (C5-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2, 6x2 PROPELLER SHAFTS (C5-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
55 Q151C1230 [Screw] Screw
56 190003888457 [Nut] Nut
57 Q151B1440 [Screw] Screw
58 Q40114 [Washer] Washer
59 190003888458 [Nut] Nut
60 WG9000310049 [Screw] Screw
61 190003888459 [Nut] Nut
62 Q151C1245 [Screw] Screw
63 190003888457 [Nut] Nut
Запчасти: PROPELLER SHAFTS Ф52 Propeller shaft with spider (C5-3-1) для Sinotruk 4x2 Tractor (371)

PROPELLER SHAFTS Ф52 Propeller shaft with spider (C5-3-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

PROPELLER SHAFTS Ф52 Propeller shaft with spider (C5-3-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 26013314062 [Ф165 Plane Flange] Ф165 Plane Flange
2 26013315024 [Scraper] Scraper
2 AZ9113314062 [Ф165 toothed flange] Ф165 toothed flange
3 26013315023 [Gasket] Gasket
4 26013314022 [Spacer] Spacer
5 26013314063 [Circlip] Circlip
5 26013314064 [Circlip] Circlip
5 26013314065 [Circlip] Circlip
5 26013314066 [Circlip] Circlip
5 26013314068 [Circlip] Circlip
8 26013314080 [Spider] Spider
9 26013314098 [Overpressure Valve] Overpressure Valve
Запчасти: PROPELLER SHAFTS Ф57 Propeller shaft with spider (C5-3-2) для Sinotruk 4x2 Tractor (371)

PROPELLER SHAFTS Ф57 Propeller shaft with spider (C5-3-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

PROPELLER SHAFTS Ф57 Propeller shaft with spider (C5-3-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 19036311062 [Ф165 Plane Flange] Ф165 Plane Flange
1 AZ9114311062 [Ф180 Plane Flange] Ф180 Plane Flange
1 AZ9136311062 [Ф165 toothed flange] Ф165 toothed flange
2 19036311024 [Scraper] Scraper
3 19036311023 [Gasket] Gasket
4 19036311022 [Spacer] Spacer
5 1903611063 [Circlip] Circlip
5 19036311064 [Circlip] Circlip
5 19036311065 [Circlip] Circlip
5 19036311066 [Circlip] Circlip
5 19036311067 [Circlip] Circlip
8 1903611080 [Spider] Spider
9 26013311098 [Overpressure Valve] Overpressure Valve
