№		Номер детали	Наименование запчасти
1		614 090067 [Temperature sensor (warning)]	Temperature sensor (warning)
2		61500090029 [Starter]	Starter
3		61200090043 [Altenator]	Altenator
4		61500090051 [Oil pressure sensor]	Oil pressure sensor
5		614 090058 [Fan washer]	Fan washer
6		61500090004 [Belt pulley]	Belt pulley
7		61500090010 [Sheet]	Sheet
9		61500090018 [Screw]	Screw
11		61500090011 [Distance piece]	Distance piece
12		61500090065 [V-belt]	V-belt
13		614 090050 [Connecting terminal]	Connecting terminal
16		90003888452 [Nut]	Nut
17		160A.13.35 [Sealing ring]	Sealing ring
18		90003800571 [Screw]	Screw
19		90003800564 [Screw]	Screw
22		90003871305 [Nut]	Nut
23		90003935125 [Gasket]	Gasket
24		90003932025 [Spring washer]	Spring washer
25		90003098014 [Gasket]	Gasket

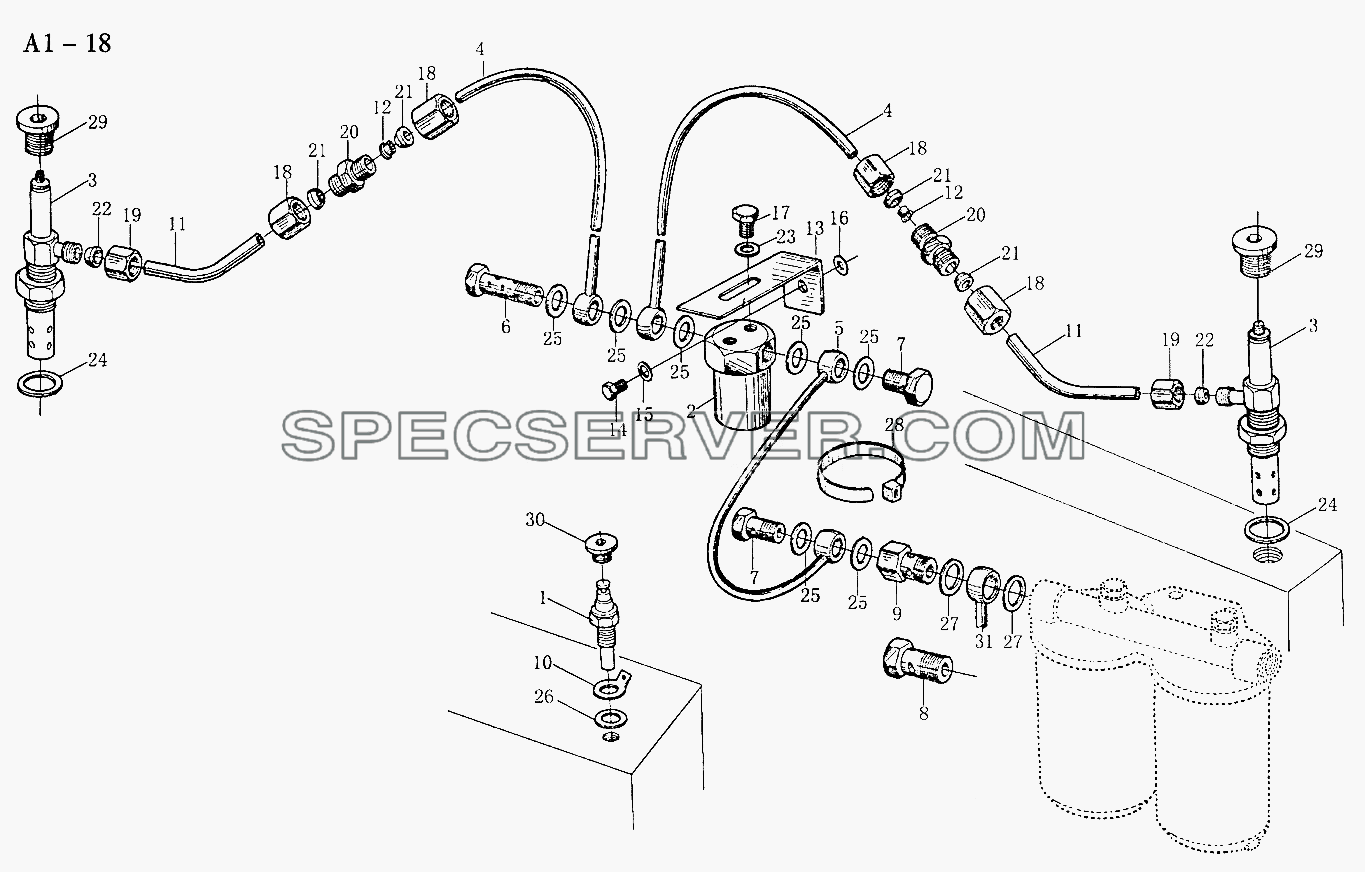

WD615 FLAME STARTTING SYSTEM (A1-18) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ1500090132 [Temperature sensor]	Temperature sensor
2		61200090163 [Solenoid valve]	Solenoid valve
3		61200090162 [Flamespark plug]	Flamespark plug
4		61560080154 [Fuel pipe]	Fuel pipe
5		61200080159 [Fuel pipe]	Fuel pipe
6		81560080212 [Fluid passage screw]	Fluid passage screw
7		90003962607 [Fluid passage screw]	Fluid passage screw
8		90003962621 [Fluid passage screw]	Fluid passage screw
9		609E110070 [Connection screw]	Connection screw
10		79000770116 [Blade terminal]	Blade terminal
11		81560080327 [Pipe]	Pipe
12		99014280016 [Plug-insleeve]	Plug-insleeve
13		99012360441 [Angle]	Angle
14		90003802415 [Hex.head screw]	Hex.head screw
15		90003932023 [Spring washer]	Spring washer
16		9c003930261 [Washer]	Washer
17		900D3802307 [Hex.head screw]	Hex.head screw
18		90003559516 [Union nut]	Union nut
19		90030559506 [Union nut]	Union nut
20		90003559462 [Adaptor]	Adaptor
21		90003559561 [Taper bush]	Taper bush
22		90003559557 [Taper bush]	Taper bush
23		90003931082 [Spring lock washer]	Spring lock washer
24		90003098029 [Sealing ring]	Sealing ring
25		90003098010 [Sealing ring]	Sealing ring
26		90003098010 [Sealing ring]	Sealing ring
27		90003098015 [Sealing ring]	Sealing ring
28		90003171697 [Wire fastener]	Wire fastener
29		90003960005 [Thread plug]	Thread plug
30		90003962014 [Hex.head screw]	Hex.head screw
31		AZ1500080155 [Hose]	Hose

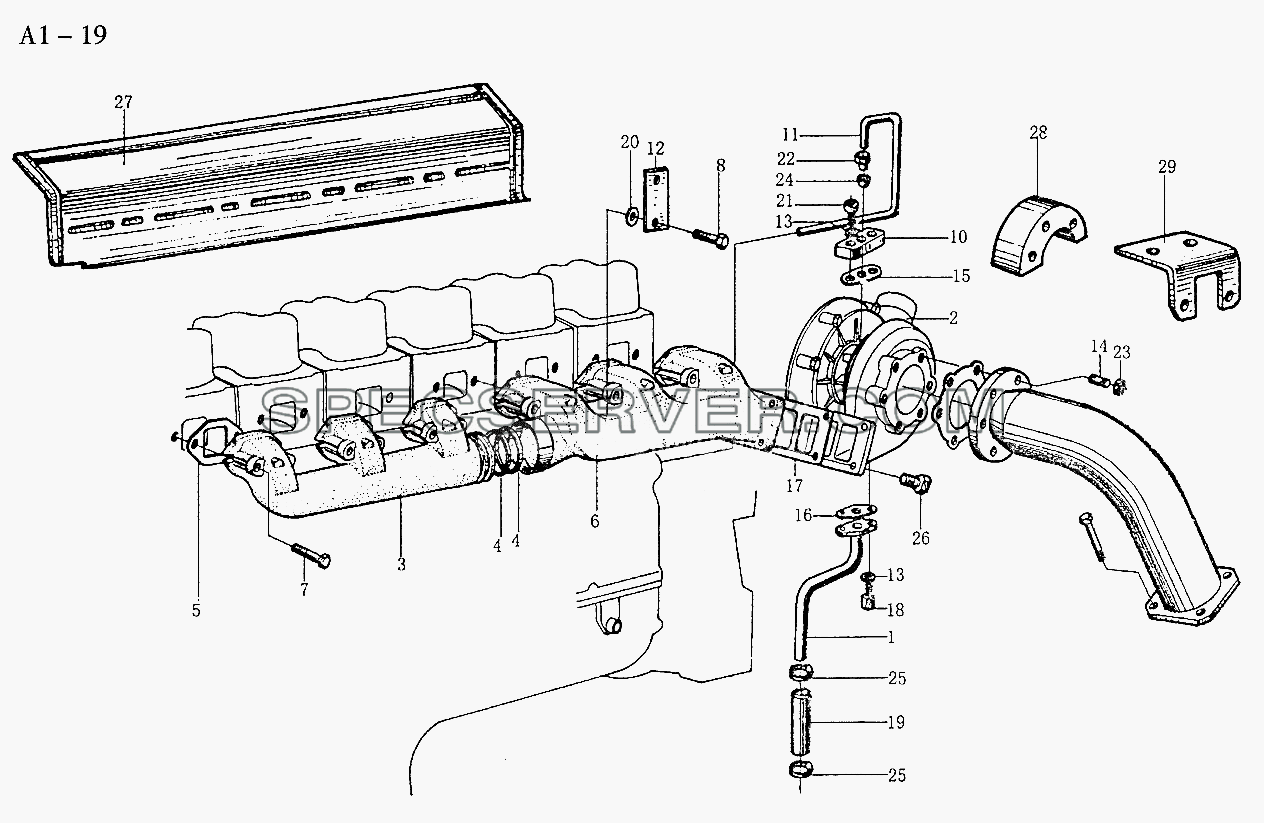

WD615 EXHAUST MANIFOLD (A1-19) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		612600110361 [Oil pipe]	Oil pipe
2		612600113227 [Turbochager]	Turbochager
3		61560110120 [Exhaust manifold front]	Exhaust manifold front
4		61260110162 [Ring]	Ring
5		61560110111 [Gasket]	Gasket
6		61560110222 [Exhaust manifold rear]	Exhaust manifold rear
7		61560110104 [Screw]	Screw
8		61560110105 [Screw]	Screw
10		81560110152 [Joint]	Joint
11		61560070001 [Pipe]	Pipe
12		99974200 [Extension bar]	Extension bar
13		188 250083 [Circlip]	Circlip
14		81560110187 [Stud]	Stud
15		609E110050 [Joint]	Joint
16		61260110048 [Joint]	Joint
17		61560110210 [Joint]	Joint
18		61460070014 [Screw]	Screw
19		612600070071 [Hose]	Hose
20		609 070067 [Flat washer]	Flat washer
21		90003862428 [Screw]	Screw
22		90003559513 [Ring]	Ring
23		90003888470 [Nut]	Nut
24		90003559563 [Ring]	Ring
25		90003989340 [Clamp]	Clamp
26		61560110241 [Bolt]	Bolt

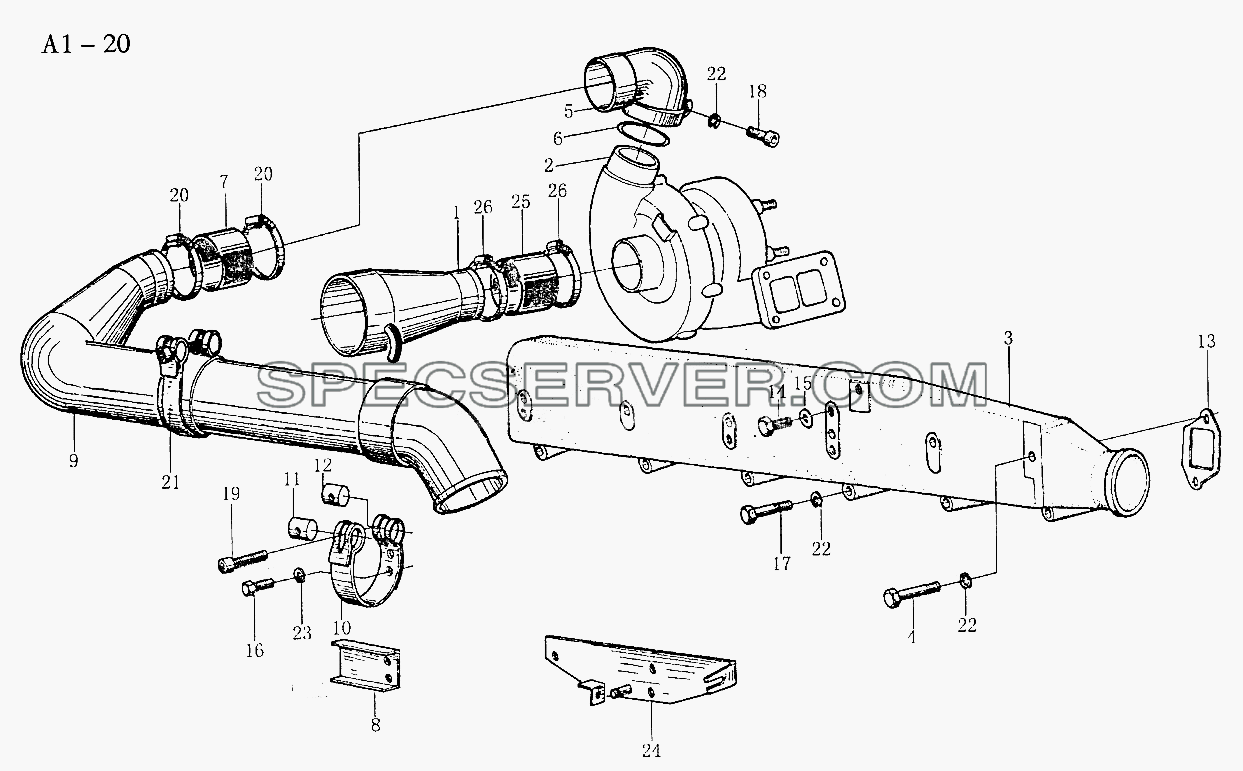

WD615 AIR INTAKE MANIFOLD (A1-20) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		61560110226 [Ciip]	Ciip
-		90003800497 [Screw]	Screw
-		90003802411 [Screw]	Screw
-		90003989318 [Clamp]	Clamp
1		612600110505 [Funnel]	Funnel
2		615600116227 [Turbochager]	Turbochager
3		61560110131 [Airintake manifold]	Airintake manifold
4		614 110064 [Ltexagon bolt]	Hexagon bolt
5		61560110165 [Connecting pipe]	Connecting pipe
6		190 320035 [Glip]	Clip
7		612600110824 [Hose]	Hose
8		61560110072 [Lashing]	Lashing
9		61560110051 [Pipe]	Pipe
10		61560110021 [Strap]	Strap
11		209 190017 [Bolt]	Bolt
12		1700550013 [Bolt]	Bolt
13		61500110024 [Joint]	Joint
14		90003962014 [Hex.head screw plug]	Hex.head screw plug
15		90003098010 [Sealing ring]	Sealing ring
16		90003802415 [Screw]	Screw
17		90003800465 [Screw]	Screw
18		90003862443 [Screw]	Screw
19		90003862462 [Screw]	Screw
20		90003989312 [Clamp]	Clamp
21		90003862456 [Screw]	Screw
22		90003932023 [Spring washer]	Spring washer
23		609E110036 [Washer]	Washer
24		99100570015 [Bracket]	Bracket
25		81560110220 [Hose]	Hose
26		90003989312 [Clamp]	Clamp

WD615 AIR COMPRESSOR (A1-21) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		612600130047 [Bush]	Bush
-		612600130048 [Shaft]	Shaft
-		61500080158 [Bearing]	Bearing
-		90003320154 [Rolling bearing]	Rolling bearing
1		AZ1560130070 [Air compressor]	Air compressor
2		AZ1560130063 [Housing]	Housing
4		90003070092 [Oil seal]	Oil seal
5		609 070161 [Flat washer shaft]	Flat washer shaft
6		90003802561 [Hex head bolt]	Hex head bolt
7		AZ1560130064 [Gear]	Gear
11		61500080167 [Shaft C]	Shaft C
12		61500130080 [Gasket]	Gasket
13		61500080165 [Cover]	Cover
14		90003802432 [Hex head bolt]	Hex head bolt
15		90003802438 [Hex head bolt]	Hex head bolt
16		90003800569 [Hex head bolt]	Hex head bolt
17		90003802411 [Hex head bolt]	Hex head bolt
18		90003802419 [Hexagon bolt]	Hexagon bolt
19		612600130001 [Hex head nut]	Hex head nut
20		90003932023 [Curved or wave]	Curved or wave
21		61500080130 [Pack ring]	Pack ring
22		90003930261 [Washer]	Washer
23		61560130012 [Gear]	Gear
24		409020045 [Joint]	Joint
25		612600130001 [Hex head nut]	Hex head nut
26		612600130046 [Lock nut]	Lock nut
27		61500130097 [Oil seal seat]	Oil seal seat
28		90003802415 [Hex head bolt]	Hex head bolt
29		192320002 [Gasket]	Gasket
30		612600130073 [Plate]	Plate

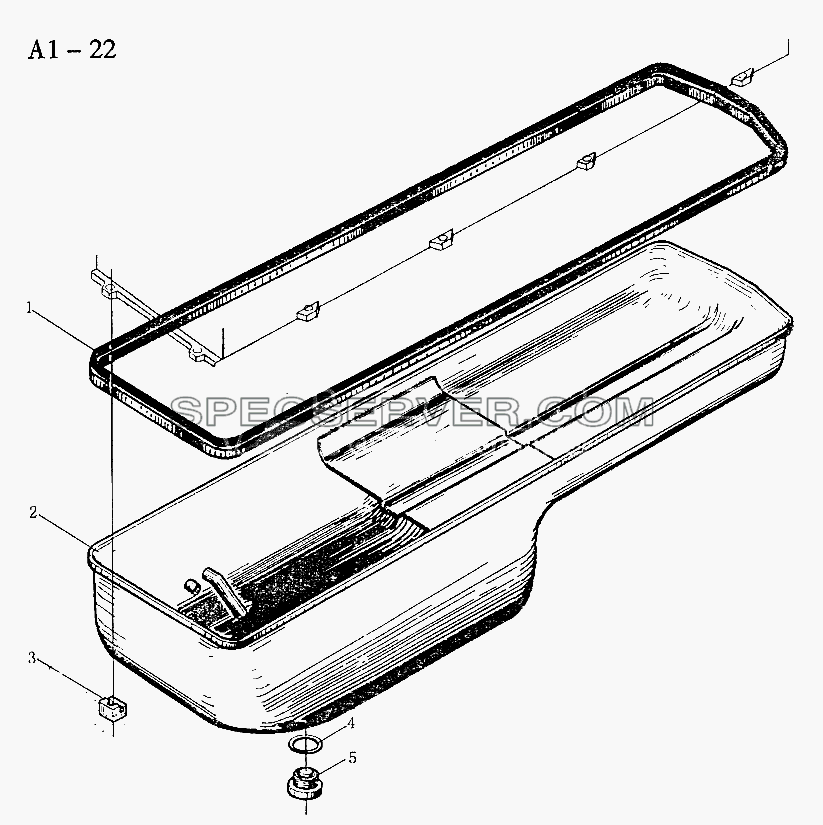

WD615 OIL PAN (A1-22) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		614 150004 [Seal]	Seal
2		61200150104 [Oil pan]	Oil pan
2		61800150015 [Oil pan]	Oil pan
3		614 150046 [Retainer]	Retainer
4		90003930261 [Washer]	Washer
5		90003802442 [Hex.head screw]	Hex.head screw
6		612600150106 [Gasket]	Gasket
7		612600150108 [Thread plug]	Thread plug
