Запчасти: TOOL BOX FOR LONG AND HIGH-ROOF CAB (C12-36) для Sinotruk 4x2 Tractor (371)

TOOL BOX FOR LONG AND HIGH-ROOF CAB (C12-36) для Sinotruk 4x2 Tractor (371) (список запасных частей)

TOOL BOX FOR LONG AND HIGH-ROOF CAB (C12-36) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG1642270006 [Cover for top window] Cover for top window
2 WG1642290002 [Hinge] Hinge
3 Q1840612 [Screw] Screw
4 WG1642290005 [Locking pin] Locking pin
5 Q2100612 [Screw] Screw
6 Q218B0616 [Screw] Screw
7 Q68108 [Clamp] Clamp
8 WG1642290003 [Lock of tool box] Lock of tool box
9 WG1642290004 [Pad] Pad
10 WG1642290006 [Sealing strip] Sealing strip

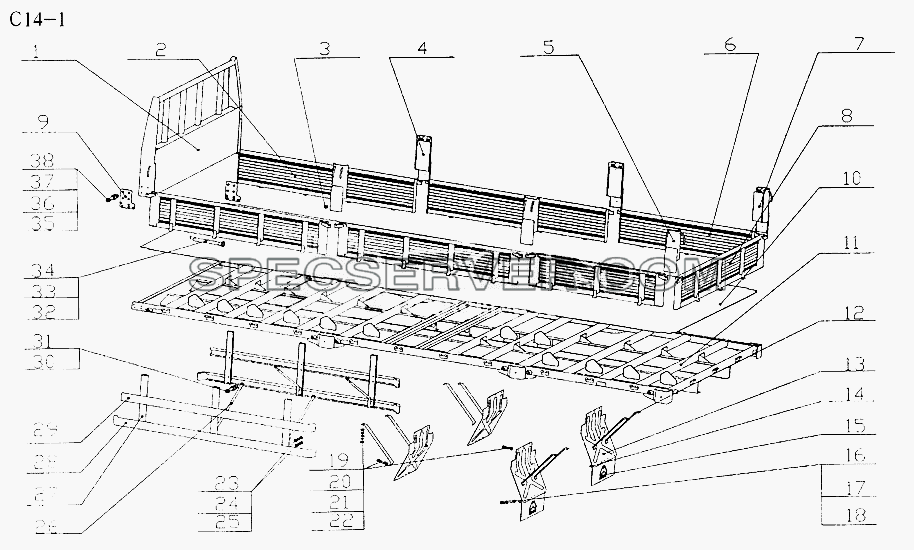

Запчасти: CARGO BODY (C14-1) для Sinotruk 4x2 Tractor (371)

CARGO BODY (C14-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

CARGO BODY (C14-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 CZ9114505220 [Front board] Front board
2 DZ9725500115 [Side board] Side board
3 Q2140612 [Screw] Screw
4 CZ9114505230 [Middle strut] Middle strut
5 CZ9114505233 [Rear strut left] Rear strut left
6 CZ9725500117 [Side board] Side board
7 CZ9114505234 [Rear strut right] Rear strut right
8 DZ9725500119 [Rear board] Rear board
9 17017500021 [Connecting plate] Connecting plate
10 AZ9725500202 [Bottom board] Bottom board
11 DZ9725500101 [Frame] Frame
12 17017950004 [Support] Support
13 11600950004 [Rear mudguard] Rear mudguard
14 17017950006 [Strap] Strap
15 11600950003 [Rubber madguard] Rubber madguard
16 Q150B0620 [Screw] Screw
17 Q340B06 [Nut] Nut
18 Q40306 [Spring washer] Spring washer
19 Q150B0822 [Screw] Screw
20 Q340B08 [Nut] Nut
21 Q40108 [Washer] Washer
22 Q40308 [Spring washer] Spring washer
23 Q340B08 [Nut] Nut
24 Q40108 [Washer] Washer
25 Q40308 [Spring washer] Spring washer
26 AZ9725990201 [Support] Support
27 AZ9114992007 [Bar] Bar
28 AZ9114992005 [Side protector] Side protector
29 AZ9114992003 [Side protector] Side protector
30 Q150B1230 [Screw] Screw
31 Q33212 [Nut] Nut
32 Q51016115 [Bolt] Bolt
33 Q40116 [Washer] Washer
34 Q5004020 [Split pin] Split pin
35 Q150B1435 [Screw] Screw
36 Q340B14 [Nut] Nut
37 Q40114 [Washer] Washer
38 Q40314 [Spring washer] Spring washer

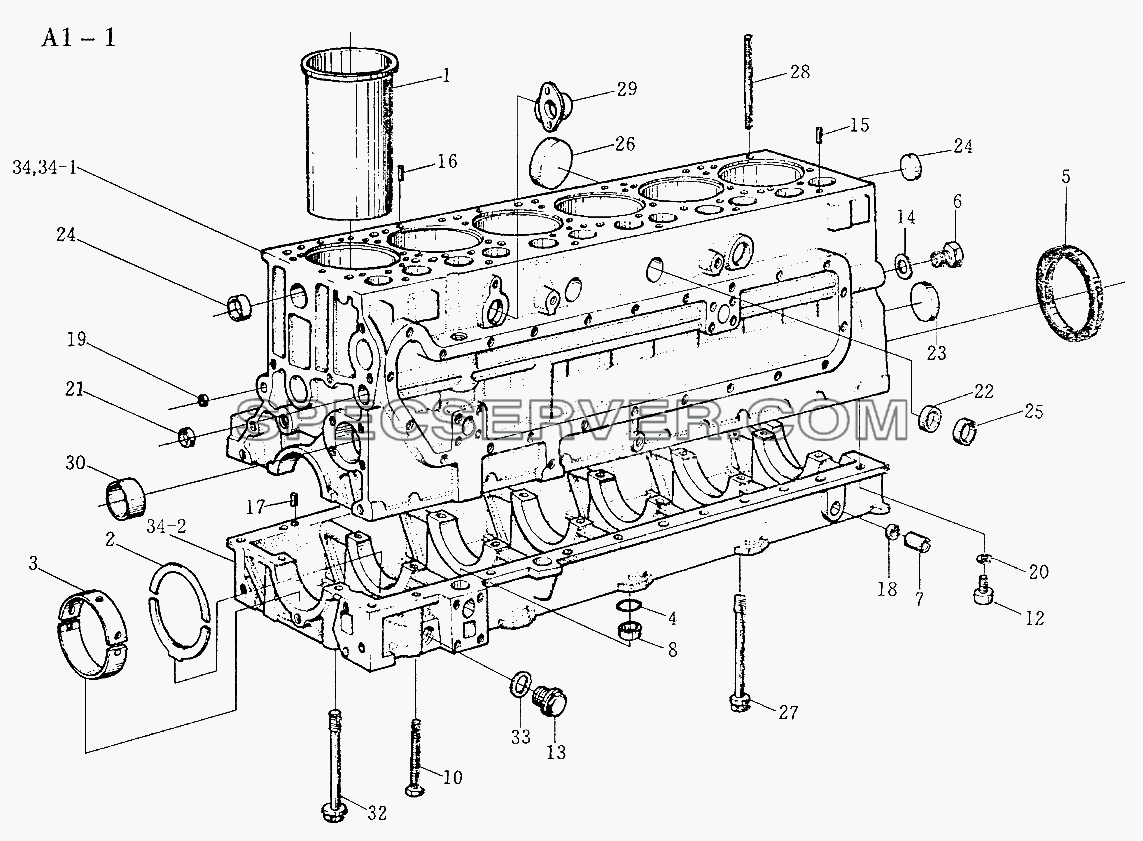

Запчасти: WD615 CRANK CASE (A1-1) для Sinotruk 4x2 Tractor (371)

WD615 CRANK CASE (A1-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

WD615 CRANK CASE (A1-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 61560010095B [Crank case] Crank case
- 61560010109 [Crank case] Crank case
- WD615.47 [371ps engine] 371ps engine
- WD615.62 [266ps engine] 266ps engine
- WD615.69 [336ps engine] 336ps engine
- WD615.87 [290ps engine] 290ps engine
1 61500010344 [Liner] Liner
2 81500010125 [Stop washer] Stop washer
3 81500010046 [Shell pin] Shell pin
4 614 010134 [Gasket] Gasket
5 61500010100 [Gasket rear] Gasket rear
6 61460070011 [Screw] Screw
7 612600070083 [Pipe] Pipe
8 614 010120 [Sleeve] Sleeve
10 90003802493 [Screw] Screw
12 90003862428 [Screw] Screw
13 90003962050 [Screw] Screw
14 90003098086 [Joint] Joint
15 90003901604 [Dowel pin] Dowel pin
16 90003909626 [Dowel pin] Dowel pin
17 90003901604A [Dowel pin] Dowel pin
19 90003989480 [Corehole plug] Corehole plug
20 188 250083 [Circlip] Circlip
21 90003989204 [Corehole plug] Corehole plug
22 90003989289 [Corehole plug] Corehole plug
23 90003989288 [Corehole plug] Corehole plug
24 90003982121 [Corehole plug] Corehole plug
25 90003989215 [Corehole plug] Corehole plug
26 90003989210 [Corehole plug] Corehole plug
27 614 010217 [Screw] Screw
28 61500010185 [Stud] Stud
29 614 010279 [Elbowconnector] Elbowconnector
30 61560010029 [Bush] Bush
32 614 010114 [Screw] Screw
33 90003098086 [Joint] Joint
34 61560010097A [Crank case assembly] Crank case assembly

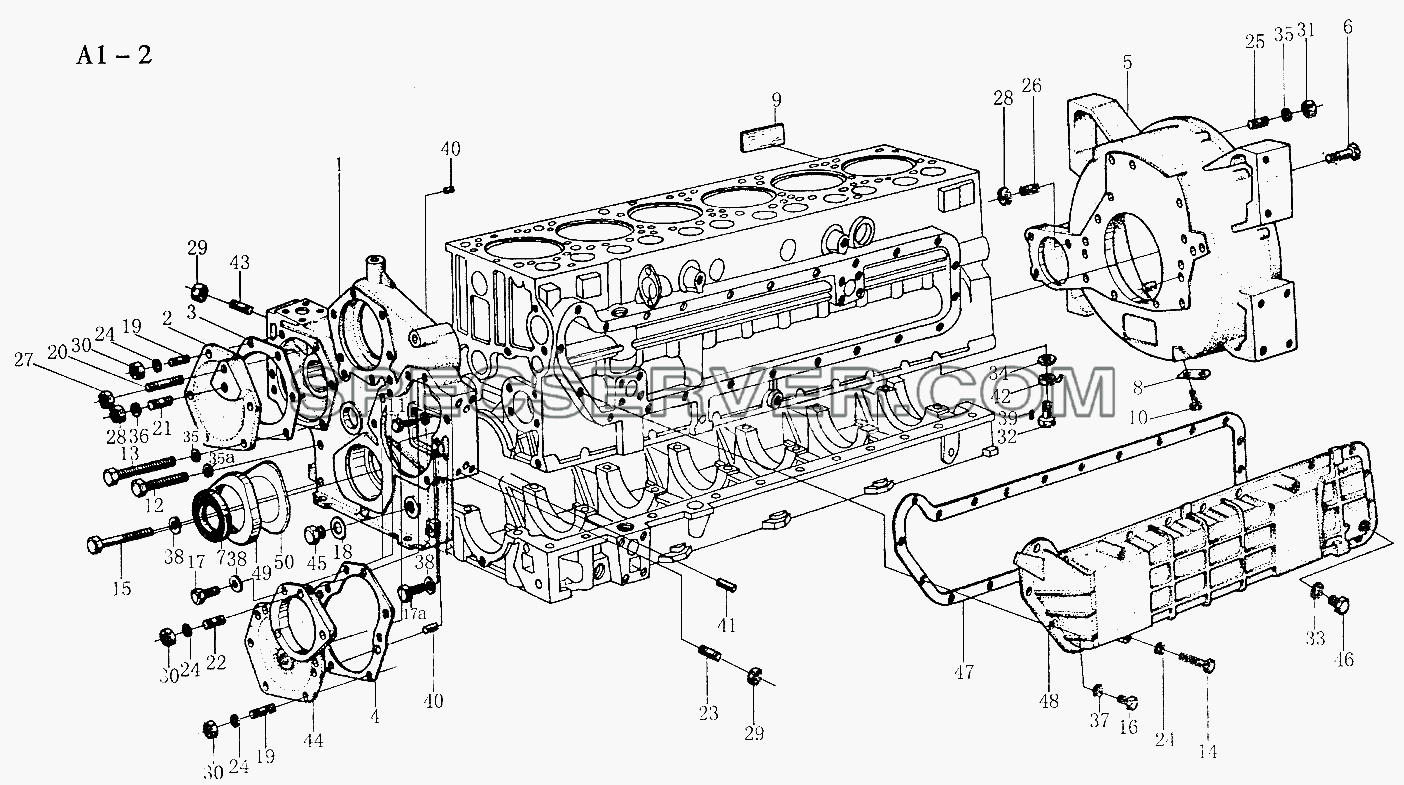

WD615 GEAR CASE, FLYWHEEL HOUSING (A1-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

WD615 GEAR CASE, FLYWHEEL HOUSING (A1-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

WD615 GEAR CASE, FLYWHEEL HOUSING (A1-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 90003862532 [Screw] Screw
- 90003931122 [Screw] Screw
1 61560010094B [Gear case] Gear case
2 61560010069 [Cover] Cover
3 614 010040 [Joint] Joint
4 614 010070 [Joint] Joint
5 61500010012 [Flywheel housing] Flywheel housing
6 61500010101 [Screw] Screw
7 61500010037 [Gasket front] Gasket front
8 1800210011 [Cover] Cover
9 612600010193 [Plaque] Plaque
10 90003802511 [Screw] Screw
11 90003802523 [Screw] Screw
12 90003802561 [Screw] Screw
13 90003802576 [Screw] Screw
14 90003800458 [Screw] Screw
15 90003800571 [Screw] Screw
16 90003802424 [Screw] Screw
18 90003098086 [Joint] Joint
19 90003813429 [Gear case] Gear case
20 90003813470 [Gear case] Gear case
21 90003811531 [Cover] Cover
22 90003813443 [Cover] Cover
23 90003813628 [Joint] Joint
24 90003932023 [Joint] Joint
25 90003813537 [Flywheel housing] Flywheel housing
26 90003813527 [Flywheel housing] Flywheel housing
27 90003888451 [Screw] Screw
28 90003888452 [Screw] Screw
29 90003888453 [Gasket] Gasket
30 90003871252 [Gasket] Gasket
31 90003871305 [Gasket] Gasket
32 90003962621 [Cover] Cover
33 90003098014 [Plaque] Plaque
34 90003098015 [Screw] Screw
36 90003930012 [Screw] Screw
37 90003930271 [Screw] Screw
38 90003932025 [Screw] Screw
39 90003909603 [Screw] Screw
40 90003901507 [Screw] Screw
41 90003901604 [Screw] Screw
42 61560010047 [Joint] Joint
42 61560010090 [Spraying nozzle] Spraying nozzle
43 90003813638 [Stud] Stud
44 61500010008A [Cover] Cover
45 90003962051 [Screw] Screw
46 90003962020 [Screw] Screw
47 614010084B [Joint] Joint
48 614010083B [Cover] Cover
49 AZ1500010336A [Front oil seal seat] Front oil seal seat
50 614010106A [Shim] Shim
51 90003862327 [Screw] Screw

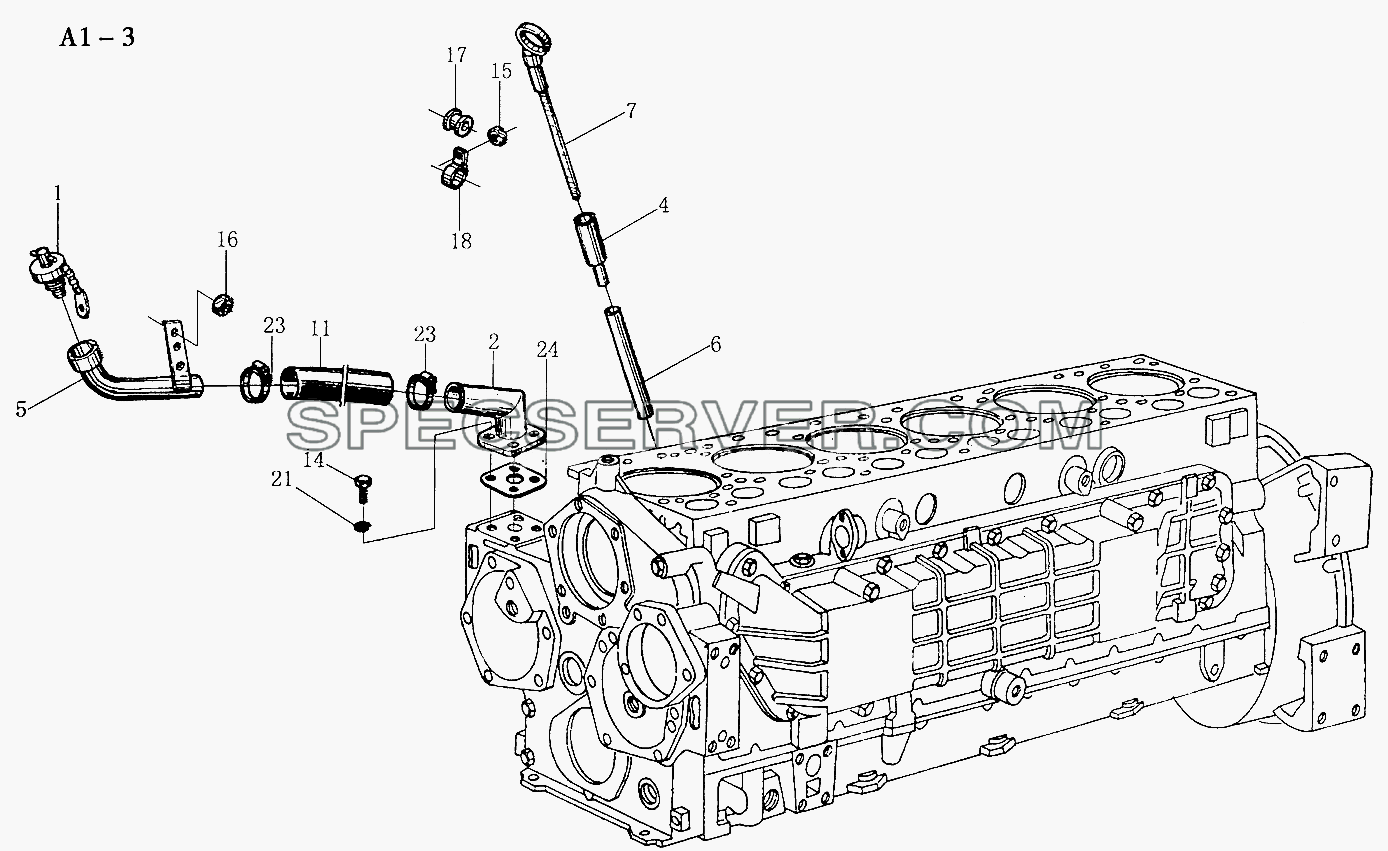

WD615 OIL FILLING PIPE (A1-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

WD615 OIL FILLING PIPE (A1-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

WD615 OIL FILLING PIPE (A1-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 612600010489 [Cover] Cover
2 61560010028 [Filler neck] Filler neck
5 612600010522 [Nozzle] Nozzle
11 61500010079 [Hose] Hose
14 90003802321 [Screw] Screw
16 90003888451 [Nut] Nut
21 90003931082 [Spring washer] Spring washer
23 90003989306 [Hose clamp] Hose clamp
24 614 010086 [Joint] Joint
25 612600010532 [Oil dipstick] Oil dipstick
25 612600010554 [Oil dipstick] Oil dipstick
26 612600010533 [Jauge] Jauge
26 61800010331 [Jauge] Jauge
27 612600010557 [Nozzle] Nozzle
27 61800010334 [Nozzle] Nozzle
28 612600010638 [Clamp] Clamp
29 612600010647 [Clamp] Clamp
30 90003802411 [Screw] Screw
31 612600010609 [Strut block] Strut block
31 612600010616 [Strut block] Strut block

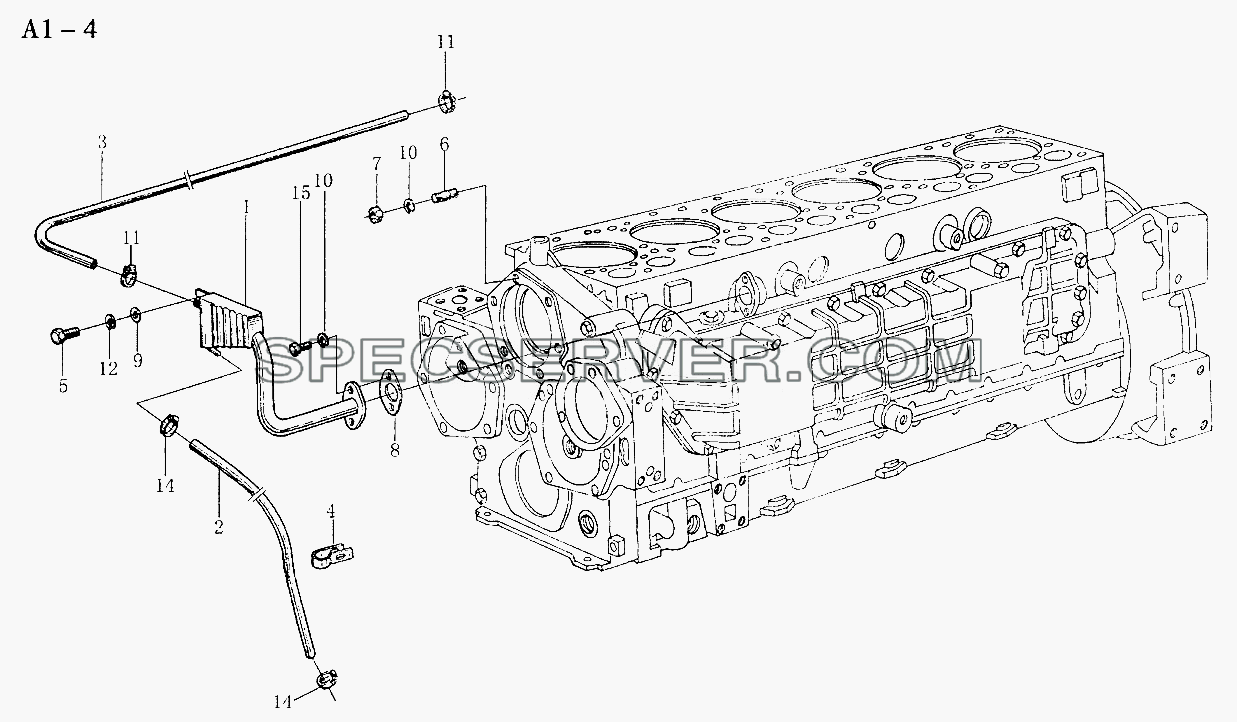

WD615 OIL SEPARATOR (A1-4) для Sinotruk 4x2 Tractor (371) (список запасных частей)

WD615 OIL SEPARATOR (A1-4) для Sinotruk 4x2 Tractor (371) (список запасных частей)

WD615 OIL SEPARATOR (A1-4) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 90003813429 [Stud] Stud
- 90003813470 [Stud] Stud
1 612600010267 [Oil Separator] Oil Separator
2 61500010174 [Hose] Hose
3 612G00040038 [Rubber hose] Rubber hose
4 609E110049 [Clamp] Clamp
5 90003802321 [Screw] Screw
6 90003813447 [Stud] Stud
7 90003871252 [Nut] Nut
8 90003009303 [Joint] Joint
9 90003936101 [J0int] Joint
10 90003932023 [Spring washer] Spring washer
11 90003989336 [Hose clamp] Hose clamp
12 90003931082 [Spring washer] Spring washer
13 90003179784 [Thermoplastic tubing] Thermoplastic tubing
14 90003989336 [Hose clamp] Hose clamp
15 90003862427 [Screw] Screw
