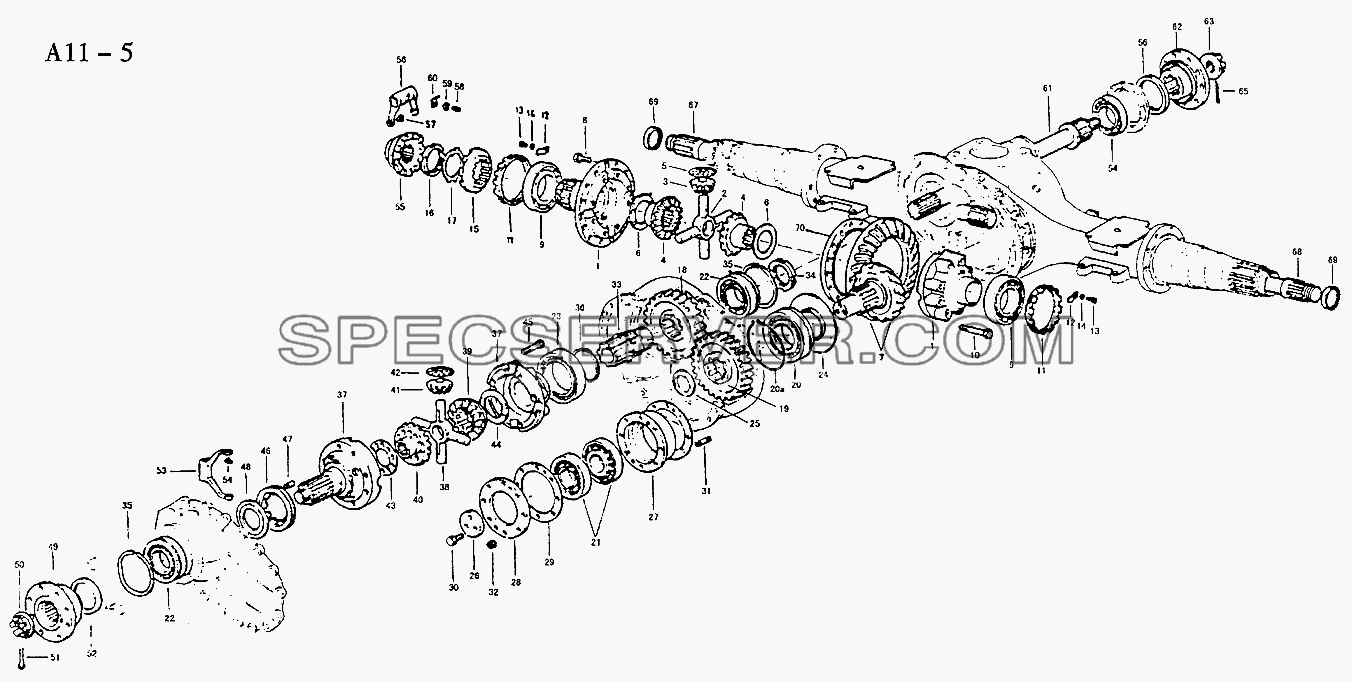

Запчасти: FIRST REAR AXLE DRIVE (A11-5) для Sinotruck (полного)

FIRST REAR AXLE DRIVE (A11-5) для Sinotruck (полного) (список запасных частей)

FIRST REAR AXLE DRIVE (A11-5) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

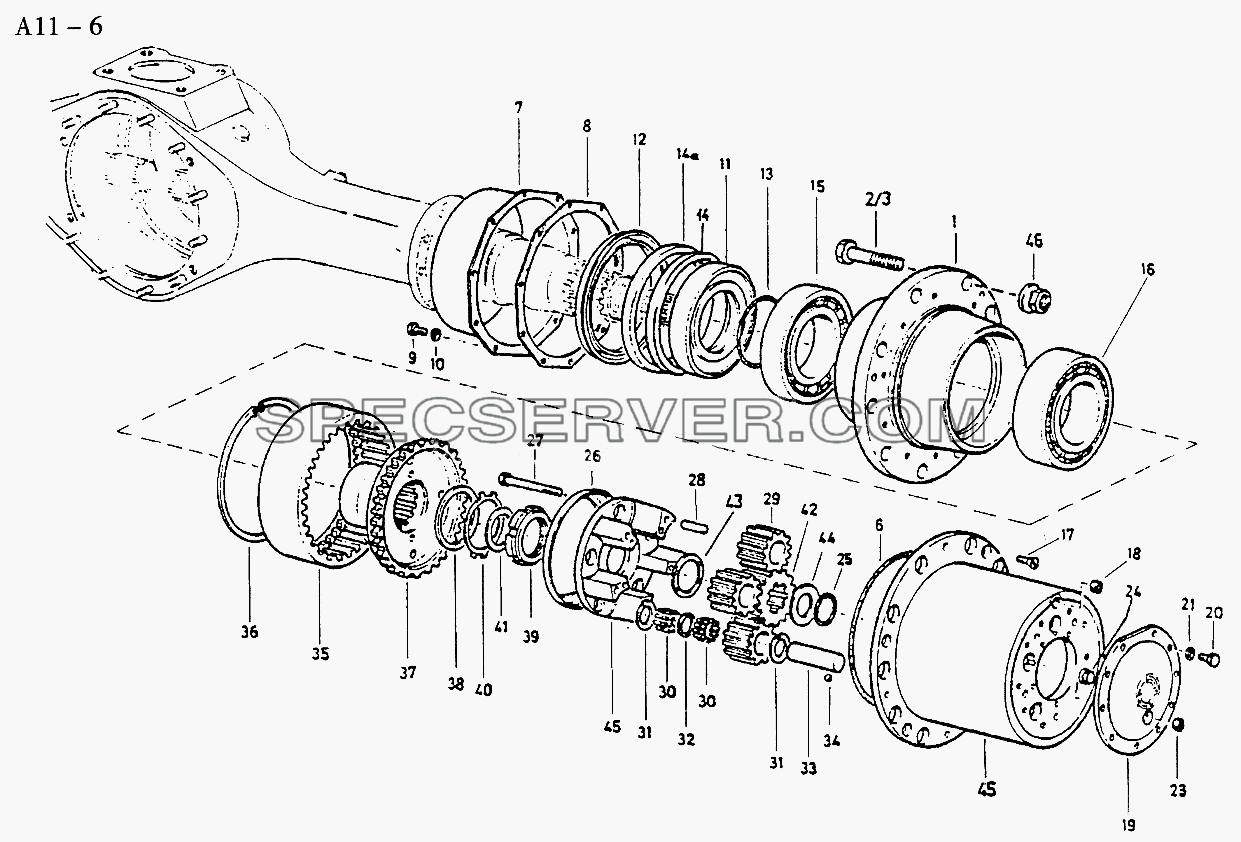

PLANETARY DRIVE (A11-6) для Sinotruck (полного) (список запасных частей)

PLANETARY DRIVE (A11-6) для Sinotruck (полного) (список запасных частей)

PLANETARY DRIVE (A11-6) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 199014320219 [First Rear axle drive] First Rear axle drive
- 199014320256 [Snap ring] Snap ring
- 199014320265 [First Rear axle drive] First Rear axle drive
- 199114320003 [First Rear axle drive] First Rear axle drive
- 199114320004 [First Rear axle drive] First Rear axle drive
- AZ9114320002 [Locking sheet] Locking sheet
- AZ9114320017 [First Rear axle drive] First Rear axle drive
- AZ9114320214 [First Rear axle drive] First Rear axle drive
- AZ9114320215 [First Rear axle drive] First Rear axle drive
- AZ9114320226 [First Rear axle drive] First Rear axle drive
- AZ9114320231 [First Rear axle drive] First Rear axle drive
- AZ9114320264 [First Rear axle drive] First Rear axle drive
- AZ9114322010 [First Rear axle drive] First Rear axle drive
- AZ9231320003 [First Rear axle drive] First Rear axle drive
- AZ9231320004 [First Rear axle drive] First Rear axle drive
- AZ9231320215 [First Rear axle drive] First Rear axle drive
- AZ9231320216 [First Rear axle drive] First Rear axle drive
- AZ9631320211 [First Rear axle drive] First Rear axle drive
- WG9004320003 [Locking sheet] Locking sheet
1 199014320165 [Diff.housing] Diff.housing
2 199014320091 [Diff.spider] Diff.spider
3 199012320010 [Bevel pinion] Bevel pinion
4 199012320009 [Bevel pinion] Bevel pinion
5 199012320150 [Intermed.sheet] Intermed.sheet
6 11800320012 [Shim] Shim
6 11800320131 [Shim] Shim
6 11800320132 [Shim] Shim
6 13809320169 [Shim] Shim
6 199012320129 [Shim] Shim
7 199014320250 [Pinion and crown wheel] Pinion and crown wheel
7 199014320253 [Pinion and crown wheel] Pinion and crown wheel
7 199014320255 [Pinion and crown wheel] Pinion and crown wheel
7 AZ9004320251 [Pinion and crown wheel] Pinion and crown wheel
8 Q151B1635TF2 [Screw] Screw
9 190003326148 [Roller bearing] Roller bearing
10 Q151B1480TF2 [Screw] Screw
11 13809320159 [Screwed ring] Screwed ring
12 179000320027 [Safety clip] Safety clip
13 Q150B0816 [Screw] Screw
14 Q40308 [Spring washer] Spring washer
15 13809320155 [Shifting dog] Shifting dog
16 13809320157 [Nut] Nut
17 13809320158 [Locking sheet] Locking sheet
18 199014320136 [Drive gear] Drive gear
18 199014320209 [Drive gear] Drive gear
18 199114320002 [Drive gear] Drive gear
19 199014320137 [Driven gear] Driven gear
19 199014320208 [Driven gear] Driven gear
19 199114320001 [Driven gear] Driven gear
20 WG9014320257 [Roller bearing] Roller bearing
21 190003326333 [Roller bearing] Roller bearing
22 190003311543 [Ball bearing] Ball bearing
23 190003310239 [Ball bearing] Ball bearing
24 199014320174 [Plate] Plate
25 199014320140 [Ring] Ring
26 1780 320088 [Plate] Plate
27 199014320129 [Bearing bush] Bearing bush
28 199014320128 [Plate] Plate
29 199014320131 [Shim] Shim
29 199014320132 [Shim] Shim
29 199014320133 [Shim] Shim
29 199014320134 [Shim] Shim
30 Q150B1430TF2 [Screw] Screw
31 190003813543 [Screw] Screw
32 Q33210 [Nut] Nut
33 199014320135 [Hollow shaft] Hollow shaft
34 199012250031 [Nut] Nut
35 190003935383 [Snap ring] Snap ring
36 190003933580 [Cirlip] Cirlip
37 199014320166 [Dift.housing] Dift.housing
38 199014320091 [Dift.spider] Dift.spider
39 199014320059 [Bevel pinion (rear)] Bevel pinion (rear)
40 199114320032 [Bevel pinion (front)] Bevel pinion (front)
41 199012320010 [Bevel pinion] Bevel pinion
42 199012320150 [Intermed.washer] Intermed.washer
43 199014320067 [Shim for drive shaft gear] Shim for drive shaft gear
43 199014320068 [Front shim for drive shaft gear] Front shim for drive shaft gear
43 199014320069 [Front shim for drive shaft gear] Front shim for drive shaft gear
43 199014320070 [Front shim for drive shaft gear] Front shim for drive shaft gear
43 199014320211 [Front shim for drive shaft gear] Front shim for drive shaft gear
44 199014320071 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320072 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320073 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320074 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320210 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
45 Q151B1480TF2 [Screw] Screw
46 1228 320105 [Locking ring] Locking ring
47 1228 320106 [Pin] Pin
48 199014320061 [Washer for diff.housing] Washer for diff.housing
49 190014320261 [Ф180 Plane flange] Ф180 Plane flange
49 199012320110 [Ф165 Plane flange] Ф165 Plane flange
49 AZ9114320205 [Ф165 Toothed flange] Ф165 Toothed flange
49 AZ9128320014 [Ф180 Toothed flange] Ф180 Toothed flange
50 179000320013 [Nut] Nut
51 Q5005055 [Split pin] Split pin
52 190003070026 [Gasket] Gasket
52 190003078722 [Gasket]






№ Номер детали Наименование запчасти
- 199012340082 [Rear wheel hub C] Rear wheel hub C
- 199112340011 [Rear wheel hub C] Rear wheel hub C
- WG9112340008 [Gear] Gear
- WG9112340114 [Gasket] Gasket
1 199012340068 [Rear wheel hub] Rear wheel hub
1 199112340009 [Rear wheel hub] Rear wheel hub
2 AZ9112340123 [Wheet bolt] Wheet bolt
3 AZ9112340123 [Wheet bolt] Wheet bolt
6 199012340029 [Gasket] Gasket
7 199012340021 [Oil drip pan] Oil drip pan
8 WG9012340020 [Gasket] Gasket
9 Q150B0816 [Screw] Screw
10 Q40308 [Spring washer] Spring washer
11 199012340019 [Spacer ring] Spacer ring
12 199012340018 [Oil drip pan] Oil drip pan
13 199012340027 [Gasket] Gasket
14 WG9112340113 [Gasket] Gasket
15 190003326067 [Roller bearing] Roller bearing
16 190003326167 [Roller bearing] Roller bearing
17 Q2541025 [Screw] Screw
18 190003961309 [Screw] Screw
19 199112340001 [Cover] Cover
20 Q150B1020Q [Screw] Screw
21 Q40310 [Spring washer] Spring washer
23 190003098026 [Gasket] Gasket
24 199012340011 [Bolt] Bolt
25 190003933351 [Circlip] Circlip
26 1880 420027 [Oil drip pan] Oil drip pan
27 Q151C1295TF2 [Screw] Screw
28 190003901704 [Cyl.pin] Cyl.pin
29 199012340122 [Bevel pinion] Bevel pinion
30 WG99-934-013 [Needle] Needle
31 199012340075 [Washer] Washer
32 199012340077 [Washer] Washer
33 199012340004 [Bolt] Bolt
34 190003330148 [Bolt] Bolt
35 199012340121 [Intermed.ring gear] Intermed.ring gear
36 WG1880420014 [Srap ring] Srap ring
37 199112340021 [Support for intermed.ring gear] Support for intermed.ring gear
38 1880 420034 [Ring] Ring
39 1680 340013 [Nut] Nut
40 1680 340015 [Securing sheet] Securing sheet
41 1680 340016 [Nut] Nut
41 1680 340017 [Shim] Shim
41 1680 340018 [Shim] Shim
41 1680 340019 [Shim] Shim
41 1680 340187 [Shim] Shim
42 199012340005 [Helical gear] Helical gear
43 199012340076 [Stop washer] Stop washer
44 1880 410097 [Washer] Washer
45 199112340029 [Planetary carrier] Planetary carrier
46 WG9003884160 [Nut] Nut

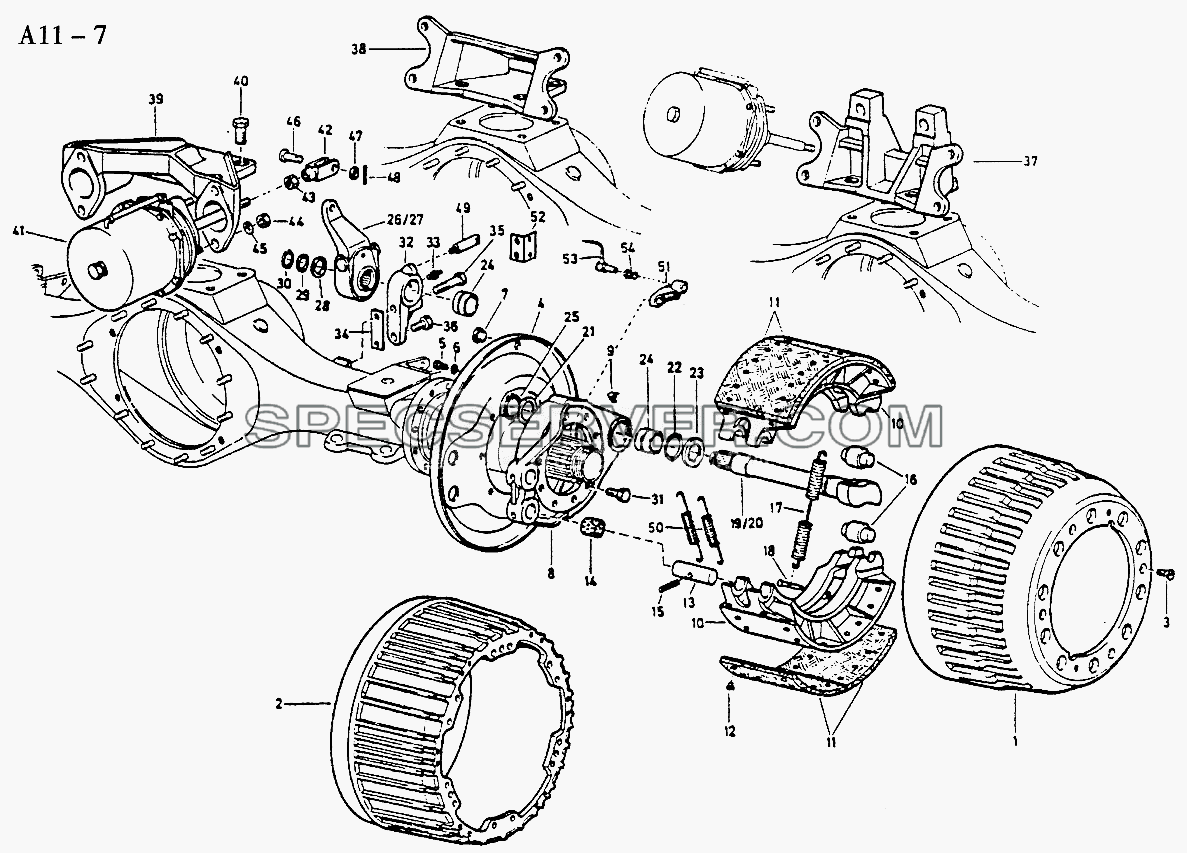

REAR BRAKE (A11-7) для Sinotruck (полного) (список запасных частей)

REAR BRAKE (A11-7) для Sinotruck (полного) (список запасных частей)

REAR BRAKE (A11-7) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 199000340070 [Brake shoe C] Brake shoe C
- 199112340028 [Brake lining] Brake lining
- AZ9100349992 [Bracket (left)] Bracket (left)
- AZ9100349993 [Bracket (right)] Bracket (right)
- AZ9112340010 [ABS/Sensor bellows] ABS/Sensor bellows
- AZ9112340056 [ABS Sensor bracket] ABS Sensor bracket
1 AZ9112340006 [Brake drum] Brake drum
3 190003825513 [Screw] Screw
4 1880 34 0018 [Brake cover] Brake cover
4 199112340012 [Brake cover] Brake cover
5 Q150B0816 [Screw] Screw
6 Q40308 [Spring washer] Spring washer
7 1880 340037 [Seal-ring] Seal-ring
8 199000340062 [Brake anchor] Brake anchor
9 199000343114 [Grease nipple] Grease nipple
10 199000340061 [Brake shoe] Brake shoe
11 WG9200340068 [Brake lining] Brake lining
12 189000340068 [Rivet] Rivet
13 199000340064 [Bolt] Bolt
14 1880 34 0016 [Bearing bush] Bearing bush
15 190003909661 [Pin] Pin
16 199000340027 [Pressure roller] Pressure roller
17 AZ9100340012 [Spring] Spring
18 1880 44 0032 [Bolt] Bolt
19 199112340026 [Brake camshaft left] Brake camshaft left
19 AZ9231340226 [Brake camshaft left] Brake camshaft left
20 199112340027 [Brake camshaft right] Brake camshaft right
20 AZ9231340227 [Brake camshaft right] Brake camshaft right
21 1880440010 [Washer] Washer
22 1880340023 [Gasket] Gasket
23 1880440010 [Washer] Washer
24 WG9100340017 [Bush] Bush
25 190003933300 [Snap ring] Snap ring
26 WG9100340056 [Rod adjusting device L.] Rod adjusting device L.
26 WG9100340061 [Self rod adjusting device] Self rod adjusting device
27 WG9100340057 [Rod adjusting device R.] Rod adjusting device R.
27 WG9100340060 [Self rod adjusting device] Self rod adjusting device
28 1880340022 [Washer] Washer
29 180320028 [Shim] Shim
29 180320029 [Shim] Shim
29 180320030 [Shim] Shim
29 180320046 [Shim] Shim
30 190003933116 [Circlip] Circlip
31 Q151B1635TF2 [Screw] Screw
32 199014340041 [Bracket] Bracket
33 190003963112 [Grease nipple] Grease nipple
34 13809470031 [Shim] Shim
34 13809470032 [Shim] Shim
34 13809470033 [Shim] Shim
34 1880340031 [Shim] Shim
34 1880340032 [Shim] Shim
34 1880340033 [Shim] Shim
34 1880340034 [Shim] Shim
35 Q151B1490 [Screw] Screw
36 Q151B1440 [Screw] Screw
37 199014340042 [Bracket] Bracket
39 199012340066 [Bracket] Bracket
40 Q151B2040TF2 [Screw] Screw
41 WG910360303 [Spring brake cylinder] Spring brake cylinder
42 190003964459 [Screw fort] Screw fort
43 Q341B14 [Nut] Nut
44 Q341B16 [Nut] Nut
45 Q40316 [Spring washer] Spring washer
46 190003903661 [Bolt] Bolt
47 Q40114 [Washer] Washer
48 Q5004022 [Pin] Pin
49 199014340048 [Pin] Pin
50 199112340049 [Spring] Spring

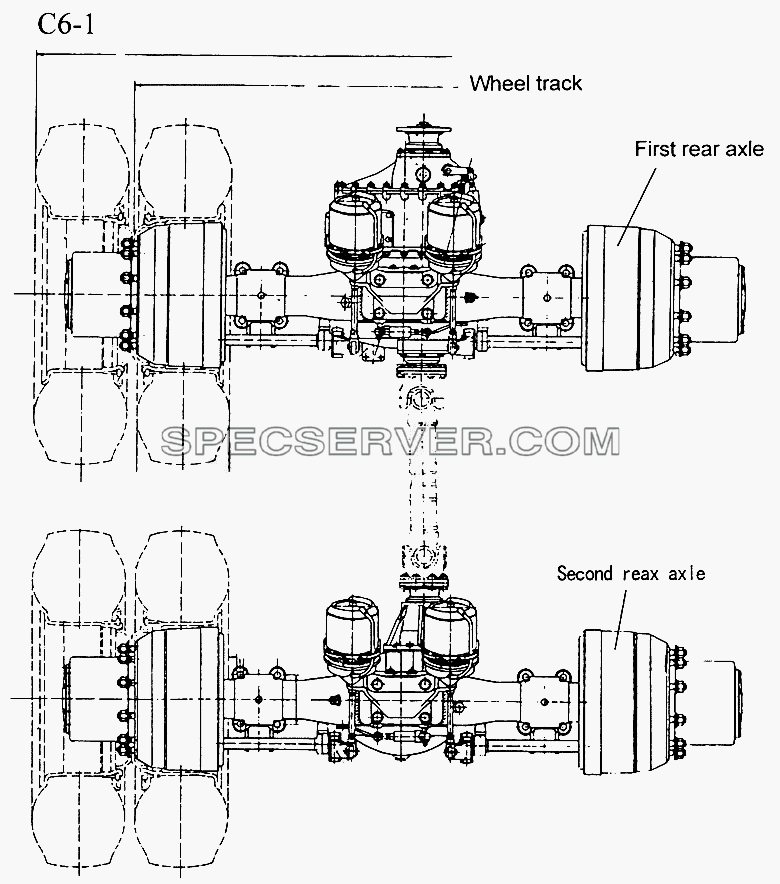

HOWO REAR DRIVE AXLE (C6-1) для Sinotruck (полного) (список запасных частей)

HOWO REAR DRIVE AXLE (C6-1) для Sinotruck (полного) (список запасных частей)

HOWO REAR DRIVE AXLE (C6-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AH71361500210 [HW1667 single reax axle(i=4.22,TF180)] HW1667 single reax axle(i=4.22,TF180)
2 AH71361500211 [HW1667 single reax axle(i=4.22,TF165)] HW1667 single reax axle(i=4.22,TF165)
3 AH71361500212 [HW1667 single reax axle(i=4.22,PF165)] HW1667 single reax axle(i=4.22,PF165)
4 AH71361500700 [HW1667 single reax axle(i=3.73,PF165)] HW1667 single reax axle(i=3.73,PF165)
5 AH71361501200 [HW1667 single rear axle (i=4.22,TF180,ABS)] HW1667 single rear axle (i=4.22,TF180,ABS)
6 AH71361501201 [HW1667 single rear axle (i=4.22,TF165,ABS)] HW1667 single rear axle (i=4.22,TF165,ABS)
7 AH71361501202 [HW1667 single rear axle (i=4.22,PF165,ABS)] HW1667 single rear axle (i=4.22,PF165,ABS)
8 AH71361500200 [HW1667 single rear axle (i=4.22,TF180,ABS,SRAD)] HW1667 single rear axle (i=4.22,TF180,ABS,SRAD)
9 AH71361500201 [HW1667 single rear axle (i=4.22,TF165,ABS,SRAD)] HW1667 single rear axle (i=4.22,TF165,ABS,SRAD)
10 AH71361500202 [HW1667 single rear axle (i=4.22,PF165,ABS,SRAD)] HW1667 single rear axle (i=4.22,PF165,ABS,SRAD)
11 AH71361401502 [First rear axle of HW1697 double axle (i=4.22,PF165)] First rear axle of HW1697 double axle (i=4.22,PF165)
12 "AH71361401506 [First rear axle of HW1697 double axle (i=4.22,TF165)] First rear axle of HW1697 double axle (i=4.22,TF165)
13 "AH71361401510 [First rear axle of HW1697 double axle (i=4.22,TF180)] First rear axle of HW1697 double axle (i=4.22,TF180)
14 "AH71361400502 [First rear axle of HW1697 double axle (i=4.22,PF165,SRAD)] First rear axle of HW1697 double axle (i=4.22,PF165,SRAD)
15 "AH71 361400506 [First rear axle of HW1697 double axle (i=4.22,TF165,SRAD)] First rear axle of HW1697 double axle (i=4.22,TF165,SRAD)
16 "AH71361400508 [First rear axle of HW1697 double axle (i=4.22,PF180,SRAD)] First rear axle of HW1697 double axle (i=4.22,PF180,SRAD)
17 "AH71361400510 [First rear axle of HW1697 double axle(i=4.22,TF180,SRAD)] First rear axle of HW1697 double axle(i=4.22,TF180,SRAD)
18 "AH71361400522 [First rear axle Of HW1697 double axle(i=4.22,PF165,ABS)] First rear axle Of HW1697 double axle(i=4.22,PF165,ABS)
19 "AH71361400526 [First rear axle of HW1697 double axle(i=4.22,TF165,ABS)] First rear axle of HW1697 double axle(i=4.22,TF165,ABS)
20 "AH71361400610 [First rear axle of HW1697 double axle(i=4.22,TF180,ABS)] First rear axle of HW1697 double axle(i=4.22,TF180,ABS)
21 "AH71361400701 [First rear axle of HW1697 double axle(i=3.73,PF165,ABS)] First rear axle of HW1697 double axle(i=3.73,PF165,ABS)
22 "AH71361400512 [First rear axle of HW1697 double axle (i=4.22,PF165,ABS,SRAD)] First rear axle of HW1697 double axle (i=4.22,PF165,ABS,SRAD)
23 "AH71361400516 [First rear axle of HW1697 double axle(i=4.22,65,ABS,SRAD)] First rear axle of HW1697 double axle(i=4.22,65,ABS,SRAD)
24 "AH71361400420 [Second rear axle of HW1697 double axle(i=4.22,TF165,ABS,SRAD,10x4)] Second rear axle of HW1697 double axle(i=4.22,TF165,ABS,SRAD,10x4)
25 AH71361400520 [Second rear axle Of HW1697 double(i=4.22,TF165,ABS,SRAD)] Second rear axle Of HW1697 double(i=4.22,TF165,ABS,SRAD)
26 "AH71361401420 [Second rear axle of HW1697 double axle (i=4.22,TF165,ABS,10x4)] Second rear axle of HW1697 double axle (i=4.22,TF165,ABS,10x4)
27 "Ah71361401520 [Second rear axle of HW1697 double axle (i=4.22,TF165,ABS)] Second rear axle of HW1697 double axle (i=4.22,TF165,ABS)
28 "AH71361400620 [Second real axle of HW1697 double axle (i=4.22,Ф165TF)] Second real axle of HW1697 double axle (i=4.22,Ф165TF)
29 AH71361400630 [Second rear axle of HW1697 double axle (i=4.22,TF165,10x4)] Second rear axle of HW1697 double axle (i=4.22,TF165,10x4)
30 AH71361400702 [Second real axle of HW1697 double axle(i=3.73,TF165)] Second real axle of HW1697 double axle(i=3.73,TF165)

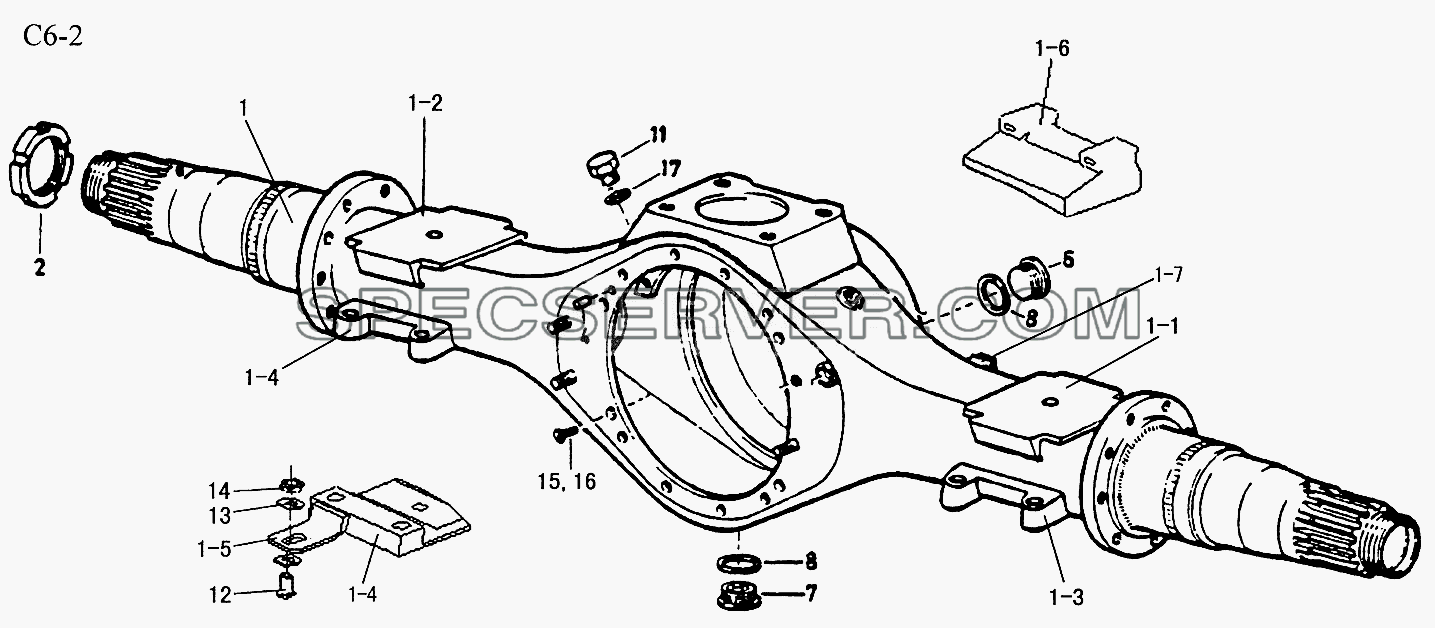

REAR AXLE HOUSING (C6-2) для Sinotruck (полного) (список запасных частей)

REAR AXLE HOUSING (C6-2) для Sinotruck (полного) (список запасных частей)

REAR AXLE HOUSING (C6-2) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1227P1186 [Outer adjusting nut] Outer adjusting nut
- AZ9118330013 [Upper base left] Upper base left
- AZ9118330014 [Bottom base left] Bottom base left
- AZ9118330015 [Bracket for stabilizer] Bracket for stabilizer
- AZ9118330019 [Upper base right] Upper base right
- AZ9118330020 [Bottom base right] Bottom base right
- AZ9761330002 [Base for brace rod] Base for brace rod
- AZ9761336005 [Support for sensor] Support for sensor
- MS216120 [Screw] Screw
1 AZ9761330065 [HW1667 single rear axle housing] HW1667 single rear axle housing
1 AZ9761330660 [Second rear axle housing of HW1697 double axle] Second rear axle housing of HW1697 double axle
2 1227N1184 [Inter adjusting nut] Inter adjusting nut
6 181500010163 [Screw] Screw
7 1586 330015 [Magnet plug] Magnet plug
8 Q72336 [Gasket] Gasket
11 199000330006 [Breather] Breather
12 WG41X1090 [Screw] Screw
13 WG1229N1626 [Washer] Washer
14 WG40X1182 [Locking nut] Locking nut
15 MS216060 [Screw] Screw
16 MWA516 [Washer] Washer

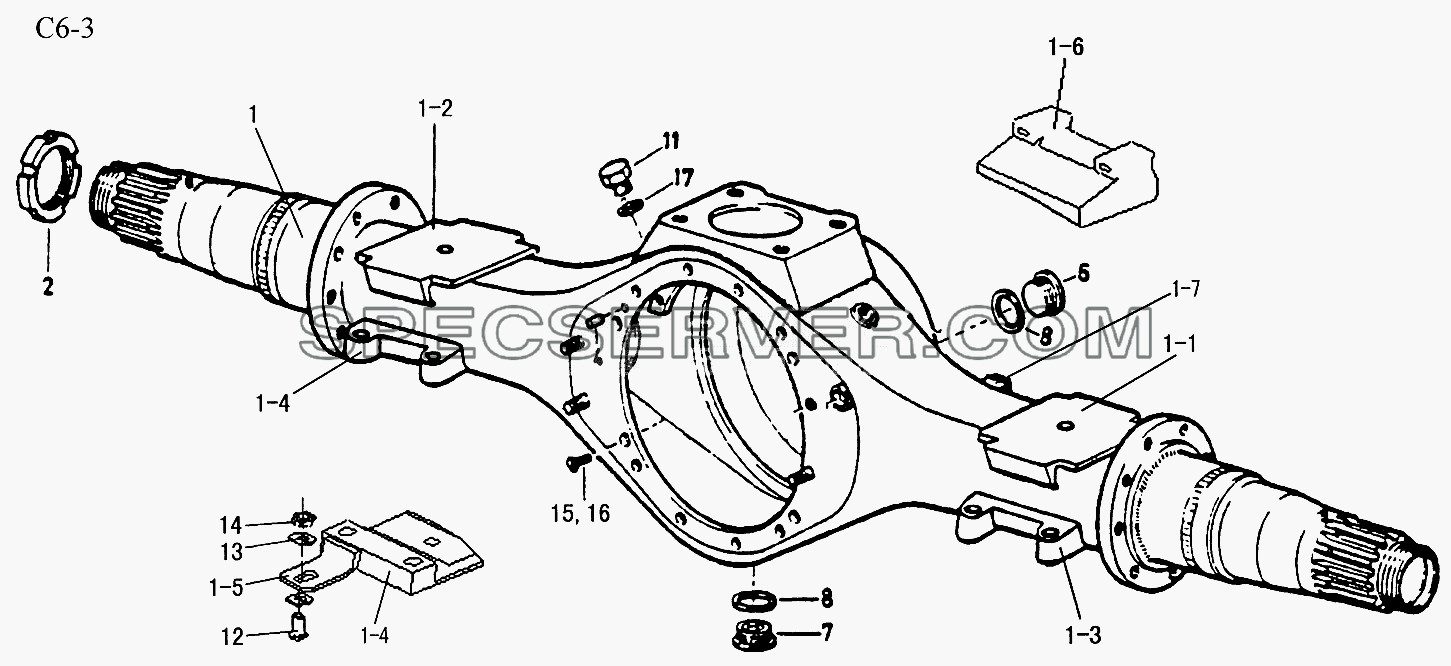

FIRST REAR AXLE HOUSING (C6-3) для Sinotruck (полного) (список запасных частей)

FIRST REAR AXLE HOUSING (C6-3) для Sinotruck (полного) (список запасных частей)

FIRST REAR AXLE HOUSING (C6-3) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1227P1186 [Outer adjusting nut] Outer adjusting nut
- AZ9118330013 [Upper base left] Upper base left
- AZ9118330014 [Bottom base left] Bottom base left
- AZ9118330019 [Upper base right] Upper base right
- AZ9118330020 [Bottom base right] Bottom base right
- AZ9761330001 [Base for brace rod] Base for brace rod
- AZ9761330002 [Base for brace rod] Base for brace rod
- AZ9761336005 [Support for sensor] Support for sensor
- MS2161201 [Screw] Screw
1 AZ9761330560 [HW1697 first rear axle housing] HW1697 first rear axle housing
1 AZ9761330662 [HW1697 first rear axle housing] HW1697 first rear axle housing
2 1227N1184 [Inter adjusting nut] Inter adjusting nut
6 199000330006 [Breather] Breather
7 190003962021 [Screw] Screw
8 1586 330015 [Magnet plug] Magnet plug
9 Q72336 [Gasket] Gasket
12 WG41X1090 [Screw] Screw
13 WG1229N1626 [Washer] Washer
14 WG40X1182 [Locking nut] Locking nut
15 MS2160601 [Screw] Screw
16 MWA516 [Washer] Washer
