№		Номер детали	Наименование запчасти
1		612600130125 [Air compressor]	Air compressor
2		612600130127 [Water pipe]	Water pipe
3		AZ9719570027 [Bracket]	Bracket
4		612600120103 [Bracket]	Bracket
5		612600120122 [Bracket]	Bracket
6		612600120121 [Air intake manifold]	Air intake manifold
7		612600111141 [Connecting pipe]	Connecting pipe
8		612600111144 [Air intake manifold]	Air intake manifold
9		612600111136 [Exhaust manifold rear]	Exhaust manifold rear
10		612600111137 [Exhaust manifold front]	Exhaust manifold front
11		612600111182 [Oil intake pipe]	Oil intake pipe
12		612600010898 [Oil dipstick]	Oil dipstick
13		612600010899 [Jauge]	Jauge
14		612600111197 [Screw]	Screw
15		612600010919 [Nozzle]	Nozzle
16		612600111196 [Air intake pipe]	Air intake pipe
17		612600111138 [Heat shield]	Heat shield
18		612600111139 [Heat shield]	Heat shield
19		612600111200 [Screw]	Screw
20		612600111051 [Oil pipe]	Oil pipe
21		612600120100 [Air intake manifold of aftercooler]	Air intake manifold of aftercooler
22		612600111213 [Bracket]	Bracket
23		612600111078 [Connecting pipe]	Connecting pipe
24		612600120101 [Bottom air intake pipe of aftercooler]	Bottom air intake pipe of aftercooler
27		612600830080 [Cover]	Cover
28		612600070155 [Washer]	Washer
29		612600010909 [Washer]	Washer
30		AZ9719530035 [Air intake pipe of compressor]	Air intake pipe of compressor
31		612600111052 [Screw for exhaust manifold]	Screw for exhaust manifold
32		612600130121 [Rubber hose]	Rubber hose
33		61560116227D [Turbochager]	Turbochager
34		61560118227D [Turbochager]	Turbochager
35		612600111413 [Pipe of aftercooler]	Pipe of aftercooler
36		612600111419 [Air intake pipe of aftercooler]	Air intake pipe of aftercooler
37		612600111424 [Bracket]	Bracket
38		612600111425 [Bracket]	Bracket
39		612600060659 [Water intake pipe]	Water intake pipe
40		61560118227 [Turbochager]	Turbochager
41		61560110227 [Turbochager]	Turbochager
42		612600081161 [Injection pump]	Injection pump
43		612600081162 [Injection pump]	Injection pump
44		612600080446 [Injection pump, Bosch]	Injection pump, Bosch
45		612600083151 [Injection pump]	Injection pump
46		612600082115 [Injection pump, Bosch]	Injection pump, Bosch
47		61560080302 [Injection pump, Bosch]	Injection pump, Bosch
48		612600060215 [Ф620 fan]	Ф620 fan
49		612600060166 [Ф750 fan]	Ф750 fan
50		612600060445 [Ф590 ring fan]	Ф590 ring fan
51		612600060446 [Ф640 ring fan]	Ф640 ring fan
52		81500060228 [V-belt (speed ratio 3.39)]	V-belt (speed ratio 3.39)
53		61500060217 [V-belt (speed ratio 3.15)]	V-belt (speed ratio 3.15)
54		612600090065 [V-belt(altemater)]	V-belt(altemater)
55		AZ1500098058 [1 kw altemater]	1 kw altemater
56		612600098155 [1.5kw altemater]	1.5kw altemater

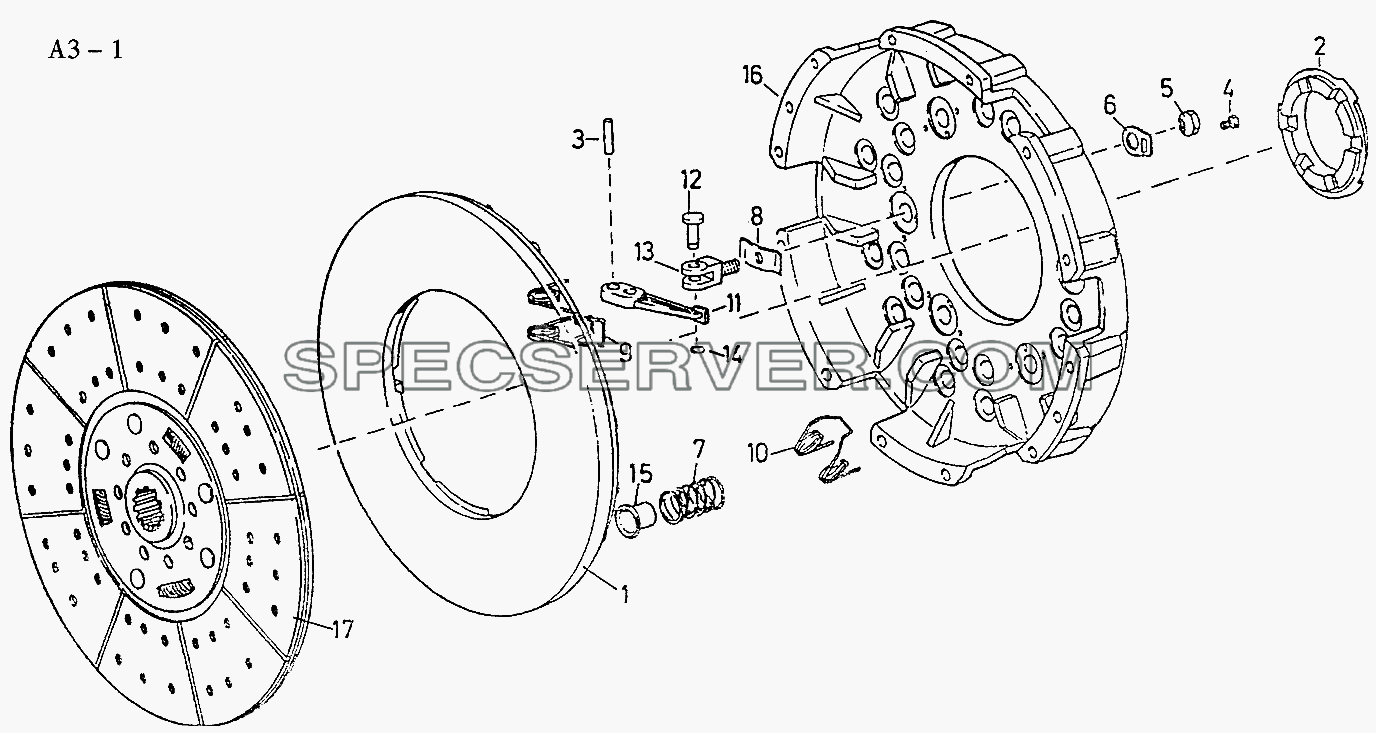

Ф420mm CLUTCH (A3-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		BZ1560160013 [Platen C]	Platen C
-		BZ1560161090 [Platen C]	Platen C
-		BZ1560161116 [Platen spring]	Platen spring
-		BZ1560161116 [Platen spring]	Platen spring
1		BZ1560161093 [Platen]	Platen
2		BZ1560161212 [Thrust collar]	Thrust collar
3		BZ1560161100 [Plug]	Plug
4		BZ1560161119 [Hex 8crew]	Hex 8crew
5		BZ1560161112 [Nut]	Nut
6		BZ1560161113 [Locker]	Locker
7		BZ1560161114 [Platen spring]	Platen spring
7		BZ1560161115 [Platen spring]	Platen spring
8		BZ1560161097 [Spring disc]	Spring disc
9		BZ1560161081 [Spring C]	Spring C
10		BZ1560161084 [Release lever spring]	Release lever spring
11		BZ1560161096 [Release lever C]	Release lever C
12		BZ1560161114 [Connecting pin]	Connecting pin
13		BZ1560161108 [Adjustment fork]	Adjustment fork
14		Q43710 [Washer]	Washer
15		BZ1560161117 [Spring holder]	Spring holder
16		BZ1560161125 [Clutch housing]	Clutch housing
17		WG1560161130 [Driven disc C]	Driven disc C

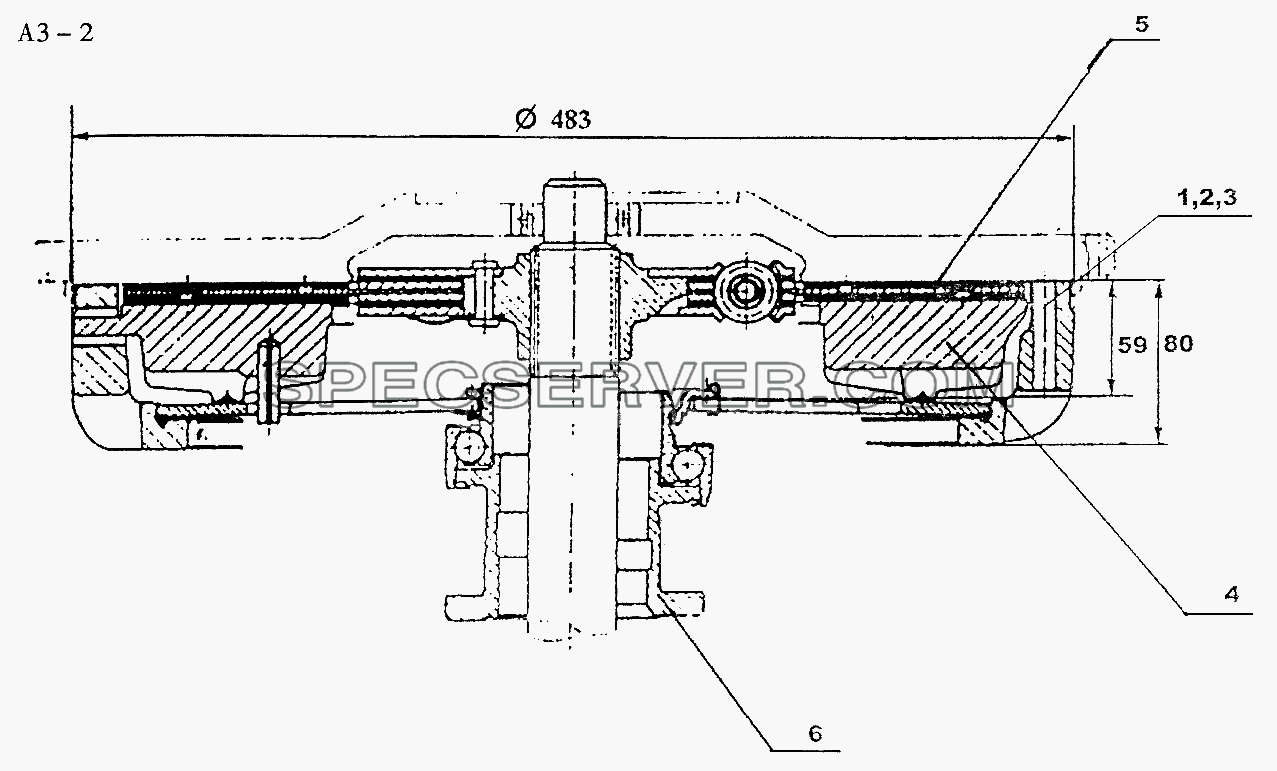

Ф430mm CLUTCH (A3-2) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q1201040TF2 [Stud]	Stud
2		Q40310 [Spring washer]	Spring washer
3		Q340810 [Hex.nut]	Hex.nut
4		WG9114160010 [Ф430 clutch with membrane to pull]	Ф430 clutch with membrane to pull
5		AZ9114160020 [Driven disc C of Ф430 clutch]	Driven disc C of Ф430 clutch
6		AZ9114160030 [Release beating]	Release beating

THE OPERATION SYSTEM OF Ф420MM CLUTCH (B3-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003933200 [Nut]	Nut
-		190003934235 [Circlip]	Circlip
-		199100230073 [Flance]	Flance
-		199100230085 [Bearing]	Bearing
-		Q150B1045 [Screw]	Screw
-		Q33210 [Nut]	Nut
1		1681 270244 [Pedal seal]	Pedal seal
2		WG81270245 [Sleeve]	Sleeve
3		199100230076 [Push rod]	Push rod
3		WG9100230004 [Push rod]	Push rod
4		AZ9114230065 [Clutch pedal lever]	Clutch pedal lever
4		AZ9232230015 [Clutch pedal lever]	Clutch pedal lever
5		1880 230031 [Footboard rubber]	Footboard rubber
6		11700 230009 [Bolt]	Bolt
7		Q33208 [Nut]	Nut
8		Q40308 [Spring washer]	Spring washer
9		AZ9100230166 [Bracket C]	Bracket C
10		190003963114 [Grease nipple]	Grease nipple
11		AZ9100230135 [Bracket C]	Bracket C
11		AZ9232230011 [Bracket C]	Bracket C
12		Q150B1020 [Screw]	Screw
13		Q41210 [Toothed washer]	Toothed washer
14		Q150B1025 [Screw]	Screw
15		190003881336 [Nut]	Nut
16		1680 250092 [Lever C]	Lever C
16		199112230098 [Lever C]	Lever C
17		199100230008 [Gasket]	Gasket
18		Q5500622 [Key]	Кеу
19		Q150B0835 [Screw]	Screw
20		Q40308 [Spring washer]	Spring washer
21		1-99-960-010 [Damping rubber]	Damping rubber
22		1680 350096 [Spring]	Spring
22		199100230063 [Spring]	Spring
23		WG9114230021 [Drive cyl.]	Drive cyl.
24		Q150B0825 [Screw]	Screw
25		Q33208 [Nut]	Nut
26		190003903181 [Bolt]	Bolt
27		Q40110 [Washer]	Washer
28		Q5003216 [Split pit]	Split pit
29		WG9100230191 [Oilcan]	Oilcan
30		Q150B0612 [Screw]	Screw
31		Q40306 [Spring washer]	Spring washer
32		AZ9114230016 [Bracket]	Bracket
33		Q151B1425 [Screw]	Screw
34		Q40314 [Spring washer]	Spring washer
35		12054230100 [Spring]	Spring
36		AZ9114230008 [Spring bracket]	Spring bracket
37		WG9114230023 [Operating cyl.]	Operating cyl.
37		WG9114230029 [Operating cyl.]	Operating cyl.
38		Q150B0825 [Screw]	Screw
39		Q40308 [Spring washer]	Spring washer
40		Q340B08 [Nut]	Nut
41		Q40108 [Washer]	Washer
42		199112230033 [Release shaft]	Release shaft
43		AZ9114230004 [Release lever]	Release lever
44		Q41310 [Sprig washer]	Sprig washer
45		Q340B10 [Nut]	Nut
46		AZ9160230272 [Screw]	Screw
47		Q350B10 [Nut]	Nut
48		Q340B10 [Nut]	Nut
49		190003962627 [Scresw]	Scresw
50		WG9100270119 [Hose joint]	Hose joint
51		Q72316T5F [Gasket]	Gasket
52		190003179781 [Plastic pipe]	Plastic pipe
53		WG9014230016 [Hose joint]	Hose joint
54		190003962621 [Screw]	Screw
55		Q72314T5F [Gasket]	Gasket
56		1406 070015 [Gasket]	Gasket
57		190003171697 [Plastic strap]	Plastic strap
58		WG9632230010 [High pressure hose]	High pressure hose
58		WG9632230020 [High pressure hose]	High pressure hose
59		WG9114230010 [Oil pipe]	Oil pipe
60		190003989300 [Hose collar]	Hose collar
61		Q72314T5F [Gasket]	Gasket
62		190003559483 [Nozzle]	Nozzle
63		190003559514 [Nut]	Nut
64		190003559558 [Cutting ring]	Cutting ring
65		199014280041 [Sleeve]	Sleeve

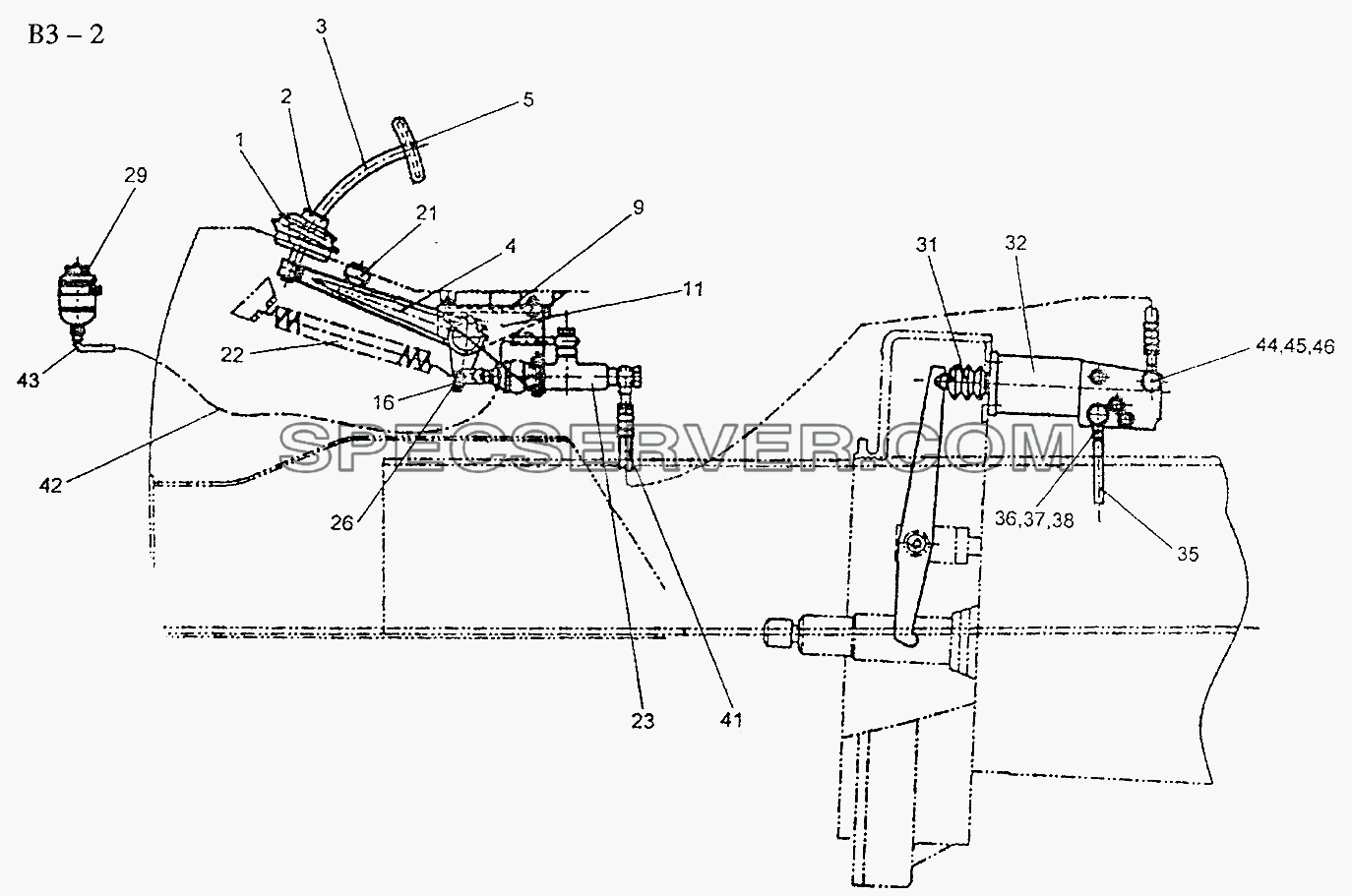

THE OPERATION SYSTEM OF Ф430MM CLUTCH (B3-2) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003933200 [Circlip]	Circlip
-		190003934235 [Circlip]	Circlip
-		199100230073 [Flance]	Flance
-		199100230085 [Bearing]	Bearing
-		Q150B1045 [Screw]	Screw
-		Q33210 [Nut]	Nut
1		1681 270244 [Pedal seal]	Pedal seal
2		WG81270245 [Sleeve]	Sleeve
3		199100230004 [Push rod]	Push rod
3		199100230076 [Push rod]	Push rod
4		9114230065 [Clutch pedal lever]	Clutch pedal lever
4		AZ9232230015 [Clutch pedal lever]	Clutch pedal lever
5		1880 230031 [Footboard rubber]	Footboard rubber
6		11700 230009 [Bolt]	Bolt
7		Q33208 [Nut]	Nut
8		Q40308 [Spring washer]	Spring washer
9		AZ9100230166 [Bracket C]	Bracket C
10		190003963144 [Grease nipple]	Grease nipple
11		AZ9100230135 [Bracket C]	Bracket C
11		AZ9232230011 [Bracket C]	Bracket C
12		Q150B1020 [Screw]	Screw
13		Q41210 [Toothed washer]	Toothed washer
14		Q150B1025 [Screw]	Screw
15		190003881336 [Nut]	Nut
16		199100230008 [Lever C]	Lever C
16		199112230098 [Lever C]	Lever C
17		1680 250092 [Gasket]	Gasket
18		Q5500622 [Spring]	Spring
19		Q150B0835 [Screw]	Screw
20		Q40308 [Spring washer]	Spring washer
21		1-99-960-010 [Damping rubber]	Damping rubber
22		1680 350096 [Spring]	Spring
22		199100230063 [Spring]	Spring
23		WG9114230021 [Driving cyl.]	Driving cyl.
24		Q150B0825 [Screw]	Screw
25		Q33208 [Nut]	Nut
26		190003903181 [Bolt]	Bolt
27		Q40110 [Washer]	Washer
28		Q5003216 [Split pit]	Split pit
29		WG9100230191 [Oilcan]	Oilcan
30		Q150B0610 [Screw]	Screw
31		AZ9100230155 [Pressure lever]	Pressure lever
32		WG9114230018 [Operating cyl.]	Operating cyl.
33		Q150B0820 [Screw]	Screw
34		Q41208 [Toothed washer]	Toothed washer
35		190003179781 [Plastic pipe]	Plastic pipe
36		WG9100270119 [Hose joint]	Hose joint
37		190003962627 [Screw]	Screw
38		Q72316T5F [Gasket]	Gasket
39		1406 070015 [Gasket]	Gasket
40		190003171697 [Plastic strap]	Plastic strap
41		WG9632230010 [High pressure hose]	High pressure hose
42		AZ9114230010 [Oil pipe]	Oil pipe
43		190003989300 [Hose collar]	Hose collar
44		WG9014230017 [Hose joint]	Hose joint
45		190003962621 [Screw]	Screw
46		Q72314T5F [Gasket]	Gasket

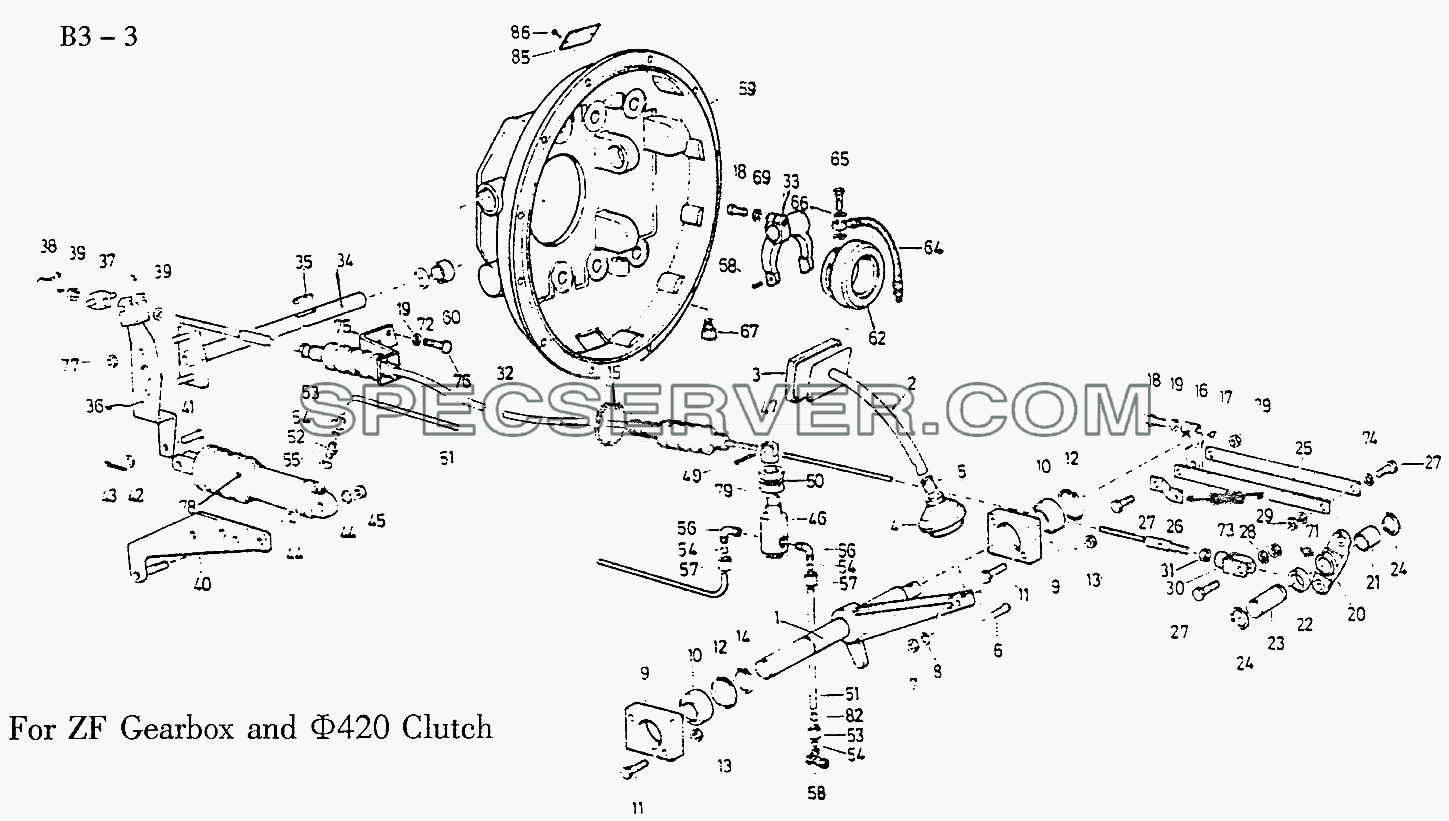

CLUTCH MECHANISM FOR DRIVE RIGHT (OPTION) (B3-3) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9100230571 [Clutch Pedal]	Clutch Pedal
2		199100230076 [Push rod]	Push rod
3		1880 230031 [Footboard rubber]	Footboard rubber
4		1681 270244 [Pedal seal]	Pedal seal
5		WG81270245 [Sleeve]	Sleeve
6		11700 230009 [Bolt]	Bolt
7		Q340B08 [Nut]	Nut
8		Q40308 [Spring washer]	Spring washer
9		199100230073 [Bearing]	Bearing
10		199100230085 [Bearing]	Bearing
11		Q150B1045 [Screw]	Screw
12		190003934235 [Circlip]	Circlip
13		Q33210 [Nut]	Nut
14		190003933200 [Circlip]	Circlip
15		190003179045 [Edge protection]	Edge protection
16		199100230008 [Lever]	Lever
17		Q5500622 [Spring]	Spring
18		Q150B0835 [Screw]	Screw
19		Q40308 [Spring washer]	Spring washer
20		199100230046 [Lever]	Lever
21		159000510018 [Bush]	Bush
22		199100230012 [Pipe]	Pipe
23		199012230012 [Bolt]	Bolt
24		190003936630 [Washer]	Washer
25		199100230013 [Connecting piece]	Connecting piece
26		199100230014 [Lashing]	Lashing
27		WG9100230014 [Screw]	Screw
28		Q40008 [Washer]	Washer
29		Q33208 [Nut]	Nut
30		190003964423 [Fork head]	Fork head
31		Q340B08 [Nut]	Nut
32		WG9100230010 [Steel hose cable]	Steel hose cable
33		199100230024 [Release fork]	Release fork
34		199100230080 [Release shaft]	Release shaft
35		Q5510825 [Spring]	Spring
36		AZ9112230075 [Release lever]	Release lever
37		1880 230034 [Bolt]	Bolt
38		1880 230039 [Spring]	Spring
39		Q340B10 [Nut]	Nut
40		199112230084 [Supporting plate]	Supporting plate
41		Q5101030 [Bolt]	Bolt
42		Q40110 [Washer]	Washer
43		Q5003214 [Split pit]	Split pit
44		199100230035 [Washer]	Washer
45		Q33212 [Nut]	Nut
46		WG9100360019 [Pushbutton]	Pushbutton
49		Q5004028 [Split pit]	Split pit
51		190003179782 [Plastic pipe]	Plastic pipe
52		190003559766 [Double nozzle]	Double nozzle
53		190003559516 [Nut]	Nut
54		190003559561 [Cutting ring]	Cutting ring
55		Q72312 [Gasket]	Gasket
56		190003559497 [Nozzle]	Nozzle
57		190003559508 [Nut]	Nut
58		190003559482 [Nozzle]	Nozzle
59		199112210030 [Clutch housing]	Clutch housing
60		199012210022 [Bearing]	Bearing
61		190003803943 [Screw]	Screw
62		199012210078 [Release bearing C]	Release bearing C
64		199012210065 [Hose]	Hose
65		190003962607 [Screw]	Screw
66		Q72330T5F [Gasket]	Gasket
67		12700060125 [Oil cup]	Oil cup
69		Q40308 [Spring washer]	Spring washer
70		1-99-965-012 [Seal ring]	Seal ring
73		1680 350096 [Spring]	Spring
74		Q40008 [Washer]	Washer
75		199100230028 [Bracket]	Bracket
76		Q150B0825 [Screw]	Screw
77		Q33210 [Nut]	Nut
78		WG9100230025 [Operating cyl.]	Operating cyl.
79		1413C 050014 [Washer]	Washer
82		199014280016 [Sleeve]	Sleeve
83		190003963112 [Grease nipple]	Grease nipple
85		199012210066 [Cover]	Cover
86		190003904545 [Pivot]	Pivot
