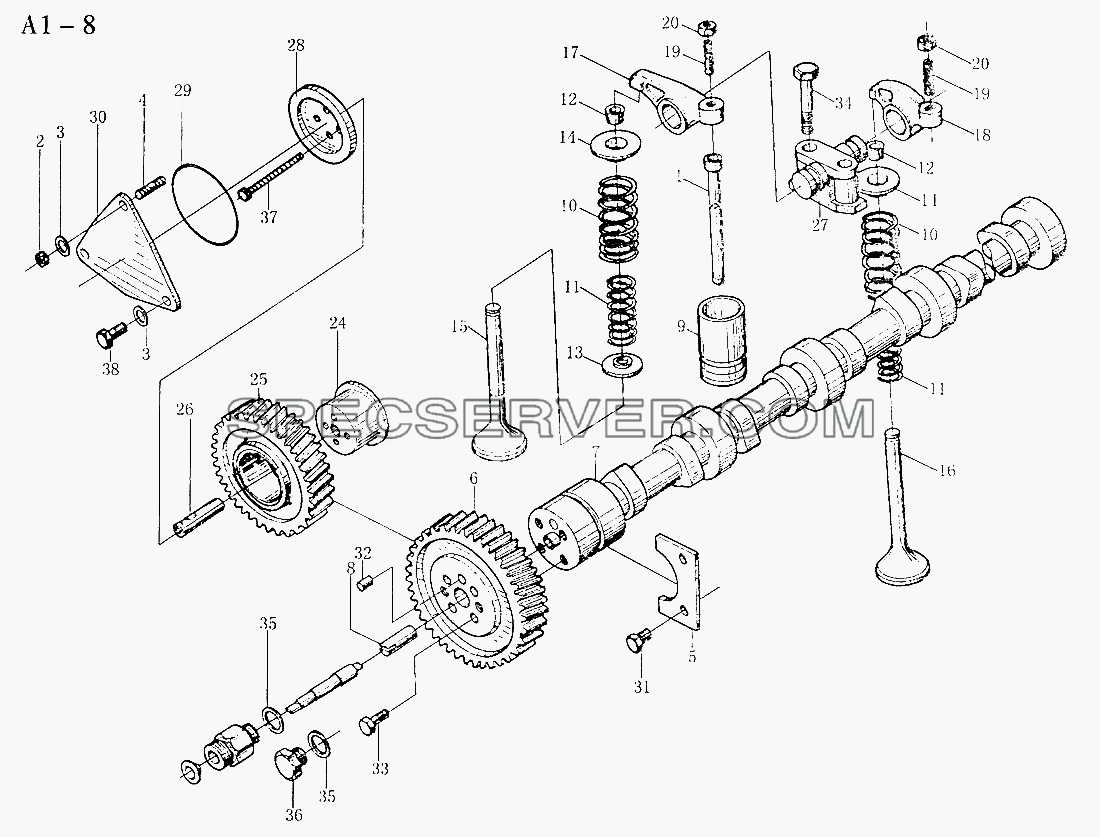

№		Номер детали	Наименование запчасти
-		90003862419 [Screw]	Screw
1		614 050058C [Push rod]	Push rod
1		81500050070 [Push rod]	Push rod
2		90003871252 [Nut]	Nut
3		90003932023 [Spring washer]	Spring washer
4		90003813414 [Stud]	Stud
5		614 050133 [Flange]	Flange
6		614 050053 [Camshaft gear]	Camshaft gear
7		61500050096 [Camshaft]	Camshaft
7		61560050004 [Camshaft]	Camshaft
8		614 050079 [Driver]	Driver
8		90003901409 [Pin]	Pin
9		61500050032 [Push rod]	Push rod
10		61500050002 [Outer valve spring]	Outer valve spring
11		61500050001 [Inner valve spring]	Inner valve spring
12		61500050025 [Valve cone]	Valve cone
12		81500050021 [Valve cone]	Valve cone
13		614 050017 [Spring base]	Spring base
14		61500050109 [Spring base]	Spring base
15		61460050007 [Intake valve]	Intake valve
15		61560050042 [Intake valve]	Intake valve
16		61560050041 [Exhaust valve]	Exhaust valve
17		614 050048 [Rocker arm]	Rocker arm
18		614 050049 [Rocker arm]	Rocker arm
19		614 050010 [Screw]	Screw
20		2130050065 [Nut]	Nut
24		61560050044 [Idle gear shaft]	Idle gear shaft
25		61560050053 [Idle gear]	Idle gear
26		61560050058 [Shaft]	Shaft
27		614 050119 [Rockorarm support]	Rockorarm support
28		61560050045 [Cover]	Cover
29		90003120602 [Seal ring]	Seal ring
30		61560050046A [Cover]	Cover
31		90003802411 [Screw]	Screw
32		90003901409 [Dowel]	Dowel
33		90003802443 [Screw]	Screw
34		90003802655 [Screw]	Screw
37		61560050059 [Screw]	Screw
38		61500050105 [Air valve cap]	Air valve cap
39		90003862419 [Bolt]	Bolt

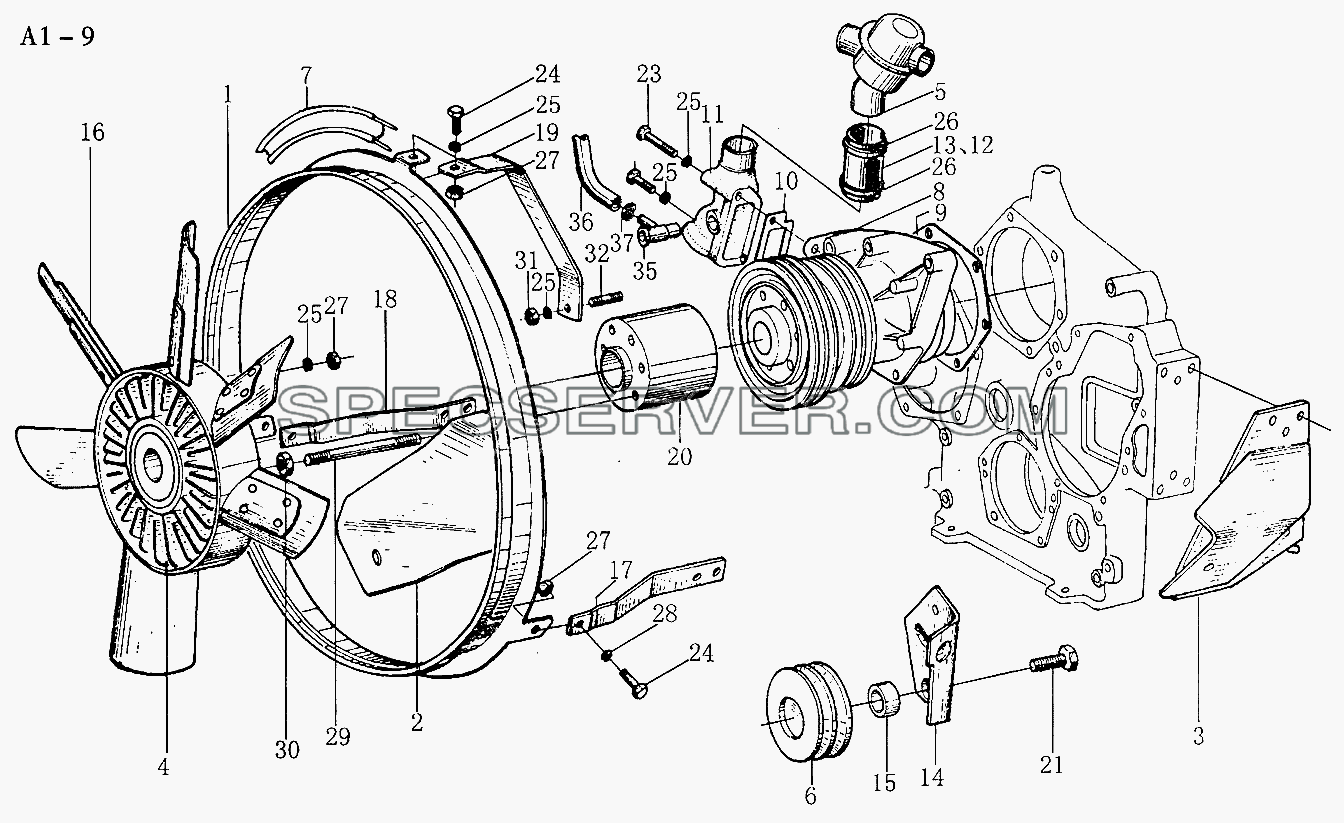

WD615 WATER PUMP, VENTILATOR (A1-9) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		90003930261 [Washer]	Washer
1		61560060004 [Ring]	Ring
2		99100590006 [Bracket L.]	Bracket L.
3		99100590009 [Bracket R.]	Bracket R.
4		61500060226 [Visw hub]	Visw hub
5		614 060135 [Thermostate]	Thermostate
5		61500060116 [Thermostate 71C]	Thermostate 71C
6		61560060069 [Roll C]	Roll C
7		AZ1560060016 [Siphon]	Siphon
8		61500060229 [Water pump C]	Water pump C
9		614 060008 [Joint]	Joint
10		614 060024 [Joint]	Joint
11		61560060022A [Nozzle]	Nozzle
12		61000060262 [Hose]	Hose
13		61000060276 [Hose]	Hose
14		61560060021 [Lashing]	Lashing
15		614 060160 [Sleeve]	Sleeve
16		61500060131 [Fan]	Fan
17		61560060010 [Support]	Support
18		61560060011 [Support]	Support
19		61560060012 [Support]	Support
20		61500060239 [Flange]	Flange
21		90003802672 [Screw]	Screw
23		90003800467 [Screw]	Screw
24		90003802424 [Screw]	Screw
25		90003932023 [Spring washer]	Spring washer
26		90003989306 [Strap]	Strap
27		90003888451 [Nut]	Nut
28		90003937283 [Washer]	Washer
29		90003810020 [Stud]	Stud
30		90003888452 [Nut]	Nut
31		90003871252 [Nut]	Nut
32		90003811420 [Stud]	Stud
35		AZ1560060001 [Connector]	Connector
36		612600130025 [Hose]	Hose
37		90003989336 [Strup]	Strup

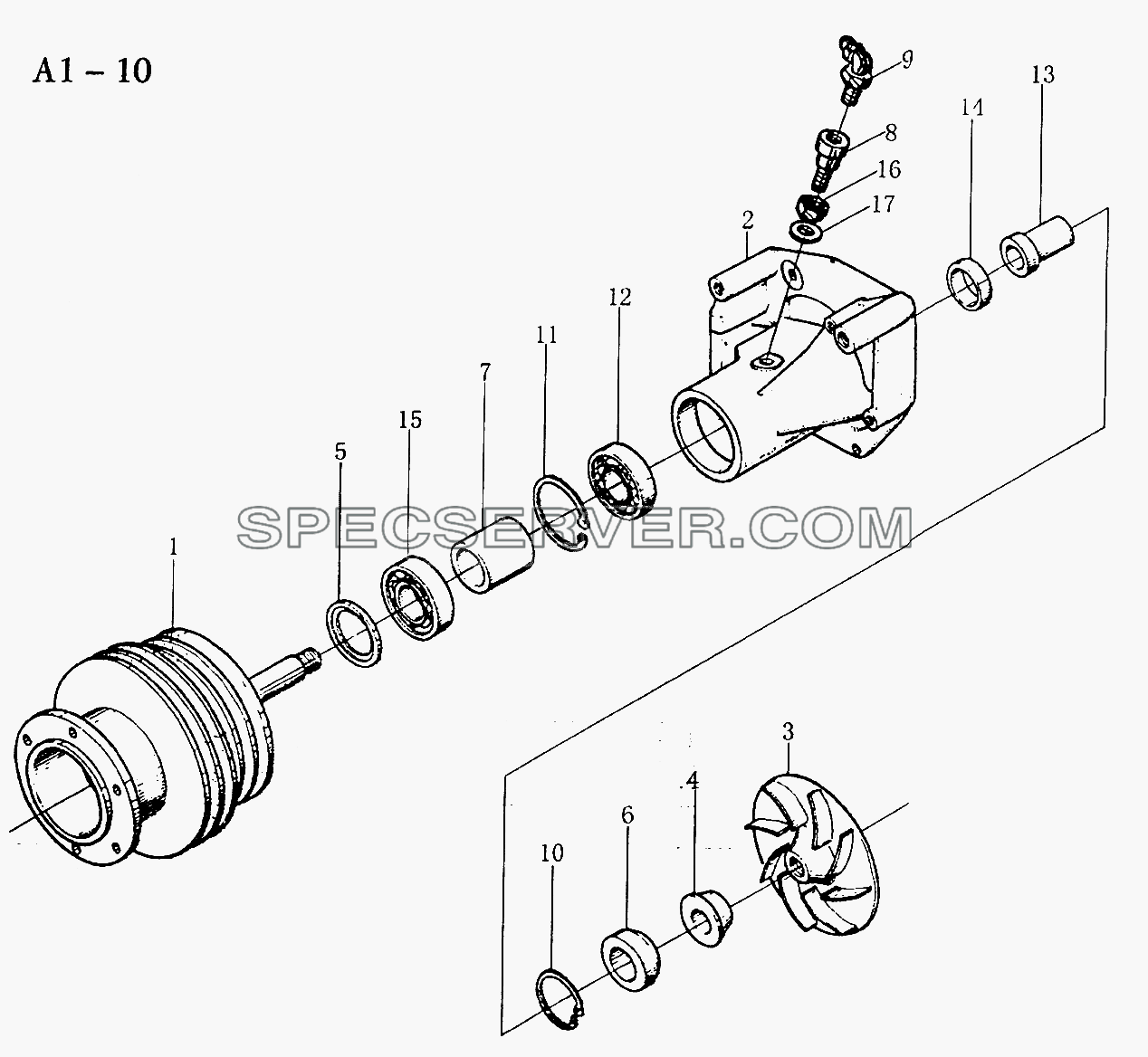

WD615 612600060260, 61500060229 WATER PUMP C (A1-10) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61500060124 [Belt pulley]	Belt pulley
2		61500060234 [Housing]	Housing
3		61500060249 [Bottom roller]	Bottom roller
6		61200062034 [Joint]	Joint
7		61500060251 [Pipe]	Pipe
8		612600060192 [Butter cup assembly]	Butter cup assembly
10		90003934311 [Circlip]	Circlip
11		90003311179 [Ball bearing]	Ball bearing
12		90003320110 [Cyl roller bear]	Cyl roller bear
13		61500060248 [Shaft]	Shaft

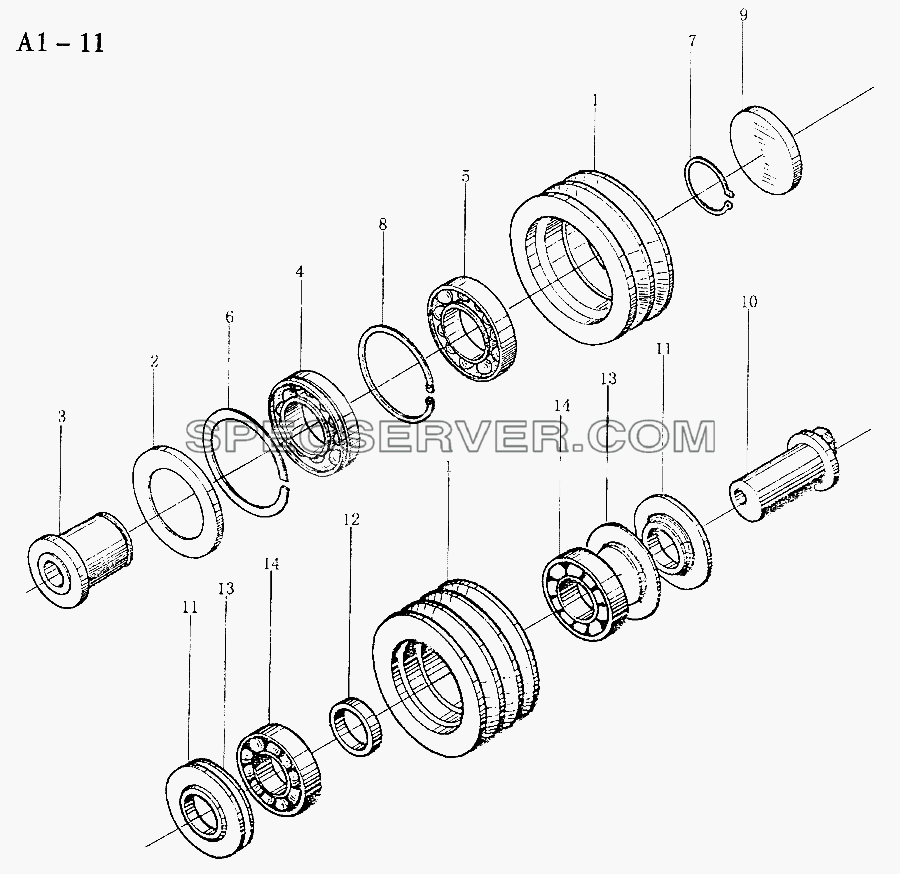

WD615 61400060161, 61560060069 ROLL WHEEL C (A1-11) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
10		61560060070 [Tension pulley]	Tension pulley
11		61560060071 [Pin]	Pin
12		61560060072 [Cover]	Cover
13		61560060073 [Spacer]	Spacer
14		61560050074 [Ring]	Ring
15		90093310067 [Ball bearing]	Ball bearing

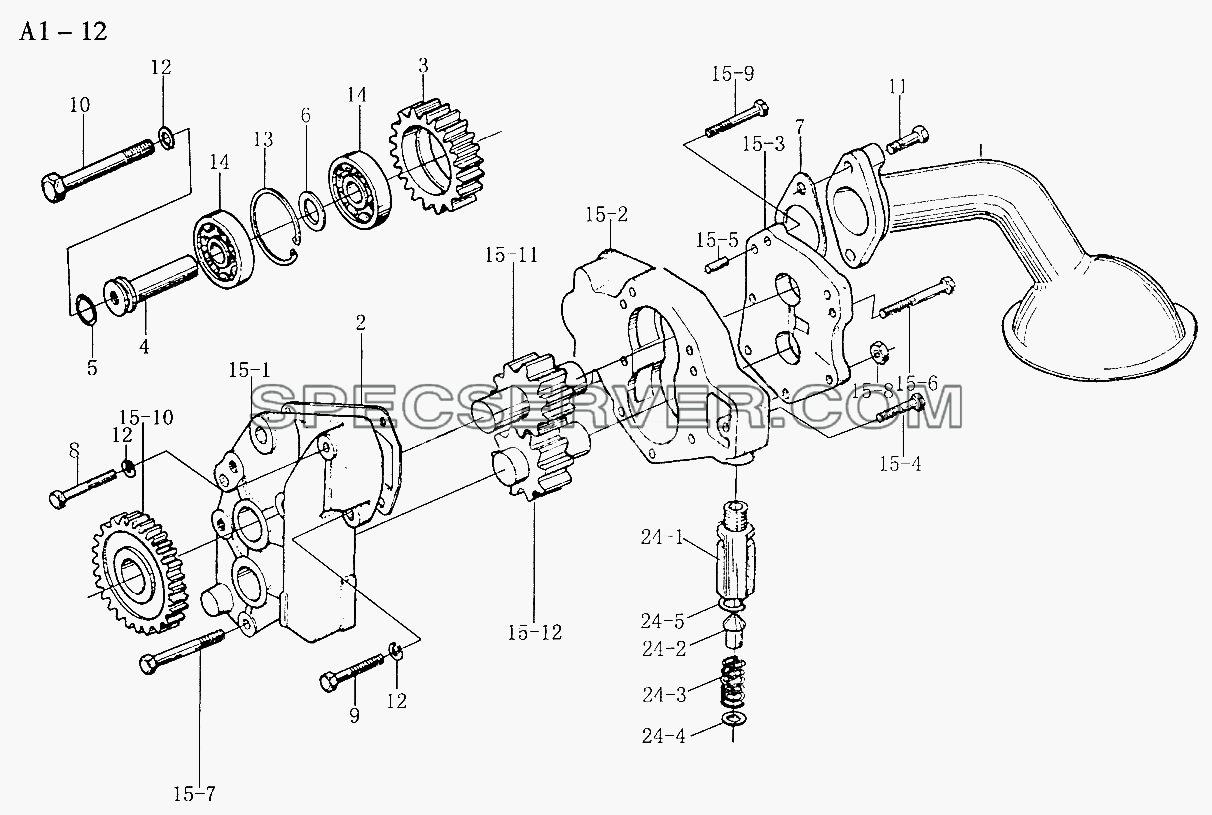

WD615 OIL PUMP, OIL FILTER I (A1-12) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		614 070130 [Valve cone]	Valve cone
-		614 070131 [Valve spring]	Valve spring
-		61500070024 [Rear covet]	Rear covet
-		61500070029 [Front cover]	Front cover
-		61500070098 [Valve body]	Valve body
-		681 270027 [Washer]	Washer
-		90003800441 [Screw]	Screw
-		90003800458 [Screw]	Screw
-		90003800465 [Screw]	Screw
-		90003871252 [Nut]	Nut
-		90003901420 [Pin]	Pin
-		AZ1500070015 [Housing]	Housing
-		AZ1500070019 [Gear]	Gear
-		AZ1500070020 [Gear]	Gear
-		AZ90003860010 [Screw]	Screw
-		AZ9003930011 [Circlip]	Circlip
1		61500070082 [Suction pipe]	Suction pipe
2		614 070055 [Gasket]	Gasket
3		614 070061 [Idler gear]	Idler gear
4		614 0756 [Axle]	Axle
5		614 070155 [O-ring]	O-ring
6		614 0749 [Ring]	Ring
7		614 0778 [Joint]	Joint
8		90003800551 [Screw]	Screw
9		90003802527 [Screw]	Screw
10		90003802578 [Screw]	Screw
11		90003802523 [Screw]	Screw
12		90003931122 [Washer]	Washer
13		90003934732 [Circlip]	Circlip
14		90003311410 [Ball bearing]	Ball bearing
15		AZ1500070021 [Oil pump]	Oil pump
24		61500070099 [Release valve C]	Release valve C

WD615 OIL PUMP, OIL FILTER II (A1-13) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		407 070032 [Piston]	Piston
-		407 070034 [Spring sopport]	Spring sopport
-		4139070059 [Spring]	Spring
-		AZ1500070096 [Valve body]	Valve body
-		AZ90003930012 [Circlip]	Circlip
1		61500070051 [Filter head]	Filter head
2		61000070005 [Filter elemevot]	Filter elemevot
3		61500010334 [Oil radiator]	Oil radiator
4		81400010032 [Joint]	Joint
5		614 070069 [Valve cone]	Valve cone
6		614 070068 [Spring]	Spring
7		90003802455 [Screw]	Screw
8		90003932023 [Spring washer]	Spring washer
9		90003862443 [Screw]	Screw
10		90003862482 [Screw]	Screw
11		90003430261 [Gasket]	Gasket
12		90003098086 [Gasket]	Gasket
13		90003962051 [Screw]	Screw
14		AZ1500070097 [Control valve C]	Control valve C
