Honda Pilot (2024 year). Manual in english - page 9

293

uu

Audio System

u

USB Ports

Continued

Features

USB Ports

■

On the front panel (

)

The USB port (2.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto.

u

To prevent any potential issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.

■

On the front panel (

)

The USB ports (3.0A) are only for charging
devices.

u

You cannot play music even if you have
connected music players to them.

1

USB Ports

•

Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.

•

We recommend that you use a USB cable if you are
attaching a USB flash drive to the USB port.

•

Do not connect the iPod or USB flash drive using a
hub.

•

Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.

•

We recommend backing up your data before using
the device in your vehicle.

•

Displayed messages may vary depending on the
device model and software version.

Refer to the following for more information on
compatible USB flash drives.

2

Compatible iPod, iPhone, and USB Flash
Drives

 P. 401

The USB port can supply up to 2.5A/3.0A of power. It
does not output 2.5A/3.0A unless requested by the
device.
For amperage details, read the operating manual of
the device that needs to be charged.

Under certain conditions, a device connected to the
port may generate noise to the radio station you are
listening to.

USB charge

294

uu

Audio System

u

USB Ports

Features

■

On the back of the console
compartment

The USB ports (3.0A) are only for charging
devices.

u

You cannot play music even if you have
connected music players to them.

■

On both sides of the third row seats

*

The USB ports (3.0A) are only for charging
devices.

u

You cannot play music even if you have
connected music players to them.

* Not available on all models

295

uu

Audio System

u

Audio System Theft Protection

Features

Audio System Theft Protection

The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.

■

Reactivating the audio system

1.

Set the power mode to ON.

2.

Turn on the audio system.

3.

Press and hold the

VOL/





AUDIO

 (Volume/Power) knob for more than two

seconds.

u

The audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.

296

uu

Audio System

u

Audio Remote Controls

Features

Audio Remote Controls

Allow you to operate the audio system while driving. The information is shown on
the driver information interface.

SOURCE Button

Cycles through the audio modes as follows:
FM



AM



USB/iPod/Apple CarPlay/

Android Auto



Bluetooth

®

 Audio

VOL

(

+

/VOL

(

-

 (Volume) Switch

Press Up:

 To increase the volume.

Press Down:

 To decrease the volume.

/

 (Seek/Skip) Buttons

•

When listening to the radio

Press :

 To select the next preset radio station.

Press :

 To select the previous preset radio station.

Press and hold

:

 To select the next strong station.

Press and hold

:

 To select the previous strong station.

•

When listening to an iPod, USB flash drive,

Bluetooth

®

 Audio, or Smartphone

Connection

Press :

 To skip to the next song.

Press :

 To go back to the beginning of the current or previous song.

•

When listening to a USB flash drive or

Bluetooth

®

 Audio

Press and hold

:

 To skip to the next folder/group.

Press and hold

:

 To go back to the previous folder/group.

1

Audio Remote Controls

Some modes appear only when an appropriate
device or medium is used.

Depending on the

Bluetooth

®

 device you connect,

some functions may not be available.

Models with 7-in. Color Touchscreen

/

 (Seek/Skip) Buttons

SOURCE



Button

VOL

(

+

/

VOL

(

-



(Volume) Switch

Continued

297

uu

Audio System

u

Audio Remote Controls

Features

Allow you to operate the audio system while driving. The information is shown on
the driver information interface.

VOL

(

+

/VOL

(

-

 (Volume) Switch

Press Up:

 To increase the volume.

Press Down:

 To decrease the volume.

1

Audio Remote Controls

Press the

 (Home) button to go back to the home

screen of the driver information interface.

Models with A-type meter

Models with 9-in. Color Touchscreen

/

 (Seek/Skip) Buttons

Left Selector Wheel

VOL

(

+

/

VOL

(

-

 (Volume) Switch

 (Home) Button

*

* Not available on all models

298

uu

Audio System

u

Audio Remote Controls

Features

/

 (Seek/Skip) Buttons

•

When listening to the radio

Press :

 To select the next preset radio station.

Press :

 To select the previous preset radio station.

Press and hold

:

 To select the next strong station.

Press and hold

:

 To select the previous strong station.

•

When listening to an iPod, USB flash drive,

Bluetooth

®

 Audio, or Smartphone

Connection

Press :

 To skip to the next song.

Press :

 To go back to the beginning of the current or previous song.

•

When listening to a USB flash drive

Press and hold

:

 To skip to the next folder.

Press and hold

:

 To go back to the previous folder.

299

uu

Audio System

u

Audio Remote Controls

Continued

Features

Left Selector Wheel

•

When selecting the audio mode
Press the

 (Home) button, then roll up or down to select

Audio

 on the driver

information interface, and then press the left selector wheel.

Roll up or down:

Models with A-type meter

FM

AM

SXM

USB

Bluetooth

Apps

(Apple CarPlay/Android Auto)

To cycle through the audio modes, roll up or down
and then press the left selector wheel:

Back

300

uu

Audio System

u

Audio Remote Controls

Features

Left Selector Wheel
Roll up or down:

Models with B-type meter

FM

AM

SXM

USB

Bluetooth

Apps

(Apple CarPlay/Android Auto)

To cycle through the audio modes, roll up or down
and then press the left selector wheel:

Back

Phone

Customize display

301

Features

Audio System Basic Operation

To use the audio system, the power mode must be in ACCESSORY or ON.

Use the selector knob or

MENU

 button to

access some audio functions.

Press

 to switch between the normal and

extended display for some functions.

Selector knob:

Rotate left or right to scroll

through the available choices. Press

 to set

your selection.

MENU button:

Press to display the menu

screen.

 (Back) button:

Press to go back to the

previous display.

Models with 7-in. Color Touchscreen

1

Audio System Basic Operation

These indications are used to show how to operate
the selector knob.

Rotate

 to select.

Press

 to enter.

Menu Items

2

Adjusting the Clock

 P. 176

2

Adjusting the Sound

 P. 302

2

Display Setup

 P. 303

2

Customized Features

 P. 421

Press the buttons on the steering wheel to change
any audio setting.

2

Audio Remote Controls

 P. 296

Touchscreen operation

•

Use simple gestures - including touching, swiping
and scrolling - to operate certain audio functions.

•

Some items may be grayed-out during driving to
reduce the potential for distraction.

•

You can select them when the vehicle is stopped.

•

Wearing gloves may limit or prevent touchscreen
response.

You can change the touchscreen sensitivity setting.

2

Customized Features

 P. 421

 (Back)

Button

Selector Knob

MENU

 Button

Menu Display

302

uu

Audio System Basic Operation

u

Adjusting the Sound

Features

Adjusting the Sound

1.

Select an audio source.

2.

Press the

MENU

 button.

3.

Select

Sound Settings

.

Select an item from the following choices:

•

Bass / Treble:

 Bass, Midrange, Treble

•

Balance / Fader:

 Balance, Fader

•

Speed Volume Compensation:

 Sets the

amount of volume increase.

1

Adjusting the Sound

The

Speed Volume Compensation

 (SVC) adjusts

the volume level based on the vehicle speed. As you
go faster, audio volume increases. As you slow down,
audio volume decreases.

303

uu

Audio System Basic Operation

u

Display Setup

Features

Display Setup

You can set the screen brightness separately for Day and Night modes.

1.

Press the

MENU

 button.

2.

Select

Display Adjustment

.

3.

Select

Day

 or

Night

.

4.

Select the setting you want.

■

Changing the Screen Brightness

1

Changing the Screen Brightness

You can change the

Contrast

 and

Black Level



settings in the same manner.

You can adjust the settings by sliding or tapping on
the bar.

304

uu

Audio System Basic Operation

u

Playing AM/FM Radio

Features

Playing AM/FM Radio

RADIO Button

Press to select a band.

 (Back) Button

Press to go back to the previous
display.

Seek Buttons

Press

 or

 to search the

selected band up or down for a
station with a strong signal.

VOL/ AUDIO

(Volume/Power)

Knob

Press to turn the audio system
on and off.
Turn to adjust the volume.

Selector Knob

Turn to tune the radio
frequency.
Press, and then turn to select an
item. After that, press again to
make your selection.

MENU Button

Press to display the menu items.

Audio/Information Screen

Preset Icons

Tune the radio frequency for preset memory.
Select and hold the preset icon to store that station.
Select

 to display beyond preset 5.

>

305

uu

Audio System Basic Operation

u

Playing AM/FM Radio

Features

Provides text data information related to your selected RDS-capable FM station.

■

To find an RDS station from Station List

1.

Press

 while listening to an FM station.

2.

Select the station.

■

Update List

Updates your available station list at any time.

1.

Press

 while listening to an FM station.

2.

Select

Refresh

.

■

Radio text

Displays the radio text information of the selected RDS station.

1.

Select

Text

.

■

Scan

Samples each of the strongest stations on the selected band for 10 seconds.

1.

Select

Scan

.

To turn off scan, select

Stop

 or press the

 button.

■

Radio Data System (RDS)

1

Playing AM/FM Radio

Stereo reproduction in AM is not available.

You can store 12 AM stations and 12 FM stations into
the preset memory.

Switching the Audio Mode
Press the audio source selecting button on the
steering wheel.

2

Audio Remote Controls

 P. 296

1

Radio Data System (RDS)

When you select an RDS-capable FM station, the RDS
automatically turns on, and the station name is
displayed under the frequency. However, when the
signals of that station become weak, the station
name disappears.

306

uu

Audio System Basic Operation

u

Playing an iPod

Features

Playing an iPod

Using your USB connector, connect the iPod to the USB port, then press the

MEDIA



button.

2

USB Ports

 P. 293

USB Indicator

Appears when an iPod is connected.

MEDIA Button

Press to select iPod (if connected).

 (Back) Button

Press to go back to the previous display.

Track Buttons

Press

or

to

change

songs. Press and hold to move
rapidly within a song.

VOL/

 AUDIO (Volume/Power)

Knob

Press to turn the audio system on
and off.
Turn to adjust the volume.

Selector Knob

Turn to change songs.
Press and turn to select an item,
then press to set your selection.

MENU Button

Press to display the menu items.

Audio/Information Screen

Album Art

Shuffle Icon

Select to play all files in the current category in
random order.

Play/Pause Icon

Select to play/pause a song.

Repeat Icon

Select to repeat the current file.

Continued

307

uu

Audio System Basic Operation

u

Playing an iPod

Features

1.

Press

 to display the iPod music list.

2.

Select a category.

3.

Select an item.

u

Select an item repeatedly until a desired
item you want to listen to is displayed.

■

How to Select a Song from the iPod Music List

1

Playing an iPod

Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.

If there is a problem, you may see an error message
on the audio/information screen.

2

iPod/USB Flash Drive

 P. 398

Item
Selection

Category
Selection

uu

Audio System Basic Operation

u

Playing an iPod

308

Features

You can select repeat and shuffle modes when playing a song.

■

Shuffle/Repeat

Repeatedly select the shuffle or repeat icon
until you find a play mode option of your
preference.

■

To turn off a play mode

Select the mode you want to turn off.

■

How to Select a Play Mode

1

How to Select a Play Mode

Play Mode Menu Items

Shuffle

 Shuffle off:

 Shuffle mode to off.

 Shuffle All Songs:

 Plays all available songs in

a selected list in random order.

Repeat

 Repeat off:

 Repeat mode to off.

 Repeat all:

 Repeats all songs.

 Repeat Song:

 Repeats the current song.

Shuffle Icon

Repeat Icon

309

uu

Audio System Basic Operation

u

Playing a USB Flash Drive

Continued

Features

Playing a USB Flash Drive

Your audio system reads and plays sound files on a USB flash drive in either MP3,
WMA, AAC, FLAC, or WAV format.
Connect your USB flash drive to the USB port, then press the

MEDIA

 button.

2

USB Ports

 P. 293

USB Indicator

Appears when a USB flash drive is connected.

MEDIA Button

Press to select USB flash drive (if connected).

 (Back) Button

Press to go back to the previous display.

Track Buttons

Press

 or

 to change files.

Press and hold to move rapidly
within a track.

VOL/

 AUDIO (Volume/Power)

Knob

Press to turn the audio system on
and off.
Turn to adjust the volume.

Selector Knob

Turn to change files.
Press and turn to select an item,
then press to set your selection.

MENU Button

Press to display the menu items.

Audio/Information Screen

Play Icon

Select to play a file.

Random Icons

Select to play all files in the current category
in random order.

Pause Icon

Select to pause a file.

Repeat Icons

Select to repeat the current file.

uu

Audio System Basic Operation

u

Playing a USB Flash Drive

310

Features

1.

Press

 to display a folder list.

2.

Select a folder.

3.

Select a file.

■

How to Select a File from a Folder

1

Playing a USB Flash Drive

Use the recommended USB flash drives.

2

General Information on the Audio System



P. 400

Files in WMA format protected by digital rights
management (DRM) cannot be played.
The audio system displays

Unplayable File

, and then

skips to the next file.

If there is a problem, you may see an error message
on the audio/information screen.

2

iPod/USB Flash Drive

 P. 398

Refer to the following for more information on
compatible USB flash drives.

2

Compatible iPod, iPhone, and USB Flash
Drives

 P. 401

Track
Selection

Folder
Selection

311

uu

Audio System Basic Operation

u

Playing a USB Flash Drive

Features

You can select random and repeat modes when playing a file.

■

Random/Repeat

Select random or repeat icon.

■

To turn off a play mode

Select the mode you want to turn off.

■

How to Select a Play Mode

1

How to Select a Play Mode

Play Mode Menu Items

Random

 Random All Tracks:

 Plays all files in random

order.

 Random in Folder:

 Plays all files in the current

folder in random order.

Repeat

 Repeat track:

Repeats the current file.

 Repeat folder:

Repeats all files in the current

folder.

Repeat Icons
Random Icons

312

uu

Audio System Basic Operation

u

Playing

Bluetooth

®

 Audio

Features

Playing

Bluetooth

®

 Audio

Your audio system allows you to listen to music from your

Bluetooth

-compatible

phone.
This function is available when the phone is paired and connected to the vehicle’s

Bluetooth

®

 HandsFreeLink

®

 (HFL) system.

2

Phone Setup

 P. 453

1

Playing

Bluetooth

®

 Audio

Not all

Bluetooth

-enabled phones with streaming

audio capabilities are compatible with the system.
For a list of compatible phones:

•

U.S.: Visit

https://mygarage.honda.com/s/honda-

handsfreelink-compatibility-check

, or call 1-888-

528-7876.

•

Canada: For more information on smartphone
compatibility, call 1-855-490-7351.

In some states, it may be illegal to perform some data
device functions while driving.

Only one phone can be used with HFL at a time.
When there is more than one paired phone in the
vehicle, the system automatically connects to the
prioritized phone. You can assign priority to a phone
in the

Bluetooth Settings

 menu.

2

HFL Menus

 P. 451

To change the searched phone manually, select

Go

to Device List

.

In some cases, the name of the artist, album, or track
may not appear correctly.

Some functions may not be available on some devices.

If a phone is currently connected via Apple CarPlay or
Android Auto,

Bluetooth

®

 Audio from that phone is

unavailable. However, a second previously paired
phone can stream

Bluetooth

®

 Audio by selecting

Audio

 from the

Bluetooth

®

 device list.

2

Phone Setup

 P. 453

MEDIA Button

Press to select

Bluetooth

®

 Audio.

VOL/

 AUDIO

(Volume/Power)
Knob

Press to turn the
audio system on
and off.
Turn to adjust the
volume.

MENU Button

Press to display the
menu items.

Audio/Information Screen

Bluetooth

 Indicator

Appears when your phone
is connected to HFL.

Track Buttons

Press

 or

 to

change files.

Repeat Icon

Select to repeat
the current file.

Shuffle Icon

Select to play all
files in the current
category in
random order.

Selector Knob

Turn to change files.
Press and turn to
select an item, then
press to set your
selection.

 (Back)

Button

Press to go back
to the previous
display.

Play/Pause Icon

Select to play/pause a file.

Continued

313

uu

Audio System Basic Operation

u

Playing

Bluetooth

®

 Audio

Features

1.

Make sure that your phone is paired and
connected to HFL.

2.

Press the

MEDIA

 button until the

Bluetooth

®

 Audio Source is selected.

If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for

Bluetooth

®

 Audio, may already be

connected.

■

To play or pause a file

Select the play/pause icon.

■

To Play

Bluetooth

®

 Audio Files

1

To Play

Bluetooth

®

 Audio Files

To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.

The pause function may not be available on some
phones.

If any audio device is connected to the USB port, you
may need to press the

MEDIA

 button repeatedly to

select the

Bluetooth

®

 Audio system.

Switching to another mode pauses the music playing
from your phone.

Check the volume setting of your phone if the audio
volume is too loud or soft.

Play/Pause Icon

MEDIA

 Button

uu

Audio System Basic Operation

u

Playing

Bluetooth

®

 Audio

314

Features

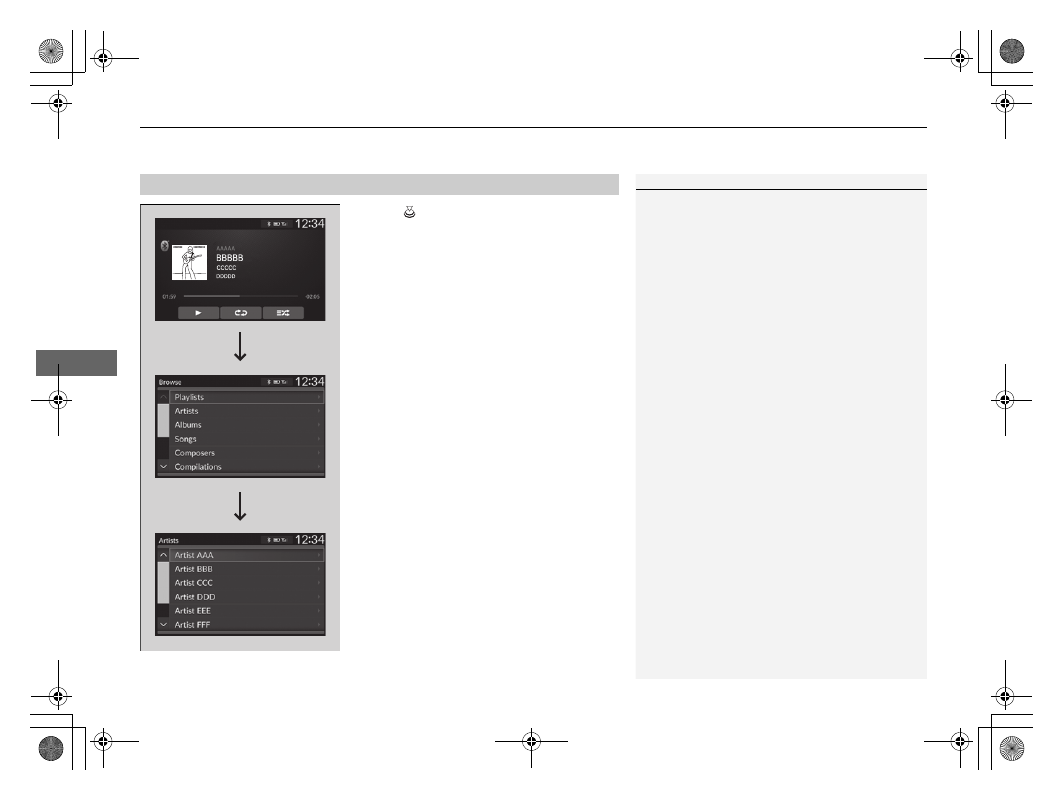

1.

Press

 to display the music search list.

2.

Select a category.

3.

Select an item.

u

Select an item repeatedly until a desired
item you want to listen to is displayed.

■

How to Select a Song from the Music Search List

1

How to Select a Song from the Music Search List

Depending on the

Bluetooth

®

 device you connect,

some or all of the categories may not be displayed.

Item
Selection

Category
Selection

315

uu

Audio System Basic Operation

u

Playing

Bluetooth

®

 Audio

Features

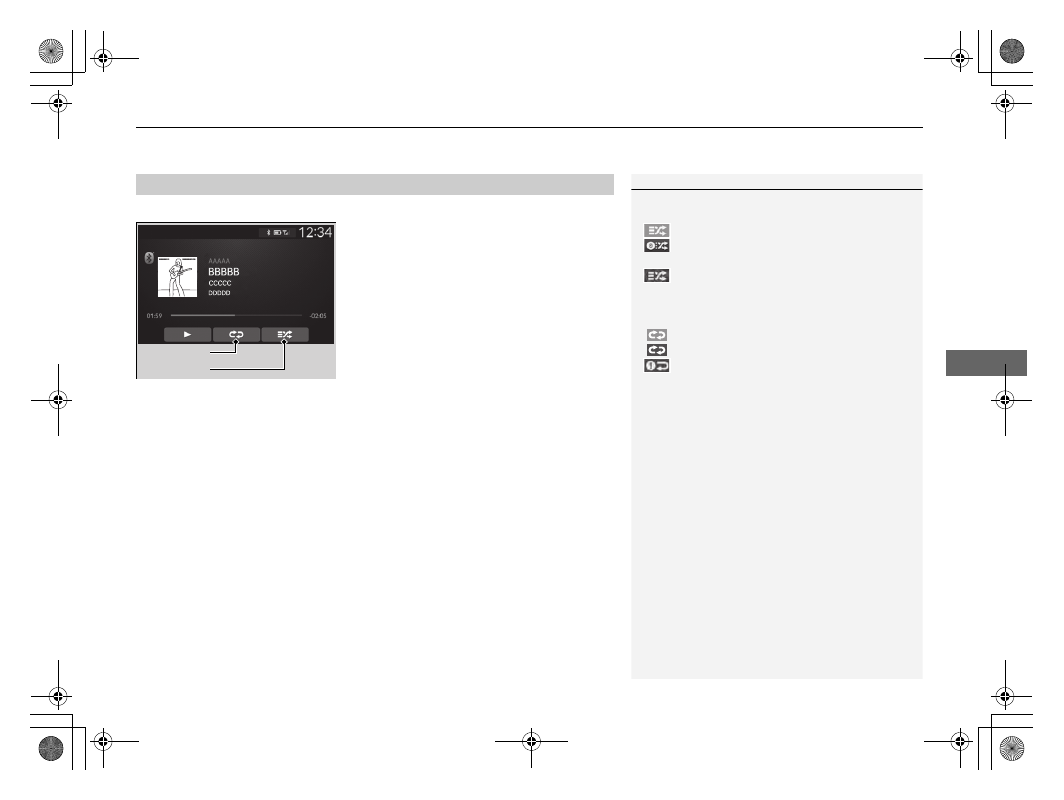

You can select shuffle and repeat modes when playing a song.

■

Shuffle/Repeat

Repeatedly select the shuffle or repeat icon
until you find a play mode option of your
preference.

■

To turn off a play mode

Select the mode you want to turn off.

■

How to Select a Play Mode

1

How to Select a Play Mode

Play Mode Menu Items

Shuffle

 Shuffle off:

 Shuffle mode to off.

 Shuffle Albums:

 Plays all available albums in

a selected list in random order.

 Shuffle All Songs:

 Plays all available songs in

a selected list in random order.

Repeat

 Repeat off:

 Repeat mode to off.

 Repeat all:

 Repeats all songs.

 Repeat Song:

 Repeats the current song.

Depending on the

Bluetooth

®

 device you connect,

some or all of the functions may not be displayed.

Shuffle Icon

Repeat Icon

316

uu

Audio System Basic Operation

u

Siri Eyes Free

Features

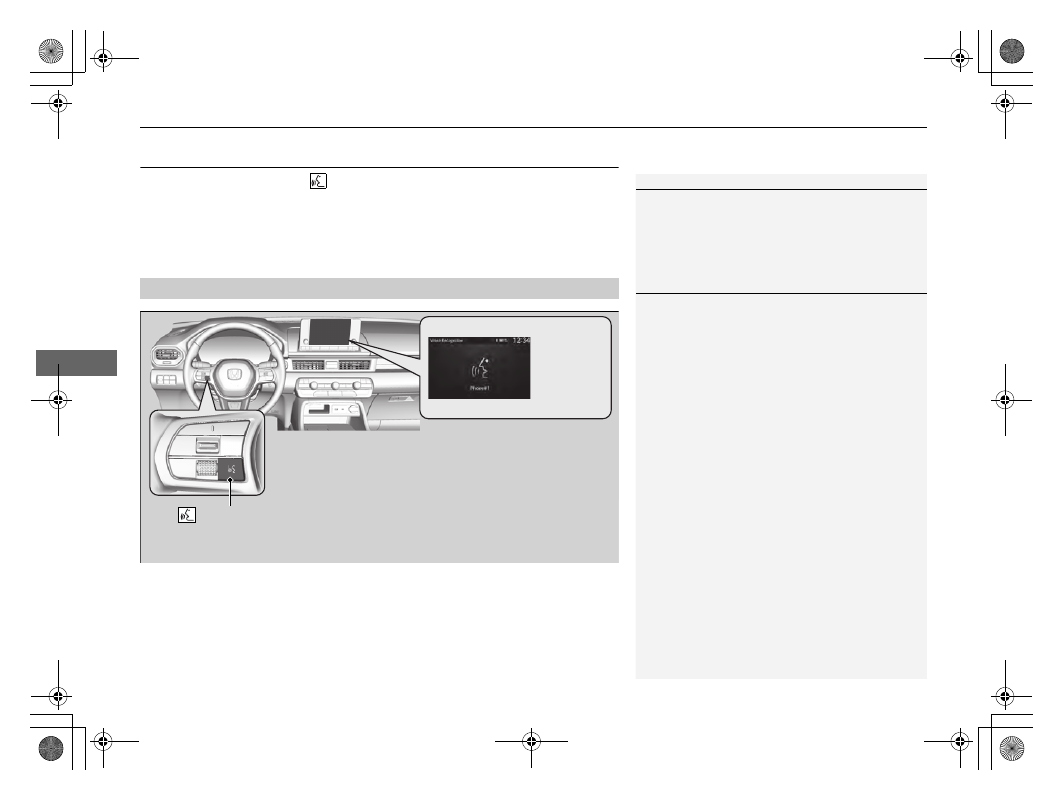

Siri Eyes Free

You can talk to Siri using the

 (Talk) button on the steering wheel when your

iPhone is paired to the

Bluetooth

®

 HandsFreeLink

®

 (HFL) system.

2

Phone Setup

 P. 453

■

Using Siri Eyes Free

1

Siri Eyes Free

Check Apple Inc. website for features available for
Siri.

We recommend against using Siri other than in Siri
Eyes Free mode while operating a vehicle.

1

Using Siri Eyes Free

Some commands work only on specific phone
features or apps.

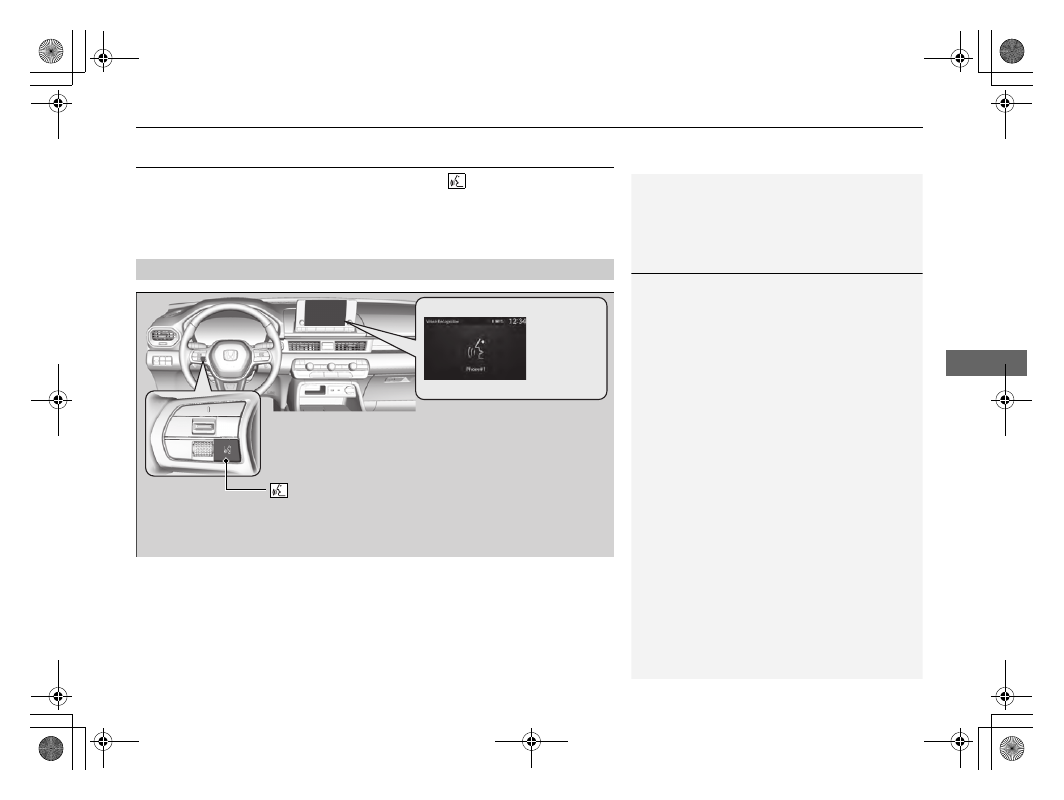

 (Talk) Button

Press until the display changes as shown.
Press and hold to deactivate Siri Eyes Free.

While in Siri Eyes Free:
The display remains the same.
No feedback or commands
appear.

Appears
when Siri is
activated in
Siri Eyes Free

317

uu

Audio System Basic Operation

u

Smartphone Voice Recognition

Features

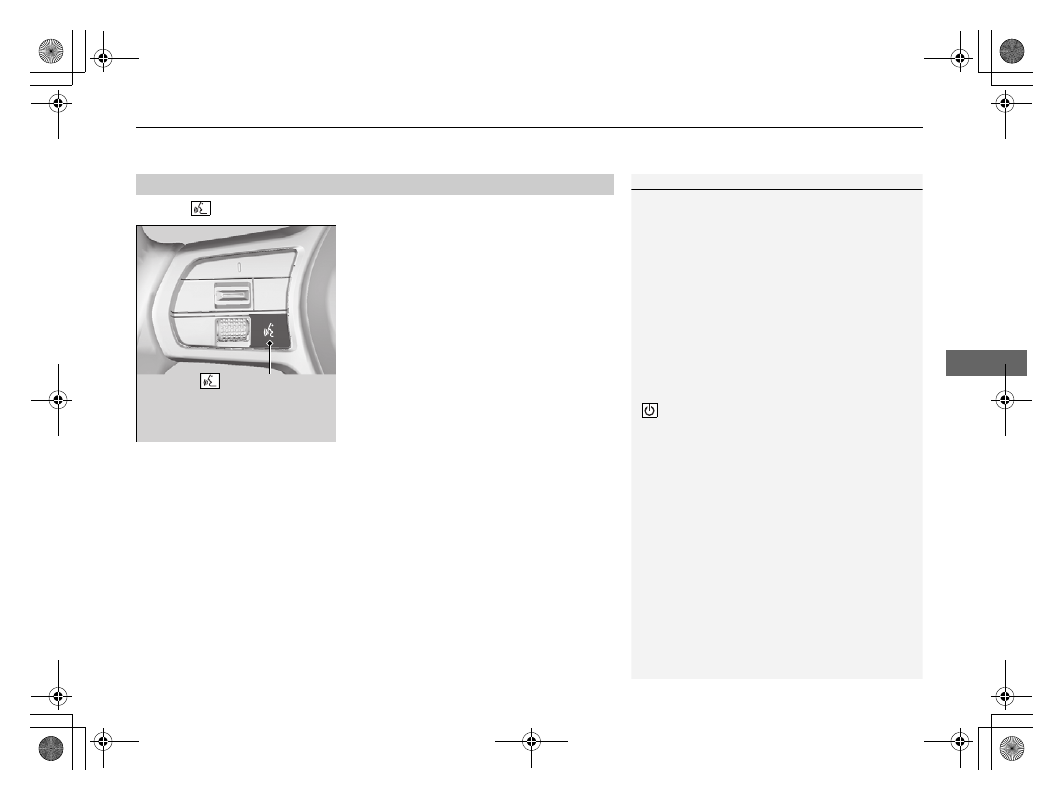

Smartphone Voice Recognition

You can use Smartphone Voice Recognition using the

 (Talk) button on the

steering wheel when your Android phone is paired to the

Bluetooth

®



HandsFreeLink

®

 (HFL) system.

2

Phone Setup

 P. 453

■

Using Smartphone Voice Recognition

1

Using Smartphone Voice Recognition

Depending on your Android phone, you may need to
operate your phone.

Some commands work only on specific phone
features or apps.

 (Talk) Button

Press to activate Smartphone Voice Recognition.
Press and hold to deactivate Smartphone Voice
Recognition.

While in Smartphone Voice
Recognition:
The display remains the same.
No feedback or commands
appear.

Appears
when
Smartphone
Voice
Recognition
is activated

318

uu

Audio System Basic Operation

u

Apple CarPlay

Features

Apple CarPlay

If you connect an Apple CarPlay-compatible iPhone to the system via the USB port,
you can use the audio/information screen, instead of the iPhone display, to make a
phone call, listen to music, view maps (navigation), and access messages.

2

USB Ports

 P. 293

■

Apple CarPlay Menu

1

Apple CarPlay

Only iPhone 5 or newer versions with iOS 8.4 or later
are compatible with Apple CarPlay.

We recommend using the latest OS.

Park in a safe place before connecting your iPhone to
Apple CarPlay and when launching any compatible
apps.

To directly access the Apple CarPlay phone function,
press the

PHONE

 button. While connected to Apple

CarPlay, calls are only made through Apple CarPlay. If
you want to make a call with HandsFreeLink

®

, turn

Apple CarPlay OFF or detach the USB cable from your
iPhone.

2

Setting Up Apple CarPlay

 P. 320

When your iPhone is connected to Apple CarPlay, it is
not possible to use the

Bluetooth

®

 Audio or

Bluetooth

®

 HandsFreeLink

®

. However, other

previously paired phones can stream audio via

Bluetooth

®

 while Apple CarPlay is connected.

2

Phone Setup

 P. 453

Apple CarPlay and Android Auto cannot run at the
same time.

For details on countries and regions where Apple
CarPlay is available, as well as information pertaining
to function, refer to the Apple homepage.

CONNECT

 Button

Press to display Apple CarPlay screen

Apple CarPlay menu screen

Continued

319

uu

Audio System Basic Operation

u

Apple CarPlay

Features

•

Phone

Access the contact list, make phone calls, or listen to voicemail.

•

Messages

Check and reply to text messages, or have messages read to you.

•

Music

Play music stored on your iPhone.

•

Maps

Display Apple Maps and use the navigation function just as you would on your
iPhone.

•

Honda

Select the

Honda

 icon to go back to the audio screen.

•

Go back to the Apple CarPlay Dashboard screen.

•

Go back to the Apple CarPlay menu screen.

1

Apple CarPlay

Apple CarPlay Operating Requirements &
Limitations

Apple CarPlay requires a compatible iPhone with an
active cellular connection and data plan. Your
carrier’s rate plans will apply.

Changes in operating systems, hardware, software,
and other technology integral to providing Apple
CarPlay functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Apple CarPlay functionality and services.
Honda cannot and does not provide any warranty or
guarantee of future Apple CarPlay performance or
functionality.

It is possible to use third-party apps if they are
compatible with Apple CarPlay. Refer to the Apple
homepage for information on compatible apps.

To adjust the ringtone volume, the guidance volume
of the navigation or Siri, or the audio volume, turn
the

VOL

/



AUDIO

 (Volume/Power) knob while the

sound you want to adjust is playing.

uu

Audio System Basic Operation

u

Apple CarPlay

320

Features

After you have connected your iPhone to the system via the USB port, use the
following procedure to set up Apple CarPlay. Use of Apple CarPlay will result in the
transmission of certain user and vehicle information (such as vehicle location, speed,
and status) to your iPhone to enhance the Apple CarPlay experience. You will need
to consent to the sharing of this information on the audio/information screen.

1.

Connect the iPhone to the USB port using the USB cable.

2

USB Ports

 P. 293

u

The confirmation screen will be displayed.

2.

Select

Yes

.

u

If you do not want to connect Apple CarPlay, select

No

.

You may change the consent settings under the

Smartphone Settings

 menu.

■

Setting Up Apple CarPlay

■

Connecting Apple CarPlay Using the USB Cable to the USB Port

1

Setting Up Apple CarPlay

Only initialize Apple CarPlay when you are safely
parked.
When Apple CarPlay first detects your iPhone, you
will need to set up your iPhone. Refer to the
instruction manual that came with your iPhone.

You can use the following procedure to disconnect or
delete the devices connecting Apple CarPlay:
Press the

MENU

 button



Select Smartphone Settings



Apple CarPlay



Select device

Use of user and vehicle information

The use and handling of user and vehicle information
transmitted to/from your iPhone by Apple CarPlay is
governed by the Apple iOS terms and conditions and
Apple’s Privacy Policy.

321

uu

Audio System Basic Operation

u

Apple CarPlay

Features

Press the

 (talk) button to activate Siri.

■

Operating Apple CarPlay with Siri

1

Operating Apple CarPlay with Siri

Below are examples of questions and commands for
Siri.

•

What movies are playing today?

•

Call dad at work.

•

What song is this?

•

How’s the weather tomorrow?

•

Read my latest email.

•

Find a table for four tonight in Chicago.

For more information, please visit

www.apple.com/ios/siri

.

To adjust the guidance volume of Siri, turn the

VOL

/



AUDIO

 (Volume/Power) knob while Siri is

activated.

 (Talk) button:

Press to activate Siri.
Press again to
deactivate Siri.

322

uu

Audio System Basic Operation

u

Android Auto

TM

Features

Android Auto

TM

When you connect an Android phone to the audio system via the USB port, Android
Auto is automatically initiated. When connected via Android Auto, you can use the
audio/information screen to access the Phone, Google Maps (Navigation), and
Google Now functions. When you first use Android Auto, a tutorial will appear on
the screen.
We recommend that you complete this tutorial while safely parked before using
Android Auto.

2

USB Ports

 P. 293

2

Auto Pairing Connection

 P. 324

1

Android Auto

TM

We recommend that you update Android OS to the
latest version when using Android Auto.

Bluetooth

 A2DP cannot be used while your phone is

connected to Android Auto.

To use Android Auto on a smartphone with Android
9.0 (Pie) or earlier, you need to download the
Android Auto app from Google Play to your
smartphone.

Park in a safe place before connecting your Android
phone to Android Auto and when launching any
compatible apps.

When your Android phone is connected to Android
Auto, it is not possible to use the

Bluetooth

®

 Audio.

However, other previously paired phones can stream
audio via

Bluetooth

®

 while Android Auto is

connected.

2

Phone Setup

 P. 453

Apple CarPlay and Android Auto cannot run at the
same time.

Android Auto is a trademark of Google LLC.

Continued

323

uu

Audio System Basic Operation

u

Android Auto

TM

Features

•

Maps

Display Google Maps and use the navigation function just as you would with your
Android phone. When the vehicle is in motion, it is not possible to make keyboard
entries. Stop the vehicle in a safe location to undertake a search or provide other
inputs.

•

Phone

Make and receive phone calls as well as listen to voicemail.

•

Honda

Select the

Honda

 icon to go back to the audio screen.

■

Android Auto Menu

1

Android Auto

TM

For details on countries and regions where Android
Auto is available, as well as information pertaining to
function, refer to the Android Auto homepage.

Screens may differ depending on the version of the
Android Auto app you are using.

Android Auto Operating Requirements &
Limitations

Android Auto requires a compatible Android phone
with an active mobile connection and data plan. Your
carrier’s rate plans will apply.

Changes in operating systems, hardware, software,
and other technology integral to providing Android
Auto functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Android Auto functionality and services.
Honda cannot and does not provide any warranty or
guarantee of future Android Auto performance or
functionality.

It is possible to use third-party apps if they are
compatible with Android Auto. Refer to the Android
Auto homepage for information on compatible apps.

To adjust the ringtone volume, the guidance volume
of the navigation or voice recognition, or the audio
volume, turn the

VOL

/



AUDIO

 (Volume/Power)

knob while the sound you want to adjust is playing.

CONNECT

 Button

Press to display Android Auto screen

Android Auto menu screen

uu

Audio System Basic Operation

u

Android Auto

TM

324

Features

•

Operate Android Auto with your voice.

•

You can check Android notifications.

•

 (Android Auto Home)

Display useful information organized by Android Auto into simple cards that
appear just when they’re needed.

When you connect an Android phone to the unit via the USB port, Android Auto is
automatically initiated.

To enable Android Auto after connecting an Android phone to the system, select

Yes

 on the screen.

You may change the consent settings under the

Smartphone Settings

 menu.

■

Auto Pairing Connection

■

Connecting Android Auto Using the USB Cable to the USB Port

1

Connecting Android Auto Using the USB Cable to the USB Port

Only initialize Android Auto when you are safely
parked. When Android Auto first detects your phone,
you will need to set up your phone so that auto
pairing is possible. Refer to the instruction manual
that came with your phone.

You can use the following procedure to disconnect or
delete the devices connecting Android Auto after you
have completed the initial setup:
Press the

MENU

 button





Select Smartphone Settings



 Android Auto





Select device

Use of user and vehicle information

The use and handling of user and vehicle information
transmitted to/from your phone by Android Auto is
governed by the Google’s Privacy Policy.
