Honda Civic (2024 year). Manual in english - page 22

Continued

711

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

*

Han

d

lin
g the U

n

expected

5.

Turn the selector knob to

AIR

.

u

Do not turn the air compressor on to
check the pressure.

2

Inflating an Under-inflated Tire

 P. 713

1

Distributing the Sealant in the Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

AIR

Side

712

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

*

Han

d

lin
g the U

n

expected

6.

If the air pressure is

•

Less than 19 psi (130 kPa):

Do not add air or continue driving. The leak is too severe. Call for help and have
your vehicle towed.

2

Emergency Towing

 P. 740

•

Front: 33 psi (225 kPa)/rear: 32 psi (220 kPa) or more:

Continue driving for another 10 minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.

u

If the air pressure does not go down after the 10 minute driving, you do not
need to check the pressure any more.

•

Greater than 19 psi (130 kPa), but less than front: 33 psi (225 kPa)/rear: 32
psi (220 kPa):

Turn the air compressor on to inflate the tire until the tire pressure reaches front:
33 psi (225 kPa)/rear: 32 psi (220 kPa).

2

Inflating an Under-inflated Tire

 P. 713

Then, drive carefully for 10 more minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.

u

You should repeat this procedure as long as the air pressure is within this range.

7.

Unplug the kit from the accessory power
socket.

8.

Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.

9.

Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).

10.

Repackage and properly stow the kit.

Pressure Relief Button

Continued

713

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

*

Han

d

lin
g the U

n

expected

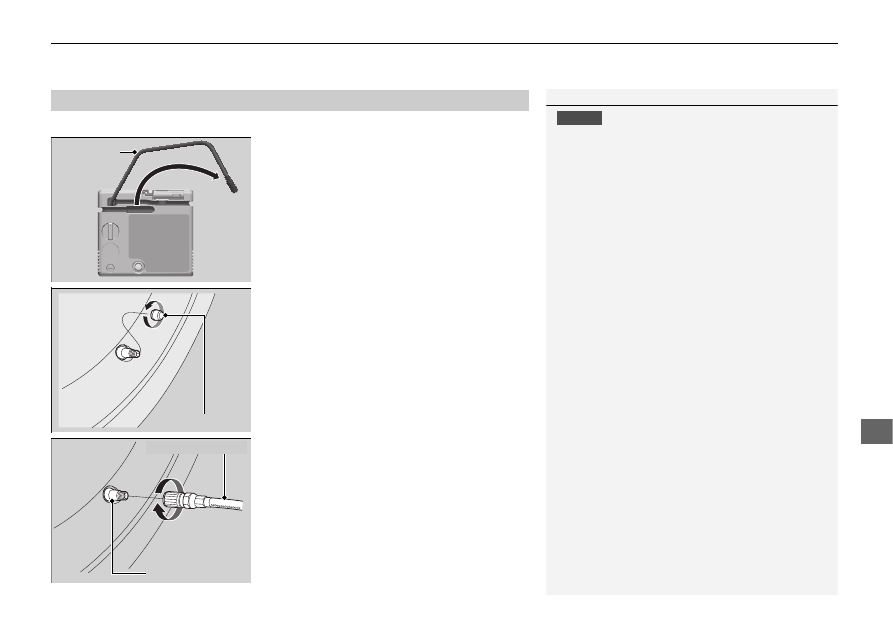

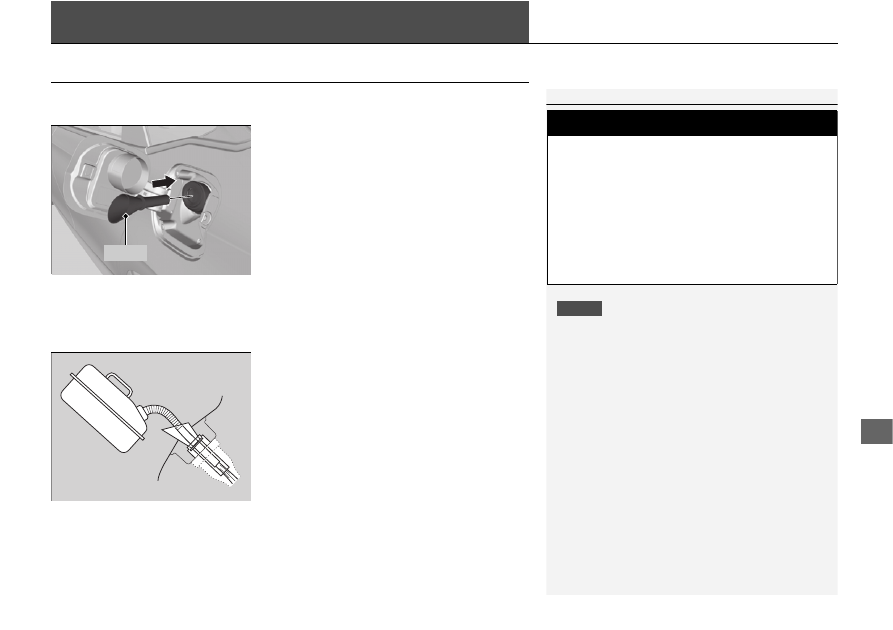

You can use the kit to inflate a non-punctured under-inflated tire.

1.

Open the trunk floor lid.

2

Getting Ready to Temporarily Repair
the Flat Tire

 P. 705

2.

Remove the kit from the case.

3.

Place the kit, face up, on flat ground near
the tire to be inflated, away from traffic.
Do not place the kit on its side.

4.

Remove the sealant/air hose from the kit.

5.

Remove the valve cap.

6.

Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.

■

Inflating an Under-inflated Tire

1

Inflating an Under-inflated Tire

NOTICE

Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.

Sealant/Air
Hose

Valve Cap

Tire Valve Stem

Sealant/Air Hose

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

*

714

Han

d

lin
g the U

n

expected

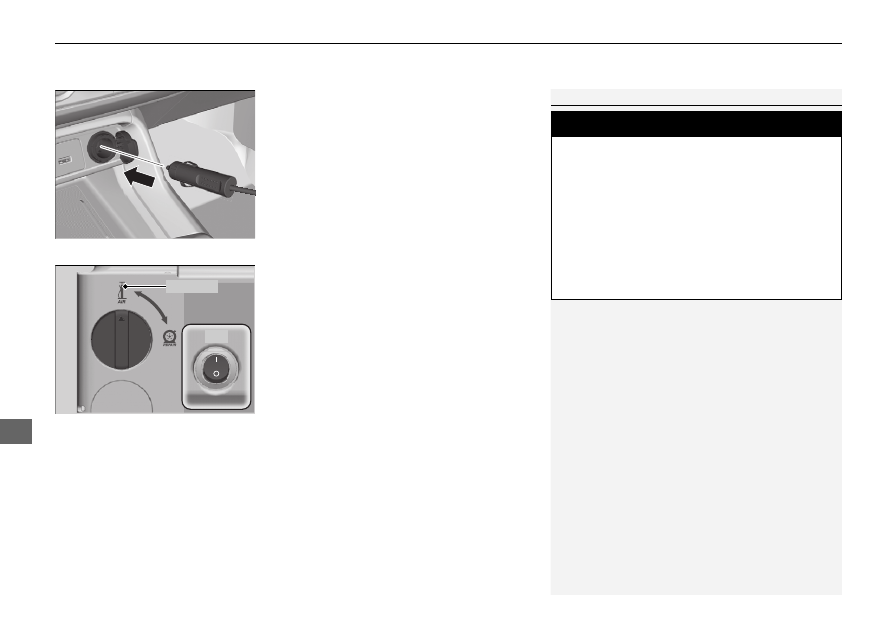

7.

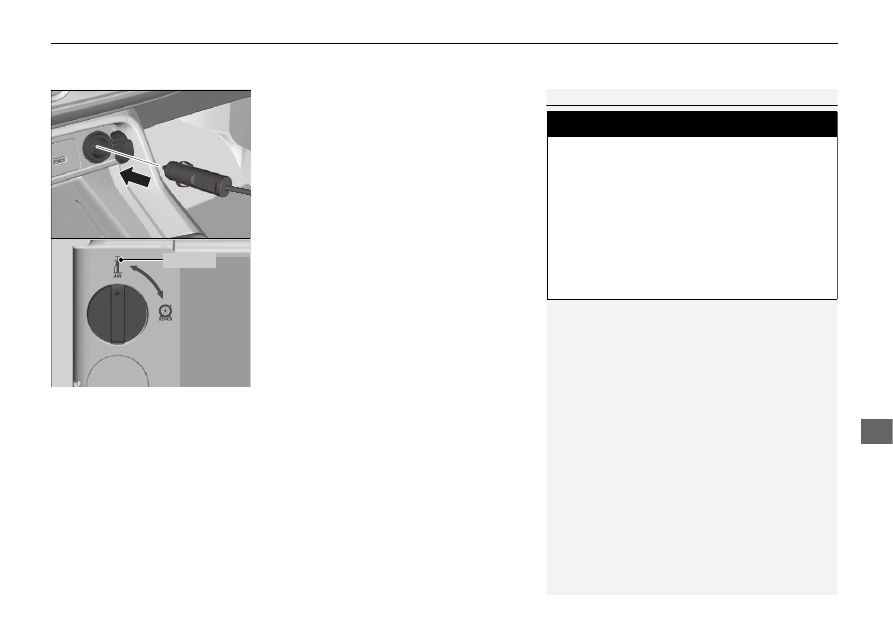

Plug in the kit to the accessory power
socket.

u

Be careful not to pinch the cord in a
door or window.

2

Accessory Power Socket

 P. 233

8.

Start the engine.

2

Starting the Engine

 P. 448

u

Keep the engine running while injecting
air.

2

Carbon Monoxide Gas

 P. 86

9.

Turn the selector knob to

AIR

.

10.

Press the inflator switch to turn on the kit.

u

The compressor starts to inject air into
the tire.

11.

Inflate the tire to the specified air pressure.

1

Inflating an Under-inflated Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

AIR

Side

ON

715

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

*

Han

d

lin
g the U

n

expected

12.

Turn off the kit.

u

Check the pressure gauge on the air
compressor.

u

If overinflated, press the pressure relief
button.

13.

Unplug the kit from the accessory power
socket.

14.

Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.

15.

Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).

16.

Repackage and properly stow the kit.

Pressure Relief Button

716

Han

d

lin
g the U

n

expected

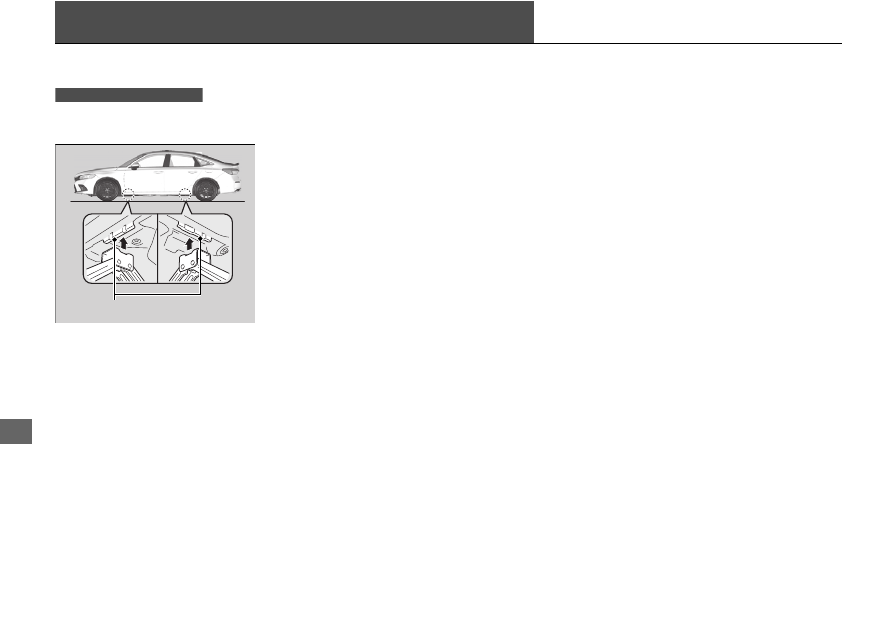

Handling of the Jack

Your vehicle has jacking points as shown.
When replacing your tires, consult a dealer.

Models with tire repair kit

Jacking Points

717

Continued

Han

d

lin
g the U

n

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.

The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the driver information interface.

●

If the

To start, touch start button with emblem side of remote

 message appears

2

If the Keyless Remote Battery is Weak

 P. 719

u

Make sure the keyless remote is in its operating range.

2

ENGINE START/STOP Button Operating Range

 P. 197

Check the battery.

Have the battery checked by a dealer.

2

Battery

 P. 683

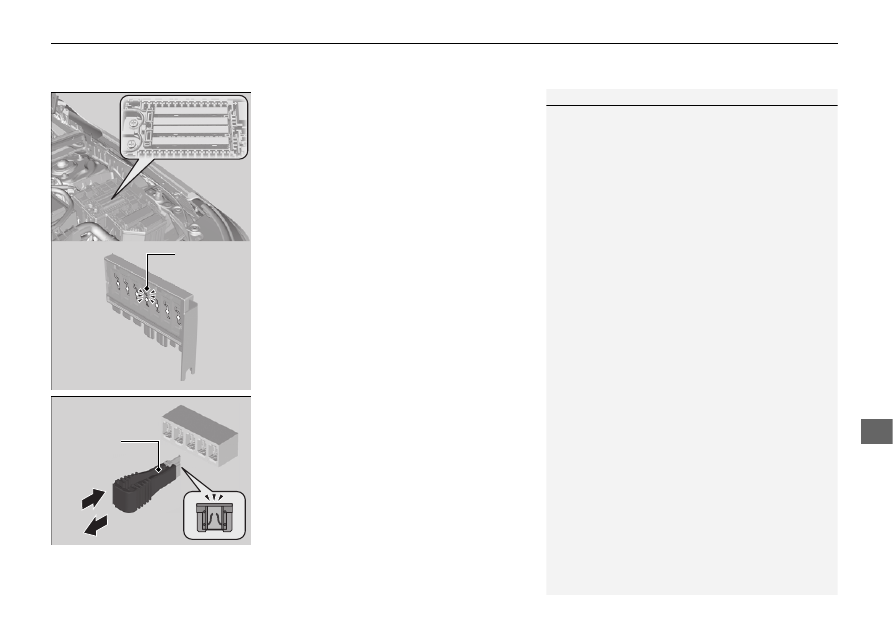

Check the fuses.

Check all fuses, or have your vehicle checked by a dealer.

2

Inspecting and Changing Fuses

 P. 738

1

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2

If the Battery Is Dead

 P. 722

Depending on the situation, it may be possible to
temporarily start the engine using the emergency
start procedure.

2

Emergency Engine Start

 P. 720

718

uu

Engine Does Not Start

u

Checking the Engine

Han

d

lin
g the U

n

expected

Starter condition

Checklist

The starter turns over normally
but the engine doesn’t start.

There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.

Follow its instructions, and try to start the engine again.

2

 Starting the Engine

 P. 448

Check the immobilizer system indicator.

When the immobilizer system indicator is blinking, the engine cannot be started.

2

Immobilizer System

 P. 190

Check the fuel level.

There should be enough fuel in the tank.

2

 Fuel Gauge

 P. 113

Check the fuses.

Check all fuses, or have the vehicle checked by a dealer.

2

Inspecting and Changing Fuses

 P. 738

If the problem continues:

2

Emergency Towing

 P. 740

719

uu

Engine Does Not Start

u

If the Keyless Remote Battery is Weak

Han

d

lin
g the U

n

expected

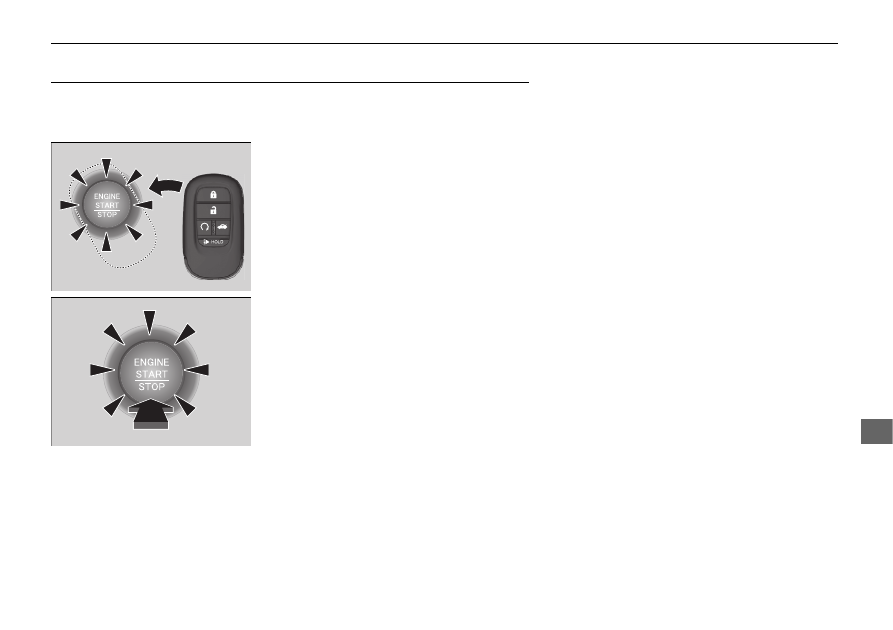

If the Keyless Remote Battery is Weak

If the beeper sounds, the

To start, touch start button with emblem side of

remote

 message appears on the driver information interface, the

ENGINE START/

STOP

 button flashes, and the engine won’t start, start the engine as follows:

1.

Touch the center of the

ENGINE START/

STOP

 button with the

H

 logo on the keyless

remote while the

ENGINE START/STOP



button is flashing. The buttons on the
keyless remote should be facing you.

u

The

ENGINE START/STOP

 button

flashes for about 30 seconds.

2.

Depress the brake pedal (continuously
variable transmission) or clutch pedal
(manual transmission) and press the

ENGINE START/STOP

 button within 10

seconds after the beeper sounds and the

ENGINE START/STOP

 button changes

from flashing to on.

u

If you don’t depress the pedal, the mode
will change to ACCESSORY.

720

uu

Engine Does Not Start

u

Emergency Engine Start

Han

d

lin
g the U

n

expected

Emergency Engine Start

If the engine does not start using the normal engine starting procedure, you may be
able to start it using the emergency start procedure below.

Do not use this procedure if it is not an emergency.

1.

Make sure the parking brake is applied.

u

The parking brake and brake system indicator (red) comes on for 30 seconds
when you pull up the electric parking brake switch.

2.

Check that the transmission is in

(

P

, then set the power mode to ACCESSORY.

3.

Firmly depress the brake pedal, then press and hold the

ENGINE START/STOP



button for at least 15 seconds.

This should be considered a system malfunction even if you are able to start the
engine using the above procedure.
Have your vehicle checked by a dealer immediately.

Continuously variable transmission models

1

Emergency Engine Start

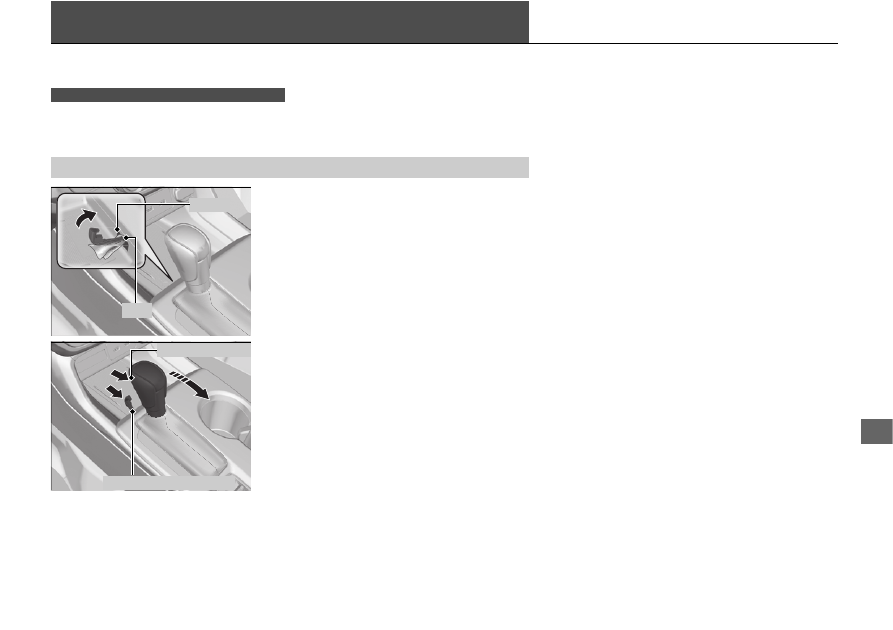

Refer to the following if you cannot move the shift
lever out of the

(

P

 position.

2

Shift Lever Does Not Move

 P. 725

721

uu

Engine Does Not Start

u

Emergency Engine Stop

Han

d

lin
g the U

n

expected

Emergency Engine Stop

The

ENGINE START/STOP

 button may be used to stop the engine due to an

emergency situation even while driving. If you must stop the engine, do either of the
following operations:

•

Press and hold the

ENGINE START/STOP

 button for about two seconds.

•

Firmly press the

ENGINE START/STOP

 button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.

The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into

(

P

 after the vehicle

comes to a complete stop.

The power mode changes to VEHICLE OFF.

1

Emergency Engine Stop

Do not press the

ENGINE START/STOP

 button while

driving unless it is absolutely necessary for the engine
to be turned off.
If you press the

ENGINE START/STOP

 button while

driving, the beeper sounds.

Continuously variable transmission models

Manual transmission models

722

Han

d

lin
g the U

n

expected

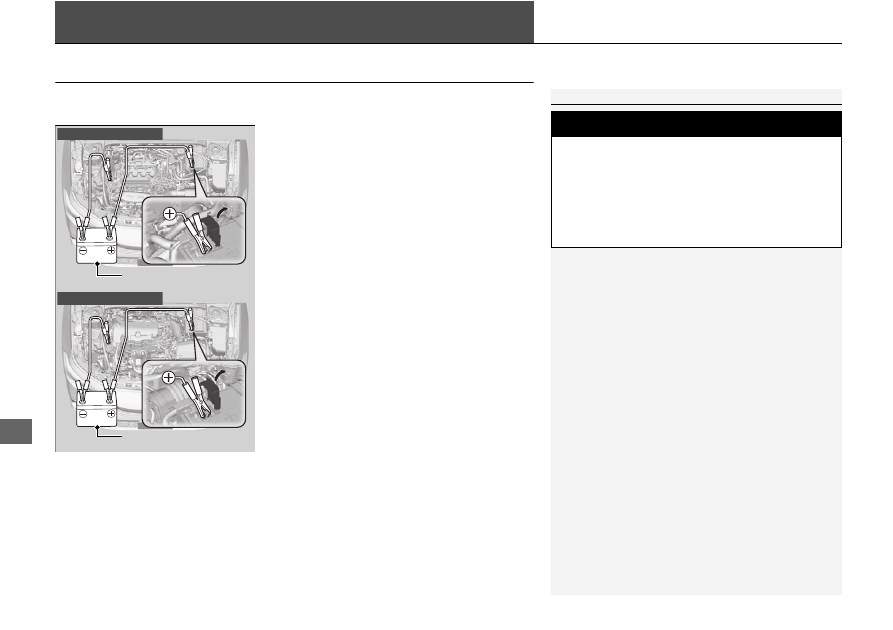

If the Battery Is Dead

Jump Starting Procedure

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1.

Open the cover on the positive

+

 terminal.

2.

Connect the first jumper cable to your
vehicle’s battery

+

 terminal.

3.

Connect the other end of the first jumper
cable to the booster battery

+

 terminal.

u

Use a 12-volt booster battery only.

u

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.

4.

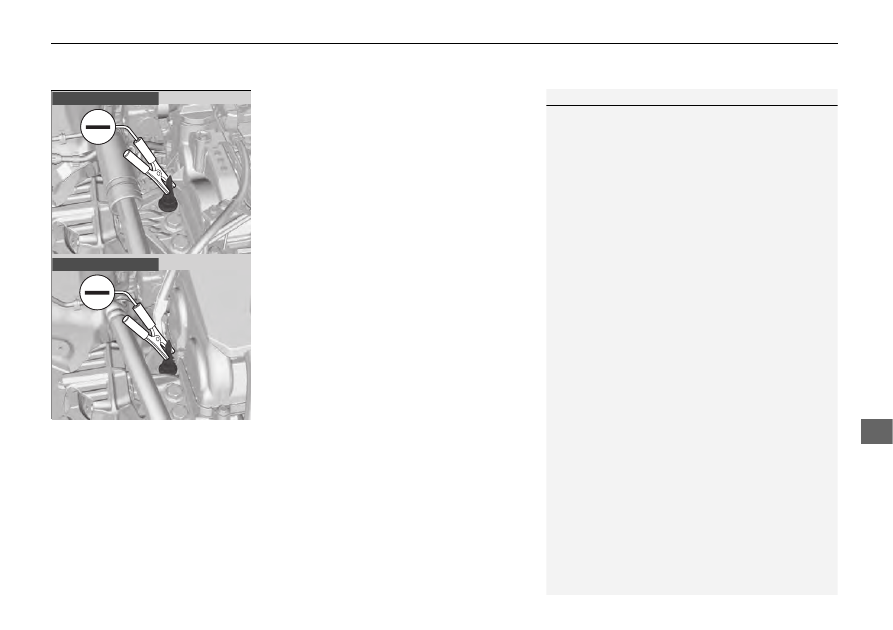

Connect the second jumper cable to the
booster battery

-

 terminal.

1

If the Battery Is Dead

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.

3

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster Battery

1.5 L engine models

2.0 L engine models

Booster Battery

Continued

723

uu

If the Battery Is Dead

u

Jump Starting Procedure

Han

d

lin
g the U

n

expected

5.

Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.

6.

If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

7.

Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.

1

If the Battery Is Dead

Battery performance degrades in cold conditions and
may prevent the engine from starting.

1.5 L engine models

2.0 L engine models

uu

If the Battery Is Dead

u

Jump Starting Procedure

724

Han

d

lin
g the U

n

expected

Once your vehicle’s engine has started, remove the jumper cables in the following
order.

1.

Disconnect the jumper cable from your vehicle’s ground.

2.

Disconnect the other end of the jumper cable from the booster battery

-



terminal.

3.

Disconnect the jumper cable from your vehicle’s battery

+

 terminal.

4.

Disconnect the other end of the jumper cable from the booster battery

+



terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

1

What to Do After the Engine Starts

The Vehicle Stability Assist

TM

 (VSA

®

) system, Vehicle

Stability Assist

TM

 (VSA

®

)

OFF

*

, Adaptive Cruise Control

(ACC) with Low Speed Follow

*

, safety support and low

tire pressure/ TPMS

*

 indicators may come on in amber

along with a message in the gauge when you set the
power mode to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

* Not available on all models

725

Han

d

lin
g the U

n

expected

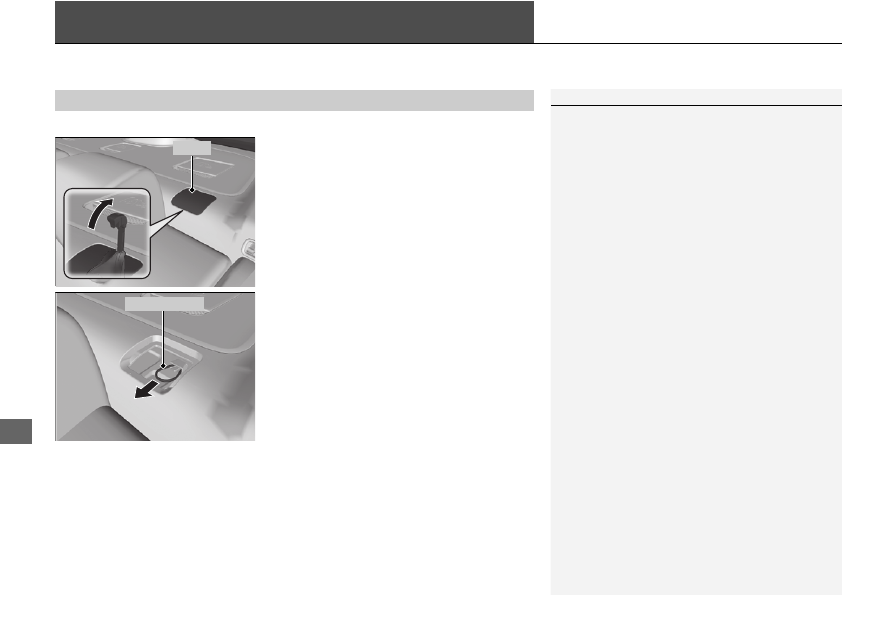

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

P



position.

1.

Set the parking brake.

2.

Set the power mode to VEHICLE OFF.

3.

Remove the built-in key from the keyless
remote.

4.

Wrap a cloth around the tip of the built-in
key. Put it into the shift lock release slot as
shown in the image, and remove the cover.

5.

Insert the key into the shift lock release slot.

6.

While pushing the key in, press the shift
lever release button, and place the shift
lever into

(

N

.

u

The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.

■

Releasing the Lock

Continuously variable transmission models

Slot

Cover

Release Button

Shift Lock Release Slot

726

Han

d

lin
g the U

n

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

•

The temperature gauge pointer is at the

 mark or the engine suddenly loses

power.

•

The

Engine temperature too hot. Do not drive. Allow engine to cool.



message appears on the driver information interface.

•

Steam or spray comes out of the engine compartment.

■

First thing to do

1.

Immediately park the vehicle in a safe place.

2.

Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present:

Keep the engine running and open the hood.

u

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then, open the hood.

1

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
pointer at the

 mark may damage the engine.

Continuing to drive with the

Engine temperature

too hot. Do not drive. Allow engine to cool.



message on the driver information interface may
damage the engine.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

Models with B-type meter

H

All models

Models with B-type meter

H

All models

727

uu

Overheating

u

How to Handle Overheating

Han

d

lin
g the U

n

expected

■

Next thing to do

1.

Check that the cooling fan is operating and
stop the engine once the

Engine

temperature too hot. Do not drive.
Allow engine to cool.

 message on the

driver information interface disappears.

u

If the cooling fan is not operating,
immediately stop the engine.

2.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

u

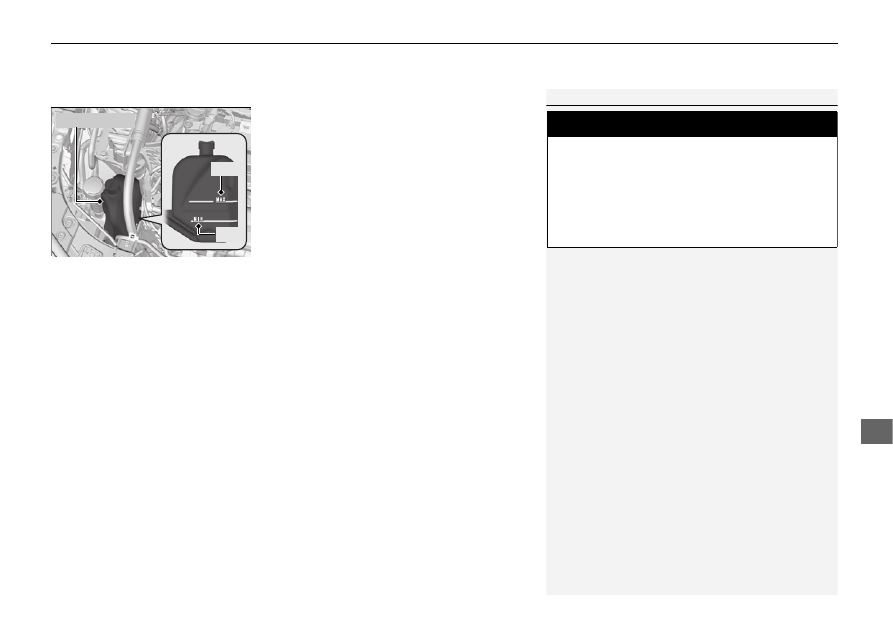

If the coolant level in the reserve tank is
low, add coolant until it reaches the

MAX

 mark.

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the driver information
interface.
If the

Engine temperature too hot. Do not drive. Allow engine to cool.



message does not appear, resume driving. If it appears again, contact a dealer for
repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

Reserve Tank

MIN

728

Han

d

lin
g the U

n

expected

Indicator, Coming On/Blinking

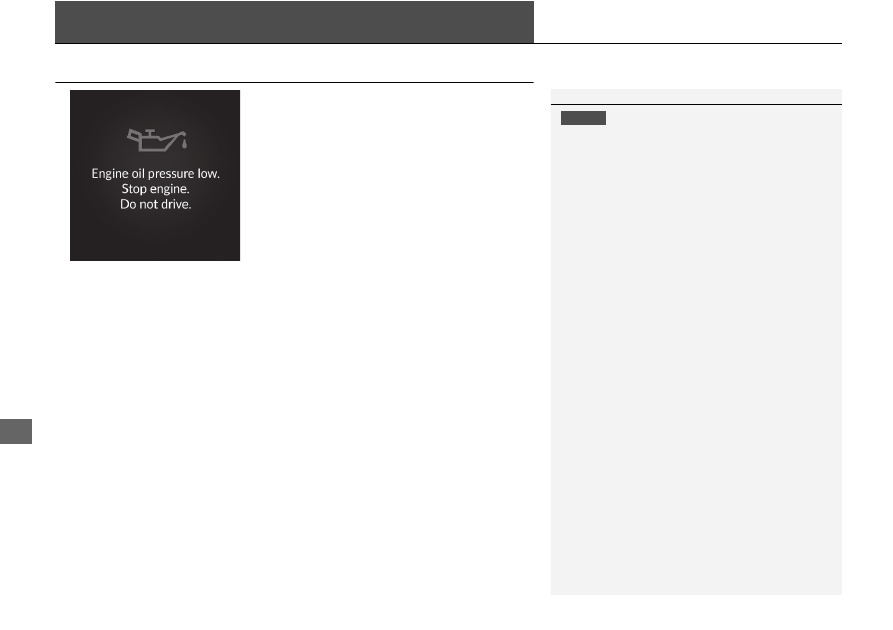

If the Engine oil pressure low Warning Appears

■

Reasons for the warning to appear

Appears when the engine oil pressure is low.

■

What to do as soon as the warning
appears

1.

Immediately park the vehicle on level
ground in a safe place.

2.

If necessary, turn the hazard warning lights
on.

■

What to do after parking the vehicle

1.

Stop the engine and let it sit for
approximately three minutes.

2.

Open the hood and check the oil level.

u

Add oil as necessary.

2

Oil Check

 P. 655

3.

Start the engine and check the

Engine oil

pressure low

 warning.

u

The warning disappears: Start driving
again.

u

The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.

1

If the

Engine oil pressure low

 Warning Appears

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

729

uu

Indicator, Coming On/Blinking

u

If the Charging System Indicator Comes On

Han

d

lin
g the U

n

expected

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when there is a problem with the charging system.

■

What to do when the indicator comes on

Stop in a safe place and have your vehicle checked by a dealer
immediately.

If the Malfunction Indicator Lamp Comes On or
Blinks

■

Reasons for the indicator lamp to come on or blink

•

Comes on when there is a problem with the engine emissions control
system.

•

Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

1

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

1

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

730

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On or
Blinks

■

Reasons for the indicator to come on

•

The brake fluid is low.

•

There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.

•

If normal, check the brake fluid level the next time you stop.

•

If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.

■

Reasons for the indicator to blink

There is a problem with the electric parking brake system.

■

What to do when the indicator blinks

Avoid using the parking brake and have your vehicle checked by a dealer
immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.

If the brake system indicator (red) and

ABS

 indicator

come on simultaneously, the electronic brake
distribution system is not working. This can result in
vehicle instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work.
Avoid using the parking brake and have your vehicle
checked by a dealer immediately.

2

If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On



P. 731

U.S.

Canada

(Red)

731

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On

■

If the brake system indicator (red) comes on or blinks at the
same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.

2

Parking Brake

 P. 606

•

If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

u

Preventing the vehicle from moving

Put the transmission into

(

P

.

Put the transmission into

(

1

 or

(

R

.

•

If only the brake system indicator (red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.

U.S.

Canada

(Red)

U.S.

Canada

(Amber)

Continuously variable transmission models

Manual transmission models

732

uu

Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Han

d

lin
g the U

n

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

■

Reasons for the indicator to come on

Comes on when there is a problem with the EPS system.

■

What to do when the indicator comes on

•

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

•

If

Do not drive

 displays on the driver information interface,

immediately stop in a safe place and contact a dealer.

733

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire

*

 is installed, the indicator will either come on or

it will first blink for about one minute, then stay on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

u

Calibrate the TPMS after the tire pressure is adjusted.

2

TPMS Calibration

 P. 492

If the compact spare tire

*

 causes the indicator to come on, change the

tire to a full-size tire. The indicator goes off after calibrating the TPMS.

■

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

*

 causes the indicator to first blink, and then stay on, change

the tire to a full- size tire. The indicator goes off after calibrating the
TPMS.

2

TPMS Calibration

 P. 492

U.S. models

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

* Not available on all models

734

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.

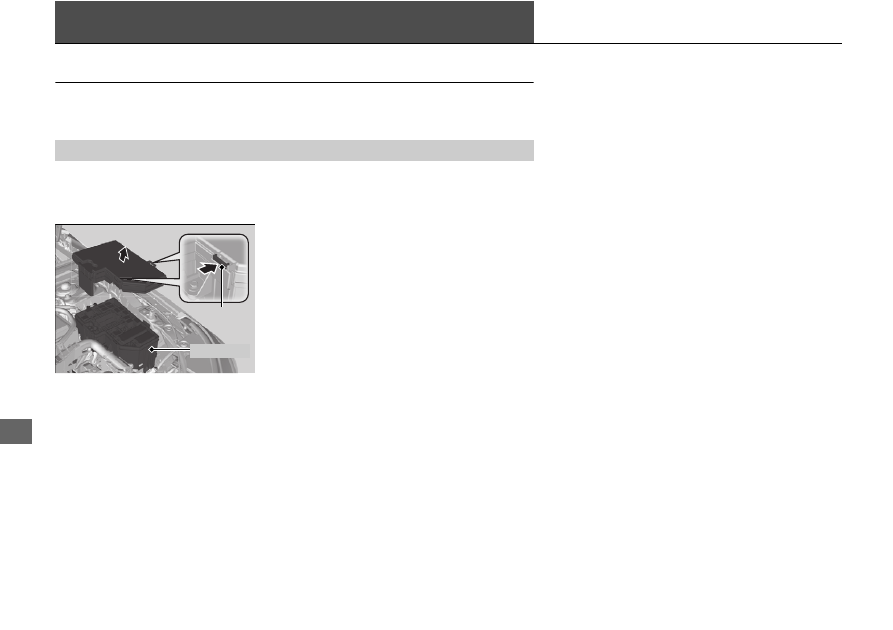

Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse Box

Fuse Box

Tab

735

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

BATTERY

125 A

2

-

40 A

-

40 A

F/BOX OPTION

60 A

-

40 A

F/BOX OPTION2

40 A

DC/DC2

(30 A)

F/BOX MAIN

60 A

3

-

40 A

-

40 A

-

40 A

RR DEFROSTER

40 A

-

40 A

HTR MTR

40 A

-

40 A

4

-

30 A

ABS/VSA MTR

40 A

DC/DC

(30 A)

-

30 A

IG MAIN

30 A

-

30 A

R/M2

30 A

5

ST MAGNETIC SW

30 A

WIPER

30 A

EPS

70 A

R/M1

30 A

ABS/VSA FSR

40 A

MAIN FAN

30 A

F/BOX MAIN2

40 A

6

 SUB FAN

30 A

7

 IG MAIN2

30 A

8

-

-

9

EVP

*

(30 A)

10

AUDIO SUB

*

(7.5 A)

11

-

-

12

-

-

13

H/STRG

*

(10 A)

14

-

-

15

FR FOG

*

(10 A)

16

MG CLUTCH

10 A

17

WASHER

15 A

18

HORN

10 A

19

BACK UP

15 A

20

AUDIO

*

(15 A)

21

-

-

22

DBW

15 A

23

EOP

*

(20 A)

24

BACKUP FI-ECU

10 A

25

IGP

15 A

Circuit Protected

Amps

26

TCU

*

(15 A)

27

LCM L

(15 A)

28

INJ

*

(15 A)

29

STOP

10 A

30

LCM R

(15 A)

31

IG COIL

15 A

32

-

-

33

HAZARD

15 A

34

AUDIO SUB VST

*

(7.5 A)

35

-

-

36

AUDIO VST MAIN

(30 A)

37

BACKUP2

(30 A)

38

-

-

39

-

-

40

VBACT

*

(10 A)

41

IGPS [LAF]

10 A

42

IG1 MON2

7.5 A

Circuit Protected

Amps

* Not available on all models

736

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

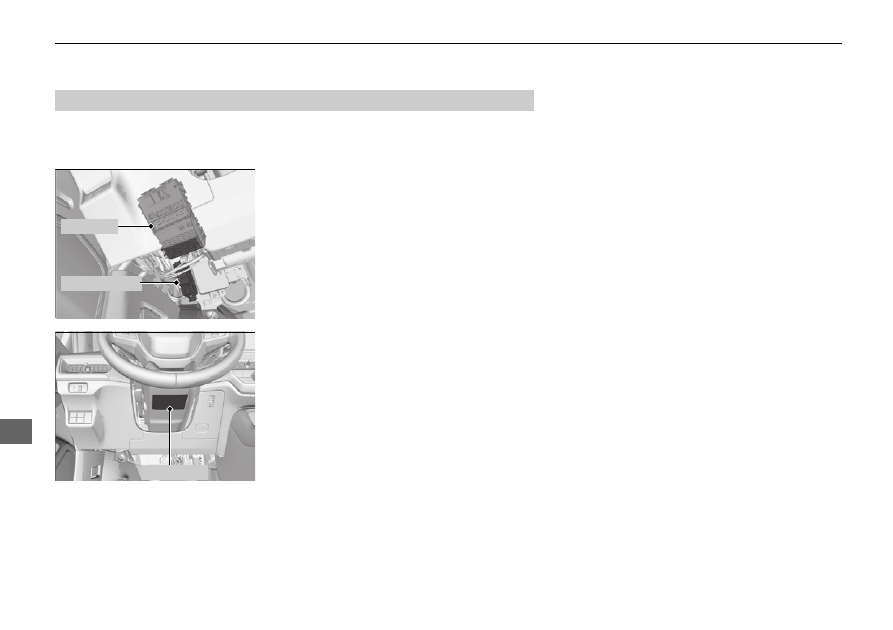

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.

■

Interior Fuse Box

Fuse Box

Sub Fuse Box

Fuse Label

737

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

P/W DR

20 A

2

P/W AS

20 A

3

P/W RR R

20 A

4

P/W RR L

20 A

5

OPTION

10 A

6

SRS

10 A

7

T/G MTR / TRUNK ACT

10 A

8

-

-

9

FR ACC SOCKET

20 A

10

DOOR LOCK

20 A

11

METER

10 A

12

OPTION3 (ST CUT)

10 A

13

OPTION2 (RR WIP)

*

(10 A)

14

OPTION6 (VB SOL)

10 A

15

DR DOOR UNLOCK

(10 A)

16

SUNROOF

*

(20 A)

17

SBW1

*

(10 A)

18

-

-

19

-

-

20

RR FOG

*

(10 A)

21

CARGO ACC SOCKET

*

(20 A)

22

SMART

10 A

23

DR DOOR LOCK

(10 A)

24

SBW2

*

(7.5 A)

25


10 A

26

SRS

10 A

27

ACG / D/V / ST CUT RLY

20 A

28

OPTION5

10 A

29

FUEL PUMP

15 A

30

L SIDE DOOR UNLOCK

10 A

31

R SIDE DOOR UNLOCK

10 A

32

-

-

33

-

-

34

-

-

35

-

-

36

OPTION3 (SUNSHADE)

*

(20 A)

37

IGA2

*

(15 A)

38

-

-

39

R SIDE DOOR LOCK

10 A

40

P/SEAT REC / RR HI

*

(20 A)

41

P/SEAT SLIDE / FR HI

*

(20 A)

42

-

-

43

A/C

10 A

44

DRL

10 A

45

ACC

10 A

46

ACC KEY LOCK

10 A

47

L SIDE DOOR LOCK

 10 A

48

H/SEAT

20 A

49

AS P/SEAT REC

*

(20 A)

50

P/LUMBAR DR

*

(10 A)

51

P/LUMBAR AS

*

(10 A)

52

RR H/SEAT

*

(20 A)

Circuit Protected

Amps

53

AS P/SEAT SLI

*

(20 A)

54

OPTION1 / FUEL LID

10 A

55

AUDIO AMP

*

(30 A)

56

ADS

*

(30 A)

Circuit Protected

Amps

A

BACKUP2 MAIN

(10 A)

B

AUDIO SUB VST

*

(7.5 A)

C

ACC VST

(10 A)

D

VST 1

(10 A)

E

AUDIO VST

(15 A)

F

EOP

*

(20 A)

G

-

-

H

VST 2

(10 A)

Circuit Protected

Amps

Sub Fuse Box

* Not available on all models

738

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

Inspecting and Changing Fuses

1.

Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.

2.

Remove the fuse box cover.

3.

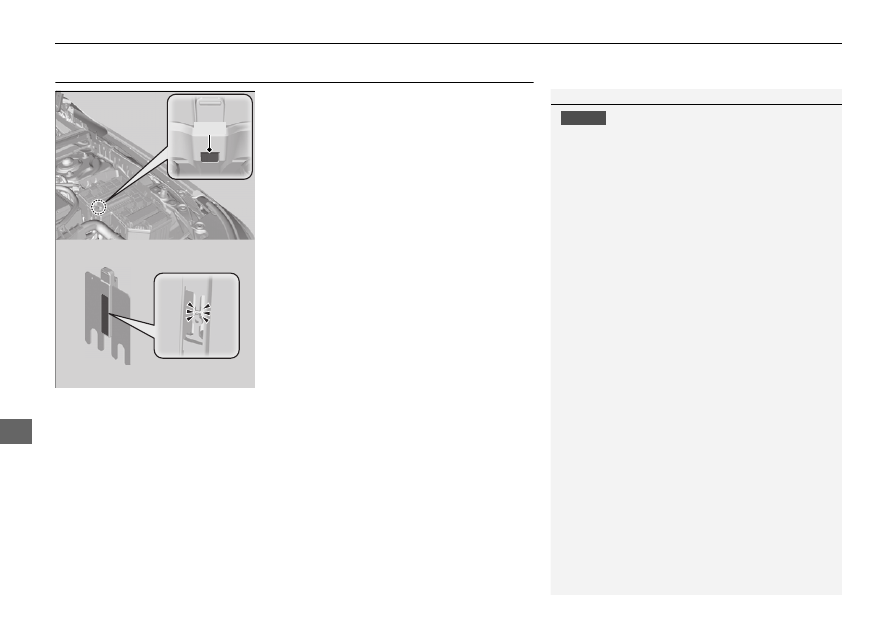

Check the main fuse in the engine
compartment fuse box.

u

Look at the fuse through the hole.

u

If the fuse is blown, have it replaced by a
dealer.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2

Fuse Locations

 P. 734

Replace a fuse with a spare fuse of the same specified
amperage.

Main Fuse

Hole

739

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

4.

Check the combined fuses in the engine
compartment fuse box.

u

Look into the space between the fuses.

u

If the fuse is blown, have it replaced by a
dealer.

5.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined Fuse

Blown Fuse

Fuse Puller

740

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flatbed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground.

This is an acceptable way to

tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment.

2

Parking Brake

 P. 606

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

741

Han

d

lin
g the U

n

expected

If You Cannot Unlock the Fuel Fill Door

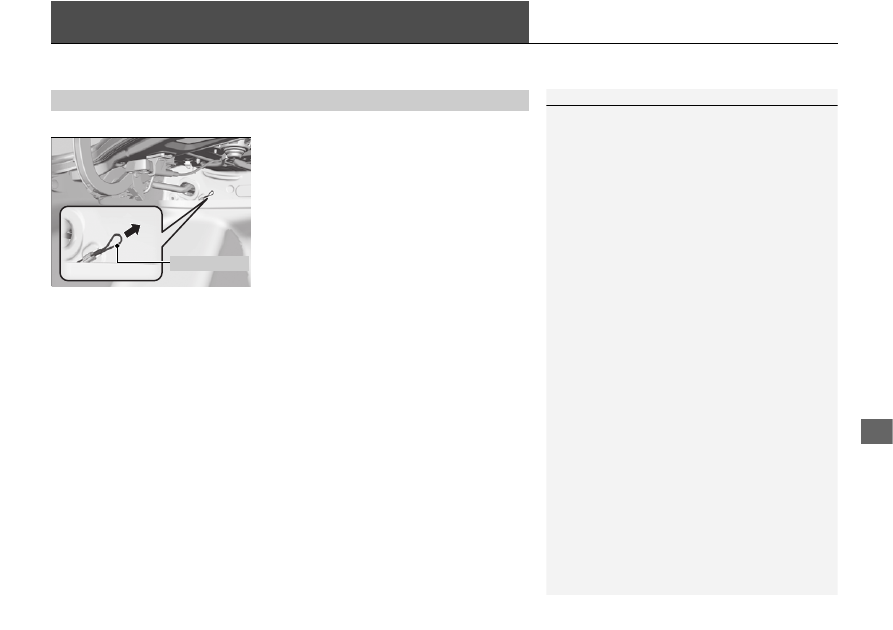

If you cannot unlock the fuel fill door, use the following procedure.

1.

Open the trunk.

2.

Pull the release cord toward you.

u

The release cord unlocks the fuel fill door
when it is pulled.

3.

Open the fuel fill door.

2

How to Refuel

 P. 632

■

What to Do if Unable to Unlock the Fuel Fill Door

1

If You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Release Cord

742

Han

d

lin
g the U

n

expected

If You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1.

Remove the cover with a key.

u

Wrap a key with a cloth to prevent
scratching the cover.

2.

Pull the release cord.

3.

Replace the cover.

■

What to Do if Unable to Open the Trunk

1

If You Cannot Open the Trunk

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Cord

743

Han

d

lin
g the U

n

expected

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1.

Turn off the engine.

2.

Press on the edge of the fuel fill door until
you hear a click when the driver’s door is
unlocked.

u

The fuel fill door opens.

3.

Take the funnel out of the tool case in the
trunk.

2

Types of Tools

 P. 696

4.

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5.

Fill the tank with fuel from the portable fuel
container.

u

Pour fuel carefully so you do not spill any.

6.

Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7.

Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Stop the engine, and keep heat, sparks,
and flames away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Funnel

745

Information

This chapter includes your vehicle's specifications, locations of identification numbers, and other

information required by regulation.

Specifications

.................................... 746

Identification Numbers

Vehicle Identification Number (VIN),

Engine Number, and Transmission
Number ......................................... 750

Devices that Emit Radio Waves

....... 751

Reporting Safety Defects

................. 753

Emissions Testing

Testing of Readiness Codes.............. 754

Warranty Coverages

........................ 756

Authorized Manuals

......................... 759

Customer Service Information

......... 760

Open Source Licence

Meter Open Source Licence ............. 761

746

Info

rm

ation

Specifications

■

Vehicle Specifications

■

Air Conditioning

Model

Civic

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

15.3 – 17.1 oz (435 – 485 g)

Lubricant Type

RB100EV-01 (POE)

Quantity

6.7 – 7.5 cu-in (110 – 123 cm

3

)

1.5 L engine models

■

Engine Specifications

■

Fuel

*1: Continuously variable transmission models
*2: Manual transmission models

■

Washer Fluid

Displacement

91.38 cu-in (1,498 cm

3

)

Spark Plugs

NGK

DILKAR8P8SY

Type

Unleaded gasoline, pump octane number
87 or higher

*1

Unleaded premium gasoline, pump octane
number 91 or higher

*2

Fuel Tank Capacity

12.39 US gal (46.9 L)

Tank Capacity

U.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)

■

Light Bulbs

*1: Continuously variable transmission models without fog lights
*2: Continuously variable transmission models with fog lights and

manual transmission models

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Fog Lights

*

LED

Parking/Daytime Running Lights

LED

Front Side Marker Lights

LED

Front Turn Signal Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake Lights

LED

Rear Turn Signal Lights

21 W (Amber)

Rear Side Marker Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

21 W

*1

LED

*2

Rear License Plate Light

LED

Interior Lights

Map Lights

LED

Ceiling Light

LED

Front Ambient Lights LED
Vanity Mirror Lights

2.3 W

Center Console Light LED
Glove Box Light

LED

Trunk Light

5 W

* Not available on all models

747

uu

Specifications

u

Continued

Info

rm

ation

■

Brake/Clutch

*

 Fluid

■

Continuously Variable Transmission

Fluid

*

■

Manual Transmission Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

3.9 US qt (3.7 L)

Specified

Honda MTF

Capacity

Change

2.0 US qt (1.9 L)

■

Engine Oil

■

Engine Coolant

*1: Continuously variable transmission models
*2: Manual transmission models

Recommended

·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.4 US qt (3.2 L)

Change
including
filter

3.7 US qt (3.5 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.51 US gal (5.72 L)
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)

*1

1.48 US gal (5.59 L)
(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)

*2

■

Tire

For the tire size and pressure information, see the label on
driver’s doorjamb.

*1: Models with 17 inch wheel
*2: Models with 18 inch wheel
*3: Continuously variable transmission models with 17 inch wheel
*4: Continuously variable transmission models with 18 inch wheel
*5: Canadian manual transmission models
*6: U.S. manual transmission models with optional spare tire

Regular

Size

215/50R17 91H

*1

235/40R18 91W

*2

235/40R18 95Y

*2

Pressure
psi (kPa [kgf/cm

2

])

Front
33 (230 [2.3])

*1

33 (225 [2.25])

*2

Rear
33 (230 [2.3])

*1

32 (220 [2.2])

*2

Compact
Spare

*

Size

T125/80D16 97M

*3

T125/85D16 99M

*4

T125/80R17 99M

*5, *6

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7J

*1

18 x 8J

*2

Compact Spare

*

16 x 4T

*3, *4

17 x 4T

*5, *6

* Not available on all models

748

uu

Specifications

u

Info

rm

ation

■

Vehicle Specifications

■

Air Conditioning

Model

Civic

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

15.3 – 17.1 oz (435 – 485 g)

Lubricant Type

ND-OIL 14 (POE)

Quantity

6.4 – 7.3 cu-in (105 – 120 cm

3

)

2.0 L engine models

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

121.76 cu-in (1,996 cm

3

)

Spark Plugs

NGK

DILKAR7H11GS
DILKAR7G11GS

DENSO

DXE22HQR-D11S

Type

Unleaded gasoline, pump octane number
87 or higher

Fuel Tank Capacity

12.39 US gal (46.9 L)

Tank Capacity

U.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)

■

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Parking/Daytime Running Lights

LED

Front Side Marker Lights

LED

Front Turn Signal Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake Lights

LED

Rear Turn Signal Lights

21 W (Amber)

Rear Side Marker Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

21 W

Rear License Plate Light

LED

Interior Lights

Map Lights

LED

Ceiling Light

LED

Front Ambient Lights

LED

Vanity Mirror Lights

*

2.3 W

Center Console Light

*

LED

Glove Box Light

LED

Trunk Light

5 W

* Not available on all models

749

uu

Specifications

u

Info

rm

ation

■

Brake Fluid

■

Continuously Variable Transmission

Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

2.9 US qt (2.7 L)

■

Engine Oil

■

Engine Coolant

Recommended

·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.2 US qt (4.0 L)

Change
including
filter

4.4 US qt (4.2 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.56 US gal (5.90 L)
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)

■

Tire

*1: Models with 16 inch wheel
*2: Models with 18 inch wheel

Regular

Size

215/55R16 93H

*1

235/40R18 91W

*2

Pressure
psi (kPa [kgf/cm

2

])

Front

32 (220 [2.2])

*1

33 (225 [2.25])

*2

Rear 32 (220 [2.2])

*1, *2

Compact
Spare

Size

T125/80D16 97M

*1

T125/85D16 99M

*2

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

16 x 7J

*1

18 x 8J

*2

Compact Spare

16 x 4T

750

Info

rm

ation

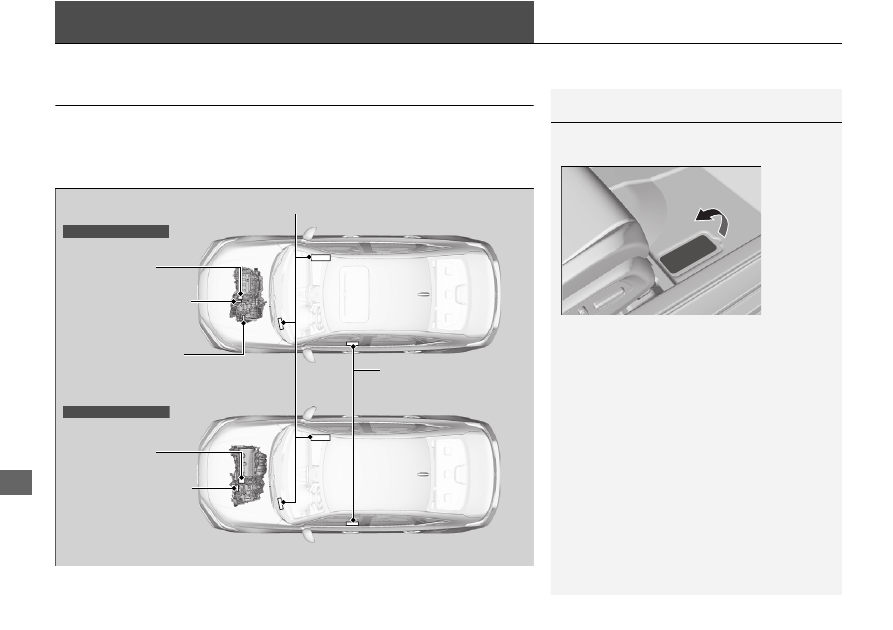

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.

1

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification
Number

2.0 L engine models

1.5 L engine models

Continuously Variable
Transmission Number

*

Engine Number

Continuously Variable
Transmission Number

Manual Transmission
Number

*

* Not available on all models

751

Continued

Info

rm

ation

Devices that Emit Radio Waves

Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

752

uu

Devices that Emit Radio Waves

u

Info

rm

ation

Wireless Charger

*

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the
user's authority to operate the equipment.
This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna
must not be co-located or operating in conjunction with any other antenna or transmitter.

* Not available on all models

753

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to

http://www.safercar.gov

; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,

Washington, DC 20590. You can also obtain other information about motor vehicle safety from

http://

www.safercar.gov

.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to

http://www.tc.gc.ca/

roadsafety

.

754

Info

rm

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.

To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

1.

Fill the gas tank to approximately 3/4 full.

2.

Park the vehicle and leave the engine off for 6 hours or more.

3.

Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).

4.

Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.

5.

Keep the vehicle in

(

P

 (continuously variable transmission) or

(

N

 (manual

transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.

6.

Let the engine idle with your foot off the accelerator for 20 seconds.

7.

Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in

(

D

 (continuously variable transmission) or 5th (manual transmission). Do not use

cruise control. When traffic allows, drive for 90 seconds without moving the
accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do
this for a continuous 90 seconds because of traffic conditions, drive for at least 30
seconds, then repeat it two more times (for a total of 90 seconds).

1

Testing of Readiness Codes

The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

755

uu

Emissions Testing

u

Testing of Readiness Codes

Info

rm

ation

8.

Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.

9.

Park the vehicle and leave the engine off for 30 minutes.

756

Info

rm

ation

Warranty Coverages

■

U.S. Owners

Your new vehicle is covered by these warranties:

New Vehicle Limited Warranty –

 covers your new vehicle, except for the

emissions control systems and accessories, against defects in materials and
workmanship.

Emissions Control Systems Defects Warranty and Emissions Performance
Warranty –

 these two warranties cover your vehicle’s emissions control systems.

Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.

Seat Belt Limited Warranty –

 a seat belt that fails to function properly is covered

by a limited warranty. Please read your warranty booklet for details.

Rust Perforation Limited Warranty –

 all exterior body panels are covered against

rusting from the inside out for the specified time period, regardless of mileage.

Accessory Limited Warranty –

 Honda accessories are covered under this

warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.

Replacement Parts Limited Warranty –

 covers all Honda replacement parts

against defects in materials and workmanship.

757

uu

Warranty Coverages

u

Continued

Info

rm

ation

Replacement Battery Limited Warranty –

 provides prorated coverage for a

replacement battery purchased from your dealer.

Replacement Muffler Lifetime Limited Warranty –



provides coverage for as

long as the purchaser of the muffler owns the vehicle.

Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.

■

Statement on Warranty Coverage for Aftermarket and Recycled Parts

The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or recycled part has been used to repair the
vehicle or someone other than the authorized service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.

Under federal law, a manufacturer may deny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty. The Federal Trade
Commission requires that a manufacturer demonstrate that an aftermarket or
recycled part or service performed by a person other than an authorized service
provider caused damage to another part of the vehicle otherwise covered under
warranty before denying warranty coverage. Additionally, federal law allows a
manufacturer to void a motor vehicle warranty or deny warranty coverage if the
manufacturer provides the article or service to consumers free of charge under the
warranty or the manufacturer has secured a waiver from the Federal Trade
Commission.

758

uu

Warranty Coverages

u

Info

rm

ation

■

Canadian Owners

Please refer to the warranty manual that came with your vehicle.

■

EPA Contact Information

An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:

Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
complianceinfo@epa.gov

759

Info

rm

ation

Authorized Manuals

■

Service Express

For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit

www.techinfo.honda.com

 for pricing and options.

■

For U.S. Owners

Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit card orders only), or online at

www.helminc.com

.

■

For Canadian Owners

Please contact a dealer to order any manuals that you may require.

760

Info

rm

ation

Customer Service Information

Honda dealership personnel are trained professionals able to deal with any problems
you may encounter with your vehicle. If, however, you are faced with a problem that
they cannot resolve to your satisfaction, contact Honda Customer Services.

U.S. Owners

American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop CHI-5
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009

Canadian Owners

Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: Honda_cr@ch.honda.com

In Puerto Rico and the U.S. Virgin
Islands

Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-7546

In Guam

Triple J Autogroup
157 S. Marine Corps Drive
Tamuning, GU 96913
Tel: (671) 648-2277

In Saipan, Commonwealth of the
Northern Mariana Island

Joeten Motor Company, Inc.
P.O Box 500680
Saipan, MP 96950
Tel: (670) 234-5562

1

Customer Service Information

When you call or write, please give us the following
information:

•

Vehicle Identification Number

2

Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number

 P. 750

•

Date of purchase

•

Odometer reading of your vehicle

•

Your name, address, and telephone number

•

A detailed description of the problem

•

Name of the dealer who sold the vehicle to you

761

Info

rm

ation

Open Source Licence

Meter Open Source Licence

The software embedded in this product includes open source software. Refer to the
following website for details regarding the open source software.

https://www.nippon-seiki.co.jp/business_ic_meter/
