Continued

135

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

strum

nt Pa

nel

Enables you to show another unit on the
driver information interface and set the
displayed measurements to read in either
miles and mph or km and km/h.

Press and hold the left selector wheel when
you select

No content

on the driver

information interface. Each time you do this,
the unit will change from miles and mph to
km and km/h or vice versa. After this, a
confirmation screen will appear for a few
seconds.

You can check if there are any active warning messages.

■

Speed/Distance Units

■

Warnings

Warnings

If there are multiple warnings, you can roll the left
selector wheel to see other warnings.

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

136

strum

nt Pa

nel

Use the driver information interface to customize certain features.

■

How to customize

Press the

(home) button, then select the

Settings

screen by rolling the left

selector wheel while the power mode is in ON, the vehicle is at a complete stop, and
the shift position is in

(

. Then, press the left selector wheel.

■

Settings

Settings

To customize other features, roll the left selector
wheel.

List of customizable options

P. 137

Example of customization settings

P. 142

When you customize settings, shift to

(

Driver
Information
Interface

Left Selector Wheel

(home) Button

* Not available on all models

137

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

Continued

strum

nt Pa

nel

■

List of customizable options

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

TPMS
calibration

—

Calibrates the TPMS.

Cancel

Calibrate

Driver assist
system setup

Forward collision
warning distance

Changes the distance at which CMBS

alerts.

Long

Normal

Short

ACC forward vehicle
detect beep

Causes the system to beep when a vehicle is detected or
when the vehicle is out of ACC with Low Speed Follow
range.

OFF

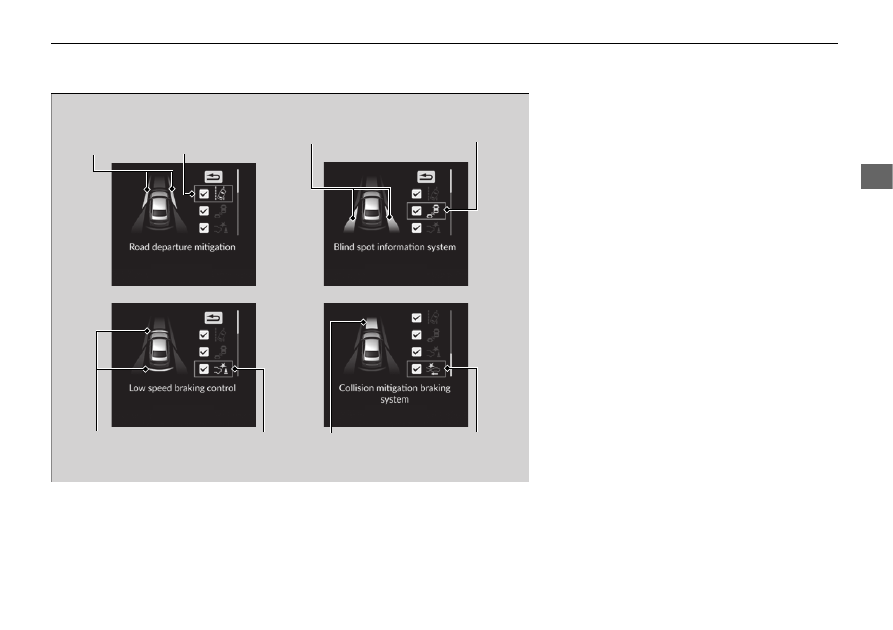

Road departure
mitigation setting

Changes the setting for the Road Departure Mitigation
system.

Narrow

Normal

Wide

Warning only

Lane keeping assist
suspend beep

Causes the system to beep when the LKAS is suspended.

OFF

Blind spot
information

Changes the setting for the blind spot information.

Audible and visual
alert

Visual alert

* Not available on all models

138

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

strum

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driver assist
system setup

Traffic sign
recognition system
display setting

Turns the traffic sign recognition system on and off.

OFF

Traffic sign
recognition system
exceeding speed
warning

Turns the traffic sign recognition system over speed
warning on and off.

OFF

Speed limit warning
threshold setting

Changes the setting speed at which the traffic sign
recognition system over speed warning is activated.

Speed limit

Speed limit+3mph

Speed limit+5mph

Speed limit+10mph

(When mph is selected)

Speed limit

Speed limit+5km/h

Speed limit+10km/h

Speed limit+15km/h

(When km/h is selected)

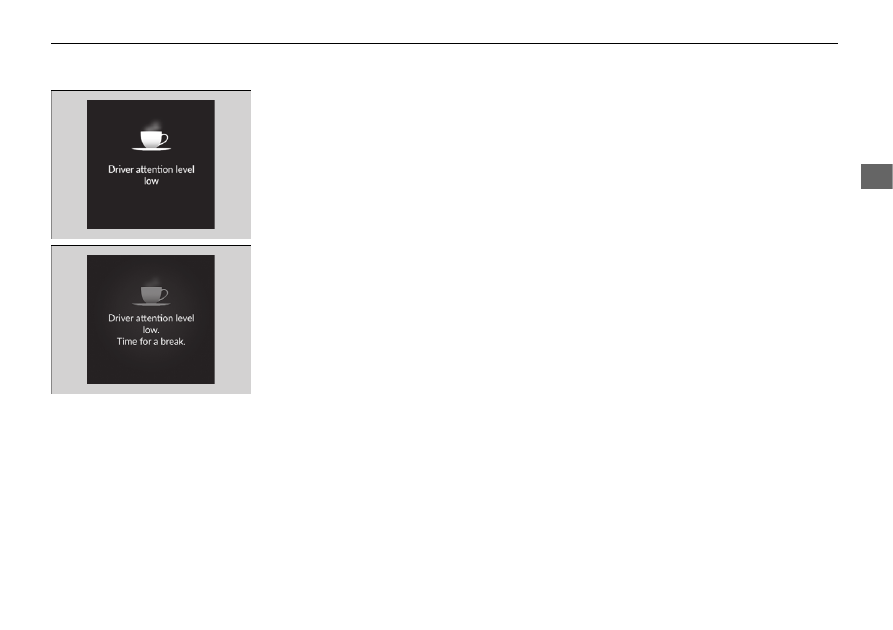

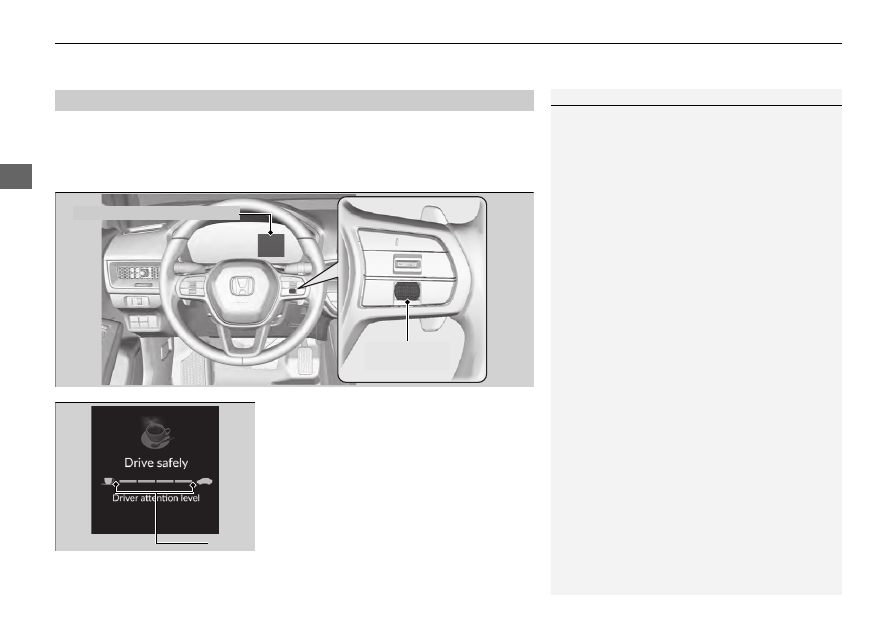

Driver attention
monitor

Changes the setting for the driver attention monitor.

Tactile and audible
alert

Tactile alert

OFF

139

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

Continued

strum

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Meter setup

Language selection

Changes the displayed language.

English

Français

Español

Adjust outside temp.
display

Adjusts the temperature reading by a few degrees.

-5°F

±0°F

+5°F

(U.S.)

-3°C

±0°C

+3°C

(Canada)

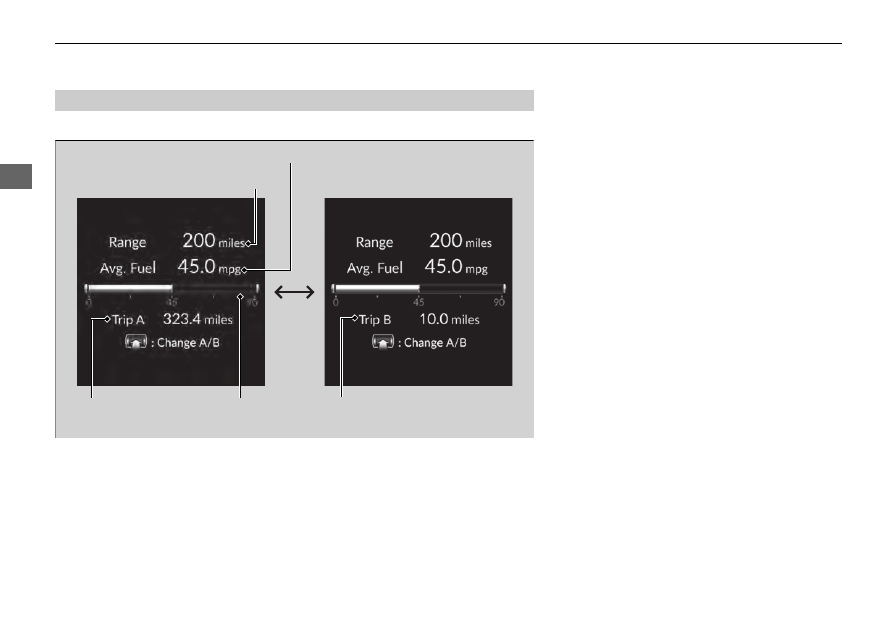

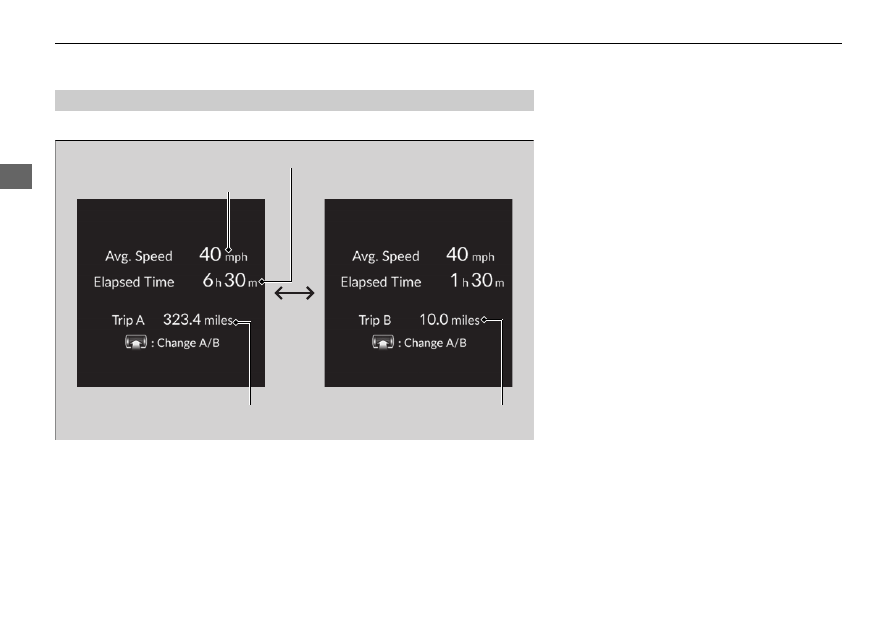

“Trip A” reset timing

Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A.

When fully refueled

IGN OFF

Manually reset

“Trip B” reset timing

Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and elapsed
time B.

When fully refueled

IGN OFF

Manually reset

Adjust alarm volume

Changes the alarm volume, such as buzzers, warnings,
turn signal sound, and so on.

High

Mid

Low

Fuel efficiency backlight

Turns the ambient meter feature on and off.

OFF

Rear seat reminder

Turns the Rear Seat Reminder feature on and off.

OFF

Speed/distance units

Selects the trip meter units.

km/h∙km

mph∙miles

(U.S.)

km/h∙km

mph∙miles

(Canada)

Tachometer

Selects whether the tachometer is displayed on the
instrument panel.

OFF

140

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

strum

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Keyless access
setup

Door unlock mode

Changes which doors unlock when you grab the driver’s
door handle.

Driver door only

All

doors

Keyless access light
flash

Causes some exterior lights to flash when you unlock/
lock the doors.

OFF

Keyless access beep

Causes the beeper to sound when you unlock/lock the
doors.

OFF

Remote start system
ON/OFF

Turns the remote engine start feature on and off.

OFF

Lighting setup

Auto high-beam

Turns the auto high-beam on and off.

OFF

Interior light dimming
time

Changes the length of time the interior lights stay on
after you close the doors.

60sec

30sec

15sec

Headlight auto off
timer

Changes the length of time the exterior lights stay on
after you close the driver’s door.

60sec

30sec

15sec

0sec

Auto light sensitivity

Changes the timing for the headlights to come on.

Max

High

Mid

Low

Min

Auto headlight ON
with wiper ON

Changes the settings for the wiper operation when the
headlights automatically come on while the headlight
switch is in the

AUTO

position.

OFF

* Not available on all models

141

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

Continued

strum

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Door setup

Auto door lock

Changes the setting for when the doors automatically
lock.

With vehicle speed

Shift from P

OFF

Auto door unlock

Changes the setting for when the doors automatically
unlock.

All doors when driver’s
door opens

All doors

when shifted to Park

All doors when ignition
switched OFF

OFF

Key and remote unlock
mode

Sets up either the driver’s door or all doors to unlock on
the first operation of the keyless remote or built-in key.

Driver door

All doors

Walk away auto lock

Changes the settings for the auto lock function when
you walk away from the vehicle.

OFF

Keyless lock answer
back

LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.

OFF

Keyless remote power
window control

Turns remote window control using the keyless remote
on and off.

OFF

Lockout prevention

Changes the settings for the lockout protection
function.

OFF

Maintenance
reset

—

Resets the Maintenance Minder display when you have
performed the maintenance service.

(Selects Reset Items)

Default all

—

Cancels customized changes you have made or restores
them to their default setting.

Cancel

Set

* Not available on all models

142

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

strum

nt Pa

nel

■

Example of customization settings

The steps for changing the

“Trip A” reset timing

setting to

When fully refueled

are shown below. The default setting for

“Trip A” reset timing

Manually reset

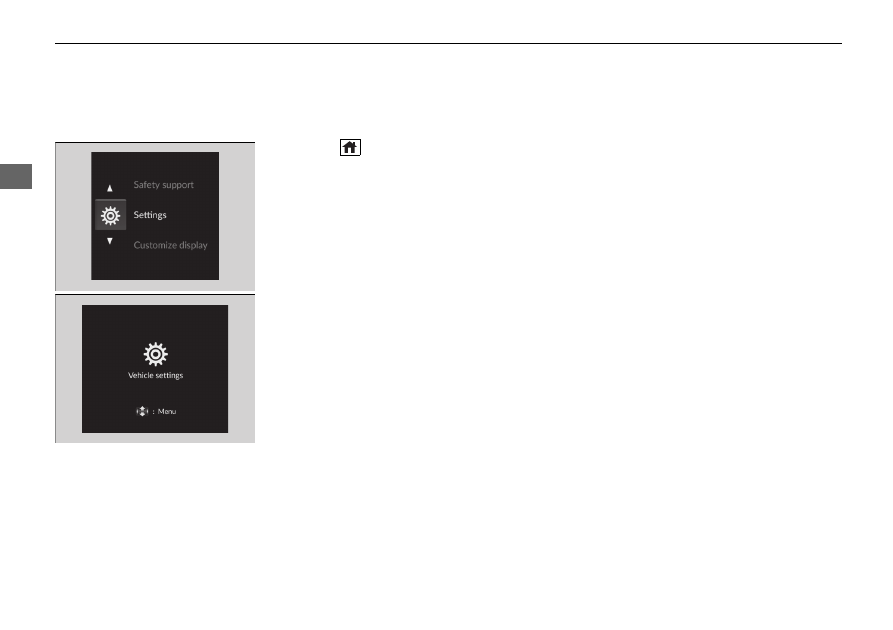

Press the

(home) button, to select

Settings

, then press the left selector wheel.

143

Gauges and Driver Information Interface

Driver Information Interface (A-type Meter)

Continued

strum

nt Pa

nel

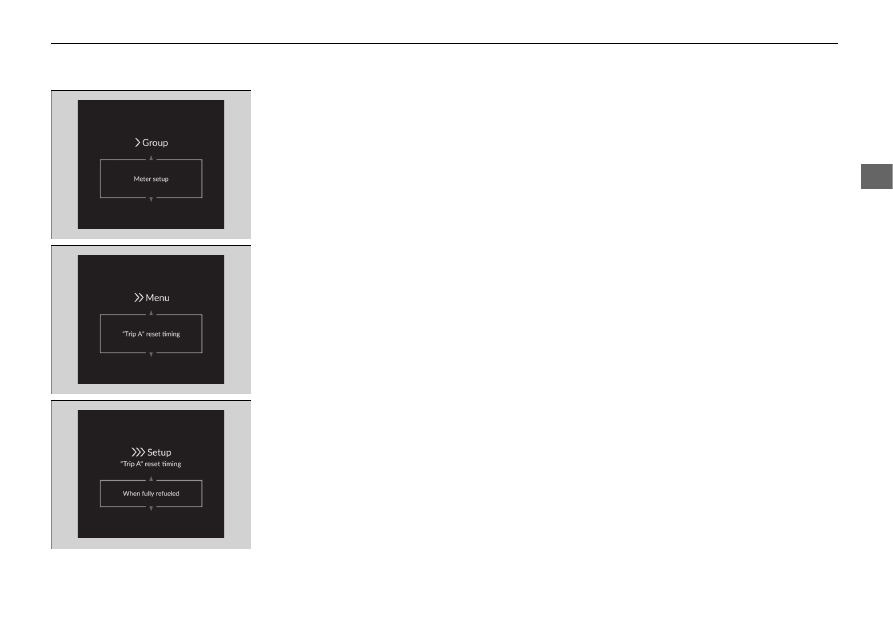

Roll the left selector wheel until

Meter

setup

appears on the display.

Press the left selector wheel.

Language selection

appears first in the

display.

Roll the left selector wheel until

“Trip A”

reset timing

appears on the display, then

press the left selector wheel.

The display switches to the
customization setup screen, where you
can select

When fully refueled

IGN

OFF

Manually reset

, or

Back

Roll the left selector wheel and select

When fully refueled

, then press the left

selector wheel.

The

Selected

appears, then the display

returns to the customization menu
screen.

145

Gauges and Driver Information Interface

Driver Information Interface Left Side Area (B-type Meter)

Continued

strum

nt Pa

nel

Driver Information Interface Left Side Area
(B-type Meter)

Shows the current mode for audio and phone information, etc.

Audio Remote Controls

P. 252

Bluetooth

HandsFreeLink

P. 420

Shows the clock.
You can adjust the time manually and change the clock display to show the 12 hour
clock or 24 hour clock.

Clock

P. 170

■

Clock

Clock

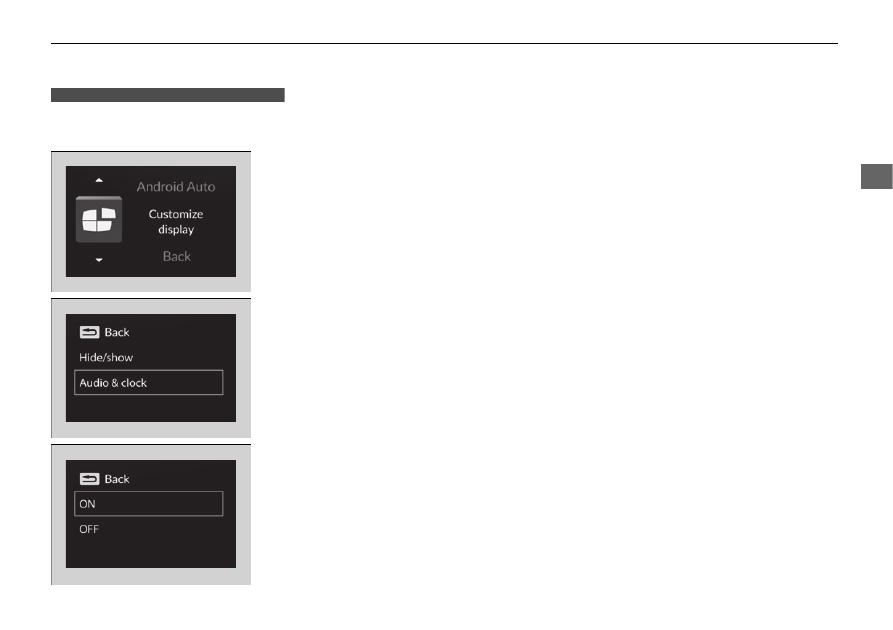

You can choose whether the clock is displayed on the
driver information interface.

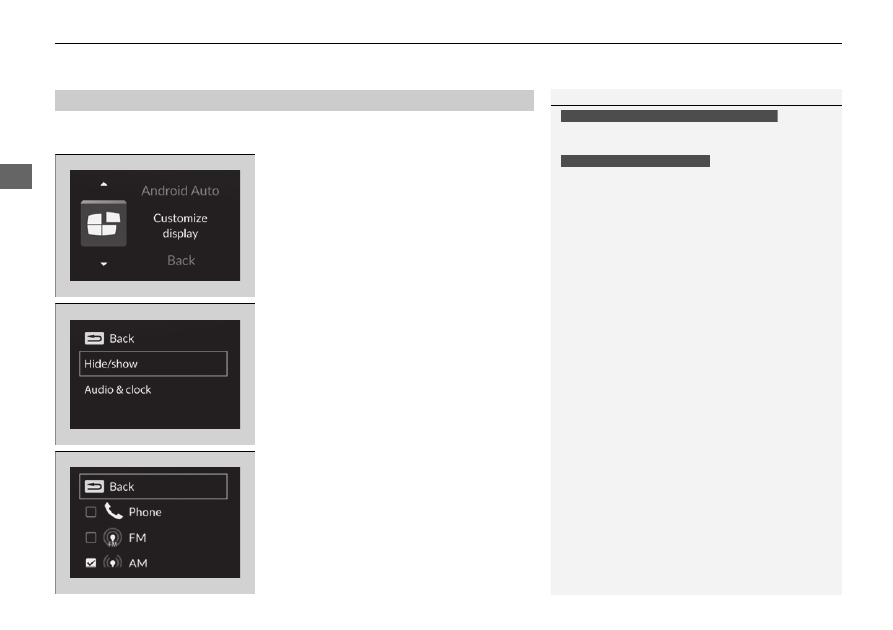

Customize Display

P. 148

Gauges and Driver Information Interface

Driver Information Interface Left Side Area (B-type Meter)

146

strum

nt Pa

nel

Measures the lap time, and displays the previously measured times and the fastest
lap time.

■

Measuring LAP Time

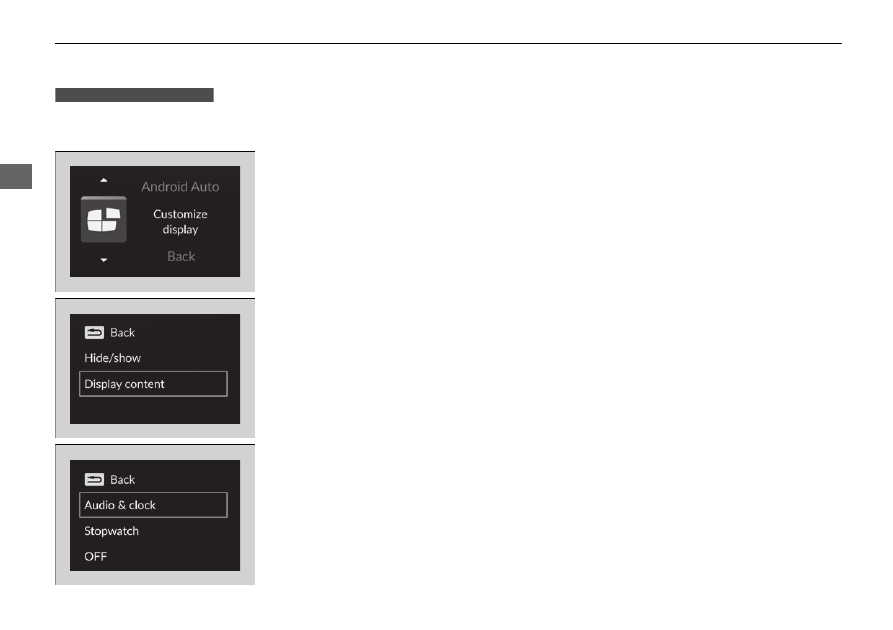

Change the display content on the left side
area to

Stopwatch

Select the display content on the left
side area

P. 150

Press the left selector wheel to display the
stopwatch menu screen.

Select

Start/Stop

and press the left

selector wheel to display the lap time
measurement screen.

Press the left selector wheel to start
measurement.

Press the left selector wheel to stop
measurement.

To measure the time per lap, roll the left
selector wheel at the end of each lap.

To return to the stopwatch menu screen,
press and hold the left selector wheel.

■

Stopwatch

Stopwatch

Be sure to use this measurement function only where
and when it is safe to do so.

Lap time is displayed from 00:00.00 to 9:59:59.99.

A maximum of 20 lap times can be stored at a time.

* Not available on all models

147

Gauges and Driver Information Interface

Driver Information Interface Left Side Area (B-type Meter)

Continued

strum

nt Pa

nel

■

Checking/Clearing history

To check or clear the history, select

History/

Reset

on the stopwatch menu screen and

press the left selector wheel.

To scroll through the lap times, roll the
left selector wheel.

To clear the history, press the left selector
wheel on the stopwatch history screen
while the lap time is not being measured,
then select and press

Reset

To return to the stopwatch menu screen,
press and hold the left selector wheel.

Gauges and Driver Information Interface

Driver Information Interface Left Side Area (B-type Meter)

148

strum

nt Pa

nel

■

Arrange audio source on the left side area

You can choose which sources to display on the audio source screen.

Roll the left selector wheel until

Customize

display

is selected, then press the left

selector wheel.

Roll the left selector wheel to scroll to select

Hide/show

, then press the left selector

wheel.

Roll the left selector wheel to scroll
between audio sources, then press the left
selector wheel to check or uncheck them.

■

Customize Display

Customize Display

When you customize settings, shift to

(

When you customize settings, set the parking brake.

Continuously variable transmission models

Manual transmission models

149

Gauges and Driver Information Interface

Driver Information Interface Left Side Area (B-type Meter)

Continued

strum

nt Pa

nel

■

Turn the displaying on the left side area on and off

You can select whether the current audio information and clock appear on the left
side area.

Roll the left selector wheel until

Customize

display

is selected, then press the left

selector wheel.

Roll the left selector wheel to scroll to select

Audio & clock

, then press the left selector

wheel.

Roll the left selector wheel to scroll to select
your desired settings, then press the left
selector wheel.

Continuously variable transmission models

150

Gauges and Driver Information Interface

Driver Information Interface Left Side Area (B-type Meter)

strum

nt Pa

nel

■

Select the display content on the left side area

You can change the display content on the left side area. Select

Audio & clock

Stopwatch

, or

OFF

Roll the left selector wheel until

Customize

display

is selected, then press the left

selector wheel.

Roll the left selector wheel to scroll to select

Display content

, then press the left

selector wheel.

Roll the left selector wheel to scroll to select
your desired content, then press the left
selector wheel.

Manual transmission models

151

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

Continued

strum

nt Pa

nel

Driver Information Interface Right Side Area
(B-type Meter)

The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary. Please refer to the pages below if the

Engine oil pressure low

Engine temperature too hot

message is displayed.

If the Engine oil pressure low Warning Appears

P. 728

Overheating

P. 726

Roll the right selector wheel to view different types of content.

■

Switching the Display

Switching the Display

You can add or delete the meter contents.

Customize Display

P. 167

152

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

strum

nt Pa

nel

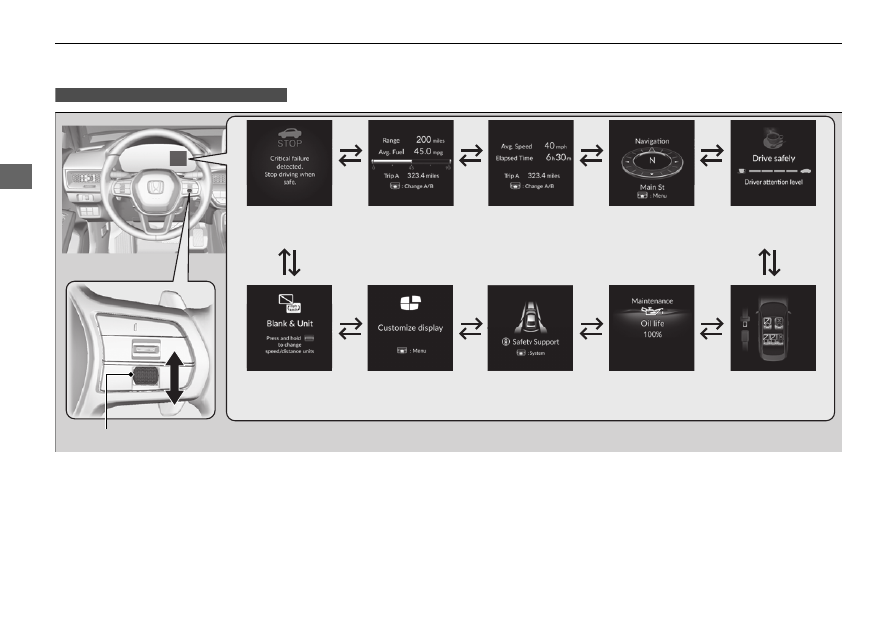

Continuously variable transmission models

Right Selector Wheel

Warning Messages

P. 166

Range / Fuel /
Trip Meter

P. 154

No Content/
Unit Change

P. 166

Driver Attention
Monitor

P. 158

Navigation/Compass

P. 157

Speed / Time /
Trip Meter

P. 156

Customize Display

P. 167

Maintenance

P. 163

Safety Support

P. 164

Seat Belts

P. 163

153

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

Continued

strum

nt Pa

nel

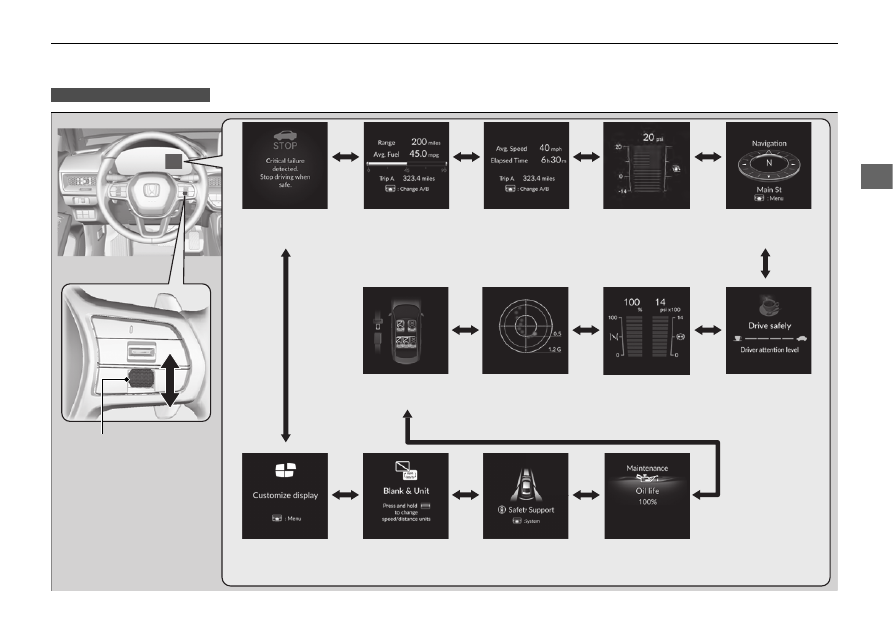

Manual transmission models

Right Selector Wheel

Warning Messages

P. 166

Range / Fuel /
Trip Meter

P. 154

No Content/
Unit Change

P. 166

Driver Attention
Monitor

P. 158

Navigation/Compass

P. 157

Speed / Time /
Trip Meter

P. 156

Customize Display

P. 167

Maintenance

P. 163

Safety Support

P. 164

Seat Belts

P. 163

G-Meter

P. 162

Accelerator
Position/Braking
Pressure Meter

P. 161

Turbo Gauge

P. 157

154

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

strum

nt Pa

nel

Press the right selector wheel to switch between trip meter A and trip meter B.

■

Trip meter

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting a trip meter

To reset the trip meter, display it, press and hold the right selector wheel, and then
select

Reset

The trip meter is reset to 0.0.

■

Range / Fuel / Trip Meter

Trip Meter A

Range

Average Fuel Economy

Instant Fuel
Economy

Trip Meter B

Continued

155

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

strum

nt Pa

nel

■

Average fuel economy

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

■

Instant fuel economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

■

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

Average fuel economy

You can change when to reset the average fuel
economy.

Customized Features

P. 380

Range

The driving range displayed is only an estimate and
may differ from the actual distance the vehicle can
travel.

Continued

157

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

strum

nt Pa

nel

■

Trip meter

P. 154

■

Elapsed time

Shows the time elapsed since Trip A or Trip B was reset.

■

Average speed

Shows the average speed in mph or km/h since Trip A or Trip B was reset.

When the turbo is producing boost, this gauge indicates a rise in boost pressure.

■

Compass

Shows the compass screen.

■

Turn-by-Turn Directions

When driving guidance is provided by the navigation system, Apple CarPlay or
Android Auto, turn-by-turn directions to your destination appear.

Refer to the Navigation System Manual

Apple CarPlay

P. 339

Android Auto

P. 346

■

Turbo Gauge

■

Navigation

Elapsed time

You can change when to reset the elapsed time.

Customized Features

P. 380

Average speed

You can change when to reset the average speed.

Customized Features

P. 380

Navigation

When the compass or turn-by-turn directions are
displayed, you can control some navigation system
functions on the driver information interface by
pressing the right selector wheel.

Refer to the Navigation System Manual

You can select whether to have the turn-by-turn
display come on or not during the route guidance.

Customized Features

P. 380

Turn-by-turn directions may not be available for all
apps.

* Not available on all models

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

158

strum

nt Pa

nel

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.

When you select Driver Attention Monitor on
the driver information interface, bars on it
light up in white to indicate the degree of the
driver’s attention.

Switching the Display

P. 151

■

Driver Attention Monitor

Driver Attention Monitor

The Driver Attention Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.

Driver Information Interface

Right Selector
Wheel

Level

159

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

Continued

strum

nt Pa

nel

If two bars light up, the

Driver attention

level low

message will appear.

If one bar lights up, the

Driver attention

level low. Time for a break.

message will

appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the right
selector wheel is rolled or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

160

strum

nt Pa

nel

■

The Driver Attention Monitor resets when:

•

The engine is turned off.

•

The driver unfastens the seat belt and opens the door while the vehicle is stopped.

■

For the Driver Attention Monitor to function:

•

The vehicle must be traveling above 25 mph (40 km/h).

•

The electric power steering (EPS) system indicator must be off.

■

Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:

•

The steering assist function of the Lane Keeping Assist System (LKAS) is active.

Lane Keeping Assist System (LKAS)

P. 576

•

The condition of the road is poor; e.g., the surface is unpaved or bumpy.

•

It is windy.

•

The driver is frequently operating the vehicle in an assertive manner, such as
changing lanes or accelerating.

■

Customizing

You can change the Driver Attention Monitor settings. Select

Tactile And Audible

Alert

Tactile Alert

, or

OFF

Customized Features

P. 380

For the Driver Attention Monitor to function:

The bars on the driver information interface remain
grayed-out unless the Driver Attention Monitor is
functioning.

161

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

Continued

strum

nt Pa

nel

■

Accelerator Position Meter

Displays the accelerator position in degrees of
%.

■

Braking Pressure Meter

Displays the brake pressure in psi when the
brake is applied.

■

Accelerator Position/Braking Pressure Meter

Accelerator Position Meter

Braking Pressure Meter

* Not available on all models

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

162

strum

nt Pa

nel

Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.

■

G-Meter

G-Meter

The meter does not display a lateral force larger than
1.2 G.

Lateral forces of the
past three seconds
(white)

When steering to
the right

When accelerated while moving forward
When decelerated while reversing

When decelerated while moving forward
When accelerated while reversing

When steering to
the left

Real-time lateral
force (red)

* Not available on all models

163

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

Continued

strum

nt Pa

nel

Occurs, under specified conditions, when seat belts are latched or unlatched.

Seat Belt Reminder

P. 46

Shows the remaining oil life and Maintenance Minder

Maintenance Minder

P. 641

■

Seat Belts

■

Maintenance

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

164

strum

nt Pa

nel

Indicates the status of the Road Departure Mitigation system, CMBS

, Low Speed

Braking Control and blind spot information system

such as On, Off, or Failure, by

color and letters.

The following colors indicate the status of any of the above-mentioned systems:

•

Green: The system is on.

•

Gray: The system is off.

•

Amber: There is a problem with the system.

■

Safety Support

Safety Support

If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.

To turn each system on or off, first press the right
selector wheel to switch displays. From the next
display, you can select which system to turn on or off.

Road Departure Mitigation system On and
Off

P. 531

Blind Spot Information System On and Off

P. 500

System On and Off

P. 520, 525

CMBS

On and Off

P. 509

You can also confirm the status of each function by
the color of the safety support indicator.

Safety Support Indicator (Amber)

P. 109

Safety Support Indicator (Green/Gray)

P. 111

Even when the Low Speed Braking Control icon is
green, if the parking sensor is turned off for the rear
only, the brake assist will not operate when reversing.

Turning off All Rear Sensors

P. 624

* Not available on all models

165

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

Continued

strum

nt Pa

nel

Area Info for
Road Departure
Mitigation
System

Area Info for Blind
Spot Information
System

Blind Spot
Information System
Icon and Status Info

Road Departure
Mitigation System
Icon and Status
Info

Area Info for the
Low Speed
Braking Control

Low Speed Braking
Control Icon and
Status Info

CMBS

Icon

and Status Info

Area Info for
CMBS

* Not available on all models

Gauges and Driver Information Interface

Driver Information Interface Right Side Area (B-type Meter)

166

strum

nt Pa

nel

You can check if there are any active warning messages.

Enables you to show another unit on the
driver information interface and set the
displayed measurements to read in either
miles and mph or km and km/h.

Press and hold the right selector wheel when
you select the Blank/Unit change screen on
the driver information interface. Each time you
do this, the unit will change from miles and
mph to km and km/h or vice versa. After this,
a confirmation screen will appear for a few
seconds.

■

Warnings

■

Speed/Distance Units

Warnings

If there are multiple warnings, you can roll the right
selector wheel to see other warnings.

Honda Civic (2024 year). Manual in english - page 4
