Continued

195

Interior Convenience Items

Storage Items

ntrols

There is a coat hook on the rear left grab
handle.

The cargo hooks in the trunk can be used to
install a net for securing items.

■

Coat Hook

Coat Hook

The coat hook is not designed for large or heavy
items.

■

Cargo Hooks

Cargo Hooks

Heavy objects may damage the hook.
Make sure any items put on this hook weigh less than
6.6 lbs (3 kg).

Distribute cargo evenly on the floor of the trunk,
placing the heaviest items on the bottom and as far
forward as possible.

Maximum Load Limit

P. 293

197

Interior Convenience Items

Other Interior Convenience Items

Continued

ntrols

Other Interior Convenience Items

The accessory power socket can be used when the power mode is in ACCESSORY or
ON.

■

Console compartment

Open the console lid and the cover to use it.

■

Accessory Power Socket

Accessory Power Socket

NOTICE

Do not insert an automotive type cigarette lighter
element. This can overheat the accessory power
socket.

The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated
180 watts (15 amps) or less.

To prevent battery drain, only use the accessory
power socket with the engine running.

When the accessory power socket is not in use, close
the cover to prevent any small foreign objects from
getting into the accessory power socket.

Interior Convenience Items

Other Interior Convenience Items

198

ntrols

The seat heaters can be used when the power
mode is in ON.

Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)

When the power mode is turned on after it is
turned off, the previous setting is maintained.

Press the

AUTO

button:

Both the air conditioner and seat temperature
will automatically change to the setting most
suitable to the ambient environment.

When any seat heater button is pressed,
settings will switch to manual mode.

■

Front Seat Heaters

Front Seat Heaters

Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.

After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a time until the front seat heaters shut
off. The elapsed time varies according to the interior
environment.

As time passes, the set temperature will fall, and
eventually the seat heater will shut off.

The seat heater may turn on if sensors detect weight
on the passenger seat due to luggage, etc.

To prevent automatic activation, you can turn off
automatic climate control for the front seat.

Vehicle Settings

P. 126

WARNING

Heat induced burns are possible when

using seat heaters.

Persons with a diminished ability to sense

temperature (e.g., persons with diabetes,

lowerlimb nerve damage, or paralysis) or

with sensitive skin should not use seat

heaters.

AUTO

Button

* Not available on all models

199

Continued

ntrols

Climate Control System

Using Automatic Climate Control

The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.

Use the system when the engine is running.

Press the

AUTO

button.

Adjust the interior temperature using the driver’s side or passenger’s side control
dial.

Press the

(ON/OFF) button to cancel.

Using Automatic Climate Control

If any buttons are pressed while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The auto button indicator

AUTO

indicator

will go

off, but functions unrelated to the button that was
pressed will be controlled automatically.

During idle-stops, air-conditioning is suspended, and
only the blower remains active.
If you do not want air-conditioning suspended, press
the Auto Idle Stop

OFF

button to cancel idle-stop.

To prevent cold air from blowing in from outside, the
fan may not start immediately when the

AUTO

button is pressed.

If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.

When you set the temperature to the lower or upper
limit,

is displayed.

Pressing the

button switches the climate

control system between on and off. When turned on,
the system returns to your last selection.

While ECON mode is active, the climate control
system may have reduced cooling performance.

Models with SYNC button

Floor and

defroster

vents

Floor vents

Dashboard

and floor

vents

Dashboard

vents

AUTO

Button

Driver’s Side

Temperature

Control Dial

(Recirculation)

Button

Fan Control Dial

A/C

(Air Conditioning)

Button

Passenger’s Side

Temperature

Control Dial

(ON/OFF) Button

* Not available on all models

Climate Control System

Using Automatic Climate Control

200

ntrols

Use the system when the engine is running.

Press the

AUTO

button.

Adjust the interior temperature using the temperature control dial.

Press the

(ON/OFF) button to cancel.

Using Automatic Climate Control

For directions on the proper handling of the front
seat heaters, refer to the following page.

Front Seat Heaters

P. 198

Models without SYNC button

Floor and

defroster

vents

Floor vents

Dashboard

and floor

vents

Dashboard

vents

AUTO

Button

Driver’s Side

Temperature

Control Dial

(Recirculation)

Button

Fan Control Dial

A/C

(Air Conditioning)

Button

Passenger’s Side

Temperature

Control Dial

(ON/OFF) Button

* Not available on all models

Continued

201

Climate Control System

Using Automatic Climate Control

ntrols

■

Switching between the recirculation and fresh air modes

Press the

(recirculation) button and switch the mode depending on

environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.

Pressing the

button turns the air

conditioning system on and automatically
switches the system to fresh air mode.

Press the

button again to turn off, the

system returns to the previous settings.

■

Defrosting the Windshield and Windows

Defrosting the Windshield and Windows

For your safety, make sure you have a clear view
through all the windows before driving.

Do not set the temperature near the lower limit.
When cold air hits the windshield, the outside of the
windshield may fog up.

If you press the

button during Auto Idle Stop, the

engine restarts automatically.

Models with SYNC button

Models without SYNC button

203

Climate Control System

Using Automatic Climate Control

ntrols

You can set the temperature synchronously for the driver’s side and the passenger’s
side in synchronization mode.

Press the

SYNC

button.

The system will switch to the synchronization mode.

Adjust the temperature using the driver’s side temperature control dial.

Press the

SYNC

button or adjust the interior temperature using the passenger’s side

control dial to return to dual mode.

■

Synchronization Mode

Synchronization Mode

When you press the

button, the system changes

to synchronization mode.

When the system is in dual mode, the driver side
temperature and the passenger side temperature can
be set separately.

* Not available on all models

207

Audio System

USB Ports

Features

USB Ports

■

On the front panel

The USB port

(3.0A) is for charging

devices, playing audio files, and connecting
compatible phones with Apple CarPlay or
Android Auto.

To prevent any potential issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.

The USB port

(3.0A) is only for charging

devices.

You cannot play music even if you have
connected music players to it.

USB Ports

•

Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.

•

We recommend that you use a USB cable if you are
attaching a USB flash drive to the USB port.

•

Do not connect the iPod or USB flash drive using a
hub.

•

Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.

•

We recommend backing up your data before using
the device in your vehicle.

•

Displayed messages may vary depending on the
device model and software version.

The USB port can supply up to 3.0A of power. It does
not output 3.0A unless requested by the device.
For amperage details, read the operating manual of
the device that needs to be charged.

Under certain conditions, a device connected to the
port may generate noise to the radio station you are
listening to.

USB charge

208

Audio System

Audio System Theft Protection

Features

Audio System Theft Protection

The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.

■

Reactivating the audio system

Set the power mode to ON.

Turn on the audio system.

Press and hold the

VOL/

AUDIO

(Volume/Power) knob for more than two

seconds.

The audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.

209

Audio System

Audio Remote Controls

Continued

Features

Audio Remote Controls

Allow you to operate the audio system while driving. The information is shown on
the driver information interface.

VOL

(

/VOL

(

(Volume) Switch

Press Up:

To increase the volume.

Press Down:

To decrease the volume.

(Seek/Skip) Buttons

•

When listening to the radio

Press :

To select the next preset radio station.

Press :

To select the previous preset radio station.

Press and hold

To select the next strong station.

Press and hold

To select the previous strong station.

•

When listening to an iPod, USB flash drive,

Bluetooth

Audio, or Smartphone

Connection

Press :

To skip to the next song.

Press :

To go back to the beginning of the current or previous song.

•

When listening to a USB flash drive

Press and hold

To skip to the next folder.

Press and hold

To go back to the previous folder.

Audio Remote Controls

Some modes appear only when an appropriate
device or medium is used.

Depending on the

Bluetooth

device you connect,

some functions may not be available.

(Seek/Skip) Buttons

Left Selector

Wheel

VOL

(

VOL

(

(Volume) Switch

211

Features

Audio System Basic Operation

To use the audio system, the power mode must be in ACCESSORY or ON.

Use the selector knob or

MENU

button to

access some audio functions.

Press

to switch between the normal and

extended display for some functions.

Selector knob:

Rotate left or right to scroll

through the available choices. Press

to set

your selection.

MENU button:

Press to display the menu

screen.

(Back) button:

Press to go back to the

previous display.

Audio System Basic Operation

These indications are used to show how to operate
the selector knob.

Rotate

to select.

Press

to enter.

Menu Items

Adjusting the Clock

P. 136

Adjusting the Sound

P. 213

Display Setup

P. 214

Customized Features

P. 259

Press the buttons on the steering wheel to change
any audio setting.

Audio Remote Controls

P. 209

Touchscreen operation

•

Use simple gestures - including touching, swiping
and scrolling - to operate certain audio functions.

•

Some items may be grayed-out during driving to
reduce the potential for distraction.

•

You can select them when the vehicle is stopped.

•

Wearing gloves may limit or prevent touchscreen
response.

You can change the touchscreen sensitivity setting.

Customized Features

P. 259

(Back)

Button

Selector Knob

MENU

Button

Menu Display

212

Audio System Basic Operation

Start Up

Features

Start Up

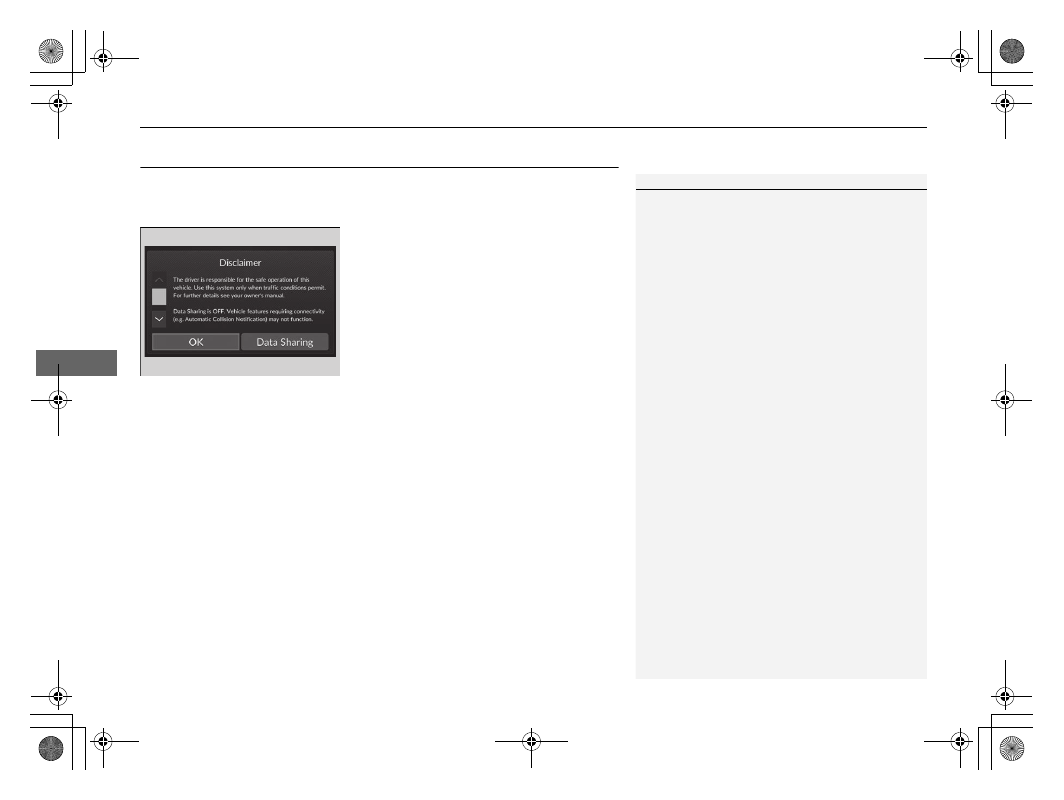

The 7 inch Color Touchscreen starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the following screen about the data upload will be
displayed. When adding a new user, entry of user information is required at start-up.

Select

If you want to change the settings for
data upload, select

Data Sharing

, then

select the ON/OFF settings on the

Data

Sharing Setting

screen.

If you do not select

, the system will

automatically be switched to the home
screen, or the top screen of the last
executed application, after a certain
period of time.

If there is no registered device, select

and the

Bluetooth

pairing screen will be

displayed.

Start Up

Data Sharing Setting
ON

: Data communication available.

OFF

: Data communication unavailable.

213

Audio System Basic Operation

Adjusting the Sound

Features

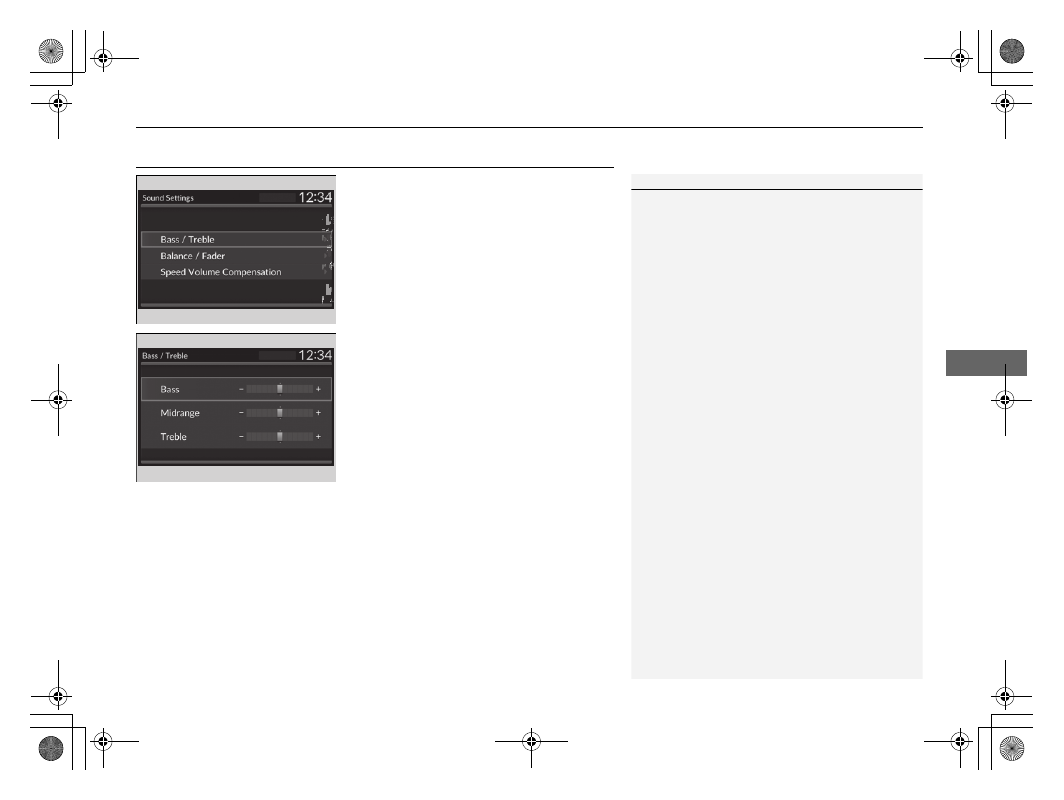

Adjusting the Sound

Select an audio source.

Press the

MENU

button.

Select

Sound Settings

Select an item from the following choices:

•

Bass / Treble:

Bass, Midrange, Treble

•

Balance / Fader:

Balance, Fader

•

Speed Volume Compensation:

Sets the

amount of volume increase.

Adjusting the Sound

The

Speed Volume Compensation

(SVC) adjusts

the volume level based on the vehicle speed. As you
go faster, audio volume increases. As you slow down,
audio volume decreases.

214

Audio System Basic Operation

Display Setup

Features

Display Setup

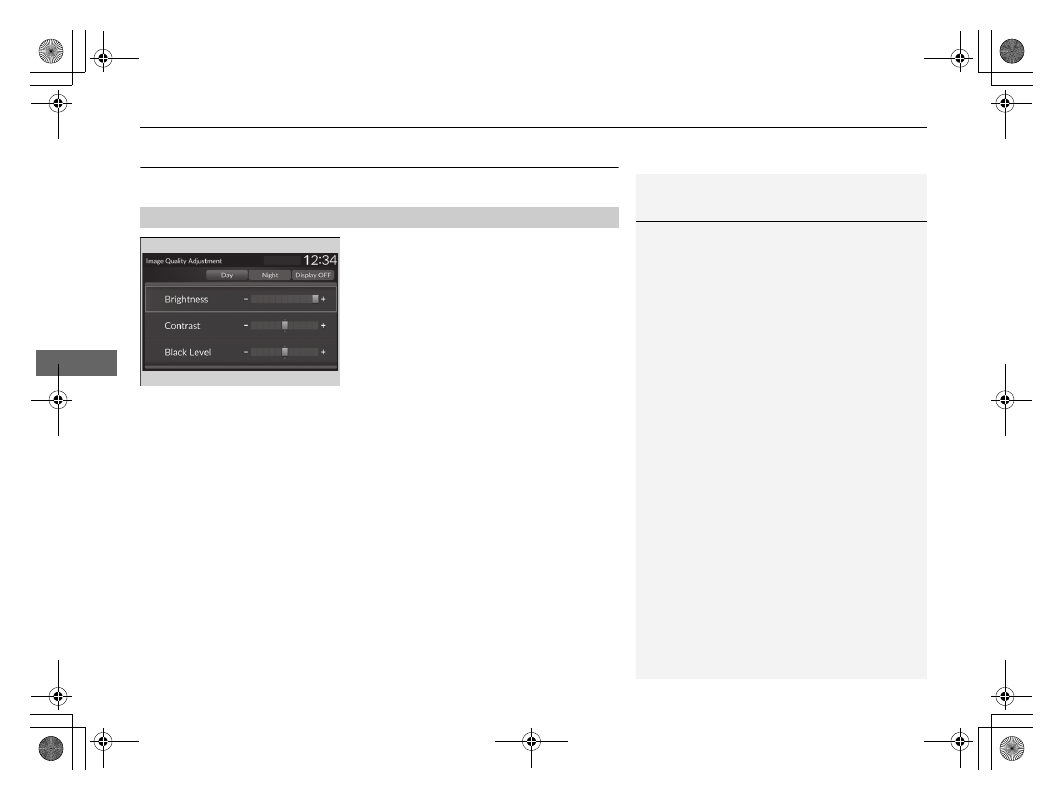

You can set the screen brightness separately for Day and Night modes.

Press the

MENU

button.

Select

Display Adjustment

Select

Day

Night

Select the setting you want.

■

Changing the Screen Brightness

Changing the Screen Brightness

You can change the

Contrast

and

Black Level

settings in the same manner.

You can adjust the settings by sliding or tapping on
the bar.

215

Audio System Basic Operation

Playing AM/FM Radio

Continued

Features

Playing AM/FM Radio

RADIO Button

Press to select a band.

(Back) Button

Press to go back to the previous display.

Seek Buttons

Press

to search the

selected band up or down for a station

with a strong signal.

VOL/

AUDIO (Volume/Power) Knob

Press to turn the audio system on and

off.

Turn to adjust the volume.

Selector Knob

Turn to tune the radio frequency.

Press, and then turn to select an item.

After that, press again to make your

selection.

MENU Button

Press to display the menu items.

Audio/Information Screen

Preset Icons

Tune the radio frequency for preset memory. Select and

hold the preset icon to store that station.

Select to display beyond preset 5.

Audio System Basic Operation

Playing AM/FM Radio

216

Features

Provides text data information related to your selected RDS-capable FM station.

■

To find an RDS station from Station List

Press

while listening to an FM station.

Select the station.

■

Update List

Updates your available station list at any time.

Press

while listening to an FM station.

Select

Refresh

■

Radio text

Displays the radio text information of the selected RDS station.

Select

Text

■

Scan

Samples each of the strongest stations on the selected band for 10 seconds.

Select

Scan

To turn off scan, select

Stop

or press the

button.

■

Radio Data System (RDS)

Playing AM/FM Radio

Stereo reproduction in AM is not available.

You can store 12 AM stations and 12 FM stations into
the preset memory.

To switch the audio mode, roll the left selector wheel.

Audio Remote Controls

P. 209

Radio Data System (RDS)

When you select an RDS-capable FM station, the RDS
automatically turns on, and the station name is
displayed under the frequency. However, when the
signals of that station become weak, the station
name disappears.

217

Audio System Basic Operation

Playing an iPod

Continued

Features

Playing an iPod

Using your USB connector, connect the iPod to the USB port, then select the iPod
mode.

USB Ports

P. 207

USB Indicator

Appears when an iPod is connected.

MEDIA Button

Press to select iPod (if connected).

(Back) Button

Press to go back to the previous display.

Track Buttons

Press

to change songs.

Press and hold to move rapidly within

a song.

VOL/

AUDIO (Volume/Power) Knob

Press to turn the audio system on and

off.

Turn to adjust the volume.

Selector Knob

Turn to change songs.

Press and turn to select an item, then

press to set your selection.

MENU Button

Press to display the menu items.

Audio/Information Screen

Album Art

Shuffle Icon

Select to play all songs in the current

category in random order.

Play/Pause Icon

Select to play/pause a song.

Repeat Icon

Select to repeat the current

song.

Audio System Basic Operation

Playing an iPod

218

Features

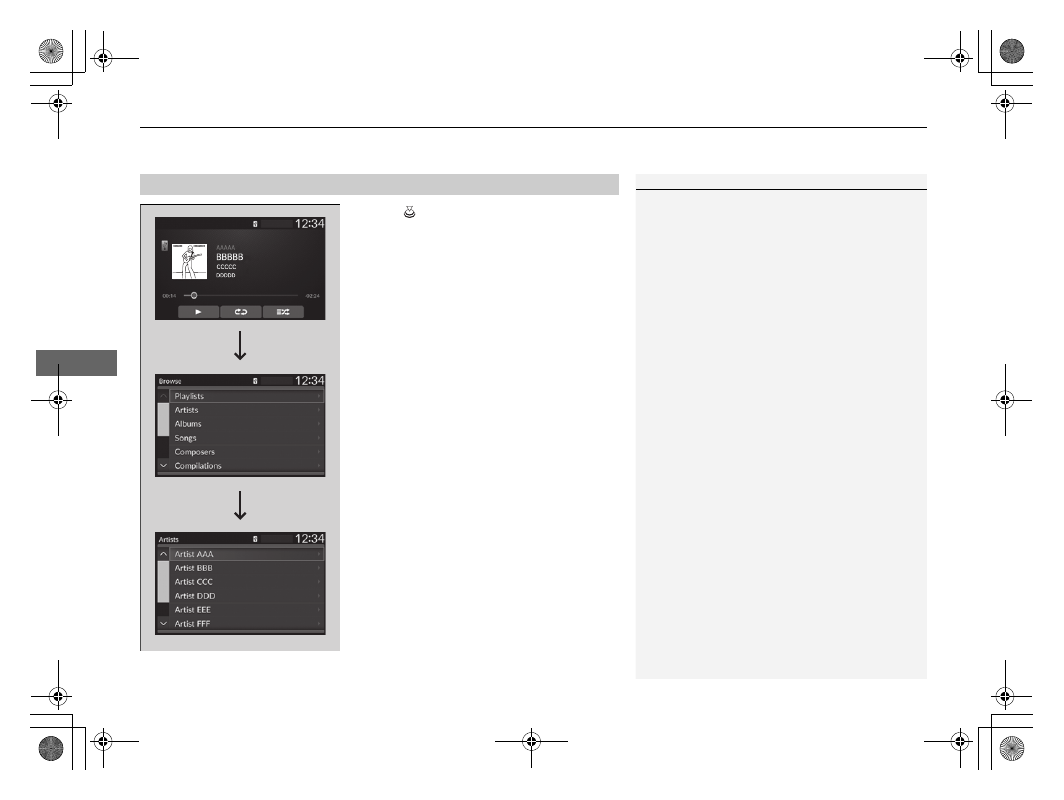

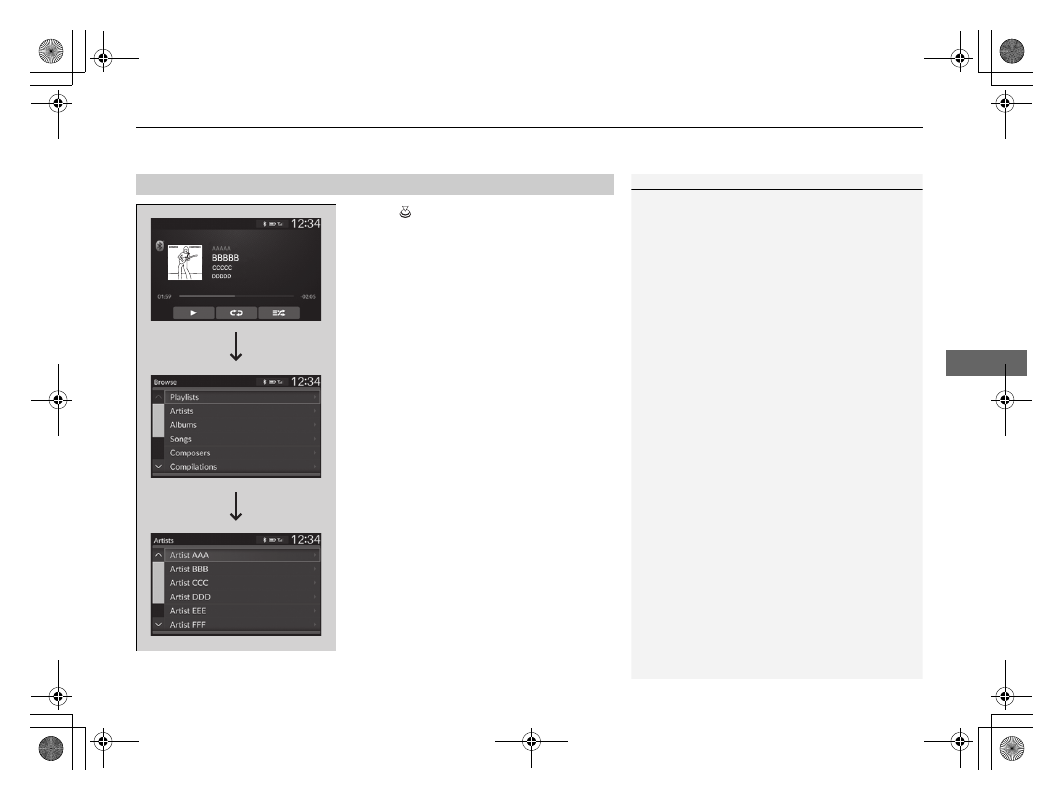

Press

to display the iPod music list.

Select a category.

Select an item.

Select an item repeatedly until a desired
item you want to listen to is displayed.

■

How to Select a Song from the iPod Music List

Playing an iPod

Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.

If there is a problem, you may see an error message
on the audio/information screen.

iPod/USB Flash Drive

P. 237

Item

Selection

Category

Selection

219

Audio System Basic Operation

Playing an iPod

Features

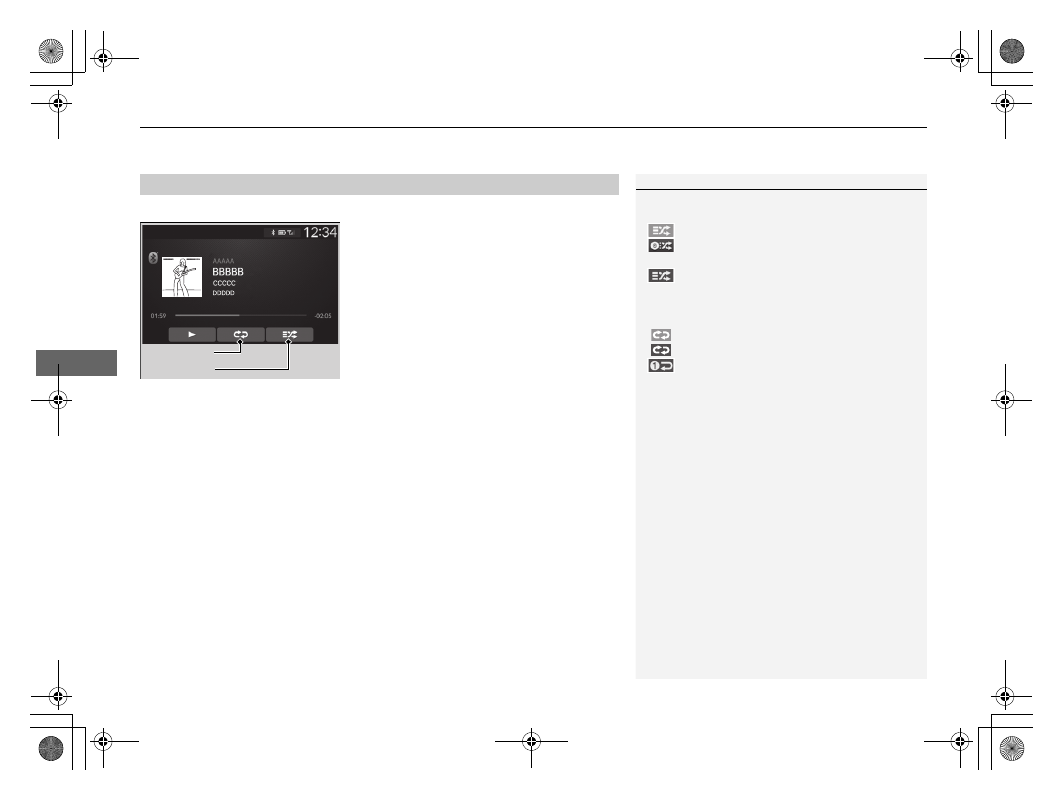

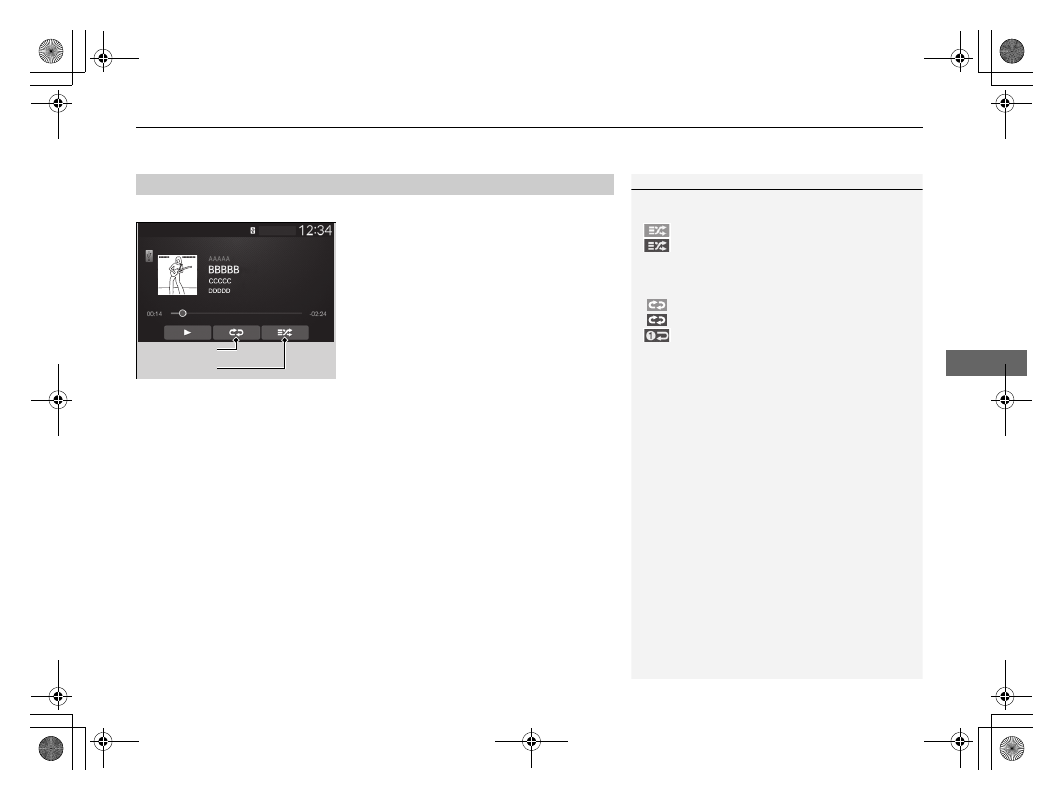

You can select shuffle and repeat modes when playing a song.

■

Shuffle/Repeat

Select shuffle or repeat icon repeatedly until a
desired mode.

■

To turn off a play mode

Select the mode you want to turn off.

■

How to Select a Play Mode

How to Select a Play Mode

Play Mode Menu Items

Shuffle

Shuffle off:

Shuffle mode turns off.

Shuffle All Songs:

Plays all available songs in

a selected list in random order.

Repeat

Repeat off:

Repeat mode turns off.

Repeat all:

Repeats all songs.

Repeat Song:

Repeats the current song.

Shuffle Icon

Repeat Icon

220

Audio System Basic Operation

Playing a USB Flash Drive

Features

Playing a USB Flash Drive

Your audio system reads and plays sound files on a USB flash drive in either MP3,
WMA, AAC

, FLAC, or WAV format.

Connect your USB flash drive to the USB port, then press the

MEDIA

button.

USB Ports

P. 207

*1:Only AAC format files recorded with iTunes are playable on this unit.

USB Indicator

Appears when a USB

flash drive is connected.

MEDIA Button

Press to select USB flash drive (if connected).

(Back) Button

Press to go back to the previous display.

Track Buttons

Press

to change files.

Press and hold to move rapidly

within a track.

VOL/

AUDIO (Volume/Power) Knob

Press to turn the audio system on and

off.

Turn to adjust the volume.

Selector Knob

Turn to change files.

Press and turn to select an item,

then press to set your selection.

MENU Button

Press to display the menu items.

Audio/Information Screen

Play Icon

Select to play a file.

Random Icons

Select to play all files in the current category in

random order.

Pause Icon

Select to pause a file.

Repeat Icons

Select to repeat the current file.

Continued

221

Audio System Basic Operation

Playing a USB Flash Drive

Features

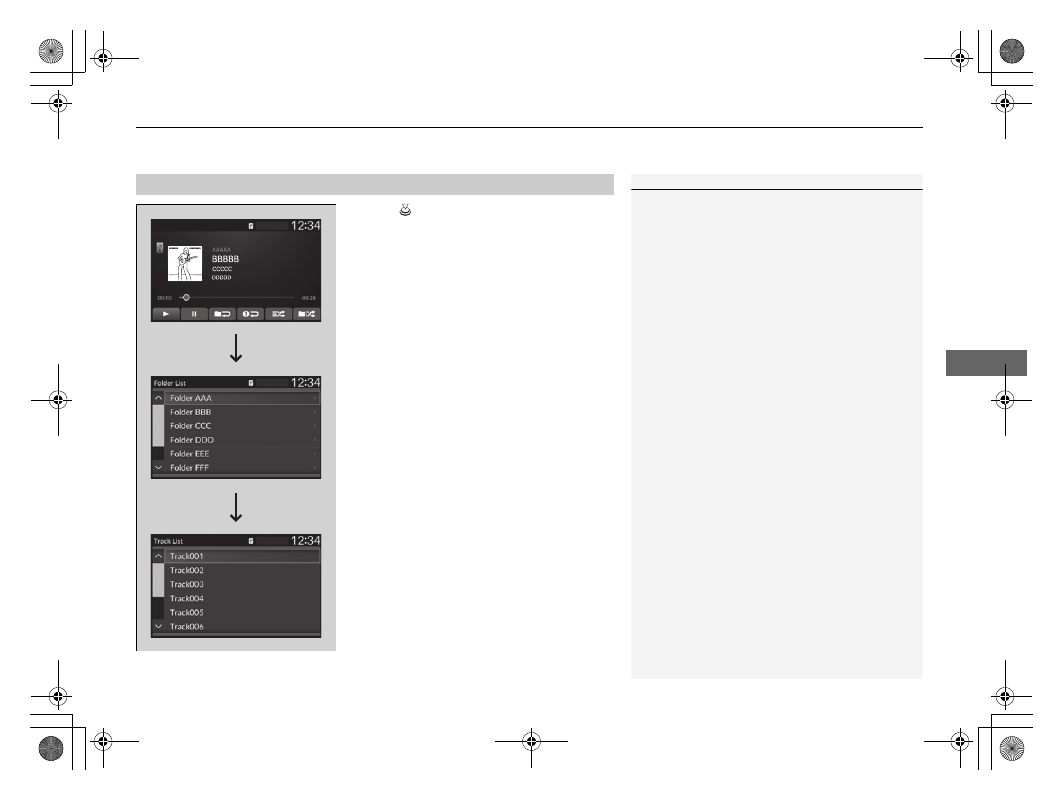

Press

to display a folder list.

Select a folder.

Select a file.

■

How to Select a File from a Folder

Playing a USB Flash Drive

Use the recommended USB flash drives.

General Information on the Audio System

P. 239

Files in WMA format protected by digital rights
management (DRM) cannot be played.
The audio system displays

Unplayable File

, and then

skips to the next file.

If there is a problem, you may see an error message
on the audio/information screen.

iPod/USB Flash Drive

P. 237

Track

Selection

Folder

Selection

Audio System Basic Operation

Playing a USB Flash Drive

222

Features

You can select random and repeat modes when playing a file.

■

Random/Repeat

Select random or repeat icon.

■

To turn off a play mode

Select the mode you want to turn off.

■

How to Select a Play Mode

How to Select a Play Mode

Play Mode Menu Items

Random

Random All Tracks:

Plays all files in random

order.

Random in Folder:

Plays all files in the current

folder in random order.

Repeat

Repeat track:

Repeats the current file.

Repeat folder:

Repeats all files in the current

folder.

Repeat Icons
Random Icons

223

Audio System Basic Operation

Playing

Bluetooth

Audio

Continued

Features

Playing

Bluetooth

Audio

Your audio system allows you to listen to music from your

Bluetooth

-compatible

phone.
This function is available when the phone is paired and connected to the vehicle’s

Bluetooth

HandsFreeLink

(HFL) system.

P. 270

Not all

Bluetooth

-enabled phones with streaming

audio capabilities are compatible with the system.
For a list of compatible phones:

•

U.S.: Visit

https://mygarage.honda.com/s/honda-

handsfreelink-compatibility-check

, or call 1-888-

528-7876.

•

Canada: For more information on smartphone
compatibility, call 1-855-490-7351.

In some states, it may be illegal to perform some data
device functions while driving.

Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the system automatically connects to the
prioritized phone. You can assign priority to a phone
in the

Bluetooth Settings

menu.

HFL Menus

P. 268

To manually change the searched phone, select

to Device List

In some cases, the name of the artist, album, or track
may not appear correctly.

Some functions may not be available on some
devices.

If a phone is currently connected via Apple CarPlay or
Android Auto,

Bluetooth

Audio from that phone is

unavailable.

Phone Setup

P. 270

MEDIA Button

Press to select

Bluetooth

Audio.

VOL/

AUDIO

(Volume/Power) Knob

Press to turn the audio

system on and off.

Turn to adjust the

volume.

MENU Button

Press to display the

menu items.

Audio/Information Screen

Bluetooth

Indicator

Appears when your phone

is connected to HFL.

Track Buttons

Press

change files.

Repeat Icon

Select to repeat the current file.

Shuffle Icon

Select to play all files in the current

category in random order.

Selector Knob

Turn to change files.

Press and turn to

select an item, then

press to set your

selection.

(Back) Button

Press to go back to

the previous display.

Play/Pause Icon

Select to play/pause a file.

Audio System Basic Operation

Playing

Bluetooth

Audio

224

Features

Make sure that your phone is paired and
connected to HFL.

Press the

MEDIA

button until the

Bluetooth

Audio Source is selected.

If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for

Bluetooth

Audio, may already be

connected.

■

To play or pause a file

Select the play/pause icon.

■

To Play

Bluetooth

Audio Files

To Play

Bluetooth

Audio Files

To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.

The pause function may not be available on some
phones.

If any audio device is connected to the USB port, you
may need to press the

MEDIA

button repeatedly to

select the

Bluetooth

Audio system.

Switching to another mode pauses the music playing
from your phone.

Check the volume setting of your phone if the audio
volume is too loud or soft.

Play/Pause Icon

MEDIA

Button

Continued

225

Audio System Basic Operation

Playing

Bluetooth

Audio

Features

Press

to display the music search list.

Select a category.

Select an item.

Select an item repeatedly until a desired
item you want to listen to is displayed.

■

How to Select a Song from the Music Search List

How to Select a Song from the Music Search List

Depending on the

Bluetooth

device you connect,

some or all of the categories may not be displayed.

Item

Selection

Honda Accord (2024 year). Manual in english - page 6
