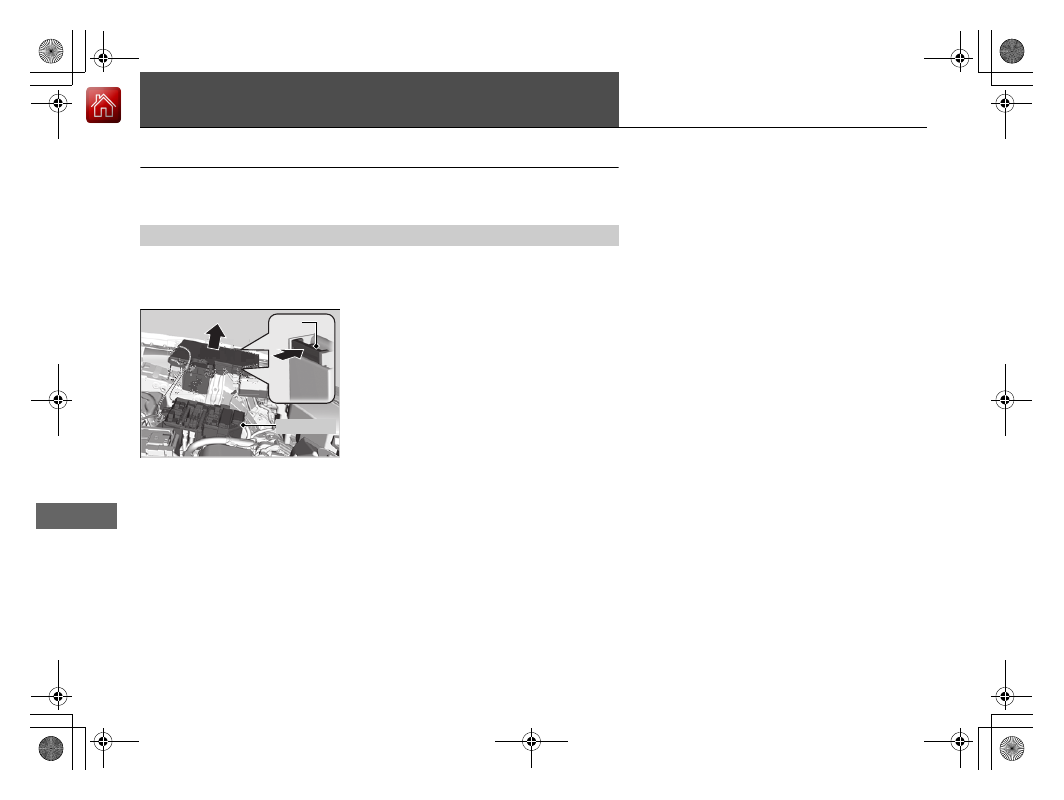

Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.

Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse Box

Fuse Box

Tab

629

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

BATTERY

125 A

2

-

40 A

-

40 A

F/BOX OPTION

60 A

-

40 A

F/BOX OPTION2

40 A

-

(30 A)

F/BOX MAIN

60 A

3

-

30 A

-

30 A

-

70 A

RR DEFROSTER

30 A

-

(40 A)

-

30 A

HTR MTR

40 A

4

-

30 A

ABS/VSA MTR

40 A

-

(30 A)

-

30 A

IG MAIN

30 A

-

30 A

IG MAIN2

30 A

5

ST MAGNETIC SW

30 A

WIPER

30 A

EPS

70 A

-

30 A

ABS/VSA FSR

40 A

MAIN FAN

30 A

F/BOX MAIN2

40 A

6

 SUB FAN

30 A

7

BOOSTER MTR

40 A

8

-

(30  A)

9

-

(20 A)

10

AUDIO SUB

*

(7.5 A)

11

FR DEICER

*

(15 A)

12

-

-

13

H/STRG

*

(10 A)

14

-

(10 A)

15

-

(15 A)

16

MG CLUTCH

10 A

17

WASHER

15 A

18

HORN

10 A

19

BACK UP

15 A

20

AUDIO

(15 A)

21

R/M1

20 A

22

DBW

15 A

23

R/M2

20 A

24

BACKUP FI-ECU

10 A

25

IGP

15 A

Circuit Protected

Amps

26

TCU

15 A

27

LCM L

20 A

28

-

(20 A)

29

STOP

10 A

30

LCM R

20 A

31

IG COIL

15 A

32

-

-

33

HAZARD

15 A

34

-

-

35

-

-

36

-

-

37

-

(30 A)

38

-

-

39

-

-

40

-

(7.5 A)

41

IGPS [LAF]

10 A

42

IG1 MON2

10 A

Circuit Protected

Amps

* Not available on all models

630

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

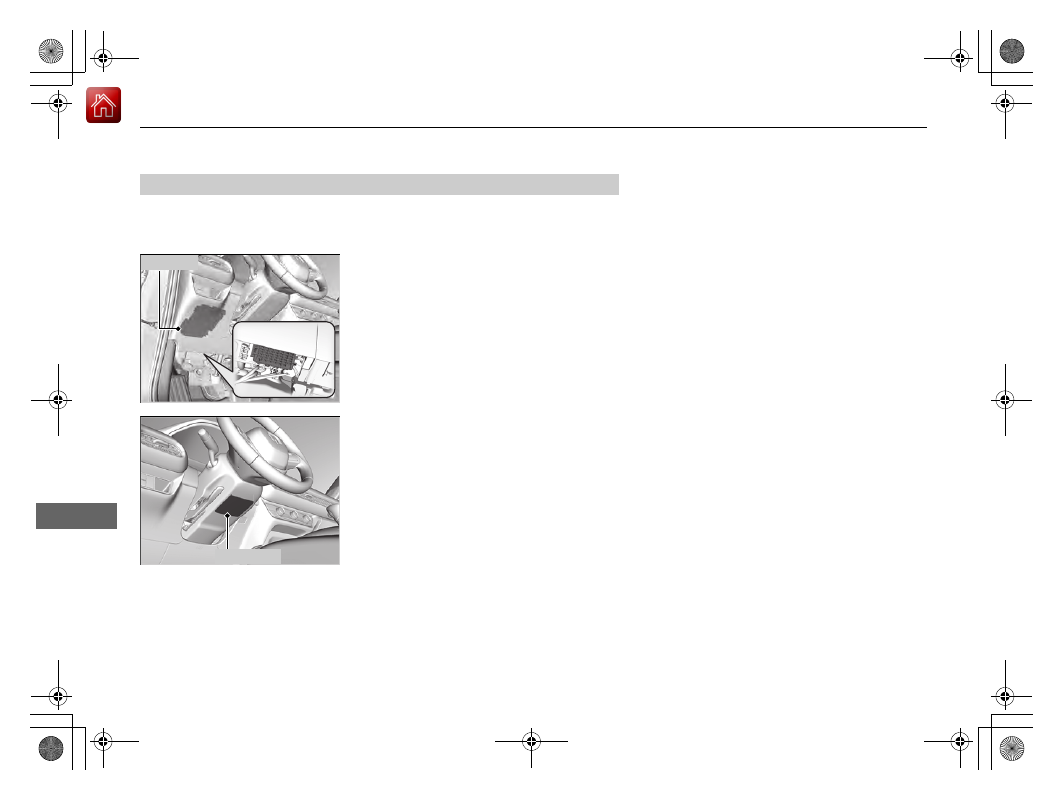

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.

■

Interior Fuse Box

Fuse Box

Fuse Label

631

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

P/W DR

20 A

2

P/W AS

20 A

3

P/W RR R

20 A

4

P/W RR L

20 A

5

OPTION

10 A

6

SRS

10 A

7

T/G MTR

(10 A)

8

-

-

9

-

20 A

10

DOOR LOCK

20 A

11

METER

10 A

12

ST CUT RLY

10 A

13

OPTION2

10 A

14

OPTION6 (VB SOL)

10 A

15

DR DOOR UNLOCK

(10 A)

16

SUNROOF

*

(20 A)

17

-

-

18

-

-

19

-

-

20

-

10 A

21

CARGO ACC SOCKET

20 A

22

SMART

10 A

23

DR DOOR LOCK

(10 A)

24

-

-

25


10 A

26

SRS

10 A

27

ACG

10 A

28

ABS/VSA

10 A

29

FUEL PUMP

20 A

30

L SIDE DOOR UNLOCK

10 A

31

R SIDE DOOR UNLOCK

10 A

32

-

-

33

USB CHG

10 A

34

-

-

35

-

-

36

-

-

37

E-PT L

20 A

38

-

-

39

R SIDE DOOR LOCK

10 A

40

P SEAT REC / RR HI

*

(20 A)

41

P SEAT SLIDE / FR HI

*

(20 A)

42

-

-

43

A/C

10 A

44

DRL

10 A

45

ACC

10 A

46

ACC KEY LOCK

10 A

47

L SIDE DOOR LOCK

 10 A

48

H/SEAT

*

20 A

49

-

-

50

-

-

51

-

-

52

E-DPS

*

(20 A)

Circuit Protected

Amps

53

-

-

54

OPTION1 / FUEL LID

10 A

55

-

-

56

-

-

Circuit Protected

Amps

* Not available on all models

632

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

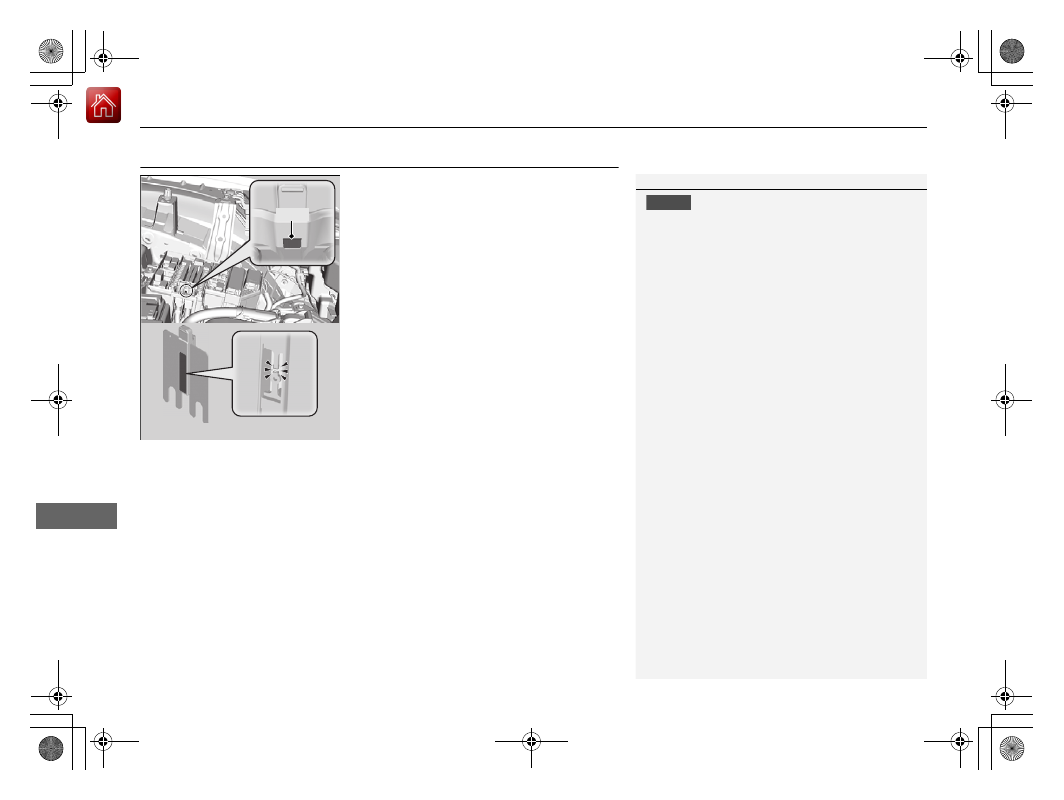

Inspecting and Changing Fuses

1.

Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.

2.

Remove the fuse box cover.

3.

Check the main fuse in the engine
compartment fuse box.

u

Look at the fuse through the hole.

u

If the fuse is blown, have it replaced by a
dealer.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2

Fuse Locations

 P. 628

Replace a fuse with a spare fuse of the same specified
amperage.

Hole

Main Fuse

633

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

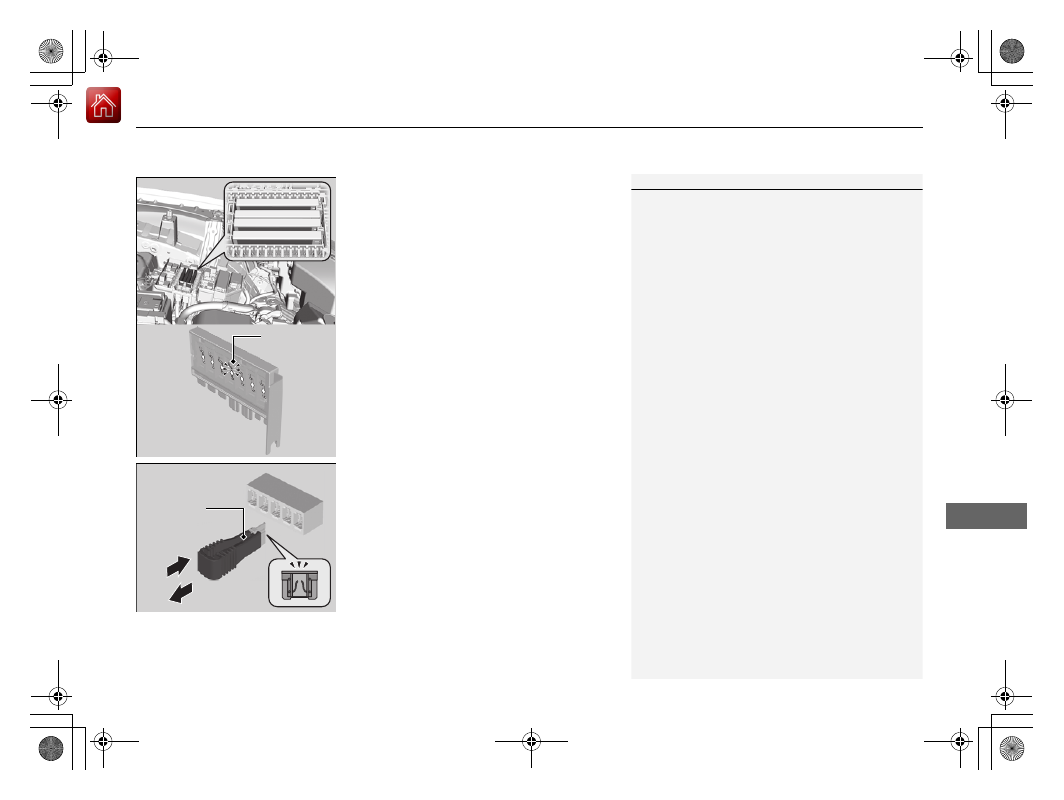

4.

Check the combined fuses in the engine
compartment fuse box.

u

Look into the space between the fuses.

u

If the fuse is blown, have it replaced by a
dealer.

5.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined Fuse

Blown Fuse

Fuse Puller

634

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flatbed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground.

This is an acceptable way to

tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment.

2

Parking Brake

 P. 528

2WD models

All models

2WD models

635

Han

d

lin
g the U

n

expected

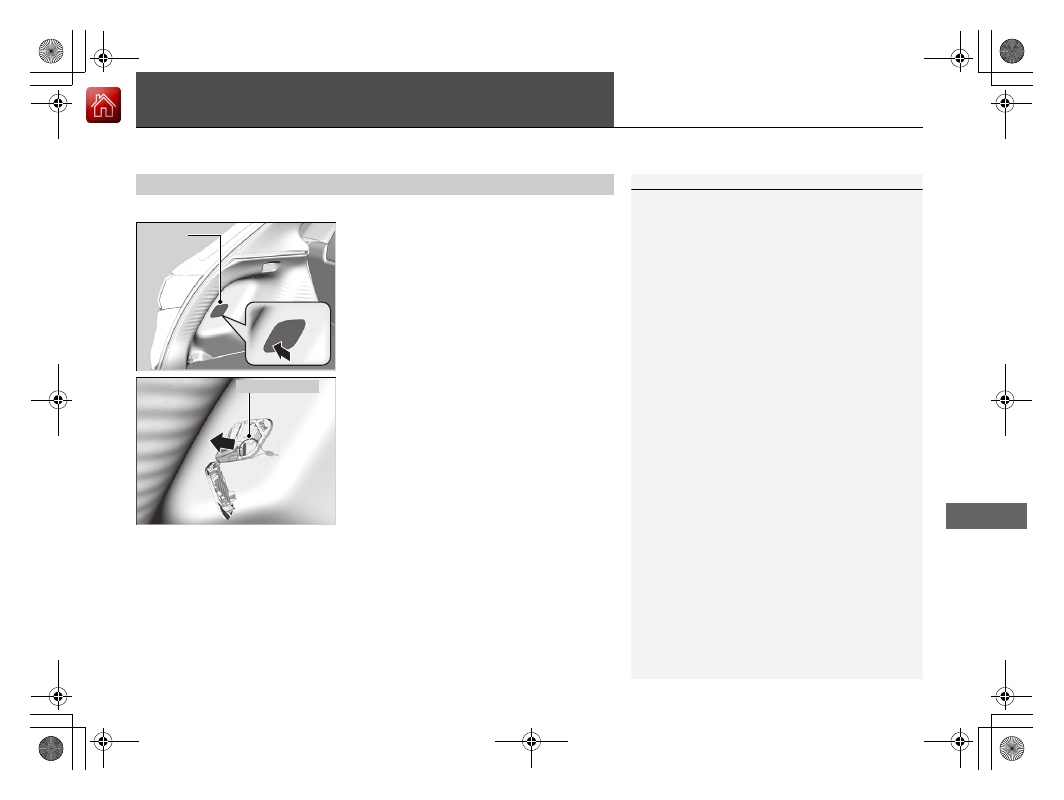

If You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1.

Open the tailgate.

2.

Push on the corner of the cover, then
remove the cover.

3.

Pull the release cord as shown.

u

The release cord unlocks the fuel fill door
when it is pulled.

4.

Open the fuel fill door.

2

How to Refuel

 P. 548

■

What to Do If Unable to Unlock the Fuel Fill Door

1

What to Do If Unable to Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Cord

636

Han

d

lin
g the U

n

expected

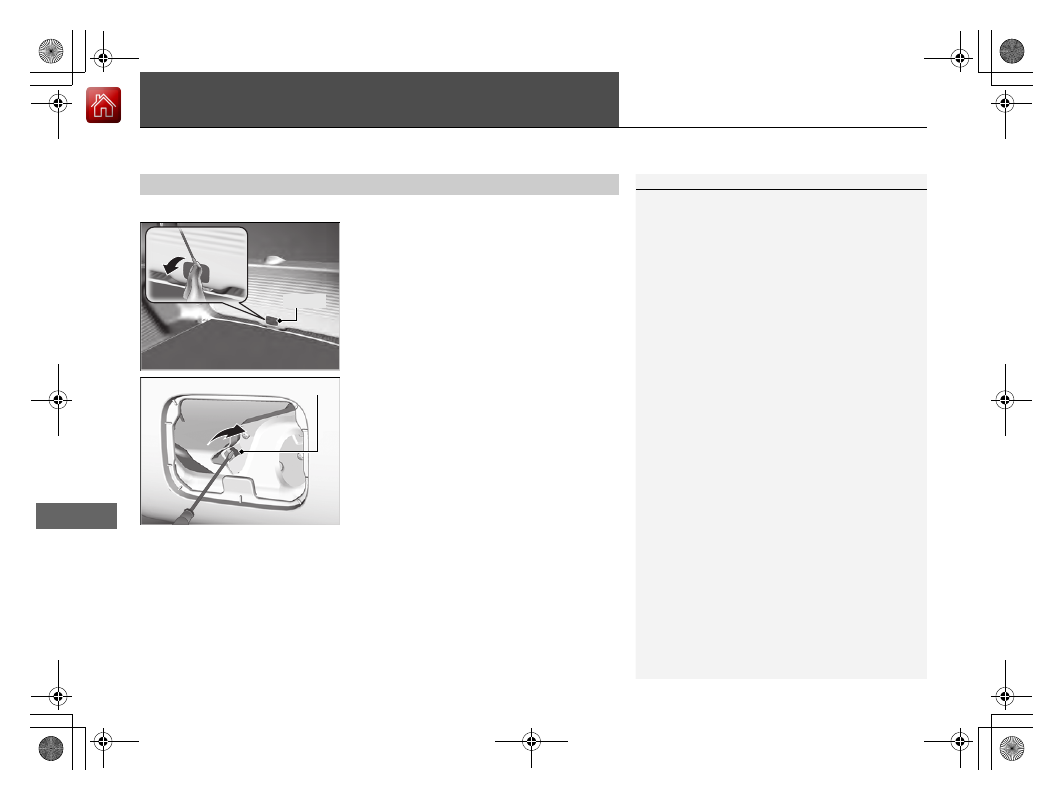

If You Cannot Open the Tailgate

If you cannot open the tailgate, use the following procedure.

1.

Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2.

To open the tailgate, push the tailgate
while sliding the lever to the right with the
flat-tip screwdriver.

■

What to Do If Unable to Open the Tailgate

1

What to Do If Unable to Open the Tailgate

Follow Up:
After taking these steps, contact a dealer to have the
vehicle checked.

When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.

Cover

Lever

637

Han

d

lin
g the U

n

expected

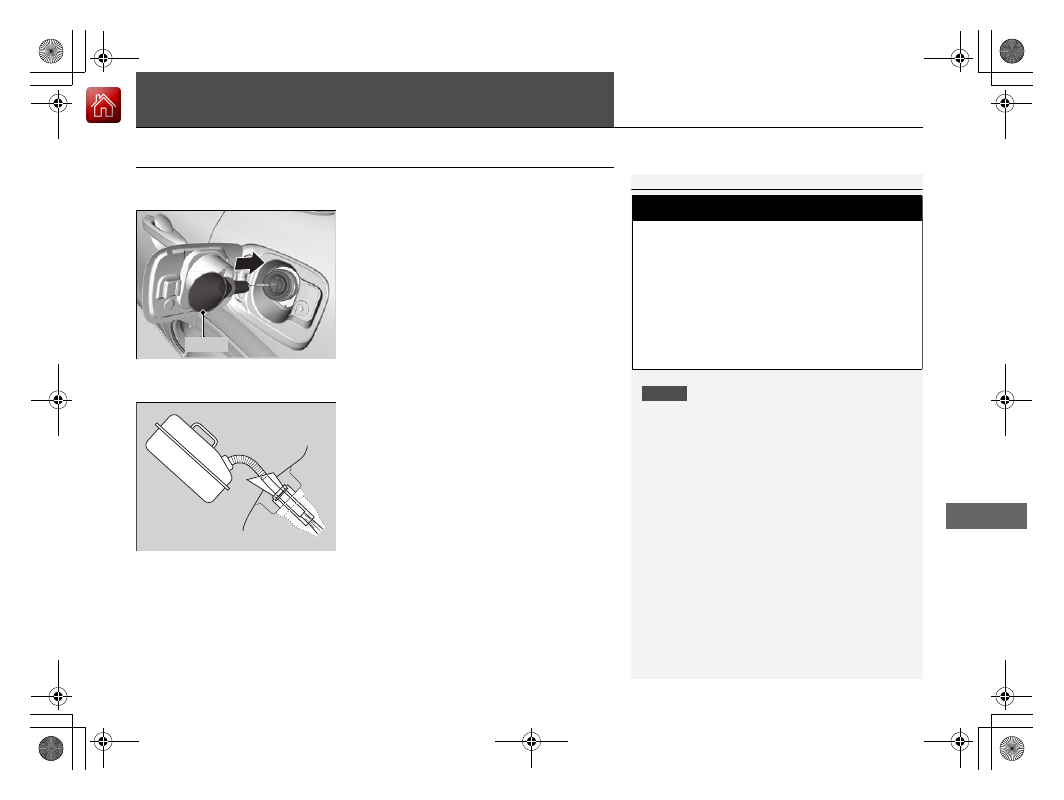

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1.

Turn off the engine.

2.

Press on the edge of the fuel fill door to
make it pop up slightly.

u

The fuel fill door opens.

3.

Take the funnel out of the cargo area.

2

Types of Tools

 P. 604

4.

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5.

Fill the tank with fuel from the portable fuel
container.

u

Pour fuel carefully so you do not spill any.

6.

Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7.

Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Stop the engine, and keep heat, sparks,
and flames away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Funnel

639

Information

This chapter includes your vehicle’s specifications, locations of identification numbers, and other

information required by regulation.

Specifications

.................................... 640

Identification Numbers

Vehicle Identification Number (VIN),

Engine Number, and Transmission
Number ......................................... 642

Devices that Emit Radio Waves

....... 643

Reporting Safety Defects

................. 644

Emissions Testing

Testing of Readiness Codes.............. 645

Warranty Coverages

........................ 647

Authorized Manuals

......................... 650

Customer Service Information

......... 651

Open Source License

Meter Open Source License ............. 652

640

Info

rm

ation

Specifications

■

Vehicle Specifications

■

Air Conditioning

Model

HR-V

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle Weight
Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

15.3 – 17.1 oz (435 – 485 g)

Lubricant Type

ND-OIL14 (POE)

Quantity

6.41 – 7.32 cu-in (105 – 120 cm

3

)

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

121.8 cu-in (1,996 cm

3

)

Spark Plugs

NGK

DILKAR7H11GS
DILKAR7G11GS

DENSO

DXE22HQR-D11S

Fuel:
Type

Unleaded gasoline, pump octane number
87 or higher

Fuel Tank Capacity

14.0 US gal (53 L)

Tank Capacity

U.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)

■

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Front Turn Signal/Parking/Daytime
Running Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights

*

(on Door Mirrors)

LED

Brake Lights

LED

Rear Side Marker Lights

LED

Back-Up Lights

LED

Taillights

LED

Rear Turn Signal Lights

LED

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Front and Rear Map
Lights

LED

Ambient Lights

*

LED

Vanity Mirror Light

*

1.4 W

Under Tray Light

LED

Cargo Area Lights

LED

* Not available on all models

641

uu

Specifications

u

Info

rm

ation

■

Brake Fluid

■

Continuously Variable Transmission

Fluid

*1: 2WD
*2: AWD

■

Rear Differential Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2 Transmission Fluid

Capacity

Change

2.9 US qt (2.7 L)

*1

3.7 US qt (3.5 L)

*2

Specified

Honda DPSF-II

Capacity

Change

1.318 US qt (1.247 L)

■

Engine Oil

■

Engine Coolant

Recommended

·Honda Genuine Motor Oil 0W-20
·API service SN or higher grade 0W-20

Capacity

Change

4.2 US qt (4.0 L)

Change
including
filter

4.4 US qt (4.2 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.57 US gal (5.93 L)
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)

■

Tire

*1: Original tire size is mentioned on the tire information label on

the driver’s doorjamb.

*2: Models with 215/60R17
*3: Models with 225/55R18

Regular

Size

*1

215/60R17 96H
225/55R18 98H

Pressure
psi (kPa[kgf/cm

2

])

Front

33 (230 [2.3])

Rear

32 (220 [2.2])

Compact
Spare

Size

T135/90D17 104M

Pressure
psi (kPa[kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 6 1/2J

*2

18 x 7J

*3

Compact Spare

17 x 4T

* Not available on all models

642

Info

rm

ation

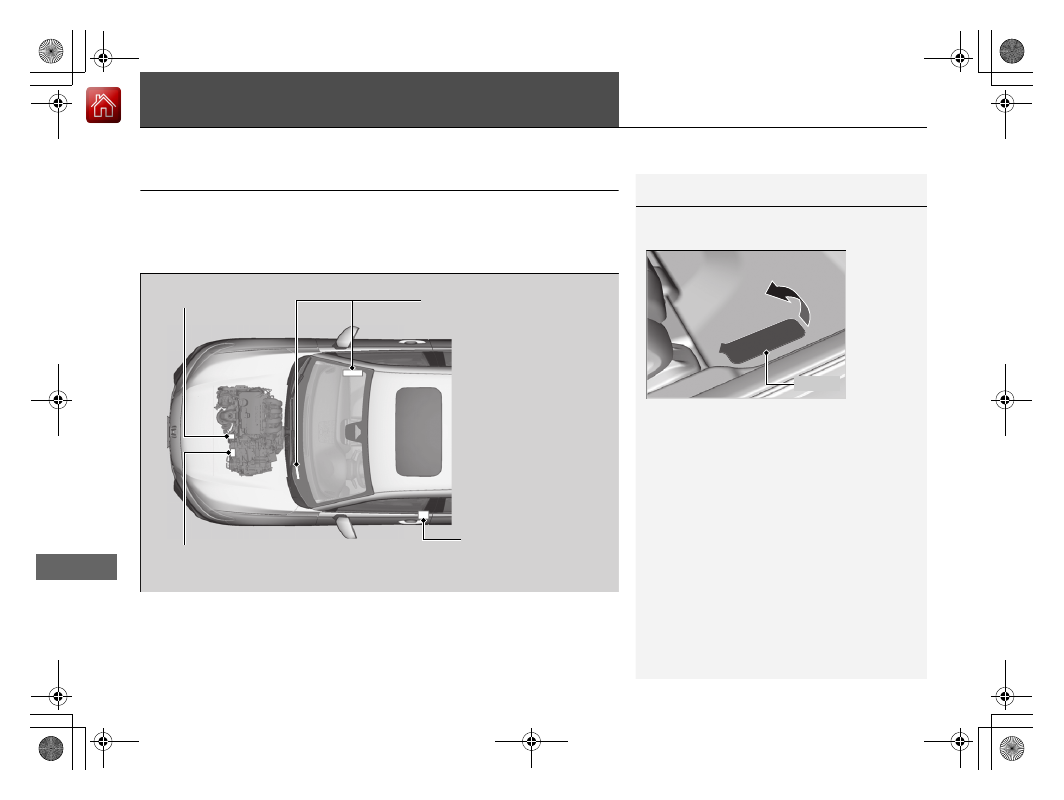

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.

1

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification
Number

Continuously Variable Transmission
Number

643

Info

rm

ation

Devices that Emit Radio Waves

Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

644

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to

http://www.safercar.gov

; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,

Washington, DC 20590. You can also obtain other information about motor vehicle safety from

http://

www.safercar.gov

.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to

http://www.tc.gc.ca/

roadsafety

.
