109

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears momentarily when the AC power outlet switch
is pressed and system is turned on.

●

Auto Idle Stop will not activate when the AC power
outlet is in use.

2

Auto Idle Stop

 P. 406

2

AC Power Outlet

*

 P. 191

Message

Condition

Explanation

●

Appears if there is a problem with the parking sensor
system.

●

Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.

Message

Condition

Explanation

●

Appears when the washer fluid is low.

●

Refill the washer fluid.

2

Refilling Window Washer Fluid

 P. 507

Models with AC Power Outlet

Models with parking sensor

Models with washer level sensor

* Not available on all models

110

In

strum

e

nt Pa

nel

Gauges and Multi-Information Display

Gauges

Gauges include the speedometer, fuel gauge, and other related indicators. They are
displayed when the power mode is in ON.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

■

Speedometer

■

Tachometer

■

Fuel Gauge

■

Temperature Gauge

1

Speedometer

Press and hold the

RESET

 button until you hear a

beep when the blank appears on the multi-
information display.
The speedometer reading as well as the displayed
measurements will switch between mph and km/h.
The display change message will switch for a few
seconds.

1

Fuel Gauge

NOTICE

You should refuel when the needle approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

1

Temperature Gauge

NOTICE

Driving with the temperature gauge needle in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

2

Overheating

 P. 555

111

uu

Gauges and Multi-Information Display

u

Multi-Information Display

Continued

In

strum

e

nt Pa

nel

Multi-Information Display

The multi-information display shows the odometer, trip meter, outside temperature
indicator, and other gauges. It also displays important messages such as warnings
and other helpful information.

Press the

 (information) or

RESET

 button to change the display.

■

Switching the Display

Blank

Distance/
Average Fuel Economy/
Range/Instant Fuel
Economy

Trip A

Tire Pressure for Each Tire

Engine Oil Life

Turn-by-Turn
Directions

*

RESET



Button

Compass

*

 Button

Distance/
Average Fuel Economy/
Range/Instant Fuel Economy

Trip B

Press the

Press and hold the

RESET

Changed two
seconds later

* Not available on all models

112

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

Shows the total number of miles or kilometers that your vehicle has accumulated.

■

Odometer

Odometer

Outside temperature

Continued

113

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature display

Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

RESET

 button until the trip

meter is reset to

0.0

.

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

■

Outside Temperature

■

Trip Meter

■

Average Fuel Economy

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

You can adjust the temperature reading.

2

Customized Features

 P. 298

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the

 button.

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

2

Customized Features

 P. 298

uu

Gauges and Multi-Information Display

u

Multi-Information Display

114

In

strum

e

nt Pa

nel

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

Shows each tire’s pressure.

2

Tire Pressure Monitoring System (TPMS) with Tire Fill Assist

 P. 416

Shows the remaining oil life and Maintenance Minder

TM

.

2

Maintenance Minder

TM

 P. 491

■

Compass

Shows the compass screen.

■

Turn-by-Turn Directions

When driving guidance is provided by the navigation system, turn-by-turn directions
to your destination appear.

2

Refer to the Navigation System Manual

■

Range

■

Instant Fuel Economy

■

Tire Pressure Monitor

■

Maintenance Minder

TM

■

Navigation

Models with navigation system

1

Navigation

You can select whether to have the turn-by-turn
display come on or not during the route guidance.

2

Customized Features

 P. 298

2

Refer to the navigation system

115

Controls

This chapter explains how to operate the various controls necessary for driving.

Clock

.................................................. 116

Locking and Unlocking the Doors

Key .................................................. 117
Low Keyless Remote Signal Strength .....119
Locking/Unlocking the Doors from the

Outside .......................................... 120

Locking/Unlocking the Doors from the

Inside ............................................. 127

Childproof Door Locks ..................... 129
Auto Door Locking/Unlocking .......... 130

Tailgate

.............................................. 131

Opening and Closing the Trunk

....... 133

Security System

Immobilizer System .......................... 136
Security System Alarm...................... 136

Windows

............................................... 139

Moonroof

*

............................................... 143

Operating the Switches Around the

Steering Wheel

ENGINE START/STOP Button............. 145
Turn Signals ..................................... 148
Light Switches.................................. 149
Fog Lights ........................................ 152
Daytime Running Lights ................... 153
Auto High-Beam (High Beam Support

System) .......................................... 154

Wipers and Washers ........................ 157
Rear Defogger/Heated Door Mirror

*



Button ........................................... 159

Heated Windshield Button

*

............. 159

Brightness Control ........................... 160
Driving Position Memory System

*

.... 161

Adjusting the Steering Wheel .......... 163

Mirrors

Interior Rearview Mirror ................... 164
Power Door Mirrors ......................... 165

Seats

.................................................. 166

Interior/Exterior Convenience Items

Interior Lights .................................. 175
Storage Items .................................. 177
Other Interior Convenience Items..... 182
In-Bed Convenience Items................ 191

Climate Control System

................... 195

* Not available on all models

116

Co
ntrols

Clock

Adjusting the Clock

You can adjust the time manually in the audio/information screen, with the power
mode in ON.

1.

Select

, then select

Settings

.

2.

Select

Clock/Info

, then

Clock

Adjustment

.

3.

Adjust the hours and minutes by selecting

/

.

4.

Select

OK

 to set the time.

■

Adjusting the Time

1

Clock

The clock is automatically updated through the
navigation system, so the time does not need to be
adjusted.

You can customize the clock display to show the 12
hour clock or 24 hour clock.

2

Customized Features

 P. 298

Models with navigation system

All models

3 4

117

Continued

Co
ntrols

Locking and Unlocking the Doors

Key

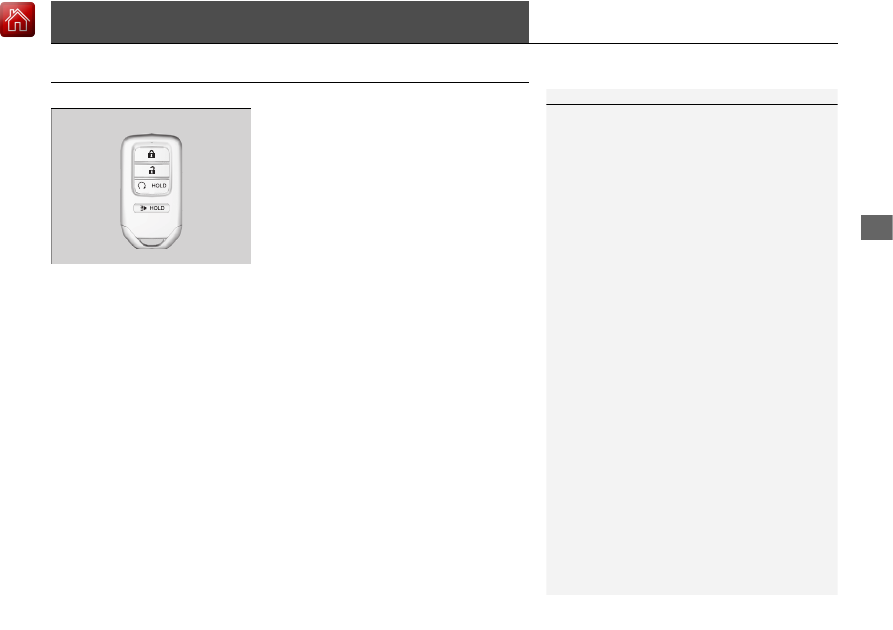

This vehicle comes with the following key:

Use the key to start and stop the engine, and
to lock or unlock all the doors or open the
trunk.

u

The tailgate lock/unlock function is set to
disable as the factory default setting. The
tailgate lock/unlock function can be used
by using the audio/information screen.

2

Customized Features

 P. 298

1

Key

All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.

2

Immobilizer System

 P. 136

Follow the advice below to prevent damage to the
keys:

•

Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.

•

Do not drop the keys or set heavy objects on them.

•

Keep the keys away from liquids, dust and sand.

•

Do not take the keys apart except for replacing the
battery.

If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.

You can remotely start the engine using the remote
engine start.

2

Remote Engine Start

 P. 387

Keyless Remote

uu

Locking and Unlocking the Doors

u

Key

118

Co
ntrols

The built-in key can be used to lock/unlock the
doors or open the trunk when the keyless
remote battery becomes weak and the power
door lock/unlock operation is disabled.

To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
keyless remote until it clicks.

Contains a number that you will need if you
purchase a replacement key.

■

Built-in Key

Release Knob

Built-in Key

■

Key Number Tag

1

Key Number Tag

Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer. If you lose your key and you cannot start the
engine, contact a dealer.

119

uu

Locking and Unlocking the Doors

u

Low Keyless Remote Signal Strength

Co
ntrols

Low Keyless Remote Signal Strength

The vehicle transmits radio waves to locate the keyless remote when locking/
unlocking the doors, opening the trunk, or to start the engine.

In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:

•

Strong radio waves are being transmitted by nearby equipment.

•

You are carrying the keyless remote together with telecommunications
equipment, laptop computers, cell phones, or wireless devices.

•

A metallic object is touching or covering the keyless remote.

1

Low Keyless Remote Signal Strength

Communication between the keyless remote and the
vehicle consumes the keyless remote’s battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless
remote is receiving strong radio waves. Avoid placing
it near electrical appliances such as televisions and
personal computers.

120

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Co
ntrols

Locking/Unlocking the Doors from the Outside

When you carry the keyless remote, you can
lock/unlock the doors and open the trunk.

You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.

■

Using the Keyless Access System

1

Locking/Unlocking the Doors from the Outside

If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The light fades out after
30 seconds.
Doors relocked: The light goes off immediately.

2

Interior Lights

 P. 175

1

Using the Keyless Access System

If you do not open a door within 30 seconds of
unlocking the vehicle with the keyless access system,
the doors will automatically relock.

You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF.

Continued

121

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Co
ntrols

■

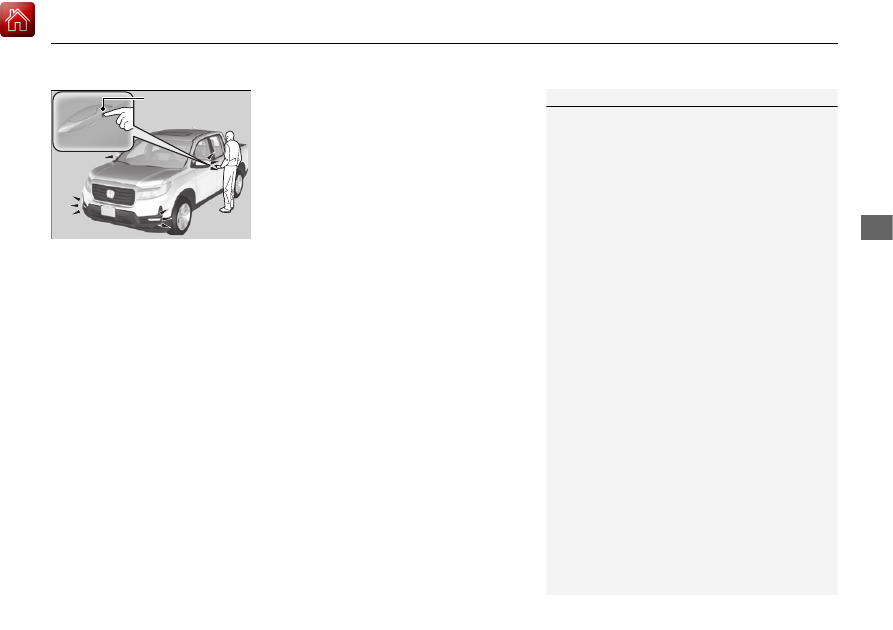

Locking the doors

Press the door lock button on the front door.

u

Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.

1

Using the Keyless Access System

•

Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.

•

Even if you are not carrying the keyless remote, you
can lock/unlock the doors or open the trunk while
someone else with the remote is within range.

•

The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless remote is within range.

•

If you grip a door handle wearing gloves, the door
sensor may be slow to respond or may not respond
by unlocking the doors.

•

After locking the door, you have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked.
If you need to unlock the door immediately after
locking it, wait at least two seconds before
gripping the handle, otherwise the door will not
unlock.

•

The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that the door is unlocked before
pulling the handle.

•

Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the
keyless remote if it is above or below the outside
handle.

•

The keyless remote may not operate if it is too close
to the door and door glass.

Door Lock Button

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

122

Co
ntrols

■

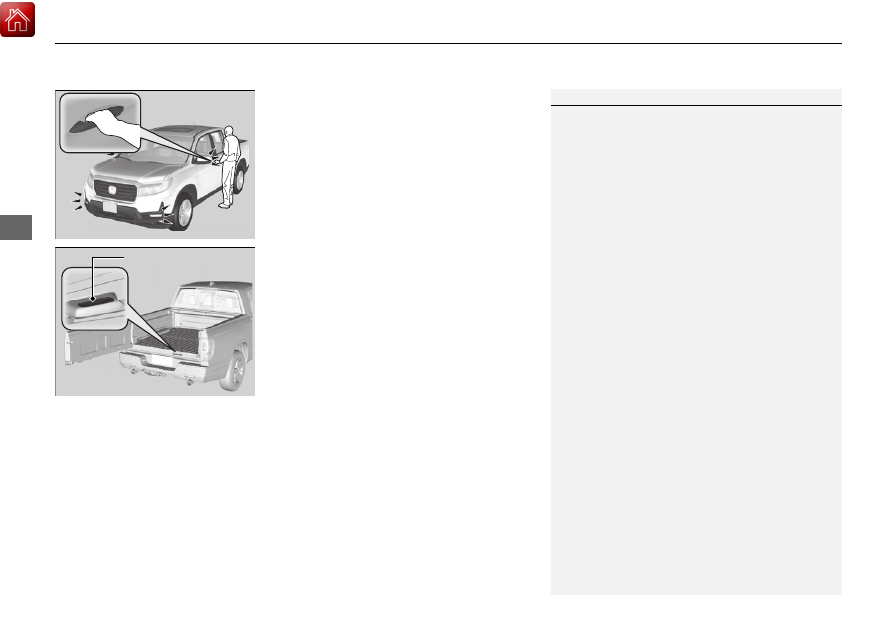

Unlocking the doors and trunk

Grab the driver’s door handle:

u

The driver’s door unlocks.

u

Some exterior lights flash twice and the
beeper sounds twice.

Grab the front passenger’s door handle:

u

All doors unlock.

u

Some exterior lights flash twice and the
beeper sounds twice.

Press the trunk release button:

u

The trunk unlocks and opens.

u

The beeper sounds once.

2

Using the Trunk Release Button

 P. 134

1

Using the Keyless Access System

The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen.

2

Customized Features

 P. 298

Trunk Release Button

Continued

123

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Co
ntrols

■

Locking the doors (Walk away auto
lock

®

)

When you walk away from the vehicle with all
doors closed while carrying the keyless
remote, the doors will automatically lock.
The auto lock function activates when all
doors are closed, and the keyless remote is
within about 5 feet (1.5 m) radius of the
outside door handle.
Exit vehicle while carrying keyless remote and
close door(s).

1.

While within about 5 feet (1.5 m) radius of
the vehicle.

u

The beeper sounds; the auto lock
function will be activated.

2.

Carry the keyless remote beyond about 5
feet (1.5 m) from the vehicle and remain
outside this range for 2 or more seconds.

u

Some exterior lights flash; the beeper
sounds; all doors will then lock.

1

Locking the doors (Walk away auto lock

®

)

The auto lock function is set to OFF as the factory
default setting. The auto lock function can be set to
ON using the audio/information screen.
If you set the auto lock function to ON using the
audio/information screen only the keyless remote
that was used to unlock the driver’s door prior to the
setting change can activate auto lock.

2

Customized Features

 P. 298

After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the keyless remote
will continue to flash until the doors are locked.

When you stay beside the vehicle within the
operation range, the doors will automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.

When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be canceled.

Under the following circumstances, the auto-lock
function will not activate:

•

The keyless remote is inside the vehicle.

u

The beeper will not sound.

•

The keyless remote is taken out of its operational
range before all the doors are closed.

u

The beeper will sound.

The activation range of
the auto lock function is
about 5 feet (1.5 m)

a

b

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

124

Co
ntrols

To temporarily deactivate the function:

1.

Set the power mode to VEHICLE OFF.

2.

Open the driver’s door.

3.

Using the master door lock switch, operate
the lock as follows:
Lock

Unlock

Lock

Unlock.

u

The beeper sounds and the function is
deactivated.

To restore the function:

•

Set the power mode to ON.

•

Lock the vehicle without using the auto lock
function

•

With the keyless remote on you, move out
of the auto lock function operation range.

•

Open any door.

1

Locking the doors (Walk away auto lock

®

)

The auto lock function does not operate when any of
the following conditions are met.

•

The keyless remote is inside the vehicle.

•

A door or the hood is not closed.

•

The power mode is set to any mode other than
OFF.

•

The keyless remote is not located within a radius of
about 5 feet (1.5 m) from the vehicle when you get
out of the vehicle and close the doors.

Auto lock function operation stop beeper

After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.

•

The keyless remote is put inside the vehicle through
a window.

•

You are located too close to the vehicle.

•

The keyless remote is put inside the trunk.

If the warning beeper sounds, check that you are
carrying the keyless remote. Then, open/close a door
and confirm the auto lock activation beeper sounds
once.
