109

uu

Gauges and Displays

u

Driver Information Interface

Continued

In

strum

e

nt Pa

nel

Driver Information Interface

The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature, and other gauges. It also displays important
messages such as warnings and other helpful information.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

■

Speedometer

■

Tachometer

1

Speedometer

You can set the speedometer and the displayed
measurements to read in either mph or km/h.

2

Units

 P. 118

1

Tachometer

You can turn on or off the tachometer display.

2

Show Tachometer

 P. 122

uu

Gauges and Displays

u

Driver Information Interface

110

In

strum

e

nt Pa

nel

Shows the total number of miles or kilometers
that your vehicle has accumulated.

Shows the outside temperature in Fahrenheit
(U.S.) or Celsius (Canada).

Adjusting the outside temperature
display

Adjust the temperature reading by up to ±5°F
or ±3°C if the temperature reading seems
incorrect.
Use the audio/information screen to correct
the temperature.

2

Customized Features

 P. 385

■

Odometer

Odometer

■

Outside Temperature

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Outside Temperature

Continued

111

uu

Gauges and Displays

u

Driver Information Interface

In

strum

e

nt Pa

nel

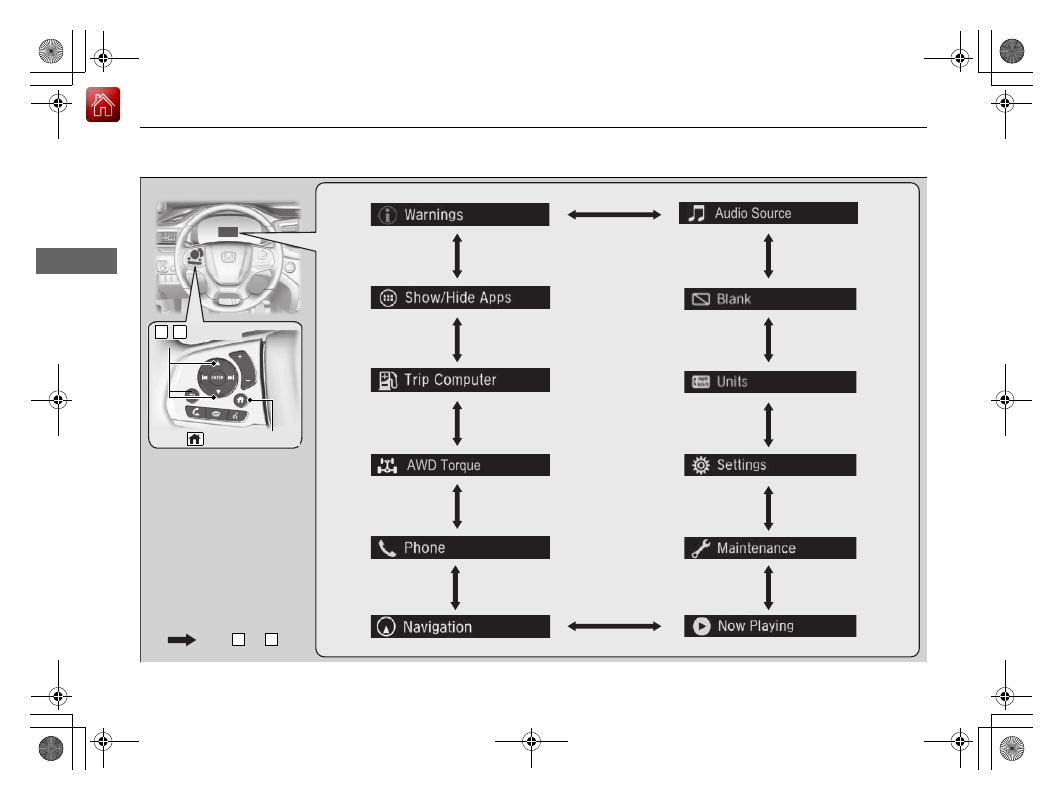

Press the

 (home) button, then press the

/

 button to scroll to the content

you want to see. Press the

ENTER

 button to see detailed information.

■

Accessing Content

1

Accessing Content

To go back to the previous screen, press the



(back) button.

You can edit, add, or delete the meter contents using
the driver information interface.

2

Arrange Apps

 P. 121

2

Show/Hide Apps

 P. 120

3 4

112

uu

Gauges and Displays

u

Driver Information Interface

In

strum

e

nt Pa

nel

 (Home) Button

/

 Button

3 4

*

Press

or .

3

4

 P. 115

 P. 120

 P. 113

 P. 117

 P. 115

 P. 118

 P. 121

 P. 116

 P. 118

 P. 119

 P. 117

* Not available on all models

113

uu

Gauges and Displays

u

Driver Information Interface

Continued

In

strum

e

nt Pa

nel

Press the

ENTER

 button to switch between trip computer A and trip computer B.

■

Trip Computer

ENTER

 Button

ENTER

Trip Computer A

Trip Computer B

Distance

Range

Average Fuel
Economy

Instant Fuel
Economy

uu

Gauges and Displays

u

Driver Information Interface

114

In

strum

e

nt Pa

nel

■

Distance

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting distance

To reset the

Distance

, display it and then press and hold the

ENTER

 button until the

Distance

 is reset to

0.0

.

■

Average fuel economy (Avg. Fuel)

Shows the estimated average fuel economy of each

Distance

 in mpg or l/100 km.

The display is updated at set intervals. When a

Distance

 is reset, the average fuel

economy is also reset.

■

Instant fuel economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

■

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

1

Distance

Switch between

Distance

 A and

Distance

 B by

pressing the

ENTER

 button.

1

Average fuel economy (

Avg. Fuel

)

You can change when the average fuel economy is
reset.

2

Customized Features

 P. 385

Continued

115

uu

Gauges and Displays

u

Driver Information Interface

In

strum

e

nt Pa

nel

Display Audio shows you turn-by-turn
directions to your destination.

When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface.

2

Refer to the navigation system

2

Driver Information Interface Warning and
Information Messages

 P. 95

■

Navigation

1

Navigation

Turn-by-turn directions will be shown on the driver
information interface only when your android phone
is connected to Android Auto

TM

.

You can select whether to have the turn-by-turn
display come on or not during the route guidance.

2

Customized Features

 P. 385

Compass

Turn-By-Turn Driving Directions

Models with navigation system

■

Warnings

1

Warnings

The

Warnings

 app is dynamic and will only appear

when there are active warnings. If there are no
Warnings, this app will not be shown.

(Example)

116

uu

Gauges and Displays

u

Driver Information Interface

In

strum

e

nt Pa

nel

Shows the current condition of the tire
pressure and the remaining oil life.

■

Tire Pressure

Shows the tire pressure of each tire.

2

Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist

 P. 487

■

Oil Life

Shows the remaining oil life and Maintenance
Minder

TM

.

2

Maintenance Minder

TM

 P. 561

■

Maintenance

117

uu

Gauges and Displays

u

Driver Information Interface

Continued

In

strum

e

nt Pa

nel

The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.

2

Intelligent Variable Torque Management
(i-VTM4

TM

) AWD System

*

 P. 486

Shows the current phone information.

2

Bluetooth

®

 HandsFreeLink

®

 P. 407

■

AWD Torque

*

■

Phone

* Not available on all models

118

uu

Gauges and Displays

u

Driver Information Interface

In

strum

e

nt Pa

nel

Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.

Press and hold the

ENTER

 button. Each time

you do this, the unit will change from mph to
km/h or vice versa. After this, a confirmation
screen will appear for a few seconds.

Shows the current audio information.

2

Audio System Basic Operation

 P. 231

■

Units

■

Now Playing

119

uu

Gauges and Displays

u

Driver Information Interface

Continued

In

strum

e

nt Pa

nel

Shows the current audio source.

2

Audio System Basic Operation

 P. 231

■

Audio Source

(Example)

uu

Gauges and Displays

u

Driver Information Interface

120

In

strum

e

nt Pa

nel

You can show or hide the meter contents.

Select the content you wish to show or hide,
then press the

ENTER

 button.

u

Repeat it if you want to show or hide
more than one app.

■

Show/Hide Apps

1

Show/Hide Apps

You cannot hide apps with the

 icon on the right

side.

You can also add the

Android Auto

,

Apple

CarPlay

,

Sirius XM

*

,

My Honda Music

,

USB

,

AM

,

FM

,

Bluetooth Audio

,

Social Playlist

,

AUX Input

,

CD

*

 and

Rear Entertainment

*

 apps.

Shown

Press

ENTER

Hidden

* Not available on all models

121

uu

Gauges and Displays

u

Driver Information Interface

Continued

In

strum

e

nt Pa

nel

Change the settings to your liking.

■

Arrange Apps

You can change the order of the apps on the home screen.

1.

Press the

/

 button to select

Arrange

Apps

, then press the

ENTER

 button.

2.

Press the

/

 button to select the icon

you want to move, then press the

ENTER



button.

3.

Press the

/

 button repeatedly to move

the icon to your desired position, then press
the

ENTER

 button.

■

Settings

3 4

3 4

3 4

122

uu

Gauges and Displays

u

Driver Information Interface

In

strum

e

nt Pa

nel

■

Show Tachometer

You can show or hide the tachometer.

Press the

/

 button to select

Show

Tachometer

, then press the

ENTER

 button.

u

The tachometer appears when the check
box is checked.

3 4

123

Controls

This chapter explains how to operate the various controls necessary for driving.

Clock

.................................................. 124

Locking and Unlocking the Doors

Key Types and Functions .................. 126

Low Keyless Remote Signal Strength ......... 128

Locking/Unlocking the Doors from the

Outside .......................................... 129

Locking/Unlocking the Doors from the

Inside ............................................. 136

Childproof Door Locks ..................... 138
Auto Door Locking/Unlocking .......... 139

Opening and Closing the Tailgate

... 140

Security System

Immobilizer System .......................... 150
Security System Alarm...................... 150

Opening and Closing the Windows

.... 153

Moonroof

*

........................................ 156

Panoramic Roof

*

............................... 157

Operating the Switches Around the

Steering Wheel

ENGINE START/STOP Button............. 158
Turn Signals ..................................... 161
Light Switches.................................. 162
Fog Lights ........................................ 165
Auto High-Beam .............................. 166
Daytime Running Lights ................... 169
Wipers and Washers ........................ 170

Rear Defogger/Heated Door Mirror

Button........................................ 173

Brightness Control ........................... 175
Driving Position Memory System

*

.... 176

Adjusting the Steering Wheel .......... 178

Adjusting the Mirrors

Interior Rearview Mirror ................... 179
Power Door Mirrors ......................... 180

Adjusting the Seats

Front Seats ...................................... 181
Rear Seats........................................ 191
Armrest ........................................... 194

Interior Lights/Interior Convenience Items

Interior Lights .................................. 196
Interior Convenience Items .............. 200

Climate Control System

................... 218

* Not available on all models

124

Co
ntrols

Clock

Adjusting the Clock

You can adjust the time manually in the audio/information screen, with the power
mode in ON.

■

Using the Settings menu on the audio/
information screen

1.

Select

, then select

Settings

.

2.

Select

System

.

3.

Select

Date & Time

.

4.

Select

Set Date & Time

.

5.

Select

Automatic Date & Time

, then

select

OFF

.

To adjust time:
6.

Select

Set Time

.

7.

Selecting /

.

u

AM/PM icon can be switched to each
other either by selecting

/

, or by

directly touching the icon.

u

When you customize the clock display to
24 hour clock, AM/PM icon is not
displayed.

2

Customized Features

 P. 385

8.

Select

Save

 to set the time.

■

Adjusting the Time

1

Clock

The clock is automatically updated through the
navigation system, so the time does not need to be
adjusted.

Models with navigation system

Models without navigation system

1

Using the Settings menu on the audio/information screen

You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the

Clock

 icon on the home screen.

1. Touch the clock on the display.

The clock screen of the select face-type appears.

2. Select

Settings

.

3. Select

Date & Time Settings

.

4. Select

Set Date & Time

.

5. Select

Automatic Date & Time

, then select

OFF

.

6. Select

Set Date

 or

Set Time

.

7. Adjusting the dates, hours and minutes by

selecting /

.

8. Select

Save

 to set the time.

You can customize the clock display to show the 12
hour clock or 24 hour clock.

2

Customized Features

 P. 385

3 4

3 4

3 4
