Honda Insight (2022 year). Manual in english - page 8

124

Indicators

Driver Information Interface Warning and Information Messages

strum

ent Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in
operation.

●

ACC with Low Speed Follow has been automatically
canceled.

Adaptive Cruise Control (ACC) with Low Speed
Follow

P. 428

●

Appears when pressing the

RES

SET

−

button

while the vehicle is stopped on a very steep slope.

●

ACC with Low Speed Follow cannot be set.

Adaptive Cruise Control (ACC) with Low Speed
Follow

P. 428

125

Indicators

Driver Information Interface Warning and Information Messages

Continued

strum

ent Pa

nel

Message

Condition

Explanation

●

Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.

●

May appear when driving in bad weather (rain,
snow, fog, etc.)

●

When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth. The
message may take some time to go off.

●

Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.

Radar Sensor

P. 467

●

Appears if the temperature inside the front sensor
camera is too high and the ACC with Low Speed
Follow, LKAS, traffic sign recognition system and
auto high-beam cannot be activated.

●

Use the climate control system to cool down the
camera.

●

Disappears

- The camera has been cooled down and

the systems are activated normally.

Front Sensor Camera

P. 465

●

Appears if the area around the front sensor camera is
blocked by dirt, mud, etc and be prevented from
detecting a vehicle in front.

●

May appear when driving in bad weather (rain,
snow, fog, etc.)

●

When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.

●

Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.

Front Sensor Camera

P. 465

126

Indicators

Driver Information Interface Warning and Information Messages

strum

ent Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.

●

Keep the vehicle within the lane you are driving.

Lane Keeping Assist System (LKAS)

P. 446

●

Appears when the vehicle is driving out of a detected
lane.

The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.

The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.

●

Keep the vehicle within the lane you are driving.

Road Departure Mitigation (RDM) System

P. 454

●

You can change the setting for the road departure
mitigation system.

Narrow

Normal

Wide

, and

Warning Only

can be selected.

Customized Features

P. 326

●

Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.

—

Lane Keeping Assist System (LKAS)

Road Departure Mitigation (RDM) System

When you selected

Warning Only

When you selected

Narrow,

Normal

Wide

Road Departure Mitigation (RDM) System
When you selected

Narrow

127

Indicators

Driver Information Interface Warning and Information Messages

Continued

strum

ent Pa

nel

Message

Condition

Explanation

●

Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.

●

Operate the steering wheel to resume the LKAS.

●

Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.

●

If any other system indicators come on, such as the
VSA

, ABS and brake system, take appropriate action.

Indicators

P. 82

●

Appears if the ECON mode or SPORT mode cannot
be changed due to certain situations, such as a
system error or adverse driving conditions.

ECON Mode

P. 401

SPORT Mode

P. 397

128

Indicators

Driver Information Interface Warning and Information Messages

strum

ent Pa

nel

Message

Condition

Explanation

●

Appears when you unlock and open the driver’s door
while the power system is on by remote engine start.

Remote Engine Start with Vehicle Feedback

P. 384

129

Continued

strum

ent Pa

nel

Gauges and Driver Information Interface

Gauges

Gauges include the speedometer, fuel gauge,

POWER

CHARGE

gauge, High

Voltage battery charge level gauge, and related indicators. They are displayed when
the power mode is in ON.

Displays your driving speed in mph or km/h.

Displays the amount of fuel left in the fuel tank.

■

Speedometer

■

Fuel Gauge

Speedometer

You can show another speed unit on the driver
information interface (sub display) and set the
displayed measurements to read in either mph and
km/h.

POWER/CHARGE Gauge

P. 131

Fuel Gauge

NOTICE

You should refuel when the reading approaches

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

Gauges and Driver Information Interface

Gauges

130

strum

ent Pa

nel

Shows the remaining high voltage battery charge level.

■

High Voltage Battery Charge Level Gauge

High Voltage Battery Charge Level Gauge

The high voltage battery charge level may decrease
under the following conditions:

•

When the 12-volt battery has been replaced.

•

When the 12-volt battery has been disconnected.

•

When the high voltage battery control system
corrects its reading.

The charge level reading will be corrected
automatically while driving.

Changes in the temperature of the high voltage
battery can increase or decrease the battery’s
charging capacity. If temperature changes cause the
battery’s capacity to change, the number of
indicators in the battery charge level gauge may also
change, even if the amount of charge remains the
same.

131

Gauges and Driver Information Interface

Gauges

strum

ent Pa

nel

■

Electric motor

The power level supplied to the electric motor
is displayed by the readings on the

POWER

side.

■

Battery charge in progress

The power level supplied to the high voltage
battery is displayed by readings on the

CHARGE

side.

■

Speed Unit

Enables you to show another speed unit on
the driver information interface and set the
displayed measurements to read in either mph
and km/h.

Select the

Gauge Only

screen.

Accessing contents in the main display

P. 132

Press and hold the left selector wheel when
you select the

Gauge Only

on the driver

information interface. Each time you do this,
the unit will change from mph to km/h or vice
versa. After this, a confirmation screen will
appear for a few seconds.

■

POWER/CHARGE Gauge

132

Gauges and Driver Information Interface

Driver Information Interface

strum

ent Pa

nel

Driver Information Interface

The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.

■

Accessing contents in the main display

Press the

(home) button, then roll the left selector wheel to scroll to the content

you want to see. Press the left selector wheel to see detailed information.

■

Switching the Display

Switching the Display

If a warning initially appears, you can - after reading
it - press the

(home) button to proceed

immediately to the content or to any other
warning(s).

To go back to the previous screen, press the

(back) button.

To go back to the home screen, press the

(home)

button.

You can edit, add, or delete the meter contents using
the audio/information screen.

Customizing the Meter

P. 245

133

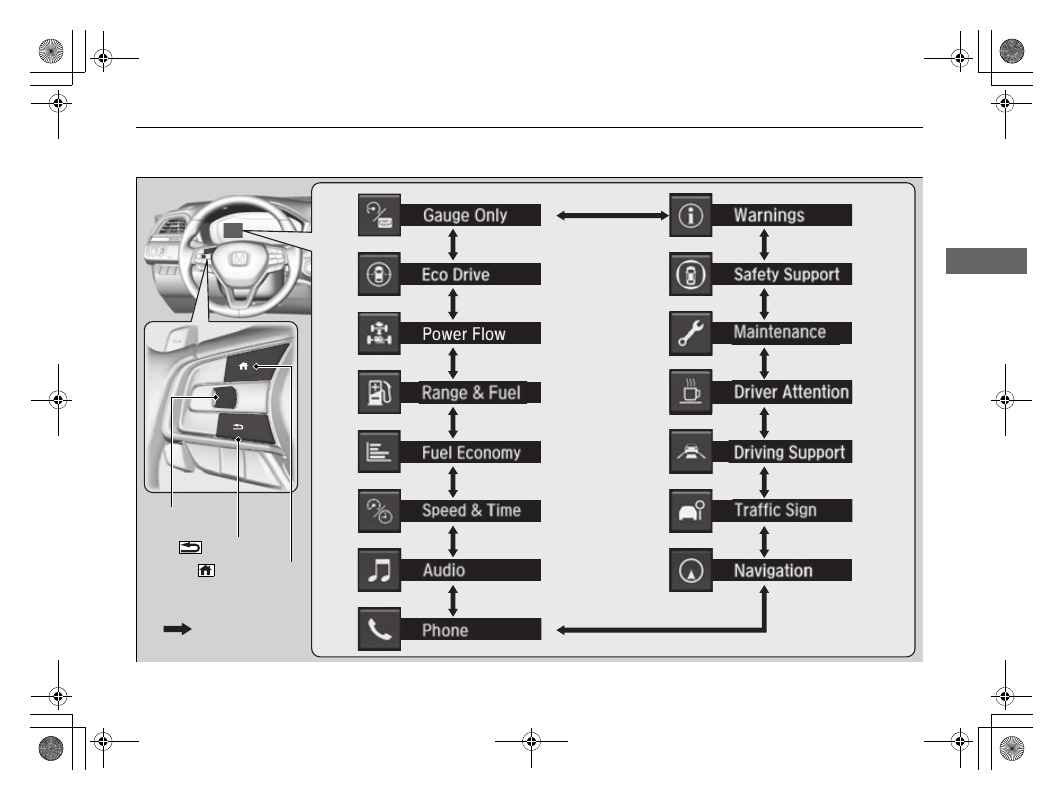

Gauges and Driver Information Interface

Driver Information Interface

Continued

strum

ent Pa

nel

(home) Button

P. 131

P. 136

P. 138

P. 140

P. 144

P. 142

P. 143

P. 149

P. 141

Left Selector

Wheel

Roll the left

selector wheel.

P. 148

P. 145

P. 151

P. 153

P. 150

(back) Button

134

Gauges and Driver Information Interface

Driver Information Interface

strum

ent Pa

nel

■

Sub display

Press the

TRIP

button to change the display.

Shows the total number of miles or kilometers that your vehicle has accumulated.

■

Odometer

Odometer

Outside temperature

Trip A

Trip B

TRIP

Button

TRIP

Continued

135

Gauges and Driver Information Interface

Driver Information Interface

strum

ent Pa

nel

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

TRIP

Button. The trip meter

is reset to

0.0

Shows the outside temperature in Fahrenheit.

■

Adjusting the outside temperature display

Adjust the temperature reading by up to ±5°F if the temperature reading seems
incorrect.
Use the customized features in the driver information interface or audio/information
screen to correct the temperature.

Customized Features

P. 326

■

Trip Meter

■

Outside Temperature

Trip Meter

Switch between trip meter A and trip meter B by
pressing the

TRIP

Button.

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

136

Gauges and Driver Information Interface

Driver Information Interface

strum

ent Pa

nel

Roll the left selector wheel to switch between trip computer A and trip computer B.

■

Range & Fuel

Left Selector Wheel

Trip Computer A

Trip Computer B

Trip Meter

Range

Average Fuel

Economy

Instant Fuel

Economy

Roll the left

selector wheel.

Continued

137

Gauges and Driver Information Interface

Driver Information Interface

strum

ent Pa

nel

■

Trip meter

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting a trip meter

To reset the trip meter, display it, press the left selector wheel and then select

Reset

The trip meter is reset to

0.0

■

Average fuel economy (Avg. Fuel)

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

■

Instant fuel economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

■

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

Trip meter

Switch between trip meter A and trip meter B by
rolling the left selector wheel.

Resetting the trip meter in the

Range & Fuel

, the trip

meter in the sub display resets at the same time.
