Multi-View Camera

*

u

530

Driving

■

Checking for Obstacles at the Back of Your Vehicle

The display automatically changes to the rear view when the shift position is
changed to

(

R

.

■

Using the Multi-View Camera

1

Checking for Obstacles at the Back of Your Vehicle

When changing the shift position from/to

(

R

, you

may experience a delay in switching between the
audio/information screen and a rear view image.

Approximate distances:

a

The guide lines indicate

b

1m (39.3 inches)

c

50cm (20 inches)

d

The projection lines indicate

e

1m (39 inches)

531

uu

Multi-View Camera

*

u

Continued

Driving

*1: You can also switch the display by touching the view screen.

a

Rear Normal View

b

 or

*1

c

 or

*1

d

Rear Normal View + Ground View

e

When the steering wheel is turned more than 90 degrees.

f

The projection lines appear 25 cm (9.8 inches) outside the vehicle body.

g

When the steering wheel is turned more than 90 degrees.

h

Rear Wide View + Ground View

i

 or

*1

j

 or

*1

k

Rear Wide View

l

 or

 or

CAMERA

 button

m

 or

 or

CAMERA

 button

uu

Multi-View Camera

*

u

532

Driving

■

Checking for the Sides of Your Vehicle

You can display the front ground view screen using all the four cameras for the
system. Pressing the

CAMERA

 button when the vehicle speed is at below 20 km/h

(12 mph) changes the image as follows.

1

Checking for the Sides of Your Vehicle

While the image from the multi-view cameras is
being displayed if the vehicle speed exceeds 25 km/h
(16 mph), the front or side view on the screen
automatically switches to the audio/information
screen.

a

0 km/h (0 mph)

b

25 km/h (16 mph)

c

Camera Screen

d

Audio/Information Screen

Continued

533

uu

Multi-View Camera

*

u

Driving

*1: You can also switch the display by touching the view screen.

a

Front Blind View

b

 or

*1

c

 or

*1

d

Front View + Ground View

e

When the steering wheel is turned more than 90 degrees.

f

Blind spots appear in black.

g

The projection lines appear 25 cm (9.8 inches) outside the vehicle body.

h

When the steering wheel is turned more than 90 degrees.

i

Left and Right Side View + Ground View

j

 or

*1

k

 or

*1

l

Left and Right Side View

m

 or

 or

CAMERA

 button

n

 or

 or

CAMERA

 button

1

Checking for the Sides of Your Vehicle

Approximate distance the reference line indicates

a

1m (39.3 inches)

uu

Multi-View Camera

*

u

534

Driving

■

Checking from the front blind view at intersections

The front blind view screen is useful when you need to check for vehicles crossing
from either direction at an intersection with poor visibility.

1

Checking from the front blind view at intersections

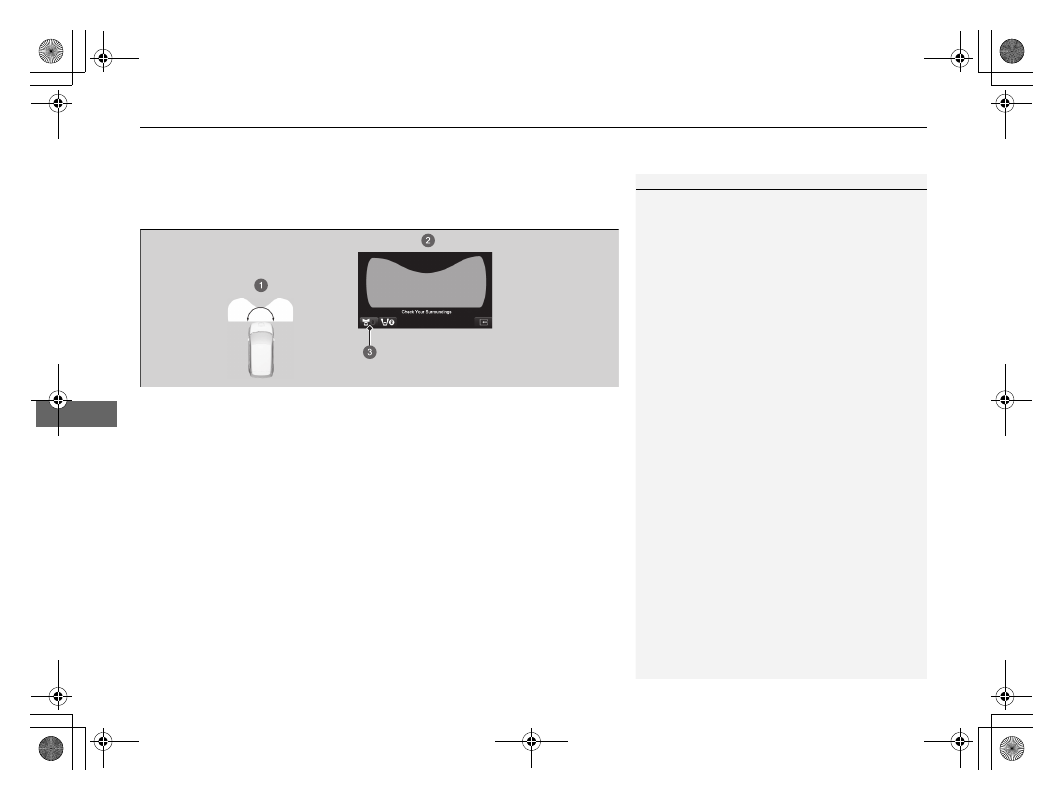

The front blind view is a wide-angled view. The image
will be largely distorted, and objects may appear
closer or more distant than they actually are.

a

The angle provided by the front blind view screen is 180 degrees.

b

Front Blind View Screen

c

When pressing the

CAMERA

 button and Front blind view icon.

535

uu

Multi-View Camera

*

u

Driving

■

Checking the sides of your vehicle

The side view screens are convenient when you pull over at a curb or tollbooth, or
slowly pass by oncoming vehicles on a narrow road.

Approximate distance the projection lines indicate is 30 cm (11.8 inches) from the
vehicle.

a

30 cm (11.8 inches)

b

Side View Screen

c

Side Views: The images from the side cameras

d

 or

*1

e

 or

*1

536

uu

Multi-View Camera

*

u

Multi-View Camera System Limitations

Driving

Multi-View Camera System Limitations

The system may not work properly under the following conditions.

Conditions

Solutions

The projection line is not accurate.

Have your vehicle checked by a dealer.

The images may not
appear clearly when:

●

You activate the system in bad weather (heavy rain,
snow, fog, etc.) or in the dark.

●

Camera temperatures are high.

●

A sudden change between light and dark such as an
entrance or exit of a tunnel.

●

You drive into the sunlight (e.g., at dawn or dusk.)

●

A camera lens is scratched.

Do not use the multi-view camera system but rely only
on visual confirmation until the conditions allow the
system to work properly.

●

A camera lens is covered with dirt, moisture, or
debris.

●

When water drops or insects get on the camera lens.

Clean camera lenses with a soft cloth moisturised with
water, mild detergent or glass cleaner.

●

The audio/information screen is dirty.

Wipe off the screen using a soft dry cloth.

A camera angle is
altered.

A camera or the area around the camera has been
severely impacted.

Do not use the multi-view camera system and contact a
dealer.

An error message is displayed while the multi-view camera system is in use.

The image does not come on the screen when you press the

CAMERA

 button

on the audio/information screen and the vehicle is moving at 20 km/h (12 mph)
or slower.

537

Continued

Driving

Honda Parking Pilot

*

Assists with parking and exit.
Cameras and sonar sensors will detect any parking spaces and set a route for
parking in or pulling out of a space. The system will then help you park in or exit the
space by adjusting your speed, moving the steering wheel, and changing the shift
position.

■

Honda Parking Pilot

1

Honda Parking Pilot

*

3

WARNING

Honda Parking Pilot is not an automatic
parking system.

Like all assistance systems, Honda Parking
Pilot has limitations.
Over reliance on this system may result in a
collision.

If you encounter the following situations
while using the system, stop the car or
cancel system operation, then manually
avoid the situation.

•

When you are about to collide with an
obstacle, pedestrian, or another vehicle.

•

When you encounter curbs, bumps, or
wheel stoppers that should not be driven
over.

•

When you are about to enter a “No
Entry” area.

Just like when parking manually, always
visually and directly check your
surroundings.

* Not available on all models

uu

Honda Parking Pilot

*

u

538

Driving

The system can be used in the following situations:

*1:The parking space can be detected if there are three or more boundary lines and

enough spaces to park two or more vehicles.

Parking patterns

Parking spaces with

boundary lines

Parking spaces without

boundary lines

Reverse parking

Reverse angle parking

*1

—

1

Honda Parking Pilot

*

For the front/side/rear cameras, refer to the following
page.

2

Camera Locations and Images

 P. 525

For directions on the proper handling of the sonar
sensors, refer to the following page.

2

Sonar Sensors

 P. 497

3

WARNING

Do not use this system in unsuitable
locations

Do not use Honda Parking Pilot on slopes,
irregularly shaped parking spaces, and
other locations where it is not suited for
use.

2

Unsuitable Locations for System Use



P. 540

* Not available on all models

539

uu

Honda Parking Pilot

*

u

Continued

Driving

*1:Limited to where there is a vehicles in front.

Parking patterns

Parking spaces with

boundary lines

Parking spaces without

boundary lines

Parallel parking

Pulling out of parallel

parking

*1

540

uu

Honda Parking Pilot

*

u

Driving

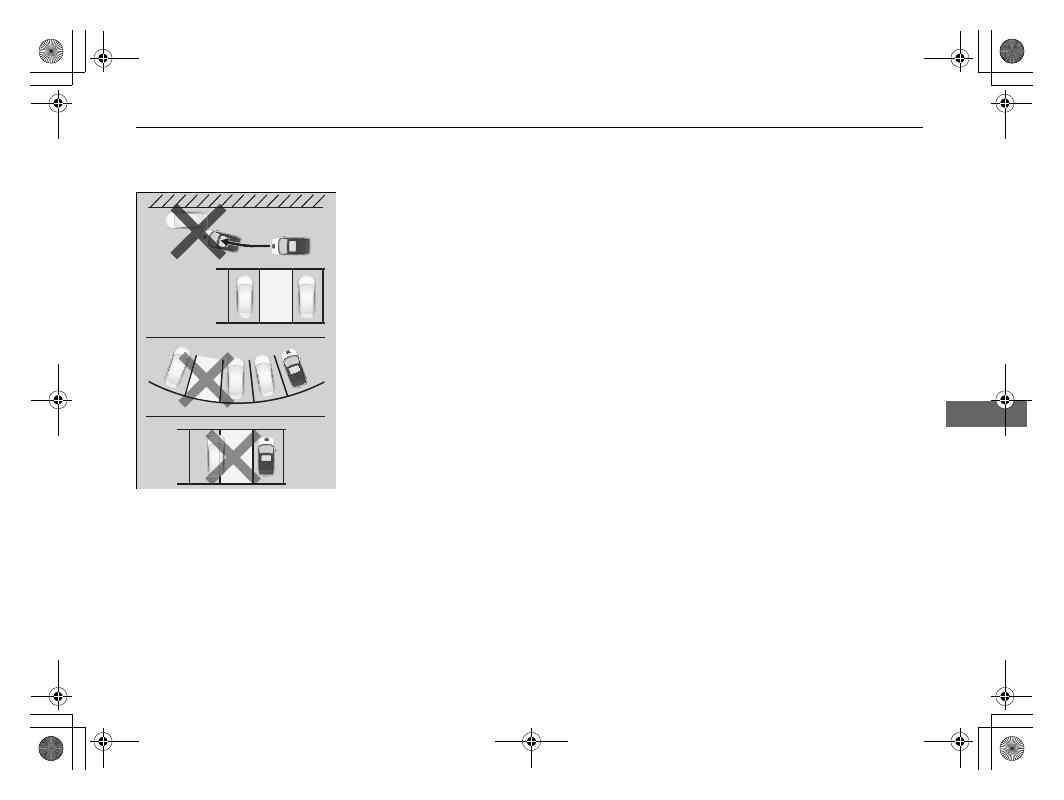

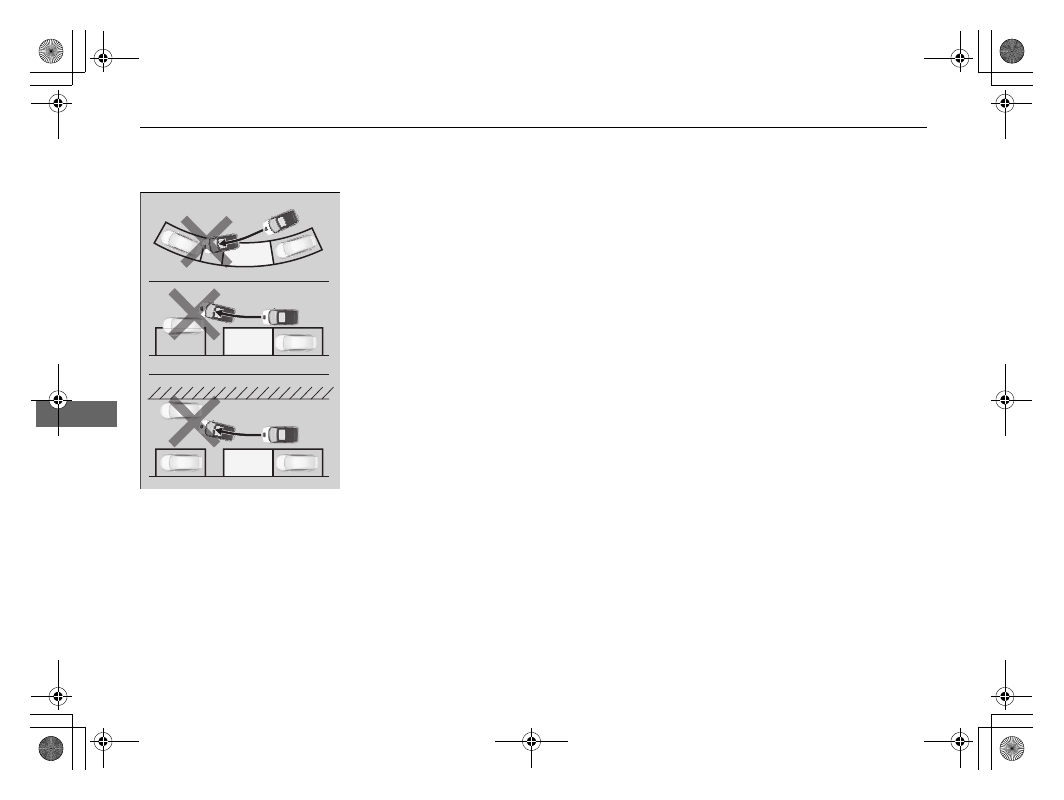

Honda Parking Pilot is not suitable for use in locations where the vehicle may
become unable to move forward or backwards or slip easily or the parking space like
the following.

•

There is a slope.

•

The area is hilly or uneven.

•

The area is unpaved and made of sand, gravel, grass, etc.

•

The area is snow-covered.

•

The area is slippery due to snow, ice, etc.

•

The lane is narrow.

•

There is an obstacle in front of the vehicle.

•

The parking space is curved.

•

Nearby vehicles are parked outside of the lines.

■

Unsuitable Locations for System Use

541

uu

Honda Parking Pilot

*

u

Continued

Driving

Reverse parking

542

uu

Honda Parking Pilot

*

u

Driving

Parallel parking

Continued

543

uu

Honda Parking Pilot

*

u

Driving

■

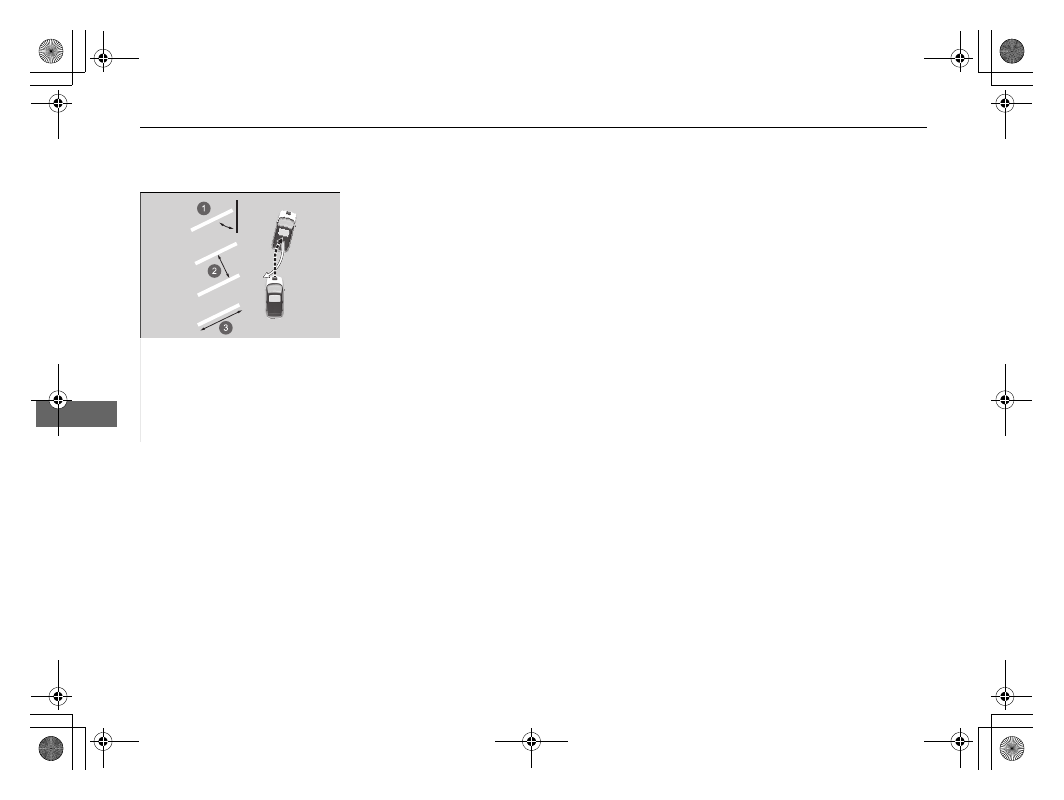

How to enter a parking space

You can use Honda Parking Pilot with parking spaces with boundary lines or similar
guidelines, such as in the illustrations below.
You may not park properly if the parking spaces are too narrow or wide against the
guidelines.

Reverse parking

*1

*1: If there are no boundary lines, the distance between the two other vehicles is about 3.2 m
(10.5 ft.).

■

How to use Honda Parking Pilot

1

How to use Honda Parking Pilot

Audio volume cannot be adjusted while Honda
Parking Pilot is in use.

3

WARNING

Be careful not to get your hands caught in
the steering wheel.

The steering wheel will turn automatically.
Be careful not to get your hands caught in
the steering wheel.

a

About 2.5 m (8.2 ft.)

b

Vehicle length + about 0.5 m
(1.6 ft.) or more

c

Lane width 5.5 m (18.0 ft.) or
more

544

uu

Honda Parking Pilot

*

u

Driving

Reverse angle parking

a

About 60 degrees or
45 degrees

b

About 2.5 m (8.2 ft.)

c

Vehicle length + about 0.5 m
(1.6 ft.) or more

545

uu

Honda Parking Pilot

*

u

Continued

Driving

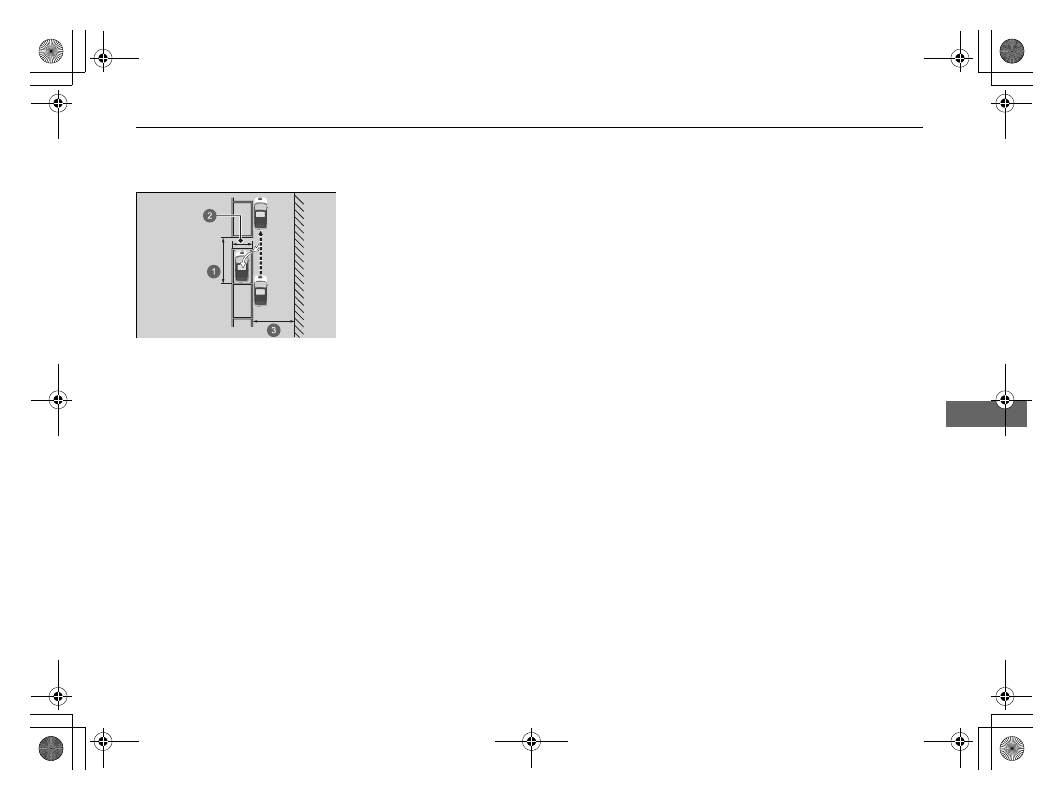

Parallel Parking

*1

*1: If there are no boundary lines, the distance between the other vehicles should be vehicle
length + 1.5 m (4.9 ft.) or more

a

About 5.5 m (18.0 ft.) or more

b

White lines about 2.5 m
(8.2 ft.)

c

About 4.5 m (14.8 ft.) or more
