Honda Ridgeline (2019 year). Instruction - part 30





uu

When Driving

u

Adaptive Cruise Control (ACC)

*

464

Driving

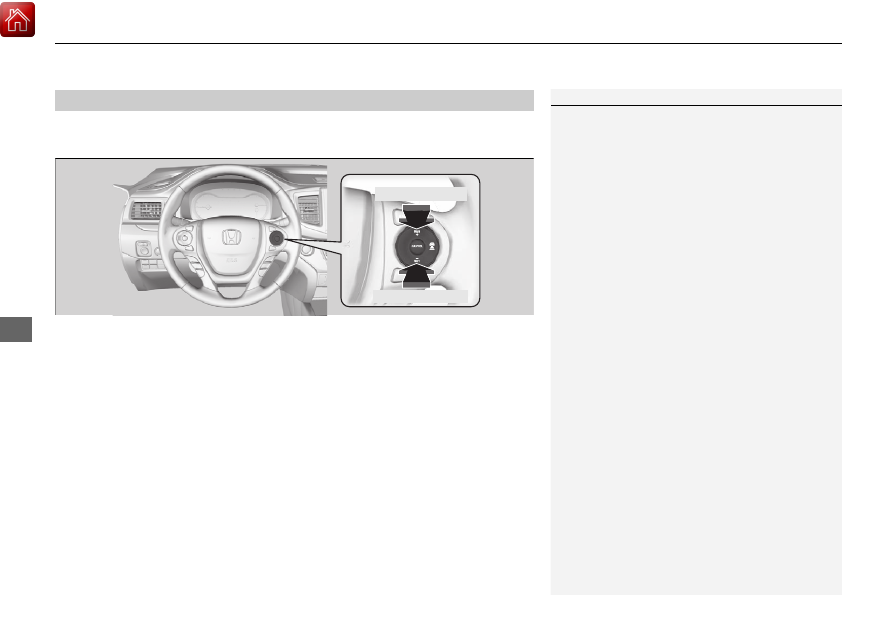

Increase or decrease the vehicle speed using the RES/+ or –/SET buttons on the
steering wheel.

• Each time you press the button, the vehicle speed is increased or decreased by

about 1 mph or 1 km/h accordingly.

• If you keep the button pressed, the vehicle speed increases or decreases by about

5 mph or 5 km/h accordingly.

To Adjust the Vehicle Speed

1

To Adjust the Vehicle Speed

If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC may not
accelerate your vehicle. This is to maintain the set
following interval between your vehicle and the
vehicle ahead.

You can set the vehicle speed using the –/SET button
on the steering wheel when adjusting the speed with
the accelerator and brake pedals.

To increase speed

To decrease speed

465

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Continued

Driving

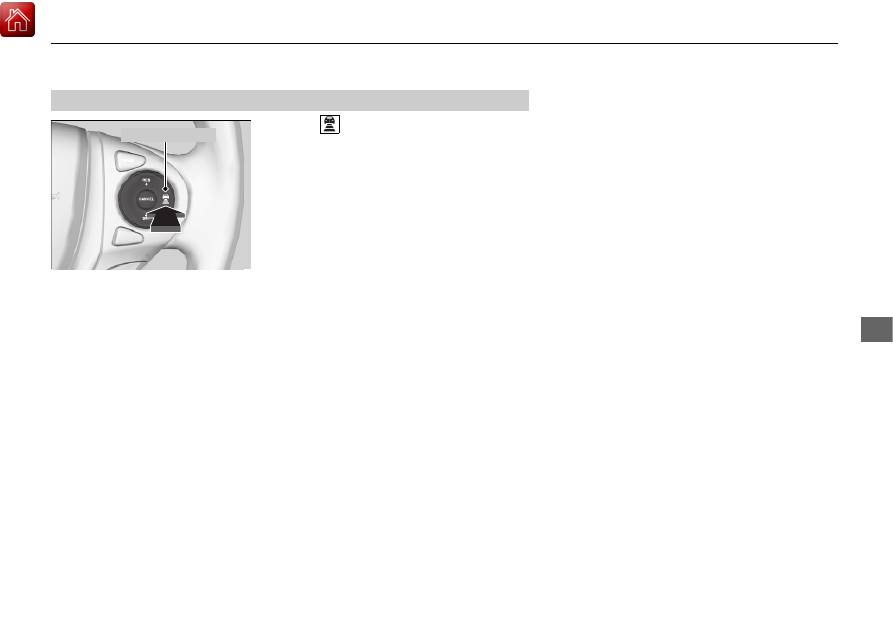

Press the

 (interval) button to change the

ACC following interval.
Each time you press the button, the following
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following
interval.

Determine the most appropriate following
interval setting based on your specific driving
conditions. Be sure to adhere to any following
interval requirements set by local regulation.

To Set or Change Following Interval

Interval Button

466

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Driving

The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following interval becomes. See the following examples for your
reference.

Vehicle Interval

When the Set Speed is:

50 mph (80 km/h)

65 mph (104 km/h)

Short

83 feet

25 meters

1.1 sec

100 feet

31 meters

1.1 sec

Middle

110 feet

33 meters

1.5 sec

137 feet

42 meters

1.5 sec

Long

154 feet

47 meters

2.1 sec

200 feet

61 meters

2.1 sec

Extra
Long

204 feet

62 meters

2.8 sec

265 feet

81 meters

2.8 sec

Continued

467

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Driving

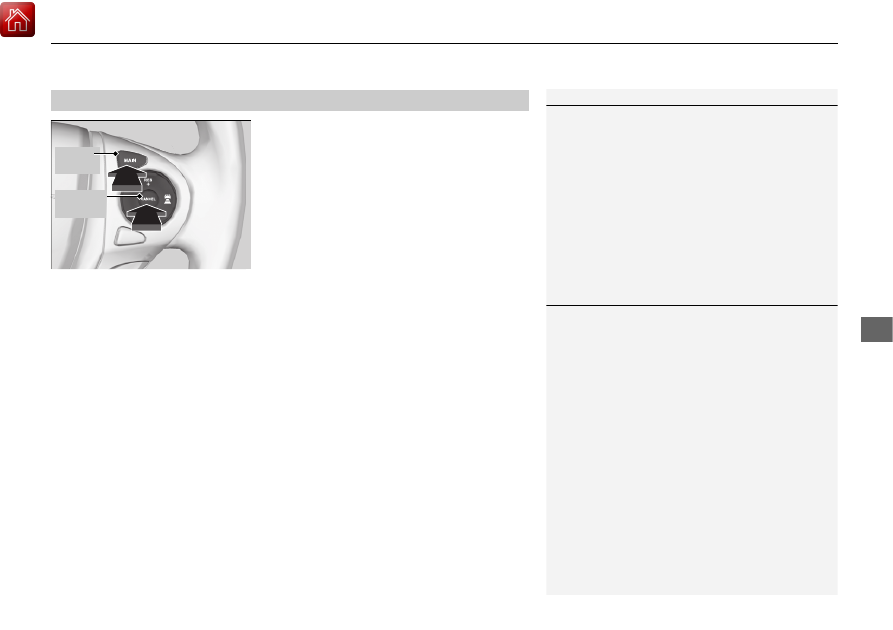

To cancel ACC, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.

u

The ACC indicator (green) goes off.

• Depress the brake pedal.

Automatic cancellation

The beeper sounds and a message appears on the multi-information display when
ACC is automatically canceled. Any of these conditions may cause the ACC to
automatically cancel:
• Bad weather (rain, fog, snow, etc.).
• When the radar sensor inside the front grille gets dirty.
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA®, or CMBS

TM

 is activated.

• When the ABS or VSA® system indicator comes on.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC range is too close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including

the windshield, gets dirty.

To Cancel

1

To Cancel

Resuming the prior set speed: After you have
canceled ACC, you can resume the prior set speed
while it is still displayed. Press the RES/+ button
when driving at a speed of at least 25 mph (40 km/h)
or more.

The set speed cannot be set or resumed when ACC
has been turned off using the MAIN button. Press
the MAIN button to activate the system, then set the
desired speed.

CANCEL
Button

MAIN
Button

1

Automatic cancellation

Even though adaptive cruise control has been
automatically canceled, you can still resume the prior
set speed. Wait until the condition that caused ACC
to cancel improves, then press the RES/+ button.

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

468

Driving

Press and hold the   (interval) button for one
second. Cruise Mode Selected appears on
the multi-information display for two seconds,
and then the mode switches to Cruise.
To switch back to ACC, press and hold the
button again for one second. ACC Mode
Selected
 appears on the multi-information
display for two seconds.

When to use

Desired speed in a range above roughly 25 mph (40 km/h) ~.

Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.

Each time you press the RES/+ or –/SET button, the vehicle speed is increased or
decreased by about 1 mph (1.6 km/h).
If you keep the RES/+ or –/SET button pressed, the vehicle speed increases or
decreases until you release it. This speed is then set.

To Switch ACC to Cruise Control

1

To Switch ACC to Cruise Control

Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following interval from a vehicle
ahead of you.

ACC ON

Cruise
Control ON

To Set the Vehicle Speed

To Adjust the Vehicle Speed

469

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Driving

To cancel cruise control, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.

To Cancel

1

To Cancel

Resuming the prior set speed:
After cruise control has been canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.

You cannot set or resume in the following situations:

When vehicle speed is less than 25 mph (40 km/h)

When the MAIN button is turned off.

At vehicle speeds of 22 mph (35 km/h) or less, cruise
control canceled automatically.

470

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

Lane Keeping Assist System (LKAS)

*

Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual alerts if the vehicle is detected drifting out of its lane.

1

Lane Keeping Assist System (LKAS)

*

Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicle control. The system does
not work if you take your hands off the steering
wheel or fail to steer the vehicle.

Multi-Information Display Warning and

Information Messages P. 101

Do not place objects on the instrument panel.
Objects may reflect on the front windshield and
prevent correct detection of the traffic lanes.

LKAS only alerts you when lane drift is detected
without a turn signal in use. LKAS may not detect all
lane markings or lane departures; accuracy will vary
based on weather, speed, and lane marker condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.

The LKAS is convenient when it is used on freeways.

The LKAS may not work properly or may work
improperly under the certain conditions:

LKAS Conditions and Limitations P. 476

LKAS may not function as designed on while driving
in frequent stop and go traffic, or on roads with
sharp curves.

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

*

 P. 450

When you operate the turn signals to change lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operating the turn signals, the LKAS alerts
activate, and torque is applied to the steering.

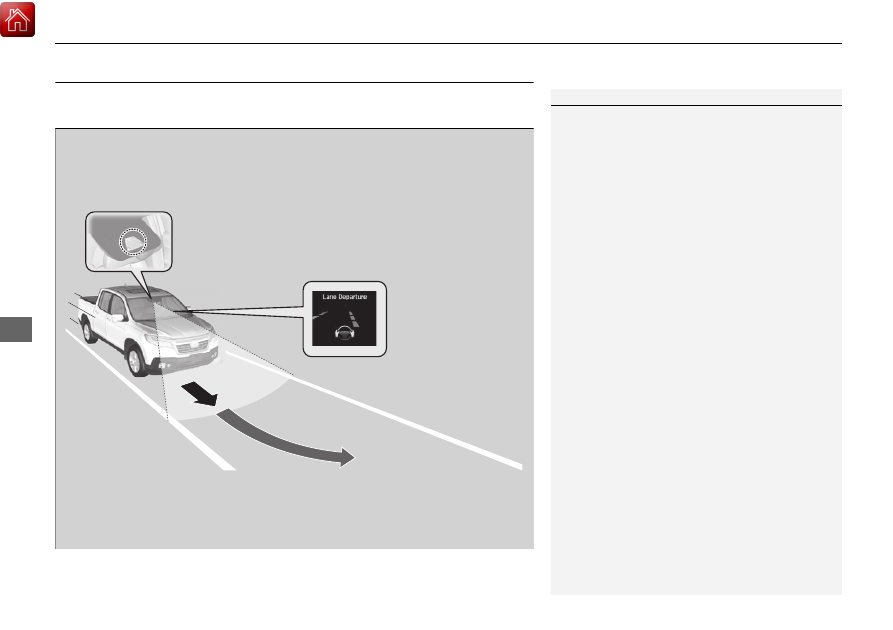

LKAS camera

Monitors the lane
lines

Tactile and visual alerts

Rapid vibrations on the steering
wheel and a warning display alert you
that the vehicle is drifting out of a
detected lane.

Steering input assist

The system applies torque to the steering to keep the vehicle between the left and
right lane lines. The applied torque becomes stronger as the vehicle gets closer to
either of the lane lines.

* Not available on all models

Continued

471

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

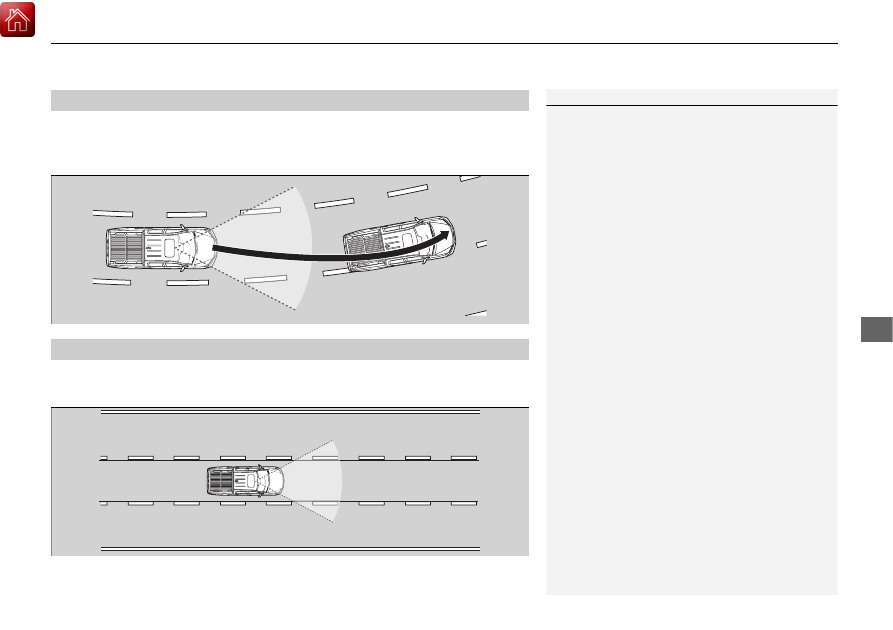

Provides assistance to keep the vehicle in the center of the lane, when the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.

When the vehicle enters the warning area, LKAS alerts you with slight steering
wheel vibration as well a warning display.

Lane Keep Support Function

1

Lane Keeping Assist System (LKAS)

*

When the vehicle enters the warning area, lane
departure warning is provided by steering wheel
vibration and display.

Lane Departure Warning Function

Warning Area

Warning Area

* Not available on all models

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

472

Driving

The system can be used when the following conditions are met.
• The lane in which you are driving has detectable lane markers on both sides, and

your vehicle is in the center of the lane.

• The vehicle speed is between about 45 and 90 mph (72 and 145 km/h).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.

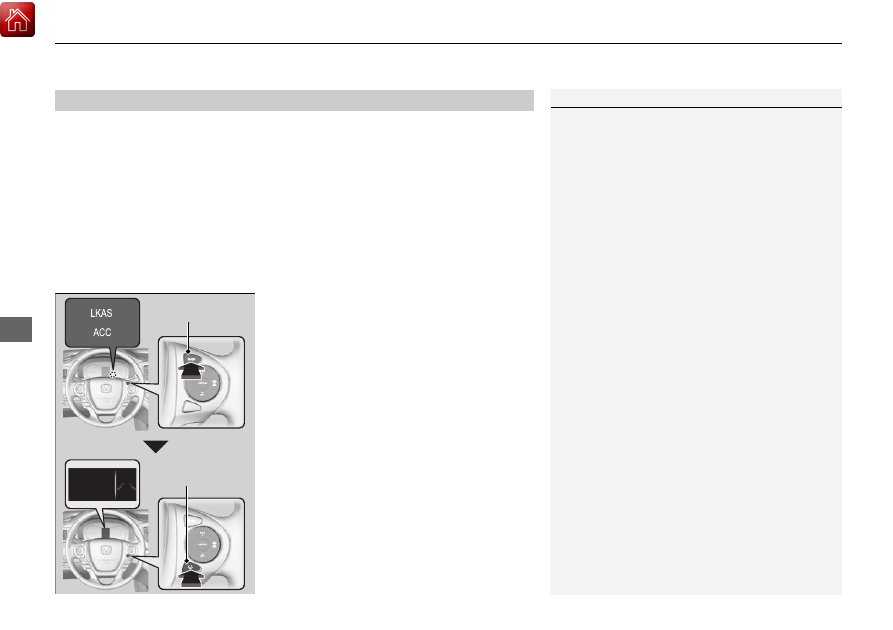

How to activate the system

1. Press the MAIN button.

u

The ACC and LKAS indicators come on.
The system is ready to use.

2. Press the LKAS button.

u

Lane outlines appear on the multi-
information display.
The system is activated.

When the System can be Used

1

Lane Keeping Assist System (LKAS)

*

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

*

 P. 450

If the vehicle drifts toward either left or right lane line
due to the system applying torque, turn off the LKAS
and have your vehicle checked by a dealer.

MAIN Button

LKAS Button

* Not available on all models

Continued

473

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

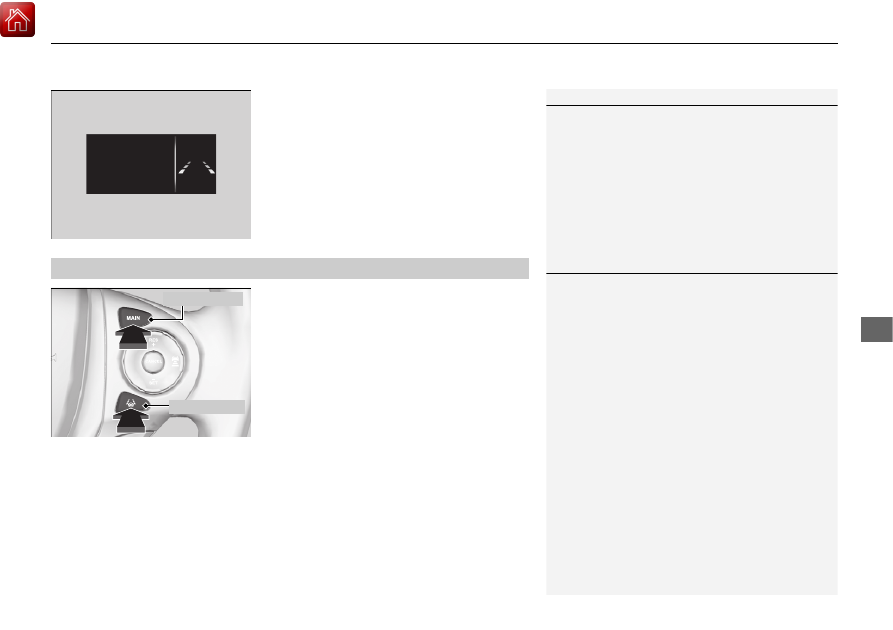

3. Keep your vehicle near the center of the

lane while driving.

u

The dotted outer lines change to solid
ones once the system starts operating
after detecting the left and right lane
markings.

To cancel the LKAS:
Press the MAIN or LKAS button.

The LKAS is turned off every time you stop the
engine, even if you turned it on the last time
you drove the vehicle.

Models with ACC is shown.

To cancel

1

When the System can be Used

The LKAS temporarily deactivates when it fails to
detect lane lines. When the system detects the lines
again, it comes back on automatically.

1

To cancel

Pressing the MAIN button also turns ACC on and off.

MAIN Button

LKAS Button

474

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

The system operation is suspended if
you:

• Set the wipers to continuous operation.

u

Turning the wipers off resumes the
LKAS.

• Decrease the vehicle speed to about 40 mph

(64 km/h) or less.

u

Increasing the vehicle speed to about
45 mph (72 km/h) or more resumes the
LKAS.

• Depress the brake pedal.

u

The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.

• Set the wiper switch to AUTO and the

wipers operate continuously.

u

The LKAS resumes when the wipers stop
or operate intermittently.

When the LKAS is suspended,
the lane lines on the Multi-
Information Display change to
contour lines, and the beeper
sounds (if activated).

Models with automatic intermittent wipers

475

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Continued

Driving

The LKAS may automatically be suspended when:

• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• The vehicle speed is over the posted speed limit, on a curve road.

Once these conditions no longer exist, the LKAS automatically resumes.

The LKAS may automatically be canceled when:

• The camera temperature gets too high.
• The camera behind the rearview mirror, or the area around the camera, including

the windshield, gets dirty.

• When driving through a sharp curve.
• When driving at a speed in excess of approximately 90 mph (145 km/h).
• When the ABS or VSA® systems engage.

A beeper will sound if the LKAS is automatically canceled.

476

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of a lane under certain conditions, including the following:

Environmental conditions

• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between lane lines and the roadway surface.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Shadows of adjacent objects are parallel to lane markings.
• Roadway objects or structures are misinterpreted as lane markers.
• Reflections on the interior of the front windshield.

LKAS Conditions and Limitations

477

uu

When Driving

u

Lane Keeping Assist System (LKAS)

*

Driving

Roadway conditions

• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,

reflected lights, road spray, high contrast).

• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road

repairs or old lane markings.

• The roadway has merging, split, or crossing lines (e.g., such as at an intersection

or crosswalk).

• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white

lines (or yellow lines).

• When driving on roads with double lines.

Vehicle conditions

• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet

snow, etc.

• The inside of the windshield is fogged.
• The camera temperature gets too hot.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• The vehicle is tilted due to a heavy load or suspension modifications.

478

uu

When Driving

u

Vehicle Stability Assist® (VSA®), aka Electronic Stability Control (ESC), System

Driving

Vehicle Stability Assist® (VSA®), aka Electronic
Stability Control (ESC), System

VSA® helps to stabilize the vehicle during cornering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine output and selectively applying the brakes.

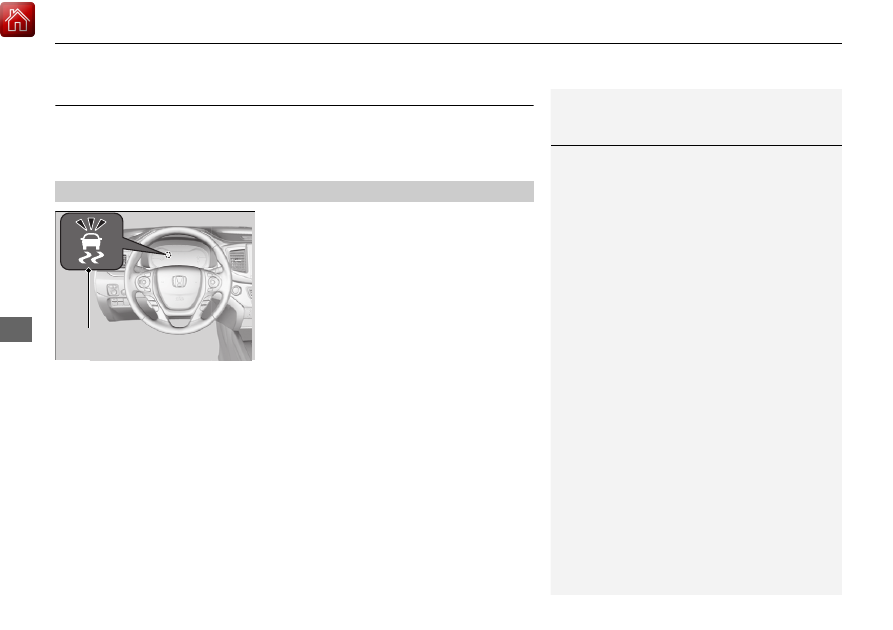

When VSA® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic system. You will also see the
indicator blink.

VSA® Operation

1

Vehicle Stability Assist® (VSA®), aka Electronic Stability Control
(ESC), System

The VSA® may not function properly if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.

When the VSA® indicator comes on and stays on
while driving, there may be a problem with the
system. While this may not interfere with normal
driving, have your vehicle checked by a dealer
immediately.

VSA® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.

The main function of the VSA® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.

VSA® System
Indicator

479

uu

When Driving

u

Vehicle Stability Assist® (VSA®), aka Electronic Stability Control (ESC), System

Driving

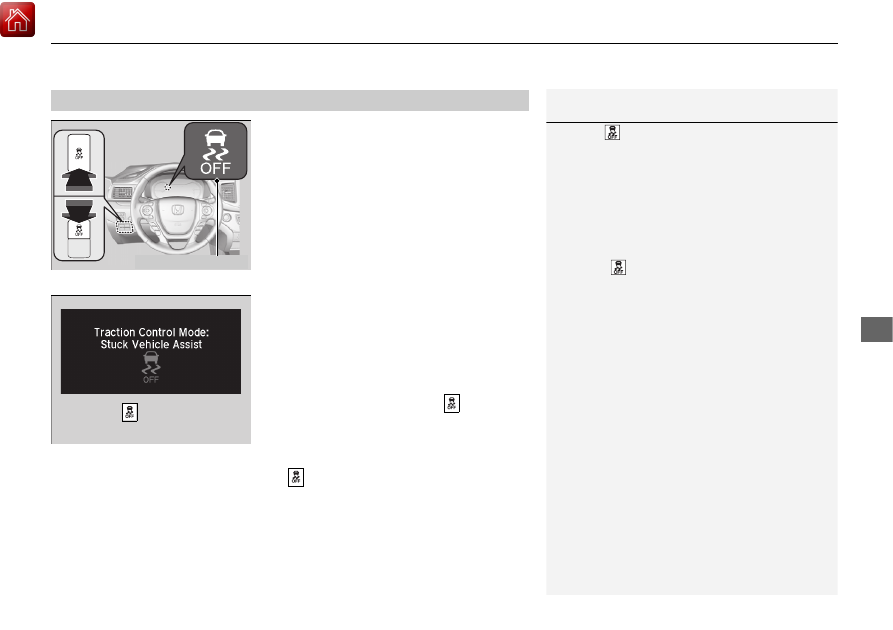

This button is on the driver side control panel.
To partially disable VSA® functionality/
features, press and hold it until you hear a
beep.

The traction control stops fully functioning,
allowing the wheels to spin more freely at low
speed. The VSA® OFF indicator will also come
on and a message on the multi-information
display informs you that the mode is changed.
Traction control mode can not be changed
during Mud

*

 or Sand

*

 modes. If you are

driving on mud or sand, Mud

*

 or Sand

*



Intelligent Traction Management modes can
also be used to free a stuck vehicle. On other
road surfaces, change to Normal or Snow
mode, then press and hold the

 (VSA® OFF)

button.

To restore VSA® functionality/features, press

the

(VSA® OFF) button until you hear a

beep.

VSA® is turned on every time you start the
engine, even if you turned it off the last time
you drove the vehicle.

VSA® On and Off

1

Vehicle Stability Assist® (VSA®), aka Electronic Stability Control
(ESC), System

With the

 button pressed, your vehicle will have

normal braking and cornering ability, but VSA®
traction and stability enhancement becomes less
effective.

In certain unusual conditions when your vehicle gets
stuck in shallow mud or fresh snow, it may be easier
to free it with the VSA® temporarily switched off.

When the

 button is pressed, the traction control

function becomes less effective. This allows for the
wheels to spin more freely at low speed. You should
only attempt to free your vehicle with the VSA® off if
you are not able to free it when the VSA® is on.

Immediately after freeing your vehicle, be sure to
switch VSA® on again. We do not recommend driving
your vehicle with the VSA® system switched off.

You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.

VSA® OFF Indicator

When the

 button is pressed

* Not available on all models















Content   ..  28  29  30  31   ..
