Road Departure Mitigation (RDM) System

Driving

■

Roadway conditions

• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,

reflected lights, road spray, high contrast).

• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road

repairs or old lane markings.

• The roadway has merging, split, or crossing lines (e.g., such as at an intersection

or crosswalk).

• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white

lines (or yellow lines).

• Driving on roads with double lines.

■

Vehicle conditions

• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet

snow, etc.

• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.
• The vehicle is towing a trailer.

608

uu

Honda Sensing®

u

Front Sensor Camera

Driving

Front Sensor Camera

The camera, used in systems such as LKAS, RDM, ACC, and CMBS

TM

, is designed to

detect an object that triggers any of the systems to operate its functions.

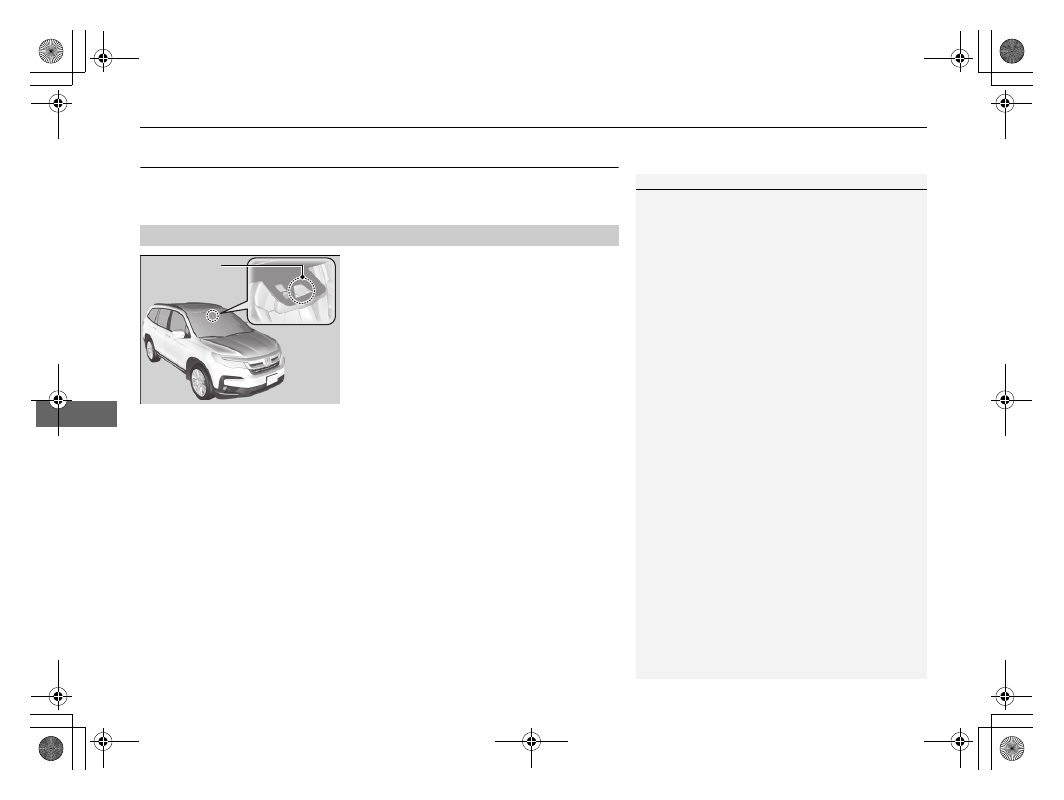

This camera is located behind the rearview
mirror.

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.

■

Camera Location and Handling Tips

1

Front Sensor Camera

Never apply a film or attach any objects to the
windshield, the hood, or the front grill that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Honda replacement windshield. Making
even minor repairs within the camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.

Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.

Front Sensor
Camera

609

uu

Honda Sensing®

u

Front Sensor Camera

Driving

1

Front Sensor Camera

If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High



message appears:

•

Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.

•

Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the camera.

If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield

message

appears:

•

Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.

610

uu

Honda Sensing®

u

Radar Sensor

Driving

Radar Sensor

The radar sensor is behind the emblem.

1

Radar Sensor

Avoid strong impacts to the radar sensor cover.

For the CMBS

TM

 to work properly:

Always keep the radar sensor cover clean.

Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.

Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.

If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by using the safety
support switch and take your vehicle to a dealer.

2 CMBS

TM

 On and Off P. 572

If the vehicle is involved in any of the following
situations, the radar sensor may not work properly.
Have your vehicle checked by a dealer:

•

Your vehicle is involved in a frontal collision

•

Your vehicle drives through deep water or is
submerged in deep water

•

Your vehicle strongly strikes a bump, curb, chock,
or embankment that could jar the radar sensor

Radar Sensor

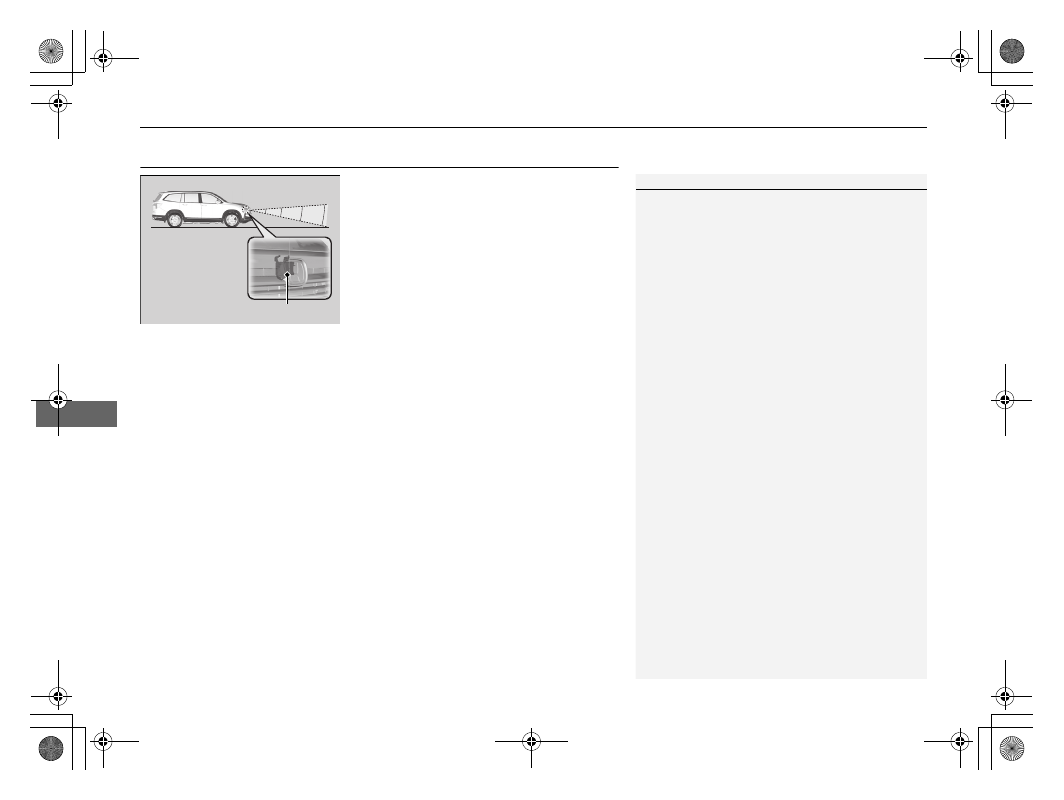

The radar sensor
is located behind
the emblem.

611

Continued

Driving

Braking

Brake System

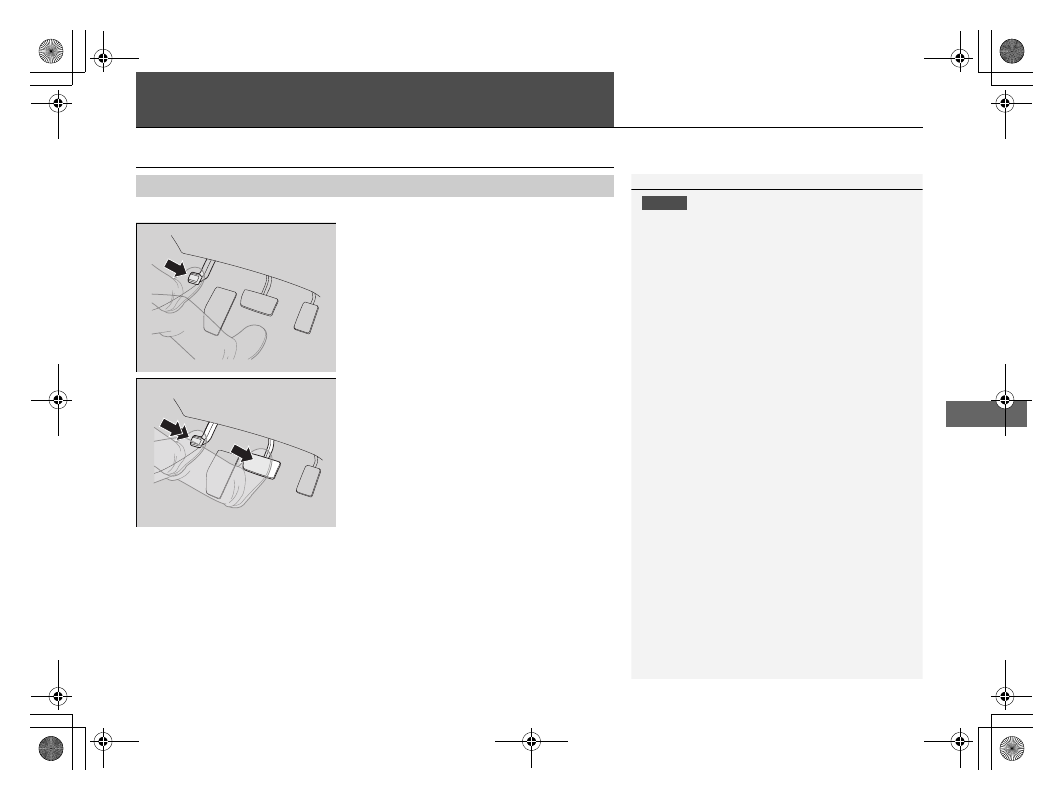

Use the parking brake to keep the vehicle stationary when parking.

To apply:
Depress the parking brake pedal down with
your foot.

To release:
1. Depress the brake pedal.
2. Depress the parking brake.

■

Parking Brake

1

Parking Brake

NOTICE

Release the parking brake fully before driving. The
rear brakes and axle can be damaged if you drive
with the parking brake applied.

If you start driving without fully releasing the parking
brake, a buzzer sounds as a warning, and Release
Parking Brake appears on the driver information
interface.

Always apply the parking brake when parking.

uu

Braking

u

Brake System

612

Driving

Your vehicle is equipped with disc brakes at all four wheels. A vacuum power assist
helps reduce the effort needed on the brake pedal. The brake assist system increases
the stopping force when you depress the brake pedal hard in an emergency
situation. The anti-lock brake system (ABS) helps you retain steering control when
braking very hard.

2 Brake Assist System P. 614
2 Anti-lock Brake System (ABS) P. 613

■

Foot Brake

1

Foot Brake

Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.

If you hear a continuous metallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by a dealer. If you hear only an
occasional squeak or squeal when you initially apply
the brake pedal, this may be normal and caused by
high frequency vibration of the brake pads against
the rotating brake disc.

Constantly using the brake pedal while going down a
long hill builds up heat, which reduces the brake
effectiveness. Apply engine braking by taking your
foot off the accelerator pedal and downshifting to a
lower gear.

Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also confuse drivers behind you.

613

uu

Braking

u

Anti-lock Brake System (ABS)

Driving

Anti-lock Brake System (ABS)

Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.

The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.

You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pedal. This is sometimes referred to as
“stomp and steer.”

■

ABS operation

The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly down. On dry pavement, you will need to
press on the brake pedal very hard before the ABS activates. However, you may feel
the ABS activate immediately if you are trying to stop on snow or ice.

ABS may activate when you depress the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surfaces, such as potholes, cracks, manholes, etc.

When the vehicle speed goes under 6 mph (10 km/h), the ABS stops.

■

ABS

1

Anti-lock Brake System (ABS)

NOTICE

The ABS may not function correctly if you use a tire of
the wrong size or type.

If the ABS indicator comes on while driving, there
may be a problem with the system.
While normal braking will not be affected, there is a
possibility that the ABS will not be operating. Have
your vehicle checked by a dealer immediately.

The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.

In the following cases, your vehicle may need more
distance to stop than a vehicle without the ABS:

•

You are driving on rough or uneven road surfaces,
such as gravel or snow.

•

The tires are equipped with snow chains.

The following may be observed with the ABS system:

•

Motor sounds coming from the engine

compartment when the brakes are applied, or when
system checks are being performed after the engine
has been started and while the vehicle accelerates.

•

Brake pedal and/or the vehicle body vibration when
ABS activates.

These vibrations and sounds are normal to ABS
systems and are no cause for concern.

614

uu

Braking

u

Brake Assist System

Driving

Brake Assist System

Designed to assist the driver by generating greater braking force when you depress
the brake pedal hard during emergency braking.

■

Brake assist system operation

Press the brake pedal firmly for more powerful braking.

When brake assist operates, the pedal may wiggle slightly and an operating noise
may be heard. This is normal. Keep holding the brake pedal firmly down.

615

Continued

Driving

Parking Your Vehicle

When Stopped

1. Depress the brake pedal firmly.
2. Apply the parking brake.
3. Change the gear position to

(

P.

4. Turn off the engine.

Always set the parking brake firmly, in particular if you are parked on an incline.

1

Parking Your Vehicle

Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.

3

WARNING

The vehicle can roll away if left unattended
without confirming that Park is engaged.

A vehicle that rolls away could cause a crash
resulting in serious injury or death.

Always keep your foot on the brake pedal
until you have confirmed that

(

P

 is shown

on the gear position Indicator.

1

When Stopped

NOTICE

The following can damage the transmission:

•

Depressing the accelerator and brake pedals
simultaneously.

•

Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.

•

Changing into

(

P before the vehicle stops

completely.

uu

Parking Your Vehicle

u

When Stopped

616

Driving

1

When Stopped

In extremely cold temperatures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpectedly, leading to a crash.

617

uu

Parking Your Vehicle

u

Parking Sensor System

*

Continued

Driving

Parking Sensor System

*

The corner and center sensors monitor obstacles near your vehicle, and the beeper
and audio/information screen let you know the approximate distance between your
vehicle and the obstacle.

■

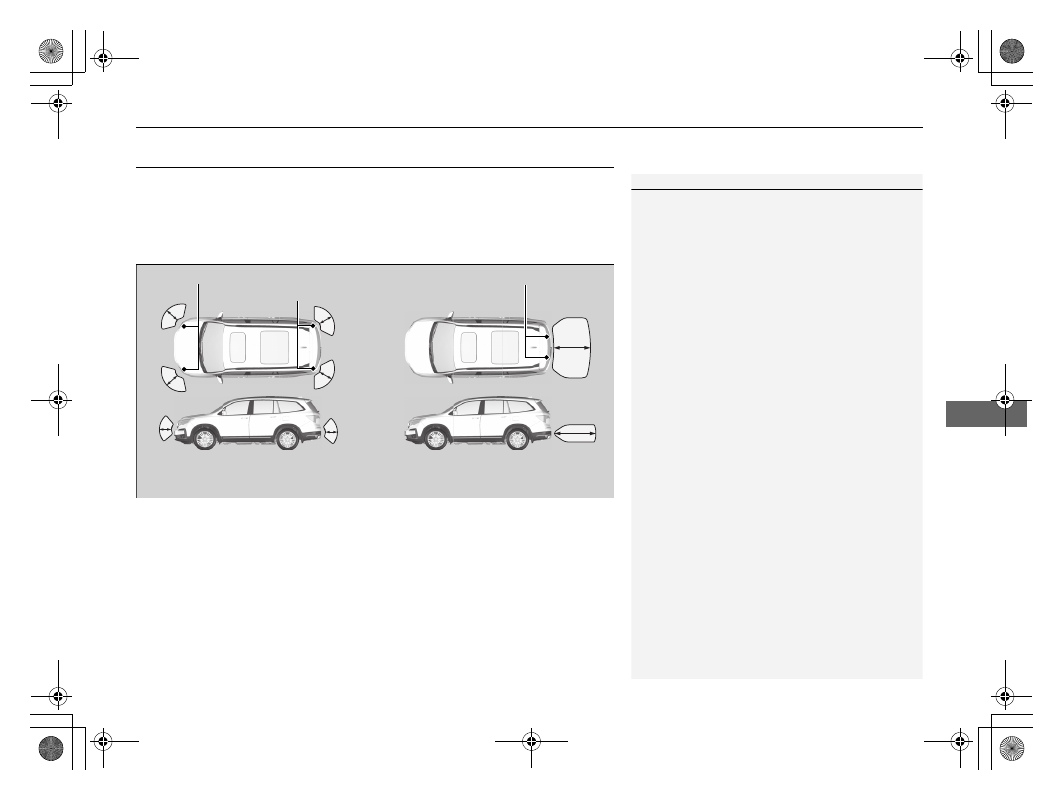

The sensor location and range

1

Parking Sensor System

*

Even when the system is on, always confirm if there is
no obstacle near your vehicle before parking.

The system may not work properly when:

•

The sensors are covered with snow, ice, mud or
dirt.

•

The vehicle is on uneven surface, such as grass,
bumps, or a hill.

•

The vehicle has been out in hot or cold weather.

•

The system is affected by devices that emit
ultrasonic waves.

•

Driving in bad weather.

The system may not sense:

•

Thin or low objects.

•

Sonic-absorptive materials, such as snow, cotton,
or sponge.

•

Objects directly under the bumper.

Do not put any accessories on or around the sensors.

Front: Within about 28 in (70 cm) or less
Rear: Within about 26 in (65 cm) or less

Front Corner Sensors

Rear Corner Sensors

Rear Center Sensors

Within about 47 in (120 cm) or less

* Not available on all models

618

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

■

Parking sensor system on and off

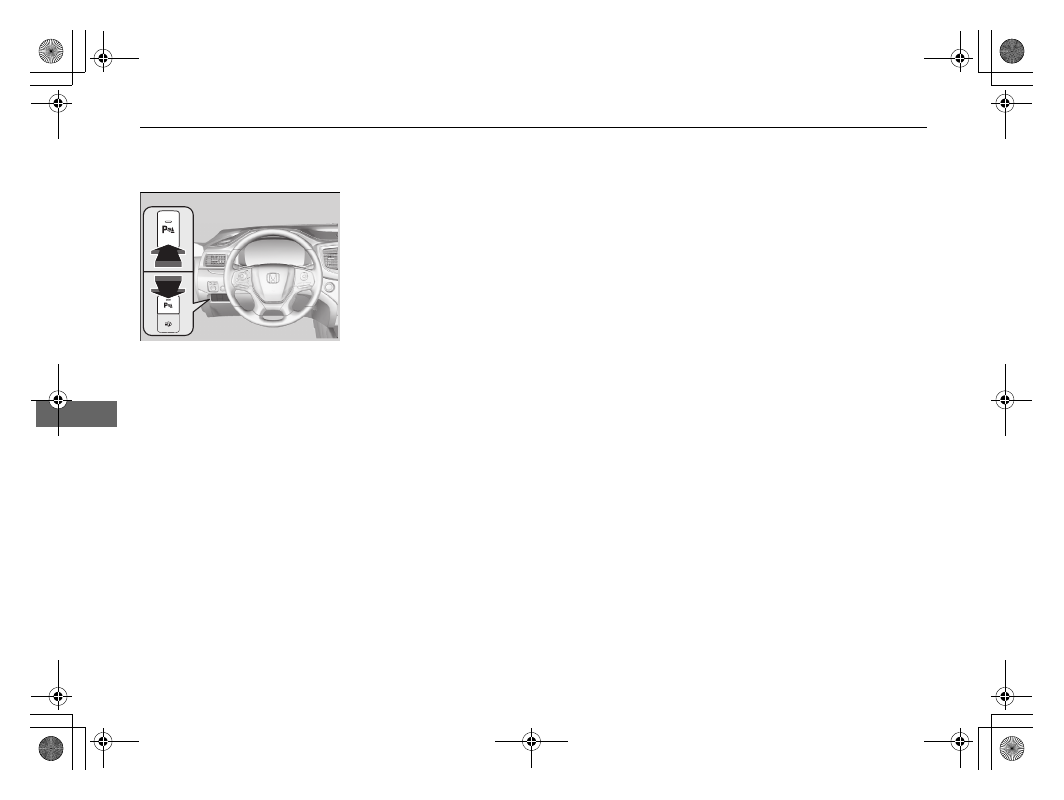

With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicator in the button comes
on when the system is on.

The front corner, rear center and rear corner
sensors start to detect an obstacle when the
transmission is in

(

R, and the vehicle speed is

less than 5 mph (8 km/h).

The front corner sensors start to detect an
obstacle when the transmission is not in

(

P,

and the vehicle speed is less than 5 mph (8
km/h).

Continued

619

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

■

Screen Operation

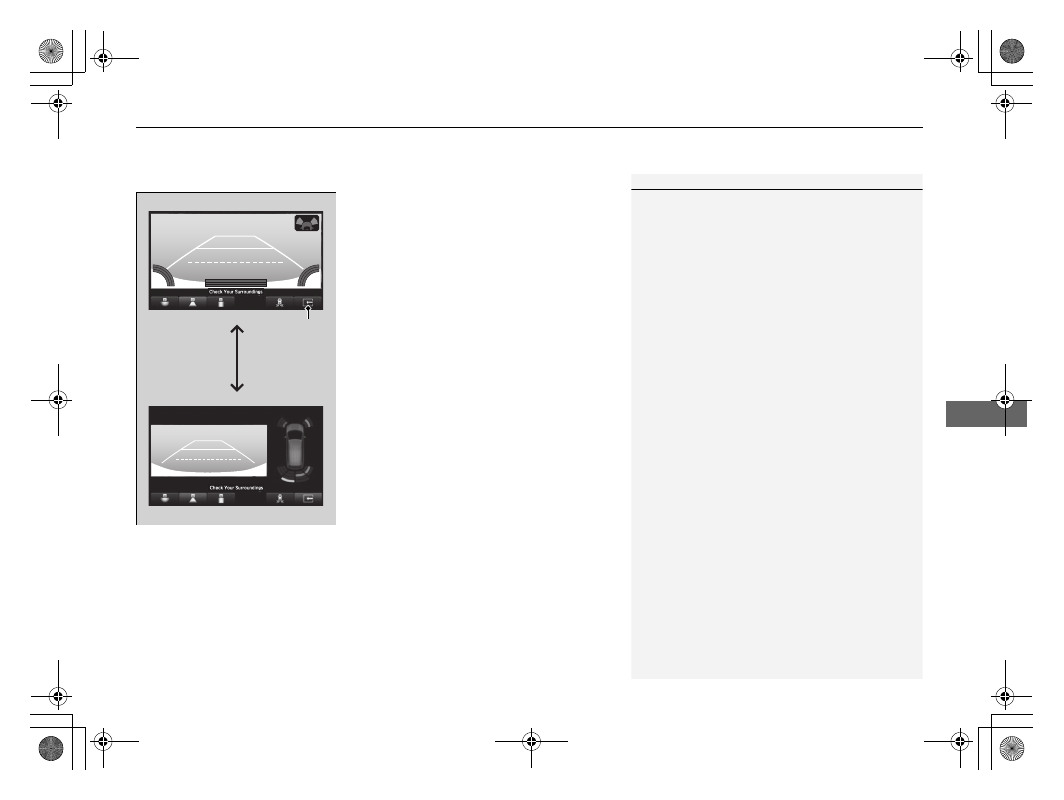

You can switch between split view off and
split view on by touching the split screen tab.

1

Screen Operation

The split screen tab disappears, and the split view
returns to the last camera view mode under the
following conditions:

•

If the parking sensor system is turned off.

•

If there is a malfunction in the system.

Split Screen
Tab

Split View Off

Split View On

620

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

■

When the distance between your vehicle and obstacles becomes shorter

*1: At this stage, only the center sensors detect obstacles.

Length of the

intermittent beep

Distance between the Bumper and Obstacle

Indicator

Audio/information screen

Corner Sensors

Center Sensors

Moderate

—

Rear: About 47-26 in

(120-65 cm)

Blinks in Yellow

*1

Short

Rear: About 26-19 in

(65-50 cm)

Front: About 28-19 in

(70-50 cm)

About 26-19 in

(65-50 cm)

Blinks in Amber

Very short

About 19-16 in

(50-40 cm)

About 19-16 in

(50-40 cm)

Continuous

About 16 in

(40 cm)

About 16 in

(40 cm)

Blinks in Red

Indicators light where the
sensor detects an obstacle

621

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

1. Make sure that the parking sensor system is not activated. Set the power mode to

VEHICLE OFF (LOCK).

2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for 10 seconds. Release the button when the indicator

in the button flashes.

4. Press the button again. The indicator in the button goes off.

u

The beeper sounds twice. The rear sensors are now turned off.

To turn the rear sensors on again, follow the above procedure. The beeper sounds
three times when the rear sensors come back on.

■

Turning off All Rear Sensors

1

Turning off All Rear Sensors

When you set the gear position to

(

R, the indicator

in the parking sensor system button blinks as a
reminder that the rear sensors have been turned off.

622

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

Cross Traffic Monitor

*

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.

The system is convenient when you are backing out of a parking space.

1

Cross Traffic Monitor

*

3

CAUTION

Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.

Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.

Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.

* Not available on all models
