Honda Insight (2019 year). Instruction - part 32

Continued

495

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

■

There is a vehicle ahead

ACC with LSF monitors if a vehicle ahead of you enters the ACC with LSF range. If a
vehicle is detected doing so, the ACC with LSF system maintains or decelerates your
vehicle’s set speed in order to keep the vehicle’s set following-interval from the
vehicle ahead.

2 To Set or Change Following-interval P. 502

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.

■

When in Operation

When in Operation

If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, the beeper
sounds, a message appears on the driver information
interface.

Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Beep

ACC with LSF Range: 394 ft. (120 m)

A vehicle icon appears on the
driver information interface.

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

496

Driving

■

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC with LSF accelerates your
vehicle to the set speed, and then maintains it.

■

When you depress the accelerator pedal

You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC with LSF range.
ACC with LSF stays on unless you cancel it. Once you release the accelerator pedal,
the system resumes an appropriate speed for keeping the following interval while a
vehicle ahead is within the ACC with LSF range.

When in Operation

Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC with LSF may
start accelerating your vehicle under the following
circumstances:

•

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

•

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC with
LSF detecting range. Change the ACC Forward
Vehicle Detect Beep setting.

2 Speed Unit P. 130
2 Customized Features P. 359, 366

Limitations
You may need to use the brake to maintain a safe
interval when using ACC with LSF. Additionally, ACC
with LSF may not work properly under certain
conditions.

2 ACC with LSF Conditions and Limitations

P. 498

A vehicle icon with dotted-line
contour appears on the driver
information interface.

Continued

497

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

■

A vehicle detected ahead is within ACC with LSF range and slows to a stop

Your vehicle also stops, automatically. The
Stopped message appears on the driver
information interface.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the RES/+ or
SET/– button, or depress the accelerator
pedal, ACC with LSF operates again within the
prior set speed.
If no vehicle is ahead of you before you
resume driving, depress the accelerator pedal
and ACC with LSF will operate again within
the prior set speed.

A vehicle detected ahead is within ACC with LSF range and slows
to a stop

WARNING

Exiting a vehicle that has been stopped
while the ACC with LSF system is operating
can result in the vehicle moving without
operator control.

A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.

Never exit a vehicle when the vehicle is
stopped by ACC with LSF.

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

498

Driving

The system may automatically shut off and the ACC with LSF indicator will come on
under certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC with LSF functions.

■

Environmental conditions

Driving in bad weather (rain, fog, snow, etc.).

■

Roadway conditions

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks, reflected
lights, road spray, high contrast).

■

Vehicle conditions

• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wrong sized, varied size or construction,

improperly inflated, compact spare tire

, etc.).

• The camera temperature gets too high.
• The parking brake is applied.
• When the radar sensor cover is dirty.
• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.

■

ACC with LSF Conditions and Limitations

ACC with LSF Conditions and Limitations

The radar sensor for ACC with LSF is shared with the
collision mitigation braking system (CMBS).

2 Collision Mitigation Braking System

(CMBS

) P. 483

For directions on the proper handling of the radar
sensor, refer to the following page.

2 Radar Sensor P. 530

You can read about handling information for the
camera equipped with this system.

2 Front Sensor Camera P. 528

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

* Not available on all models

499

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Continued

Driving

■

Detection limitations

• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle ahead of you at high

speed.

• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small

vehicle.

• When there are animals in front of your vehicle.

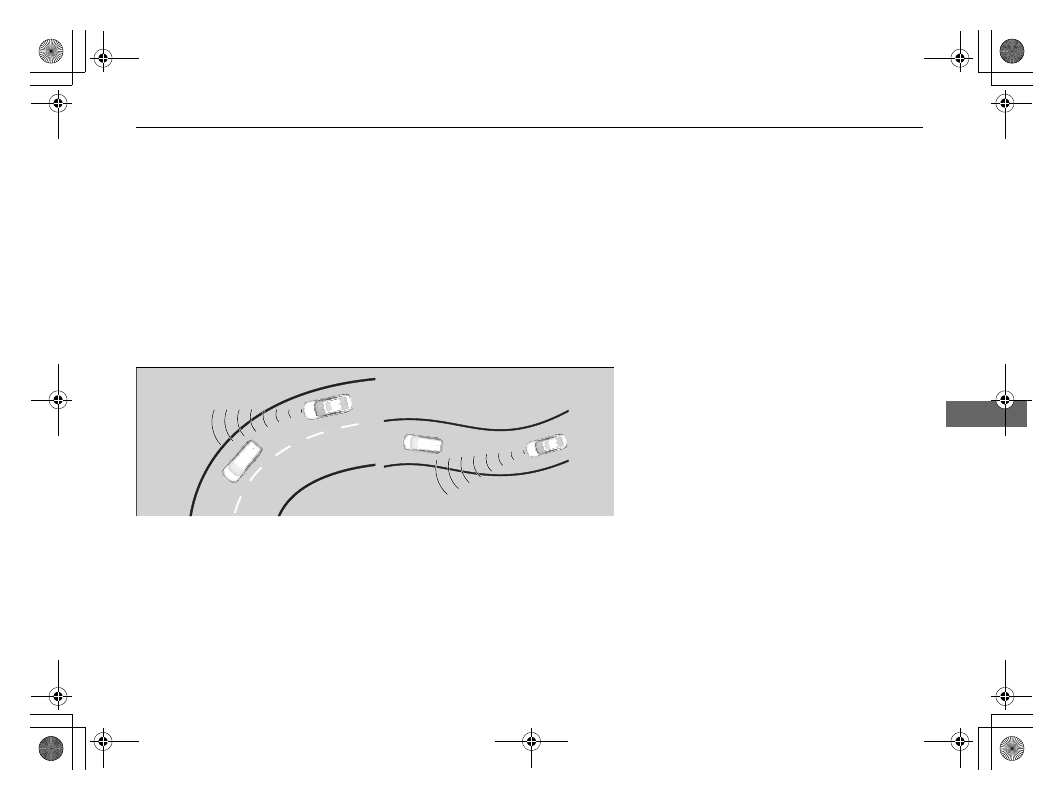

• When you drive on a curved or winding or undulating road that makes it difficult

for the sensor to properly detect a vehicle in front of you.

• The speed difference between your vehicle and a vehicle in front of you is

significantly large.

• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.

500

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

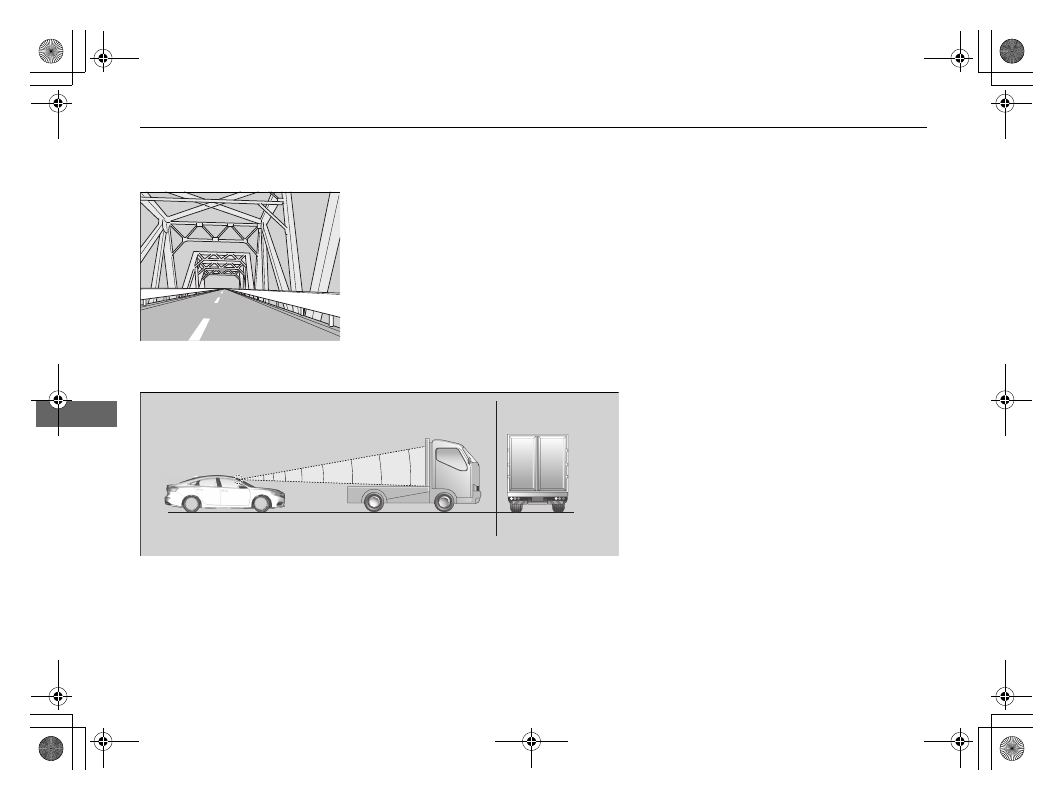

• When driving through a narrow iron bridge.

• When the vehicle ahead of you brakes suddenly.
• When the vehicle ahead of you has a unique shape.

• When your vehicle or the vehicle ahead of you is driving on one edge of the lane.

Radar detects upper section of
an empty carrier truck.

Panel truck, tanker
truck, etc.

Continued

501

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

Increase or decrease the vehicle speed using the RES/+ or SET/– button on the
steering wheel.

• Each time you press the RES/+ or SET/– button, the vehicle speed is increased or

decreased by about 1 mph or 1 km/h accordingly.

• If you press and hold the RES/+ or SET/– button, the vehicle speed increases or

decreases by about 5 mph or 5 km/h accordingly.

■

To Adjust the Vehicle Speed

To Adjust the Vehicle Speed

If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC with LSF may not
accelerate your vehicle. This is to maintain the set
interval between your vehicle and the vehicle ahead.

When you depress the accelerator pedal and then
push and release the SET/– button, the current speed
of the vehicle is set.

You can switch the displayed set speed
measurements on the driver information interface or
audio/information screen between mph and km/h.

2 Speed Unit P. 130
2 Customized Features P. 359, 366

To increase speed

To decrease speed

502

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

Press the (Interval) button to change the
ACC with LSF following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following-
intervals.

Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.

■

To Set or Change Following-interval

Interval
Button

503

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Continued

Driving

The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following-interval becomes. See the following examples for your
reference.

When your vehicle stops automatically because a vehicle detected ahead of you has
stopped, the interval between the two vehicles will vary based on the ACC with LSF
interval setting.

Following Interval

When the Set Speed is:

50 mph (80 km/h)

65 mph (104 km/h)

Short

83 feet

25 meters

1.1 sec

100 feet

31 meters

1.1 sec

Middle

110 feet

33 meters

1.5 sec

137 feet

42 meters

1.5 sec

Long

154 feet

47 meters

2.1 sec

200 feet

61 meters

2.1 sec

Extra
Long

207 feet

63 meters

2.9 sec

272 feet

83 meters

2.9 sec

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

504

Driving

To cancel ACC with LSF, do any of the
following:
• Press the CANCEL button.
• Press the MAIN button.

The ACC with LSF indicator (green) goes
off.

• Depress the brake pedal.

When the LSF function has stopped the
vehicle, you cannot cancel ACC with LSF
by depressing the brake pedal.

■

To Cancel

To Cancel

Resuming the prior set speed: After you have
canceled ACC with LSF, you can resume the prior set
speed while it is still displayed. Press the RES/+
button.

The set speed cannot be set or resumed when ACC
with LSF has been turned off using the MAIN button.
Press the MAIN button to activate the system, then
set the desired speed.

CANCEL
Button

MAIN
Button

Continued

505

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

■

Automatic cancellation

The beeper sounds and a message appears on the driver information interface when
ACC with LSF is automatically canceled. Any of these conditions may cause the ACC
with LSF to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor at the lower part of the front bumper gets dirty.
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA® or CMBS

is activated.

• When the ABS or VSA® system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC with LSF range is too close to your

vehicle.

• When a detected vehicle goes out of the ACC with LSF range while your vehicle

is stationary.

• The camera behind the rearview mirror, or the area around the camera, including

the windshield, gets dirty.

• When the Maximum Load Limit is exceeded.
• When passing through an enclosed space, such as tunnel.

Automatic cancellation

Even though ACC with LSF has been automatically
canceled, you can still resume the prior set speed.
Wait until the condition that caused ACC with LSF to
cancel improves, then press the SET/– button.

506

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

In the following cases, a buzzer sounds, ACC with LSF is deactivated, and the Cruise
Cancelled: Slope Too Steep. Watch Downhill Speed message appears in the
driver information interface.
• While descending a long slope and the vehicle has repeatedly applied the brakes

to maintain the set speed.

The ACC with LSF automatic cancellation can be also triggered by the following
causes. In these cases, the parking brake will be automatically applied.
• The driver’s seat belt is unfastened when the vehicle is stationary.
• The vehicle stops for more than 10 minutes.
• The power system is turned off.

Continued

507

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

Press and hold the (interval) button for one
second. Cruise Mode Selected appears on
the driver information interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC with LSF, press and
hold the button again for one second.

■

When to use

Desired speed in a range above roughly 25 mph (40 km/h) ~.

Take your foot off the pedal and press the SET/– button when you reach the desired
speed.
The moment you release the SET/– button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.

When you use cruise control, Straight Driving Assist (a feature of the Electric Power
Steering system) is activated.
By enabling the steering system to automatically compensate for natural steering
pull, Straight Driving Assist makes it easier for you to keep your vehicle in a straight
line.

■

To Switch ACC with LSF to Cruise Control

To Switch ACC with LSF to Cruise Control

Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following interval from a vehicle
ahead of you.

You can switch the displayed set speed
measurements on the driver information interface or
audio/information screen between mph and km/h.

2 Speed Unit P. 130
2 Customized Features P. 359, 366

ACC with
LSF ON

Cruise
Control ON

■

To Set the Vehicle Speed

Honda Sensing®

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

508

Driving

Each time you press the RES/+ or SET/– button, the vehicle speed is increased or
decreased by about 1 mph (1.6 km/h).
If you keep the RES/+ or SET/– button pressed, the vehicle speed increases or
decreases until you release it. This speed is then set.

To cancel cruise control, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.

■

To Adjust the Vehicle Speed

■

To Cancel

To Cancel

Resuming the prior set speed:
After cruise control has been canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.

You cannot set or resume in the following situations:

•

When vehicle speed is less than 25 mph (40 km/h)

•

When the MAIN button is turned off.

At vehicle speeds of 22 mph (35 km/h) or less, cruise
control canceled automatically.

509

Honda Sensing®

Lane Keeping Assist System (LKAS)

Continued

Driving

Lane Keeping Assist System (LKAS)

Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual alerts if the vehicle is detected drifting out of its lane.

Lane Keeping Assist System (LKAS)

Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicle control. The system does
not work if you take your hands off the steering
wheel or fail to steer the vehicle.

2 Driver Information Interface Warning and

Information Messages P. 102

Do not place objects on the instrument panel.
Objects may reflect on the windshield and prevent
correct detection of the traffic lanes.

The LKAS only alerts you when lane drift is detected
without a turn signal in use. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.

The LKAS is convenient when it is used on freeways.

The LKAS may not work properly or may work
improperly under the certain conditions:

2 LKAS Conditions and Limitations P. 514

You can read about handling information for the
camera equipped with this system.

2 Front Sensor Camera P. 528

When you operate the turn signals to change lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operating the turn signals, the LKAS alerts
activate, and torque is applied to the steering.

■

Front Sensor Camera

Monitors the lane
lines.

■

Tactile and visual alerts

Rapid vibrations on the steering
wheel and a warning display alert
you that the vehicle is drifting out of
a detected lane.

■

Steering input assist

The system applies torque to the steering to keep the vehicle between the left and
right lane lines. The applied torque becomes stronger as the vehicle gets closer to
either of the lane lines.

Honda Sensing®

Lane Keeping Assist System (LKAS)

510

Driving

Provides assistance to keep the vehicle in the center of the lane. When the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.

When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration as well as a warning display.

■

Lane Keep Support Function

Lane Keeping Assist System (LKAS)

The LKAS may not function as designed while driving
in frequent stop and go traffic, or on roads with
sharp curves.

When it fails to detect lanes, the system will
temporarily be canceled. When a lane is detected, the
system will recover automatically.

■

Lane Departure Warning Function

Warning Area

Content .. 30 31 32 33 ..
