Honda Insight (2019 year). Instruction - part 6





80

In

strum

e

nt Pa

nel

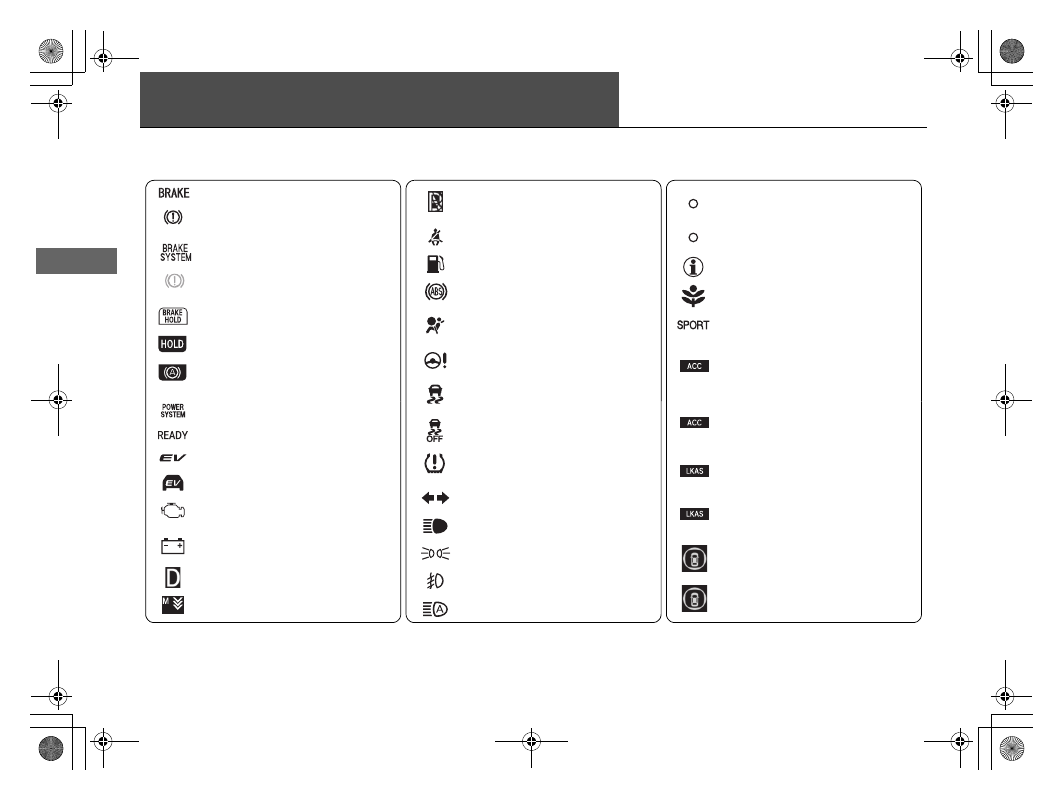

Indicators

Deceleration Paddle
Selector Indicator

P. 88

Parking Brake and
Brake System
Indicator (Red)

Parking Brake and
Brake System
Indicator (Amber)

U.S.

Canada

U.S.

Canada

Automatic Brake
Hold System Indicator

Automatic Brake Hold
Indicator

U.S.

Canada

*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power

system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in
the owner’s manual.

P. 81

*1

Malfunction Indicator
Lamp

12-Volt Battery
Charging System
Indicator

Anti-lock Brake System
(ABS) Indicator

Seat Belt Reminder
Indicator

Low Fuel Indicator

Vehicle Stability Assist

®



(VSA

®

) System Indicator

Vehicle Stability Assist

®



(VSA

®

) OFF Indicator

Supplemental Restraint
System Indicator

Auto High-Beam
Indicator

Low Tire Pressure/TPMS
Indicator

Electric Power Steering
(EPS) System Indicator

Turn Signal and Hazard
Warning Indicators

Lights On Indicator

High Beam Indicator

Fog Light Indicator

*

ECON Mode Indicator

System Message Indicator

SPORT Mode Indicator

Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF) Indicator
(Amber)

Lane Keeping Assist
System (LKAS) Indicator
(Amber)

Safety Support Indicator
(Amber)

Safety Support Indicator
(Green/Gray)

P. 82

P. 84

P. 84

P. 87

P. 88

*1

*1

*1

*1

P. 93

*1

*1

Shift Position Indicator

P. 88

Transmission System
Indicator

P. 89

P. 90

P. 90

P. 91

P. 91

P. 94

P. 92

*1

*1

*1

P. 92

*1

P. 91

P. 94

P. 97

*1

P. 94

P. 94

P. 96

P. 94

Immobilizer System
Indicator

P. 95

Security System Alarm
Indicator

P. 95

P. 96

P. 96

P. 98

P. 99

P. 101

*1

Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF) Indicator
(Green)

P. 98

*1

Lane Keeping Assist
System (LKAS) Indicator
(Green)

P. 98

*1

POWER SYSTEM
Indicator

P. 85

*1

READY Indicator

P. 86

EV Indicator

P. 86

*1

EV Mode Indicator

P. 86

*1

*1

* Not available on all models

81

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

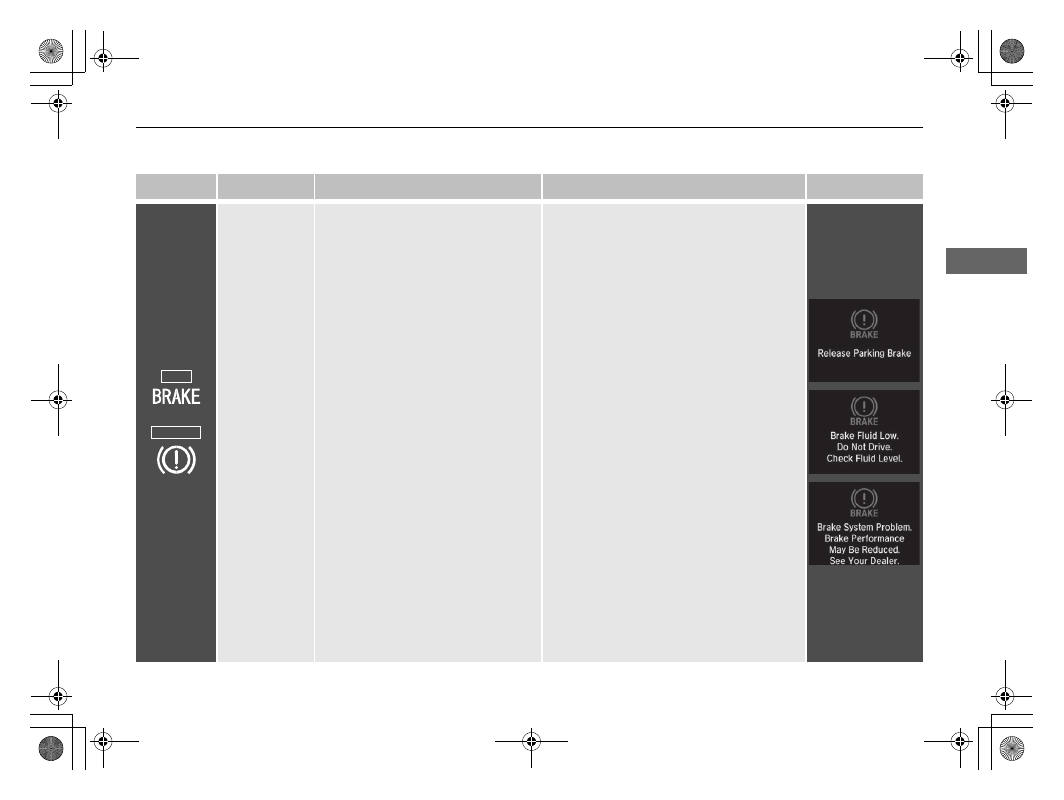

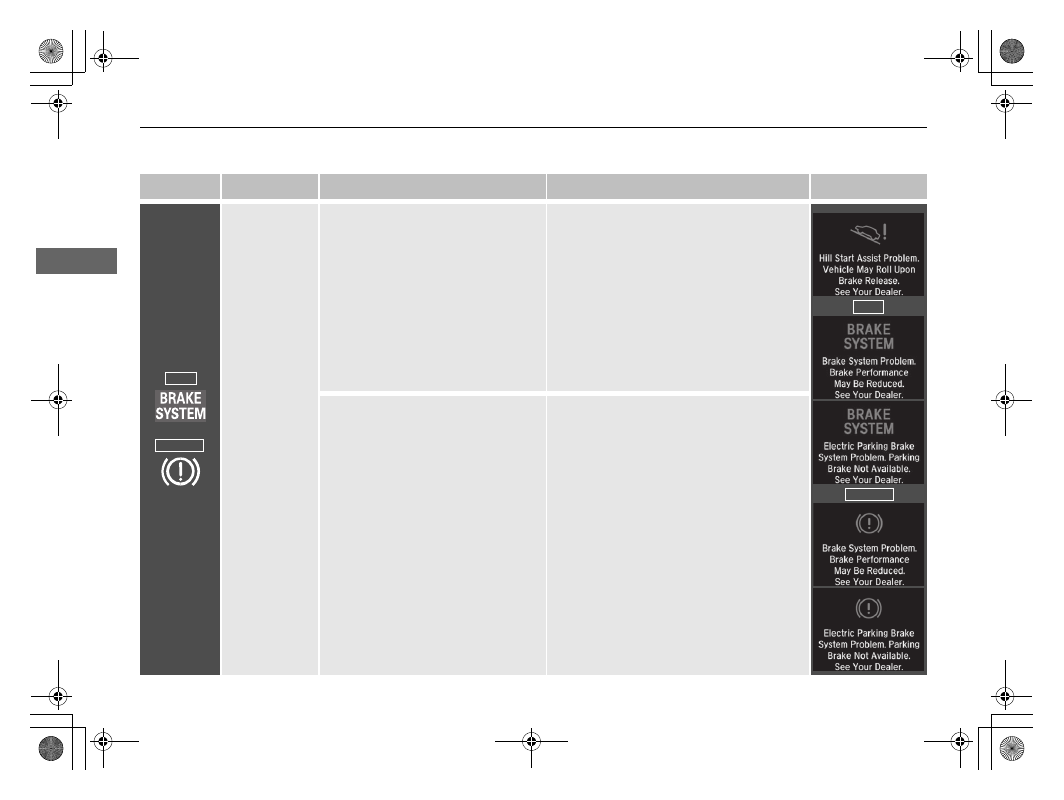

Parking Brake
and Brake
System
Indicator (Red)

• Comes on when the parking brake

is applied, and goes off when it is
released.

• Comes on when the brake fluid

level is low.

• Comes on if there is a problem with

the brake system.

• The beeper sounds and the

indicator comes on if you drive with
the parking brake not fully released.

• Comes on for about 30 seconds

when you pull or push the electric
parking brake switch when the
power mode is in ACCESSORY or
VEHICLE OFF.

• Stays on for about 30 seconds

when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.

• Comes on while driving - Make sure

the parking brake is released. Check the
brake fluid level.

2 What to do when the indicator

comes on while driving P. 636

• Comes on along with the brake system

indicator (amber) -Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.

• Comes on along with the ABS

indicator - Have your vehicle checked by
a dealer.

2 If the Brake System Indicator (Red)

Comes On or Blinks P. 636

• Blinks and the brake system indicator

(amber) comes on at the same time -
There is a problem with the electric
parking brake system. The parking brake
may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.

2 If the Brake System Indicator (Red)

Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 637

U.S.

Canada

(Red)

82

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Parking Brake
and Brake
System
Indicator
(Amber)

• Comes on if there is a problem with

a system related to braking other
than the conventional brake
system.

• Comes on if there is a problem with

the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.

• Comes on if there is a problem with

the electric parking brake system.

• Stays on constantly - Avoid high speeds

and sudden braking. Take the vehicle to a
dealer immediately.

• Comes on while driving - Avoid using

the parking brake and have your vehicle
checked by a dealer immediately.

●

Comes on if there is a problem with
the radar sensor.

●

Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.

●

Make sure the total load is within the
Maximum Load Limit.

2 Maximum Load Limit P. 445

●

Stays on constantly - Have your vehicle
checked by a dealer.

U.S.

Canada

(Amber)

U.S.

Canada

83

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Parking Brake
and Brake
System
Indicator
(Amber)

• Comes on if there is a problem with

the automatic brake hold system.

2 Automatic Brake Hold P. 536

U.S.

Canada

(Amber)

U.S.

Canada

84

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

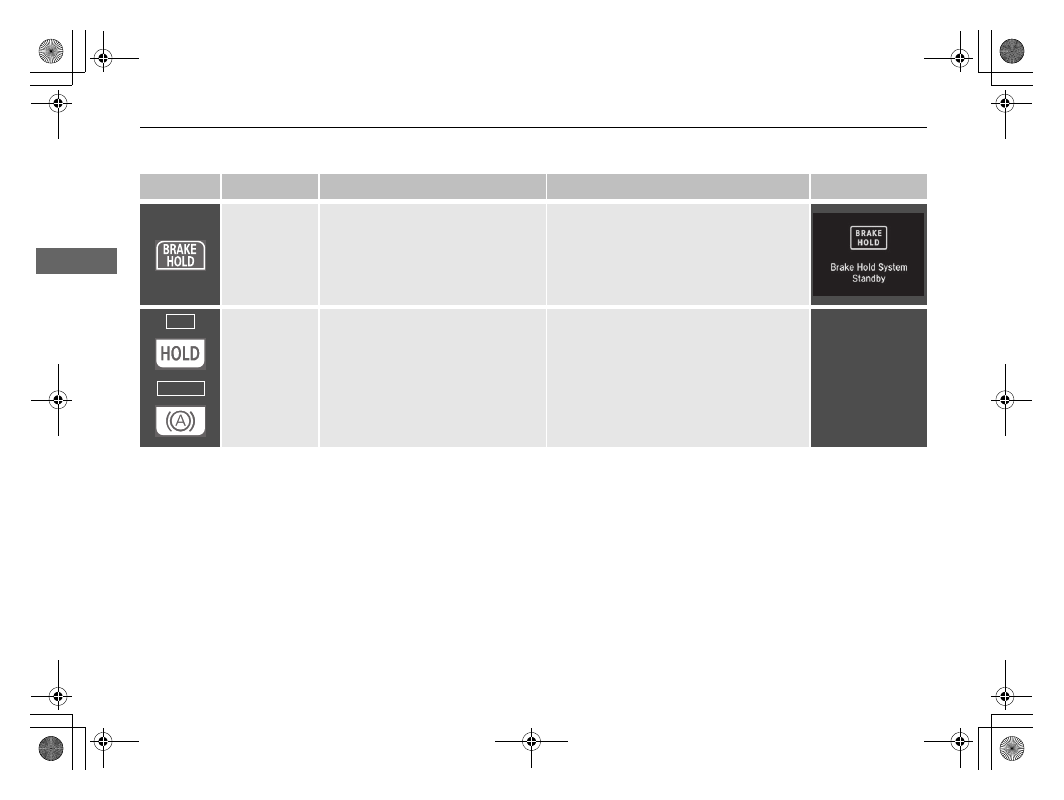

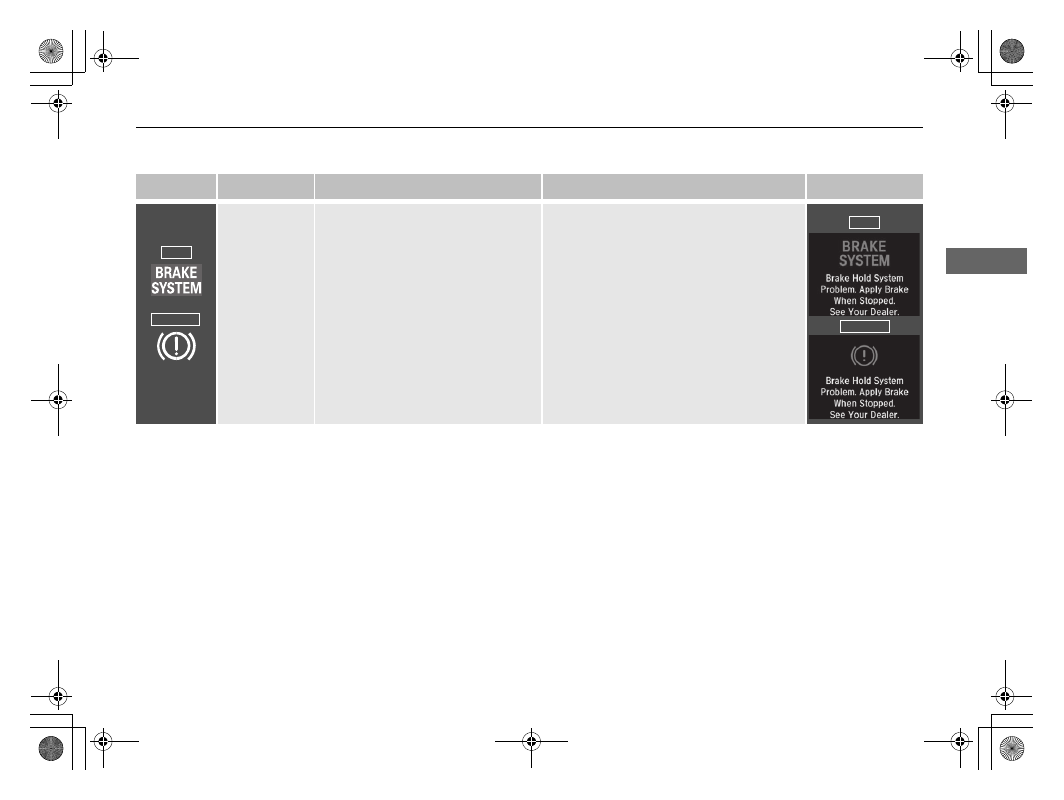

Automatic
Brake Hold
System
Indicator

●

Comes on when the automatic
brake hold system is on.

2 Automatic Brake Hold P. 536

Automatic
Brake Hold
Indicator

●

Comes on when the automatic
brake hold is activated.

2 Automatic Brake Hold P. 536

—

U.S.

Canada

85

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

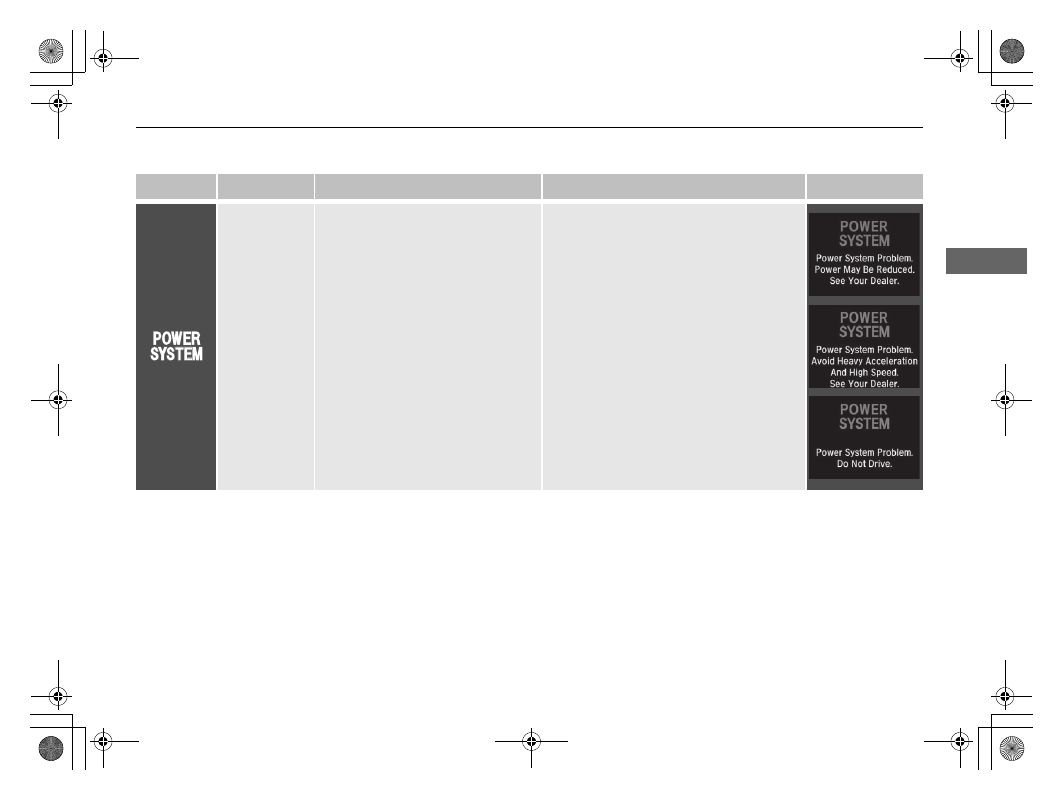

POWER
SYSTEM
Indicator

●

Comes on if there is a problem with
the electric vehicle system.

●

Comes on when the High Voltage
battery temperature becomes high.

●

Have your vehicle checked by a dealer.

86

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

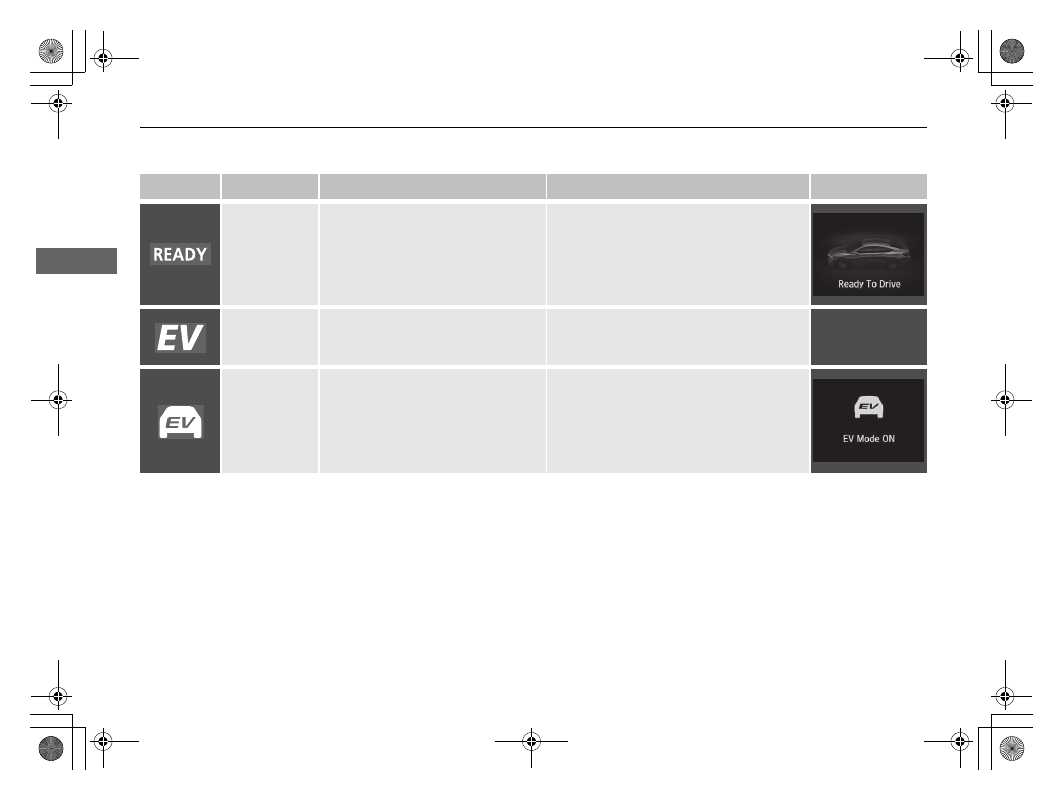

READY
Indicator

●

Comes on when the vehicle is ready
to drive.

2 Turning on the Power P. 448

EV Indicator

●

Comes on when the vehicle is
moved by the motor, and the
engine is not operating.

—

—

EV Mode
Indicator

●

Comes on when the vehicle is in EV
mode.

2 SPORT HYBRID i-MMD (intelligent

Multi Mode Drive) P. 9

87

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

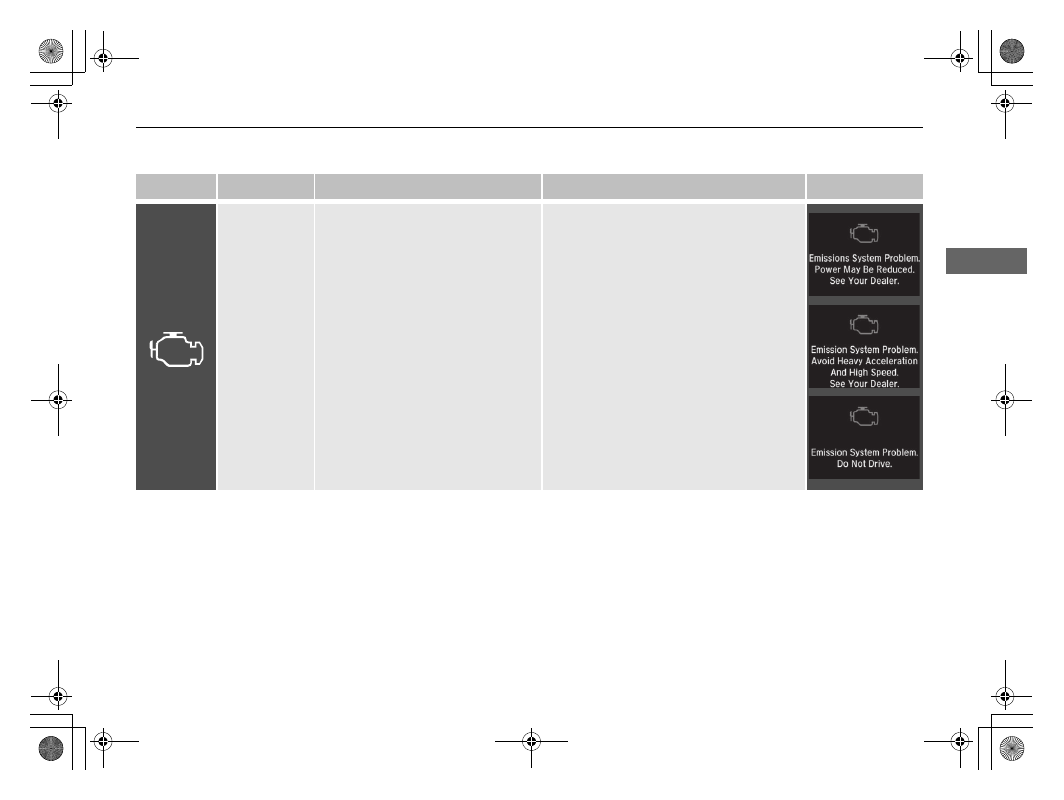

Malfunction
Indicator Lamp

• After you have set the power mode

to ON, the vehicle performs system
checks. However, if the readiness
codes have not been set by that
time, this indicator will blink five
times and then go off.

• Comes on if there is a problem with

the emissions control system.

• Blinks when a misfire in the

engine’s cylinders is detected.

• Comes on if the fuel fill cap is loose

or missing.

• Readiness codes are part of the on board

diagnostics for the emissions control
systems.

2 Testing of Readiness Codes P. 658

• Comes on while driving - Have your

vehicle checked by a dealer.

• Blinks while driving - Stop in a safe

place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to cool
down. Then, take your vehicle to a dealer.

2 If the Malfunction Indicator Lamp

Comes On or Blinks P. 635

• Comes on - Check the fuel cap before

taking your vehicle to a dealer.

88

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

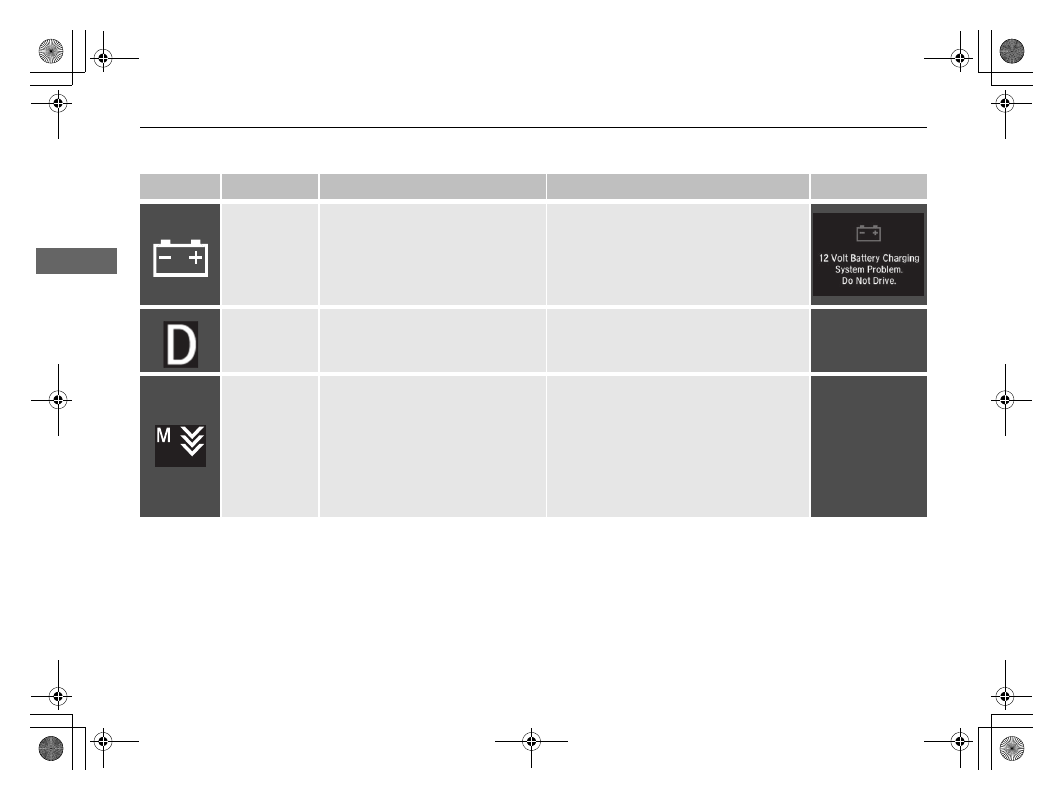

12-Volt Battery
Charging
System
Indicator

• Comes on when the 12-volt battery

is not charging.

• Comes on while driving - Turn off the

climate control system and rear defogger
in order to reduce electricity consumption.

2 If the 12-Volt Battery Charging

System Indicator Comes On P. 634

Shift Position
Indicator

• Indicates the current shift position.

2 Shifting P. 457

—

Deceleration
Paddle Selector
Indicator

• Comes on when the paddle selector

is pulled.

• Blinks when deceleration does not

occur while pulling the paddle
selector.

• Comes on with M when SPORT

mode is selected and pulling the
paddle selector.

2 Deceleration Paddle Selector P. 464

—

89

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

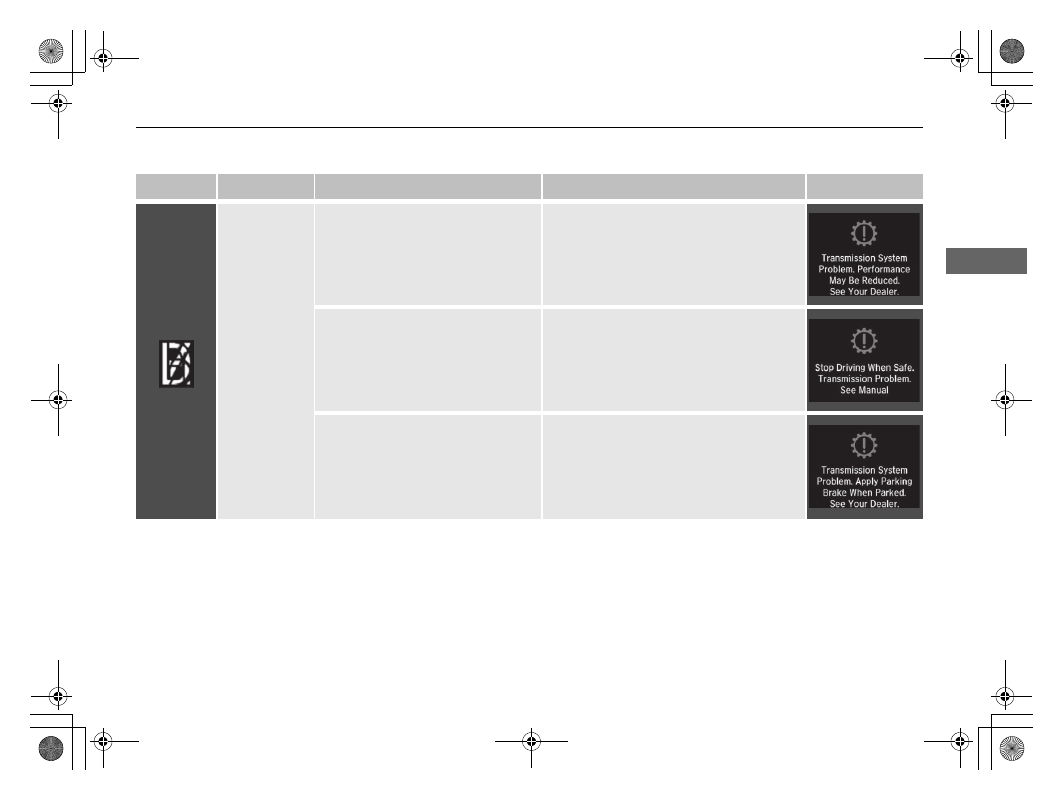

Transmission
System
Indicator

• The current shift position blinks if

the transmission system has a
problem.

• Blinks while driving - Avoid sudden

starts and acceleration and have your
vehicle checked by a dealer immediately.

• The current shift position or all the

shift positions blink if there is a
problem with the transmission and
the vehicle is no longer able to run.

• Immediately park your car in a safe place.

2 Emergency Towing P. 648

• Have your vehicle checked by a dealer.

• The current shift position or all the

shift positions blink if there is a
problem with the transmission and
it is not possible to select

(

P.

• While the vehicle is stopped, apply the

parking brake.

• Have your vehicle checked by a dealer

immediately.

90

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

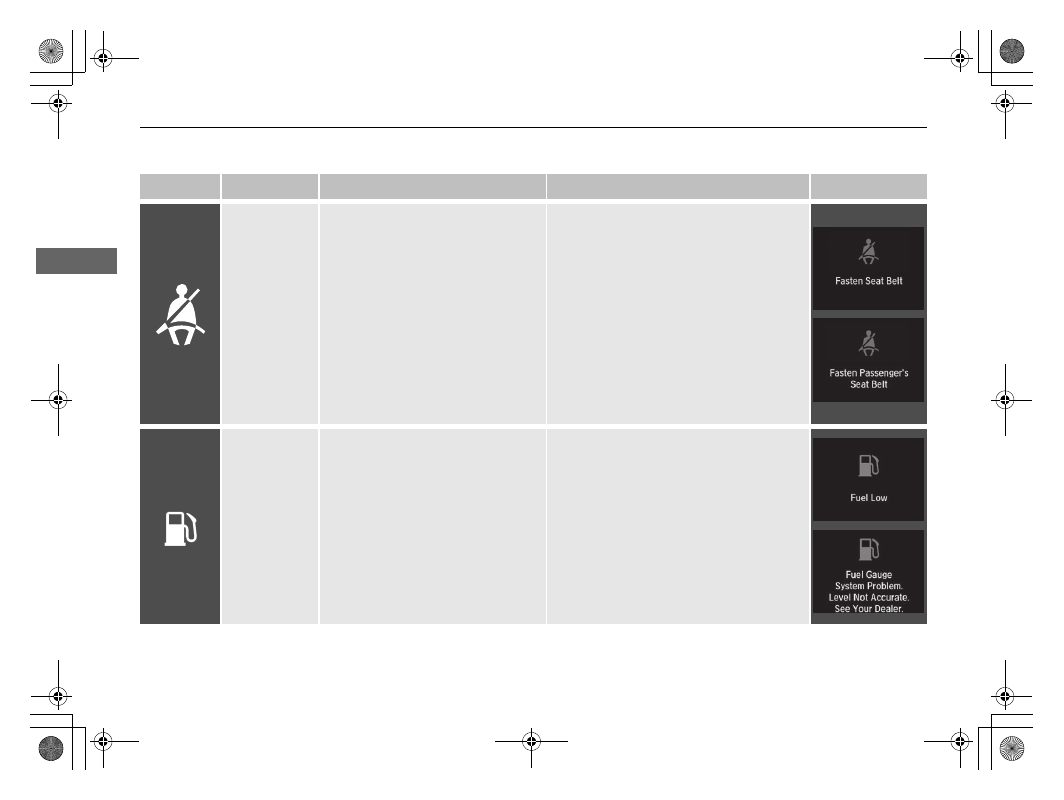

Seat Belt
Reminder
Indicator

• Blinks and the beeper sounds for a

few seconds if you are not wearing
a seat belt when you set the power
mode to ON, then the indicator
comes on.

• If the front passenger is not

wearing a seat belt, the indicator
comes on a few seconds later.

• Blinks while driving if either you

and/or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.

• The beeper stops and the indicator goes

off when you and the front passenger
fasten their seat belts.

• Stays on after you and/or the front

passenger has fastened the seat
belt(s) - A detection error may have
occurred in the sensor. Have your vehicle
checked by a dealer.

2 Seat Belt Reminder P. 45

Low Fuel
Indicator

• Comes on when the fuel reserve is

running low (approximately 1.59
U.S. gal./6.0 Liter left).

• Blinks if there is a problem with the

fuel gauge.

• Comes on - Refuel your vehicle as soon

as possible.

• Blinks - Have your vehicle checked by a

dealer.

91

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

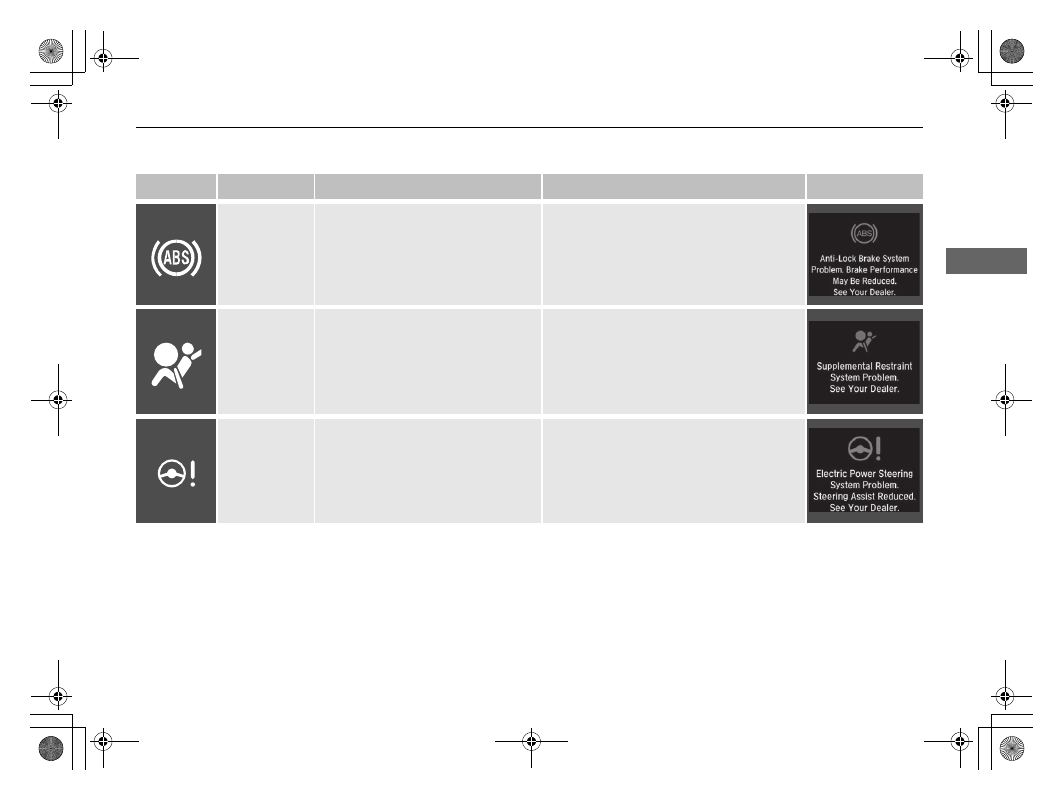

Anti-lock Brake
System (ABS)
Indicator

• Comes on if there is a problem with

the ABS.

• Stays on constantly - Have your vehicle

checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.

2 Anti-lock Brake System (ABS) P. 539

Supplemental
Restraint
System
Indicator

• Comes on if a problem with any of

the following is detected:

- Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner

• Stays on constantly - Have your vehicle

checked by a dealer.

Electric Power
Steering (EPS)
System
Indicator

• Comes on if there is a problem with

the EPS system.

• Stays on constantly - Have your vehicle

checked by a dealer.

2 If the Electric Power Steering (EPS)

System Indicator Comes On P. 638

92

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

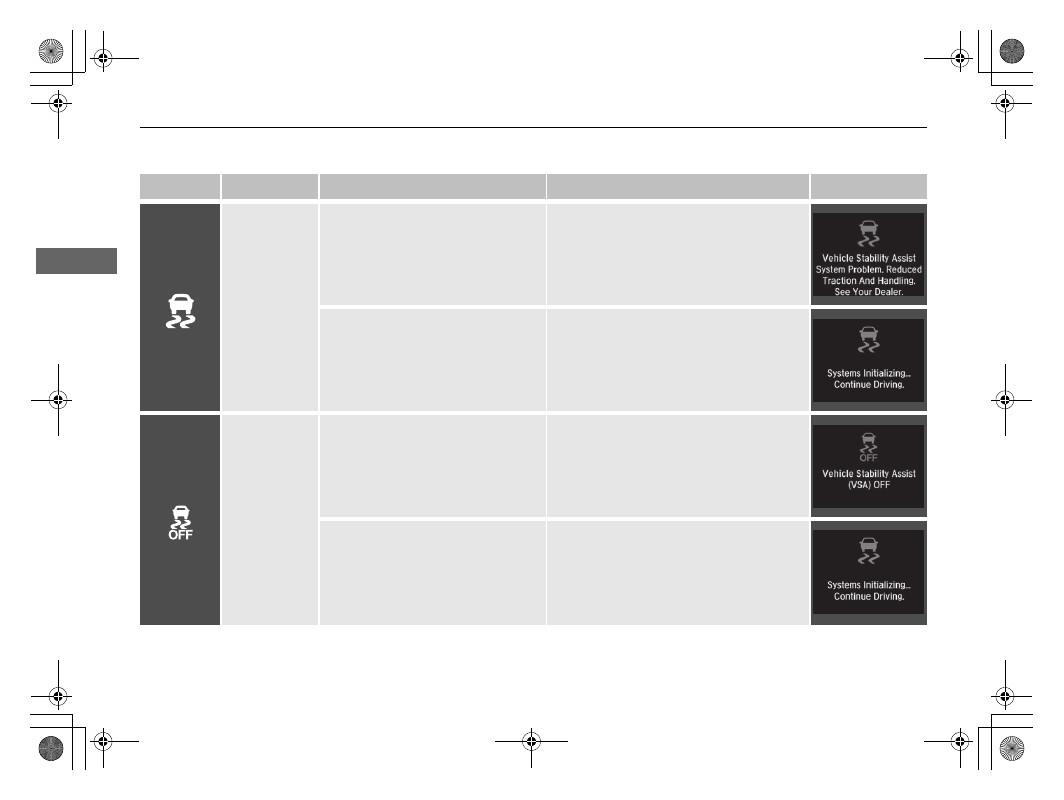

Vehicle Stability
Assist® (VSA®)
System
Indicator

●

Blinks when VSA® is active.

●

Comes on if there is a problem with
the VSA® system.

●

Stays on constantly - Have your vehicle
checked by a dealer.

2 Vehicle Stability Assist® (VSA®), aka

Electronic Stability Control (ESC),
System P. 469

●

Comes on if the VSA® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.

●

Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.

Vehicle Stability
Assist® (VSA®)
OFF Indicator

●

Comes on when you partially
disable VSA®.

2 VSA® On and Off P. 470

●

Comes on if the VSA® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.

●

Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.

93

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

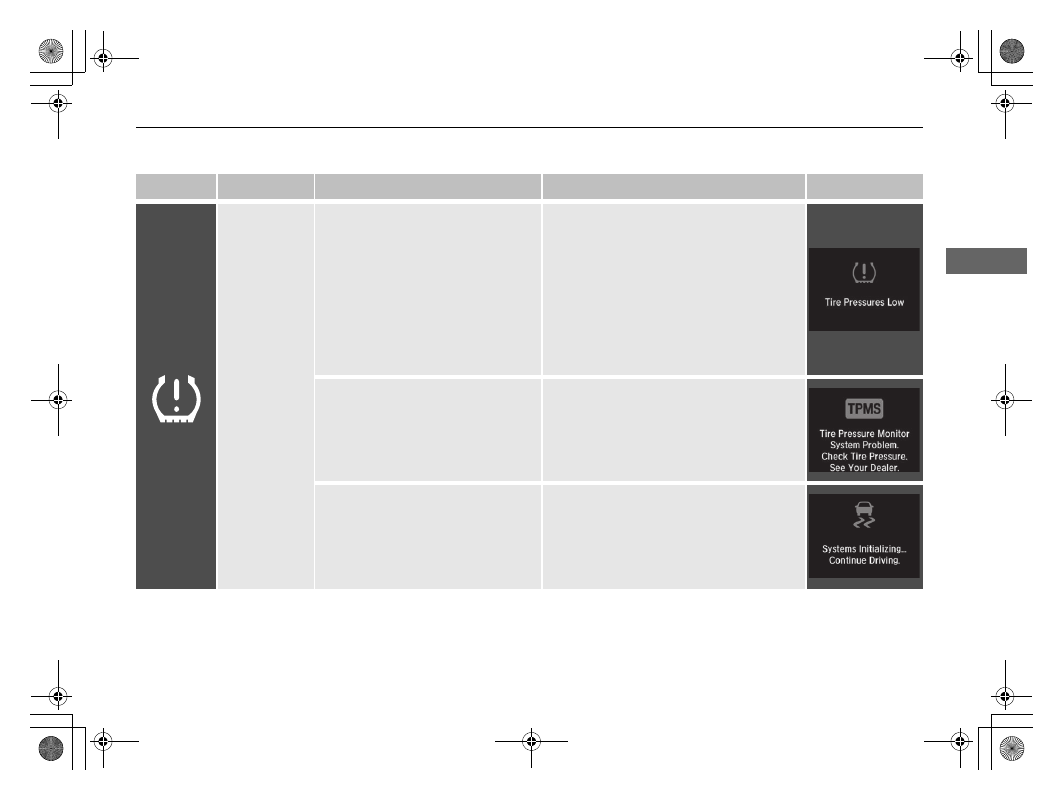

Low Tire
Pressure/TPMS
Indicator

●

May come on briefly if the power
mode is set to ON and the vehicle is
not moved within 45 seconds, to
indicate the calibration process is
not yet complete.

●

Comes on and stays on when:
- One or more tires’ pressures are

determined to be significantly low.

- The system has not been

calibrated.

●

Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.

●

Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.

2 TPMS Calibration P. 472

●

Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire

*

 is temporarily installed.

●

Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare tire, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.

●

Comes on if the TPMS is deactivated
temporarily after the 12-volt battery
has been disconnected, then re-
connected.

●

Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.

* Not available on all models

94

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

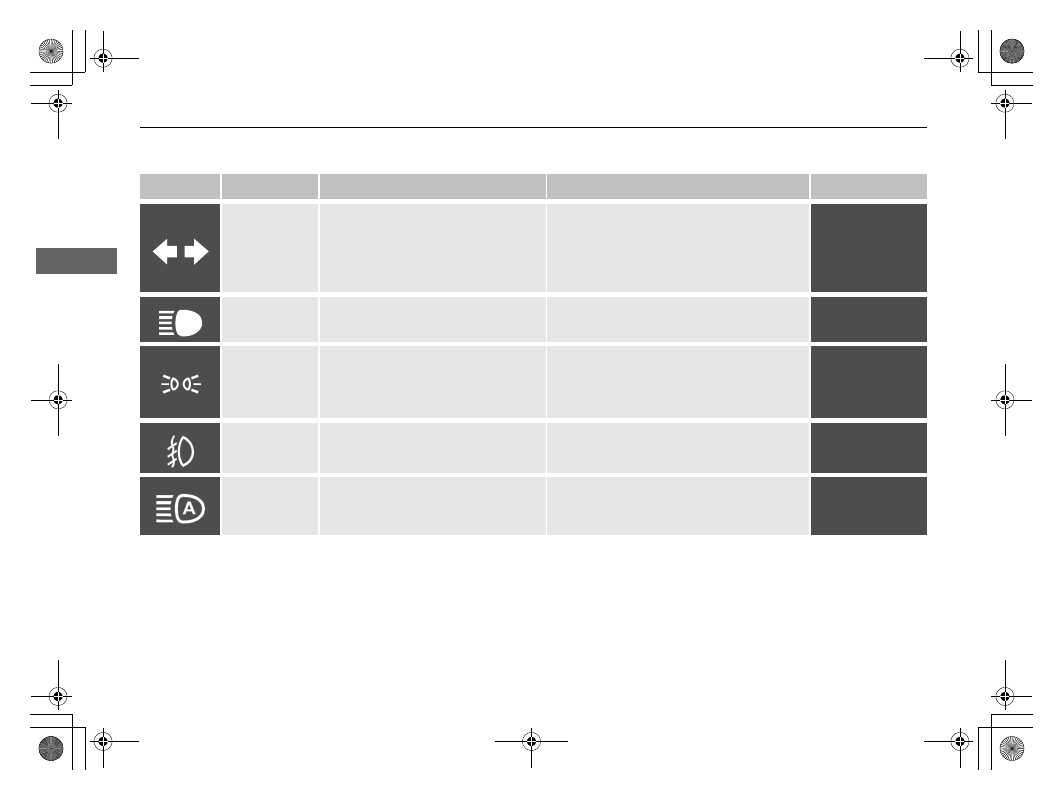

Turn Signal and
Hazard
Warning
Indicators

• Blinks when you operate the turn

signal lever.

• Blink along with all turn signals

when you press the hazard warning
button.

• Does not blink or blinks rapidly

2 Replacing Light Bulbs P. 575

—

High Beam
Indicator

• Comes on when the high beam

headlights are on.

—

—

Lights On
Indicator

• Comes on when the light switch in

a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on.

• If you set the power mode to VEHICLE OFF

while the lights are on, a chime sounds
when the driver’s door is opened.

—

Fog Light
Indicator

*

• Comes on when the fog lights are

on.

—

—

Auto High-
Beam Indicator

• Comes on when all the operating

conditions of the auto high-beam
are met.

2 Auto High-Beam P. 197

—

* Not available on all models















Content   ..  4  5  6  7   ..
