Audio System Basic Operation

u

Playing Bluetooth® Audio

Features

Playing Bluetooth® Audio

Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth® HandsFreeLink® (HFL) system.

2 Phone Setup P. 393

1

Playing Bluetooth® Audio

Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible with the system.
For a list of compatible phones:

•

U.S.: Visit automobiles.honda.com/handsfreelink/,
or call 1-888-528-7876.

•

Canada: For more information on smartphone
compatibility, call 1-888-528-7876.

In some states, it may be illegal to perform some data
device functions while driving.

Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically connected.

If more than one phone is paired to the HFL system,
there will be a delay before the system begins to play.

In some cases, the name of the artist, album, or track
may not appear correctly.

Some functions may not be available on some
devices.

MEDIA Button
Press to select
Bluetooth Audio mode
(if connected)

VOL/



(Volume/
Power) Knob
Press to turn
the audio
system on and
off.
Turn to adjust
the volume.

MENU/
CLOCK
Button
Press to
display the
menu items.

Audio/Information Screen

Bluetooth Indicator
Appears when your phone is connected to HFL.

 /

 (Seek/Skip)

Buttons

Press

or

to

change files.

Play Button (Preset 1)
Press to resume a file.

Pause Button (Preset 2)
Press to pause a file.

Selector Knob
Turn to change groups.
Press, and then turn to select
an item. After that, press again
to make your selection.

 (Back) Button

Press to go back to the previous display.

Continued

257

uu

Audio System Basic Operation

u

Playing Bluetooth® Audio

Features

1. Make sure that your phone is paired and

connected to HFL.

2. Press the MEDIA button until the

Bluetooth® Audio mode is selected.

If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth® Audio, may already be
connected.

■

To pause or resume a file

Press the Play or Pause button to select a mode.

■

To Play Bluetooth® Audio Files

1

To Play Bluetooth® Audio Files

To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.

The pause function may not be available on some
phones.

If any audio device is connected to the USB port, you
may need to press the MEDIA button repeatedly to
select the Bluetooth® Audio system.

Switching to another mode pauses the music playing
from your phone.

Play Button

Pause Button

MEDIA Button

uu

Audio System Basic Operation

u

Playing Bluetooth® Audio

258

Features

1. Press

 to display the music search list.

2. Rotate

 to select a category.

3. Press

 to display a list of items in the

category.

4. Rotate

 to select an item, then press

.

u

Press

 and rotate

 repeatedly until a

desired item you want to listen is
displayed.

■

How to Select a Song from the Music Search List with the
Selector Knob

1

How to Select a Song from the Music Search List with the Selector
Knob

Depending on the Bluetooth® device you connect,
some or all of the categories may not be displayed.

Item
Selection

Category
Selection

259

uu

Audio System Basic Operation

u

Siri® Eyes Free

Features

Siri® Eyes Free

You can talk to Siri using the

 (Talk) button on the steering wheel when your

iPhone is paired to the Bluetooth® HandsFreeLink® (HFL) system.

2 Phone Setup P. 393

■

Using Siri® Eyes Free

1

Siri® Eyes Free

Siri is a trademark of Apple Inc.

Check Apple Inc. website for features available for
Siri.

We recommend against using Siri other than in Siri®
Eyes Free while operating a vehicle.

1

Using Siri® Eyes Free

Some commands work only on specific phone
features or apps.

This audio system cannot operate the audio functions
by using Siri® Eyes Free.

 (Talk) Button

Press and hold until the display
changes as shown.

 (Hang-up/back) Button

Press to deactivate Siri® Eyes Free.

While in Siri® Eyes Free:
The display remains the same.
No feedback or commands
appear.

Appears
when Siri is
activated in
Siri® Eyes
Free

260

Features

Audio System Basic Operation

To use the audio system function, the power mode must be in ACCESSORY or ON.

 (Home): Select to go to the home screen.

2 Switching the Display P. 261

 (Map)

*

: Select to display the map screen.

 (Audio): Select to display the audio screen.
 (Phone): Select to display the phone

screen.

 (Back): Select to go back to the previous

screen when the icon is illuminated.

 (Day/Night): Select to change the audio/

information screen brightness.
Select

 once and select

(

- or

(

+ to make

an adjustment.

u

Each time you select

, the mode

switches among the daytime mode,
nighttime mode and off mode.

1

Audio System Basic Operation

Audio Menu Items

2 Station List P. 290, 291
2 Music Search List P. 301, 310
2 Scan P. 291, 292, 299, 311
2 Play Mode P. 302, 311

Models with Display Audio

 (Map) Icon

*

 (Phone) Icon

 (Back) Icon

 (Day/Night) Icon

 (Home) Icon

 (Audio) Icon

* Not available on all models

261

uu

Audio System Basic Operation

u

Audio/Information Screen

Continued

Features

Audio/Information Screen

Displays the audio status and wallpaper. From this display, you can go to various
setup options.

■

Using the

 (display/information) button

Press the

 (display/information) button to change the display.

■

Switching the Display

1

Using the

 (display/information) button

You can edit, add, and delete the contents shown on
the driver information interface.

2 Customizing the Meter P. 266

Driver Information
Interface

 (Display/Information) Button

uu

Audio System Basic Operation

u

Audio/Information Screen

262

Features

■

Using the audio/information screen

Select

 to go to the home screen.

Select Phone, Info, Audio, Settings, Navigation

*

, HondaLink, Smartphone

Connection (Apple CarPlay, Android Auto), App List

*

/

(APPS

icon)

*

, or

Instrument Panel.

■

Phone

Displays the HFL information.

2 Bluetooth® HandsFreeLink® P. 410

1

Using the audio/information screen

Touchscreen operation

•

Use simple gestures - including touching, swiping
and scrolling - to operate certain audio functions.

•

Some items may be grayed out during driving to
reduce the potential for distraction.

•

You can select them when the vehicle is stopped or
use voice commands.

•

Wearing gloves may limit or prevent touchscreen
response.

You can change the touchscreen sensitivity setting.

2 Customized Features P. 351

Home Screen

Models without navigation system

Models with navigation system

* Not available on all models

263

uu

Audio System Basic Operation

u

Audio/Information Screen

Continued

Features

■

Info

Displays Trip Computer, Voice Info, Clock/Wallpaper, or System/Device
Information. Select MENU on the Info Menu screen to see all available options:
Trip Computer, Voice Info, Clock/Wallpaper and System/Device Information.

Trip Computer:
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The

information is stored every time you reset Trip A.
To delete the history manually, select Delete history on the History of Trip A
tab. The confirmation message appears on the screen, then select Yes.

Voice Info: Displays the All Commands list.
Clock/Wallpaper: Displays the clock and wallpaper.
System/Device Information:
• System Info: Displays the software version of the audio system.
• USB Info: Displays the memory usage of the USB device.

■

Audio

Displays the current audio information.

■

Settings

Enters the customizing menu screen.

2 Customized Features P. 351

■

Navigation

*

Displays the navigation screen.

2 Refer to the Navigation System Manual

* Not available on all models

264

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

HondaLink

Displays the HondaLink® screen.

2 HondaLink® P. 314

■

Smartphone Connection

Displays the Apple CarPlay

TM

 or Android Auto

TM

.

2 Apple CarPlay

TM

 P. 322

2 Android Auto

TM

 P. 325

■

App List (

)

Adds or removes apps or widgets on the home screen.

2 Home Screen P. 272

■

Instrument Panel

Selects from three customizable settings for the driver information interface.

265

uu

Audio System Basic Operation

u

Audio/Information Screen

Continued

Features

1. Select .
2. Select and hold an icon.

u

The screen switches to the customization
screen.

3. Drag and drop the icon to where you want

it to be.

4. Select OK.

u

The screen will return to the home
screen.

■

Changing the Home Screen Icon Layout

uu

Audio System Basic Operation

u

Audio/Information Screen

266

Features

You can edit, add, or delete the meter contents on the driver information interface.

1.
2. Settings
3. System
4. Configuration of Instrument Panel

■

Customizing the Meter

1

Customizing the Meter

You can store up to three customized configurations.
To select or customize a configuration, select Swap
Config..
When you select Swap Config. during
customization, the settings you changed will be
saved.
When you select

 during customization, the

settings you changed will not be saved and you will
be returned to the Instrument Panel screen.

Continued

267

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

Editing order

To change the order of the icons on the driver information interface, first select:

1. Edit Order

2. Select the icon you want to move.

u

You will see arrows on both sides of the
selected icon.

3. Select the left or right arrow repeatedly to

move the icon to your desired position.

4. Select OK.

u

The screen will return to the Instrument
Panel screen.

1

Editing order

You can use an alternative method to change the
order of the icons. First select:
1. Edit Order
2. Select and hold the icon you want to move.
3. Drag and drop the icon to where you want it to

be.

4. Select OK.

u

The screen will return to the Instrument Panel

screen.

Edit Order

Select

Arrow icons

OK

uu

Audio System Basic Operation

u

Audio/Information Screen

268

Features

■

Adding contents

You can add icons to the driver information interface. To add icons, first select:

1. Add

2. Select an icon you want to add.

u

You will see a plus mark on the upper
right hand corner of the selected icon.

3. Select OK.

u

The screen will return to the Instrument
Panel screen.

1

Adding contents

Icons that are grayed out cannot be selected.

If an icon has a plus mark in the upper-right corner, it
means that the icon has already been added.

Add

Select

OK

Continued

269

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

Deleting contents

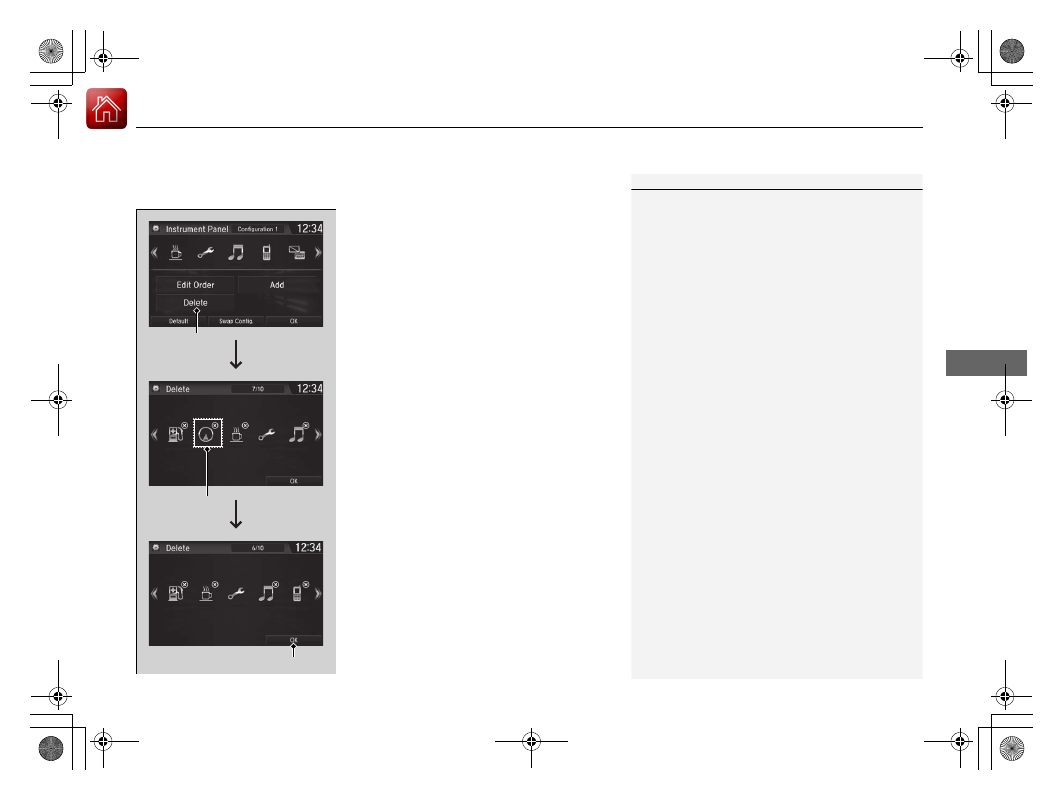

To delete contents on the driver information interface, first select:

1. Delete

2. Select an icon you want to delete.

u

The icon with an X on the upper right
hand corner can be deleted.

3. Select OK.

u

The screen will return to the Instrument
Panel screen.

1

Deleting contents

You can also delete contents by selecting:
1. Delete or Edit Order
2. Select and hold an icon you want to delete.
3. Drag and drop the icon to the trash icon.
4. Select OK.

u

The screen will return to the Instrument Panel

screen.

Delete

Select

OK

uu

Audio System Basic Operation

u

Audio/Information Screen

270

Features

You can change, store, and delete the wallpaper on the audio/information screen.

■

Import wallpaper

You can import up to five images, one at a time, for wallpaper from a USB flash
drive.

1. Connect the USB flash drive to the USB

port.

2 USB Port(s) P. 233

2. Select Settings.
3. Select Clock.
4. Select Clock/Wallpaper Type, select

Next, then open the Wallpaper tab.

5. Select Add New.

u

The picture name is displayed on the list.

6. Select a desired picture.

u

The preview is displayed on the left side
on the screen.

7. Select Start Import to save the data.

u

The display will return to the wallpaper
list.

■

Wallpaper Setup

1

Wallpaper Setup

The wallpaper you set up on Clock/Wallpaper Type
cannot be displayed on the driver information
interface.

•

When importing wallpaper files, the image must be
in the USB flash drive’s root directory.
Images in a folder cannot be imported.

•

The file name must be fewer than 64 characters.

•

The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).

•

The individual file size limit is 5 MB.

•

The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 800 × 480 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.

•

If the USB flash drive does not have any pictures,
the No files detected message appears.

After changing the screen interface design, you can
change the wallpaper by following procedure.
1. Select .
2. Select .
3. Select and hold empty space on the home screen.

The pop-up menu appears on the screen.

4. Select Change wallpaper.
5. Select Gallery, Live wallpapers, or Wallpapers.

Continued

271

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

Select wallpaper

1. Select Settings.
2. Select Clock.
3. Select Clock/Wallpaper Type, select Next, then open the Wallpaper tab.

u

The screen changes to the wallpaper list.

4. Select a desired wallpaper.

u

The preview is displayed on the left side on the screen.

u

The pop-up menu appears on the screen.

5. Select Set.

u

The display will return to the wallpaper list.

■

To view wallpaper once it is set

1. Select .
2. Select Info.
3. Select MENU.
4. Select Clock/Wallpaper.

■

Delete wallpaper

1. Select Settings.
2. Select Clock.
3. Select Clock/Wallpaper Type, select Next, then open the Wallpaper tab.

u

The screen changes to the wallpaper list.

4. Select a wallpaper that you want to delete.

u

The preview is displayed on the left side on the screen.

u

The pop-up menu appears on the screen.

5. Select Delete.

u

A confirmation message appears on the screen.

6. Select Yes to delete completely.

u

The display will return to the wallpaper list.

1

Wallpaper Setup

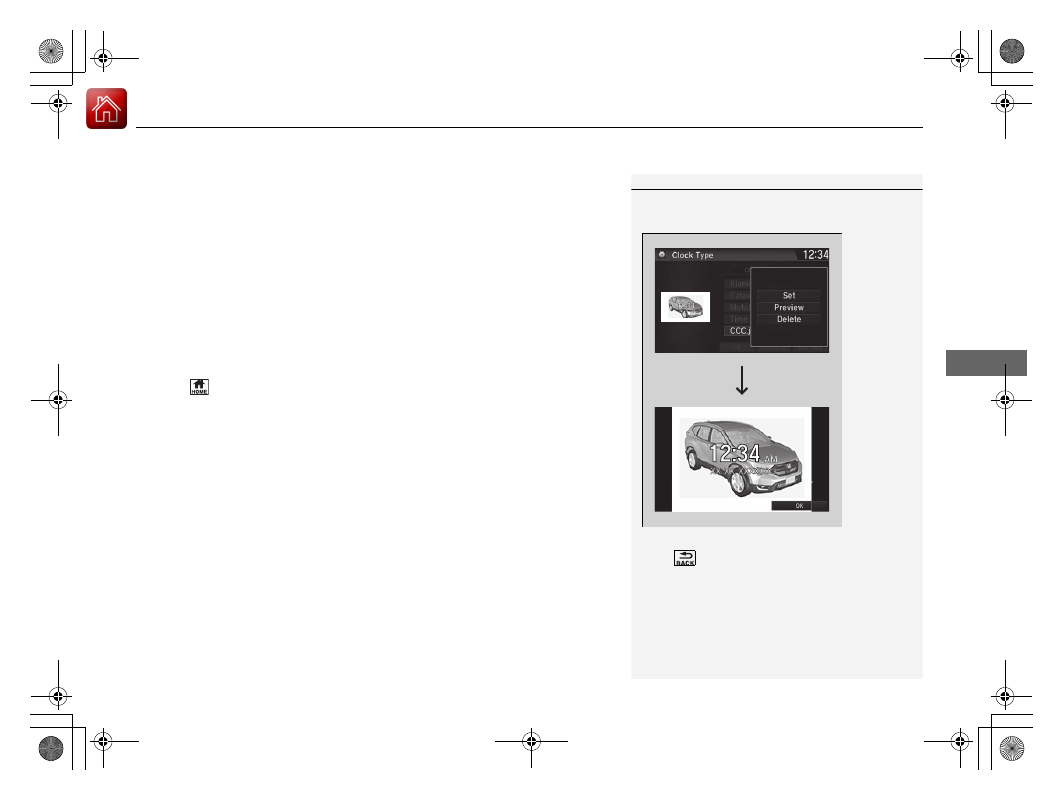

From the pop-up menu, select Preview to see a
preview at full-size screen.

To go back to the previous screen, select OK, or
select .

When the file size is large, it takes a while to be
previewed.

To delete all wallpapers you add, select Delete All,
then Yes.
