Honda CR-V (2018 year). Instruction - part 8

112

uu

Indicators

u

Driver Information Interface Warning and Information Messages

*

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle in front of you starts
moving while your vehicle is stopped automatically
by ACC with LSF.

●

Either press the RES/+ button or –/SET button, or
depress the accelerator pedal.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

●

Appears when the shift lever is moved into any
position other than

(

D or

(

S while ACC with LSF is

in operation.

●

ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

●

Appears when pressing the –/SET button while the
shift lever is in any position other than

(

D or

(

S.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

●

Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.

●

ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

Models with ACC with LSF

* Not available on all models

113

uu

Indicators

u

Driver Information Interface Warning and Information Messages

*

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

●

Appears when the parking brake is applied
automatically while ACC with LSF is in operation.

●

ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

2 Parking Brake P. 524

●

Appears when pressing the –/SET button while the
parking brake is applied.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

2 Parking Brake P. 524

●

Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

●

Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.

●

Immediately depress the brake pedal.

Models with ACC with LSF

* Not available on all models

114

uu

Indicators

u

Driver Information Interface Warning and Information Messages

*

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Flashes when the system senses a likely collision
with a vehicle in front of you.

●

Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)

2 Collision Mitigation Braking System

TM

 (CMBS

TM

)

*



P. 532

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF)

*

 P. 481

Models with ACC with LSF

* Not available on all models

115

uu

Indicators

u

Driver Information Interface Warning and Information Messages

*

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.

●

Keep the vehicle within the lane you are driving.

2 Road Departure Mitigation (RDM) System

*

 P. 497

●

Appears when the vehicle is driving out of a detected
lane.

- The steering wheel vibrates rapidly when the

vehicle is drifting out of a detected lane.

- The steering wheel vibrates rapidly when the

vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.

●

Keep the vehicle within the lane you are driving.

2 Road Departure Mitigation (RDM) System

*

 P. 497

●

You can change the setting for the road departure
mitigation system. Normal, Wide, and Warning Only
can be selected.

2 Customized Features P. 351

●

Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.

●

Operate the steering wheel to resume the LKAS.

Models with LKAS

Lane Keeping Assist System (LKAS)

Road Departure Mitigation (RDM) System

When you selected Warning Only

When you selected Normal or Wide

* Not available on all models

116

uu

Indicators

u

Driver Information Interface Warning and Information Messages

*

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.

2 Remote Engine Start with Vehicle Feedback

*

 P. 464

Message

Condition

Explanation

●

Appears when there is a problem with the power
tailgate system.

●

Manually open or close the power tailgate.

●

Have your vehicle checked by a dealer.

Message

Condition

Explanation

●

Appears if there is a problem with the Auto high-
beam system.

●

Manually operate the headlight switch.

●

If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.

●

Appears when the area around the camera on the
windshield is blocked by dirt, mud, etc.

●

Stop your vehicle in a safe place, and wipe it off with a
soft cloth.

●

If the message does not disappear after cleaning the lens,
have your vehicle checked by a dealer.

Models with remote engine starter

Models with power tail gate

U.S.

Canada

Models with Auto high-beam system

* Not available on all models

117

uu

Indicators

u

Driver Information Interface Warning and Information Messages

*

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if there is a problem with the real time
AWD with intelligent control system

TM

.

●

The engine drives the front wheels only in this state. Have
your vehicle checked by a dealer.

●

Appears when the differential temperature is too
high.

●

Stop in a safe place, put the transmission into

(

P, and

idle the engine until the message disappears. If the
message does not disappear, have your vehicle checked
by a dealer.

2 Real Time AWD with Intelligent Control System

TM

*



P. 517

Models with real time AWD with intelligent control system

TM

* Not available on all models

118

In

strum

e

nt Pa

nel

Gauges and Displays

Gauges

Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON

(

w

*1

.

Displays your driving speed in mph (U.S.) or km/h (Canada).

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Speedometer

■

Tachometer

■

Fuel Gauge

■

Temperature Gauge

1

Gauges

Press and hold the mile (U.S.)/km (Canada) change
knob until you hear a beep. The speedometer reading
and the displayed measurements switch between
mph (U.S.) and /h (Canada).

Press the

 (display/information) button

repeatedly until the

 icon is shown on the driver

information interface. Press ENTER, then press and
hold it again. The speedometer reading and the
displayed measurements will switch between mph
(U.S.) and km/h (Canada).

Models with information display

Models with driver information interface

1

Fuel Gauge

NOTICE

You should refuel when the reading approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

1

Temperature Gauge

NOTICE

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

2 Overheating P. 633

119

uu

Gauges and Displays

u

Information Display

*

Continued

In

strum

e

nt Pa

nel

Information Display

*

The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.

Press the

 (TRIP) knob to change the display.

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Switching the Display

1

Switching the Display

Each time you press the

 knob, the information

display changes as follows:

Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature

Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature

Engine Oil Life

Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature

Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature

■

Odometer

■

Trip Meter

 (TRIP) knob

* Not available on all models

uu

Gauges and Displays

u

Information Display

*

120

In

strum

e

nt Pa

nel

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

 knob. The trip meter is

reset to 0.0.

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

Shows the instant fuel economy as a bar graph in mpg or l/100km.

Shows the remaining oil life and Maintenance Minder

TM

.

2 Maintenance Minder

TM

 P. 559

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

■

Average Fuel Economy

■

Instant Fuel Economy Gauge

■

Engine Oil Life

■

Range

1

Average Fuel Economy

Press and hold the mile (U.S.)/km (Canada) change
knob to switch the measurement.

1

Instant Fuel Economy Gauge

Press and hold the mile (U.S.)/km (Canada) change
knob to switch the measurement.

1

Range

Press and hold the mile (U.S.)/km (Canada) change
knob to switch the measurement.

121

uu

Gauges and Displays

u

Information Display

*

In

strum

e

nt Pa

nel

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature indicator

Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON

(

w

*1

.

2. Press and hold the

 (TRIP) knob for 10 seconds or more while the outside

temperature is shown on the information display.

u

The information display goes into temperature adjustment mode. The display
starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).

3. Release the

 knob when the right adjustment amount is shown.

u

The adjustment is complete.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Outside Temperature

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

122

uu

Gauges and Displays

u

Driver Information Interface

*

In

strum

e

nt Pa

nel

Driver Information Interface

*

The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.

■

Main displays

Press the

 (display/information) button and press

 or

 to change the

display. Press ENTER to see detailed information.

■

Switching the Display



(Display/
Information)
Button

Warning
Messages

Speed Unit & Disp OFF

Maintenance
Minder

TM

Phone

Optional
Contents

*

Audio

Turn by Turn
Directions

*

 &

Compass

*

Range &
Fuel

Press ,

,

or .

Press ENTER.

Average Speed
& Elapsed Time

Driver Attention
Monitor

AWD Torque
Distribution
Monitor

*

* Not available on all models

Continued

123

uu

Gauges and Displays

u

Driver Information Interface

*

In

strum

e

nt Pa

nel

■

Trip computer

Press the

 (TRIP) knob to change the display.

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Odometer

■

Trip Meter

Menu

Menu

Menu

Odometer
Outside temperature

Trip A

Trip B

 (TRIP)

Knob

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the

 knob, or by using the customized

features on the audio/information display.

2 Customized Features P. 351

124

uu

Gauges and Displays

u

Driver Information Interface

*

In

strum

e

nt Pa

nel

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

 knob. The trip meter is

reset to 0.0.

Continued

125

uu

Gauges and Displays

u

Driver Information Interface

*

In

strum

e

nt Pa

nel

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

Shows the time elapsed since Trip A or Trip B was reset.

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.

Shows the remaining oil life and Maintenance Minder

TM

.

2 Maintenance Minder

TM

 P. 559

■

Average Fuel Economy

■

Range

■

Elapsed Time

■

Average Speed

■

Engine Oil Life

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

2 Customized Features P. 351

1

Elapsed Time

You can change when to reset the elapsed time.

2 Customized Features P. 351

1

Average Speed

You can change when to reset the average speed.

2 Customized Features P. 351

uu

Gauges and Displays

u

Driver Information Interface

*

126

In

strum

e

nt Pa

nel

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver's attention in the Driver Information Interface.

When the

 (display/information) button

is pressed, bars in the Driver Information
Interface light up in white to indicate the
degree of the driver's attention.

2 Switching the Display P. 119

■

Driver Attention Monitor

1

Driver Attention Monitor

The Driver Attention Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system's feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.

Driver Information
Interface

ENTER



(Display/
Information)
Button

Level

127

uu

Gauges and Displays

u

Driver Information Interface

*

Continued

In

strum

e

nt Pa

nel

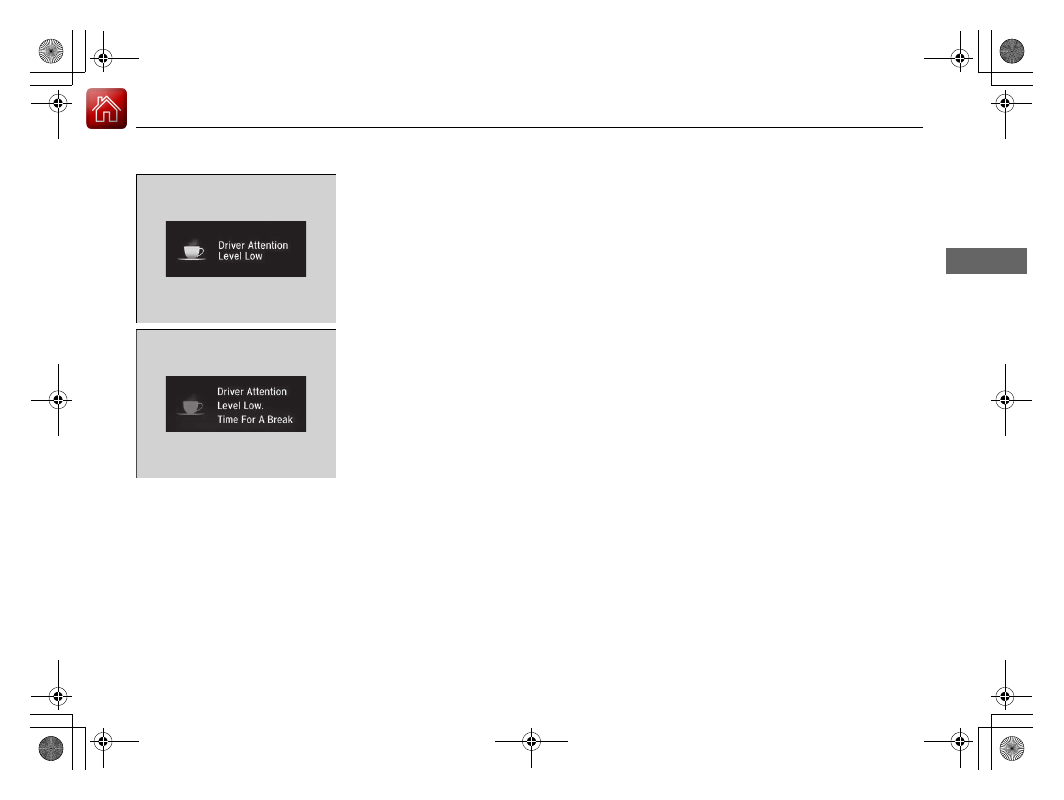

If two bars light up, the Driver Attention
Level Low message will appear.

If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the ENTER
button is pressed or when the system has
determined that the driver is driving normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.

■

The Driver Attention Monitor resets when

• the engine is turned off.
• the driver unfastens the seat belt and opens the door while the vehicle is stopped.
