Honda Civic Hybrid (2015 year). Instruction

272

Driving

Rearview Camera

About Your Rearview Camera

For models with the navigation system, see the Navigation System Manual for the
rearview camera.

The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the shift lever is moved to

(

The rearview camera has a unique lens that makes objects appear closer or further
than they actually are.

■

Rearview Camera Display Area

About Your Rearview Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the Fixed Guideline and Dynamic
Guideline settings.

2 Customized Features P. 192

Fixed Guideline
On: Guidelines appear when you shift into

(

Off: Guidelines do not appear when the dynamic
guideline is off.
Dynamic Guideline
On: Guidelines move according to the steering wheel
direction.
Off: Guidelines do not move.

Models with navigation system

Models without navigation system

Guidelines

Bumper

Camera

Approx. 20 in (0.5 m)
Approx. 39 in (1 m)

Approx. 79 in (2 m)

Approx. 118 in (3 m)

Approx. 39 in (1 m)

Approx. 79 in (2 m)

273

Continued

Driving

Refueling

Fuel Information

■

Fuel recommendation

Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.

■

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Unleaded gasoline, pump octane number 87 or higher

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

Refueling

How to Refuel

274

Driving

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.

For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com.

■

Fuel tank capacity: 13.2 US gal (50 liters)

How to Refuel

1. Stop your vehicle with the service station

pump on the left side of the vehicle in the
rear.

2. Turn off the engine.
3. Push on the fuel fill door release handle at

the foot of the driver’s seat.

The fuel fill door opens.

How to Refuel

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Push

275

Refueling

How to Refuel

Driving

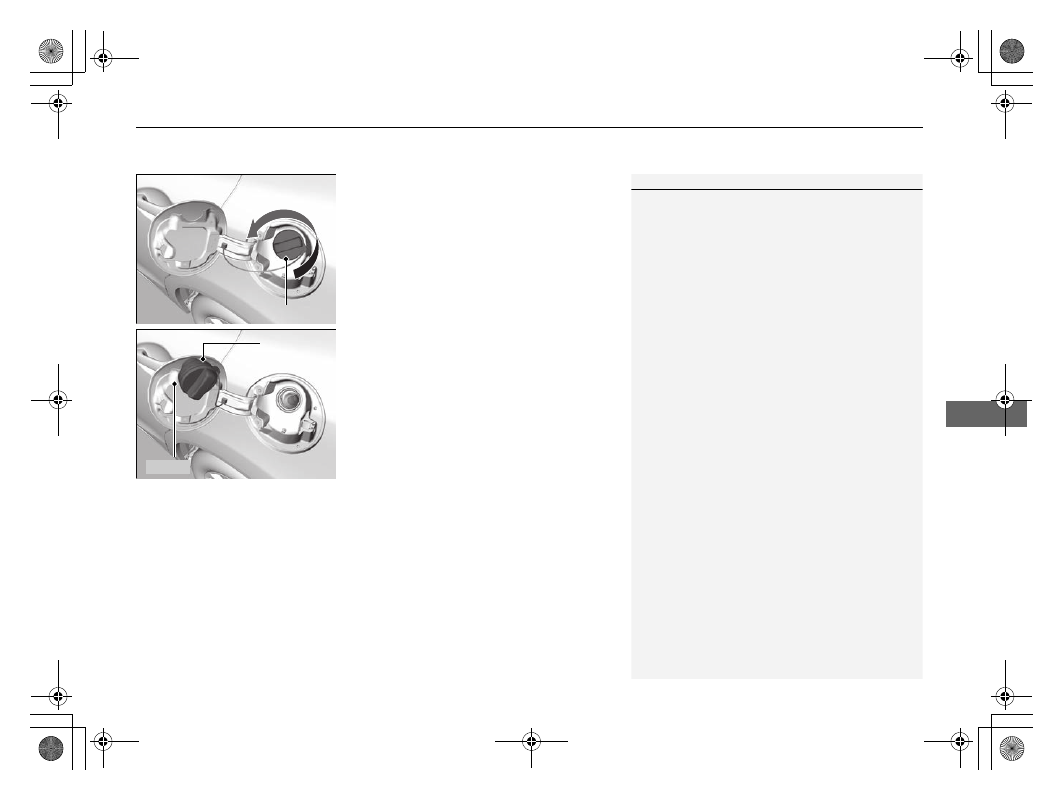

4. Remove the fuel fill cap slowly. If you hear a

release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.

5. Place the fuel fill cap in the holder.
6. Insert the filler nozzle fully.

When the tank is full, the fuel nozzle will
click off automatically. This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.

7. After filling, replace the fuel fill cap,

tightening it until you hear it click at least
once.

Shut the fuel fill door by hand.

How to Refuel

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

Cap

Holder

276

Driving

Fuel Economy

Improving Fuel Economy

Fuel economy depends on several conditions, including driving conditions, your
driving habits, the condition of your vehicle, and loading. Depending on these and
other conditions, you may or may not achieve the rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
i-MID.
• Use the recommended viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside

adds weight and increases wind resistance.

■

Maintenance and Fuel Economy

Improving Fuel Economy

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/

Miles driven

Gallons of

fuel

Miles per

Gallon

100

Liters of

fuel

Kilometers

driven

L per 100 km

277

Driving

Accessories and Modifications

Accessories

When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and

delay your reaction to driving conditions.

• Do not install any accessories over areas marked SRS Airbag, on the sides or backs

of the front seats, on front or side pillars, or near the side windows. Accessories
installed in these areas may interfere with proper operation of the vehicle’s
airbags or may be propelled into you or another occupant if the airbags deploy.

• Be sure electronic accessories do not overload electrical circuits or interfere with

proper operation of your vehicle.

2 Fuses P. 353

• Before installing any electronic accessory, have the installer contact a dealer for

assistance. If possible, have a dealer inspect the final installation.

Modifications

Do not modify your vehicle or use non-Honda components that can affect its
handling, stability, and reliability.

Overall vehicle performance can be affected. Always make sure all equipment is
properly installed and maintained, and that it meets federal, state, province,
territory, and local regulations.

Accessories and Modifications

Honda Genuine accessories are recommended to
ensure proper operation on your vehicle.

WARNING

Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding accessories and
modifications.

280

Main

tenan

Before Performing Maintenance

Inspection and Maintenance

For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintenance booklet for detailed maintenance and
inspection information.

■

Daily inspections

Perform inspections before long distance trips, when washing the vehicle, or when
refueling.

■

Periodic inspections

• Check the continuously variable transmission fluid level monthly.

2 Continuously Variable Transmission Fluid P. 297

• Check the brake fluid level monthly.

2 Checking the Brake Fluid P. 298

• Check the tire pressure monthly. Examine the tread for wear and foreign objects.

2 Checking and Maintaining Tires P. 308

• Check the operation of the exterior lights monthly.

2 Replacing Light Bulbs P. 300

• Check the condition of the wiper blades at least every six months.

2 Checking and Maintaining Wiper Blades P. 306

■

Types of Inspection and Maintenance

Inspection and Maintenance

Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.

According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the i-MID.

2 Maintenance Service Items P. 286

If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com.

2 Authorized Manuals P. 367

If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.

U.S. models

281

Before Performing Maintenance

Safety When Performing Maintenance

Main

tenan

Safety When Performing Maintenance

Some of the most important safety precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether or not you should perform
a given task.

• To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames

away from the battery and all fuel related parts.

• Never leave rags, towels, or other flammable objects under the hood.

Heat from the engine and exhaust can ignite them causing a fire.

• To clean parts, use a commercially available degreaser or parts cleaner, not

gasoline.

• Wear eye protection and protective clothing when working with the 12 volt

battery or compressed air.

• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.

Only operate the engine if there is sufficient ventilation.

• The vehicle must be in a stationary condition.

Make sure your vehicle is parked on level ground, the parking brake is set, and
the engine is off.

• Be aware that hot parts can burn you.

Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.

• Be aware that moving parts can injure you.

Do not start the engine unless instructed, and keep your hands and limbs away
from moving parts.

• Do not touch the IMA battery and wiring (orange).

■

Maintenance Safety

■

Vehicle Safety

Safety When Performing Maintenance

WARNING

Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.

Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.

WARNING

Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.

Always follow the procedures and
precautions in this owner’s manual.

284

Maintenance Minder

To Use Maintenance Minder

Main

tenan

To Use Maintenance Minder

Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the i-MID.
You can view them on the Maintenance info screen at any time.
1. Set the power mode to ON.
2. Press the MENU button to go to the Vehicle Menu screen.
3. Select Vehicle Information with the

(

+ button, then press the SOURCE button.

4. Press the SOURCE button again to go to the Maintenance info screen. The

engine oil life appears on the i-MID.

■

Displaying the Engine Oil Life and Maintenance Items

Displaying the Engine Oil Life and Maintenance Items

Based on the engine operating conditions, the
remaining engine oil life is calculated and displayed
as a percentage.

There is a list of maintenance main and sub items you
can view on the i-MID.

2 Maintenance Service Items P. 286

Displayed Engine Oil

Life (%)

Calculated Engine Oil

Life (%)

100

100 to 91

90 to 81

80 to 71

70 to 61

60 to 51

50 to 41

40 to 31

30 to 21

20 to 16

15 to 11

10 to 6

5 to 1

MENU

SOURCE

Engine oil

Air filters

2345

SOURCE
Button

(

+ Button

Sub Item

Main
Item

Engine Oil Life

MENU
Button

285

Maintenance Minder

To Use Maintenance Minder

Continued

Main

tenan

The system message indicator (

) comes on along with the Maintenance Minder message.

■

Maintenance Minder Messages on the i-MID

Maintenance Message

Oil Life Display

Explanation

Information

SERVICE DUE SOON

15%

The remaining engine oil life is 15 to
6 percent. Once you switch the

display by pressing the

(display/information) button, this
message will go off.

The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and serviced
soon.

SERVICE DUE NOW

The remaining engine oil life is 5 to 1

percent. Press the

button to

switch to another display.

The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.

SERVICE PAST DUE

Negative Distance

The remaining engine oil life has
passed its service life, and a negative
distance appears after driving over
10 miles (U.S. models) or 10 km
(Canadian models). Press the

button to switch to another display.

The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.

2345

Engine oil

Air filters

2345

Engine oil

Air filters

2345

-30

286

Maintenance Minder

To Use Maintenance Minder

Main

tenan

■

Maintenance Service Items

Maintenance Service Items

•

Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.

•

Inspect idle speed every 160,000 miles (256,000
km).

•

Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.

2345

Maintenance Minder
Message

System Message
Indicator

Sub Items

Main
Item

*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the

engine oil every year.

CODE

Maintenance Main Items

●

Replace engine oil

●

Replace engine oil

and oil filter

●

Inspect front and rear brakes/service as necessary

●

Check parking brake adjustment

●

Inspect tie rod ends, steering gearbox, and boots

●

Inspect suspension components

●

Inspect driveshaft boots

●

Inspect brake hoses and lines (Including ABS/VSA)

●

Inspect all fluid levels and condition of fluids

●

Inspect exhaust system

●

Inspect fuel lines and connections

●

Check the expiration date for TRK bottle

*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).

# : See information on maintenance and emissions warranty.

CODE

Maintenance Sub Items

●

Rotate tires

●

Replace air cleaner element

●

Replace dust and pollen filter

●

Inspect drive belt

●

Replace transmission fluid

●

Replace spark plugs

●

Inspect valve clearance

●

Replace engine coolant

287

Maintenance Minder

To Use Maintenance Minder

Main

tenan

Reset the engine oil life display if you have performed the maintenance service.

1. Set the power mode to ON.
2. Go to the Maintenance info screen.

2 Displaying the Engine Oil Life and Maintenance Items P. 284

3. Press the SOURCE button.

The oil life reset mode is displayed on the i-MID.

4. Select YES with the

(

- button, then press the SOURCE button.

The displayed maintenance items disappear, and the engine oil life display
returns to 100%.

Any maintenance items that are necessary for your vehicle at the next
maintenance service will appear.

To cancel the oil life reset mode, select No, then press the SOURCE button.

■

Resetting the Display

Resetting the Display

NOTICE

Failure to reset the engine oil life after a maintenance
service results in the system showing incorrect
maintenance intervals, which can lead to serious
mechanical problems.

The dealer will reset the engine oil life display after
completing the required maintenance service. If
someone other than a dealer performs maintenance
service, reset the engine oil life display yourself.

Engine Oil Life

SOURCE
Button

(

- Button

Maintenance
Item Codes

Honda Civic Hybrid (2015 year). Instruction - part 18
