Honda Civic Hybrid (2015 year). Instruction - part 1





California Proposition 65 Warning

Event Data Recorders

This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator

and/or brake pedal; and,

• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.

WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.

To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can read the information if they have
access to the vehicle or the EDR.

The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.

Service Diagnostic Recorders

This vehicle is equipped with service-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential.

California Perchlorate Contamination Prevention Act

The airbags, seat belt tensioners, and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/

As you read this manual, you will find information that is preceded
by a

 symbol. This information is intended to help you avoid

damage to your vehicle, other property, or the environment.

NOTICE

A Few Words About Safety

Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.

Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.

You will find this important safety information in a variety of forms,
including:

● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol

3

 and

one of three signal words: DANGERWARNING, or CAUTION.
These signal words mean:

● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehicle correctly and safely.

This entire book is filled with important safety information - please
read it carefully.

3DANGER

You WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

3WARNING

You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

3CAUTION

You CAN be HURT if you don’t follow
instructions.

Contents

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.

Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.

This owner’s manual is for vehicles sold in the United States and
Canada.

The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.

Safe Driving P. 27

For Safe Driving P. 28

Seat Belts P. 32

Airbags P. 39

Instrument Panel P. 67

Indicators P. 68

Gauges and intelligent Multi-Information Display (i-MID) P. 84

Controls P. 101

Clock P. 102

Locking and Unlocking the Doors P. 103

Operating the Switches Around the Steering Wheel P. 121
Interior Lights/Interior Convenience Items P. 139

Features P. 147

Audio System P. 148

Audio System Basic Operation P. 154

Customized Features P192

Bluetooth® HandsFreeLink® P. 205

Driving P. 231

Before Driving P232

Towing a Trailer P. 237

Rearview Camera P. 272

Refueling P. 273

Fuel Economy P. 276

Maintenance P. 279

Before Performing Maintenance P. 280

Maintenance Minder

TM

 P. 283

Checking and Maintaining Wiper Blades P. 306
Climate Control System Maintenance P. 319

Handling the Unexpected P. 325

Tools P. 326

If a Tire Goes Flat P327

Overheating P. 347

Indicator, Coming On/Blinking P. 349

Information P. 357

Specifications P. 358

Identification Numbers P. 360

Emissions Testing P. 363

Warranty Coverages P. 365

4

Quick

 Referenc

e Guide

Quick Reference Guide

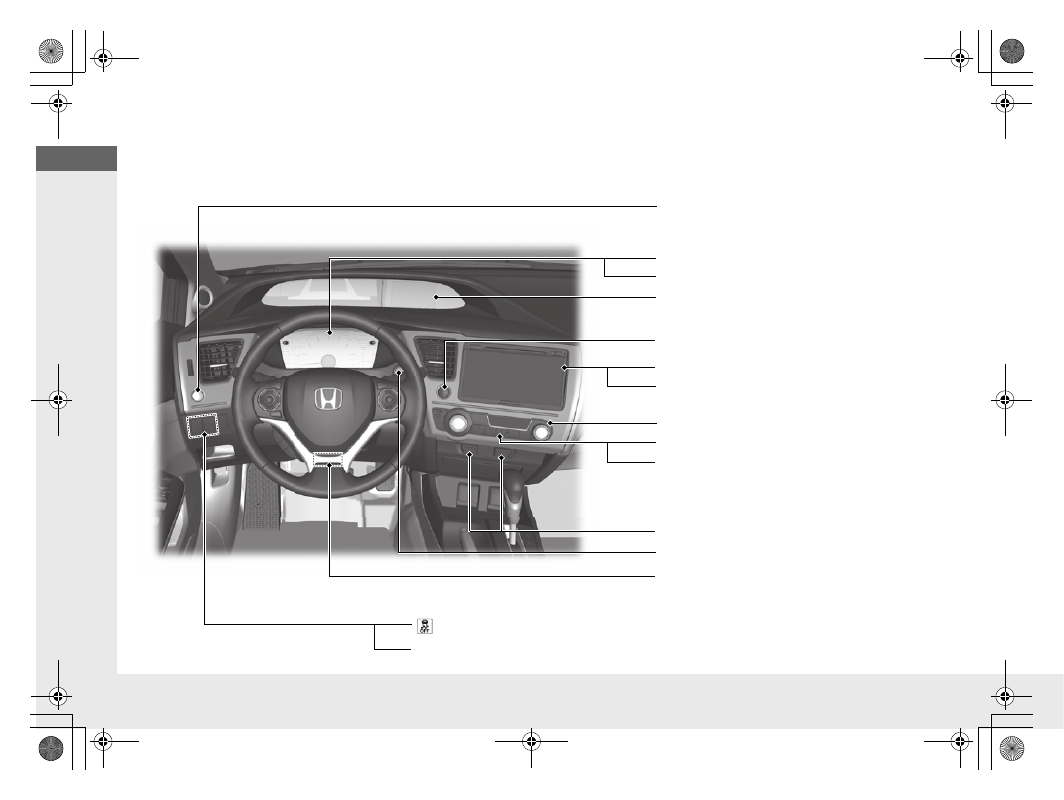

Visual Index

Steering Wheel Adjustments

(P 131)

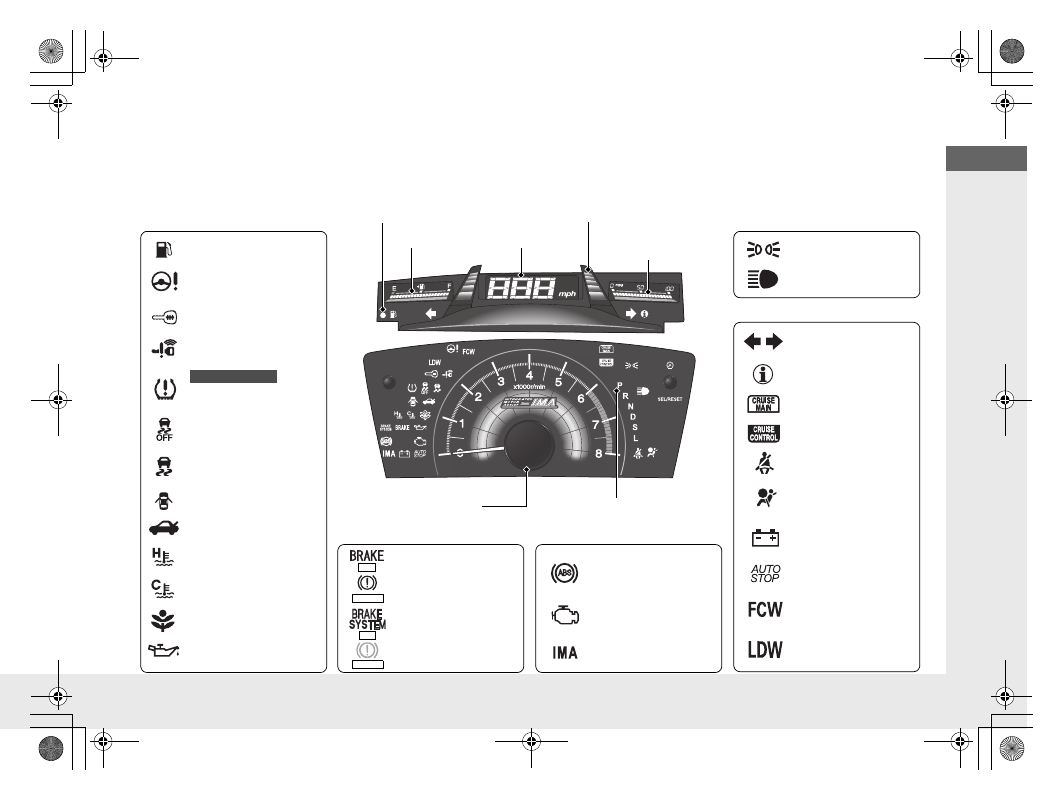

System Indicators

(P 68)

ECON Button

(P 245)

Hazard Warning Button

 (Vehicle Stability Assist (VSA®) System OFF) Button

(P 260)

Gauges

(P 84)

intelligent Multi-Information
Display (i-MID)

(P 85)

Audio System

(P148)

Navigation System

*



() See the Navigation System Manual

Heated Mirror Button

*



(P 130)

Rear Window Defogger

(P 130)

Climate Control System

(P 144)

ENGINE START/STOP Button

(P121)

Seat Heater Switches

*



(P143)

Lane Departure Warning (LDW) Button

*



(P257)

5

Quick

 Referenc

e Guide

Km/Mile Change Knob

(P 84)

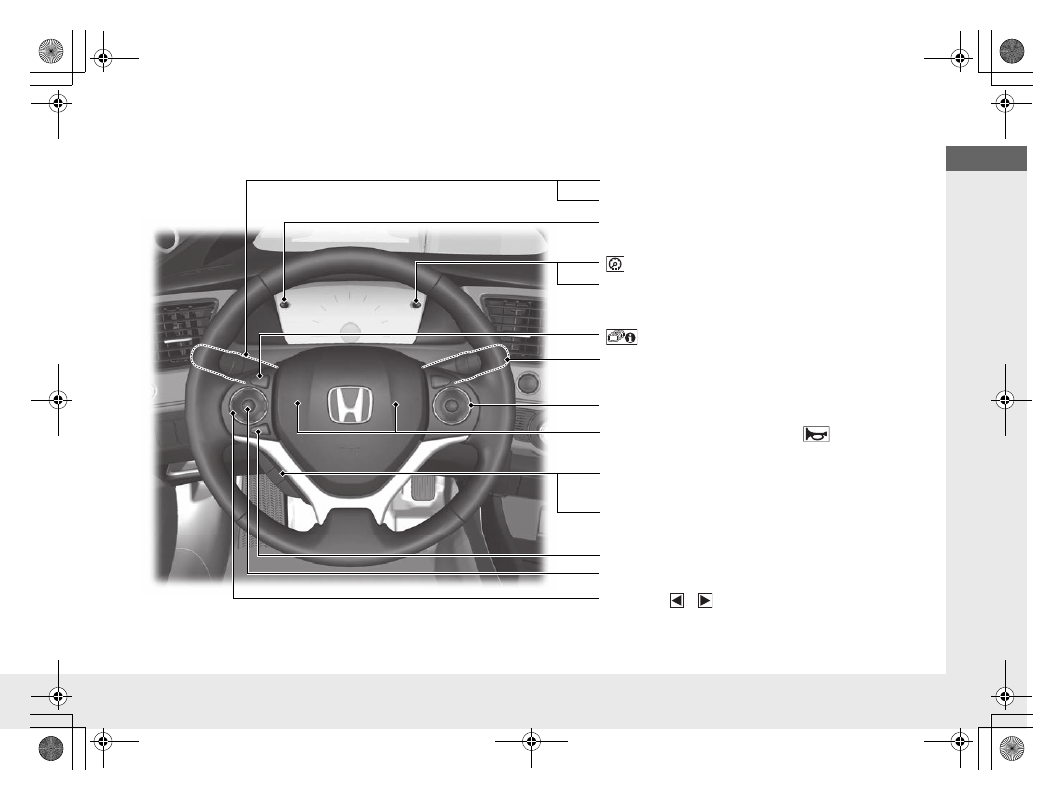

Headlights/Turn Signals

(P 124)

 (Select/Reset) Knob

(P 85)

 (Display/Information) Button

(P 85)

Wipers/Washers

(P 128)

Cruise Control Buttons

(P 249)

MENU Button

(P 93)

SOURCE Button

(P 93)

(

+

 /

(

-

 /   /   Buttons

(P 93)

Navigation System Voice Control Buttons

*



() See the Navigation System Manual

Bluetooth® HandsFreeLink® System
Voice Control Buttons

(P205)

Horn (Press an area around

.)

Brightness Control

(P 129)

LaneWatch

TM*



(P261)

* Not available on all models

Visual Index

6

Quick

 Referenc

e Guide

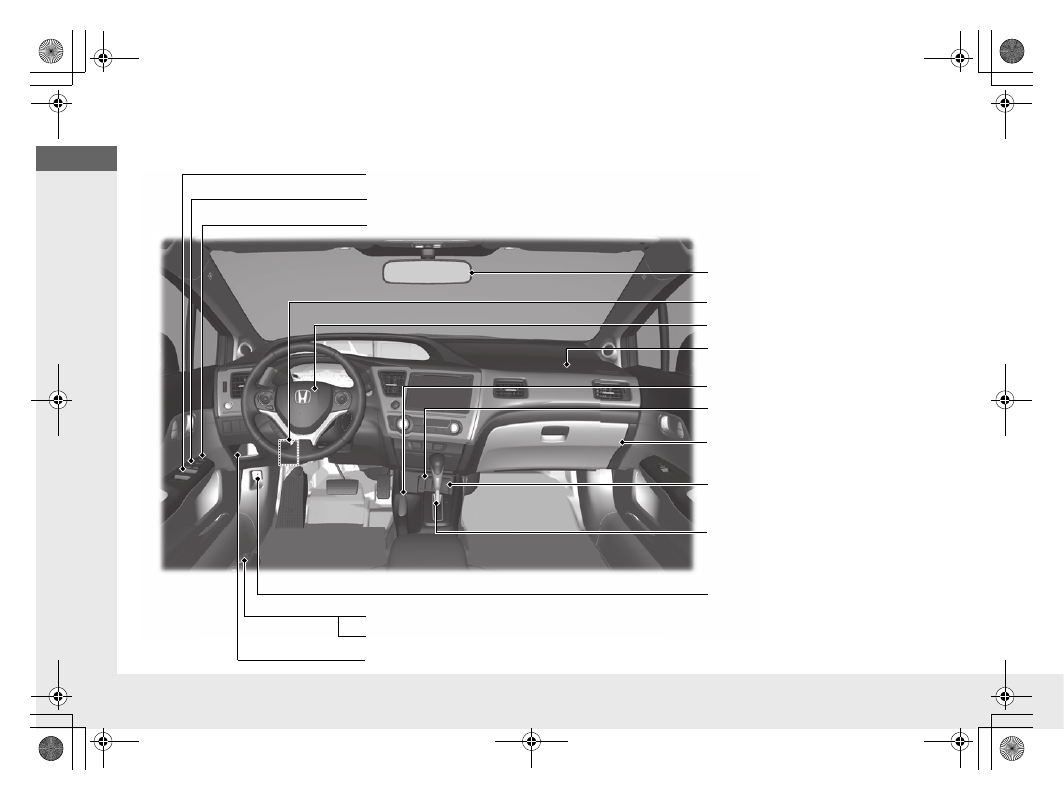

Hood Release Handle

(P 289)

Power Window Switches

(P 119)

Power Door Lock Master Switch

(P 112)

Door Mirror Controls

(P 132)

Parking Brake

(P 267)

USB/HDMI® Port

(P149)

Glove Box

(P 140)

Shift Lever
Continuously Variable
Transmission

(P 243)

Interior Fuse Box

(P 354)

Trunk Release

(P 114)

Driver’s Front Airbag

(P 42)

Fuel Fill Door Release Handle

(P 274)

Driver’s Pocket

Rearview Mirror

(P 132)

Passenger’s Front Airbag

(P 42)

Accessory Power Socket

(P 142)

7

Quick

 Referenc

e Guide

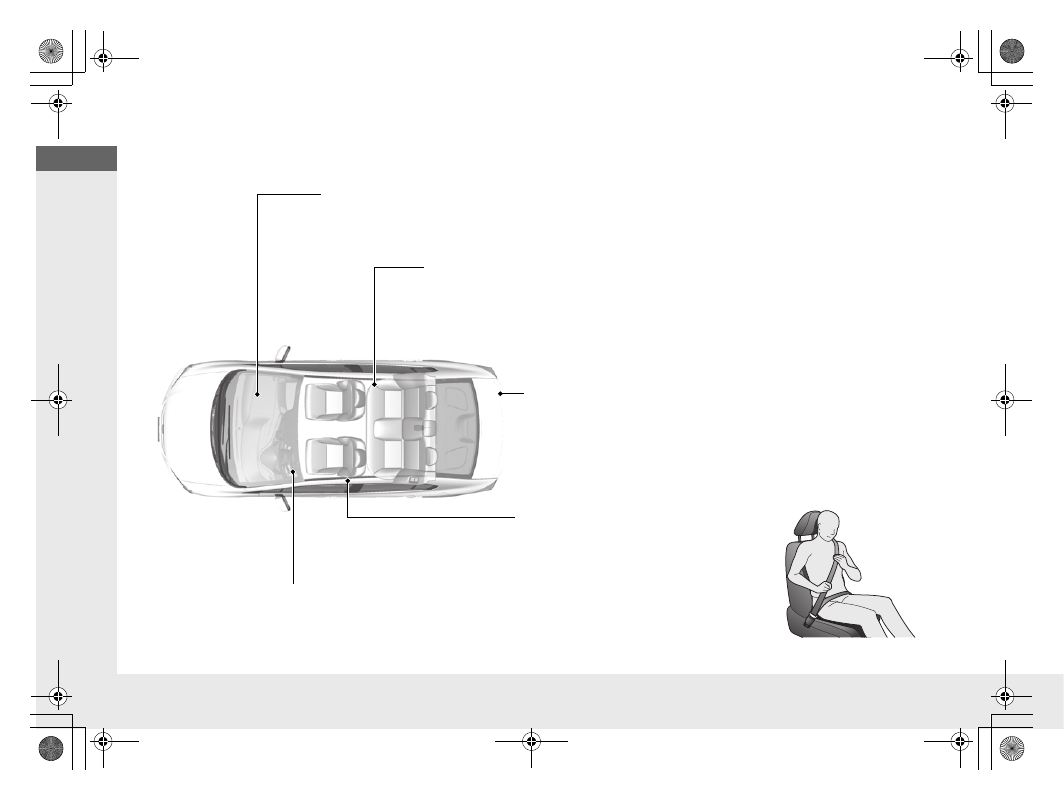

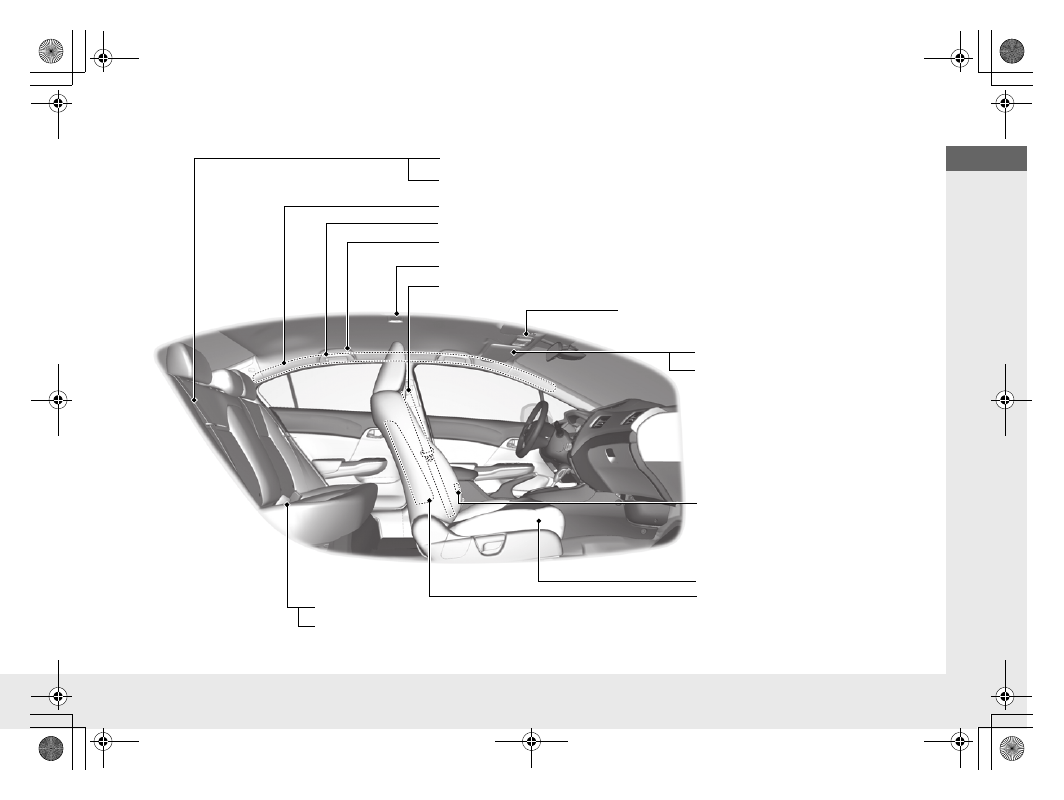

Side Curtain Airbags

(P 48)

Coat Hook

(P 142)

Grab Handle

Ceiling Light

(P 139)

Seat Belts

(P 32)

Map Lights

(P 139)

Front Seat

(P 134)

Side Airbags

(P 46)

Seat Belt to Secure a Child Seat

(P 61)

Seat Belt (Installing a Child Seat)

(P 59)

Sun Visors

Vanity Mirrors

Rear Seat

LATCH to Secure a Child Seat

(P 57)

USB Adapter Cable

(P150)

Visual Index

8

Quick

 Referenc

e Guide

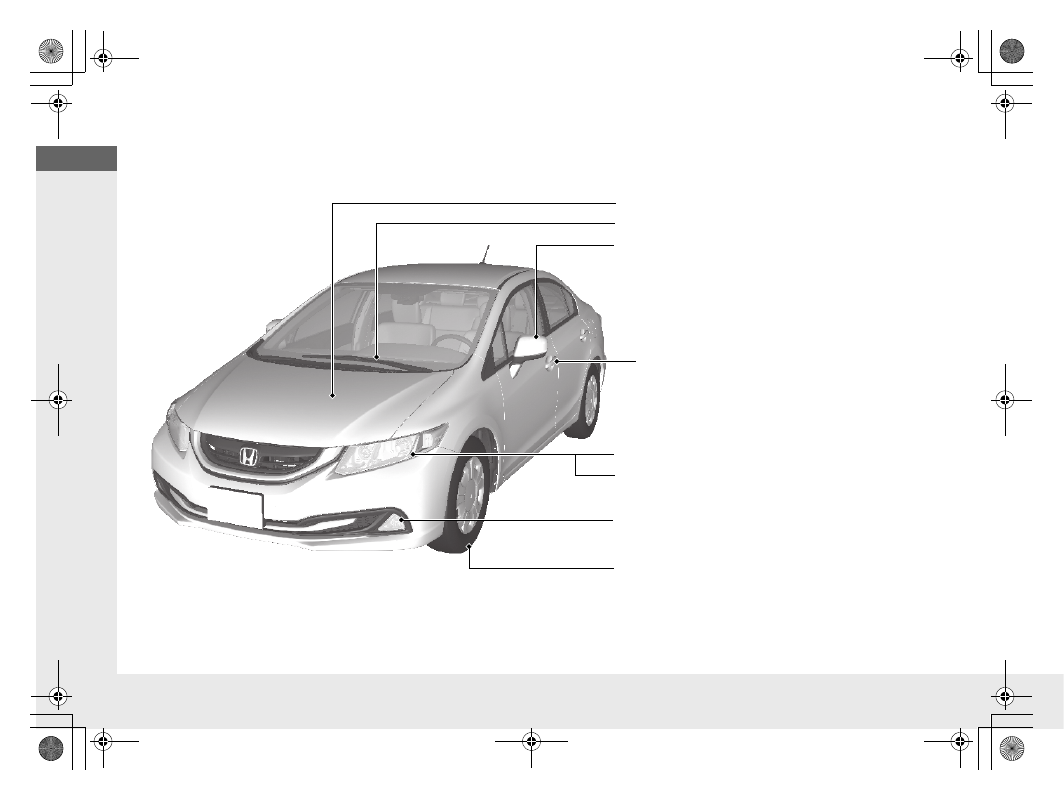

Maintenance Under the Hood

(P 288)

Windshield Wipers

(P 128, 306)

Door Lock/Unlock Control

(P 106)

Headlights

(P 124, 300)

Front Turn Signal/Parking/
Side Marker Lights

(P 124, 302)

Tires

(P 308, 327)

Power Door Mirrors

(P 132)

Daytime Running Lights

(P127, 301)

9

Quick

 Referenc

e Guide

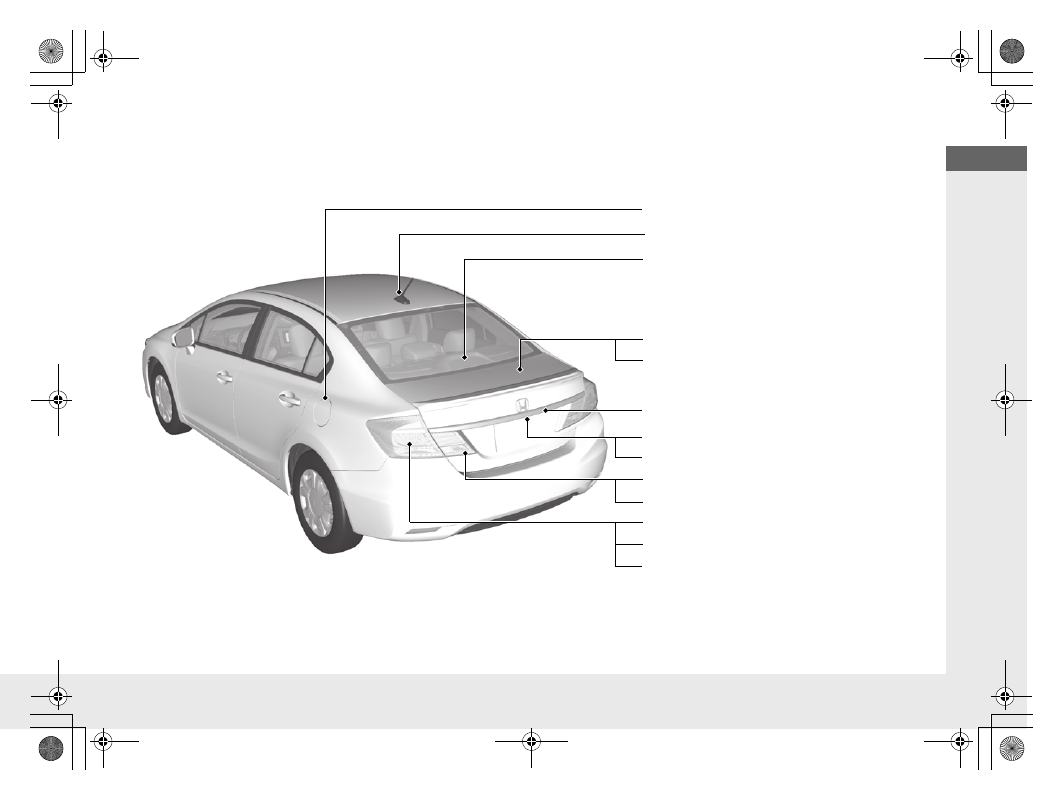

High-Mount Brake Light

(P 305)

How to Refuel

(P 274)

Brake/Taillights

(P 304)

Rear Turn Signal Lights

(P 303)

Rear Side Marker Lights

(P 304)

Audio Antenna

(P150)

Opening/Closing the Trunk

(P 114)

Emergency Trunk Release Lever

(P 116)

Trunk Release Button

(P 115)

Taillights

(P304)

Back-Up Lights

(P 303)

Rearview Camera

(P272)

Rear License Plate Lights

(P 305)

10

Quick

 Referenc

e Guide

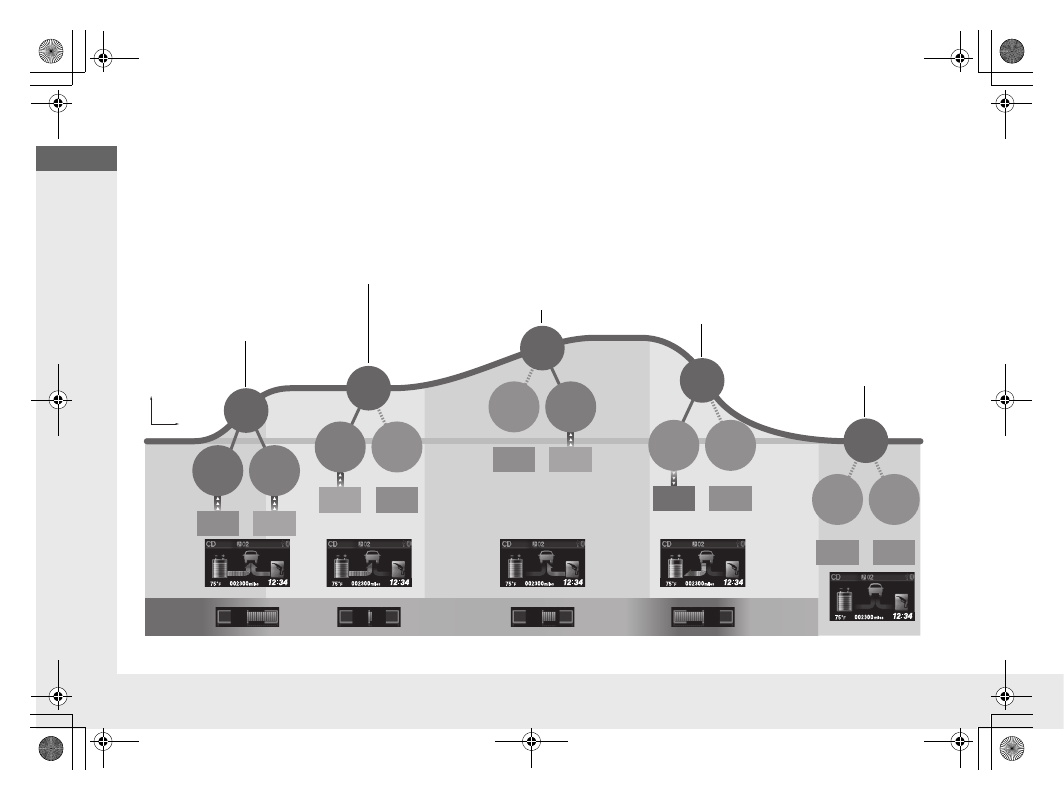

Eco Assist System

Ambient Meter

● Changes color to reflect your driving

style.
Green: Fuel efficient driving
Blue green: Moderate acceleration/
deceleration
Blue: Aggressive acceleration/
deceleration

● The ambient meter color changes in

accordance with your brake or
accelerator pedal operation.

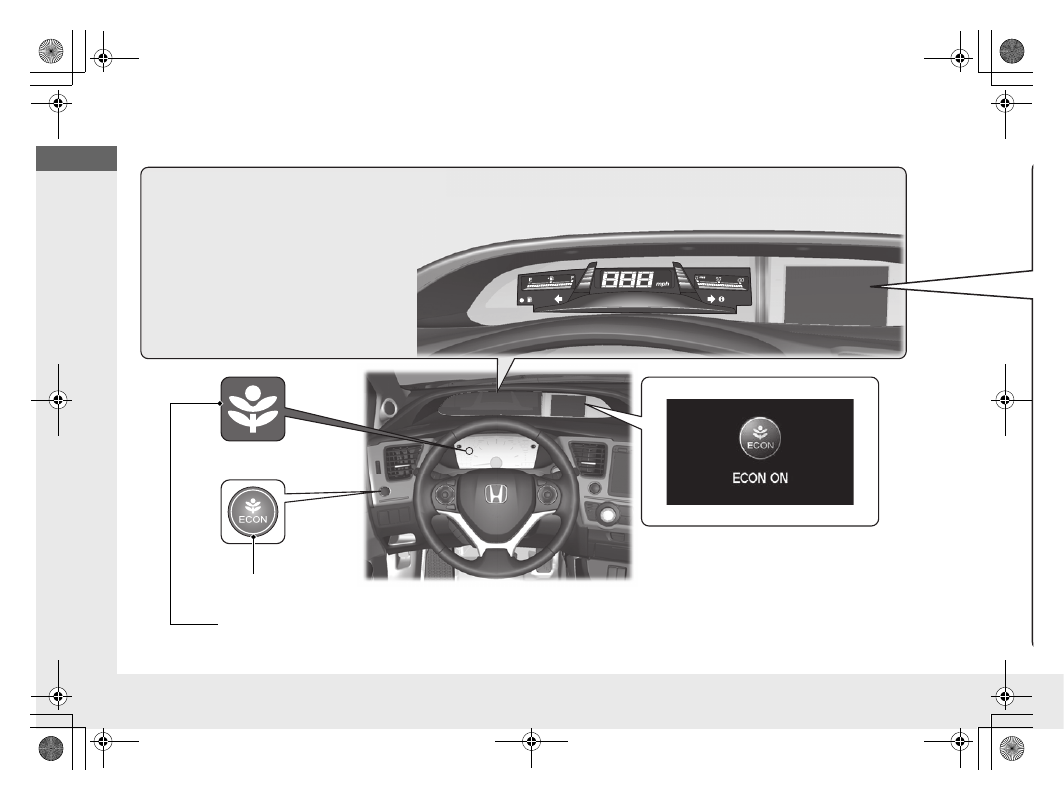

ECON Button

(P245)

ECON Mode Indicator

(P76)

Helps maximize fuel economy.

Comes on when ECON mode is on.

The message is displayed for a few seconds
when ECON mode is turned on.

11

Quick

 Referenc

e Guide

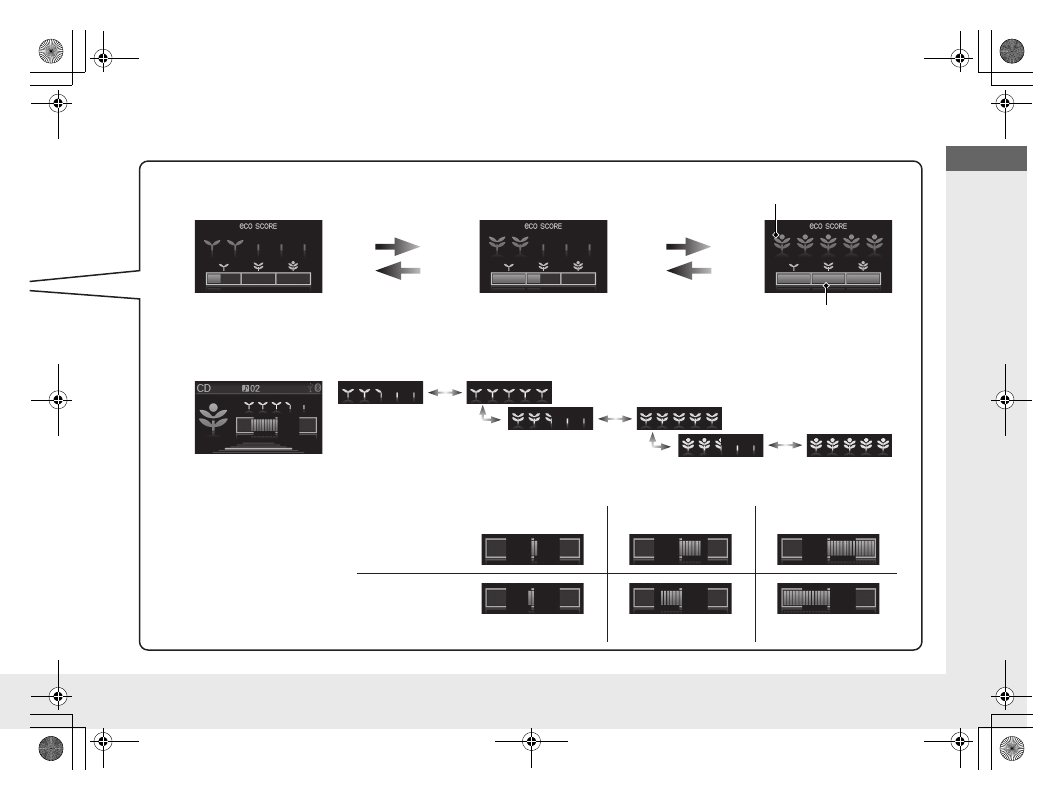

Drive Cycle Score/Lifetime Points

● Comes on when the vehicle is turned off.

Real Time Score (represents your current trip)

(P90)

● Each time you set the power mode to ON, the Ecological Drive display starts without any leaves on the plants. Leaves accumulate

or diminish based on your driving style during the current trip.

Feedback with Eco Drive Bar

(P91)

Advancing to Second Stage

Advancing to Third Stage

Receding to Second Stage

Receding to First Stage

Drive Cycle Score

Lifetime Points

The bar extends to
the right when you
press the accelerator
pedal.

The bar extends to
the left when you
press the brake
pedal.

Slow, steady acceleration/
Maximizes fuel economy

Slow deceleration/
Maximizes fuel economy

Moderate deceleration

Moderate acceleration

Aggressive/Inconsistent
acceleration

Aggressive deceleration

First Stage

Second Stage

Third Stage

● Keep the bar from extending

too much to the left or right
side. The shorter the bar is
while driving, the higher the
fuel economy becomes.

12

Quick

 Referenc

e Guide

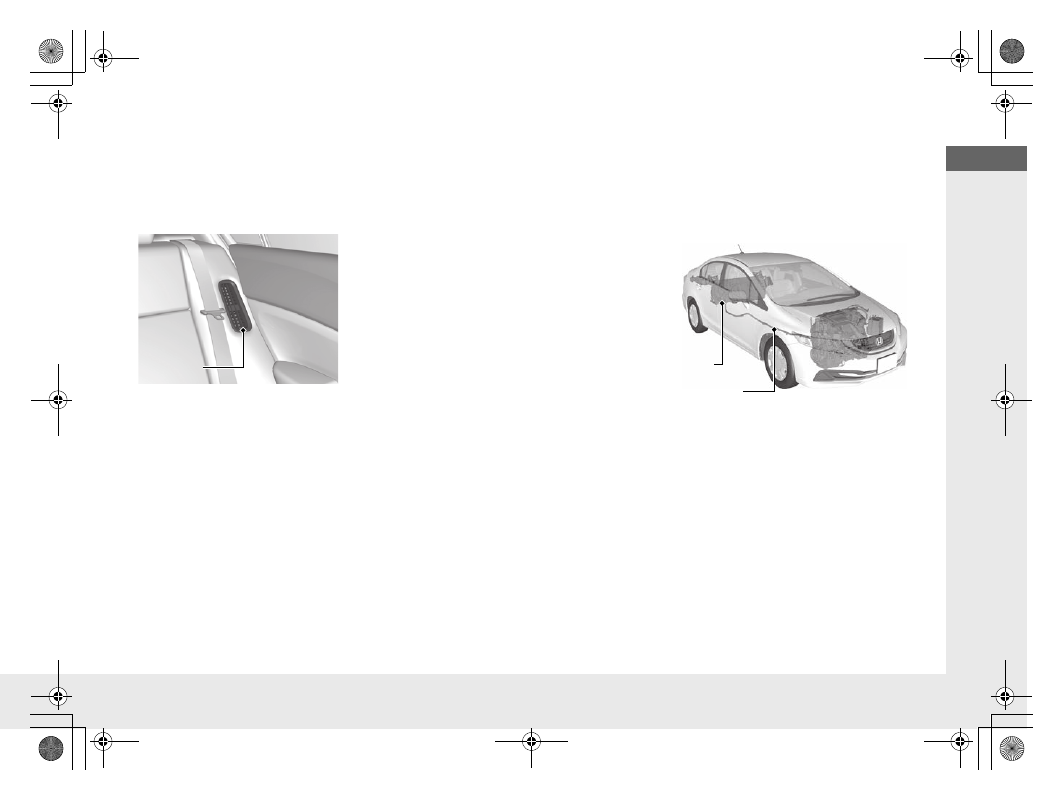

The Honda IMA System

The main power source for the Honda IMA system is the gasoline engine.
The electric motor assists the engine to improve fuel economy, based on
current operating conditions.

Tips to Improve Fuel Economy

To help your vehicle’s fuel economy:
● Avoid aggressive acceleration/braking

● Monitor the ambient meter and the Eco drive bar

displayed on the i-MID.
It reflects your driving style.

(P10, 90)

Start-up/Low speed cruise/
Aggressive acceleration

● The electric motor assists the

engine.

Low speed cruise

● Only IMA motor is

powering the vehicle and
IMA battery is discharging.

Slow acceleration/High
speed cruise

● Only the engine powers

the vehicle.

Deceleration

● The IMA system charges

the IMA battery.

Stop

● Auto Idle Stop is in

operation.

Vehicle

Speed

Time

Eco Drive Bar
Display

IMA

System

IMA

System

IMA

System

IMA

System

IMA

System

Electric

Motor

Assist

Engine

ON

Electric

Motor

Assist

Electric

Motor

OFF

Charging

Engine

OFF

Engine

ON

Engine

OFF

Engine

OFF

IMA

Battery

IMA

Battery

IMA

Battery

IMA

Battery

IMA

Battery

Fuel

Fuel

Fuel

Fuel

Fuel

Electric

Motor

OFF

13

Quick

 Referenc

e Guide

To Keep the IMA Battery in Good Condition

Drive your vehicle at least once a month, and drive for more than 30 minutes at a time. Parking your vehicle for an
extended period can cause the IMA battery to weaken or decrease the IMA battery life.

Safety Precautions

Do not cover the air intake.

Air Intake

If the air intake is obstructed during
vehicle operation, the IMA battery can
become too hot. To protect the battery,
the system may start limiting IMA battery
output power and cause the IMA system
and 12 volt battery charging system
indicators to come on.

IMA System Indicator

(P90)

12 Volt Battery Charging
System Indicator

(P69)

Do not touch the Honda IMA System

A high voltage current runs through Honda IMA System. Consult your authorized dealer
when maintenance or repair is needed.

IMA Battery

IMA Power Cable

If a crash occurs

● Be careful of electric shock hazard.

u

If a crash severely damaged your vehicle, there is a possibility of electrical shock. Do
not touch the IMA system components or their wiring (orange).

● Avoid contact with IMA battery fluid.

u

The battery fluid may leak as a result of a severe crash. Avoid any skin or eye
contact with the fluid. The battery fluid is corrosive. If you accidentally touch it,
flush the affected area(s) with a large quantity of water for at least five minutes,
and seek medical attention immediately.

● Use a fire extinguisher for an electrical fire.

u

Attempting to extinguish an electrical fire with a small quantity of water can be
dangerous.

When the vehicle is disposed

● The IMA battery is a Lithium ion battery. Honda collects and recycles used IMA

batteries – consult with your dealer for proper battery disposal in the event your
vehicle is not repairable.

14

Quick

 Referenc

e Guide

Safe Driving

(P27)

Airbags

(P39)

● Your vehicle is fitted with airbags to help protect you and

your passengers during a moderate-to-severe collision.

Child Safety

(P52)

● All children 12 and younger should be seated in the rear seat.

● Smaller children should be properly restrained in a forward-facing child seat.

● Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard

(P64)

● Your vehicle emits dangerous exhaust gases that contain carbon

monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.

Before Driving Checklist

(P232)

● Before driving, check that the front seats, head restraints,

steering wheel, and mirrors have been properly adjusted.

Seat Belts

(P32)

● Fasten your seat belt and sit upright well

back in the seat.

● Check that your passengers are wearing

their seat belts correctly.

Fasten your lap belt as
low as possible.

15

Quick

 Referenc

e Guide

Instrument Panel

(P67)

System Indicators

Malfunction

Indicator Lamp

Low Oil Pressure

Indicator

Anti-lock Brake

System (ABS

Indicator

Vehicle Stability

Assist (VSA®) System

Indicator

VSA® OFF Indicator

Electric Power

Steering (EPS) System

Indicator

Lights On Indicator

High Beam Indicator

Smart Entry System

Indicator

Seat Belt Reminder

Indicator

Lights Indicators

CRUISE MAIN

Indicator

System Message

Indicator

Brake System

Indicator (Amber)

Supplemental

Restraint System

Indicator

Forward Collision

Warning (FCW

Indicator

*

Door Open Indicator

Tachometer

Instant Fuel
Economy Gauge

Speedometer

Fuel Gauge

Security System Alarm Indicator

Shift Lever Position Indicator

Low Fuel Indicator

Gauges

(P84)

/intelligent Multi-Information Display (i-MID)

(P85)

/

System Indicators

(P68)

Trunk Open Indicator

ECON Mode Indicator

Turn Signal and

Hazard Warning

Indicators

High Temperature

Indicator

Low Temperature

Indicator

Ambient Meter

System Indicators

System Indicators

Low Tire Pressure/

TPMS Indicator

U.S. models only

Parking Brake

and Brake System

Indicator (Red)

IMA System
Indicator

CRUISE CONTROL

Indicator

System Indicators

12 Volt Battery

Charging System

Indicator

Auto Idle Stop

Indicator

U.S.

Canada

U.S.

Canada

Lane Departure

Warning (LDW

Indicator

*

Immobilizer System

Indicator

* Not available on all models















Content   ..    1  2   ..
