Honda Accord Coupe L4 (2011 year). Instruction

The HomeLink universal
transceiver built into your vehicle
can be programmed to operate up to
three remotely controlled devices
around your home, such as garage
doors, lighting, or home security
systems.

Units manufactured between April 1,
1982 and January 1, 1993 may be
equipped with safety stop and
reverse features. If your unit does
not have an external entrapment
protection system, an easy test to
confirm the function and
performance of the safety stop and
reverse feature is to lay a 2

under the closing door. The door
should stop and reverse upon
contacting the piece of wood.

As an additional safety feature,
garage door openers manufactured
after January 1, 1993 are required to
have external entrapment protection
systems, such as an electronic eye,
which detect an object obstructing
the door.

Before programming your
HomeLink to operate a garage door
opener, confirm that the opener has
an external entrapment protection
system, such as an ‘‘electronic eye,’’
or other safety and reverse stop
features.

If your garage door was
manufactured before April 1, 1982,
you may not be able to program
HomeLink to operate it. These units
do not have safety features that
cause the motor to stop and reverse
it if an obstacle is detected during
closing, increasing the risk of injury.
Do not use HomeLink with any
garage door opener that lacks safety
stop and reverse features.

All V6 models

HomeLink Universal Transceiver

General Information

Fe
a

253

Main Menu

−

If you just

received your vehicle and have not
trained any of the buttons in
HomeLink before, you should erase
any previously learned codes before
training the first button. To do this,
press and hold the two outside
buttons on the HomeLink
transceiver for about 10

20 seconds,

until the red indicator flashes.
Release the buttons, then proceed to
step 1.

Refer to the safety information that
came with your garage door opener
to test that the safety features are
functioning properly. If you do not
have this information, contact the
manufacturer of the equipment.
Before programming HomeLink to a
garage door or gate opener, make
sure that people and objects are out
of the way of the device to prevent
potential injury or damage.
When programming a garage door
opener, park just outside the garage.

HomeLink Universal Transceiver

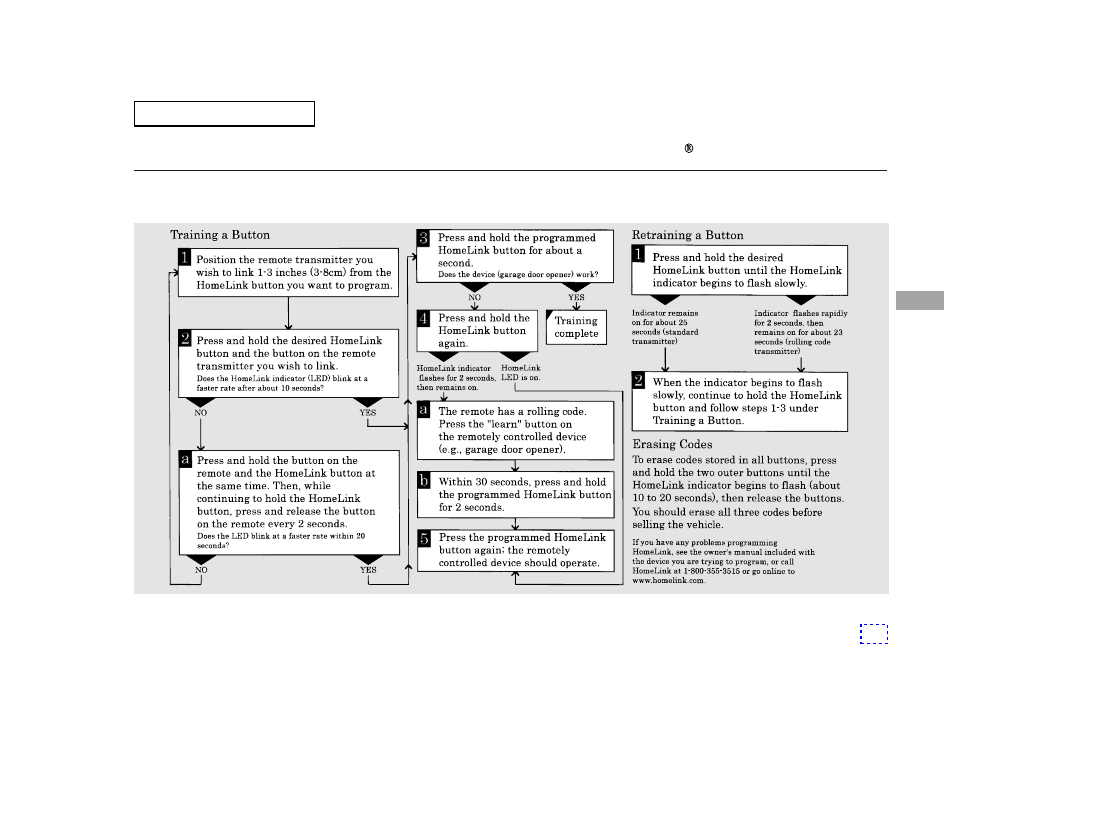

Training HomeLink

Important Safety Precautions

Before you begin

254

Main Menu

HomeLink is a registered
trademark of Johnson Controls, Inc.

As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.

This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.

HomeLink Universal Transceiver

256

Main Menu

−

Bluetooth

If equipped

handsfreelink.honda.

com

www.handsfreelink.ca,

HandsFreeLink (HFL)

allows you to place and receive
phone calls using voice commands,
without handling your cell phone.

To use HFL, you need a Bluetooth-
compatible cell phone. For a list of
compatible phones, pairing
procedures, and special feature
capabilities:

In the U.S., visit

or call (888) 528-7876.

Press and

release to give a command or answer
a call.

Press and

release to end a call, go back to the
previous command, or cancel the
command.

In Canada, visit
or call (888) 528-7876.

CONTINUED

Using HFL

HFL Talk button

HFL Back button

HFL Buttons

Bluetooth

HandsFreeLink

Fe
a

257

HFL BACK BUTTON

HFL TALK BUTTON

HFL BACK BUTTON

On models with navigation system

On models without navigation system

NAVI VOICE
CONTROL
BUTTONS

Main Menu

＃＃＃＃

Try to reduce all background
noise. If the microphone picks up
voices other than yours,
commands may be misinterpreted.

Many commands can be spoken
together. For example, you can
say ‘‘Call 123-456-

’’ or

‘‘Dial Peter.’’

Press and release the HFL Talk
button each time you want to
make a command. After the beep,
speak in a clear, natural tone.

When HFL is in use, navigation
voice commands cannot be
recognized.

To change the volume level of
HFL, use the audio system volume
knob or the steering wheel volume
controls.

Air or wind noise from the
dashboard and side vents,
windows and moonroof may
interfere with the microphone.
Adjust or close them as necessary.

Voice Control Tips

Bluetooth

HandsFreeLink

258

MICROPHONE

Main Menu

To hear general HFL information,
including help on pairing a phone
or setting up the system, say
‘‘Tutorial.’’

For help at any time, including a
list of available commands, say
‘‘Hands free help.’’

A notification that there is an
incoming call, or HFL is in use, will
appear on the navigation screen
when the audio system is on.

When there is an incoming call, or
HFL is in use, ‘‘HANDSFREELINK’’
will appear on the display.

‘‘

’’ indicator will be displayed on

the audio display when a phone is
linked.

On models with navigation system

Help Features

Information Display

Bluetooth

HandsFreeLink

Fe
a

259

U.S. model with navigation system is
shown.

BLUETOOTH INDICATOR

On models without navigation system

PHONE NUMBER

Main Menu

＃＃＃＃

How to Use HFL

Bluetooth

HandsFreeLink

260

‘‘Phone Setup’’

‘‘Call’’ or ‘‘Dial’’

‘‘Edit’’

‘‘Delete’’

The ignition switch must be in the ACCESSORY (I) or ON (II) position.

Press HFL
Talk button

Press and release the HFL Talk button each time you give a command.

Hear which paired phone is currently linked to the system

Once a phonebook entry is stored, you can say a name here.

(See page 265)

(See page 266)

‘‘Status’’

‘‘List’’

‘‘Next Phone’’

‘‘Pair’’

‘‘Jim Smith’’

‘‘Set Pairing Code’’

Set the pairing code to a ‘‘Fixed’’ or ‘‘Random’’ number
(See page 265)

(See page 263)

Pair a phone to the system

(See page 264)

Edit the name of a paired phone

(See page 264)

Delete a paired phone from the system

(See page 264)

Hear a list of all phones paired to the system

(See page 265)

Search for another previously paired phone to link to

(See page 266)

Enter desired phone number

‘‘123-456-

’’

Main Menu

CONTINUED

Bluetooth

HandsFreeLink

Fe
a

261

‘‘Redial’’

‘‘Transfer’’

‘‘Mute’’

‘‘Send’’

‘‘Phonebook’’

‘‘Store’’

‘‘Edit’’

‘‘Delete’’

‘‘Receive

Contact’’

‘‘List’’

Press HFL
Talk button

Press and release the HFL Talk button each time you give a command.

(See page 267)

Redial the last number called

(See page 270)

Transfer a call from HFL to your phone, or from your phone to HFL

(See page 271)

Mute your voice to the person at the other end of the call

(See page 271)

Send numbers or names during a call

(See page 272)

Store a phonebook entry

(See page 272)

Edit the number of an existing phonebook entry

(See page 273)

Delete a phonebook entry

(See page 273)

If your phone supports this function, use this to transfer contacts from
your phone to HFL

(See page 273)

Hear a list of all stored phonebook entries

Main Menu

＊

Bluetooth

HandsFreeLink

262

‘‘Change Language’’

‘‘Hands Free Help’’

‘‘System

Set up’’

‘‘Tutorial’’

‘‘Clear’’

‘‘Auto Transfer’’

‘‘Call Notification’’

‘‘Security’’

‘‘Change Passcode’’

Press HFL
Talk button

Press and release the HFL Talk button each time you give a command.

: Canadian models

Set how you would like to be notified of an incoming call
(See page 279)

Hear a list of available commands and additional information describing each command
(See page 259)

(See page 278)

Apply a security passcode to the system that must be input at each key
cycle to access the system

(See page 279)

Change your security passcode

(See page 279)

Set calls to automatically transfer from your phone to HFL when you
enter the vehicle

(See page 280)

Clear the system of all paired phones, phonebook entries and security
passcode

(See page 280)

Change language from English to French

(See page 259)

Hear a tutorial for general rules on using the system

Main Menu

To use HFL, you need to pair your
Bluetooth-compatible cell phone to
the system.

This command group is available for
paired cell phones.

You cannot pair your phone while
the vehicle is moving.

Your phone must be in discovery
or search mode to pair. Refer to
your phone’s manual.

Up to six phones can be paired.

Your phone’s battery may drain
faster when it is paired to HFL.

If after three minutes your phone
is not ready to pair or a phone is
not found, the system will time out
and return to idle.

Press and release the HFL Talk
button. If you are pairing a phone
for the first time, HFL will give
you information about the pairing
process. If it is not the first phone
you are pairing, say ‘‘

’’ and say ‘‘

.’’

Follow the HFL prompts and put
your phone in discovery or search
mode. HFL will give you a 4-digit
pairing code and begin searching
for your phone.

When your phone finds a
Bluetooth device, select HFL from
the options and enter the 4-digit
code from the previous step.

Follow the HFL prompts and
name the newly paired phone.

CONTINUED

Phone Setup

Phone

setup

Pair

Phone pairing tips

To pair a cell phone:

Bluetooth

HandsFreeLink

Fe
a

263

Main Menu

Say ‘‘

.’’

Say ‘‘

’’ after the prompts.

If there is more than one phone
paired to the system, HFL will ask
you which phone’s name you want
to change. Follow the HFL
prompts and rename the phone.

Press and release the HFL Talk
button before a command.

Say ‘‘

.’’

Say ‘‘

’’ after the prompts.

HFL will ask you which phone you
want to delete. Follow the HFL
prompts to continue with the
deletion.

Press and release the HFL Talk
button before a command.

HFL will read out all the paired
phone’s names.

Say ‘‘

’’ after the prompts.

Say ‘‘

.’’

Phone setup

Edit

Phone setup

Delete

List

Phone setup

To hear the names of all paired
phones:

To rename a paired phone:

To delete a paired phone:

Bluetooth

HandsFreeLink

264

Main Menu

Press and release the HFL Talk
button before a command.

Say ‘‘

.’’

Say ‘‘

’’ after the prompts.

HFL will tell you which phone is
linked to the system.

Press and release the HFL Talk
button before a command.

Say ‘‘

.’’

Say ‘‘

.’’

Press and release the HFL Talk
button before a command.

Say ‘‘

’’ after the

prompts.

HFL disconnects the linked phone
and searches for another paired
phone.

Once another phone is found, it is
linked to the system. HFL will
inform you which phone is now
linked.

If no other phones are found or
paired, HFL will inform you that the
original phone is linked again.

Say ‘‘

’’ after the

prompts.

If you want HFL to create a
random code each time you pair a
phone, say ‘‘

.’’ If you want

to choose your own 4-digit code to
be used each time, say ‘‘

’’

and follow the HFL prompts.

To hear which paired phone is
currently linked:

To change from the currently linked
phone to another paired phone:

To change the pairing code setting:

Phone setup

Status

Phone setup

Next phone

Set pairing code

Random

Fixed

Bluetooth

HandsFreeLink

Fe
a

265

Main Menu

You can make calls using any phone
number or a name in the HFL
phonebook. You can also redial the
last number called.

Press and release the HFL Talk
button before a command.

Say ‘‘

’’ or ‘‘

.’’

Follow the HFL prompts and say
the phone number you want to dial.

Follow the HFL prompts to
confirm the number and say
‘‘

’’ or ‘‘

.’’

Once connected, you will hear the
person you called through the audio
speakers.

Press and release the HFL Talk
button before a command.

Follow the HFL prompts to
confirm the name and make the
call.

Follow the HFL prompts and say
the name stored in the HFL
phonebook that you want to call.

Say ‘‘

’’ or ‘‘

.’’

Bluetooth is the wireless technology
that links your phone to HFL. HFL
uses a Class 2 Bluetooth, which
means the maximum range between
your phone and vehicle is 30 feet (10
meters).

During a call, HFL allows you to talk
up to 30 minutes after you remove
the key from the ignition switch.
However, this may weaken the
vehicle’s battery.

Making a Call

Call

Dial

Call

Dial

Call

Dial

To make a call using a phone
number:

To make a call using a name in the
HFL phonebook:

Bluetooth

HandsFreeLink

266

Main Menu

Select a phonebook you want to
choose a phone number from.

If the phonebook you select is PIN-
protected, you will need to enter the
PIN to access it. See page

for

more information.

Press and release the HFL Talk
button and say ‘‘

.’’

Select ‘‘

.’’

Press the INFO button, then select
‘‘

.’’

276

On models with navigation system

CONTINUED

To redial the last number called by
HFL:

To make a call from an imported
phonebook:

Redial

Search Imported

Phonebook

Cellular Phone

Bluetooth

HandsFreeLink

Fe
a

267

Main Menu

Select the name. All the phone
numbers stored for that name will
be listed.

To search for a specific name in the
phonebook, enter the keyword for
either the first or last name.

To display all names in the
phonebook, select the ‘‘

’’ option.

Selecting ‘‘

,’’ the phone

number will be stored in HFL, so
that you can call it using HFL’s name
tag by voice.

Select the phone number, and
push the interface selector to the
right.

List

Store in

HandsFreeLink

Bluetooth

HandsFreeLink

268

Push up the interface selector to
show a list.

Main Menu

Honda Accord Coupe L4 (2011 year). Instruction - part 17
